Volvo V60 Cross Country (2018 year). Instruction - part 9





LOADING AND STORAGE

* Option/accessory.

145

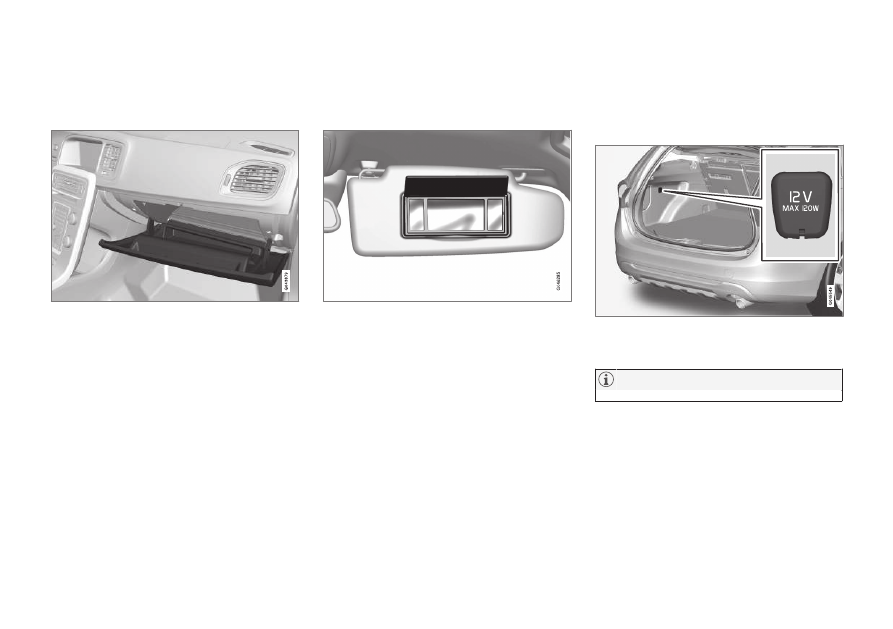

Glove compartment

The glove compartment provides a lockable stor-
age compartment for small items.

The owner's manual and maps can be kept here.
There are also holders for pens and fuel cards.
The glove compartment can be locked manually
with the key blade, see Locking/unlocking –
glove compartment (p. 168).

Related information

Storage spaces (p. 142)

Vanity mirror

The vanity mirrors are located on the upper side
of the sun visors.

Vanity mirror with lighting

The light comes on automatically when the cover
is lifted.

Related information

Storage spaces (p. 142)

Bulbs – vanity mirror lighting (p. 350)

12-volt socket in the cargo area*

The 12-volt socket can be used e.g., to connect
the tire sealing system's compressor (certain
models) and other 12-volt accessories.

Fold down the cover to access the electrical
socket.

NOTE

Related information

Storage spaces (p. 142)

Tunnel console – 12-volt sockets (p. 144)

LOADING AND STORAGE

146

Loading – general

The load carrying capacity of your vehicle is
determined by factors such as the number of
passengers, the amount of cargo, the weight of
any accessories that may be installed, etc.

To increase loading space, the rear seat back-
rests can be folded down, see Rear seats – fold-
ing backrest (p. 89).

When loading the cargo area, keep the following
in mind:

Load objects in the cargo area against the
backrest whenever possible.

Unstable loads can be secured to the load
anchoring eyelets with straps or web lash-
ings to help keep them from shifting.

Stop the engine and apply the parking brake
when loading or unloading long objects. The
gear selector can be knocked out of position
by long loads, which could set the vehicle in
motion.

WARNING

Stop the engine, put the gear selector in
P, and apply the parking brake when
loading or unloading long objects.

The vehicle's driving characteristics may
change depending on the weight and dis-
tribution of the load.

A 44-pound (20 kg) object produces a
force of 2,200 pounds (1,000 kg) in a
head-on collision at 30 mph (50 km/h).

The cargo compartment and rear seat
should not be loaded to a level higher
than 2 in. (5 cm) below the upper edge of
the rear side windows. Objects placed
higher than this level could impede the
function of the Inflatable Curtain.

Related information

Load anchoring eyelets (p. 147)

Steel cargo grid (p. 150)

Loading – roof load carriers (p. 146)

Loading – roof load carriers

Using load carriers

Load carriers are available as Volvo accessories.
Observe the following points when in use:

To avoid damaging your vehicle and to
achieve maximum safety when driving, we
recommend using the load carriers that Volvo
has developed especially for your vehicle.

Volvo-approved removable roof racks are
designed to carry the maximum allowable
roof load for this vehicle: 220 lbs (100 kg).
For non-Volvo roof racks, check the manu-
facturer's weight limits for the rack.

Never exceed the rack manufacturer's weigh
limits and never exceed the maximum rated
roof load of 220 lbs (100 kg).

Avoid single-point loads. Distribute loads
evenly.

Place heavier cargo at the bottom of the
load.

Secure the cargo correctly with appropriate
tie-down equipment.

Check periodically that the load carriers and
load are properly secured.

Remember that the vehicle's center of gravity
and handling change when you carry a load
on the roof.

LOADING AND STORAGE

147

The vehicle's wind resistance and fuel con-
sumption will increase with the size of the
load.

Drive smoothly. Avoid rapid starts, fast cor-
nering and hard braking.

Related information

Loading – general (p. 146)

Load anchoring eyelets (p. 147)

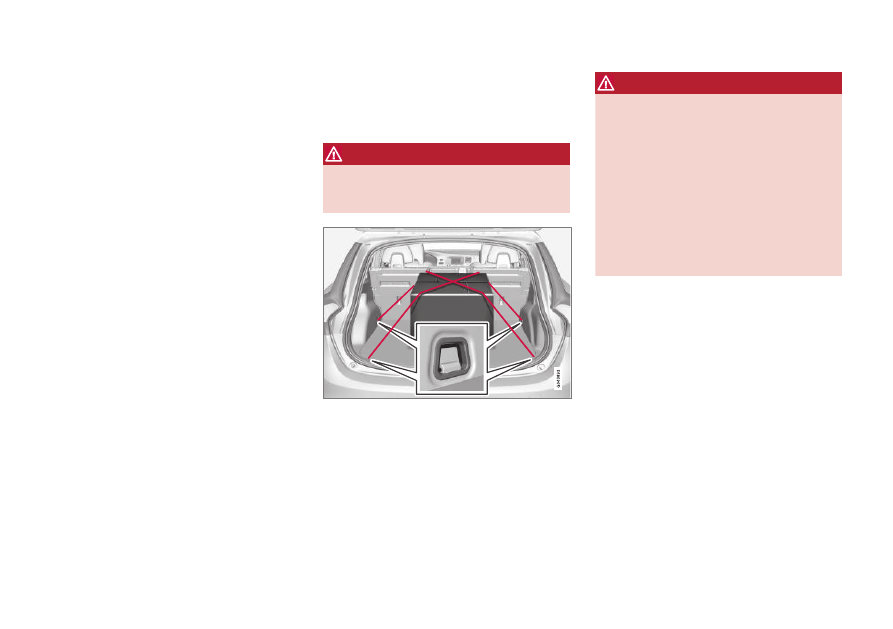

Load anchoring eyelets

The load anchoring eyelets on both sides of the
vehicle are used to fasten straps, etc., to help
anchor items in the cargo area.

WARNING

The two upper hooks shown in the illustration
are for holding grocery bags only. They are

not intended for anchoring heavy objects.

WARNING

Cover sharp edges on long loads to help
prevent injury to occupants. Secure the
load to help prevent shifting during sud-
den stops.

Always secure large and heavy objects
with a seat belt or cargo retaining straps.

Always secure the load to help prevent it
from moving in the event of sudden stops.

Switch off the engine, apply the parking
brake and put the gear selector in P
when loading and unloading the vehicle.

Related information

Loading – general (p. 146)

LOADING AND STORAGE

148

Grocery bag holder

The grocery bag holder holds shopping bags in
place.

Grocery bag holder under the floor of the cargo area

The grocery bag holder holds shopping bags in
place.

1. Open the hatch in the floor of the cargo area.

2. Secure the shopping bags with the strap.

Related information

Loading – general (p. 146)

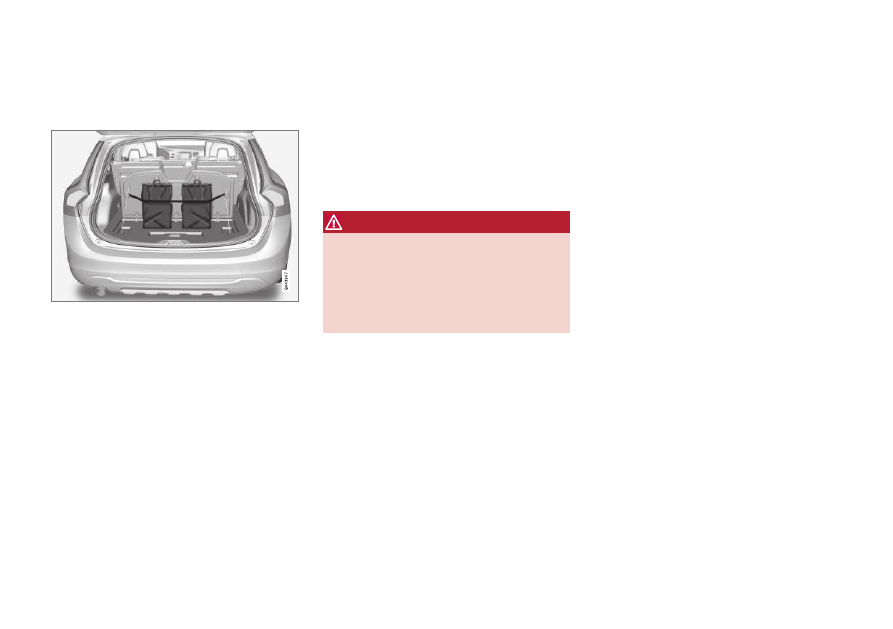

Cargo net – mounting/removing

Using the cargo net

The net can be attached in two positions in the
vehicle:

Rear position: behind the rear seat's backrest

Front position: Behind the front seats' back-
rests

WARNING

When in use, the cargo net must always be
attached correctly in order to function prop-
erly.

All objects in the cargo area should be
securely lashed down.

A damaged cargo net should never be used.

The easiest way to mount the cargo net is
through one of the rear doors.

Mounting in the rear position

1. Fold out the cargo net. Be sure the net's

storage pockets are facing rearward.

2. Insert one of the net's upper attachments

into one of the rear brackets near the roof
liner.

3. Insert the net's other attachment into the

bracket on the opposite side of the vehicle.

Be sure to press the hooks as far forward
into the brackets as possible.

4. Attach the lower hooks to the forward-most

floor eyelets in the cargo area. Tighten the
camlock by pressing down its tongue and
tightening the strap.

LOADING AND STORAGE

}}

149

Mounting in the front position

1. Fold out the cargo net. Be sure the net's

storage pockets are facing rearward.

2. Attaching the net is easier if the front seats

are moved as far forward as possible.

3. Insert one of the net's upper attachments

into one of the front brackets near the roof
liner.

4. Insert the net's other attachment into the

bracket on the opposite side of the vehicle.

Be sure to press the hooks as far forward
into the brackets as possible.

5. Attach the lower hooks to the eyelets on the

front seat floor rails. Tighten the camlock by
pressing down its tongue and tightening the
strap.

If the front seats are moved rearward, they should
not press hard against the net.

CAUTION

When moving the front seats with the cargo
net installed, only move the seat(s)/back-
rest(s) rearward until they touch the net.

Excessive pressure from the front seats
against the cargo net could damage the net
and/or its brackets.

Removing and storing the cargo net

1. Release the lower hooks.

2. Remove the net's upper attachments from

the ceiling brackets.

3. Fold the net.

When not in use, the cargo net can be stored
under floor of the cargo area.

Related information

Loading – general (p. 146)

Steel cargo grid (p. 150)

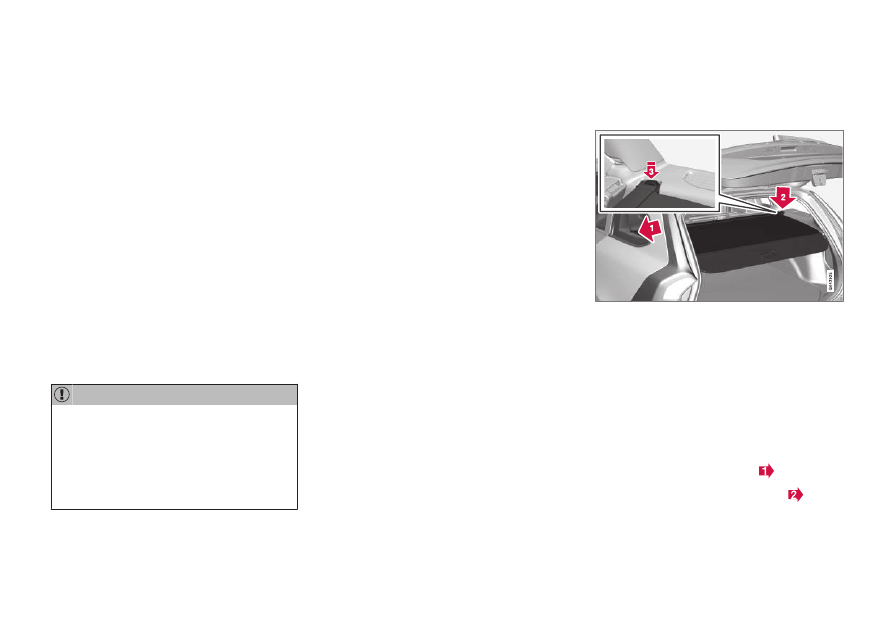

Cargo area cover

The cargo area cover can be used to conceal
objects in the cargo area.

Use

Pull the cover over the cargo and hook it into
the holes in the rear cargo area pillars.

To retract (roll up) the cover, release it from
the holes and guide it toward the rear seat
backrest.

Installing the cover

1. Press the end piece on one side of the cargo

area cover into the retaining bracket in the
side panel of the cargo area

.

2. Do the same on the opposite side

.

||

LOADING AND STORAGE

150

3. Press both sides of the cover until they click

into place

. The red mark will no longer be

visible.

4. Check that both ends of the cover are

securely locked in place.

Removing the cover

1. Press one of the end pieces of the cover

inward.

2. Pull the cover carefully upward and outward.

The other end will release automatically from
its retaining bracket.

Folding down the cargo area cover's
rear flap

The cargo area cover's rear flap points horizon-
tally when the cover is retracted (rolled up). To
fold it down:

Pull the flap slightly rearward past its sup-
ports and fold it down.

NOTE

On models equipped with this cover, it should
be removed before a child seat is attached to
the child restraint anchors.

Related information

Loading – general (p. 146)

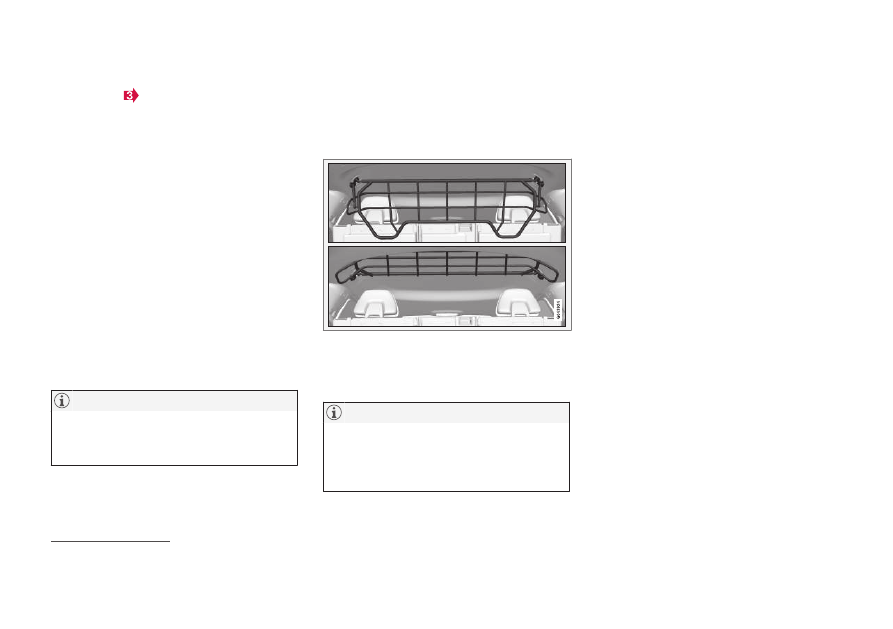

Steel cargo grid

Your vehicle can be equipped with a steel grid
that helps prevent objects in the cargo area from
moving forward into the passenger compart-
ment.

Folding the grid up/down

Grasp the lowering edge of the grid and pull it
rearward/upward, or push it downward/forward.

NOTE

If the steel grid is to be used with the optional
cargo area cover, the grid must be folded
down before the cargo area cover is put in
place.

Installing the steel cargo grid

For information about the necessary tools and
procedures for installing/removing the steel
cargo grid, please refer to the assembly instruc-
tions

1

 that were included when the grid was pur-

chased.

Related information

Cargo area cover (p. 149)

1

Assembly instruction no. 30756681.

LOCKS AND ALARM

152

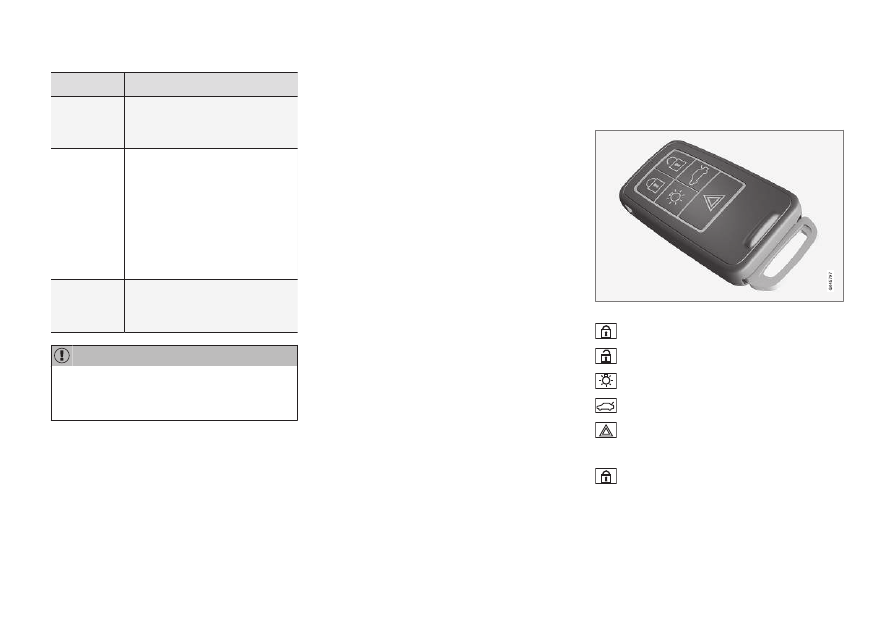

Remote key and key blade

Two remote keys are provided with your vehicle.
They enable you to unlock the doors and tail-
gate, and also function as ignition keys to start
the vehicle or operate electrical components.

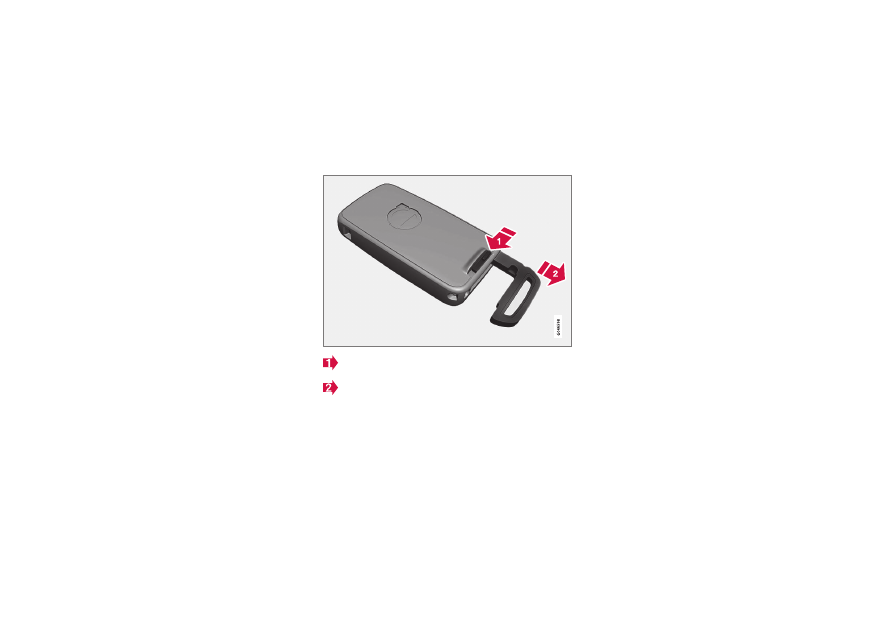

The remote keys contain detachable metal key
blades for manually locking or unlocking the driv-
er's door and the glove compartment. The visible
ends of these key blades are unique to make it
easier to identify "your" remote key. Up to six
remotes can be programmed for use on the
same vehicle.

WARNING

Never leave the remote key in the ignition slot
if children are to remain in the vehicle.

For more information on the various ignition
modes, see Ignition modes (p. 82).

Related information

Remote key – functions (p. 155)

Remote key – functions (p. 155)

Remote key – range (p. 156)

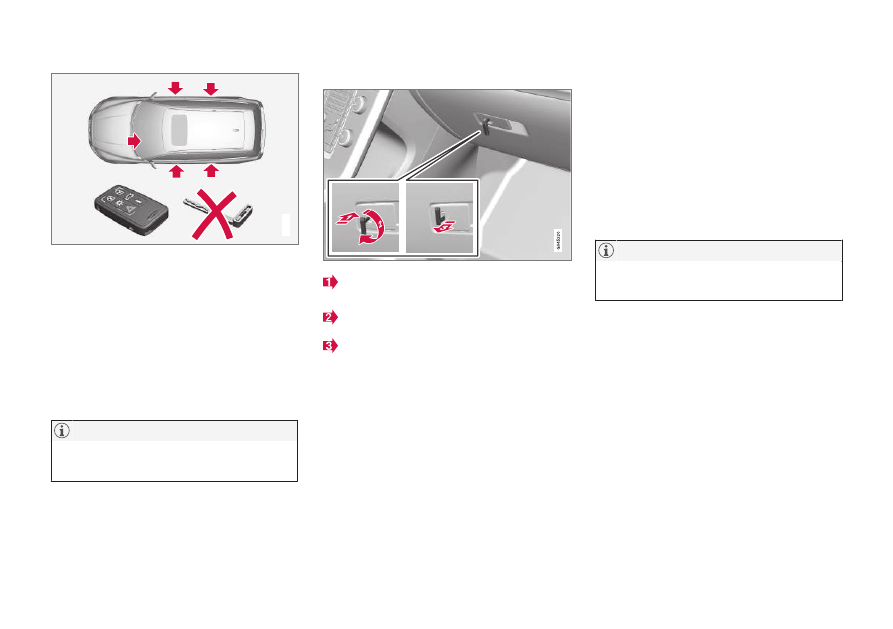

Remote key – loss

If either of the remote keys (p. 152) is lost, the
other should be taken with the vehicle to a Volvo
retailer. As an anti-theft measure, the code of the
lost remote key must be erased from the system.

NOTE

Additional or duplicate remote control keys
can be obtained from any authorized Volvo
retailer.

You can also obtain additional or duplicate
remote control keys from certain independent
repair facilities and locksmiths that are quali-
fied to make remote control keys. Each key
must be programmed to work with your vehi-
cle.

California Only:

A list of independent repair facilities and/or
locksmiths known to Volvo that can cut and
code replacement keys can be found:

on the Volvo website at
http://www.volvocars.com/us/keys

by calling Volvo Customer Care at
1-800-458-1552

The number of registered keys for the vehicle can
be found by pressing MY CAR and going into

Settings

Information

Number of keys

.

For a description of the menu system, see My Car
– introduction (p. 79).

USA-5WK49264

FCC ID:KR55WK49264 + Siemens VDO
5WK49236

FCC ID:KR55WK49236, 5WK49266

FCC ID:KR55WK49266 + Siemens VDO
5WK49233

FCC ID:KR55WK49233

This device complies with part 15 of the FCC
rules and RSS-210. Operation is subject to the
following conditions: (1) This device may not
cause harmful interference, and (2) this device
must accept any interference received, including
interference that may cause undesired operation.

Canada-5WK49264

IC:267T-5WK49264 + Siemens VDO
5WK49236

IC:267T-5WK49236, 5WK49266

IC:267T-5WK49266 + Siemens VDO
5WK49233

IC:267T-5WK49233

Operation is subject to the following conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired
operation of the device.

LOCKS AND ALARM

* Option/accessory.

153

Related information

Remote key – functions (p. 155)

Key memory

The memory in the remote key makes it possible
to store certain personal settings.

The position of the side door mirrors, power driv-
er's seat

* and the selected instrument panel

theme

1

 are stored in the remote keys when the

vehicle is locked. The next time the driver's door
is unlocked with the same remote key and the
door is opened within 2 minutes, the power driv-
er's seat and side door mirrors will automatically
move to the position that they were in when the
doors were most recently locked with the same
remote key. If the seat/mirrors have not been
readjusted since the vehicle was locked, they will
already be in the position stored in that particular
remote key and will not move. For more informa-
tion on this feature, see Front seats – power seat
(p. 84).

This feature can be activated or deactivated in
the vehicle's menu by pressing MY CAR and
going into

Settings

Car settings

Car key

memory

. For a description of the menu system,

see My Car – introduction (p. 79).

NOTE

If the vehicle is locked with the remote key or
is left unlocked for more than 30 minutes, the
key memory function will be deactivated.

To reactivate the key's memory:

Press the unlock button on the remote
key.

For information regarding vehicles with the
optional keyless drive, see Keyless drive

*– lock-

ing/unlocking (p. 161).

Related information

Locking/unlocking confirmation (p. 154)

1

Optional digital instrument panel only

LOCKS AND ALARM

* Option/accessory.

154

Locking/unlocking confirmation

Settings can be made in the menu system for
audible and visual confirmation when the vehicle
has been locked or unlocked. With these func-
tions activated, the following will occur when the
vehicle is locked/unlocked:

Locking confirmation

The turn signals flash once, an audible signal
sounds and the door mirrors will fold

* in.

Confirmation will only be given when all doors
and the tailgate are properly closed and locked.

NOTE

If you do not receive confirmation when lock-
ing the vehicle, check whether a door or the
tailgate is ajar, or if this feature has been
turned off in the menu.

Unlocking confirmation

The turn signals will flash twice and the door
mirrors will fold

* out.

Making a setting

Different alternatives for locking/unlocking con-
firmation can be selected in the menus by press-
ing MY CAR on the center console control panel.

To activate visual confirmation: go to

Settings

Car settings

Light settings

and select

Door lock confirmation light

 and/or

Unlock confirmation light

 by

pressing OK/MENU.

To activate audible confirmation: go to

Settings

Car settings

Lock settings

and select

Audible confirmation

 by press-

ing OK/MENU.

For a description of the menu system, see My Car
– introduction (p. 79).

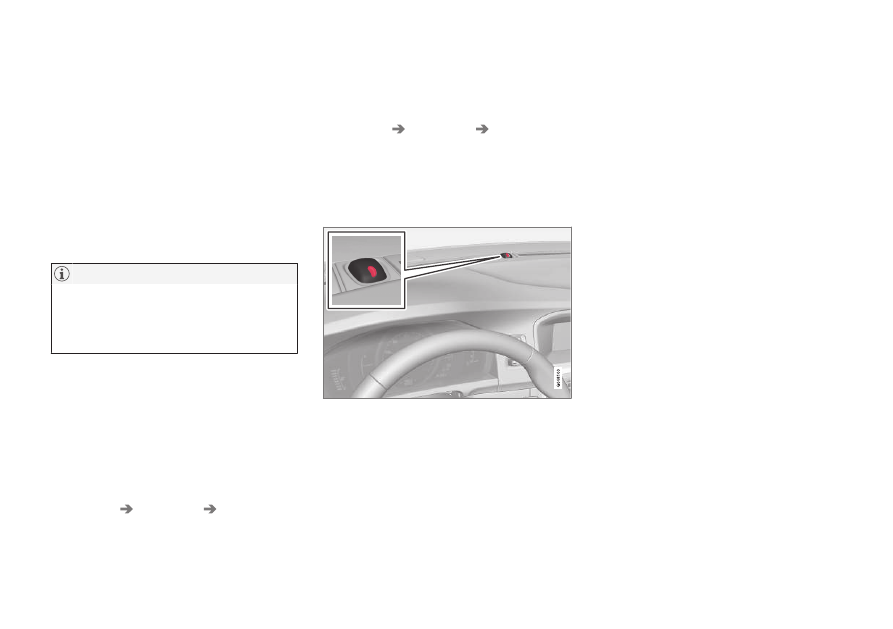

Lock indicator

Lock/alarm indicator light

A flashing indicator light at the base of the wind-
shield verifies that the vehicle is locked.

Related information

Locking/unlocking – from the outside
(p. 165)

Locking/unlocking – from inside (p. 166)

Locking/unlocking – tailgate (p. 168)

Immobilizer (start inhibitor)

The immobilizer is a start inhibitor that helps pre-
vent unauthorized persons from starting the
engine.

Each of the keys supplied with your vehicle con-
tains a coded transponder. The code in the key
is transmitted to an antenna in the ignition slot
where it is compared to the code stored in the
start inhibitor module. The vehicle will start only
with a properly coded key. If you misplace a key,
take the other keys to a trained and qualified
Volvo service technician for reprogramming as
an anti-theft measure. The following messages
(which may appear in the instrument panel dis-
play) are related to the immobilizer:

LOCKS AND ALARM

}}

* Option/accessory.

155

Message

Meaning

Insert car
key

Remote key not recognized dur-
ing start. Try to start the vehicle
again.

Car key
not found

Vehicles with keyless drive

*

only. Remote key not recog-
nized during start. Try to start
the vehicle again.

If the problem continues, insert
the remote key into the ignition
slot and try to start the vehicle
again.

Immobil-
izer Try
start again

Remote key fault during start.
Contact an authorized Volvo
workshop.

CAUTION

Never use force when inserting the remote
key in the ignition slot. The vehicle cannot be
started if the transponder is damaged.

USA–FCC ID: LTQWFS 125VO

This device complies with part 15 of the FCC
rules. Operation is subject to the following condi-
tion: (1) This device may not cause harmful inter-
ference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.

Canada–IC: 3659A-WFS125VO

Operation is subject to the following conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause undesired
operation of the device.

For information on starting the vehicle, see Star-
ting the engine (p. 258).

Remote key – functions

The remote key is used e.g., to unlock the doors
and start the engine.

Remote key

  Lock

  Unlock

 Approach lighting

 Tailgate unlock

 Panic alarm

Buttons on the remote

 Lock – Press the Lock button on the remote

once to lock all doors and the tailgate. The turn
signals will flash once to confirm locking.

||

LOCKS AND ALARM

* Option/accessory.

156

 Unlock – Press the Unlock button on the

remote once to unlock the driver's door.

After a short pause, press the Unlock button a
second time within 10 seconds to unlock the
other doors and the tailgate.

This function can be changed so that all doors
unlock at the same time by pressing My Car and
going to

Settings

Car settings

Lock

settings

Change doors unlock setting

. For

a description of the menu system, see My Car –
introduction (p. 79).

 Approach lighting – As you approach the

vehicle, press the button on the remote key to
light the interior lighting, parking lights, license
plate lighting and the lights in the door mirrors

*.

These lights will switch off automatically after 30,
60 or 90 seconds. For a description of the menu
system, see My Car – introduction (p. 79).

 Unlock tailgate – Press the button twice

within several seconds to disarm the alarm sys-
tem (the alarm indicator light on the dashboard
will go out), and unlock only the tailgate.

NOTE

As an added safety precaution, the parking
lights will come on automatically for a short
period when the tailgate has been opened.

After closing, the tailgate will not automatically
relock. Press Lock to relock it and rearm the
alarm.

For information on opening the tailgate from the
passenger compartment, see Locking/unlocking
– tailgate (p. 168)

 Panic alarm – This button can be used to

attract attention during emergency situations.

To activate the panic alarm, press and hold this
button for at least 3 seconds or press it twice
within 3 seconds. The turn signals and horn will
be activated. The panic alarm will stop automati-
cally after 2 minutes and 45 seconds.

To deactivate, wait approximately 5 seconds and
press the button again.

The Panic alarm button will not unlock the vehi-
cle.

Related information

Locking/unlocking – from inside (p. 166)

Locking/unlocking – from the outside
(p. 165)

Locking/unlocking confirmation (p. 154)

Remote key – range

The remote key has a range of approximately
60 ft. (20 m) from the vehicle.

NOTE

Buildings or other obstacles may interfere
with the function of the remote key. The vehi-
cle can also be locked or unlocked with the
key blade, see Alarm-related functions
(p. 172).

If the remote key is removed from the vehicle
while the engine is running or if the ignition is in
mode I or II and all of the doors are closed, a
message will appear in the instrument panel dis-
play and there will be an audible signal.

When the remote key is returned to the vehicle,
the message will be erased and the audible sig-
nal will stop after one of the following has been
done:

The remote key is inserted in the ignition slot

The vehicle's speed exceeds 20 mph
(30 km/h)

The OK button on the left steering wheel
lever is pressed

Related information

Remote key – functions (p. 155)

LOCKS AND ALARM

157

Detachable key blade – general

information

Each remote key contains a detachable metal
key blade (p. 152) for mechanically locking or
unlocking the driver's door and the glove com-
partment, and to enable the private lock-
ing(p. 158) function. For more information on
the key blade. The key blades have a unique
code, which is used if new ones need to be pro-
duced. This code is available at an authorized
Volvo retailer.

The visible ends of these key blades are unique
to make it easier to identify "your" remote key.

Related information

Detachable key blade – unlocking (p. 158)

Detachable key blade – detaching/reinsert-
ing (p. 157)

Detachable key blade – detaching/

reinserting

The detachable key blade (p. 157) can be
removed or reinserted in the remote key as fol-
lows:

Removing the key blade

Slide the spring loaded catch to the side.

Pull the key blade straight out of the remote
key.

Reinserting the blade

1. Hold the remote key with the slot for the key

blade up.

2. Carefully slide the key blade into its groove.

3. Gently press the key blade in the groove until

it clicks into place.

Related information

Detachable key blade – unlocking (p. 158)

Child safety locks (p. 65)

LOCKS AND ALARM

158

Detachable key blade – unlocking

Your vehicle's remote key (p. 152) contains a
metal, detachable key blade that can be used to
unlock the driver's door, lock the glove compart-
ment, etc.

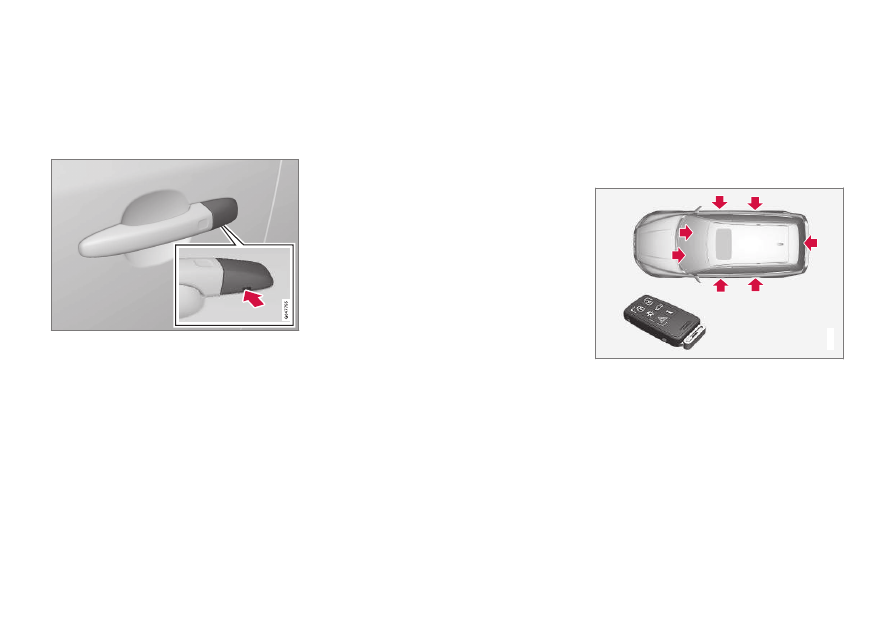

Driver's door keyhole cover

If the remote key does not function normally
(weak battery, etc.), the vehicle can be unlocked
with the detachable key blade.

1. Remove the detachable key blade (p. 157)

from the remote key.

2. Press the key blade approx. 0.5 in. (1 cm)

straight up in the hole on the underside of
the keyhole cover.
> The cover will come off due to the pres-

sure exerted when the key blade is
pushed upward.

3. Insert the key blade as far as possible in the

driver's door lock. Turn the key blade to
unlock the driver's door. This will trigger the
alarm.

4.

To turn off the alarm, insert the remote key
in the ignition slot. This also applies to vehi-
cles equipped with the optional keyless drive.

5. Press the cover back into place after the

door has been unlocked.

Related information

Remote key and key blade (p. 152)

Remote key – replacing the battery (p. 159)

Private locking

By utilizing the remote key with the key blade
removed, the private locking feature enables you
to block access to the glove compartment and
disconnect the tailgate from the central locking
system for e.g., valet parking or when the vehicle
is brought to the retailer for service.

G017869

Normal locking/unlocking points

LOCKS AND ALARM

}}

159

G017870

Locking/unlocking points with private locking activated.

With the private locking function activated:

The vehicle's doors can be locked or
unlocked with the remote

The engine can be started

The glove compartment cannot be unlocked

The tailgate cannot be unlocked or opened
with the remote

The rear floor hatch cannot be opened

NOTE

The floor hatch must be closed completely
before the tailgate can be closed.

Activating the private locking function

Insert the key blade in the glove compart-
ment lock.

Turn the key blade180 degrees clockwise.

Remove the key blade from the lock. A mes-
sage will appear in the instrument panel dis-
play.

Deactivating the private locking
function

Turn the key blade 180 degrees counterclock-
wise in the glove compartment lock to deactivate
private locking.

For information on locking the glove compart-
ment normally, without activating the private lock-
ing function, see Locking/unlocking the glove
compartment (p. 168).

Remote key – replacing the battery

The remote key can be opened if the battery
needs to be replaced.

The battery should be replaced if:

The information symbol illuminates and

Low

battery in remote control. Please change
batteries.

 is shown in the display and/or

if the locks do not react after several
attempts to unlock or lock the vehicle.

NOTE

The remote key's range is normally approxi-
mately 60 ft (20 m) from the vehicle.

||

LOCKS AND ALARM

160

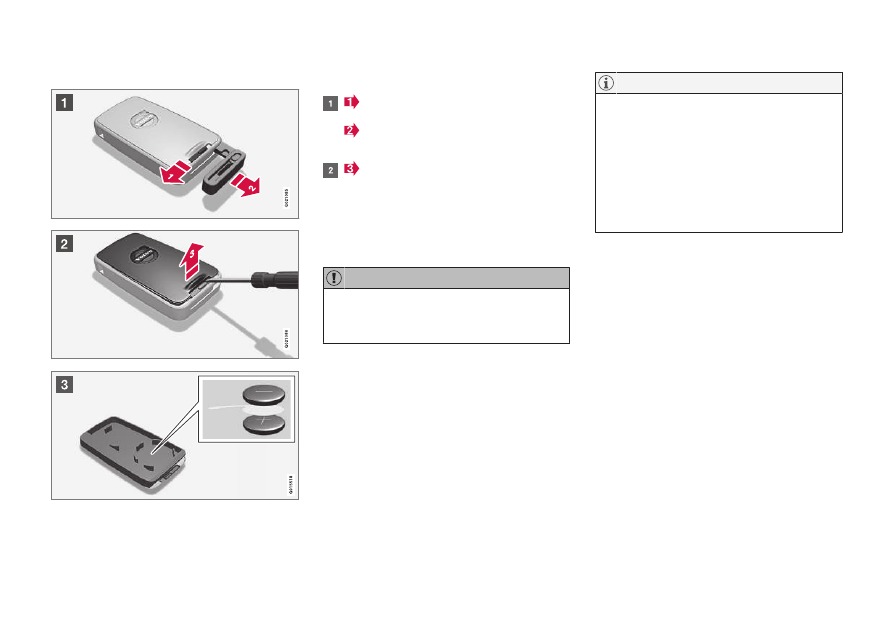

Opening the remote key

The remote key has one CR 2430, 3V battery only

To open the remote key

 Slide the spring loaded catch to the side.

 Pull the key blade straight out of the

remote key.

 Insert a small screwdriver in the hole

behind the spring loaded catch and carefully
pry up the cover. Turn the remote key with
the buttons upward so that the battery does
not fall out when the cover is removed.

Inserting a new battery

CAUTION

When handling batteries, avoid touching their
contact surfaces as this could result in poor
battery function in the remote key.

Note the position of the battery's (+) or (–) sides.

1. Use a screwdriver to pry out the old battery.

2. Insert a new one with the (+) side downward.

Closing the remote key

1. Press the remote key's cover into place.

2. Hold the remote key with the slot for the key

blade up.

3. Carefully slide the key blade into its groove.

4. Gently press the key blade in the groove until

it clicks into place.

NOTE

Volvo recommends that the batteries used in
the remote control meet the UN Manual of
Test and Criteria, Part III, sub-section 38.3.

Batteries installed in the key from the factory
and batteries exchanged by an authorized
Volvo workshop fulfill the above criteria.

Old batteries should be disposed of properly
at a recycling center or at your Volvo retailer.

Related information

Remote key – functions (p. 155)

LOCKS AND ALARM

}}

* Option/accessory.

161

Keyless drive*– locking/unlocking

This system makes it possible to unlock and lock
the vehicle without having to press any buttons
on the remote key. It is only necessary to have a
keyless drive remote key in your possession to
operate the central locking system.

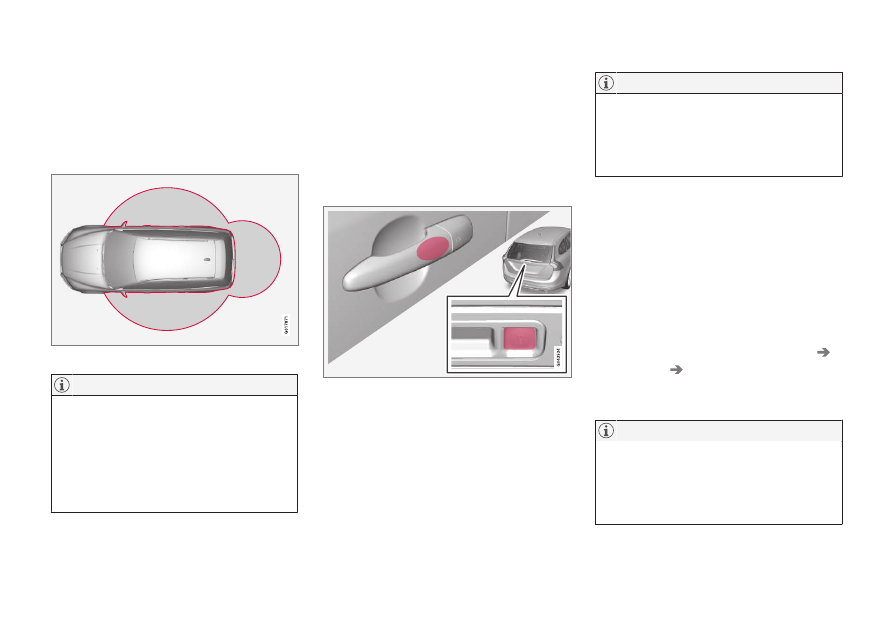

Range of the keyless drive remote key–5 ft (1.5 meters)

NOTE

The gear selector must in the P position
before the vehicle can be locked and the
alarm can be armed.

The buttons on the keyless drive remote
key can also be used to lock and unlock
the vehicle. For more information, see
Remote key and key blade (p. 152).

Both of the remote keys provided with the vehicle
have the keyless function, and additional ones
can be ordered. The system can accommodate
up to six remote keys.

The red rings in the illustration indicate the area
around the vehicle that is within range of the key-
less drive antennas.

Locking the vehicle

Models with keyless drive have a pressure-sensitive area
on the outside door handles and a rubber-covered but-
ton next to the tailgate opening control

The doors and the tailgate can be locked by
pressing the pressure-sensitive area on each of
the outside door handles or the rubber-covered
button next to the tailgate opening control. The
lock indicator on the dash will begin to flash.

NOTE

On keyless drive vehicles, the gear selector
must be in the Park (P) position, all doors and
the tailgate must be closed and the ignition
must be switched off before the vehicle can
be locked.

Unlocking the vehicle

A keyless drive remote key must be on the
same side of the vehicle as the door to be
opened, and be within 5 feet (1.5 meters) of
the door's lock or the tailgate (see the sha-
ded areas in the illustration).

Pull a door handle to unlock and open the
door or pull the tailgate opening control.

The number of doors that are unlocked at the
same time can be set in the vehicle's menu sys-
tem. Press MY CAR and go to

Car settings

Lock settings

Keyless entry

. For a descrip-

tion of the menu system, see My Car – introduc-
tion (p. 79).

NOTE

In some cases, wearing thick gloves or pulling
the door handle too quickly may affect the
unlocking function. If this occurs, try pulling
the door handle again or pull it after taking off
the glove.















Content   ..  7  8  9  10   ..
