Paintwork

The paintwork consists of multiple layers. It is an
important part of the vehicle's corrosion protec-
tion and therefore needs to be checked regu-
larly.

The most common types of paint damage are
minor stone chips, scratches and damage to e.g.
the edges of fenders, doors and bumpers. To
help prevent corrosion, paint damage should be
rectified immediately.

Related information

•

Touching up minor paint damage (p. 640)

•

Color codes (p. 641)

Touching up minor paint damage

The paintwork is an important part of the vehi-
cle's corrosion protection and therefore needs
to be checked regularly. The most common
types of paint damage are minor stone chips,
scratches and damage to e.g. the edges of
fenders, doors and bumpers.

Touching up paint damage

To help prevent corrosion, paint damage should
be rectified immediately.

NOTE

Make sure the surface is clean and dry before
performing any touch-ups to the paint. The
surface temperature should be at least 15
°C (59 °F).

Materials that might be needed

•

Primer

‒ special adhesive primer is availa-

ble in a spray can for e.g. plastic-covered
bumpers.

•

Base coat and clear coat

‒ available in spray

cans or as a touch-up pen/stick

•

Masking tape.

•

Fine-grain sandpaper

If the damage has not reached all the way down
to the metal, then touch-up paint can be applied
immediately after the surface has been cleaned.

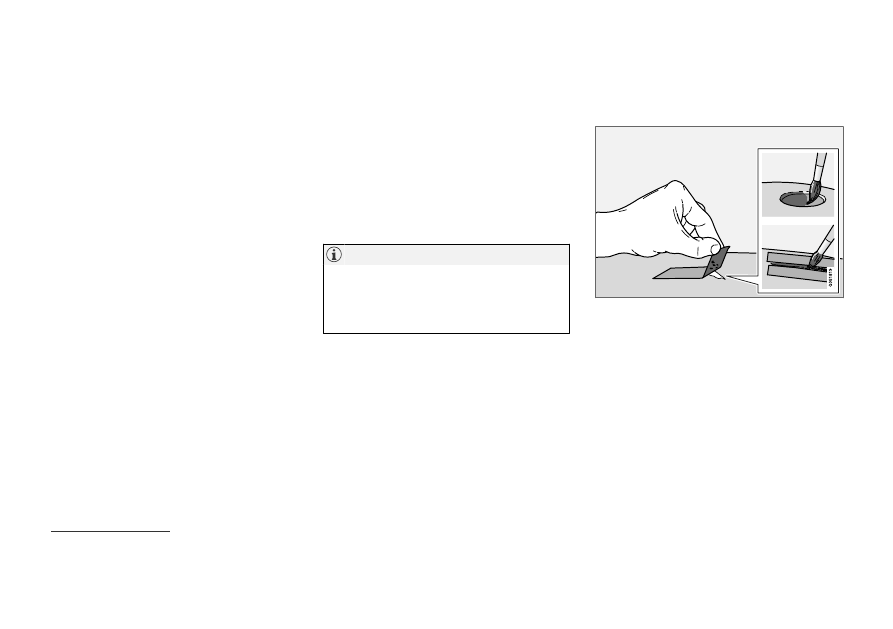

1. Place a strip of masking tape over the dam-

aged surface. Pull the tape off so that any
loose flakes of paint adhere to it.

If the damage goes down to the bare metal,
you may need to use primer first. If the paint
damage is on a plastic surface, an adhesive
primer should be used for better results.
Spray the primer into the lid of the spray can
and brush on thinly.

2. Light sanding with a very fine-grained sand-

paper or similar may be required before
painting (e.g. if there are uneven edges).
Clean the area carefully and let it dry.

If required.

Follow the instructions on the packaging for the touch-up pen/stick carefully.

MAINTENANCE AND SERVICE

641

3. Thoroughly mix the primer and apply it with a

small brush, toothpick or similar. When the
primer is dry, apply one or more coats of
paint and then a clear coat, letting the paint
dry between each application.

If there is a longer scratch, follow the same pro-
cedure as above, but first mask off the surround-
ing area to protect the undamaged paint.

Touch-up pens and spray paints are available at
Volvo retailers.

NOTE

If the stone chip has not gone down to the
bare metal and an undamaged coat of paint
remains, apply base coat and clear coat
immediately after cleaning the surface.

Related information

•

Paintwork (p. 640)

•

Color codes (p. 641)

Color codes

Color code

The color code label is located on the left door
pillar and is visible when the left front door is
opened.

Sample color code (1): US models.

Vehicle paint code

Sample color code (1): Canadian models.

Vehicle paint code

It is important to use the right color.

Related information

•

Paintwork (p. 640)

•

Touching up minor paint damage (p. 640)

MAINTENANCE AND SERVICE

642

Changing rear window wipers

The wiper blades help remove water from the
windshield and rear window. Along with the
washer fluid, they clean the glass and help
improve visibility while driving. The windshield
and rear window wiper blades can be replaced.

Changing rear window wipers

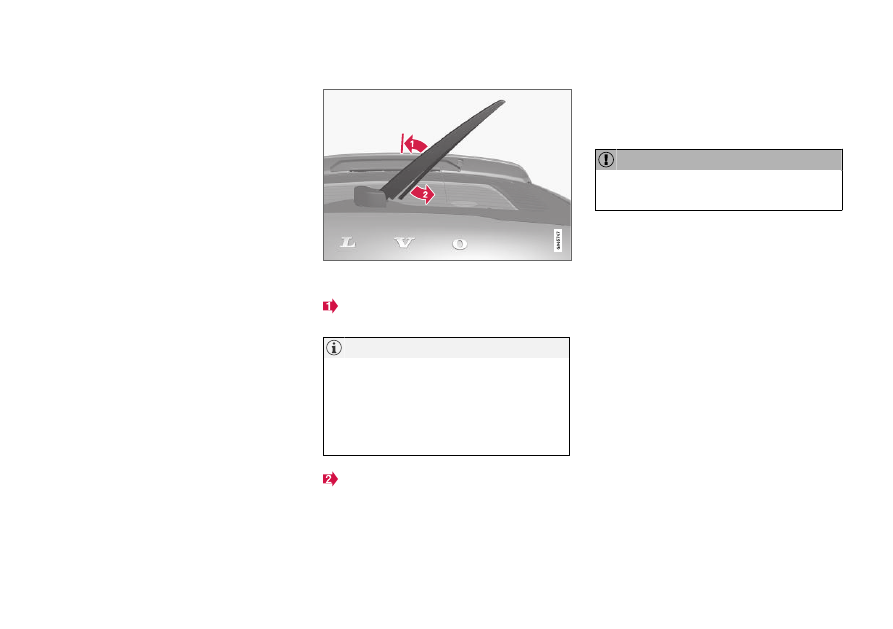

Lift the wiper arm from the window and pull the lower
section of the blade to the right.

Grasp the center of the wiper blade and lift it
from the window to the stop position.

NOTE

When the wiper arm is halfway folded out, it
will stop in a locking position that helps pre-
vent the arm from falling back onto the rear
window. The wiper arm must be pulled past
the locking position stop in order to change
the wiper blade.

Grip the lower part of the blade and pull to
the right until the blade loosens from the
arm.

3. Press the new wiper blade until it clicks into

place. Check to make sure the blade is
securely in place.

4. Fold the wiper arm back toward the window.

CAUTION

Check the blades regularly. Neglected main-
tenance shortens the life of the blades.

Related information

•

Using the rain sensor (p. 179)

•

Using the windshield and headlight washers
(p. 181)

•

Using automatic rear window wiping when
backing up (p. 182)

•

Using the rain sensor's memory function
(p. 180)

•

Using the rear window wiper/washer
(p. 182)

•

Filling washer fluid (p. 645)

•

Windshield wipers in the service position
(p. 644)

•

Replacing windshield wiper blades (p. 643)

•

Using the windshield wipers (p. 178)

•

Wiper blades and washer fluid (p. 178)

MAINTENANCE AND SERVICE

643

Replacing windshield wiper blades

Replacing wiper blades

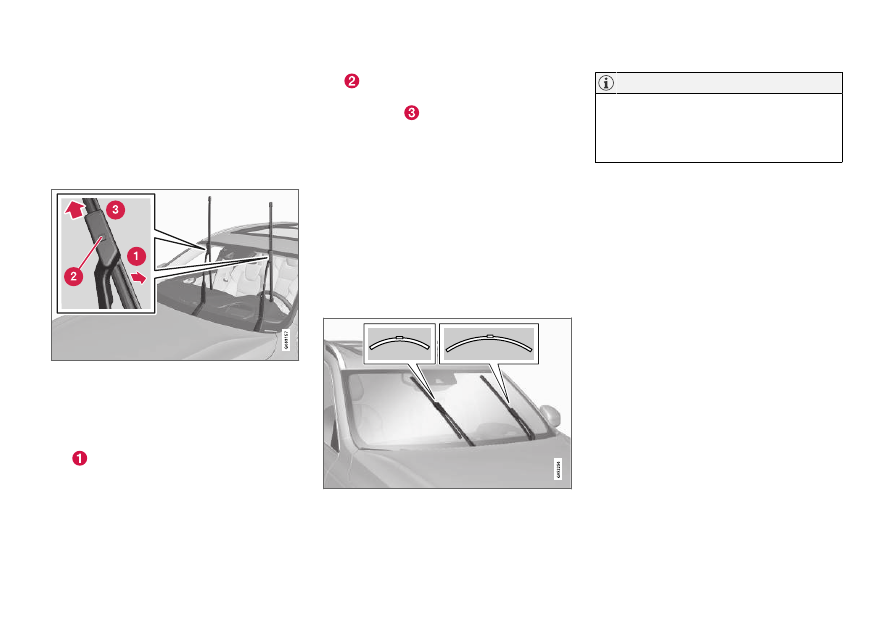

1. Raise the wiper arms to the service position.

Service position is activated/deactivated via
the function view in the center display when
the car is stationary and the windshield wip-
ers are not on.

Put the wiper blade in removal position

by folding it out from the wiper arm until it
clicks.

Press and hold the button on the wiper

blade attachment and pull the wiper blade
straight out

, parallel with the wiper arm.

4. Slide in the new wiper blade until it clicks

into place.

5. Fold the blade back toward the arm until it

clicks into place. The blade is no longer in its
removal position and can once again be
moved.

6. Check to make sure the wiper blade is

securely in place.

7. Press the wiper blade back against the wind-

shield.

Wiper blades come in varying lengths

NOTE

When changing wiper blades, make sure that
the blades are of different lengths. The blade
on the driver's side is longer than the one on
the passenger side.

Related information

•

Using the rain sensor (p. 179)

•

Using the windshield and headlight washers
(p. 181)

•

Using automatic rear window wiping when
backing up (p. 182)

•

Using the rain sensor's memory function
(p. 180)

•

Using the rear window wiper/washer
(p. 182)

•

Filling washer fluid (p. 645)

•

Windshield wipers in the service position
(p. 644)

•

Changing rear window wipers (p. 642)

•

Using the windshield wipers (p. 178)

•

Wiper blades and washer fluid (p. 178)

MAINTENANCE AND SERVICE

644

Windshield wipers in the service

position

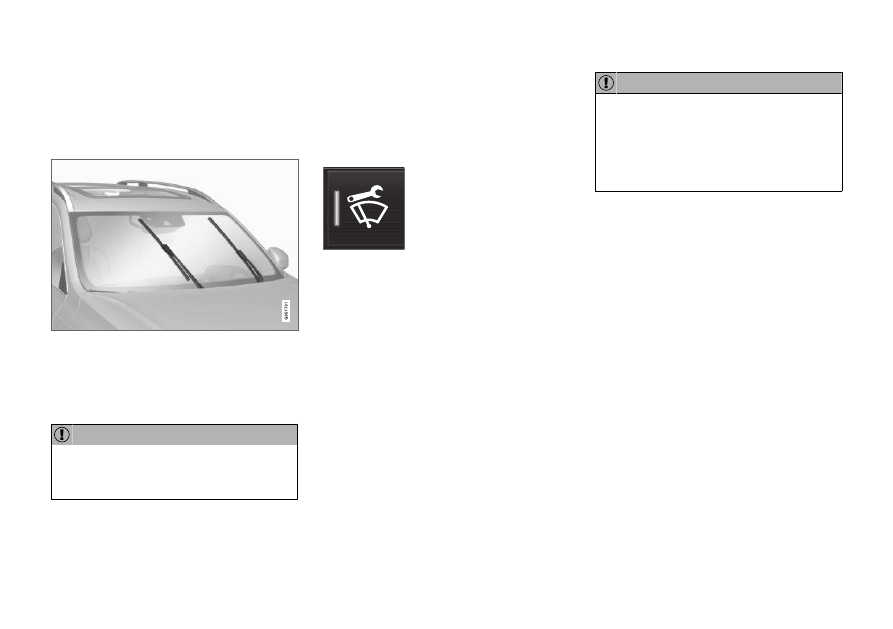

The windshield wiper blades must be in the serv-
ice (vertical) position for certain operations, e.g.
replacing the blades.

Windshield wipers in the service position.

The windshield wipers must be in the service
position when replacing, washing or lifting the
blades (e.g. to scrape ice or snow from the wind-
shield).

CAUTION

Before placing the wipers in service position,
ensure that they have not frozen to the wind-
shield.

Activating/deactivating service position

The service position can be activated/deactivated
when the vehicle is stationary and the windshield
wipers are switched off. Service position is acti-
vated/deactivated via Function view in the center
display:

Tap the

Wiper Service

Position

button. The indicator

light in the button will illuminate
when service position is acti-
vated. The windshield wipers
will move to the vertical posi-
tion when service position is

activated. To deactivate the service position, tap

Wiper Service Position

once. The indicator light

in the button will go out when service position is
deactivated.

The wiper blades will also move out of service
position if:

•

The windshield wipers are turned on.

•

The windshield washers are turned on.

•

The rain sensor is activated.

•

The vehicle begins moving.

CAUTION

If the wiper arms in service position are raised
from the windshield, they must be folded back
against the windscreen before activating wip-
ing, washing or rain sensor as well as before
departure. This is to prevent scratching the
paint on the hood.

Related information

•

Using the rain sensor (p. 179)

•

Using the windshield and headlight washers
(p. 181)

•

Using automatic rear window wiping when
backing up (p. 182)

•

Using the rain sensor's memory function
(p. 180)

•

Using the rear window wiper/washer
(p. 182)

•

Filling washer fluid (p. 645)

•

Replacing windshield wiper blades (p. 643)

•

Changing rear window wipers (p. 642)

•

Using the windshield wipers (p. 178)

•

Wiper blades and washer fluid (p. 178)

MAINTENANCE AND SERVICE

* Option/accessory.

645

Filling washer fluid

Washer fluid is used to keep the headlights,
windshield and rear window clean. Washer fluid
containing anti-freeze should be used in very
cold weather (below-freezing temperatures).

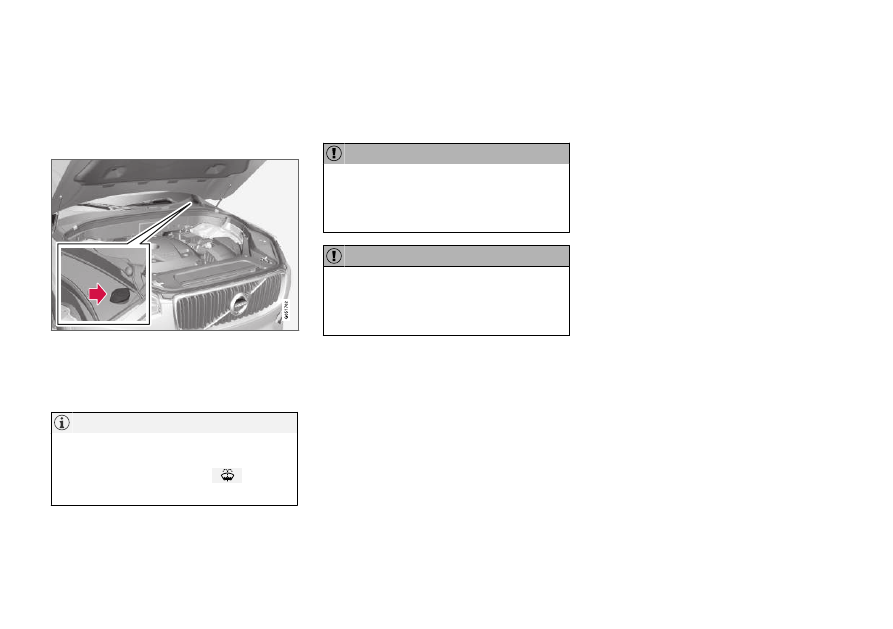

Fill washer fluid into the reservoir with the blue
cover. The reservoir is used for the windshield
washer, tailgate window washer and headlight
washer*

NOTE

When there is approximately 1 liter (1 qt) of
washer fluid remaining, the message

Washer

fluid

Level low, refill

and the

symbol

will be displayed in the instrument panel.

Recommended grade: Washer fluid recom-
mended by Volvo, with frost protection during
cold weather and temperatures below the freez-
ing point.

CAUTION

Use Volvo's original washer fluid or an equiva-
lent fluid with the recommended pH value
between 6 and 8, diluted as recommended,
e.g. in a 1:1 solution with pH-neutral water.

CAUTION

Use washer fluid with anti-freeze when tem-
peratures are below the freezing point to help
keep the pump, reservoir and hoses from
freezing.

Volume:

•

Vehicles with headlight washing: 5.3 liters
(5.6 qts).

•

Vehicles without headlight washing: 3.5 lit-
ers (3.7 qts).

Related information

•

Using the rain sensor (p. 179)

•

Using the windshield and headlight washers
(p. 181)

•

Using automatic rear window wiping when
backing up (p. 182)

•

Using the rain sensor's memory function
(p. 180)

•

Using the rear window wiper/washer
(p. 182)

•

Windshield wipers in the service position
(p. 644)

•

Replacing windshield wiper blades (p. 643)

•

Changing rear window wipers (p. 642)

•

Using the windshield wipers (p. 178)

•

Wiper blades and washer fluid (p. 178)

SPECIFICATIONS

}}

649

Vehicle Emission Control Information. US

models. Your Volvo is designed to meet all appli-
cable emission standards, as evidenced by the
certification label on the underside of the hood.
For further information regarding these regula-
tions, please consult your Volvo retailer.

Vehicle Emission Control Information.

Canadian models. Your Volvo is designed to
meet all applicable emission standards, as evi-
denced by the certification label on the underside
of the hood. For further information regarding
these regulations, please consult your Volvo
retailer.

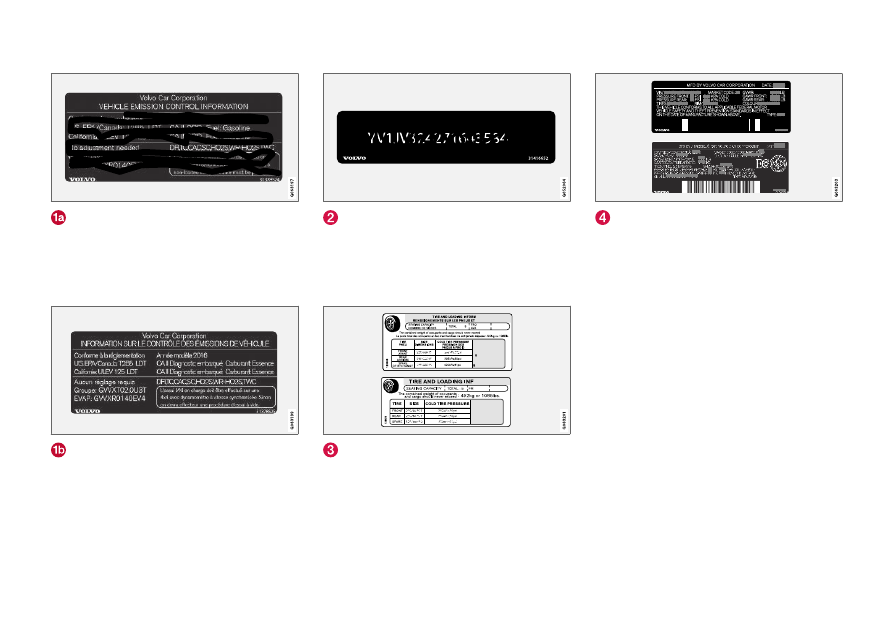

Vehicle Identification Number (VIN). The

VIN plate is located on the top left surface of the
dashboard. The Vehicle Identification Number
(VIN) should always be quoted in all correspond-
ence concerning your vehicle with the retailer and
when ordering parts.

Tire inflation pressures. This label indicates

the correct inflation pressures for the tires that
were on the vehicle when it left the factory.

Federal Motor Vehicle Safety Standards

(FMVSS) specifications (USA) and Ministry of

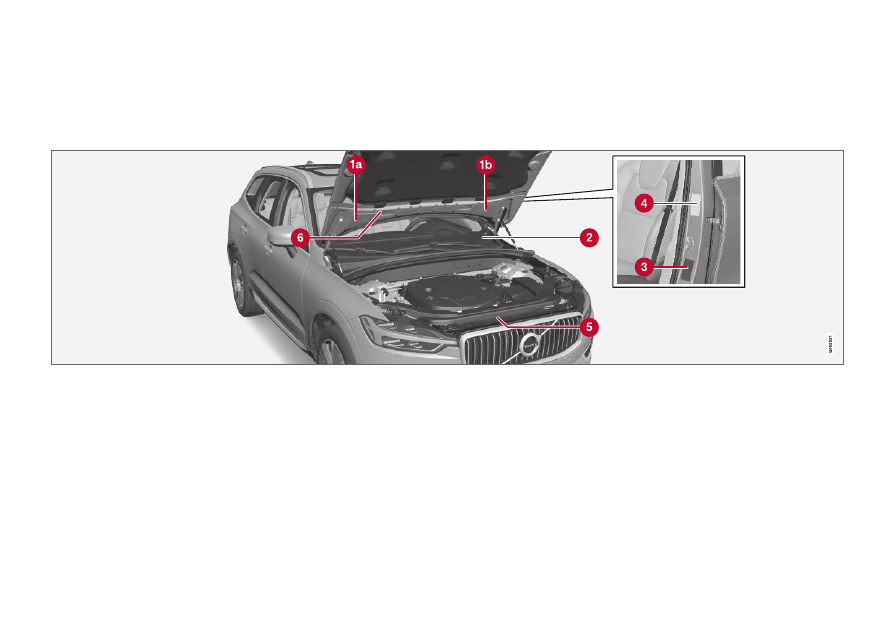

Transport (CMVSS) standards (Canada). Your
Volvo is designed to meet all applicable safety
standards, as evidenced by the certification label
on the driver's side B-pillar (the structural mem-
ber at the side of the vehicle, at the rear of the
driver's door opening). This label also includes
codes for paint color, etc. For further information
regarding these regulations, please consult your
Volvo retailer. U.S. models have the upper decal;
Canadian models have the lower one.

SPECIFICATIONS

650

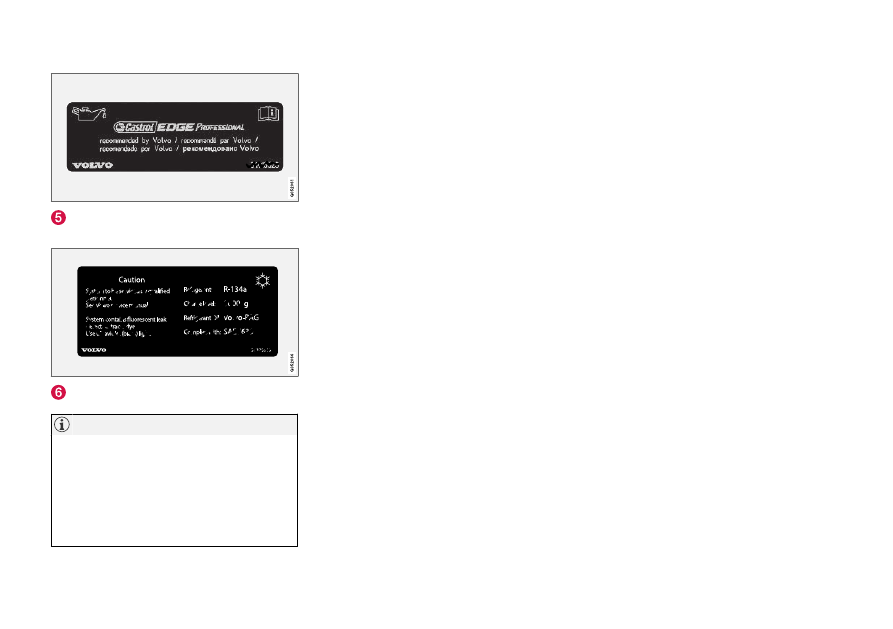

Engine oil. This label contains the recom-

mended engine oil specifications.

Decal A/C. Refrigerant R134a.

NOTE

The decals shown in the Owner's Manual do
not claim to be exact reproductions of those
found in the vehicle. The purpose is to show
approximately how they look and about where
they are located on the vehicle. The informa-
tion that applies for your vehicle in particular
is found on the decal on the vehicle.

Related information

•

Air conditioning specifications (p. 658)

SPECIFICATIONS

}}

651

Dimensions

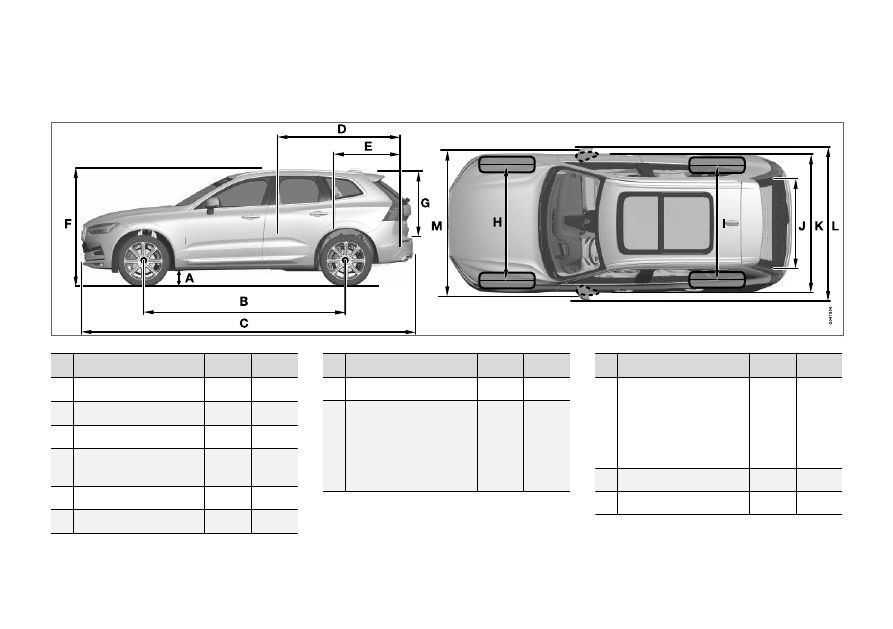

The vehicle's length, height, etc. are shown in
the table.

Dimensions

inches

Ground clearance

211

8,3

Wheelbase

2865

112.8

Length

4688

184.6

Load length, floor,
folded backrest

1746

68.7

Load length, floor

960

37.8

Height

1658

65.3

Dimensions

inches

Load height

776

30.6

H Wheel track, front

1653

1649

1655

1668

65.1

64.9

65.2

65.7

Dimensions

inches

Wheel track, rear

1657

1653

1659

1673

65.2

65.1

65.3

65.9

Load width, floor

1010

39.8

Width

1902

74.9

SPECIFICATIONS

652

Dimensions

inches

Width incl. rearview
mirrors

2117

83.3

M Width incl. folded rear-

view mirrors

1999

78.7

For curb weight + 1 person. (Varies slightly depending on tire

dimension, chassis alternative, etc.).

Including roof antenna, at curb weight.

Vehicles with 17/19-inch wheels.

Vehicles with 20-inch wheels.

Vehicles with 21-inch wheels.

Vehicles with 22-inch wheels.

Related information

•

Weights (p. 653)

SPECIFICATIONS

653

Weights

The following table lists important weight data
for your vehicle.

Category

USA

(lbs)

Canada

(kg)

Max. trailer weights

Without brakes:

1650

750

With brakes:

3500

1580

Max. tongue weight

350

150

CAUTION

•

The maximum trailer weights listed are
only applicable for altitudes up to 3280 ft
(1,000 m) above sea level. With increas-
ing altitude the engine power and there-
fore the car's climbing ability are impaired
because of the reduced air density, so
the maximum trailer weight has to be
reduced accordingly. The weight of the
car and trailer must be reduced by 10%
for every further 3280 ft (1,000 m) (or
part thereof).

Related information

•

Type designations (p. 648)

•

Weights (p. 653)

•

Driving with a trailer (p. 460)

•

Trailer Stability Assist* (p. 461)

SPECIFICATIONS

655

Engine specifications

Engine specifications (output, etc.) for each
engine variant are shown in the table below. The

specifications for Special Edition vehicles may
vary.

NOTE

Not all engines are available on all markets.

Engine

Engine code

Output

(kW/rps)

Output

(hp/rpm)

Torque

(Nm/rps)

Torque

(ft. lbs./rpm)

Number of cylinders

T5 / T5 AWD

B4204T23

187/92

250/5500

350/25–80

258/1500-4800

T6 AWD

B4204T27

235/95

316/5700

400/37–90

295/2200–5400

The engine code, component and manufacturer serial numbers can be found on the engine.

Related information

•

Type designations (p. 648)

•

Engine oil specifications (p. 656)

•

Coolant specifications (p. 657)

SPECIFICATIONS

656

Engine oil specifications

Fully synthetic engine oil of at least
ACEA A5/B5 must be used. Lower oil grades
may not offer the same fuel economy, engine
performance or engine protection.

Volvo recommends:

General

See the Service and warranty booklet for infor-
mation about oil change intervals.

NOTE

This vehicle is delivered from the factory with
synthetic oil.

Do not use oil additives.

Oil viscosity

The wrong oil viscosity can shorten engine serv-
ice life during normal use. SAE 5W-30 provides
good fuel economy and engine protection. See
the viscosity chart.

Viscosity chart

Extreme driving conditions

Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom-
mended for extreme conditions.

Oil volume

The oil volume for the engine is:

Liter (approx)

5.6

US qts (approx)

5.9

Related information

•

Type designations (p. 648)

•

Checking and filling engine oil (p. 603)

•

Engine oil (p. 602)

SPECIFICATIONS

657

Coolant specifications

Recommended grade: Volvo-approved pre-
mixed coolant. If concentrated coolant is used,
mix with 50% water. Consult a Volvo retailer if
you have any questions.

To avoid deterioration of the cooling system,
engine trouble, etc., only approved Volvo coolant
should be used.

WARNING

Do not ingest. May cause damage to organs

(kidneys). The product contains ethylene gly-

col, inhibitor, emetic, water, etc.

Related information

•

Refilling coolant (p. 605)

Transmission fluid specifications

Under normal driving conditions, the transmis-
sion fluid will not need to be changed during its
service life. However, it may need to be changed
if the vehicle is driven frequently in adverse driv-
ing conditions.

Automatic transmission

Prescribed transmission fluid:

AW1

Related information

•

Type designations (p. 648)

Brake fluid specifications

The medium in the hydraulic brake system is
called brake fluid and is used to transfer braking
force from e.g. pressure on the brake pedal via a
master brake cylinder to one or more slave cylin-
ders, which in turn act on a mechanical brake.

Recommended grade: Volvo Original or similar
fluid that meets a combination of Dot 4, 5.1 and
ISO 4925 class 6.

NOTE

Changing or filling brake fluid should be
entrusted to an authorized Volvo workshop.

Related information

•

Engine compartment overview (p. 602)

Volvo XC60 (2019 year). Instruction - part 38
