Lighting panel and controls (p. 154)

•

Replacing the low beam headlight

bulbs

The low beam bulbs in the halogen headlights
can be changed without the help of a workshop.

Never touch the bulb glass with your bare fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which may damage it.

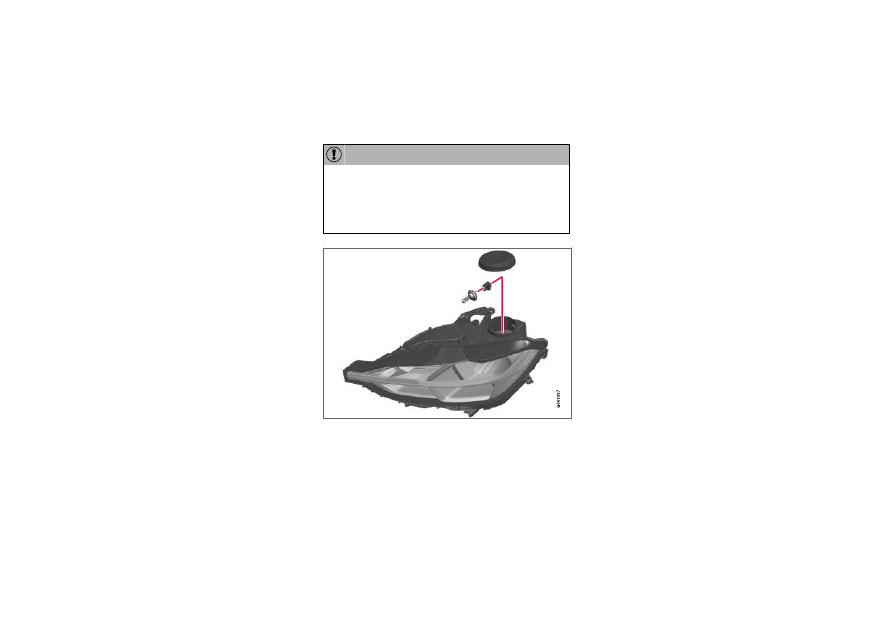

Left headlight.

1. Remove the round low beam rubber cover

from the headlight housing.

2. Remove the connector from the bulb.

3. Remove the bulb by pressing it slightly

upward and then pulling it out.

4. Insert the new bulb in the socket. The bulb's

guiding pin should point straight up.

5. Press the connector into place.

6. Put the round rubber cover back in place.

Related information

•

•

MAINTENANCE AND SERVICE

}}

609

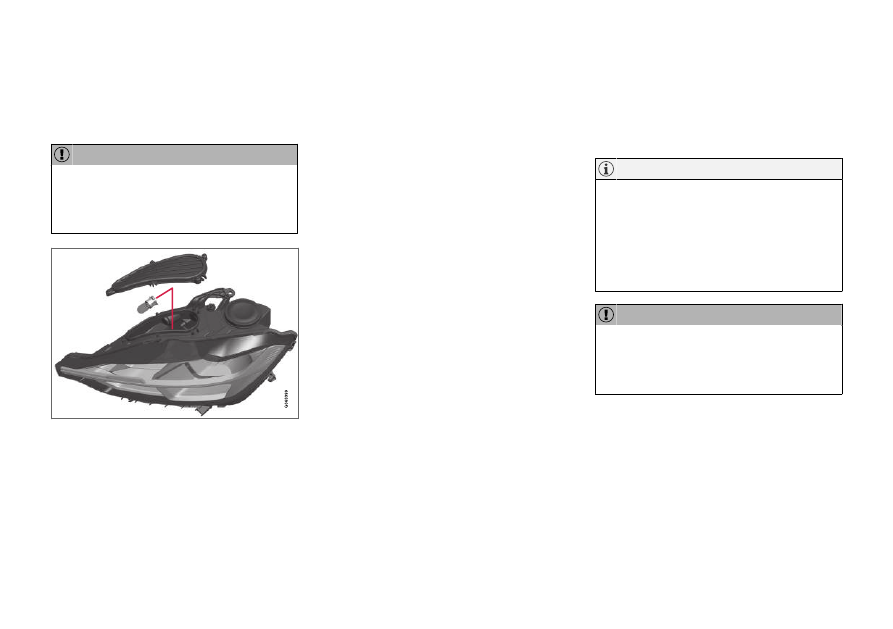

Replacing the high beam headlight

bulbs

The high beam bulbs in the halogen headlights
can be changed without the help of a workshop.

Never touch the bulb glass with your bare fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which may damage it.

Left headlight.

1. Remove the bulb by turning the bulb holder

upward and then pulling it straight out.

2. Carefully pry the plastic sleeve by the con-

nector's locking lug to release it.

3. Remove the connector from the bulb.

4. Replace the bulb.

5. Position the bulb in the socket and turn it

downward.

Related information

•

•

Replacing daytime running lights/

front parking light bulbs

The daytime running light/parking light bulbs in
the halogen headlights can be changed without
the help of a workshop.

Daytime running lights/parking lights are eas-
ier to reach if the high beam headlight bulbs
are removed. The high beam headlights are
mounted above and to the side of the daytime
running lights/parking lights. Remove the
high beam headlight bulb by turning the bulb
holder upward and then pulling it straight out.

Never touch the bulb glass with your bare fin-
gers. Grease and oils from your fingers vapor-
ize in the heat and will leave a deposit on the
reflector, which may damage it.

MAINTENANCE AND SERVICE

610

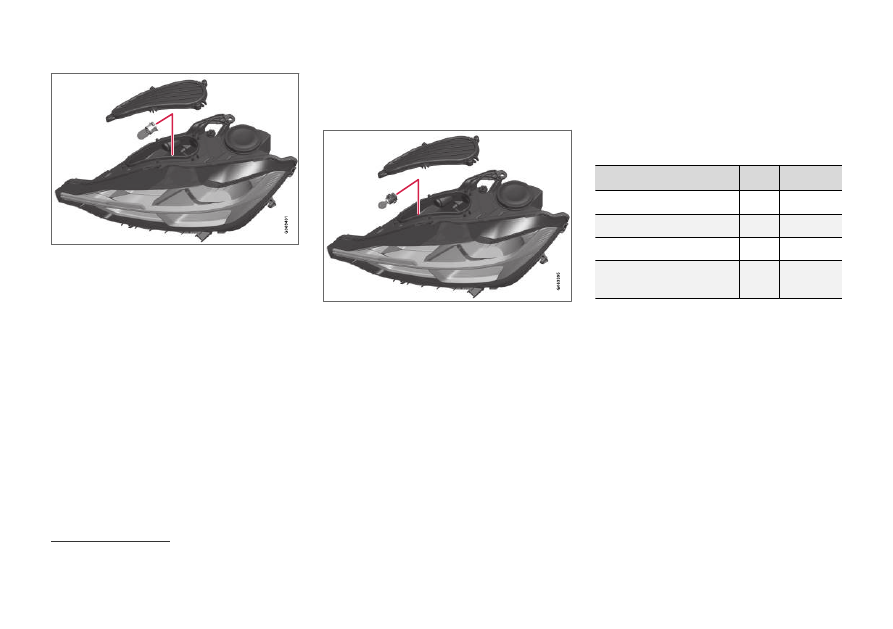

Left headlight.

1. Pull the daytime running light/parking light

bulb holder straight out.

2. Remove the bulb by pulling it straight out.

3. Replace the bulb.

4. Position the bulb holder in the socket and

push it into place.

5. If the high beam bulb holder has come loose,

position it in the socket and turn downward.

Related information

•

•

Replacing the high beam headlight bulbs
(p. 609)

•

Replacing front turn signal bulbs

The turn signal bulbs in the halogen headlights
can be changed without the help of a workshop.

Left headlight.

1. Press the retaining catches together and pull

the bulb holder straight out.

2. The bulb holder and bulb must be replaced

as one unit.

3. Position the bulb holder in the socket and

push it into place.

Related information

•

•

Bulb specifications

The following specifications apply to the bulbs in
the halogen headlights.

If you are experiencing problems with any other
lights, contact a workshop

Function

Type

Low beams

H11

High beams

Front turn signal

PWY24W

Daytime running light/
parking light, front

21/5

W21/5W

Watt

Related information

•

•

Replacing bulbs (p. 606)

An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE

}}

611

Start battery

The vehicle has a single-pole electrical system
that uses the chassis and engine mount as con-
ductors.

The start battery is used to start the electrical
system and power the starter motor and other
electrical equipment in the vehicle.

The start battery should only be replaced by a
workshop

The vehicle has a voltage-regulated alternating
current generator.

The start battery is a 12 V battery, designed for
the carbon dioxide reducing functions Start/Stop
and regenerative charging, and to support the
functionality of the car's different systems.

The service life and performance of the start bat-
tery are affected by factors such as driving style,
driving conditions, climate, battery discharges,
number of starts, etc.

•

Never disconnect the start battery while the
engine is running.

•

Make sure the cables to the start battery are
correctly connected and the clamps are
securely tightened.

WARNING

•

Batteries generate hydrogen gas, which
is flammable and explosive.

•

Do not connect the jumper cable to any
part of the fuel system or to any moving
parts. Avoid touching hot manifolds.

•

Battery fluid contains sulfuric acid. Do not
allow battery fluid to contact eyes, skin,
fabrics or painted surfaces.

•

If contact occurs, flush the affected area
immediately with water. Obtain medical
help immediately if eyes are affected.

•

Never expose the battery to open flame
or electric spark. Do not smoke near the
battery. Failure to follow the instructions
for jump starting can lead to injury.

Connection points

WARNING

PROPOSITION 65 WARNING

Battery posts, terminals, and related accesso-

ries contain lead and lead compounds, chemi-

cals known to the state of California to cause

cancer and reproductive harm. Wash hands

after handling.

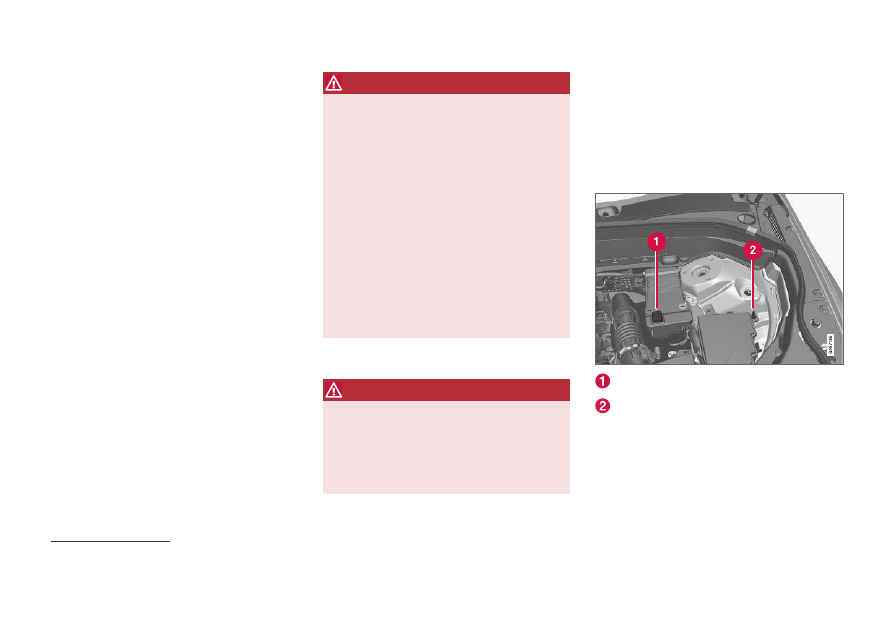

Use the vehicle's connection points in the engine
compartment to connect an external start battery
or battery charger.

The battery terminals on the car's start battery in
the luggage/cargo area must not be used.

If the start battery is being charged, the support
battery will also be charged.

Positive connection point

Negative connection point

An authorized Volvo workshop is recommended.

MAINTENANCE AND SERVICE

612

Only a modern battery charger with controlled
charge voltage should be used to charge the
starter battery and support battery. The rapid
charging function should not be used as this
could damage the battery.

Failure to observe the following could cause
the infotainment energy save mode to tempo-
rarily stop working and/or a message in the
driver's display regarding the state of charge
of the starter battery may be temporarily
incorrect after an external starter battery or
battery charger has been connected:

•

The negative battery terminal of the vehi-
cle's starter battery must never be used
to connect an external starter battery or
battery charger – only the vehicle's neg-
ative charging point should be used as
a grounding point.

If the starter battery becomes discharged too
many times, it will shorten its service life.

The service life of the starter battery is affec-
ted by several factors, such as driving condi-
tions and climate. The starting capacity of the
battery reduces gradually over time. The bat-
tery must therefore be recharged if the vehi-
cle is not used or a long period of time or if it
is only driven short distances. Severe cold fur-
ther limits the starting capacity.

To keep the starter battery in a good condi-
tion, the vehicle should be driven at least
15 minutes per week or the battery should be
connected to a battery charger with automatic
trickle charging.

A starter battery that is always kept fully
charged has the maximum service life.

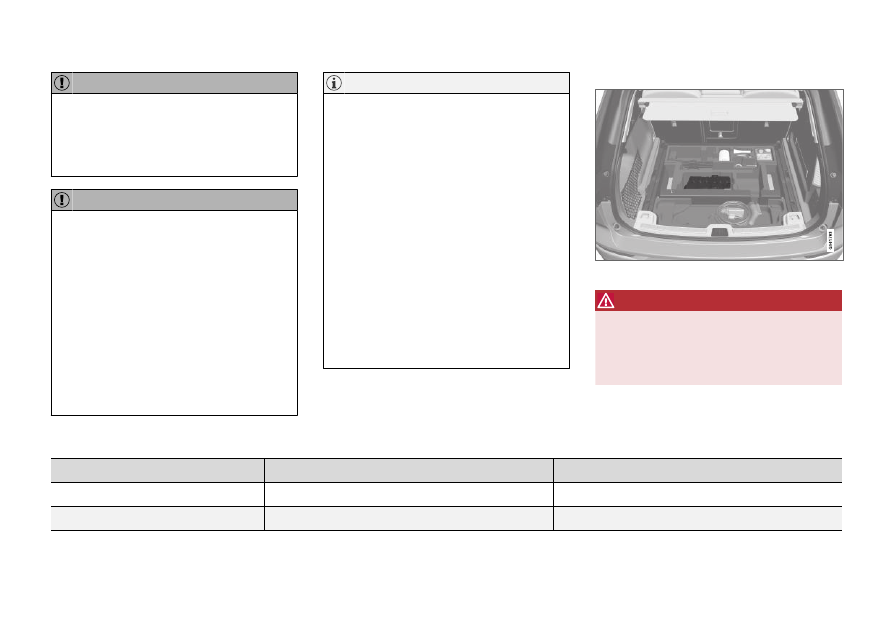

Location

The start battery is located in the cargo compartment.

WARNING

If the starter battery is disconnected, the func-

tion for automatic opening and closing must

be reset to function correctly. A reset is

required in order for the pinch protection to

work.

Specifications for start battery

Battery type

H7 AGM

H8 AGM

Voltage (V)

Cold start capacity

- CCA

(A)

800

850

MAINTENANCE AND SERVICE

613

Battery type

H7 AGM

H8 AGM

Dimensions, L×W×H

315×175×190 mm (12.4×6.9×7.5 inches)

353×175×190 mm (13.9×6.9×7.5 inches)

Capacity (Ah)

According to EN standard.

Cold Cranking Amperes.

Volvo recommends that batteries are replaced by
an authorized Volvo workshop.

Jump starting using another battery (p. 457)

If replacing the battery, make sure you
replace it with a battery of the same size, cold
start capacity and type as the original battery
(see the decal on the battery).

Related information

•

Battery symbols (p. 615)

•

Support battery (p. 614)

•

MAINTENANCE AND SERVICE

614

Support battery

In addition to the start battery, vehicles equipped
with the Start/Stop function also have a support
battery.

Vehicles with the Start/Stop function are equip-
ped with two 12-volt batteries

‒ a heavy-duty

start battery and a support battery that provides
extra current during the Start/Stop function's
start sequence.

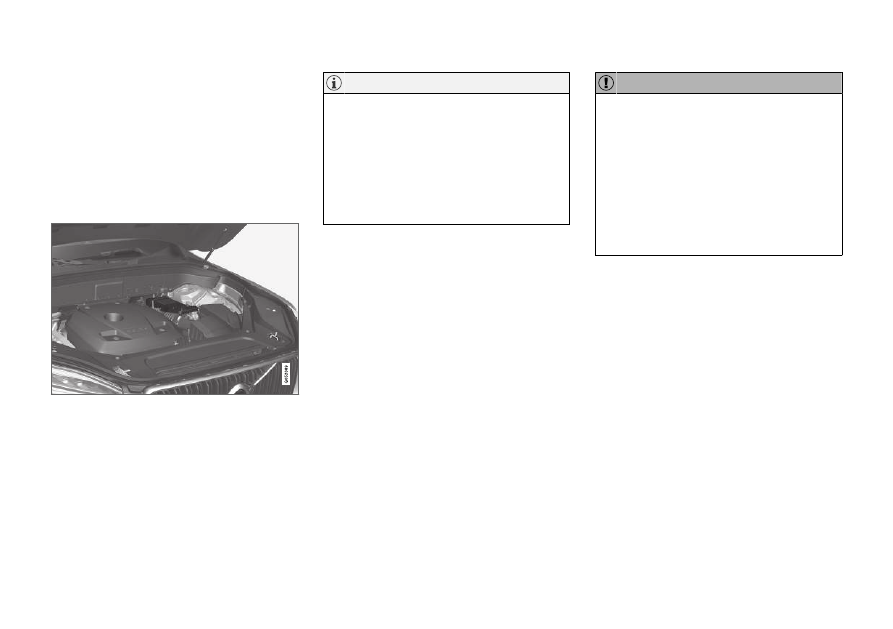

The support battery is located in a box next to the spring
strut in the engine compartment.

•

The higher the current consumption in
the vehicle, the more the alternator has to
work and the batteries have to be
charged = increased fuel consumption.

•

When the starter battery capacity has
dropped below the lowest permissible
level, the Start/Stop function is disen-
gaged.

When the Start/Stop function is temporarily
reduced due to high current consumption:

•

The engine will auto-start, even if the driver
does not lift their foot from the brake pedal.

The support battery does not normally require
more service than the start battery. If you have
any questions or concerns, consult a workshop

‒

an authorized Volvo workshop is recommended.

If the following is not observed, the Start/
Stop function may temporarily stop working
after connection of an external starter battery
or battery charger:

•

MAINTENANCE AND SERVICE

}}

615

If the starter battery is discharged to the
extent that the vehicle does not have normal
electrical functions and the engine must then
be jump-started with an external battery or a
battery charger, the Start/Stop function may
remain activated. If the Start/Stop function
shortly thereafter auto-stops the engine, there
is a huge risk that auto-start of the engine will
fail due to insufficient battery capacity since
the battery had not had time to recharge.

If the vehicle has been jump-started or if
there has not been enough time for the bat-
tery to be charged with a battery charger, it is
advisable to temporarily deactivate the
Start/Stop function until the battery has been
recharged by the vehicle. At an ambient tem-
perature of about +15°C (about 60°F), the
battery must be charged by the vehicle for at
least one hour. At lower ambient tempera-
tures, the charging time can increase to
3-4 hours. It is advisable to charge the battery
with an external battery charger.

Specifications for support battery

Voltage (V)

Cold start capacity

CCA

(A)

170

Dimensions, L×W×H

150×90×130 mm

(5.9×3.5×5.1

inches)

Capacity (Ah)

According to EN standard.

Cold Cranking Amperes.

Start/Stop function (p. 438)

If replacing the battery, make sure you
replace it with a battery of the same size, cold
start capacity and type as the original battery
(see the decal on the battery).

Related information

•

Start battery (p. 611)

•

•

Battery symbols (p. 615)

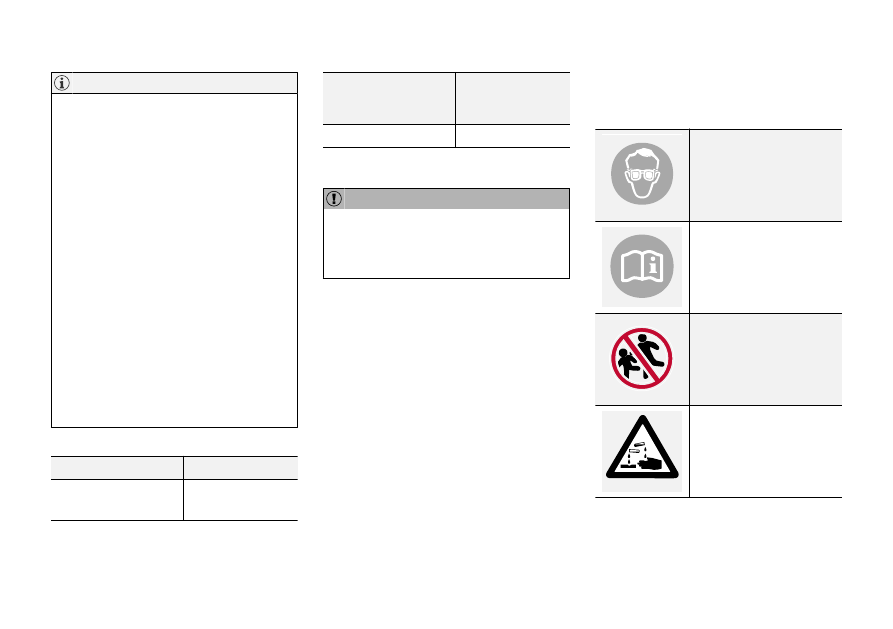

Battery symbols

There are warning symbols and information on
the batteries.

Wear protective goggles.

See the Owner's Manual for

additional information.

Keep batteries away from

children.

Batteries contain corrosive

acid.

MAINTENANCE AND SERVICE

616

Avoid smoking, open

flames, and/or sparks.

Risk of explosion.

Recycle properly.
