LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

574

Using the electrical outlets

The 12 V outlet can be used for devices
intended for this such as MP3 players, coolers
and cellular phones.

The high-voltage outlet* can be used for devices
intended for this, such as chargers, laptops, etc.

The ignition must be in at least mode I for the
outlets to supply current. The outlets will then be
active as long as there is sufficient charge in the
start battery.

If the engine is turned off and the vehicle is
locked, the outlets will be deactivated. If the
engine is turned off and the vehicle remains
unlocked, the sockets will remain active for up to
7 minutes.

NOTE

Bear in mind that using the electrical outlets
when the engine is off could cause the starter
battery to have too low of a charge level,
which could limit other functionality.

Accessories connected to the electrical out-
lets can be activated even when the vehicle
electrical system is off or if preconditioning is
used. For this reason, disconnect plugs when
they are not in use to prevent the starter bat-
tery from becoming discharged.

WARNING

•

Do not use accessories with large or
heavy plugs – they could damage the out-
let or come loose while you are driving.

•

Do not use accessories that could cause
disruptions to e.g. the vehicle's radio
receiver or electrical system.

•

Position the accessory so that there is no
risk of it injuring the driver or passengers
in the event of heavy braking or a colli-
sion.

•

Pay attention to connected accessories
as they can generate heat that could burn
passengers or the interior.

Using 12 V outlets

1. Remove the stopper (tunnel console) or fold

down the cover (trunk/cargo compartment)
over the socket and plug in the device.

2. Unplug the device and put the stopper back

in (tunnel console) or fold up the cover
(trunk/cargo compartment) when the socket
is not in use or left unattended.

CAUTION

The maximum power is 120 W (10 A) per
outlet.

Using high-voltage outlets

The ignition must be in at least mode I for outlets
to supply current. The outlets will then be active
as long as there is sufficient charge in the start
battery.

1. Slide down the cover over the outlet and plug

in the device.
> The LED

2

 light on the outlet will indicate

its status.

2. The outlet is supplying electrical current

when the light is glowing steadily green.

3. Disconnect the device by pulling out the plug

(do not pull on the cord).

Pull up the cover when the outlet is not in
use or is left unattended.

CAUTION

The maximum power is 150 W.

WARNING

Do not attempt to alter or repair the high-volt-

age outlet on your own. Volvo recommends

contacting an authorized Volvo workshop.

2

LED (Light Emitting Diode)

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

575

WARNING

•

Only use accessories that are not dam-
aged or malfunctioning. The accessories
must be designed for 120 V and 60 Hz,
with plugs intended for the outlet. The
accessories must be CE marked, UL
marked or have an equivalent safety
marking.

•

New let outlets, plugs or accessories
come into contact with water or another
fluid. Do not touch or use the outlet if it
appears damaged or has been in contact
with water or another fluid.

•

Do not connect power strips, adapters or
extension cords to the outlet has this
could cause the outlet's safety functions
to malfunction.

•

The outlet is equipped with a pet guard.
Make sure that no one picks at or dam-
ages the outlet in such a way that the
guard is disabled. Children should not be
left unsupervised in the vehicle when the
outlet is active.

Failure to follow the above could lead to

severe or fatal electrical shocks.

Related information

•

Electrical outlets (p. 572)

•

Passenger compartment interior (p. 570)

Using the glove compartment

The glove compartment is located on the pas-
senger side. The glove compartment can be
used to store the Owner's Manual, maps, etc.
There is also room for a pen and a card holder.

Locking and unlocking the glove box*

The glove compartment can be locked when the
vehicle is left at a workshop, hotel, etc. The glove
compartment can then only be locked/unlocked
with the glove compartment key.

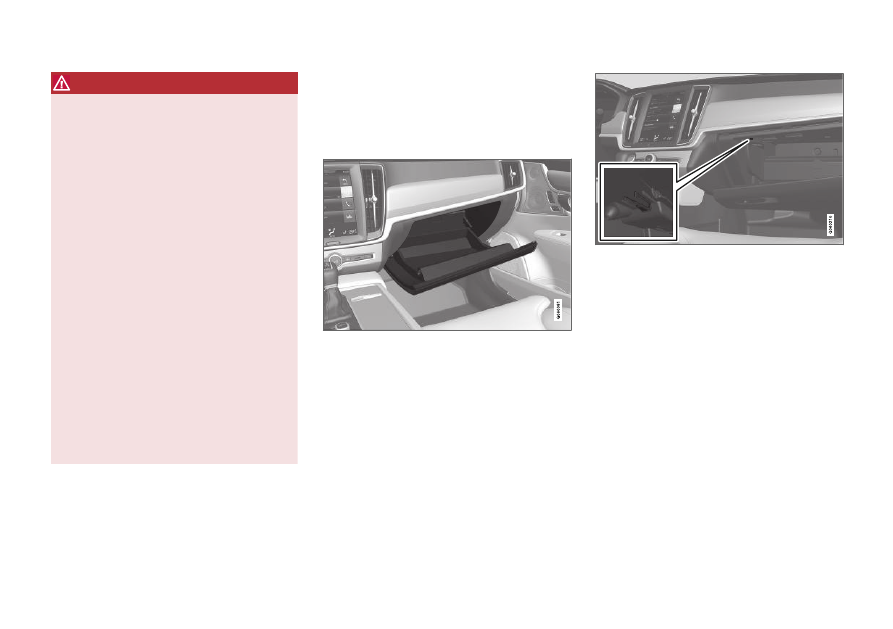

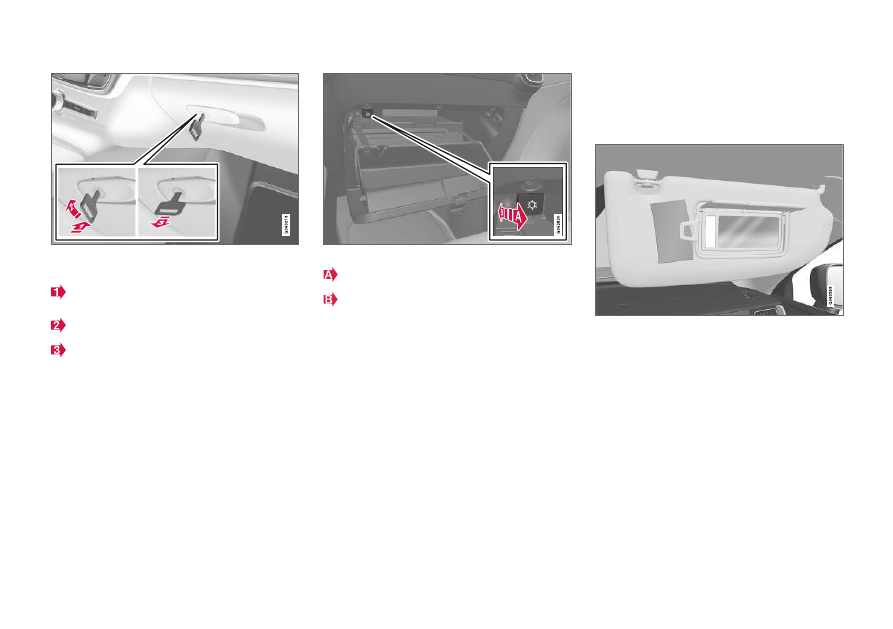

Storage compartment for the key. The illustration is
generic – the design may vary.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

576

The illustration is generic – the design may vary.

To lock the glove compartment:
Insert the key into the lock on the glove com-
partment.
Turn the key 90 degrees clockwise.

Remove the key from the lock.

–

To unlock, perform the above steps in
reverse.

Using the glove box as a cooled area*

The glove compartment can be used to cool e.g.
drinks or food. Cooling is possible when the cli-
mate system is active (i.e. when the ignition is in
mode II or when the engine is running).

The illustration is generic – the design may vary.

Activate cooling

Deactivate cooling

–

Activate or deactivate cooling by moving the
control as far as possible toward the passen-
ger compartment/glove compartment.

Related information

•

Passenger compartment interior (p. 570)

•

Private Locking (p. 267)

Sun visors

In the ceiling in front of the driver and front pas-
senger, there are sun visors that can be lowered
and angled to the side as necessary.

The illustration is generic – the design may vary.

The mirror lighting* comes on automatically when
the cover is lifted up.

The mirror frame has a holder for e.g. cards or
tickets.

Related information

•

Passenger compartment interior (p. 570)

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

577

Cargo compartment

The vehicle has a flexible cargo compartment
that makes it possible to carry and secure large
objects.

The cargo capacity of the vehicle can be consid-
erably increased by folding down the rear seat
backrests. To make loading and unloading easier,
the rear section of the vehicle can be raised and
lowered using the level control function*. Use the
load anchoring eyelets or grocery bag holders to
help secure objects in place, and the retractable
cargo compartment cover* to help conceal
objects in the cargo compartment.

The towing eyelet and tire sealing system, or the
temporary spare tire*, are located under the
cargo compartment floor.

Related information

•

Loading recommendations (p. 577)

•

Grocery bag holders (p. 579)

•

Load anchoring eyelets (p. 580)

•

Installing and removing the cargo compart-
ment cover* (p. 580)

Loading recommendations

There are a number of things to consider when
carrying loads in or on the vehicle.

Load-carrying capacity is determined by the vehi-
cle's curb weight. The total weight of all passen-
gers and any installed accessories reduces the
vehicle's load-carrying capacity by the corres-
ponding amount.

WARNING

The vehicle's driving characteristics change

depending on the weight and position of the

load.

Loading the cargo compartment/trunk

•

Position objects so they are pressing against
the rear seat backrests.

•

Distribute the load evenly.

•

Heavy objects should be positioned as low
as possible. Avoid placing heavy objects on
folded-down seat backrests.

•

Cover sharp corners with a soft cloth or simi-
lar to help prevent damage to the upholstery.

•

Use the load anchoring eyelets and tension-
ing straps or similar to secure all objects.

WARNING

In a head-on collision at a speed of 50 km/h

(30 mph), an unsecured object weighing 20

kg (44 pounds) can reach a projectile weight

equivalent to 1000 kg (2200 pounds).

WARNING

If objects are loaded higher than the upper

edge of the side windows, leave a 10 cm (4

in.) space between the objects and the win-

dow. Objects placed closer to this could

impede the function of the inflatable curtain

concealed inside the headlining.

WARNING

Always secure the load. Otherwise, it may shift

during heavy braking and injure people in the

vehicle.
Cover sharp edges and sharp corners with

something soft.
Turn off the engine and apply the parking

brake when loading/unloading long objects.

Otherwise, it is possible for the load to reach

the gear lever or gear selector and move it to

a drive position – which could cause the vehi-

cle to begin rolling.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

578

Extra cargo space

The rear seat backrests can be folded down to
increase cargo compartment space and simplify
loading. If the rear seat backrests are folded
down, make sure that no objects loaded into the
vehicle prevent the WHIPS system for the front
seats from functioning correctly.

The ski hatch in the rear seat can be folded down
to carry skis or other long, thin objects.

Raising/lowering the rear end of the
vehicle*

The rear end of the vehicle can be lowered or
raised for easier loading or to facilitate attaching
a trailer*.

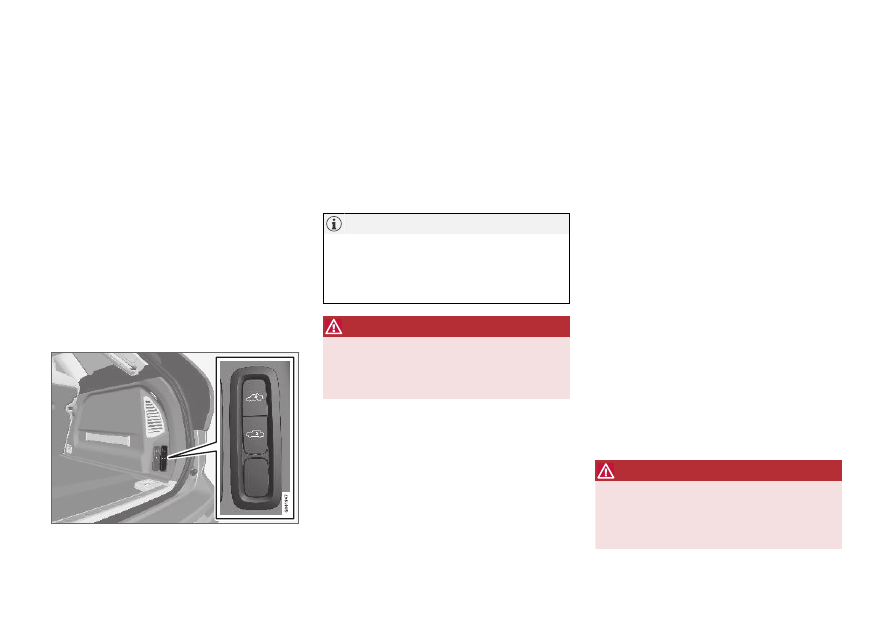

The controls for raising/lowering are located at
the rear edge of the cargo compartment's right
side panel.

Controls for raising/lowering the rear end of the vehicle.

The controls consist of two buttons

‒ one button

for lowering and one button for raising the rear
end. Press and hold the relevant button until the
desired height is reached.

The rear end of the vehicle cannot be raised
higher than its normal height.

The rear end will return to the normal height
when the vehicle begins driving.

NOTE

It is not possible to adjust the height of the
vehicle's rear when one or more of the doors
or the hood is open. This does not apply to
the tailgate.

WARNING

Make sure that no people, animals or objects

are found under the vehicle when it is low-

ered. This could endanger life and cause

damage to the vehicle or objects.

Related information

•

Load anchoring eyelets (p. 580)

•

Folding down the rear seat backrests
(p. 195)

•

Rear seat ski hatch (p. 580)

•

Roof loads and load carriers (p. 578)

•

Leveling control* and suspension (p. 442)

•

Weights (p. 653)

Roof loads and load carriers

Volvo-developed load carriers are recommended
for carrying loads on the roof of the vehicle.

Volvo load carriers are specially designed to help
prevent damage to your vehicle and help ensure
maximum safety while driving. Volvo load carriers
are available from authorized Volvo retailers.

Carefully follow the installation instructions provi-
ded with the load carriers.

•

Distribute the load evenly throughout the
load carriers. Place heavier cargo at the bot-
tom of the load.

•

Check periodically to ensure that the load
carriers and load are properly secured.
Secure the load firmly using tie straps or
similar.

•

If the load is longer than the vehicle, such as
a canoe or kayak, attach the towing eyelet in
its front outlet and secure the tie straps in it.

•

The vehicle's wind resistance and fuel con-
sumption increase with the size of the load.

•

Drive smoothly. Avoid rapid acceleration, hard
braking and fast cornering.

WARNING

The vehicle's center of gravity and driving

characteristics are altered by roof loads.
Follow the vehicle's specifications regarding

weights and maximum permitted load.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

579

Related information

•

Loading recommendations (p. 577)

•

Weights (p. 653)

Grocery bag holders

Grocery bag holders (hooks) help keep shop-
ping bags in place and prevent them from falling
over and spilling their contents in the cargo
compartment.

On the sides of the cargo compartment

There is a grocery bag holder in the side panel
on each side of the cargo compartment.

CAUTION

The grocery bag holders are only intended to
hold weights up to 5 kg (11 lbs).

Related information

•

Loading recommendations (p. 577)

•

Installing and removing the cargo net*
(p. 585)

•

Installing and removing the cargo compart-
ment cover* (p. 580)

•

Installing and removing the steel cargo grid*
(p. 584)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

580

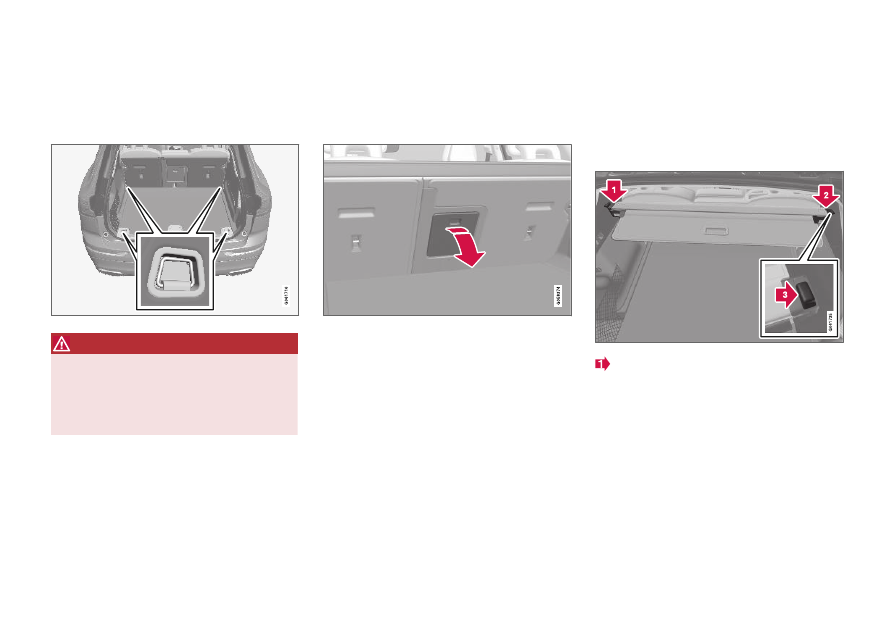

Load anchoring eyelets

The load anchoring eyelets in the cargo com-
partment can be used to secure objects with
straps, a net, etc.

WARNING

Hard, sharp and/or heavy objects in or pro-

truding from the vehicle can cause injury in

the event of hard braking.
Always secure large and heavy objects with a

seat belt or cargo retaining straps.

Related information

•

Loading recommendations (p. 577)

•

Weights (p. 653)

Rear seat ski hatch

The hatch in the rear seat backrest can be
opened to transport long, narrow objects such
as skis.

The illustration is generic - details may vary according to
vehicle model.

1. In the cargo compartment, grasp the ski

hatch handle and pull it down.

2. Fold down the armrest in the rear seat.

If the private locking function is used, the ski
hatch must be closed.

Related information

•

Loading recommendations (p. 577)

•

Private Locking (p. 267)

•

Load anchoring eyelets (p. 580)

Installing and removing the cargo

compartment cover*

In the fully open position, the cover and the rear
flap conceal objects in the cargo compartment.

Installing the cargo compartment cover

Press the end piece on one side of the cover
into the retaining bracket in the side panel of
the cargo compartment.

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

581

Then put the other end piece in the recess in
the side panel on the opposite side.

Make sure the front flap is pointed downward
behind the backrest before the cassette is
put into place.

Push the end piece down on both sides, one
at a time.
> When a click is heard and the red marks

on each end piece are no longer visible,
the cover is in place. Check that it is
secure.

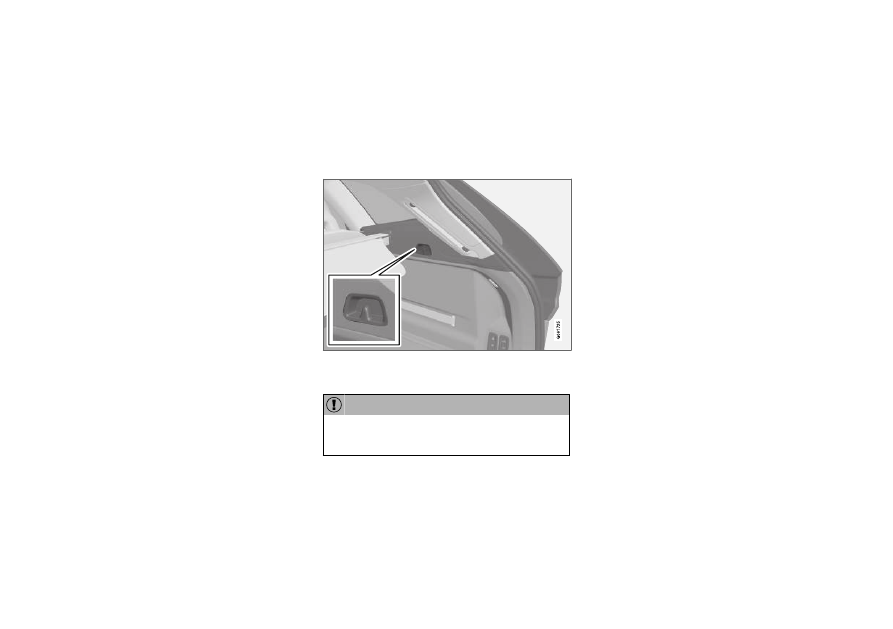

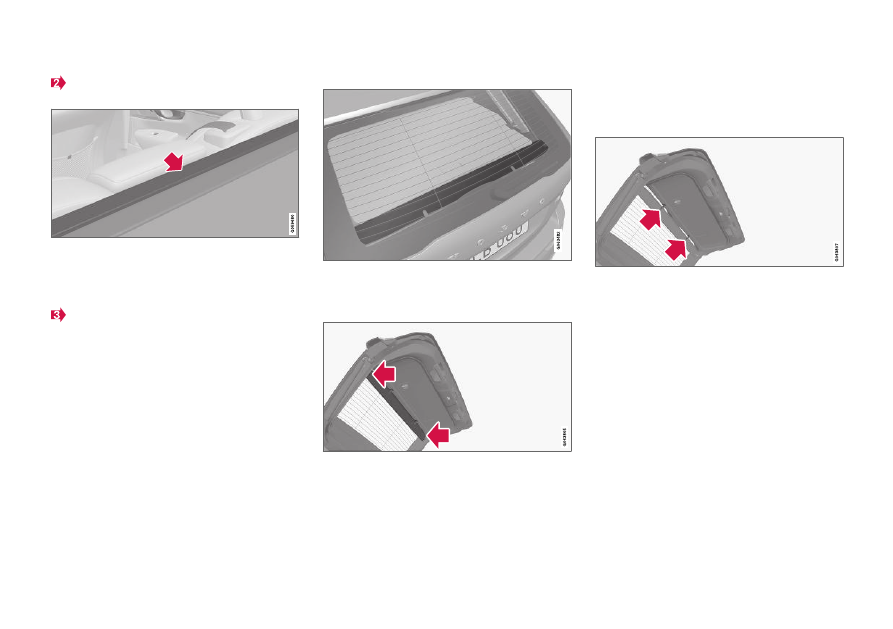

Fitting the tailgate flap

A flap should be mounted on the tailgate when
using the cargo compartment cover.

1.

Turn the flap so that the screw side faces
down and guide the pin into the bracket on
one side of the tailgate.

2. Squeeze together the flap slightly to make it

easier to guide the pin into place in the
bracket on the other side.

3.

Press the two upper clips in the respective
recess in the tailgate so it clicks into place.

Removing the cargo compartment
cover

In retracted position:

1. Press the button on one of the cover's ends

and lift out that end.

2. Carefully lift the cover up and out.

> The other end will release automatically

and the cover can then be lifted out of the
cargo compartment.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

582

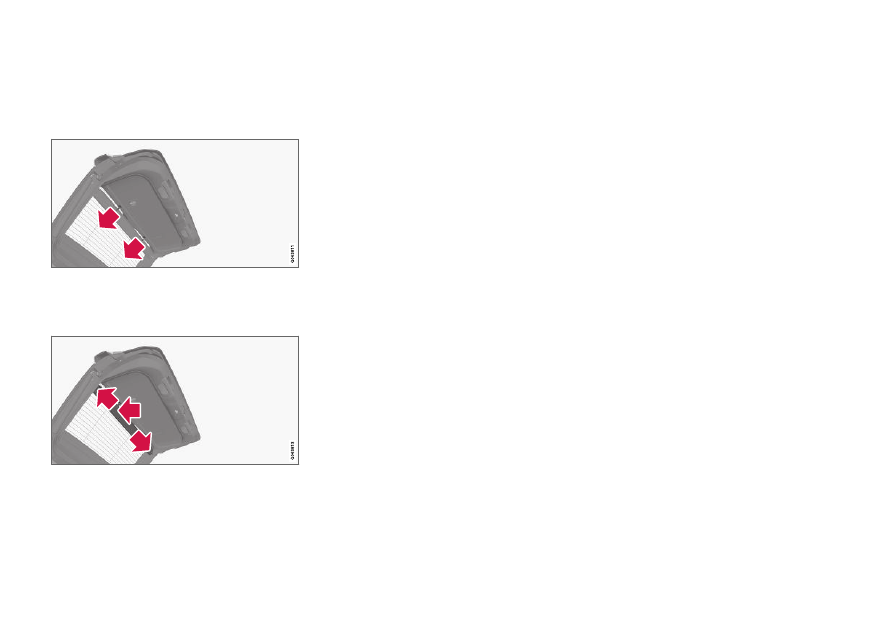

Removing the tailgate flap

If the cargo compartment cover is not being used,
the rear flap should be removed.

1.

Pull the upper clips of the cover straight out
of the tailgate.

2.

Carefully pull the flap out of the bracket on
one side of the tailgate and then the other. If
necessary, press the flap together slightly to
make it more flexible and facilitate removal.

Related information

•

Operating the cargo compartment cover*
(p. 582)

•

Loading recommendations (p. 577)

Operating the cargo compartment

cover*

The cover can be used in two positions: fully
open to completely cover the cargo compart-
ment or partially retracted to make it easier to
reach further into the cargo compartment.

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

583

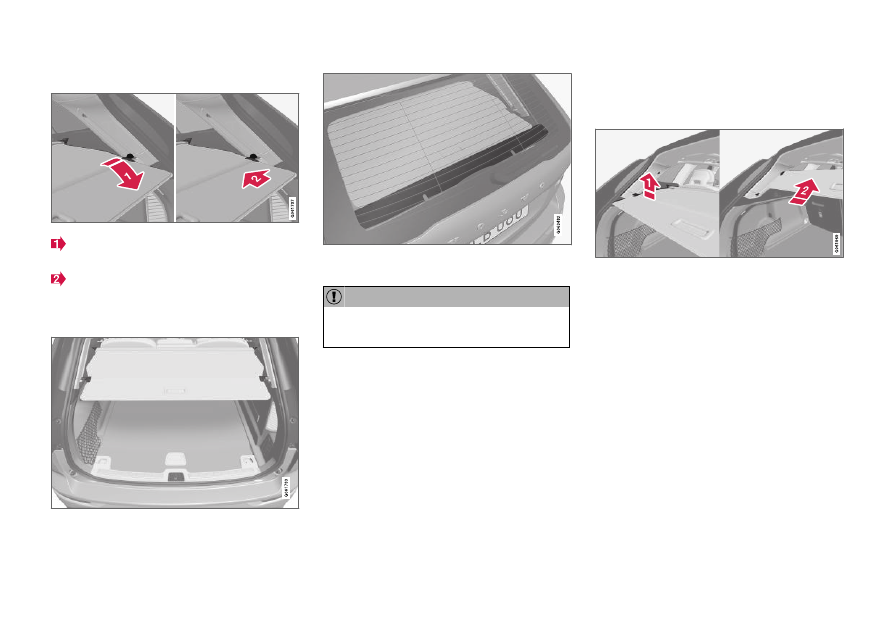

Fully open

Grasp the handle and pull the cover out as
far as possible.

Press the attachment pins in the recesses in
the rear pillars of the cargo compartment.
> The cover will be secured in the fully open

position.

Cover in the fully open position.

The rear flap mounted on the inside of the tailgate sup-
plements the cargo compartment cover.

CAUTION

Do not place objects on top of the cargo
compartment cover.

Loading mode

From the fully opened position:

–

Press the handle section of the cargo com-
partment slightly upward.
> The cover will move up until it stops in the

partially retracted position.

Returning to the fully open position from the par-
tially retracted position:

1. Grasp the handle and pull the cover down as

far as possible. Angle the handle slightly
upward so that the attaching pins can more
easily move past the first set of grooves.

2. Release the handle so that the attaching

pins engage into the grooves.
> The cover will be secured in the fully open

position.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

584

CAUTION

When in the loading position, the cargo com-
partment cover can obstruct visibility to the
rear. Make sure that the cargo compartment
cover is fully extended or fully retracted during
driving.

Retracting the cover

1. From the fully opened position:

Lift the cover's handle and pull it rearward to
release the cover's attaching pins from the
grooves. Let the cover retract.

From the partially retracted position:

Grasp the handle and pull the cover out of
the groves to the fully open position. Lift the
handle and pull it rearward to release the
cover's attaching pins from the grooves. Let
the cover retract.

2. Let the cover retract with its attaching pins

above the side panels until it stops in the
fully retracted position.

Related information

•

Installing and removing the cargo compart-
ment cover* (p. 580)

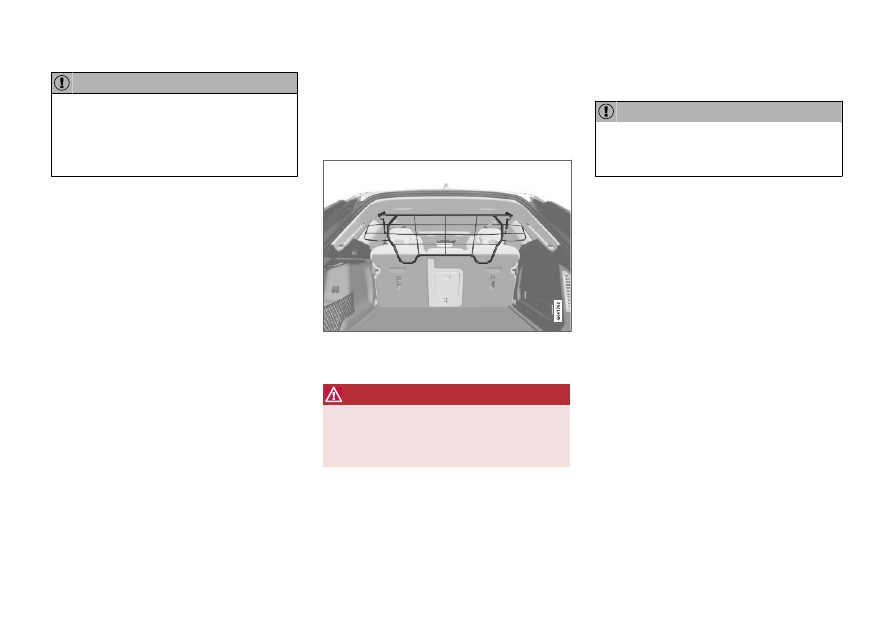

Installing and removing the steel

cargo grid*

The steel cargo grid helps prevent loads or pets
in the cargo compartment from being thrown for-
ward into the passenger compartment.

For safety reasons, the steel grid must always be
installed and secured correctly.

WARNING

Under no circumstances may a person be in

the cargo compartment when the vehicle is

moving. Heavy braking or a collision could

lead to serious injury.

Installation

CAUTION

The steel cargo grid may only be used in the
rear position (behind the rear seat) described
here.

Before installing the steel grid, the existing plas-
tic ceiling mounting consoles must be replaced
with steel consoles. Volvo recommends that the
ceiling consoles are only replaced by an author-
ized Volvo workshop or retailer.

1. Fold down the rear seat backrests.

2. Make sure that the steel grid is facing the

right direction. Lift the grid into the vehicle
through one of the rear doors.

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

585

3.

Position the grid's attachment points in the
ceiling consoles.

The next step will be easier if two people
hold the steel grid in the right position.

4.

Screw the provided screw into place using
the provided 6 mm Allen wrench. Repeat on
the other side. Recommended torque: 20 Nm
(15 ft-lb).
> Check to make sure the steel grid is

securely in place.

5. Return the backrest to the upright position.

For more information on necessary tools and pro-
cedures for installing/removing, see the assem-
bly instructions provided with the steel grid.

CAUTION

The steel cargo grid cannot be folded up or
down when a cargo compartment cover is
mounted.

Related information

•

Loading recommendations (p. 577)

•

Load anchoring eyelets (p. 580)

Installing and removing the cargo

net*

The cargo net helps prevent objects in the cargo
compartment from entering the passenger com-
partment in the event of a sudden stop or hard
braking.

The cargo net is attached at four points.

For safety reasons, the cargo net must always be
mounted and secured according to the following
description.

The net is made of strong nylon weave and can
be attached in two different locations in the vehi-
cle:

•

Rear mounting - behind the rear seats.

•

Front mounting - behind the front seats.

||

LOADING, STORAGE AND PASSENGER COMPARTMENT

586

WARNING

Objects in the cargo compartment must

always be securely anchored, even with a cor-

rectly installed cargo net.

Installing the cargo net

WARNING

All of the cargo net's upper consoles, hooks

and straps must be securely mounted and

attached before the net is used.
Never use the net if it is damaged.

NOTE

With front mounting, the cargo net is most
easily installed via a rear door.

1. Fold out the cargo net and make sure that

the upper rod folds out and locks into posi-
tion.

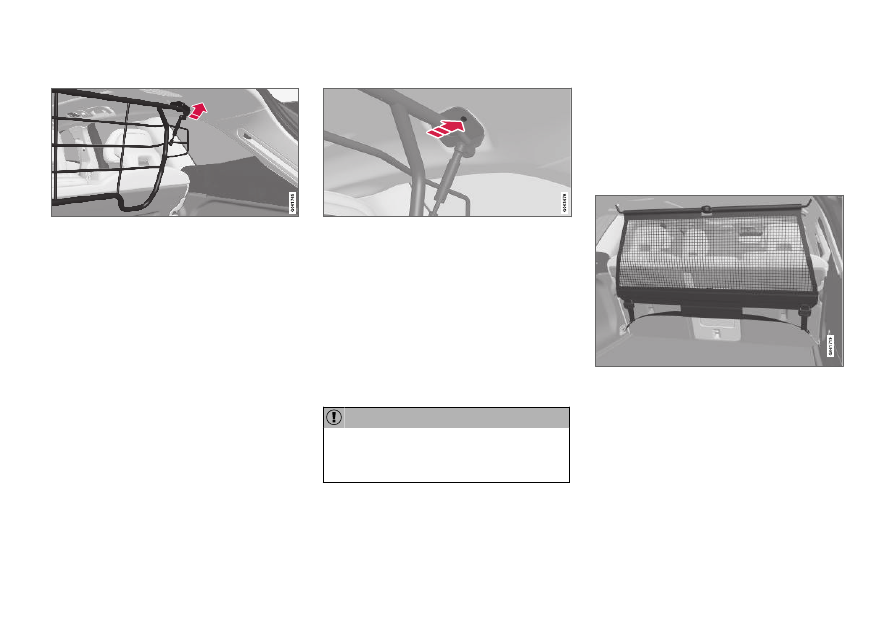

2. Insert one of the net's hooks into the front or

rear ceiling mounting point with the strap
lock facing you.

3. Insert the net's other upper hook into the

ceiling mounting point on the opposite side.

The telescopic spring-loaded hooks make
mounting easier.

Make sure that the net's hooks are pushed
forward as far as possible into their respec-
tive mounting points.

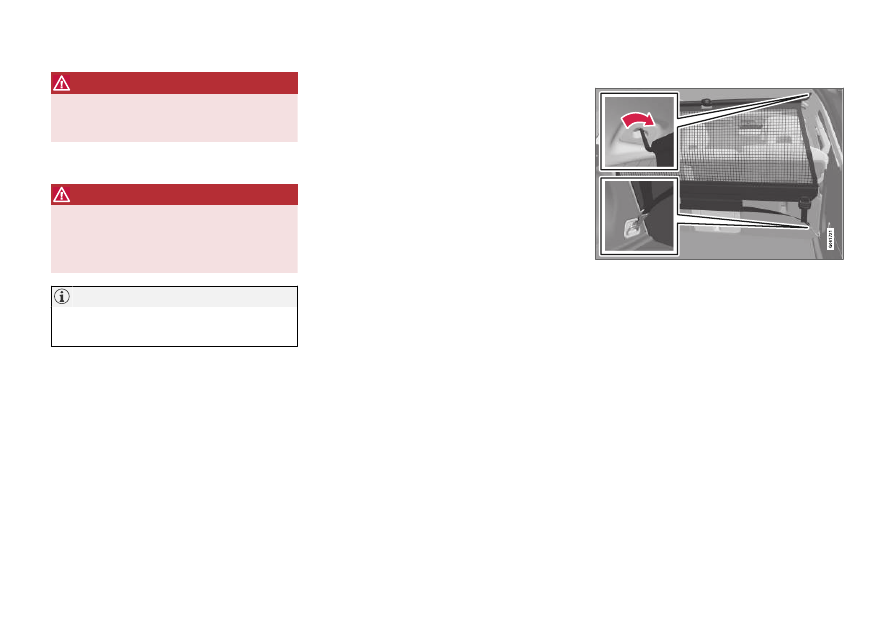

4.

Rear mounting.

For rear mounting:

With the cargo net hooked into the rear ceil-
ing mounting points, attach the net's straps
into the front floor eyelets in the cargo com-
partment.

LOADING, STORAGE AND PASSENGER COMPARTMENT

587

Front mounting.

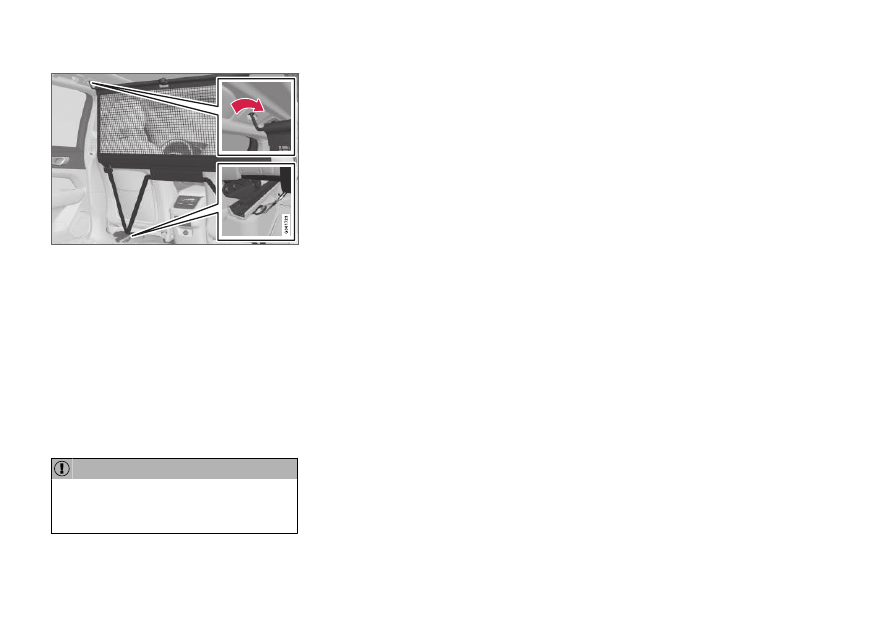

For front mounting:

With the cargo net mounted in the front ceil-
ing mounting points, hook the straps into the
outer eyelets on the front seat rails behind
the seats. Attaching the net is easier if the
seat backrests are upright and the seats are
moved slightly forward.

Move the seat or backrest only until it
touches the net. Moving it with too much
force or applying too much pressure to the
net could lead to damage.

CAUTION

If a seat or backrest is pressed with too much
force back against the cargo net, the net and
its ceiling brackets could be damaged.

5. Pull the straps until the cargo net is taut.

Removing the cargo net

The cargo net can be easily removed and folded
up.

1. Loosen the cargo net by pressing the button

on the strap locks on each side and pulling
to allow some slack.

2. Press in the catches and release both of the

strap hooks.

3. Unhook the upper hooks and remove the net

from the ceiling mounting points.

4. Press the red button on the rod so that it can

be folded. Fold and roll up the net. Store the
net in its case.

Related information

•

Loading recommendations (p. 577)

•

Load anchoring eyelets (p. 580)

MAINTENANCE AND SERVICE

590

Volvo's service program

To keep the vehicle as safe and reliable as pos-
sible, follow the Volvo service schedule speci-
fied in the Warranty and Maintenance Records
Information booklet.

WARNING

California Proposition 65

Operating, servicing and maintaining a pas-

senger vehicle can expose you to chemicals

including engine exhaust, carbon monoxide,

phthalates, and lead, which are known to the

State of California to cause cancer and birth

defects or other reproductive harm. To mini-

mize exposure, avoid breathing exhaust, do

not idle the engine except as necessary, serv-

ice your vehicle in a well ventilated area and

wear gloves or wash your hands frequently

when servicing your vehicle. For more infor-

mation go to www.P65Warnings.ca.gov/

passenger-vehicle.

Volvo recommends having an authorized Volvo
workshop perform service and maintenance.
Volvo workshops have the staff, service literature
and special tools to guarantee the highest quality
of service.

CAUTION

To ensure the Volvo warranty is not invalida-
ted, check and follow the Service and War-
ranty Booklet.

Introduction

The maintenance services contain several checks
that require special instruments and tools and
therefore must be performed by a qualified tech-
nician. To keep your Volvo in top condition, spec-
ify time-tested and proven Genuine Volvo Parts
and Accessories.

The Federal Clean Air Act - U.S.

The Federal Clean Air Act requires vehicle manu-
facturers to furnish written instructions to the ulti-
mate purchaser to assure the proper servicing
and function of the components that control
emissions. These services, which are listed in the
"Warranty and Service Records Information"
booklet, are not covered by the warranty. You will
be required to pay for labor and material used.

Maintenance

Your Volvo passed several major inspections
before it was delivered to you, in accordance with
Volvo specifications. The maintenance proce-
dures outlined in the Warranty and Service
Records Information booklet, many of which will
positively affect your vehicle's emissions, should
be performed as indicated. It is recommended
that receipts for vehicle emission maintenance be
retained in case questions arise concerning
maintenance. Inspection and maintenance should
also be performed anytime a malfunction is
observed or suspected.

Applicable warranties - U.S./Canada

In accordance with applicable U.S. and Canadian
regulations, the following list of warranties is pro-
vided.

•

New Vehicle Limited Warranty

•

Parts and Accessories Limited Warranty

•

Corrosion Protection Limited Warranty

•

Seat Belt and Supplemental Restraint Sys-
tems Limited Warranty

•

Emission Design and Defect Warranty

•

Emission Performance Warranty

These are federal warranties; other warranties are
provided as required by state/provincial law.
Refer to your separate Warranty and Service
Records Information booklet for detailed informa-
tion concerning each of the warranties.

MAINTENANCE AND SERVICE

}}

591

Periodic maintenance helps minimize
emissions

NOTE

•

Refer to your Service and Warranty Book-
let for a comprehensive service and main-
tenance schedule up to 240,000 km
(150,000 miles). This program contains
inspections and services necessary for
the proper function of your vehicle and
includes components that affect vehicle
emissions.

•

The Warranty and Service Records Infor-
mation booklet also contains detailed
information concerning the warranties
that apply to your vehicle.

On-board Diagnostic System

OBD II is part of your vehicle's computerized
engine management system. It stores diagnostic
information about your vehicle's emission con-
trols. It can light the Check Engine light (MIL) if it
detects an emission control "fault." A "fault" is a
component or system that is not performing
within an expected range. A fault may be perma-
nent or temporary. OBD II will store a message
about any fault.

Emission inspection readiness

How do states use OBD II for emission
inspections?

Many states connect a computer directly to a
vehicle's OBD II system. The inspector can then
read "faults." In some states, this type of inspec-
tion has replaced the tailpipe emission test.

How can my vehicle fail OBD II emission
inspection?

Your vehicle can fail OBD II emission inspection
for any of the following reasons:

•

If your Check Engine (MIL) light is lit, your
vehicle may fail inspection.

•

If your vehicle's Check Engine light was lit,
but went out without any action on your part,
OBD II will still have a recorded fault. Your
vehicle may pass or fail, depending on the
inspection practices in your area.

•

If you had recent service that required dis-
connecting the battery, OBD II diagnostic
information may be incomplete and "not
ready" for inspection. A vehicle that is not
ready may fail inspection.

How can I prepare for my next OBD II
emission inspection?

•

If your Check Engine (MIL) light is lit or was
lit but went out without service, have your

vehicle diagnosed and, if necessary, serviced
by a qualified Volvo technician.

•

If you recently had service for a lit Check
Engine light, or if you had service that
required disconnecting the battery, a period
of driving is necessary to bring the OBD II
system to "ready" for inspection. Two half-
hour trips of mixed stop-and-go/highway
driving are typically needed to allow OBD II to
reach readiness. Your Volvo retailer can pro-
vide you with more information on planning a
trip.

•

Maintain your vehicle in accordance with your
vehicle's maintenance schedule.

Owner maintenance

Periodic maintenance requirements and intervals
are described in your vehicle's Warranty and
Service Records Information booklet.

The following points can be carried out between
the normally scheduled maintenance services.

Each time the car is refueled:

•

Check the engine oil level.

•

Clean the windshield, windshield wipers,
headlights, and taillights.
