SEATS AND STEERING WHEEL

* Option/accessory.

196

CAUTION

The seat cushion of the integrated child
restraint* must be in the stowed position
before the rear seat backrest can be folded
down.

The armrest* in the center seat must be
raised before the seat backrest is folded
down.

The ski hatch must be closed before the seat
backrest is folded down.

NOTE

The front seats may need to be pushed for-
ward and/or the backrest adjusted so that the
rear seat backrests can be fully lowered.

Folding down backrests with the
electric backrest folding function*

If the vehicle is equipped with the electric rear
seat backrest fold-down function, the buttons in
the cargo compartment can be used to fold down
the backrests. It is also possible to fold down the
rear seat using the handle on the top of the seat.

WARNING

Before using the electric fold-down function,

be sure that no one is sitting in or is near the

rear seat, that there are no objects on the rear

seat and that the backrest is not obstructed in

any way.

Folding backrests with the buttons in the
cargo compartment

The vehicle must be stationary and the tailgate
must be open before a backrest can be folded
down. Make sure that the rear seat is unoccupied
and that there are no objects on the seat.

1. Fold down the center seat's head restraint

manually.

2. Press and hold one of the electric fold-down

buttons. The buttons are marked L (left back-
rest section) and R (right backrest section).

3. The backrests will release from the locks.

The head restraint will fold down first and
then the backrest will automatically fold
down to the horizontal position.

Folding the backrest with the handle in the
rear seat

Make sure that the rear seat is unoccupied and
that there are no objects on the seat.

Fold down the center seat's head restraint
manually.

Pull the handle in the vehicle's left or right
rear seat backrest forward to fold down the
left or right section of the rear seat.
> The backrests will release from the locks.

The head restraint will fold down first and
then the backrest will automatically fold
down to the horizontal position.

SEATS AND STEERING WHEEL

197

Folding the backrests manually

If the vehicle only has the manual backrest fold-
down function, fold down the right or left section
of the seat using the handle in the rear seat.

Make sure that the rear seat is unoccupied and
that there are no objects on the seat.

Fold down the center seat's head restraint
manually.

Pull up the handle on the backrest

 while

folding down the backrest. The handle for the
head restraint will be automatically pulled up
when the backrest is lowered. A red indicator
light near the backrest lock

 indicates that

the backrest is no longer locked.

NOTE

When the backrest is folded down, the head
restraint may come in contact with the seat
cushion of the seat being folded down. Adjust
the head restraint of the seat being folded
down to help prevent damage to the uphols-
tery.

3. The backrest lock will release and the back-

rest will automatically fold down to the hori-
zontal position.

Folding up the backrest

To fold up the backrest to the upright position
manually:

1. Move the backrest upward/rearward.

2. Press the backrest until it locks into position.

3. Fold up the head restraints manually.

4. Adjust the center head restraint if necessary.

WARNING

When the backrest is restored to an upright

position, the red indicator should no longer be

visible. If it is still visible, the backrest is not

locked in place.

WARNING

Make sure that the rear seat backrest and

head restraint are locked securely in place

after the seat is folded up.
The head restraints at the outer seats must

always be raised when there is a passenger in

one of these spots of the rear seat.

Related information

•

Adjusting the rear seat head restraints
(p. 198)

•

Private Locking (p. 267)

•

Activating and deactivating private locking
(p. 268)

SEATS AND STEERING WHEEL

* Option/accessory.

198

Adjusting the rear seat head

restraints

Adjust the center head restraint in the rear seat
to the seat occupant's height. Fold down the
outboard head restraints* to improve rear visibil-
ity.

Adjusting the center seat head restraint

The center head restraint should be adjusted to
suit the passenger's height. The entire back of
the head should be covered if possible. Manually
move the restraint up or down as needed.

To lower the restraint, push and hold the button
(see illustration) while carefully lowering the head
restraint.

WARNING

The center seat head restraint must be in its

lowest position when the seat is not occupied.

When the center seat is occupied, the head

restraint must be correctly adjusted to the

passenger's height, covering the entire back

of the head if possible.

Folding the rear seat outboard head
restraints using the center display*

The outer head restraints can be folded via the
center display's function view. The head restraint
can be folded down when the vehicle is in igni-
tion mode 0.

Tap the

Headrest Fold

 button

to activate/deactivate folding.

Manually push the head restraint until it clicks
into position.

WARNING

Do not lower the head restraint if there are

passengers in any of the rear seats.

WARNING

The head restraint must be locked in the

upright position after it has been folded up.

SEATS AND STEERING WHEEL

}}

* Option/accessory.

199

Folding the rear seat outboard head
restraints using the handle

For vehicles with electrically folding* rear seats,
the outboard head restraints can be folded using
the handle on the top of the seat (see illustration

.) For vehicles without electrically folding back-

rests, fold the outboard head restraints manually
using the inner control on the top of the seat
(see illustration

).

Related information

•

Folding down the rear seat backrests
(p. 195)

Steering wheel controls and horn

The steering wheel has a horn and controls for
e.g. driver support systems and voice control.

Steering wheel keypads and paddles*.

Driver support system controls

5

.

Paddle* for manually shifting gears (auto-
matic transmission).
Controls for voice commands, accessing
menus and messages, and handling phone
calls.

5

Speed limiter, Cruise Control, Adaptive Cruise Control*, Distance Alert* and Pilot Assist.

||

SEATS AND STEERING WHEEL

* Option/accessory.

200

Horn

The horn is located in the center of the steering wheel.

Related information

•

Adjusting the steering wheel (p. 200)

Adjusting the steering wheel

The steering wheel can be adjusted to various
positions.

The steering wheel's reach and height can be adjusted.

WARNING

Adjust the steering wheel and ensure it locks

into position before driving. Never adjust the

steering wheel while driving.

Steering wheel force can be adjusted with
speed-dependent power steering. Steering wheel
force is adjusted according to the vehicle's speed
to give the driver an enhanced sense of control
and stability.

Steering wheel adjuster lever.

1. Move the lever forward to release the steer-

ing wheel.

2. Adjust the steering wheel to the desired

position.

3. Pull the lever back to lock the steering wheel

into place. If the lever is difficult to move,
press the steering wheel lightly while pulling
the lever.

Related information

•

Steering wheel controls and horn (p. 199)

•

Adjusting the power* front seats (p. 187)

CLIMATE CONTROL

CLIMATE CONTROL

* Option/accessory.

202

Climate

The vehicle is equipped with electronic climate
control. The climate system cools, heats and
dehumidifies the air in the passenger compart-
ment.

All of the climate system functions are controlled
from the center display and the buttons on the
center console.

Certain rear seat functions can also be controlled
from the climate controls* on the rear of the tun-
nel console.

Related information

•

Climate zones (p. 202)

•

Climate control sensors (p. 203)

•

Perceived temperature (p. 203)

•

Climate control system voice commands
(p. 204)

•

Parking climate* (p. 230)

•

Air quality (p. 205)

•

Air distribution (p. 208)

•

Climate system controls (p. 214)

Climate zones

The vehicle is divided into climate zones to make
it possible to set different temperatures for dif-
ferent parts of the passenger compartment.

2-zone climate system

Climate zones with 2-zone climate system.

In 2-zone climate systems, the passenger com-
partment temperature can be set separately for
the left and right sides of the vehicle.

4-zone climate system*

Climate zones with 4-zone climate system.

In 4-zone climate systems, the passenger com-
partment temperature can be set separately for
the left and right sides of the vehicle, and for the
front and rear seats.

Related information

•

Climate (p. 202)

CLIMATE CONTROL

* Option/accessory.

203

Climate control sensors

The climate system has a number of sensors to
help regulate the climate settings in the vehicle.

Location of the sensors

Humidity sensor - in the rearview mirror con-
sole.
Ambient temperature sensor - in the right-
side door mirror.
Sunlight sensors - on the upper side of the
dashboard.
Passenger compartment temperature sensor
- near the buttons in the center console.

NOTE

Do not cover or block the sensors with cloth-
ing or other objects.

On vehicles equipped with the Interior Air Quality
System*, there is also an air quality sensor in the
climate system's air intake.

Related information

•

Climate (p. 202)

•

Interior Air Quality System* (p. 206)

Perceived temperature

The climate control system regulates the climate
in the passenger compartment based on per-
ceived temperature, not actual temperature.

The selected passenger compartment tempera-
ture is based on the physical perception of the
current ambient temperature, airflow speed,
humidity, sunlight in the passenger compartment,
etc.

The system has a sunlight sensor that detects
which side of the vehicle the sunlight is shining
on and adjusts the temperature accordingly. This
means that the temperature of the air coming out
of the vents may be different for the left and right
sides, even if the temperature setting is the same
for both sides.

Related information

•

Climate (p. 202)

CLIMATE CONTROL

* Option/accessory.

204

Climate control system voice
commands

1

Voice commands can be used for the climate
control system to e.g. change temperature, acti-
vate seat heating* or change blower speed.

Tap

 and say one of the following commands:

•

"

Climate

" - starts a command dialog for cli-

mate controls and provides examples of
commands that can be used.

•

"

Set temperature to X degrees

" - sets

desired temperature.

•

"

Raise temperature

"/"

Lower

temperature

" - raises/lowers the set tem-

perature.

•

"

Sync temperature

" - synchronizes the

temperature for all climate zones in the vehi-
cle with the temperature set for the driver's
side.

•

"

Air on feet

"/"

Air on body

" - opens the

desired air vent.

•

"

Air on feet off

"/"

Air on body off

" - closes

the desired air vent.

•

"

Set fan to max

"/"

Turn off fan

" - changes

blower speed to

Max

/

Off

.

•

"

Raise fan speed

"/"

Lower fan speed

" -

raises/lowers the set blower speed.

•

"

Turn on auto

" - activates automatic climate

control.

•

"

Air condition on

"/"

Air condition off

" -

activates/deactivates air conditioning.

•

"

Recirculation on

"/"

Recirculation off

" -

activates/deactivates air recirculation.

•

"

Turn on defroster

"/"

Turn off defroster

"

- activates/deactivates window and door mir-
ror defrosting.

•

"

Turn on max defroster

"/"

Turn off max

defroster

" - activates/deactivates max

defroster.

•

"

Turn on electric defroster

"/"

Turn off

electric defroster

" - activates/deactivates

heated windshield*.

•

"

Turn on rear defroster

"/"

Turn off rear

defroster

" - Activates/deactivates heated

rear window and door mirrors.

•

"

Turn steering wheel heat on

"/"

Turn

steering wheel heat off

" - activates/deac-

tivates heated steering wheel*.

•

"

Raise steering wheel heat

"/"

Lower

steering wheel heat

" - raises/lowers the

level of steering wheel heating*.

•

"

Turn on seat heat

"/"

Turn off seat heat

"

- activates/deactivates seat heating*.

•

"

Raise seat heat

"/"

Lower seat heat

" -

raises/lowers the level of seat heating*.

•

"

Turn on seat ventilation

"/"

Turn off seat

ventilation

" - activates/deactivates seat

ventilation*.

•

"

Raise seat ventilation

"/"

Lower seat

ventilation

" - raises/lowers the level of seat

ventilation*.

Related information

•

Climate (p. 202)

•

Voice control (p. 147)

•

Using voice commands (p. 148)

•

Voice control settings (p. 150)

1

Certain markets only.

CLIMATE CONTROL

}}

* Option/accessory.

205

Air quality

The materials used in the passenger compart-
ment and air filtering system have been selected
to ensure a high level of air quality in the passen-
ger compartment.

Materials used in the passenger
compartment

The materials in the passenger compartment are
designed to be pleasant and comfortable, even
for people with asthma or allergies.

The materials have been developed and tested to
minimize dust in the passenger compartment and
make it easier to keep clean.

The mats in both the passenger compartment
and cargo compartment can be easily removed
for cleaning.

Use Volvo-recommended cleaning agents and
car care products to clean the interior.

Air filtering systems

In addition to the passenger compartment filter,
the Clean Zone Interior Package* and Interior Air
Quality System* also help maintain high air qual-
ity in the passenger compartment.

Related information

•

Climate (p. 202)

•

Clean Zone* (p. 205)

•

Clean Zone Interior Package* (p. 206)

•

Interior Air Quality System* (p. 206)

•

Passenger compartment air filter (p. 207)

Clean Zone*

The Clean Zone function monitors the condi-
tions affecting good air quality in the passenger
compartment and indicates whether they are ful-
filled or not.

The indicator is shown in the center display's
Climate view.
The indicator is shown in the climate bar
when Climate view is not open.

If the conditions are not met, the text

Clean

Zone

 will be shown in white. When all the condi-

tions are met, the text will change to blue.

Clean Zone monitors whether:

•

All doors and tailgate are closed.

•

All side windows and panoramic roof* are
closed.

•

The Interior Air Quality System* is activated.

||

CLIMATE CONTROL

* Option/accessory.

206

•

The blower is activated.

•

Air recirculation is deactivated.

NOTE

Clean Zone does not indicate that the air
quality is good, but only that the conditions for
good air quality have been met.

Related information

•

Air quality (p. 205)

•

Clean Zone Interior Package* (p. 206)

•

Interior Air Quality System* (p. 206)

•

Passenger compartment air filter (p. 207)

Clean Zone Interior Package*

Clean Zone Interior Package (CZIP) is a series
of modifications that filters even more allergy and
asthma-inducing substances from the passenger
compartment.

CZIP includes the following:

•

An enhanced function that starts the blower
when the vehicle is unlocked using the
remote key. The blower will then fill the pas-
senger compartment with fresh air. The func-
tion starts when required and switches off
automatically after a period of time or when
one of the passenger compartment doors is
opened. The amount of time the blower runs
gradually decreases due to reduced need up
until the vehicle is 4 years old.

•

The fully automatic Interior Air Quality
System (IAQS).

Related information

•

Air quality (p. 205)

•

Clean Zone* (p. 205)

•

Interior Air Quality System* (p. 206)

•

Passenger compartment air filter (p. 207)

Interior Air Quality System*

Interior Air Quality System (IAQS) is a fully auto-
matic air quality system that removes gases and
particles to reduce odors and contaminants in
the passenger compartment.

IAQS is part of the Clean Zone Interior Package
(CZIP) and removes air contaminants such as
particles, hydrocarbons, nitric oxides and ground-
level ozone.

If the system's air quality sensors detect contami-
nants in the outside air, the air intake closes and
air recirculation is activated.

NOTE

To ensure optimal air quality in the passenger
compartment, the air quality sensor should
always be engaged.

Recirculation is limited in cold weather to pre-
vent fogging.

In the event of fogging, use the defroster
functions for the windshield, side windows
and rear window.

Related information

•

Activating and deactivating the air quality
sensor* (p. 207)

•

Air quality (p. 205)

•

Clean Zone* (p. 205)

CLIMATE CONTROL

* Option/accessory.

207

•

Clean Zone Interior Package* (p. 206)

•

Passenger compartment air filter (p. 207)

Activating and deactivating the air

quality sensor*

The air quality sensor is part of the fully automa-
ted Interior Air Quality System (IAQS).

The air quality sensor can be switched on or off.

1. Tap

Settings

 in the Top view in the center

display.

2. Tap

Climate

.

3. Select

Air Quality Sensor

 to activate/deac-

tivate the air quality sensor.

Related information

•

Interior Air Quality System* (p. 206)

Passenger compartment air filter

All air entering the passenger compartment
through the climate control system intake is fil-
tered.

Replacing the passenger compartment
filter

To maintain the high performance of the climate
control system, the filter must be replaced regu-
larly. Follow Volvo's service schedule for recom-
mended replacement intervals. When driving in
areas with a lot of smog, dust, etc., the filter may
need to be changed more frequently.

NOTE

There are two types of passenger compart-
ment filters. Make sure that the correct filter
is installed.

Related information

•

Air quality (p. 205)

•

Clean Zone* (p. 205)

•

Clean Zone Interior Package* (p. 206)

•

Interior Air Quality System* (p. 206)

CLIMATE CONTROL

* Option/accessory.

208

Air distribution

The climate system distributes incoming air
through a number of vents in the passenger
compartment.

Automatic and manual air distribution

When the auto-climate feature is on, air distribu-
tion is regulated automatically. Air distribution can
also be controlled manually.

Adjustable air vents

Certain air vents in the vehicle are adjustable,
which means they can be opened/closed and the
direction of the air flow from the vent can be
adjusted.

Location of adjustable air vents in the passenger com-
partment.

2-zone system - four vents on the dashboard
and one on each of the pillars between the
front and rear doors.
4-zone system* - two additional vents on the
rear side of the tunnel console.

Related information

•

Climate (p. 202)

•

Adjusting air distribution (p. 208)

•

Opening, closing and directing air vents
(p. 209)

•

Air distribution options (p. 211)

Adjusting air distribution

Air distribution can be adjusted manually if nee-
ded.

Air distribution buttons in Climate view.

Air distribution - windshield defrost vents

Air distribution - dashboard and center con-
sole air vents
Air distribution - floor air vents

1. Open Climate view in the center display.

2. Tap one or more air distribution buttons to

open/close the airflow for that vent.
> The air distribution changes and the but-

tons will light up or go out.

CLIMATE CONTROL

}}

209

Related information

•

Air distribution (p. 208)

•

Opening, closing and directing air vents
(p. 209)

•

Air distribution options (p. 211)

Opening, closing and directing air

vents

Some of the air vents in the passenger compart-
ment can be individually opened, closed and
directed.

Misting can be eliminated by directing the outer
air vents towards the door windows.

Direct the outer air vents into the passenger
compartment to maintain a comfortable tempera-
ture in warm weather.

Opening and closing the air vents

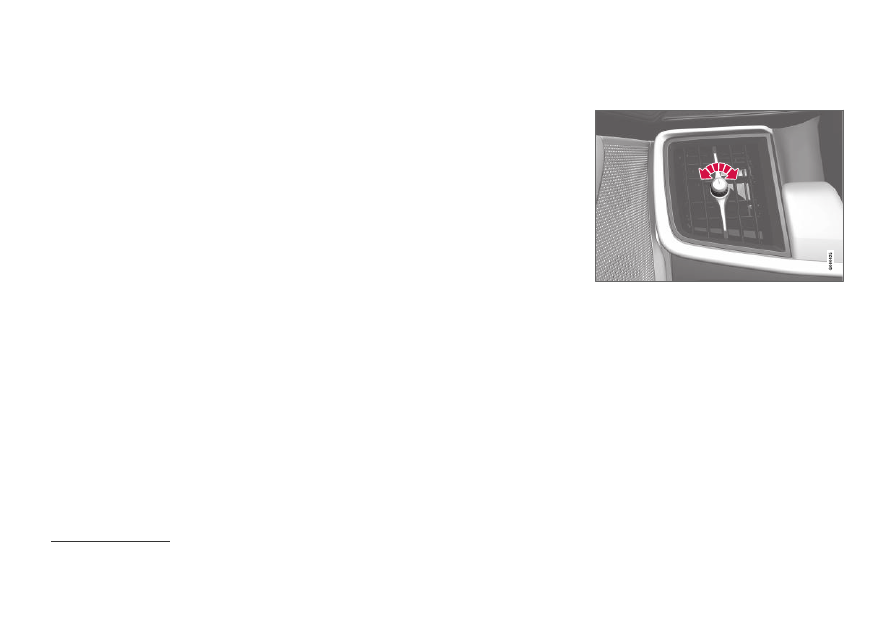

Front seat air vents:

Air vent knob

2

.

–

Turn the knob to open/close the airflow from
the vent.

When the mark on the knob is vertical, the
airflow is strongest.

2

The illustration is generic - air vent design varies depending on its location.

||

CLIMATE CONTROL

210

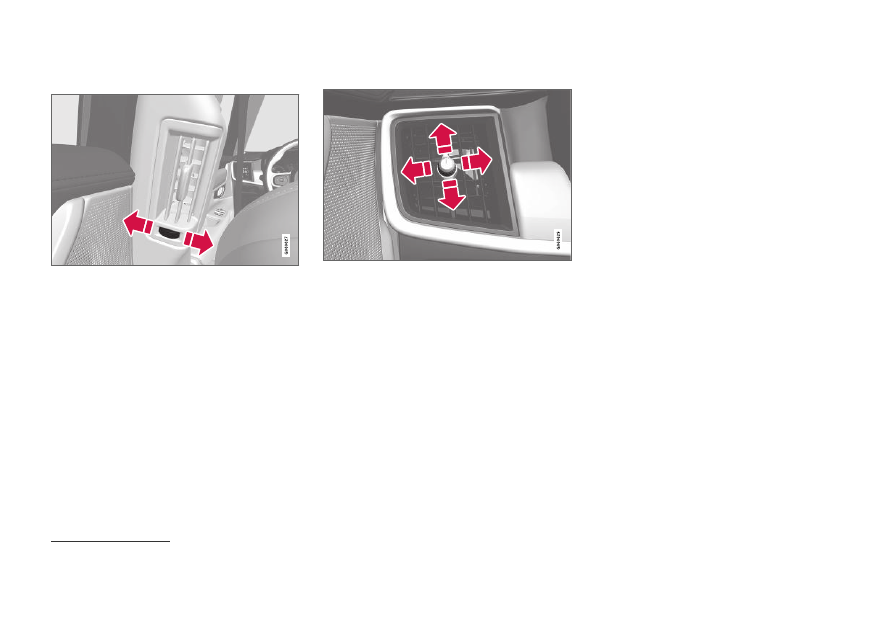

Rear seat air vents:

Air vent thumb wheel

2

.

–

Turn the thumb wheel to open/close the air-
flow from the vent.

The more white lines that are visible, the
stronger the airflow.

Directing air flow

Airflow control

2

.

–

Move the control from side to side or up and
down to direct airflow from the vent.

Related information

•

Air distribution (p. 208)

•

Adjusting air distribution (p. 208)

•

Air distribution options (p. 211)

2

The illustration is generic - air vent design varies depending on its location.

CLIMATE CONTROL

}}

211

Air distribution options

Air distribution can be adjusted manually if nee-
ded. The following options are available.

Air distribution

Purpose

If all air distribution buttons are deselected in manual mode, the climate control system will revert to automatic mode.

Main airflow from defroster vents. Some airflow from other vents.

Helps remove ice and condensation in cold and humid weather
(blower speed should not be set too low).

Main airflow from dashboard vents. Some airflow from other vents.

Provides effective cooling in warm weather.

Main airflow from floor vents. Some airflow from other vents.

Provides heating or cooling in footwell areas.
