Pinch protection for windows and

sun curtains

All power windows and sun curtains* have a
pinch protection function that is triggered if any-
thing blocks them while they are opening or
closing.

If pinch protection is activated, movement will
stop and then retract automatically to approx.
50 mm (2 inches) from the point at which it was
blocked (or to full ventilation position).

It is still possible to override pinch protection
when closing is interrupted (e.g. due to ice) by
pressing and holding down the control in the
same direction.

If there is any problem with the pinch protection,
a rest procedure can be tested.

WARNING

If the starter battery is disconnected, the func-

tion for automatic opening and closing must

be reset to function correctly. A reset is

required in order for the pinch protection to

work.

Does not apply to windshield and panoramic roof*, which are always laminated and therefore do not have this symbol.

WINDOWS, GLASS AND MIRRORS

}}

* Option/accessory.

169

Related information

•

Reset procedure for pinch protection
(p. 169)

•

Operating the power windows (p. 170)

•

Pinch protection for windows and sun cur-
tains (p. 168)

Reset procedure for pinch

protection

If you experience any problems with the electri-
cal functions for the power windows, you can try
to perform a reset.

WARNING

If the starter battery is disconnected, the func-

tion for automatic opening and closing must

be reset to function correctly. A reset is

required in order for the pinch protection to

work.

If the problem persists or if it affects the panor-
amic roof or sunroof, contact a workshop

Resetting a power window

1. Start with the window in the closed position.

2. Then operate the window in manual mode

three times upward toward the closed posi-
tion.
> The system will be automatically initiated.

Related information

•

•

Operating the power windows (p. 170)

Power windows

The power windows are operated using the con-
trol panels found in the doors. The driver's door
has controls for operating all windows and for
activating the child safety locks.

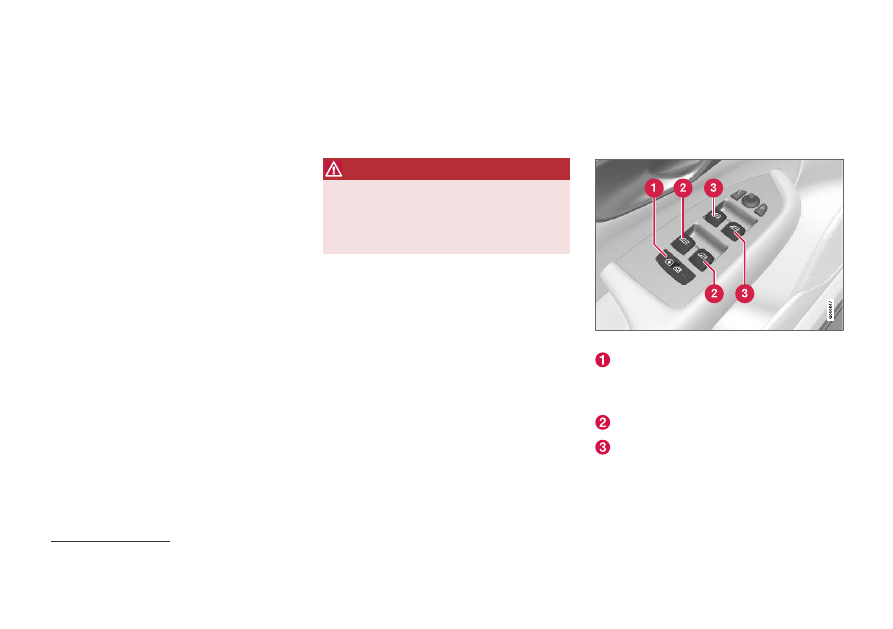

Driver's door control panel.

Electric child safety locks* that deactivate the
controls in the rear doors to prevent the
doors or windows from being opened from
the inside.
Rear window controls.

Front window controls.

The power windows have pinch protection. If
there is any problem with the pinch protection, a
rest procedure can be tested.

An authorized Volvo workshop is recommended.

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

170

WARNING

Children, other passengers or objects can be

trapped by the moving parts.

•

Always operate the windows with caution.

•

Do not allow children to play with the
operating controls.

•

Never leave a child alone in the vehicle.

•

Remember to always cut the current to
the power windows by setting the vehi-
cle's electrical system to ignition mode 0
and then taking the remote key with you
when leaving the vehicle.

•

Never stick objects or body parts out
through the windows, even if the vehicle
electrical system is completely turned off.

Related information

•

Operating the power windows (p. 170)

•

Pinch protection for windows and sun cur-
tains (p. 168)

•

Reset procedure for pinch protection
(p. 169)

Operating the power windows

All power windows can be operated using the
control panel in the driver's door. The control
panels in the other doors can be used to oper-
ate that particular door.

The power windows have pinch protection. If
there is any problem with the pinch protection, a
rest procedure can be tested.

WARNING

Children, other passengers or objects can be

trapped by the moving parts.

•

Always operate the windows with caution.

•

Do not allow children to play with the
operating controls.

•

Never leave a child alone in the vehicle.

•

Remember to always cut the current to
the power windows by setting the vehi-
cle's electrical system to ignition mode 0
and then taking the remote key with you
when leaving the vehicle.

•

Never stick objects or body parts out
through the windows, even if the vehicle
electrical system is completely turned off.

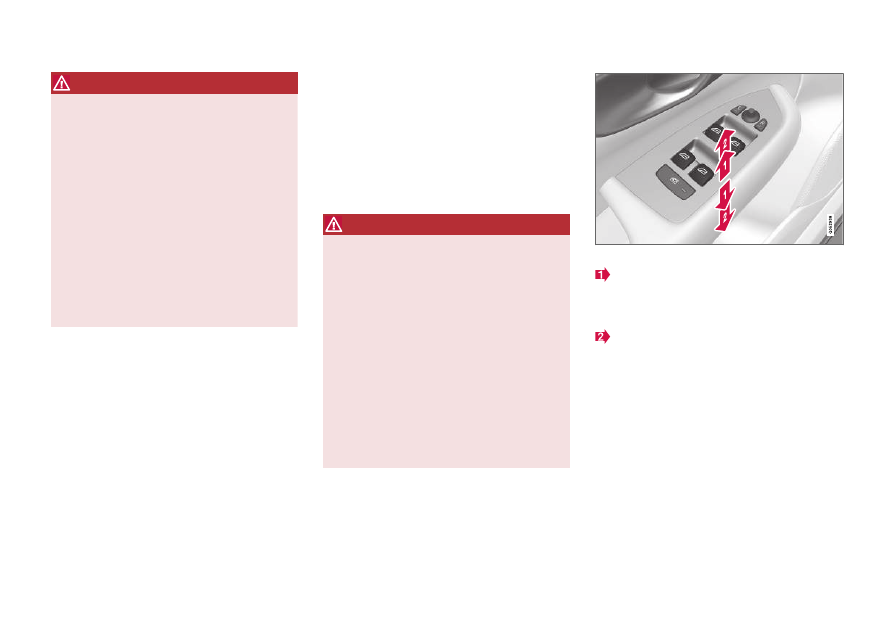

Operating the power windows.

Operating manually. Move one of the controls
slightly up or down. The power windows go
up or down while the control is held in posi-
tion.
Operating with automatic controls. Move one
of the controls up or down to its end position
and release it. The window moves automati-
cally to its fully closed/open position.

To use the power windows, the ignition must be
in at least mode I or II. After the ignition has
been switched off, the power windows can be
operated for several minutes or until a door is
opened. Only one control panel can be operated
at a time.

It can also be operated using keyless opening*
with the door handle.

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

171

WARNING

Make sure that no child or other passenger

comes into contact with the windows as they

are closing with keyless closing*.

One way to reduce the pulsating wind noise
heard when the rear windows are open is to
also open the front windows slightly.

Pinch protection for windows and sun cur-
tains (p. 168)

The windows cannot be opened at speeds
over approx. 180 km/h (ca112 mph), but they
can be closed.

The driver is always responsible for following
applicable traffic regulations.

Related information

•

Power windows (p. 169)

•

•

Reset procedure for pinch protection
(p. 169)

•

Locking and unlocking using the remote key
(p. 242)

•

Rearview/door mirrors

The rearview mirror and door mirrors can be
used to improve the driver's visibility behind the
vehicle.

Rearview mirror

The rearview mirror can be easily adjusted man-
ually. The rearview mirror can be equipped with
HomeLink*, auto-dim* and compass*.

Door mirrors

WARNING

The door mirror on the passenger side is

curved to improve visibility. Objects in the mir-

ror may appear farther away than they actually

are.

The joystick in the drivers' door control panel is
used to adjust the position of the door mirrors.
There are also several automatic settings that
can also be connected to the memory function
buttons for the power seat*.

Related information

•

HomeLink

(p. 467)

•

Compass* (p. 470)

•

Adjusting the rearview mirror dimming func-
tion (p. 172)

•

Adjusting the door mirrors (p. 172)

•

Storing positions for seats, mirrors and head-
up display* (p. 188)

•

Activating and deactivating the heated rear
window and door mirrors (p. 224)

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

172

Adjusting the rearview mirror

dimming function

Bright light entering the vehicle from behind, e.g.
from the headlights of following vehicles, could
reflect in the rearview mirror and door mirrors
and cause a glare. Use the dimming function
when light from behind is distracting.

Auto-dim

If bright light enters the vehicle from behind, the
door mirrors will automatically dim. Auto-dim is
always active when the engine is running, except
when reverse gear is engaged.

Adjustments to the sensitivity level will not be
noticeable immediately but will instead take
effect after a short period of time.

The sensitivity level for dimming will affect both
the rearview mirror and door mirrors.

To change the dimming sensitivity level:

1. Tap

Settings

in the Top view in the center

display.

2. Tap

My Car

Mirrors and Convenience

3. Under

Rearview Mirror Auto Dimming

select

Normal

Dark

Light

The rearview mirror instead has two sensors -
one pointing forward and one pointing rearward -

which work together to identify and eliminate
glare. The forward-pointing sensor monitors
ambient light, while the rearward-pointing sensor
monitors light from the headlights of following
vehicles.

For the door mirrors to be equipped with auto-
dim, the rearview mirror must also be equipped
with auto-dim.

Rearview/door mirrors (p. 171)

If the sensors are obstructed by e.g. a parking
permit, transponder, sunshade or objects on
the seats or in the cargo compartment in a
way that prevents light from reaching the sen-
sors, the auto-dim function in the door and
rearview mirrors will be reduced.

Related information

•

•

Adjusting the door mirrors (p. 172)

Adjusting the door mirrors

To improve visibility to the rear, the door mirrors
need to be adjusted to the driver's height and
seating position. There are several automatic
settings that can also be connected to the mem-
ory function buttons for the power seat*.

Controls used for door mirrors

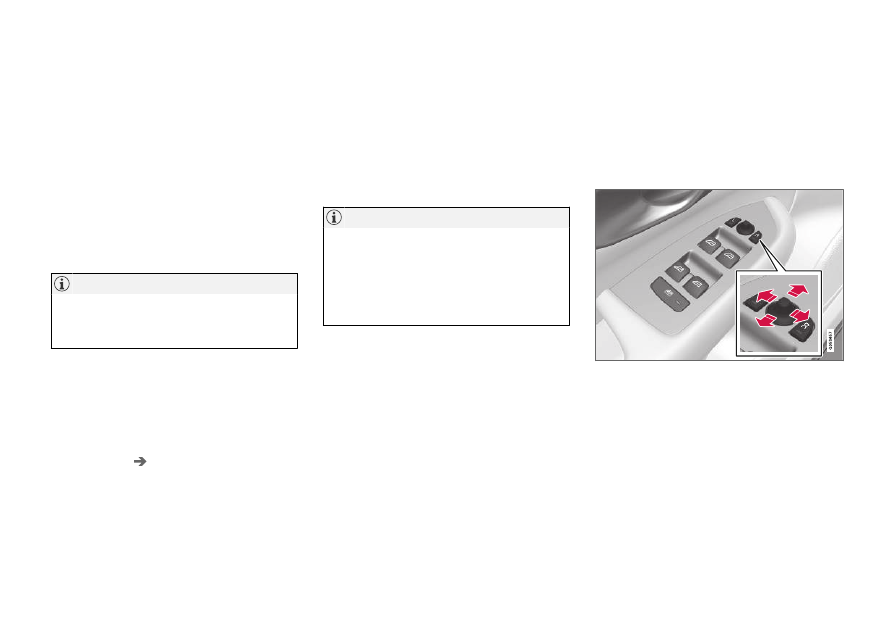

Door mirror controls.

The joystick in the drivers' door control panel is
used to adjust the position of the door mirrors.
The ignition must be in at least mode I.

1. Press the L button for the left door mirror or

R for the right door mirror. The button will
light up.

2. Adjust the position using the joystick located

between the buttons.

3. Press the L or R button again. The light in

the button will go out.

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

173

Automatically folding door mirrors*

The door mirrors can be automatically folded
when driving or parking in tight spaces.

1. Press the L and R buttons at the same time.

2. Release the buttons after about 1 second.

The mirrors will automatically stop when they
are completely folded in.

Open the mirrors by pressing L and R at the
same time. The mirrors will automatically stop
when they are completely open.

Resetting the mirrors' position

A mirror that has been moved out of position
manually (e.g. hit or bumped into) must be electri-
cally returned to its normal position for automatic
folding* to function properly.

1. Fold in the mirrors by pressing the L and R

buttons at the same time.

2. Open them again by pressing the L and R

buttons at the same time.

3. Repeat the above procedure as needed.

The mirrors are now reset to their original posi-
tions.

Tilting when parking

The door mirrors can be tilted down to help give
the driver a better view along the sides of the
vehicle, e.g. of the curb when parking.

–

Select reverse gear and press the L or R mir-
ror button.

Please note that the button may need to be
pressed twice depending on settings. When the
door mirror is tilted down, the light in the button
will flash. When reverse gear is engaged, the
door mirrors will automatically start to move after
3 seconds and will reach their original position
after about 8 seconds.

Automatically tilting when parking

With this setting, the door mirrors will automati-
cally tilt down when reverse gear is engaged. The
folded position is preset and cannot be adjusted.
To immediately return the door mirrors to their
original position, press the L or R button twice.

1. Tap

Settings

in the center display's Top

view.

2. Tap

My Car

Mirrors and Convenience

3. Under

Exterior Mirror Tilt at Reverse

select

Off

Driver

Passenger

Both

activate/deactivate and to select which mir-
ror to tilt.

Automatic folding when the vehicle is
locked*

The door mirrors can automatically fold in when
the vehicle is locked and open when the vehicle
is unlocked using the remote key.

1. Tap

Settings

in the center display's Top

view.

2. Tap

My Car

Mirrors and Convenience

3. Select

Fold Mirror When Locked

to acti-

vate/deactivate.

Related information

•

Rearview/door mirrors (p. 171)

•

Adjusting the rearview mirror dimming func-
tion (p. 172)

•

Storing positions for seats, mirrors and head-
up display* (p. 188)

•

Activating and deactivating the heated rear
window and door mirrors (p. 224)

Only on models equipped with a power driver's seat with memory buttons*.

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

174

Panoramic roof*

The panoramic roof is divided into two glass
sections. The front section can be opened verti-
cally at the rear edge (ventilation position) or hor-
izontally (open position). The rear section cannot
be moved.

The panoramic roof has a wind deflector and
sun curtain made of perforated fabric (located
beneath the glass sections) for extra protection
in e.g. bright sunlight.

The panoramic roof and sun curtain are operated
using the controls in the ceiling.

It can also be operated using keyless opening*
with the door handle.

To operate the panoramic roof and sun curtain,
the ignition must be in mode I or II.

WARNING

Children, other passengers or objects can be

trapped by the moving parts.

•

Always operate the windows with caution.

•

Do not allow children to play with the
operating controls.

•

Never leave a child alone in the vehicle.

•

Remember to always cut the current to
the power windows by setting the vehi-
cle's electrical system to ignition mode 0
and then taking the remote key with you
when leaving the vehicle.

•

Never stick objects or body parts out
through the windows, even if the vehicle
electrical system is completely turned off.

•

Do not open the panoramic roof when
load carriers are installed.

•

Never place heavy objects on the panor-
amic roof.

Operating the panoramic roof* (p. 175)

•

Remove ice and snow before opening the
panoramic roof. Be careful not to scratch
any surfaces or damage the trim.

•

Do not operate the panoramic roof if it is
frozen in place.

Wind blocker

The panoramic roof is equipped with a wind
blocker that folds up when the roof is open.

Related information

•

•

Auto closing the panoramic roof* sun curtain
(p. 177)

•

Pinch protection for windows and sun cur-
tains (p. 168)

•

Locking and unlocking using the remote key
(p. 242)

•

WINDOWS, GLASS AND MIRRORS

}}

* Option/accessory.

175

Operating the panoramic roof*

The panoramic roof and sun curtain are oper-
ated using a control in the ceiling panel, and
both are equipped with pinch protection.

WARNING

Children, other passengers or objects can be

trapped by the moving parts.

•

Always operate the windows with caution.

•

Do not allow children to play with the
operating controls.

•

Never leave a child alone in the vehicle.

•

Remember to always cut the current to
the power windows by setting the vehi-
cle's electrical system to ignition mode 0
and then taking the remote key with you
when leaving the vehicle.

•

Never stick objects or body parts out
through the windows, even if the vehicle
electrical system is completely turned off.

•

Do not open the panoramic roof when
load carriers are installed.

•

Never place heavy objects on the panor-
amic roof.

•

Remove ice and snow before opening the
panoramic roof. Be careful not to scratch
any surfaces or damage the trim.

•

Do not operate the panoramic roof if it is
frozen in place.

To operate the panoramic roof and sun curtain,
the ignition must be in mode I or II.

It can also be operated using keyless opening*
with the door handle.

WARNING

Make sure that no child or other passenger

comes into contact with the windows as they

are closing with keyless closing*.

Check that the panoramic roof is properly
closed when closing.

The movement of the roof will stop if the control
is released during manual operation or when the
glass has reached the comfort

or fully open/

closed position. The movement of both the pan-
oramic roof and the sun curtain is also stopped if
the control in the ceiling is operated again in the

direction opposite that of the current direction of
movement.

The panoramic roof and sun curtain are also
equipped with pinch protection. If there is any
problem with the pinch protection, a rest proce-
dure can be tested.

For manual opening, the sun curtain must be
completely open before the panoramic roof
can be opened. For the reverse procedure,
the panoramic roof must be completely
closed before the sun curtain can be com-
pletely closed.

The comfort position is a position which helps keep wind and resonance sounds to a comfortably low level.

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

176

Opening and closing ventilation
position

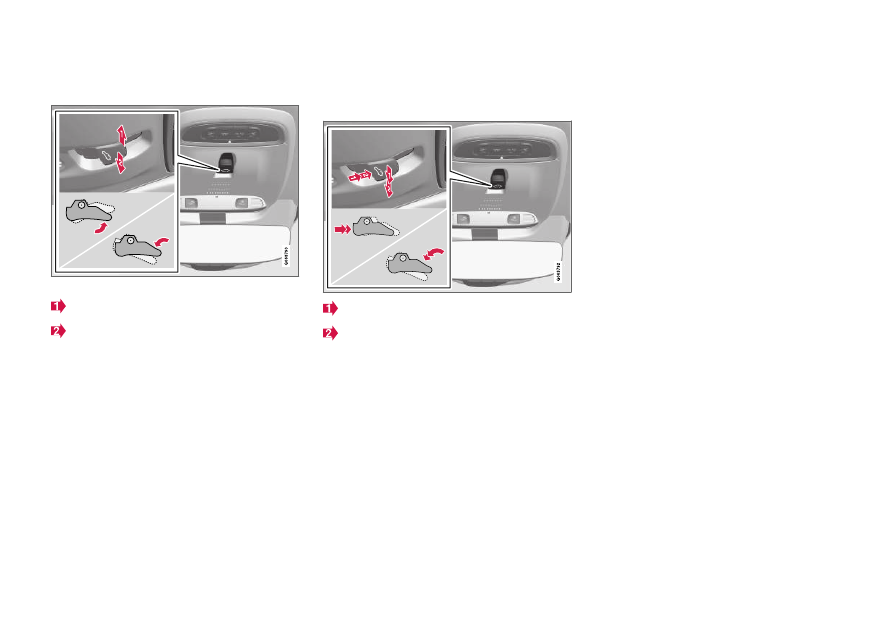

Ventilation position, rear edge raised.

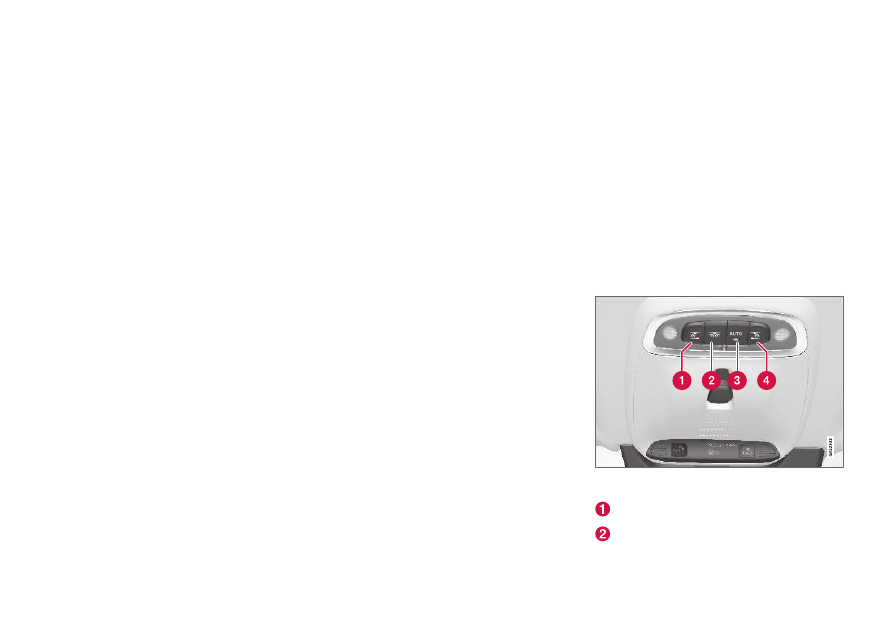

Open by pushing the control upward once.

Close by pushing the control downward
once.

When ventilation mode is selected, the rear edge
of the front section of the roof is raised. If the sun
curtain is fully closed when ventilation position is
selected, it will automatically open approx. 50 mm
(approx. 2 inches).

If the panoramic roof is closed from the ventila-
tion position, the sun curtain will also automati-
cally close.

Fully opening and closing the
panoramic roof with the control in the
ceiling

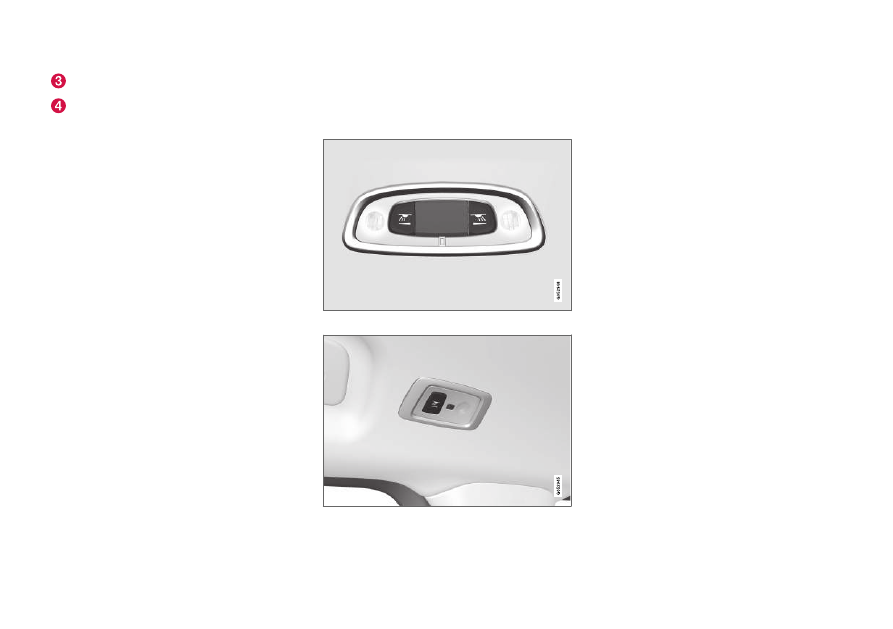

Operation, manual mode

Operation, automatic mode

Manual operation

1. To open the sun curtain, pull the control

backward to the manual open mode.

2. To open the panoramic roof to the comfort

position, pull the control backward a second
time to the manual opening position.

3. To open the panoramic roof fully, pull the

control backward a third time to the manual
opening position.

Close by repeating the above procedure in
reverse - push the control forward/down to the
manual closing position.

Auto operation

1. To open the sun curtain to the fully open

position, pull the control backward to the
auto open mode and release.

2. To open the panoramic roof to the comfort

position, pull the control backward a second
time to the automatic opening position and
release.

3. To open the panoramic roof fully, pull the

control backward a third time to the auto-
matic opening position and release.

Close by repeating the above procedure in
reverse - push the control forward/down to the
auto close position.

Automatic operation - rapid opening or
closing

The panoramic roof and sun curtain can be
opened or closed simultaneously:

–

Open - press the control backward twice to
the automatic operation position and release.

–

Close - press the control forward/down twice
to the automatic operation position and
release.

Related information

•

Auto closing the panoramic roof* sun curtain
(p. 177)

•

•

Pinch protection for windows and sun cur-
tains (p. 168)

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

177

•

Locking and unlocking using the remote key
(p. 242)

•

Auto closing the panoramic roof*

sun curtain

With this function, the sun curtain closes auto-
matically 15 minutes after the car has been
locked if it is parked in hot weather. This is done
to lower the passenger compartment tempera-
ture and protect the upholstery against being
bleached by the sun.

The function is deactivated as the default factory
setting and can be activated or deactivated using
the center display.

1. Tap

Settings

in the Top view in the center

display.

2. Tap

My Car

Locking

Select

Auto Close Sunroof Curtain

activate/deactivate.

The sun curtain also closes when all windows
are closed with keyless closing*.

Related information

•

Operating the panoramic roof* (p. 175)

•

•

Pinch protection for windows and sun cur-
tains (p. 168)

•

Locking and unlocking using the remote key
(p. 242)

•

WINDOWS, GLASS AND MIRRORS

* Option/accessory.

178

Wiper blades and washer fluid

The wipers and the washer fluid are used to
improve visibility and the headlight pattern.

Washer fluid direct from the wiper blades and
heating* of the wiper blades gives improved
vision.

When there is approximately 1 liter (1 qt) of
washer fluid remaining, a message to refill will
appear in the instrument panel.

Related information

•

Using the rain sensor (p. 179)

•

Using the windshield and headlight washers
(p. 181)

•

Using automatic rear window wiping when
backing up (p. 182)

•

Using the rain sensor's memory function
(p. 180)

•

Using the rear window wiper/washer
(p. 182)

•

Filling washer fluid (p. 645)

•

Windshield wipers in the service position
(p. 644)

•

Replacing windshield wiper blades (p. 643)

•

Changing rear window wipers (p. 642)

•

Using the windshield wipers (p. 178)

Using the windshield wipers

The windshield wipers clean the windshield. The
right-side steering wheel lever is used to adjust
windshield wiper settings.

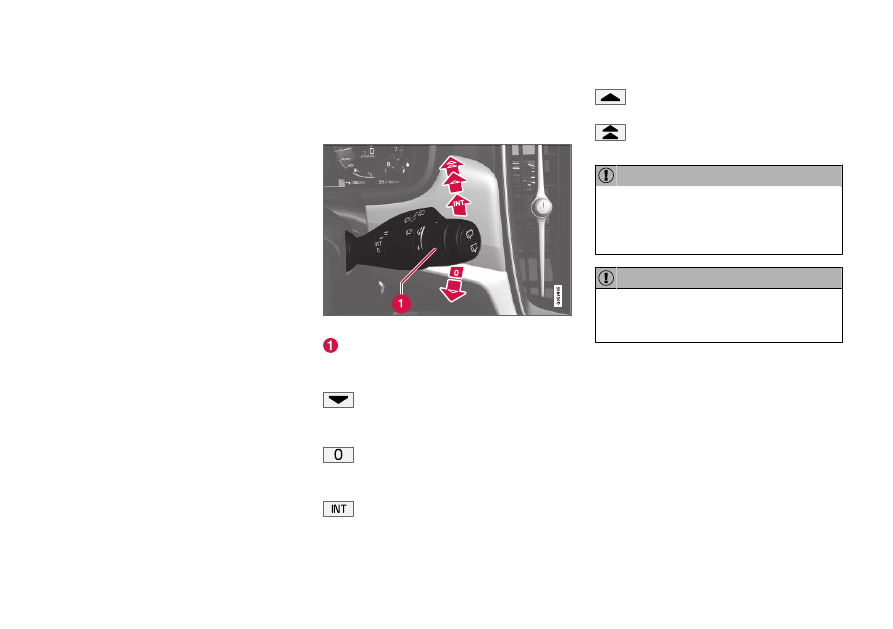

Right-hand steering wheel lever.

Thumb wheel, used to set rain sensor sensi-
tivity and interval wiper speed.

Single sweep

Move the lever down and release for a
single sweep.

Wipers off

Move the lever to position 0 to turn off
the windshield wipers.

Interval wipers

Set the number of sweeps per time unit
with the thumb wheel when interval wip-

ers are selected.

Continuous wipers

Move the lever upward for the wipers to
operate at normal speed.

Move the lever upward again for the wip-
ers to operate at high speed.

Before activating the wipers, make sure that
the wiper blades are not frozen in place and
that any snow or ice on the windshield and
rear window has been scraped away.

Using the rain sensor (p. 179)

Use plenty of washer fluid when the wipers
clean the windshield. The windshield must be
wet when the windshield wipers are working.

Related information

•

•

Using the windshield and headlight washers
(p. 181)

•

Using automatic rear window wiping when
backing up (p. 182)

•

Wiper blades and washer fluid (p. 178)

•

Using the rain sensor's memory function
(p. 180)

•

Using the rear window wiper/washer
(p. 182)

WINDOWS, GLASS AND MIRRORS

}}

179

•

Filling washer fluid (p. 645)

•

Windshield wipers in the service position
(p. 644)

•

Replacing windshield wiper blades (p. 643)

•

Changing rear window wipers (p. 642)

Using the rain sensor

The rain sensor monitors the amount of water on
the windshield and automatically starts the wind-
shield wipers. Rain sensor sensitivity can be
adjusted using the thumb wheel on the right-
hand steering wheel lever.

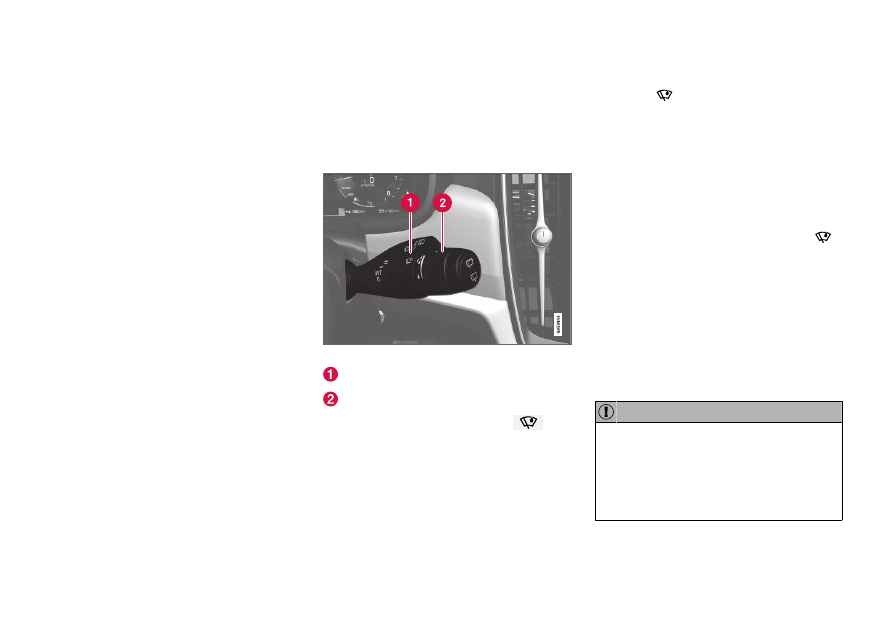

Right-hand steering wheel lever.

Rain sensor button

Thumb wheel, sensitivity/interval wiper speed

When the rain sensor is activated, the

rain

sensor symbol will be displayed in the instrument
panel.

Activating the rain sensor

When the rain sensor is activated, the engine
must be running or the ignition must be in mode I
or II. The windshield wiper lever must also be in
position 0 or in the single sweep position.

Activate the rain sensor by pressing the rain sen-
sor button

If the lever is pressed down, the wipers will make
additional sweeps across the windshield.

Turn the thumb wheel upward for increased sen-
sitivity and downward for decreased sensitivity.
The wipers will make one extra sweep when the
thumb wheel is turned upward.

Deactivate the rain sensor

Deactivate the rain sensor by pressing the
rain sensor button or moving the lever upward to
another wiper mode.

The rain sensor is automatically deactivated in
ignition mode 0 or when the engine is switched
off.

The rain sensor is also automatically deactivated
when the wiper blades are put in the service
position. The rain sensor will reactivate when
service mode is switched off.
