The sealing compound effectively seals tires
with punctures in the tread but may not be
able to fully seal tires with punctures in the
sidewall. Do not use the tire sealing system
on tires with large tears, cracks or similar
damage.

Using the tire sealing system (p. 565)

The compressor is intended for temporary tire
sealing and is approved by Volvo.

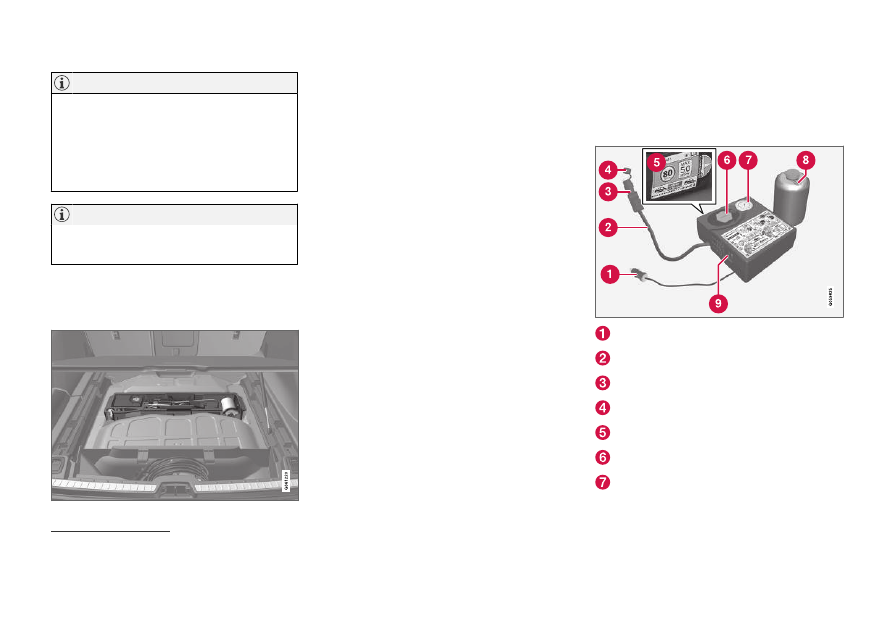

Location

The tire sealing system is located in a foam block
under the floor of the trunk.

Sealing compound expiration date

The sealing compound bottle must be replaced if
its expiration date has passed (see the decal on
the bottle). Handle the old bottle as hazardous
waste.

Related information

•

•

Inflate tires with the compressor included in
the tire sealing system (p. 569)

•

Tires (p. 542)

Using the tire sealing system

Sealing a tire using the tire sealing system, the
Temporary Mobility Kit (TMK).

Overview

Electrical cable

Hose

Air release valve

Protective hose cover

Speed limit sticker

Bottle holder (orange cover)

Air pressure gauge

Certain models only.

Not available on all models.

WHEELS AND TIRES

566

Sealing compound bottle

Switch

Connecting

Do not break the seal of the bottle before
use. The seal is broken automatically when
the bottle is screwed into place.

WARNING

Please keep the following points in mind

when using the tire sealing system:

•

The sealing compound bottle (no. 8 in the
illustration) contains 1) rubber latex, natu-
ral and 2) ethanediol. These substances
are harmful if swallowed.

•

The contents of this bottle may cause
allergic skin reactions or otherwise be
potentially harmful to the respiratory tract,
the skin, the central nervous system, and
the eyes.

Precautions:

•

Keep out of reach of children.

•

Do not ingest the contents.

•

Avoid prolonged or repeated contact with
the skin. Remove any clothing that has
come into contact with sealant.

•

Wash thoroughly after handling.

First aid:

•

Skin: Wash affected areas of the skin
with soap and water. Get medical atten-
tion if symptoms occur.

•

Eyes: Flush with plenty of water for least
15 minutes, occasionally lifting the upper
and lower eyelids. Get medical attention if
symptoms occur.

•

Inhalation: Move the exposed person to
fresh air. If irritation persists, get medical
attention.

•

Ingestion: Do NOT induce vomiting
unless directed to do so by medical per-
sonnel. Get medical attention.

•

Disposal: Dispose of this material and its
container at a hazardous or special waste
collection point.

WARNING

•

Do not remove the bottle while the tire
sealing system is being used.

•

Do not remove the hose while the tire
sealing system is being used.

1. Turn on the vehicle's hazard warning flashers

if the tire sealing system is to be used in an
area with traffic.

If the puncture was caused by a nail or simi-
lar object, do not remove it. It will help seal
the hole.

2. Peel off the speed limit sticker from the side

of the compressor. Affix the decal to a clearly
visible location on the windshield to remind
the driver not to exceed this speed limit. Do
not drive faster than 80 km/h (50 mph) while
using a tire that has been temporarily
repaired with the tire sealing system.

WHEELS AND TIRES

}}

567

3. Make sure the switch is in the 0 (Off) posi-

tion and take out the electric cable and the
hose.

4. Unscrew the orange cover on the compres-

sor and unscrew the cap on the sealing com-
pound bottle.

5. Screw the bottle onto the bottle holder as far

as possible.

The bottle and the bottle holder are equip-
ped with catches to help prevent the sealing
compound from leaking. Once the bottle is
screwed into place into the bottle holder, it
cannot be unscrewed. The bottle can only be
removed by a workshop. Volvo recommends
an authorized Volvo workshop.

WARNING

Do not unscrew the bottle. It is equipped with

a catch to prevent leakage.

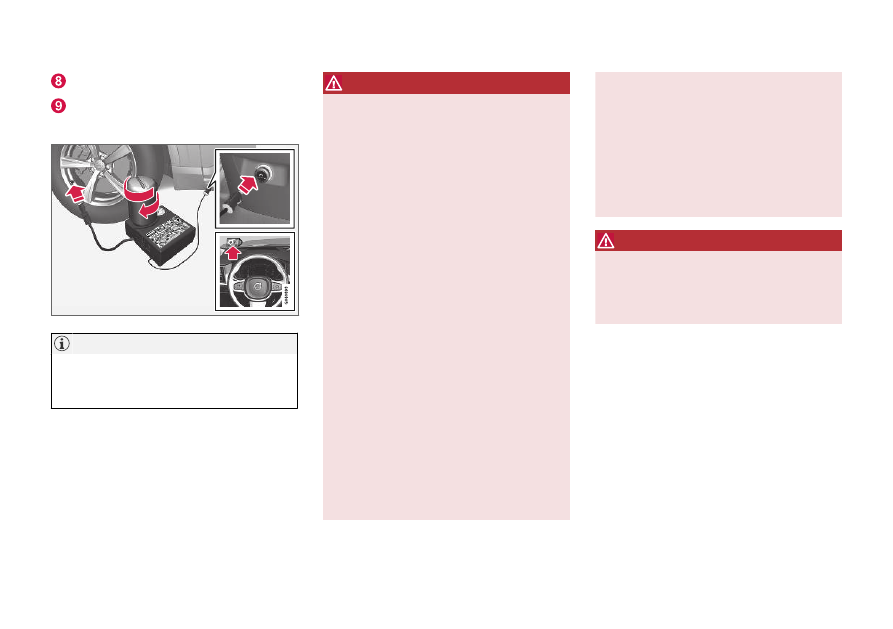

6. Unscrew the tire's valve cap and screw the

hose's valve connector as far as possible
onto the valve.

Be sure the air release valve on the com-
pressor's hose is completely closed.

7. Connect the electrical cable to the nearest

12 V outlet and start the vehicle.

Make sure that none of the vehicle's other
12 V sockets are used while the compressor
is running.

WARNING

Never leave children unattended in the vehicle

while the engine is running.

WARNING

Inhaling exhaust fumes could lead to serious

injury. Never leave the engine running in an

enclosed space or a space without sufficient

ventilation.

8. Start the compressor by moving the switch to

the I (On) position.

WARNING

Never stand next to a tire being inflated with

the compressor. If cracks, bulges, etc. form on

the tire, switch off the compressor immedi-

ately. The vehicle should not be driven. Call

roadside assistance to have the vehicle towed

to a workshop for inspection/replacement of

the tire. Volvo recommends an authorized

workshop.

When the compressor first starts, air pressure
may temporarily increase up to 6 bar (88 psi)
but should decrease again after approxi-
mately 30 seconds.

9. Inflate the tire for 7 minutes.

To help avoid overheating, the compressor
should never be used for more than
10 minutes at a time.

WHEELS AND TIRES

568

10. Switch off the compressor and check the

inflation pressure using the air pressure
gauge. The inflation pressure should be
between 1.8 bar (22 psi) and 3.5 bar
(51 psi). If the inflation pressure is too high,
use the air release valve to release air.

WARNING

If pressure falls below 1.8 bar (22 psi), the

hole in the tire may be too large. The vehicle

should not be driven. Call roadside assistance

to have the vehicle towed to a workshop for

inspection/replacement of the tire. Volvo rec-

ommends an authorized workshop.

11. Switch off the compressor and remove the

electrical cable.

12. Unscrew the hose from the tire's valve and

screw the valve cap back on.

•

After inflating a tire, always replace the
valve cap to help prevent valve damage
caused by gravel, dirt, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

13. Put the protective hose cover onto the hose

to help prevent leakage of any residual seal-
ing compound. Return the equipment to the
cargo compartment.

14. Immediately drive the vehicle at least 3 km

(2 miles) at a maximum speed of 80 km/h
(50 mph) to allow the sealing compound to
seal the tire, and then recheck the inflation
pressure.

During the tire's first revolution, some sealing
compound may spray out of the puncture
hole.

WARNING

Before driving away, make sure that no one is

near the vehicle who could be sprayed with

sealing compound. Make sure no one is

within 2 meters(7 feet) of the vehicle.

15. Rechecking the inflation pressure

Connect the hose to the tire's valve and
screw the hose connector onto the valve as
far as possible. The compressor must be
switched off.

16. Check the inflation pressure on the air pres-

sure gauge.

•

If the pressure is under 1.3 bar (19 psi),
the tire is not sufficiently sealed. The vehi-
cle should not be driven. Call roadside
assistance to have the vehicle towed.

•

If the inflation pressure is higher than
1.3 bar (19 psi), the tire must be inflated
to the inflation pressure specified on the
tire pressure decal on the driver's side
door pillar (1 bar = 100 kPa = 14.5 psi). If
the inflation pressure is too high, use the
air release valve to release air.

Replace the sealing compound bottle and
hose after use. Volvo recommends having
these replaced by an authorized Volvo work-
shop.

WARNING

Check inflation pressure regularly.

Volvo recommends driving to the nearest author-
ized Volvo workshop to have the tire replaced/
repaired. Inform the workshop that the tire con-
tains sealing compound.

WHEELS AND TIRES

}}

569

The sealing compound bottle must be replaced
after use. Volvo recommends contacting an
authorized Volvo workshop for replacement.

WARNING

After using the tire sealing system, the vehicle

should not be driven farther than approxi-

mately 200 km (120 miles).

Recommended tire pressure (p. 551)

The compressor is an electric device. Follow
local regulations for disposal.

Related information

•

•

Tire sealing system (p. 564)

•

Inflate tires with the compressor included in
the tire sealing system (p. 569)

Inflate tires with the compressor

included in the tire sealing system

The vehicle's original tires can be inflated using
the compressor in the tire sealing system.

1. The compressor must be switched off. Make

sure that the switch is in the 0 (Off) position
and take out the electrical cable and the
hose.

2. Unscrew the tire's valve cap and screw the

hose's valve connector as far as possible
onto the valve.

Be sure the air release valve on the com-
pressor's hose is completely closed.

3. Connect the electrical cable to the nearest

12 V outlet and start the vehicle.

WARNING

Inhaling exhaust fumes could lead to serious

injury. Never leave the engine running in an

enclosed space or a space without sufficient

ventilation.

WARNING

Never leave children unattended in the vehicle

while the engine is running.

4. Start the compressor by moving the switch to

the I (On) position.

Risk of overheating. The compressor should
not be running for longer than 10 minutes at
a time.

5. Inflate the tire to the pressure specified on

the tire pressure decal on the driver's side
door pillar. If the inflation pressure is too
high, use the air release valve to release air.

6. Switch off the compressor. Remove the hose

and the electrical cable.

7. Screw the valve cap back onto the tire.

•

After inflating a tire, always replace the
valve cap to help prevent valve damage
caused by gravel, dirt, etc.

•

Use plastic valve caps only. Metal caps
could corrode and become difficult to
remove.

Recommended tire pressure (p. 551)

The compressor is an electric device. Follow
local regulations for disposal.

WHEELS AND TIRES

570

Related information

•

•

Using the tire sealing system (p. 565)

•

Tire sealing system (p. 564)

Determining the vehicle's permitted

weight

Properly loading your vehicle will provide maxi-
mum return of vehicle design performance.

Weight designations

Before loading your vehicle, familiarize yourself
with the following terms for determining your
vehicle's weight ratings, with or without a trailer,
from the vehicle's Federal/Canadian Motor Vehi-
cle Safety Standards (FMVSS/CMVSS) label, and
the vehicle's tire information placard:

Curb weight

The weight of the vehicle including a full tank of
fuel and all standard equipment. It does not
include passengers, cargo, or optional equipment.

Capacity weight

All weight added to the curb weight, including
cargo and optional equipment. When towing, tow-
bar weight is also part of cargo weight.

Permissible axle weight

The maximum allowable weight that can be car-
ried by a single axle (front or rear). These num-
bers are shown on the Federal/Canadian Motor
Vehicle Safety Standards (FMVSS/CMVSS) label.
The total load on each axle must never exceed its
maximum permissible weight.

Gross vehicle weight (GVW)

The vehicle's curb weight + cargo + passengers.

Steps for Determining Correct Load
Limit

1. Locate the statement "the combined weight

of occupants and cargo should never exceed
XXX kg or XXX lbs." on your vehicle's plac-
ard.

2. Determine the combined weight of the driver

and passengers that will be riding in your
vehicle.

3. Subtract the combined weight of the driver

and passengers from XXX kg or XXX lbs.

4. The resulting figure equals the available

amount of cargo and luggage load capacity.
For example, if the "XXX" amount equals
1400 lbs. and there will be five 150 lb. pas-
sengers in your vehicle, the amount of availa-
ble cargo and luggage load capacity is 650
lbs. (1400 - 750 (5 × 150) = 650 lbs.)

5. Determine the combined weight of luggage

and cargo being loaded on the vehicle. That
weight may not safely exceed the available
cargo and luggage load capacity calculated
in Step 4.

6. If your vehicle will be towing a trailer, load

from your trailer will be transferred to your
vehicle. Consult this manual to determine
how this reduces the available cargo and lug-
gage load capacity of your vehicle.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

574

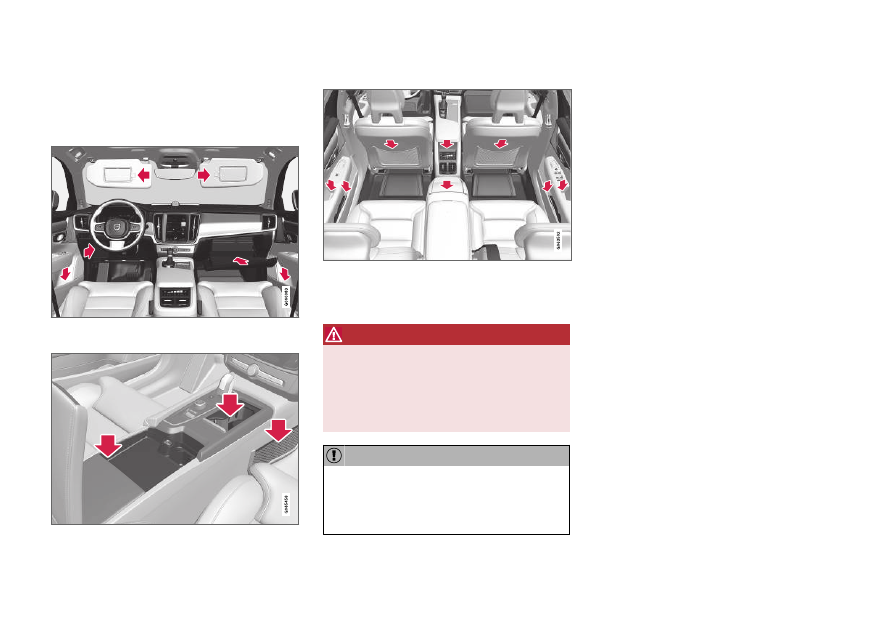

Passenger compartment interior

Overview of the passenger compartment interior
and storage spaces.

Front seats

Storage compartment in the door panel and near the
steering wheel, glove compartment and sun visors.

Storage compartments with cup holders, electrical out-
lets, net pocket* and USB ports in the tunnel console.

Rear seat

Storage compartment in the door panel, cup holders* in
the center seat's backrest, storage pocket* in the front
seat's backrest and electrical outlets in the tunnel con-
sole.

WARNING

Store loose objects, such as cell phone, cam-

era, remote control for extra equipment, etc.,

in the glove compartment or another compart-

ment. Otherwise, these could injure people in

the vehicle in the event of hard braking or a

collision.

Electrical outlets (p. 575)

Keep in mind that glossy surfaces can be
easily scratched by e.g. metal objects. Do not
place keys, phones or similar items on sensi-
tive surfaces.

Related information

•

•

Using the glove compartment (p. 577)

•

Sun visors (p. 578)

•

Tunnel console (p. 575)

•

Connecting a device via the USB port
(p. 507)

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

575

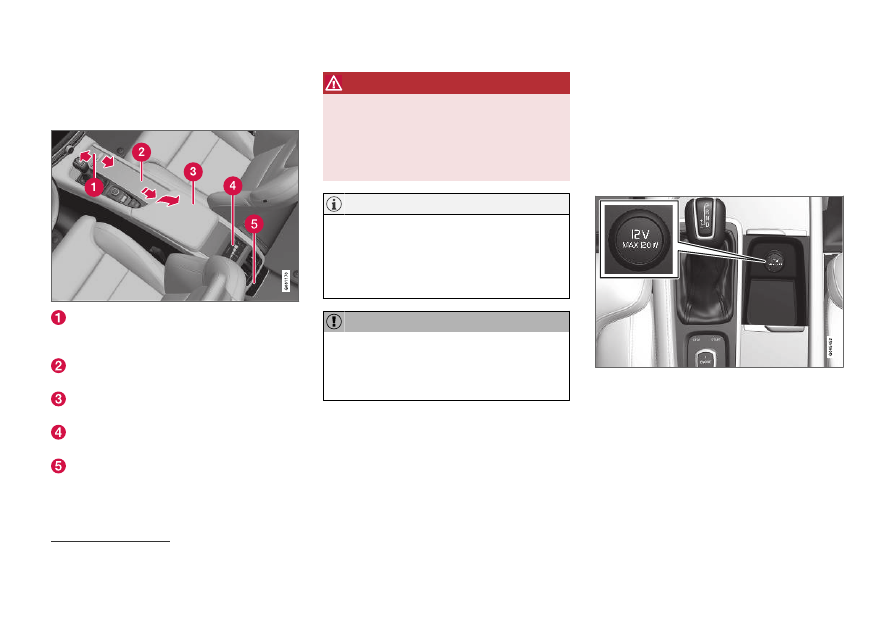

Tunnel console

The tunnel console is located between the front
seats.

Storage compartment with cover*. The cover
can be opened/closed by pressing the han-
dle.
Storage compartment with cup holder and
12 V socket.
Storage compartment and USB port under
the armrest.
Climate control panel for the rear seats* or
storage compartment.
Electrical socket and USB port

. The cover

can be opened/closed by pressing the han-
dle.

WARNING

Store loose objects, such as cell phone, cam-

era, remote control for extra equipment, etc.,

in the glove compartment or another compart-

ment. Otherwise, these could injure people in

the vehicle in the event of hard braking or a

collision.

One of the sensors for the alarm* is located
under the cup holder in the center console.
Avoid placing coins, keys and other metal
objects in the cup holder as this could trigger
the alarm.

Keep in mind that glossy surfaces can be
easily scratched by e.g. metal objects. Do not
place keys, phones or similar items on sensi-
tive surfaces.

Related information

•

Electrical outlets (p. 575)

•

•

Climate system controls (p. 207)

Electrical outlets

There are two 12-volt electrical sockets and one
12-volt electrical socket* in the trunk.

If a problem occurs with an electrical socket,
contact a workshop - an authorized Volvo work-
shop is recommended.

12 V outlets

12 V outlet in the tunnel console, front seat.

The 12 V outlets can be used for devices
intended for this such as MP3 players, coolers
and cellular phones.

The USB port can be used to charge e.g. a cellular phone or tablet. The USB port cannot be used to play media through the vehicle's sound system.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

576

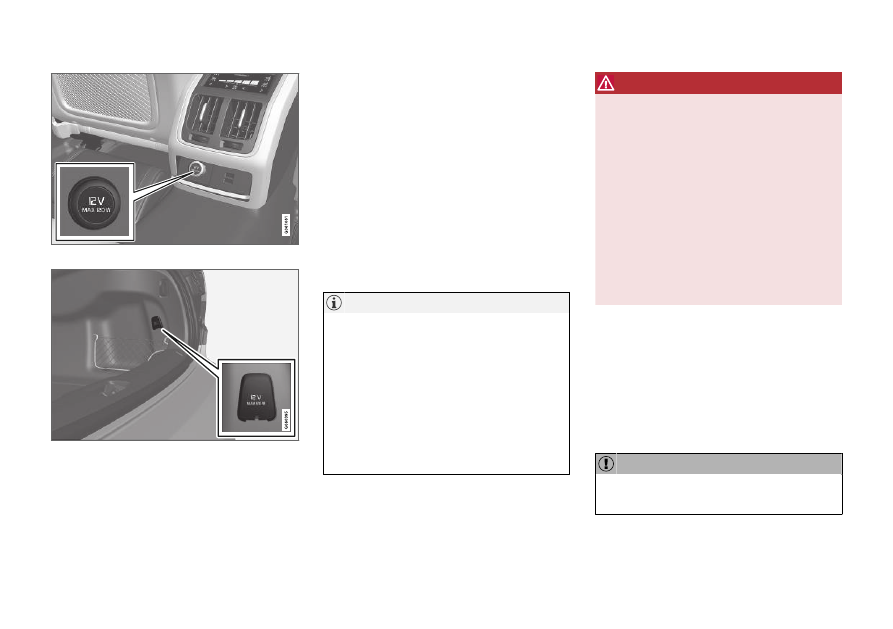

12 V outlet in the tunnel console, rear seat.

12 V outlet in trunk/cargo compartment*.

Related information

•

Using the electrical outlets (p. 576)

•

Using the electrical outlets

The 12 V outlet can be used for devices
intended for this such as MP3 players, coolers
and cellular phones.

The ignition must be in at least mode I for the
outlets to supply current. The outlets will then be
active as long as there is sufficient charge in the
start battery.

If the engine is turned off and the vehicle is
locked, the outlets will be deactivated. If the
engine is turned off and the vehicle remains
unlocked, the sockets will remain active for up to
7 minutes.

Bear in mind that using the electrical outlets
when the engine is off could cause the starter
battery to have too low of a charge level,
which could limit other functionality.

Accessories connected to the electrical out-
lets can be activated even when the vehicle
electrical system is off or if preconditioning is
used. For this reason, disconnect plugs when
they are not in use to prevent the starter bat-
tery from becoming discharged.

WARNING

•

Do not use accessories with large or
heavy plugs – they could damage the out-
let or come loose while you are driving.

•

Do not use accessories that could cause
disruptions to e.g. the vehicle's radio
receiver or electrical system.

•

Position the accessory so that there is no
risk of it injuring the driver or passengers
in the event of heavy braking or a colli-
sion.

•

Pay attention to connected accessories
as they can generate heat that could burn
passengers or the interior.

Using 12 V outlets

1. Remove the stopper (tunnel console) or fold

down the cover (trunk/cargo compartment)
over the socket and plug in the device.

2. Unplug the device and put the stopper back

in (tunnel console) or fold up the cover
(trunk/cargo compartment) when the socket
is not in use or left unattended.

Electrical outlets (p. 575)

The maximum power is 120 W (10 A) per
outlet.

LOADING, STORAGE AND PASSENGER COMPARTMENT

}}

* Option/accessory.

577

Related information

•

•

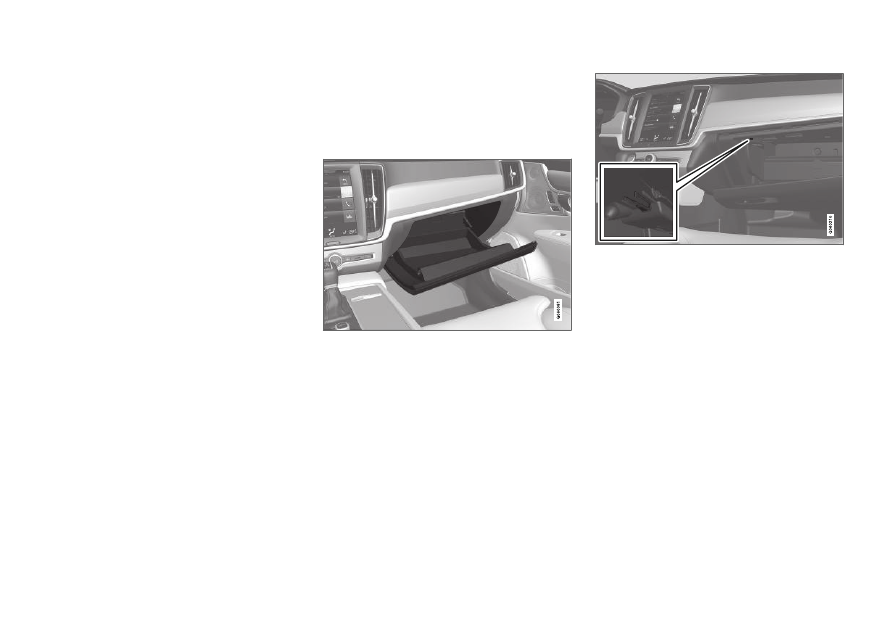

Using the glove compartment

The glove compartment is located on the pas-
senger side. The glove compartment can be
used to store the Owner's Manual, maps, etc.
There is also room for a pen and a card holder.

Locking and unlocking the glove box*

The glove compartment can be locked when the
vehicle is left at a workshop, hotel, etc. The glove
compartment can then only be locked/unlocked
with the glove compartment key.

Storage compartment for the key. The illustration is
generic – the design may vary.

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

578

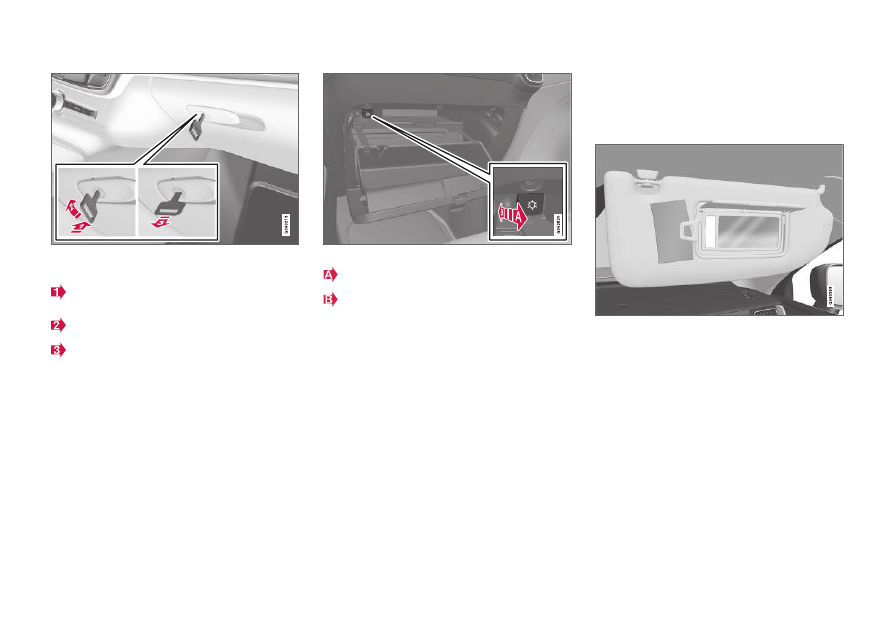

The illustration is generic – the design may vary.

To lock the glove compartment:
Insert the key into the lock on the glove com-
partment.
Turn the key 90 degrees clockwise.

Remove the key from the lock.

–

To unlock, perform the above steps in
reverse.

Using the glove box as a cooled area

The glove compartment can be used to cool e.g.
drinks or food. Cooling is possible when the cli-
mate system is active (i.e. when the ignition is in
mode II or when the engine is running).

The illustration is generic – the design may vary.

Activate cooling

Deactivate cooling

–

Activate or deactivate cooling by moving the
control as far as possible toward the passen-
ger compartment/glove compartment.

Related information

•

•

Private Locking (p. 264)

Sun visors

In the ceiling in front of the driver and front pas-
senger, there are sun visors that can be lowered
and angled to the side as necessary.

The illustration is generic – the design may vary.

The mirror lighting* comes on automatically when
the cover is lifted up.

The mirror frame has a holder for e.g. cards or
tickets.

Related information

•

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

579

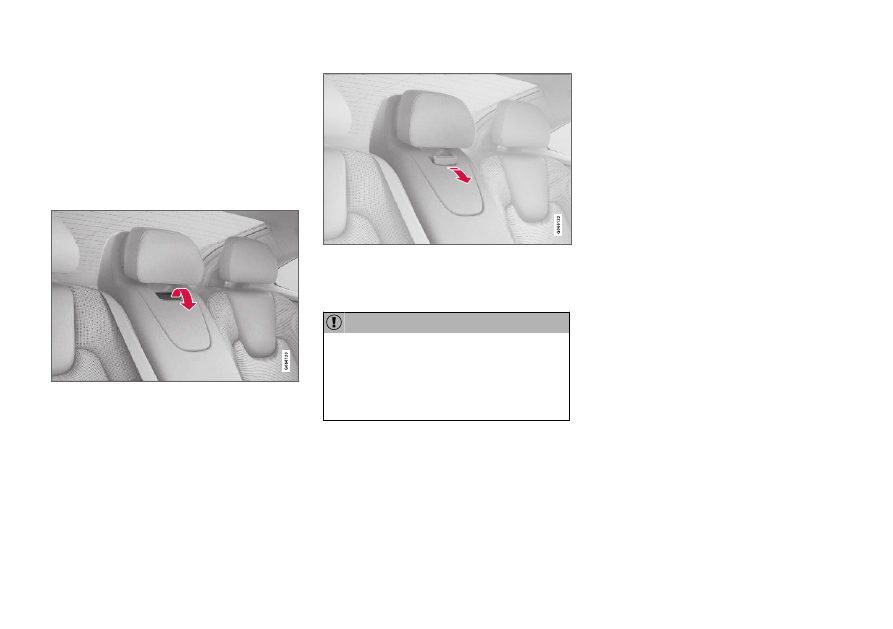

Folding down the armrest in the

rear seat*

The rear seat armrest* can be folded down for
increased comfort.

The armrest is locked in the raised position and
needs to be unlocked before it is folded down.
The handle for unlocking the armrest is located
directly underneath the head restraint.

1. Grasp the handle and rotate it toward you to

unlock the armrest.

2. When the handle is rotated to its maximum

position, the armrest is unlocked and can be
folded down.

Loading recommendations (p. 580)

•

Before moving down the armrest, make
sure to unlock it by rotating the handle. Do
not pull the handle if the armrest is locked.

•

Make sure the armrest is securely locked
into position after it is folded up.

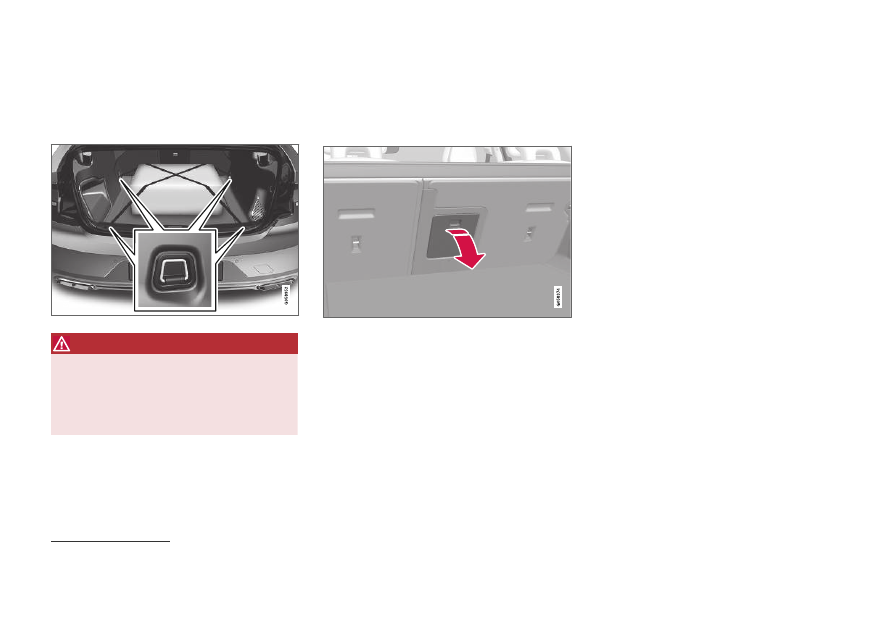

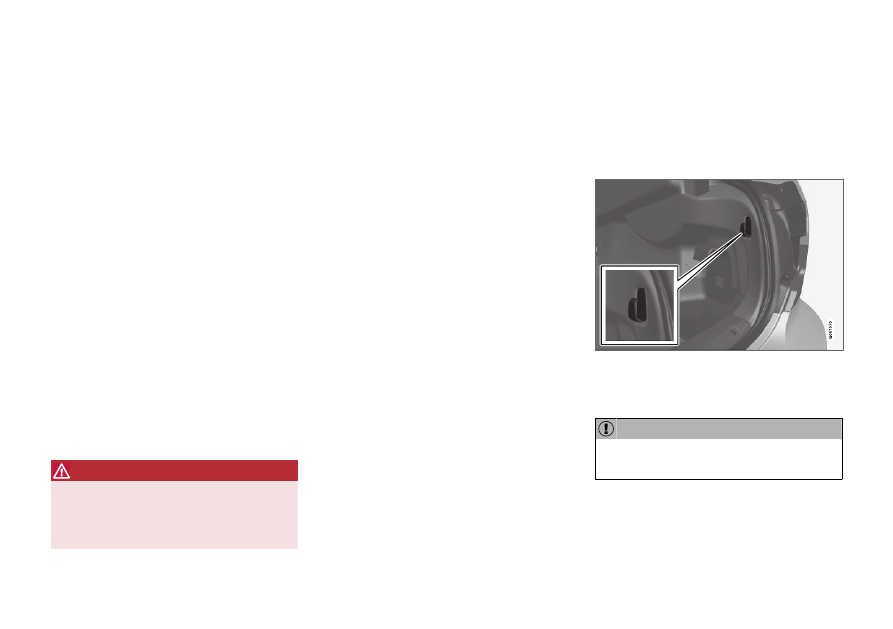

Cargo compartment

Loads can be secured in the trunk to keep them
in place while driving.

The folding* rear seat backrests can help
increase the cargo capacity of the trunk. Load
anchoring eyelets and grocery bag holders are
provided to help secure objects in place.

If the vehicle is equipped with a temporary spare
tire, this is secured to the cargo compartment
floor under the cover. The towing eyelet and tire
sealing system are located under the cargo com-
partment floor.

Related information

•

•

Grocery bag holders (p. 581)

•

Load anchoring eyelets (p. 582)

LOADING, STORAGE AND PASSENGER COMPARTMENT

* Option/accessory.

580

Loading recommendations

There are a number of things to consider when
carrying loads in or on the vehicle.

Load-carrying capacity is determined by the vehi-
cle's curb weight. The total weight of all passen-
gers and any installed accessories reduces the
vehicle's load-carrying capacity by the corres-
ponding amount.

WARNING

The vehicle's driving characteristics change

depending on the weight and position of the

load.

Loading the cargo compartment/trunk

•

Position objects so they are pressing against
the rear seat backrests.

•

Distribute the load evenly.

•

Heavy objects should be positioned as low
as possible. Avoid placing heavy objects on
folded-down seat backrests.

•

Cover sharp corners with a soft cloth or simi-
lar to help prevent damage to the upholstery.

•

Use the load anchoring eyelets and tension-
ing straps or similar to secure all objects.

WARNING

In a head-on collision at a speed of 50 km/h

(30 mph), an unsecured object weighing 20

kg (44 pounds) can reach a projectile weight

equivalent to 1000 kg (2200 pounds).

WARNING

If objects are loaded higher than the upper

edge of the side windows, leave a 10 cm (4

in.) space between the objects and the win-

dow. Objects placed closer to this could

impede the function of the inflatable curtain

concealed inside the headlining.

WARNING

Always secure the load. Otherwise, it may shift

during heavy braking and injure people in the

vehicle.
Cover sharp edges and sharp corners with

something soft.
Turn off the engine and apply the parking

brake when loading/unloading long objects.

Otherwise, it is possible for the load to reach

the gear lever or gear selector and move it to

a drive position – which could cause the vehi-

cle to begin rolling.

Extra cargo space

The ski hatch*

in the rear seat can be folded

down to carry skis or other long, thin objects.

Related information

•

Load anchoring eyelets (p. 582)

•

Folding down the rear seat backrests*
(p. 189)

•

Rear seat ski hatch* (p. 582)

•

Roof loads and load carriers (p. 581)

•

Leveling control* and suspension (p. 451)

•

Weights (p. 643)

Not available for the S90 Excellence.

LOADING, STORAGE AND PASSENGER COMPARTMENT

581

Roof loads and load carriers

Volvo-developed load carriers are recommended
for carrying loads on the roof of the vehicle.

Volvo load carriers are specially designed to help
prevent damage to your vehicle and help ensure
maximum safety while driving. Volvo load carriers
are available from authorized Volvo retailers.

Carefully follow the installation instructions provi-
ded with the load carriers.

•

Distribute the load evenly throughout the
load carriers. Place heavier cargo at the bot-
tom of the load.

•

Check periodically to ensure that the load
carriers and load are properly secured.
Secure the load firmly using tie straps or
similar.

•

If the load is longer than the vehicle, such as
a canoe or kayak, attach the towing eyelet in
its front outlet and secure the tie straps in it.

•

The vehicle's wind resistance and fuel con-
sumption increase with the size of the load.

•

Drive smoothly. Avoid rapid acceleration, hard
braking and fast cornering.

WARNING

The vehicle's center of gravity and driving

characteristics are altered by roof loads.
Follow the vehicle's specifications regarding

weights and maximum permitted load.

Related information

•

Loading recommendations (p. 580)

•

Weights (p. 643)

Grocery bag holders

Grocery bag holders (hooks) help keep shop-
ping bags in place and prevent them from falling
over and spilling their contents in the cargo
compartment.

On the sides of the cargo compartment

The illustration is generic - details may vary according to
vehicle model.

There is a grocery bag holder in the side panel
on each side of the cargo compartment.
