SAFETY

64

WARNING

•

Do not use child safety seats or child
booster cushions/backrests in the front
passenger's seat. We also recommend
that children under 140 cm (4 feet
7 inches) in height who have outgrown
these devices sit in the rear seat with the
seat belt fastened.

•

Sedan models: Keep vehicle doors and
trunk locked and keep remote controls
out of a child's reach. Unsupervised chil-
dren could lock themselves in an open
trunk and risk injury. Children should be
taught not to play in vehicles.

•

On hot days, the temperature in the vehi-
cle interior can rise very quickly. Exposure
to these high temperatures for even a
short period of time can cause heat-rela-
ted injury or death. Small children are par-
ticularly at risk. Never leave children unat-
tended in a vehicle.

Child seats should always be registered.

Volvo's recommendations

Why does Volvo believe that no child should sit in
the front seat of a vehicle? It's quite simple really.
A front airbag is a very powerful device designed,
by law, to help protect an adult.

Because of the size of the airbag and its speed
of inflation, a child should never be placed in the
front seat, even if he or she is properly belted or
strapped into a child safety seat. Volvo has been
an innovator in the field of safety since it was
founded. And we have no intention of resting on
our laurels. But we need your help. Please
remember to put your children in the back seat,
and buckle them up.

WARNING

A child restraint should never be reused if:

•

The vehicle has been involved in a colli-
sion, no matter how minor

•

Its history is unknown

•

It is older than the manufacturer's expira-
tion date

Volvo has some very specific
recommendations

•

Always wear your seat belt.

•

Airbags are a SUPPLEMENTAL safety
device which, when used with a three-point
seat belt can help reduce serious injuries
during certain types of accidents. Volvo rec-
ommends that you do not disconnect the air-
bag system in your vehicle.

•

Volvo strongly recommends that everyone in
the vehicle be properly restrained.

•

Volvo recommends that ALL occupants
(adults and children) shorter than 140 cm
(4 feet 7 inches) be seated in the rear seat
of any vehicle with a front passenger side air-
bag.

•

Drive safely!

Related information

•

Safety (p. 42)

•

Child restraints (p. 65)

•

Activating and deactivating child safety locks
(p. 259)

SAFETY

}}

65

Child restraints

Suitable child restraints should always be used
when children travel in the vehicle.

Child restraint systems

Infant seat

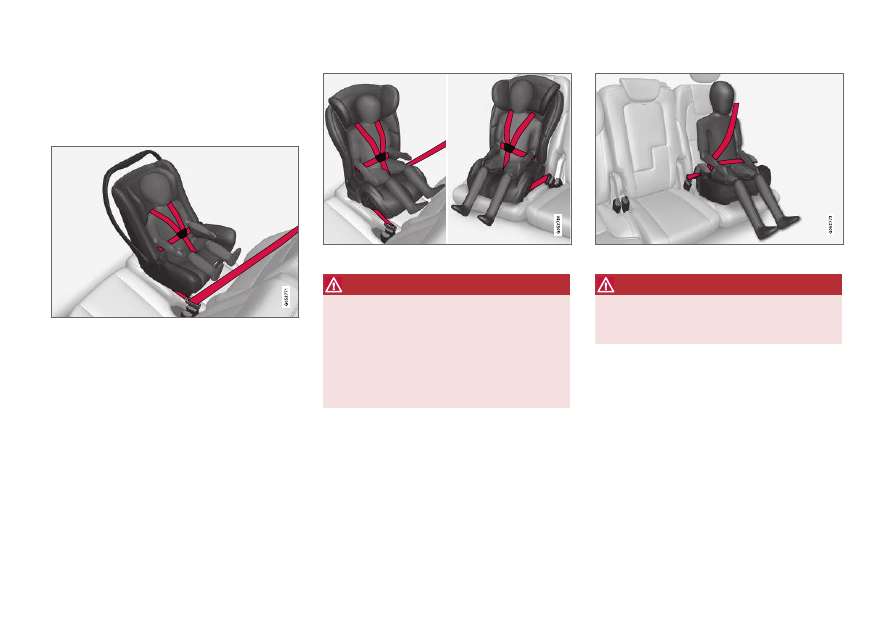

There are three main types of child restraint sys-
tems: infant seats, convertible seats and booster
cushions. They are classified according to the
child's age and size.

The child restraint should be secured using a
three-point seat belt, ISOFIX/LATCH anchors or
top tether anchors.

Convertible seat

WARNING

A child seat should never be used in the front

passenger seat of any vehicle with a front

passenger airbag - not even if the "Passenger

airbag off" symbol near the rear-view mirror is

illuminated. If the severity of an accident were

to cause the airbag to inflate, this could lead

to serious injury or death to a child seated in

this position.

Booster cushion

WARNING

Always refer to the child restraint manufactur-

er's instructions for detailed information on

securing the restraint.

||

SAFETY

66

WARNING

•

When not in use, keep the child restraint
system secured or remove it from the
passenger compartment to help prevent it
from injuring passengers in the event of a
sudden stop or collision.

•

A small child's head represents a consid-
erable part of its total weight and its neck
is still very weak. Volvo recommends that
children up to age 4 travel, properly
restrained, facing rearward. In addition,
Volvo recommends that children should
ride rearward facing, properly restrained,
as long as possible.

Automatic Locking Retractor/
Emergency Locking Retractor (ALR/
ELR)

To make child seat installation easier, each seat
belt (except for the driver's belt) is equipped with
a locking mechanism to help keep the seat belt
taut.

When attaching the seat belt to a child seat:

1. Attach the seat belt to the child seat accord-

ing to the child seat manufacturer's instruc-
tions.

2. Pull the seat belt out as far as possible.

3. Insert the seat belt latch plate into the buckle

(lock) in the usual way.

4. Release the seat belt and pull it taut around

the child seat.

A sound from the seat belt retractor will be audi-
ble at this time and is normal. The belt will now
be locked in place. This function is automatically
disabled when the seat belt is unlocked and the
belt is fully retracted.

WARNING

Do not use child safety seats or child booster

cushions/backrests in the front passenger's

seat. We also recommend that children who

have outgrown these devices sit in the rear

seat with the seat belt properly fastened.

Child restraint registration and recalls

Child restraints could be recalled for safety rea-
sons. You must register your child restraint to be
reached in a recall. To stay informed about child
safety seat recalls, be sure to fill out and return
the registration card that comes with new child
restraints.

Child restraint recall information is readily availa-
ble in both the U.S. and Canada. For recall infor-
mation in the U.S., call the U.S. Government's
Auto Safety Hotline at 1-800-424-9393 or go to
http://www-odi.nhtsa.dot.gov/cars/problems/
recalls/register/childseat/index.cfm. In Canada,
visit Transport Canada's Child Safety website at
http://www.tc.gc.ca/roadsafety/childsafety/
menu.htm.

Related information

•

Child safety (p. 63)

•

Infant seats (p. 67)

•

Convertible seats (p. 69)

•

Booster cushions (p. 71)

•

Top tether anchors (p. 72)

•

Lower child seat attachment points (p. 73)

•

ISOFIX/LATCH lower anchors (p. 74)

SAFETY

}}

67

Infant seats

Suitable child restraints should always be used
when children (depending on their age/size) are
seated in the vehicle.

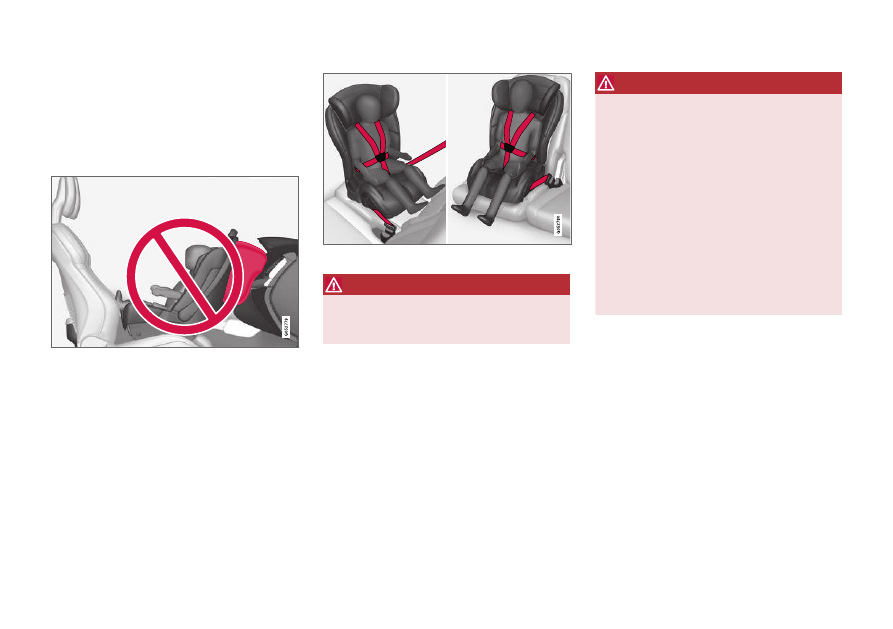

Securing an infant seat with a seat belt

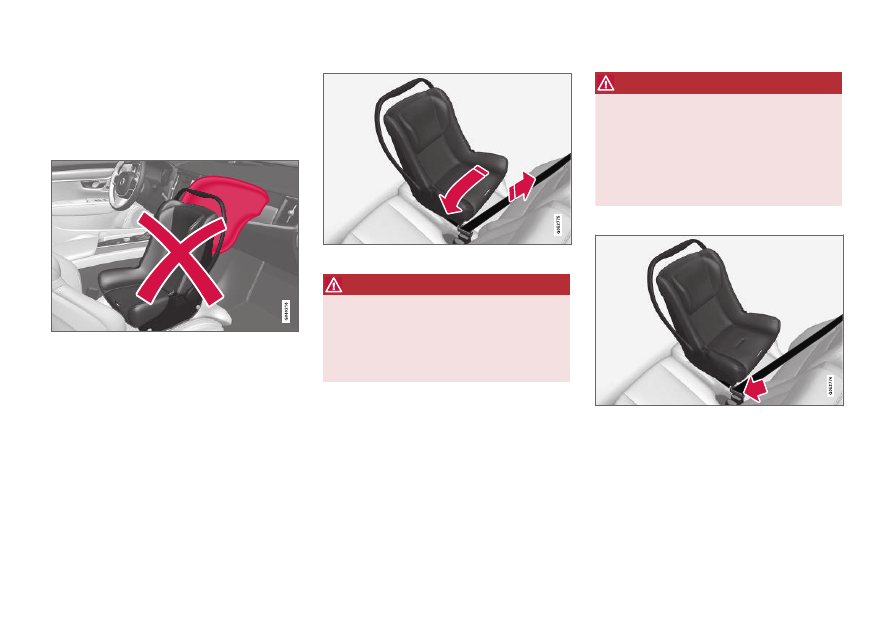

Do not place the infant seat in the front passenger's
seat

1. Place the infant seat in the rear seat of the

vehicle.

2. Attach the seat belt to the infant seat

according to the child restraint manufactur-
er's instructions.

Route the seat belt through the infant seat.

WARNING

•

An infant seat must be in the rear-facing
position only.

•

The infant seat should not be positioned
behind the driver's seat unless there is
adequate space for safe installation.

WARNING

A child seat should never be used in the front

passenger seat of any vehicle with a front

passenger airbag - not even if the "Passenger

airbag off" symbol near the rear-view mirror is

illuminated. If the severity of an accident were

to cause the airbag to inflate, this could lead

to serious injury or death to a child seated in

this position.

3.

Fasten the seat belt.

Fasten the seat belt by inserting the latch
plate into the buckle (lock) until a distinct
click is audible.

||

SAFETY

68

Pull out the shoulder section of the seat belt.

4. Pull the shoulder section of the seat belt out

as far as possible to activate the belt's auto-
matic locking function.

NOTE

The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.

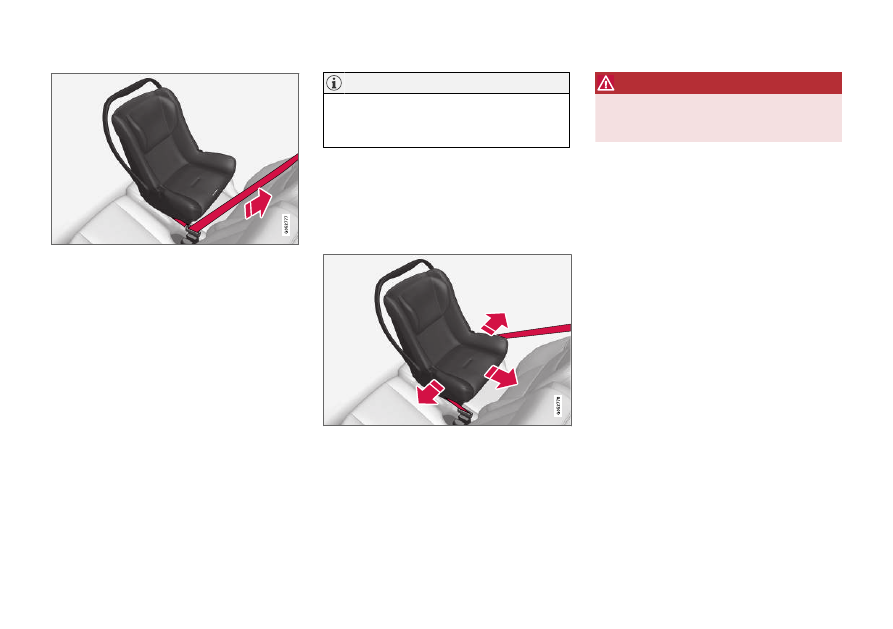

5. Press the infant seat firmly in place, let the

seat belt retract and pull it taut. A sound from
the seat belt retractor's automatic locking
function will be audible at this time and is
normal. The seat belt should now be locked
in place.

Check that the infant seat is properly secured.

6. Press and pull the infant seat along the

direction of the seat belt to check that it is
properly held in place by the seat belt.

WARNING

It should not be possible to move the child

restraint more than 2.5 cm (1 in.) in any direc-

tion along the seat belt path.

The infant seat can be removed by unbuckling
the seat belt and letting it retract completely.

Related information

•

Child restraints (p. 65)

•

Convertible seats (p. 69)

•

Booster cushions (p. 71)

•

Top tether anchors (p. 72)

•

Lower child seat attachment points (p. 73)

•

ISOFIX/LATCH lower anchors (p. 74)

SAFETY

}}

69

Convertible seats

Suitable child restraints should always be used
when children (depending on their age/size) are
seated in the vehicle.

Securing a convertible seat with a seat
belt

Do not place the convertible seat in the front passeng-
er's seat.

Convertible seats can be used in either a forward
or rearward-facing position, depending on the
age and size of the child.

Route the seat belt through the convertible seat.

WARNING

Always use a convertible seat that is suitable

for the child's age and size. See the converti-

ble seat manufacturer's recommendations.

1. Place the convertible seat in the rear seat of

the vehicle.

WARNING

•

A small child's head represents a consider-
able part of its total weight and its neck is
still very weak. Volvo recommends that
children up to age 4 travel, properly
restrained, facing rearward. In addition,
Volvo recommends that children should
ride rearward facing, properly restrained, as
long as possible.

•

Convertible child seats should be installed
in the rear seat only.

•

A rear-facing convertible seat should not
be positioned behind the driver's seat
unless there is adequate space for safe
installation.

2. Attach the seat belt to the convertible seat

according to the child restraint manufactur-
er's instructions.

||

SAFETY

70

Fasten the seat belt.

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct
click is audible.

4. Pull the shoulder section of the seat belt out

as far as possible to activate the belt's auto-
matic locking function.

NOTE

The locking retractor will automatically
release when the seat belt is unbuckled and
allowed to retract fully.

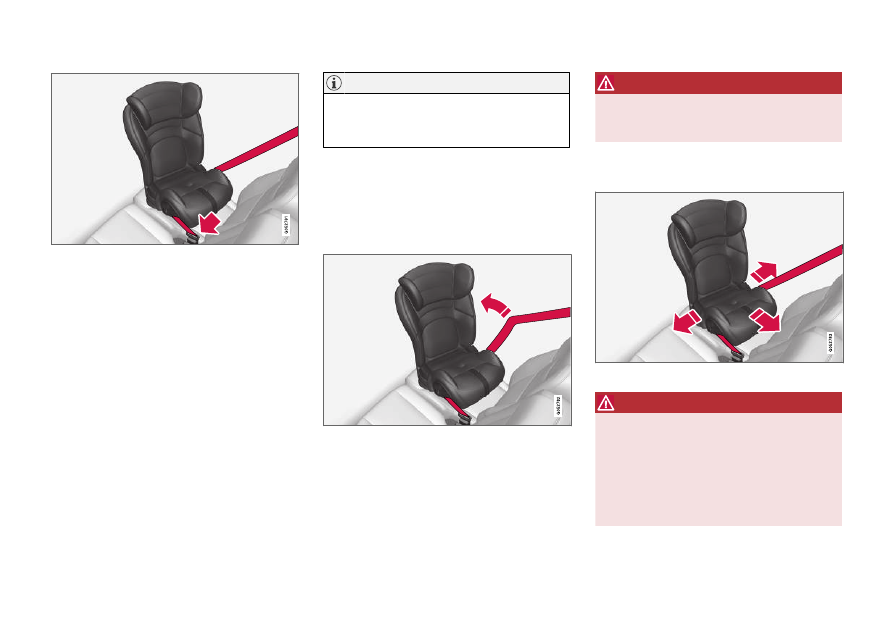

5. Press the convertible seat firmly in place, let

the seat belt retract and pull it taut. A sound
from the seat belt retractor's automatic lock-
ing function will be audible at this time and is
normal. The seat belt should now be locked
in place.

Pull out the shoulder section of the seat belt.

6. Push and pull the convertible seat along the

seat belt path to ensure that it is held
securely in place by the seat belt.

WARNING

It should not be possible to move the child

restraint more than 2.5 cm (1 in.) in any direc-

tion along the seat belt path.

The convertible seat can be removed by unbuck-
ling the seat belt and letting it retract completely.

Ensure that the convertible seat is securely in place.

WARNING

A child seat should never be used in the front

passenger seat of any vehicle with a front

passenger airbag - not even if the "Passenger

airbag off" symbol near the rear-view mirror is

illuminated. If the severity of an accident were

to cause the airbag to inflate, this could lead

to serious injury or death to a child seated in

this position.

SAFETY

}}

71

Related information

•

Child restraints (p. 65)

•

Infant seats (p. 67)

•

Booster cushions (p. 71)

•

Top tether anchors (p. 72)

•

Lower child seat attachment points (p. 73)

•

ISOFIX/LATCH lower anchors (p. 74)

Booster cushions

Suitable child restraints should always be used
when children (depending on their age/size) are
seated in the vehicle.

Securing a booster cushion

Position the child correctly on the booster cushion.

Booster cushions are recommended for children
who have outgrown convertible seats.

1. Place the booster cushion in the rear seat of

the vehicle.

2. With the child properly seated on the booster

cushion, attach the seat belt to or around the
cushion according to the manufacturer's
instructions.

3. Fasten the seat belt by inserting the latch

plate into the buckle (lock) until a distinct
click is audible.

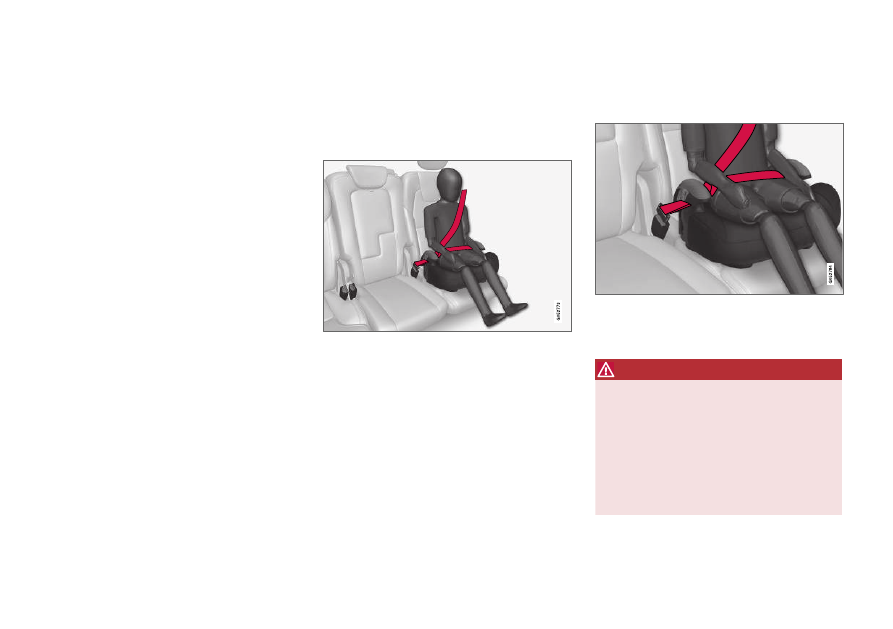

Positioning the seat belt.

4. Ensure that the seat belt is pulled taut and

fits snugly around the child.

WARNING

•

The hip section of the three-point seat
belt must fit snugly across the child's
hips, not across the stomach.

•

The shoulder section of the three-point
seat belt should be positioned across the
chest and shoulder.

•

The shoulder belt must never be placed
behind the child's back or under the arm.

||

SAFETY

72

Related information

•

Child restraints (p. 65)

•

Convertible seats (p. 69)

•

Infant seats (p. 67)

•

Top tether anchors (p. 72)

•

Lower child seat attachment points (p. 73)

•

ISOFIX/LATCH lower anchors (p. 74)

Top tether anchors

Your Volvo is equipped with child restraint top
tether anchorages for all three seating positions
in the rear seat. They are located on the rear par-
cel shelf.

Child restraint anchorages

Top tether anchors and symbols on the rear parcel shelf.

Securing a child seat

1. Place the child restraint on the rear seat.

2. Route the top tether strap under the head

restraint and attach it to the anchor.

3. Attach the strap for the lower tether anchors

in the lower ISOFIX/LATCH attachment
points. If the child restraint is not equipped
with straps for the lower tether anchors, or if
the child restraint is used on the center seat-
ing position, follow the instructions for
attaching a child restraint using the auto-
matic locking seat belt.

4. Firmly tension all straps.

Refer also to the child seat manufacturer's
instructions for information on securing the child
seat.

WARNING

•

Always refer to the recommendations
made by the child restraint manufacturer.

•

Volvo recommends that the top tether
anchors be used when installing a for-
ward-facing child restraint.

•

Never route a top tether strap over the
top of the head restraint. The strap
should be routed beneath the head
restraint.

•

Child restraint anchorages are designed
to withstand only those loads imposed by
correctly fitted child restraints. Under no
circumstances are they to be used for
adult seat belts or harnesses. The ancho-
rages are not able to withstand excessive
forces on them in the event of collision if
full harness seat belts or adult seat belts

SAFETY

73

are installed to them. An adult who uses a
belt anchored in a child restraint anchor-
age runs a great risk of suffering severe
injuries should a collision occur.

•

Do not install rear speakers that require
the removal of the top tether anchors or
interfere with the proper use of the top
tether strap.

Related information

•

Child restraints (p. 65)

•

Lower child seat attachment points (p. 73)

•

ISOFIX/LATCH lower anchors (p. 74)

Lower child seat attachment points

The rear seats are equipped with lower child
seat attachment points.

The lower child seat attachment points are
intended for use with certain rear-facing child
restraints.

Always follow the manufacturer's installation
instructions when attaching a child seat to the
lower child seat attachment points.

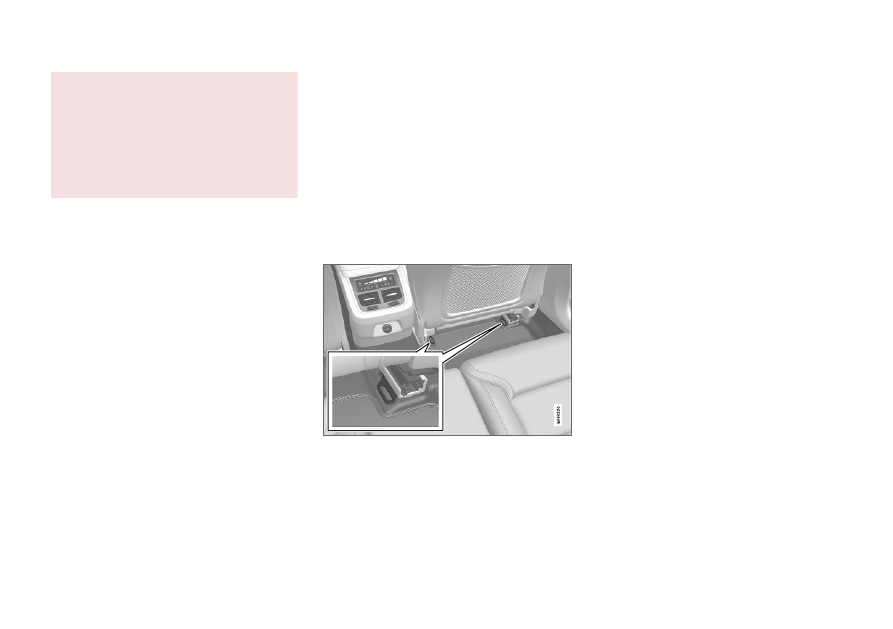

Location of child seat attachment
points

Location of child seat attachment points in the rear seat.

The child seat attachment points in the rear seat
are located on the rear section of the front seat
floor rails.

Related information

•

Child restraints (p. 65)

•

Top tether anchors (p. 72)

•

ISOFIX/LATCH lower anchors (p. 74)

SAFETY

74

ISOFIX/LATCH lower anchors

Lower anchors for ISOFIX/LATCH-equipped
child seats are located in the rear, outboard
seats, hidden below the backrest cushions.

Using the ISOFIX/LATCH lower child
seat anchors

Location of the ISOFIX/LATCH anchors

Symbols on the seat back upholstery mark the
ISOFIX/LATCH anchor positions as shown. To
access the anchors, kneel on the seat cushion
and locate the anchors by feel. Always follow your
child seat manufacturer's installation instructions,
and use both ISOFIX/LATCH lower anchors and
top tethers whenever possible.

To access the anchors

1. Put the child restraint in position.

2. Kneel on the child restraint to press down

the seat cushion and locate the anchors by
feel.

3. Fasten the attachment on the child

restraint's lower straps to the ISOFIX/LATCH
lower anchors.

4. Firmly tension the lower child seat straps

according to the manufacturer's instructions.

WARNING

Volvo's ISOFIX/LATCH anchors conform to

FMVSS/CMVSS standards. Always refer to

the child restraint system's manual for weight

and size ratings.

NOTE

•

The rear center seat is not equipped with
ISOFIX/LATCH lower tether anchors. If a
child restraint is used in this seat, attach
the restraint's upper anchor strap (if
equipped with these) to the top tether
anchor point for this strap and secure the
child restraint with the vehicle's center
seat belt.

•

Always follow your child seat manufactur-
er's installation instructions, and use both
ISOFIX/LATCH lower anchors and top
tethers whenever possible.

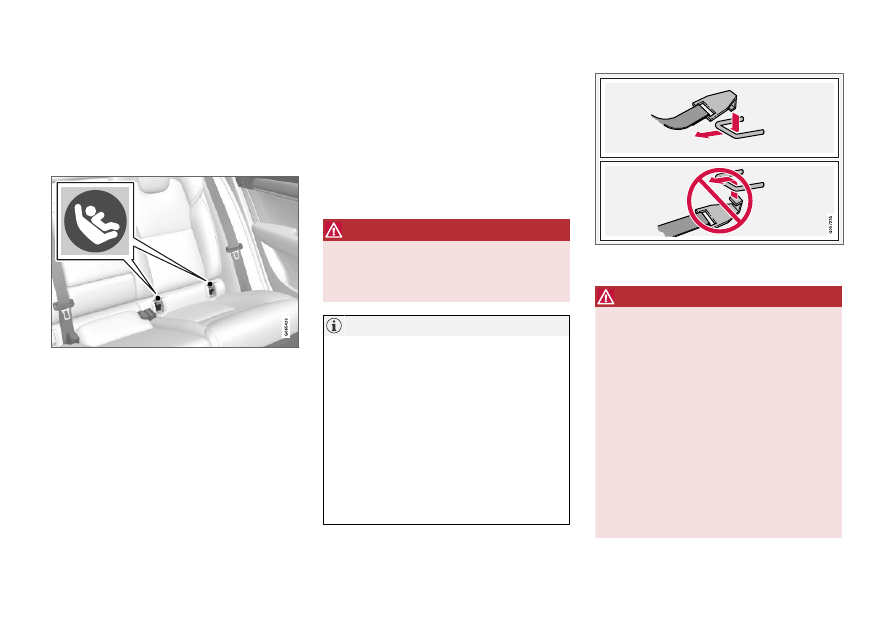

Fasten the attachment correctly to the ISOFIX/LATCH
lower anchors.

WARNING

•

Be sure to fasten the attachment cor-
rectly to the anchor (see the illustration).
If the attachment is not correctly fas-
tened, the child restraint may not be
properly secured in the event of a colli-
sion.

•

The ISOFIX/LATCH lower child restraint
anchors are only intended for use with
child seats positioned in the outboard
seating positions. These anchors are not
certified for use with any child restraint
that is positioned in the center seating
position. When securing a child restraint
in the center seating position, use only
the vehicle's center seat belt.

DISPLAYS AND VOICE CONTROL

* Option/accessory.

78

Instruments and controls in left-

hand drive vehicles

The overviews show the location of the vehicle's
displays and controls.

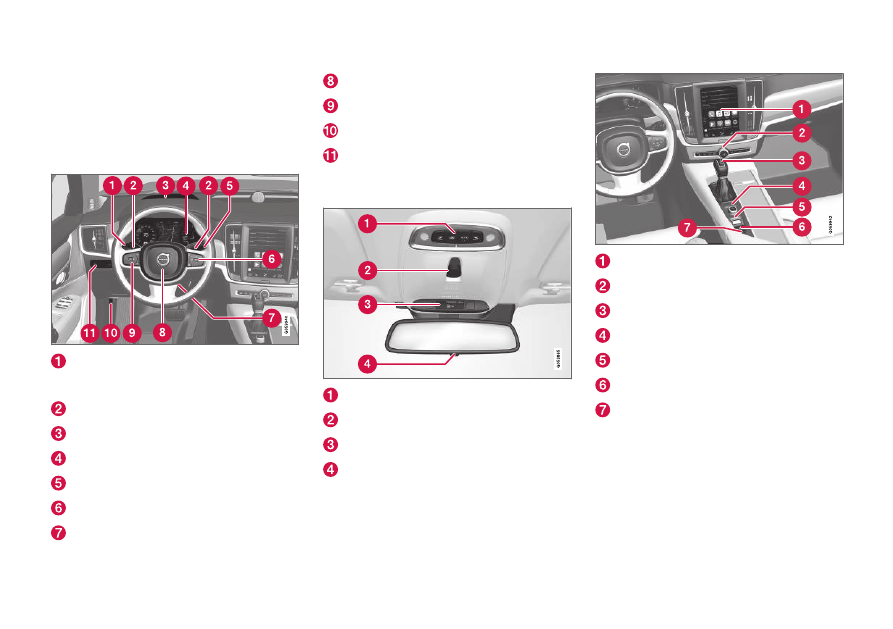

Steering wheel and dashboard

Parking lights, daytime running lights, low
beams, high beams, turn signals, rear fog
light, trip computer reset
Steering wheel paddles for manual shifting*

Head-up display*

Instrument panel

Wipers and washers, rain sensor*

Right-side steering wheel keypad

Steering wheel adjustment

Horn

Left-side steering wheel keypad

Hood open

Display lighting, trunk lid unlock/open*/
close*, halogen headlight height adjustment

Ceiling console

Front reading lights and courtesy lighting

Panoramic roof*

Ceiling console display ON CALL button

HomeLink

®

*

Center and tunnel console

Center display

Hazard warning flashers, defrosting, media

Gear selector

Start knob

Drive modes

Parking brake

Auto-hold brakes

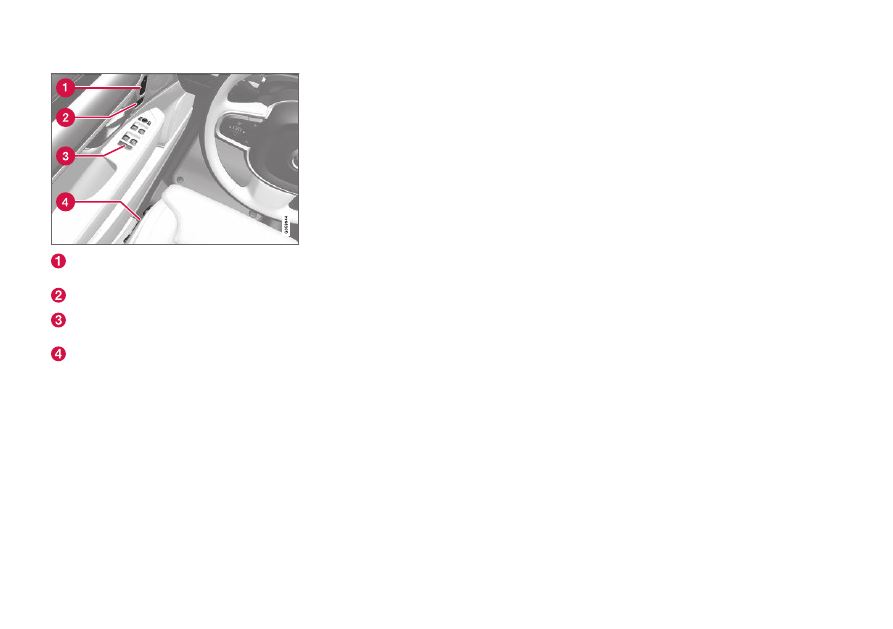

Driver's door

DISPLAYS AND VOICE CONTROL

* Option/accessory.

79

Memory for power front seat settings*, door
mirrors and head-up display*
Central locking

Power windows, door mirrors, electric child
safety locks*
Controls for front seat

Related information

•

Manual front seats (p. 180)

•

Adjusting the power* front seats (p. 181)

•

Adjusting the steering wheel (p. 193)

•

Lighting panel and controls (p. 148)

•

Starting the vehicle (p. 426)

•

Instrument panel (p. 80)

•

Center display overview (p. 105)

•

Transmission (p. 440)

DISPLAYS AND VOICE CONTROL

* Option/accessory.

80

Instrument panel

The instrument panel displays information rela-
ted to the vehicle and driving.

The instrument panel contains gauges, indicators
and monitoring and warning symbols. What is
shown in the instrument panel varies depending
on the equipment, settings and functions cur-
rently active.

The instrument panel is activated as soon as a
door is opened, i.e. in ignition mode 0. The panel
will power down after a short period of time if it is
not used. To reactivate it, do one of the following:

•

Depress the brake pedal.

•

Activate ignition mode I.

•

Open one of the doors.

WARNING

If the instrument panel turns off, does not

activate when the ignition is switched on, or

part/all of the panel cannot be read, do not

drive the vehicle. Consult a workshop immedi-

ately. Volvo recommends an authorized Volvo

workshop.

WARNING

If the instrument panel is not functioning

properly, information about brakes, airbags or

other safety-related systems may not be dis-

played. The driver will then not be able to

check the status of the vehicle systems or

receive relevant warnings and information.

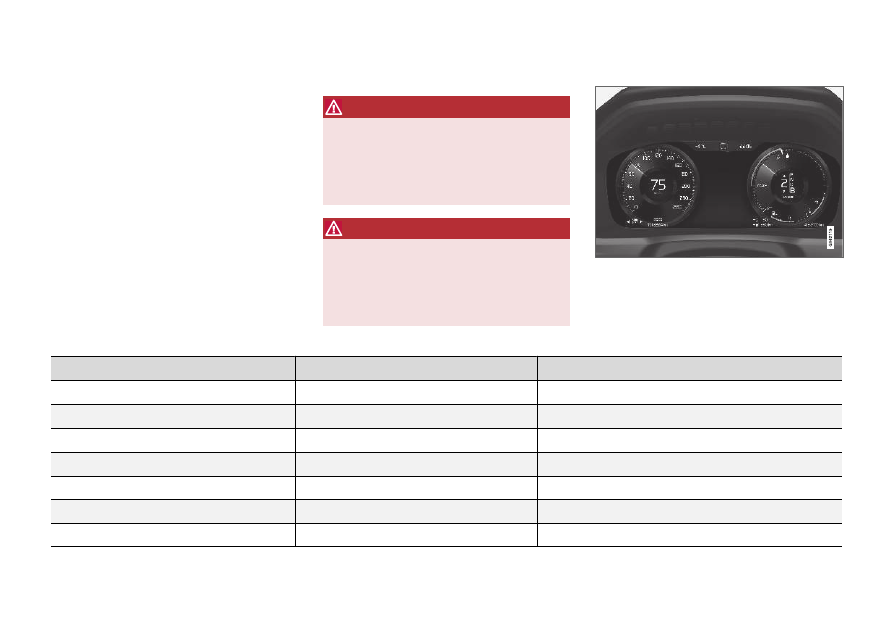

Location in the instrument panel:

Left side

In the center

Right side

Speedometer

Indicator and warning symbols

Tachometer/Hybrid gauge

A

Trip odometer

Ambient temperature sensor

Gear indicator

Odometer

B

Clock

Drive Mode

Cruise control/speed limiter information

Message (also graphics in some cases)

Fuel gauge

Road sign information*

Door and seat belt status

Hybrid gauge

–

Hybrid battery's charge level

Distance to empty tank

–

Media player

Distance to discharged battery

DISPLAYS AND VOICE CONTROL

81

Left side

In the center

Right side

–

Navigation system map

Current fuel consumption

–

Phone

App menu (activated using steering wheel keypad)

–

Voice Control

–

A

Depends on selected drive mode.

B

Total distance.

Dynamic symbol

Dynamic symbol in basic mode.

In the center of the instrument panel is a dynamic
symbol that changes appearance according to
the type of message displayed. The severity of
the control or warning symbol is indicated by an
amber or red marking around the symbol. An ani-
mation may be used to change the symbol into a
larger image in order to graphically depict the
location of a problem or to clarify information.

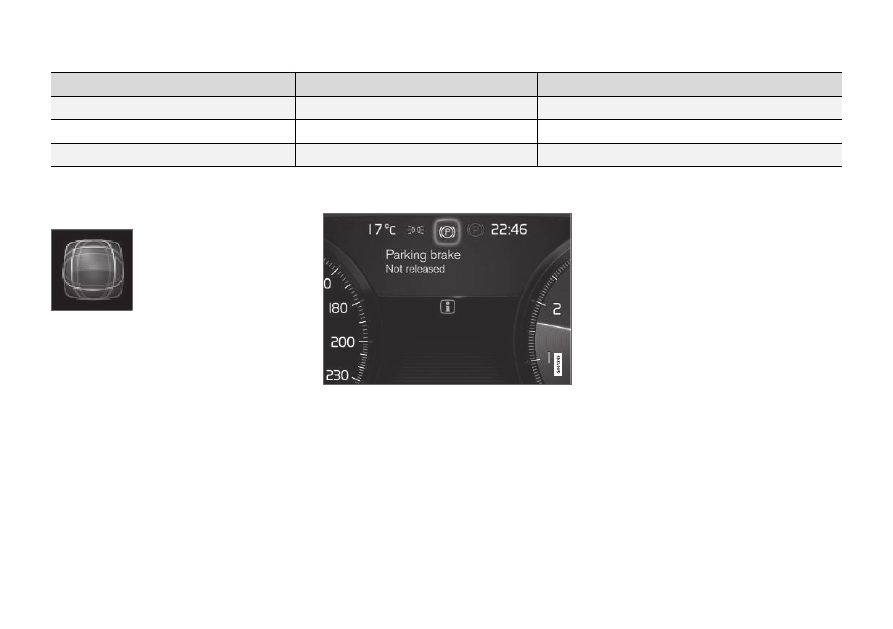

Example with indicator symbol.

Related information

•

Instrument panel settings (p. 82)

•

Warning symbols in the instrument panel
(p. 93)

•

Indicator symbols in the instrument panel
(p. 90)

•

Trip computer (p. 85)

•

Messages in the instrument panel (p. 101)

•

Handling the App menu in the instrument
panel (p. 100)

DISPLAYS AND VOICE CONTROL

82

Instrument panel settings

Display settings for the instrument panel can be
set via the instrument panel's app menu and via
the center display's Settings menu.

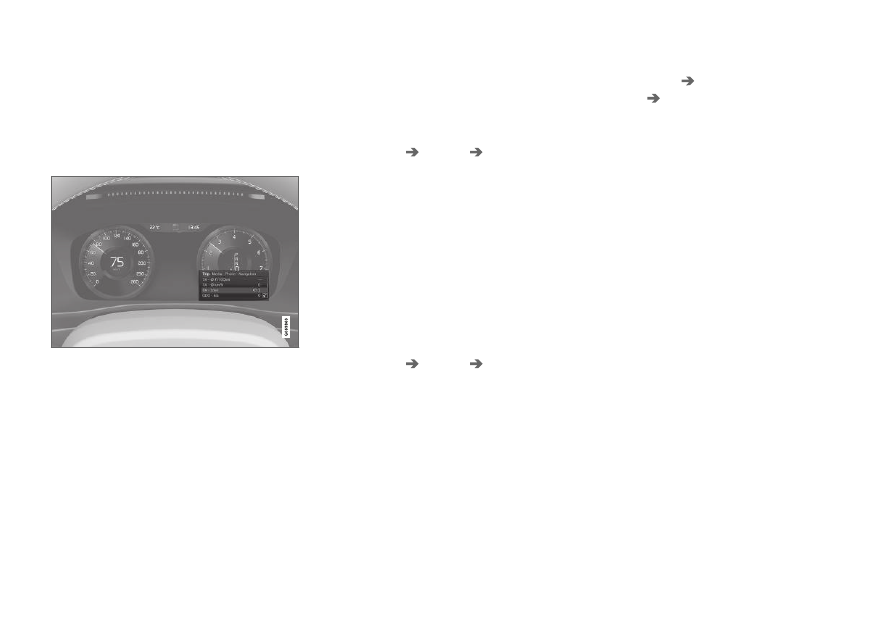

Settings via instrument panel's app
menu

The illustration is generic – layout may vary.

The app menu will open and can be controlled
using the right-side steering wheel keypad.

The app menu can be used to set what informa-
tion will be displayed in the instrument panel:

•

trip computer

•

media player

•

phone

•

navigation system.

Settings via center display

Selecting type of information

1. Tap

Settings

 in the center display's Top

view.

2. Tap

My Car

Displays

Driver Display

Information

.

3. Select a background:

•

Show no information in the
background

•

Show information for current playing
media

•

Show navigation even if no route is
set

.

Select theme

1. Tap

Settings

 in the center display's Top

view.

2. Tap

My Car

Displays

Display

Themes

3. Select a theme (appearance) for the instru-

ment panel:

•

Glass

•

Minimalistic

•

Performance

•

Chrome Rings

.

Select language

1. Tap

Settings

 in the center display's Top

view.

2. Tap

System

System Languages and

Units

System Language

 to select lan-

guage.
> A change made here will affect the lan-

guage in all displays.

The settings are personal and saved automati-
cally in the active driver profile.

Related information

•

Instrument panel (p. 80)

•

Handling the App menu in the instrument
panel (p. 100)

•

Changing settings in the center display's Top
view (p. 128)
