The indicator is visible in the climate view in
the centre display.
The indicator is visible in the climate row
when the climate view is not open.

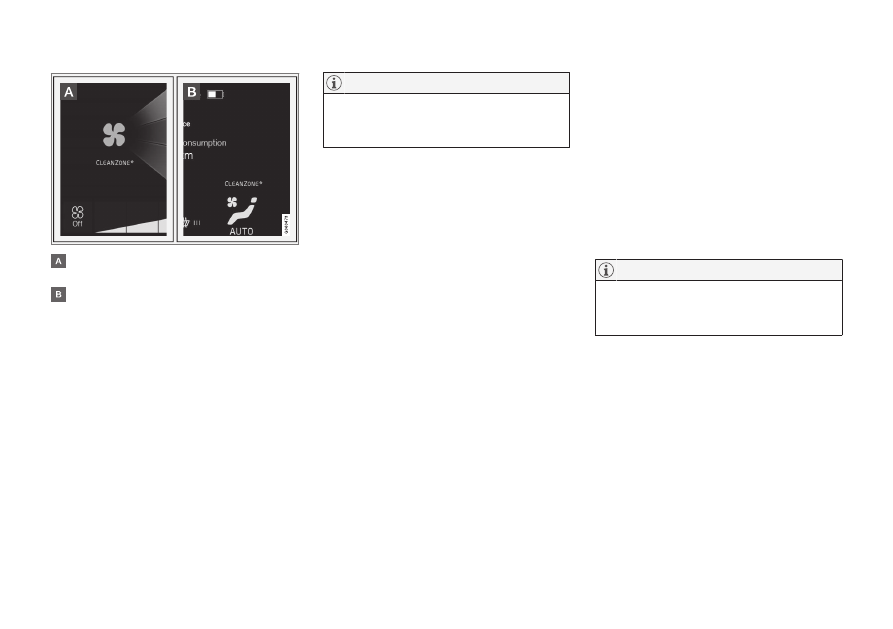

If the conditions have not been met then the

Clean Zone

text is white. When all conditions

have been met, this is indicated by the text
changing colour to blue.

Conditions that are checked:

•

That all doors and the tailgate are closed.

•

That all side windows and the panorama
roof

* are closed.

•

That the air quality system Interior Air Quality
System

* is activated.

•

That the ventilation fan is activated.

•

That the air recirculation is deactivated.

NOTE

Clean Zone does not indicate that the air
quality is good. It only indicates that the con-
ditions for good air quality have been met.

Related information

•

Climate control (p. 186)

•

Passenger compartment filter (p. 188)

•

Clean Zone Interior Package

* (p. 189)

•

Interior Air Quality System

* (p. 189)

•

Cleaning the interior (p. 591)

•

Climate controls in the centre display
(p. 190)

Passenger compartment filter

All air entering the car's passenger compartment
is cleaned with a filter.

Replacing the passenger compartment
filter

To maintain high climate system performance,
the filter must be changed at regular intervals.
Follow the Volvo Service Programme for the rec-
ommended replacement intervals. If the car is
used in a severely contaminated environment, it
may be necessary to replace the filter more often.

NOTE

There are different types of passenger com-
partment filter. Make sure that the correct fil-
ter is fitted.

Related information

•

Air quality (p. 187)

•

Clean Zone Interior Package

* (p. 189)

•

Interior Air Quality System

* (p. 189)

•

Volvo service programme (p. 552)

CLIMATE CONTROL

* Option/accessory.

189

Clean Zone Interior Package

Clean Zone Interior Package (CZIP) comprises
a series of modifications that keep the passen-
ger compartment even clearer from allergy and
asthma-inducing substances.

The following is included:

•

An enhanced fan function that means that
the fan starts when the car is unlocked with
the remote control key. The fan fills the pas-
senger compartment with fresh air. The func-
tion starts when required and is disengaged
automatically after a time or when one of the
passenger compartment doors is opened.
The amount of time the fan runs is reduced
gradually due to reduced need up until the
car is 4 years old.

•

The fully automatic air quality system Interior
Air Quality System (IAQS).

Related information

•

Air quality (p. 187)

•

Passenger compartment filter (p. 188)

•

Interior Air Quality System

* (p. 189)

Interior Air Quality System

Interior Air Quality System (IAQS) is a fully auto-
matic air quality system that separates gases
and particles to reduce the levels of odours and
contaminants in the passenger compartment.

IAQS is a part of the Clean Zone Interior
Package (CZIP) and cleans the air in the passen-
ger compartment from contaminants such as par-
ticles, hydrocarbons, nitrous oxides and ground-
level ozone.

If the air quality sensor senses that the outside
air is contaminated, the air intake is closed and
air recirculation is activated.

NOTE

The air quality sensor must always be enabled
to ensure the best air in the passenger com-
partment.

In a cold climate recirculation is limited so as
to prevent misting.

In the event of misting, the defrost functions
for windscreen, side windows and rear win-
dow should be used.

Activating/deactivating the air quality
sensor

It is possible to set whether the air quality sensor
should be activated/deactivated.

1. Press

Settings

in the top view in the centre

display.

2. Press

Climate

3. Select

Air Quality Sensor

to activate/deac-

tivate the air quality sensor.

Related information

•

Air quality (p. 187)

•

Passenger compartment filter (p. 188)

•

Clean Zone Interior Package

* (p. 189)

•

Activating/deactivating air recirculation
(p. 200)

CLIMATE CONTROL

* Option/accessory.

190

Climate controls

The climate control system's functions are con-
trolled from the centre display, physical buttons
in the centre console and the climate panel at
the rear of the tunnel console.

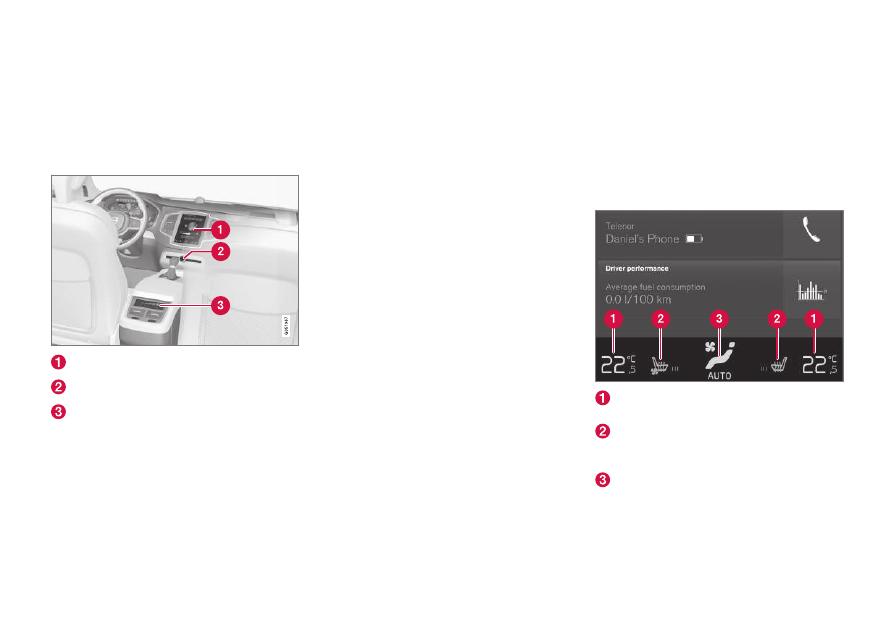

Overview of climate controls

Climate controls in the centre display.

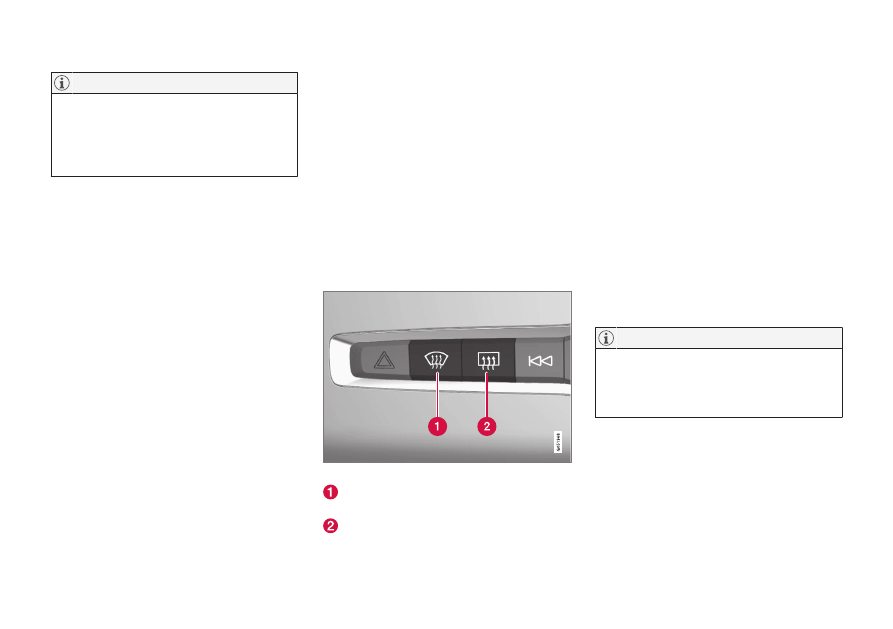

Defrost buttons in the centre console.

Climate controls at the rear of the tunnel
console.

Related information

•

Climate control (p. 186)

•

Climate controls in the centre display
(p. 190)

•

Climate controls at the rear of the tunnel
console (p. 192)

•

Activating/deactivating defrost of windows
and door mirrors (p. 198)

Climate controls in the centre

display

All climate functions can be regulated from the
climate row and the climate view in the centre
display.

Climate row

The most common climate functions can be
regulated from the climate row.

Temperature controls for driver and passen-
ger side.
Controls for heated

* and ventilated* driver

and front passenger seat, as well as heated
steering wheel

Button for access to the climate view. The
graphic on the button shows activated cli-
mate settings.

CLIMATE CONTROL

}}

* Option/accessory.

191

Climate view

One tap on the centre button in the climate row
gives access to the climate view. The climate view
is divided into the tabs

Main climate

Rear

climate

and

Parking climate

. Change between

the tabs by swiping left/right or by pressing the
respective heading.

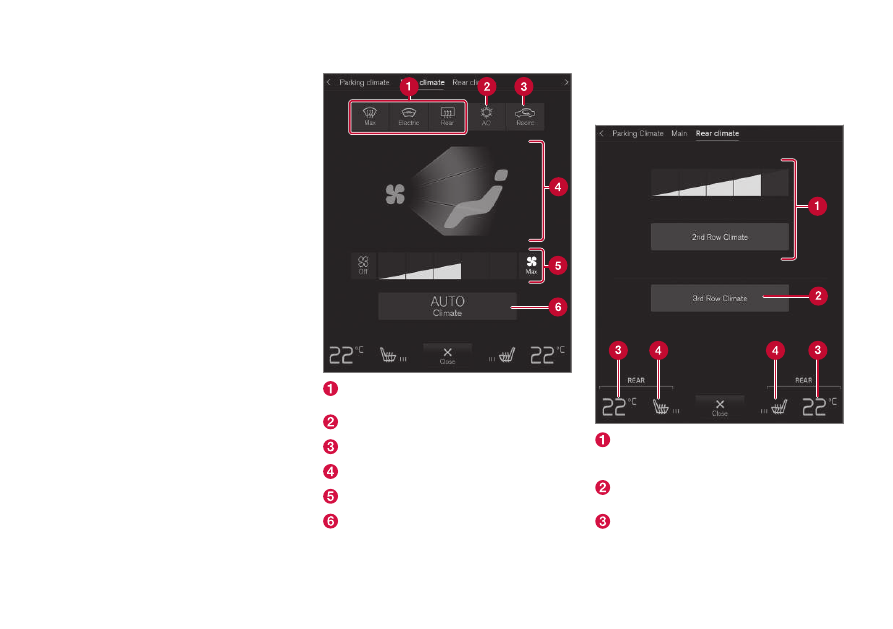

Main climate

In addition to the climate row's functions, other
main climate functions can also be controlled in
the

Main climate

tab.

Max

Electric

Rear

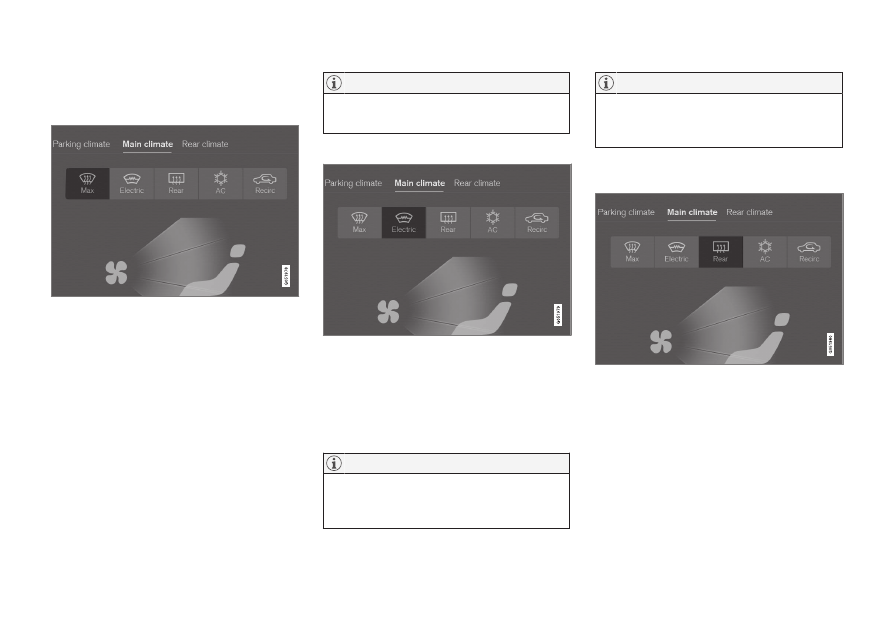

- Controls for defrosting

the windows and door mirrors.

- Controls for air conditioning.

Recirc

- Controls for air recirculation.

Controls for air distribution.

Fan controls for front seat.

AUTO

- Auto regulating the climate.

Rear climate control

All climate functions for the rear seat can be
regulated in the

Rear climate

tab.

2nd row climate

- Controls for climate func-

tionality in the rear seat, second seat row.
Fan controls for rear seat, second seat row.

3rd row climate

- Controls for climate func-

tionality in the rear seat, third seat row

Temperature controls for rear seat.

CLIMATE CONTROL

* Option/accessory.

192

Controls for heated rear seat

Parking climate

The car's parking climate control can be regula-
ted in the

Parking climate

tab.

Related information

•

Climate controls (p. 190)

•

Activating/deactivating defrost of windows
and door mirrors (p. 198)

•

Activating/deactivating air conditioning
(p. 193)

•

Activating/deactivating air recirculation
(p. 200)

•

Changing the air distribution (p. 201)

•

Regulating the fan level (p. 197)

•

Auto-regulating the climate (p. 193)

•

Regulating the temperature (p. 194)

•

Activating/deactivating heating of the seats

(p. 205)

•

Activating/deactivating ventilation of the
seats

* (p. 206)

•

Activating/deactivating heating of steering
wheel

* (p. 207)

•

Parking climate (p. 208)

Climate controls at the rear of the

tunnel console

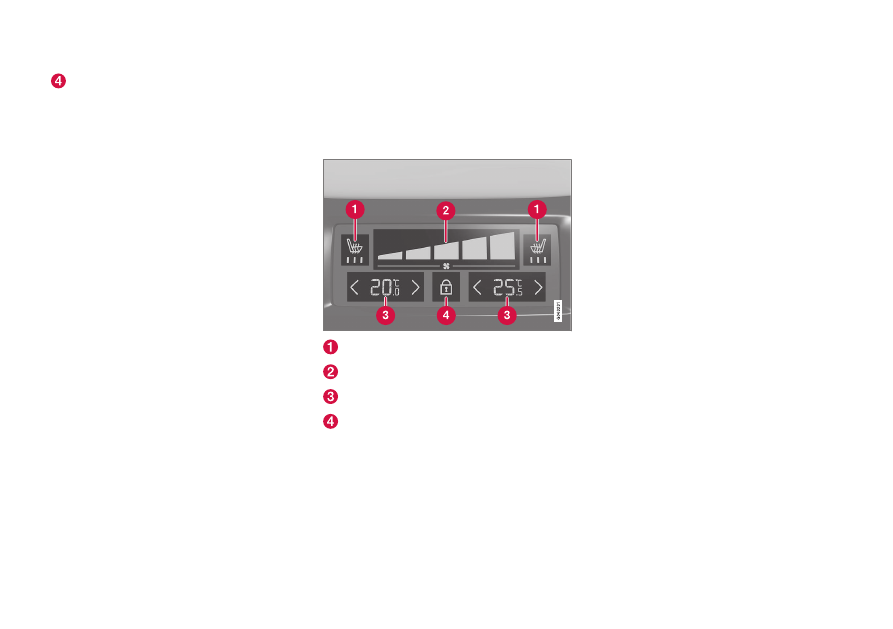

The rear seat's climate functions are controlled
from the climate panel at the rear of the tunnel
console.

Controls for heated rear seat

Fan controls for rear seat.

Temperature controls for rear seat.

Locking/unlocking button on the climate
panel.

The climate panel has a screen lock to prevent
unintentional change of fan speed and tempera-
ture. When the screen is locked, only the seat
controls

* and the unlocking button are shown.

After unlocking, the fan speed and temperature
can be changed via the climate panel and all

selected climate settings are shown. The screen
locks automatically after a period of inactivity.

Related information

•

Climate controls (p. 190)

•

Activating/deactivating heating of the seats

(p. 205)

•

Regulating the fan level (p. 197)

•

Regulating the temperature (p. 194)

CLIMATE CONTROL

}}

193

Auto-regulating the climate

With auto climate control activated, multiple cli-
mate functions are controlled automatically.

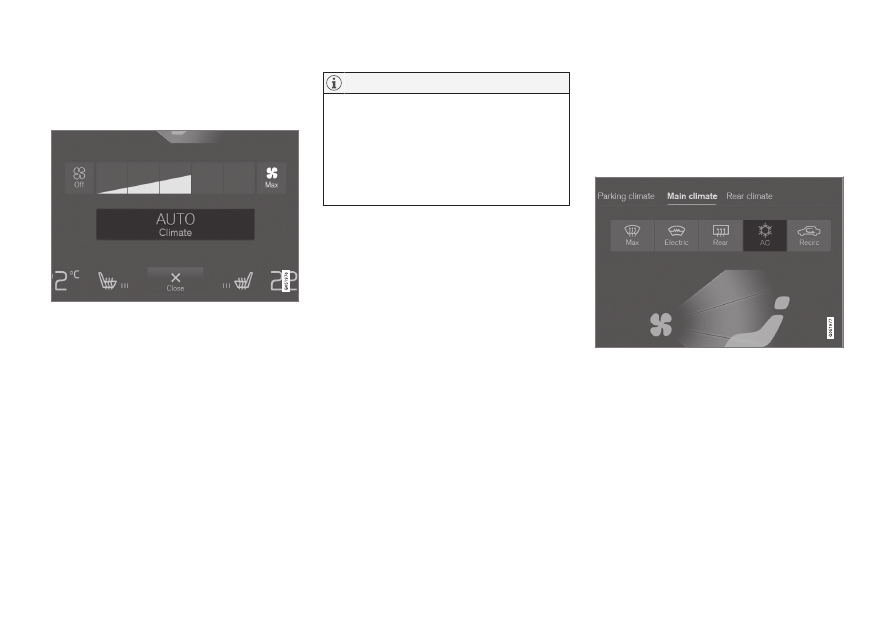

Auto-regulation button in the climate view.

1. Open the climate view in the centre display.

2. Give a short or long press on

AUTO

•

Short press - air recirculation, air condi-
tioning and air distribution are controlled
automatically.

•

Long press - air recirculation, air condi-
tioning and air distribution are controlled
automatically, temperature and fan level
are changed to standard settings: 22
°C/72 °F and level

(level

in the rear

seat).

> Auto-regulation of the climate is activated

and the button illuminates.

NOTE

Temperature and fan speed can be changed
without deactivating the automatically-regula-
ted climate control system. The automatically-
regulated climate control system is deacti-
vated when the air distribution is changed
manually or when maximum defroster is acti-
vated.

Related information

•

Climate controls in the centre display
(p. 190)

•

Activating/deactivating air conditioning
(p. 193)

•

Activating/deactivating air recirculation
(p. 200)

•

Changing the air distribution (p. 201)

•

Regulating the temperature (p. 194)

•

Regulating the fan level (p. 197)

Activating/deactivating air

conditioning

The air conditioning cools and dehumidifies
incoming air as required.

Activating/deactivating the main air
conditioning

The air conditioning button in the climate view.

1. Open the climate view in the centre display.

2. Press

> The air conditioning is activated/deacti-

vated and the button illuminates/extin-
guishes.

When the air conditioning is activated, the
climate control system automatically con-
trols starting and switching off as
required.

CLIMATE CONTROL

* Option/accessory.

194

NOTE

Close all side windows and the panoramic
roof

* for air conditioning to work optimally.

NOTE

It is not possible to activate the air condition-
ing when the fan control is in

Off

position.

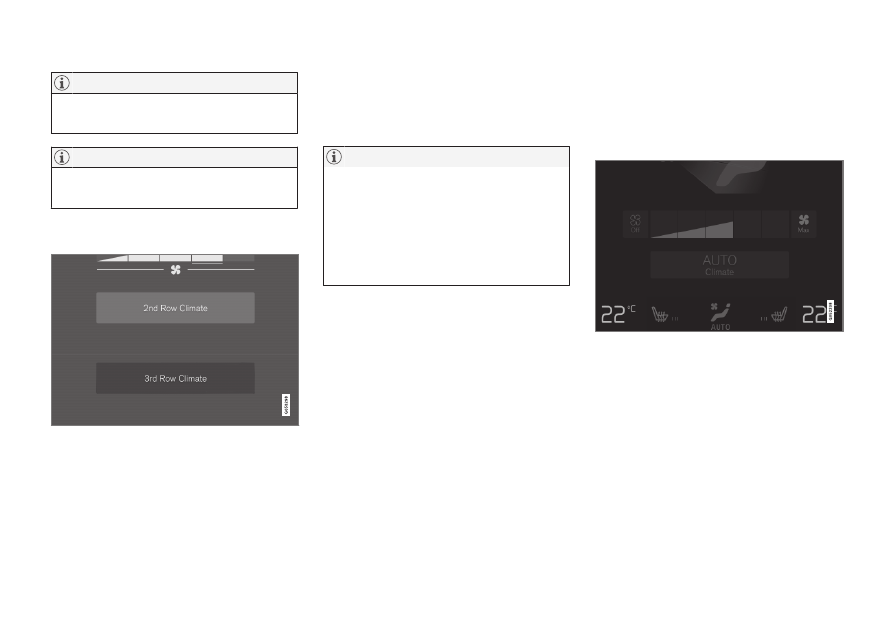

Activating/deactivating the third seat
row's air conditioning

The air conditioning button in the tab Rear climate in

the climate view.

1. Open the climate view in the centre display

and select the tab for

Rear climate

2. Press

3rd row climate

> The air conditioning is activated/deacti-

vated and the button illuminates/extin-
guishes.

NOTE

The air conditioning for the third seat row is
activated automatically if anyone in the third
seat row puts on a seatbelt.

It is not possible to manually activate the third
seat row's air conditioning if the main air con-
ditioning is deactivated or the second seat
row's climate control is deactivated.

Related information

•

Climate controls in the centre display
(p. 190)

•

Auto-regulating the climate (p. 193)

Regulating the temperature

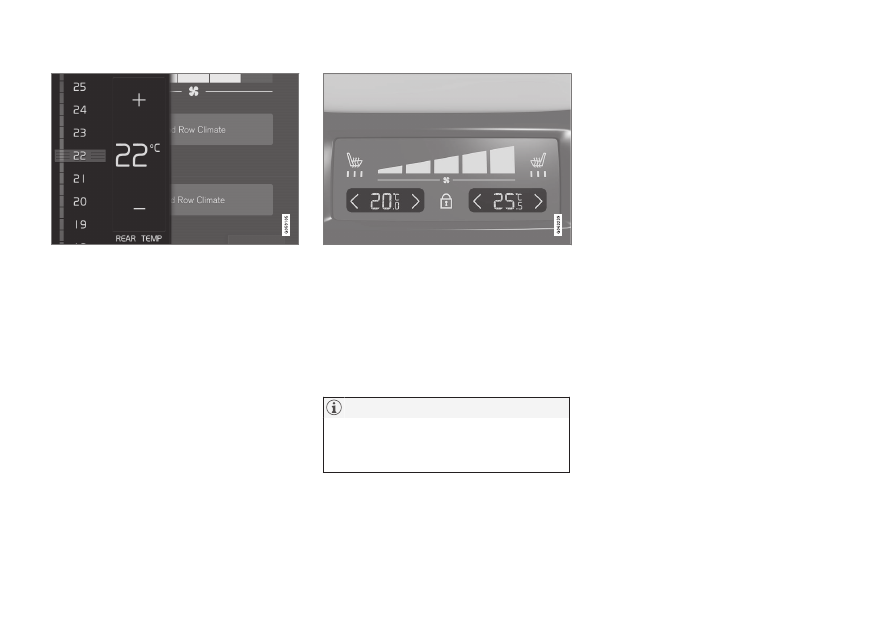

The temperature can be set separately for the
left and right-hand sides and separately for the
front and rear seats.

Regulating temperature for front seat

Temperature buttons in the climate row.

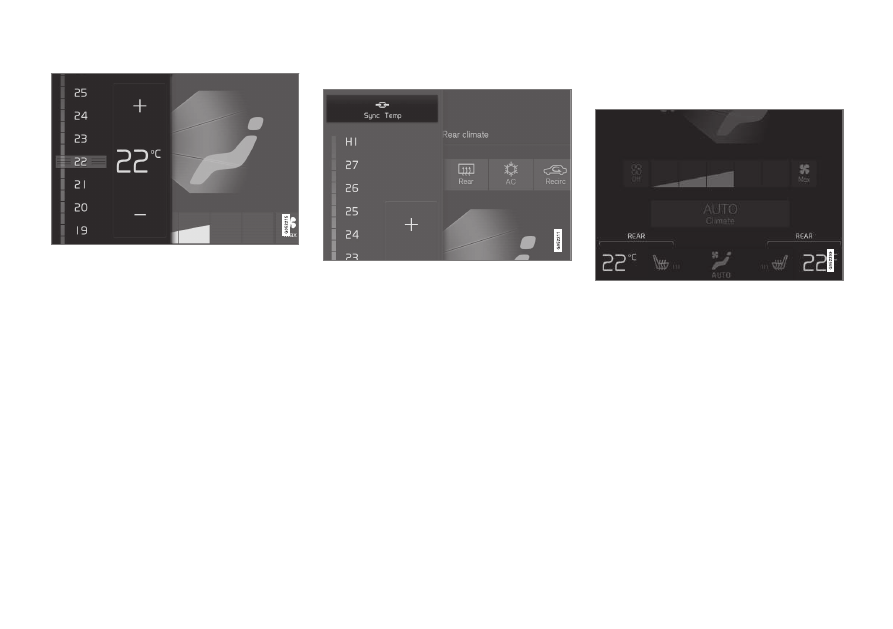

1. Press the left or right-hand side temperature

button in the centre display's climate row to
open the controls.

CLIMATE CONTROL

}}

195

Temperature control.

2. Regulate the temperature by either of the

following:

•

drag the control to the desired tempera-
ture, or

•

press

−

to raise/lower the temperature

gradually.

> The temperature changes and the button

shows the set temperature.

Synchronising the temperature

Synchronisation button on the driver's side temperature

controls.

1. Press the driver's side temperature button in

the centre display's climate row in order to
open the controls.

2. Press

Synchronise temperature

> The temperature for all zones in the car is

synchronised with the temperature set for
the driver's side and the synchronisation
symbol is shown adjacent to the tempera-
ture button.

Synchronisation is stopped by a further press on

Synchronise temperature

or by changing the

passenger side or rear seat temperature settings.

Regulating temperature for rear seat

From the front seat

Temperature buttons in the Rear climate tab in the cli-

mate view.

1. Open the climate view in the centre display

and select the tab for

Rear climate

2. Press the left or right-hand side temperature

button to open the control.

CLIMATE CONTROL

196

Temperature control.

3. Regulate the temperature by means of the

following:

•

drag the control to the desired tempera-
ture

•

press

−

to raise/lower the temperature

gradually.

> The temperature changes and the button

shows the set temperature.

From the rear seat

1. Press the unlocking button on the tunnel

console climate panel to access the controls.

Temperature control on the climate panel at the rear of

the tunnel console.

2. Press the left or right-hand side

buttons

on the tunnel console's climate panel in
order to lower/raise the temperature gradu-
ally.
> The temperature changes and the screen

in the climate panel shows the set tem-
perature.

NOTE

Heating or cooling cannot be hastened by
selecting a higher or lower temperature than
the actual desired temperature.

Related information

•

Climate controls (p. 190)

•

Climate controls in the centre display
(p. 190)

•

Climate controls at the rear of the tunnel
console (p. 192)

•

Auto-regulating the climate (p. 193)

•

Perceived temperature (p. 187)

CLIMATE CONTROL

}}

* Option/accessory.

197

Regulating the fan level

The fan can be set to five different automatic fan
levels as well as

Off

and

Max

. The fan level can

be set separately for front and rear seats.

Regulating fan level for front seat

Fan control buttons in the climate view.

1. Open the climate view in the centre display.

2. Tap on the desired fan level,

Off

Max

> Fan level is changed and the buttons for

the selected level illuminate.

IMPORTANT

If the fan is fully switched off then the air con-
ditioning is not engaged, which results in a
risk of misting on the insides of the windows.

Regulating fan level for rear seat

From the front seat

The fan control buttons in the tab Rear climate in the

climate view.

1. Open the climate view in the centre display

and select the tab for

Rear climate

2. Tap on the desired fan level,

The fan level for the second and third seat
row

* can be switched off by tapping on

2nd

row climate

Third seat row fan level follows the level for
the second seat row, but can be deactivated
separately by tapping on

3rd row climate

> Fan level is changed and the buttons for

the selected level illuminate.

From the rear seat

1. Press the unlocking button on the tunnel

console climate panel to access the controls.

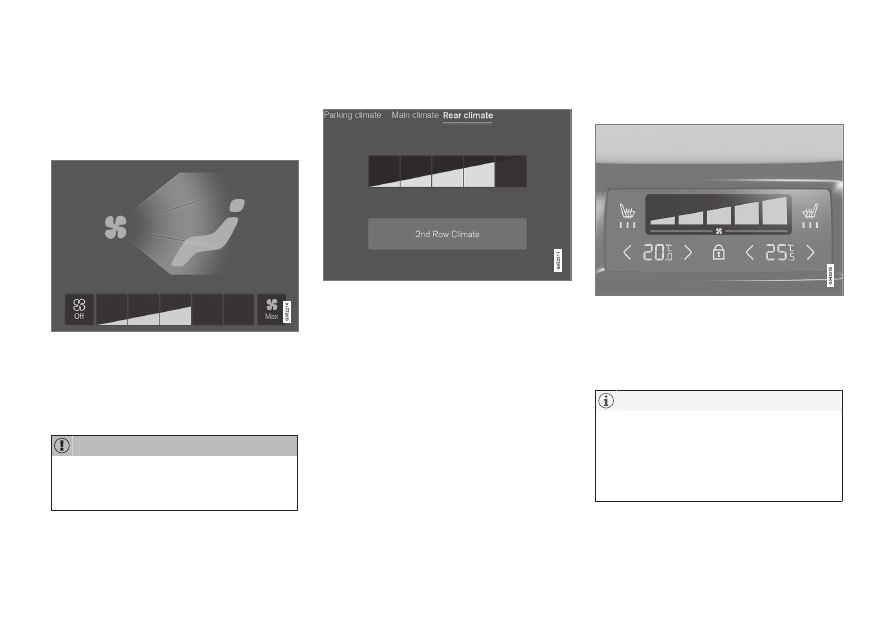

Fan controls on the climate panel at the rear of the tun-

nel console.

2. Tap on the desired fan level,

> Fan level is changed and the buttons for

the selected level illuminate.

NOTE

The fan level for the rear seat cannot be set if
the fan level for the front seat is in position

Off

The rear seat fan speed can only be switched
off from the climate view in the centre display.

CLIMATE CONTROL

* Option/accessory.

198

NOTE

The climate control system automatically
adjusts the air flow within the selected fan
level based on requirements. This means that
the fan speed may change even though the
fan level is the same.

Related information

•

Climate controls in the centre display
(p. 190)

•

Climate controls at the rear of the tunnel
console (p. 192)

•

Auto-regulating the climate (p. 193)

Activating/deactivating defrost of

windows and door mirrors

The three functions max defroster, heated wind-
screen

*, and heated rear window and door mir-

rors are used to quickly remove misting and ice
from the windows and door mirrors.

From physical buttons in the centre
console

The centre console contains physical buttons for
quick access to the defrost functions.

With heated windscreen

* the max defroster can

only be activated individually from the climate
view in the centre display.

Physical buttons in the centre console.

Button for heated windscreen

* and max

defroster.
Button for heated rear window and door mir-
rors.

Cars without heated windscreen:

–

Press the button (1).
> Max defroster is activated/deactivated

and the button illuminates/extinguishes.

Cars with heated windscreen:

–

Press the button (1) repeatedly in order to
switch between the three levels:

•

Activated heated windscreen

•

Activated heated windscreen and max
defroster

•

Deactivated.

> Heated windscreen and max defroster are

activated/deactivated and the button illu-
minates/extinguishes.

NOTE

Max defroster starts with a certain delay in
order to avoid a short increase in fan level if
the heated windscreen is deactivated by two
quick presses of the button.

Rear window and door mirror defrosters:

–

Press the button (2).
> Heated rear window and door mirrors are

activated/deactivated and the button illu-
minates/extinguishes.

CLIMATE CONTROL

}}

* Option/accessory.

199

From the climate view in the centre
display

Activating/deactivating max defroster

Max defroster button in the climate view.

1. Open the climate view in the centre display.

2. Press

Max

> Max defroster is activated/deactivated

and the button illuminates/extinguishes.

Max defroster deactivates auto-regulation
of the climate and air recirculation, acti-
vates air conditioning and changes the
fan level to

and the temperature to

When max defroster is deactivated, the
climate control system returns to the pre-
vious settings.

NOTE

Changing the fan level to

increases the

noise level.

Activating/deactivating heated windscreen

The button for heated windscreen in the climate view.

1. Open the climate view in the centre display.

2. Press

Electric

> Heated windscreen is activated/deacti-

vated and the button illuminates/extin-
guishes.

NOTE

A triangular area at the end of each side of
the windscreen is not electrically heated,
where de-icing may take longer.

NOTE

The heated windscreen may affect the per-
formance of transponders and other commu-
nication equipment.

Activating/deactivating heated rear window
and door mirrors

The button for heated rear window and door mirrors in

the climate view.

1. Open the climate view in the centre display.

2. Press

Rear

> Heated rear window and door mirrors are

activated/deactivated and the button illu-
minates/extinguishes.

CLIMATE CONTROL

* Option/accessory.

200

Activating/deactivating automatic start
of heated windows

It is possible to set whether automatic start of
heated windscreen

* and heated rear window and

door mirrors should be activated/deactivated
when the engine is started. With automatic start
activated, heating will start when there is a risk of
ice or misting on the windscreen/window. The
heating switches off automatically when the
windscreen/window is sufficiently warm and the
ice or misting is gone.

1. Press

Settings

in the top view in the centre

display.

2. Press

Climate

3. Select

Auto Front Defroster

to activate/

deactivate automatic start of heated wind-
screen.

Select

Auto Rear Defroster

to activate/

deactivate automatic start of heated rear
window and door mirrors.

Related information

•

Climate controls (p. 190)

•

Climate controls in the centre display
(p. 190)

Activating/deactivating air

recirculation

Air recirculation shuts out bad air, exhaust
gases, etc. from outside the car by the climate
control system reusing the air in the passenger
compartment.

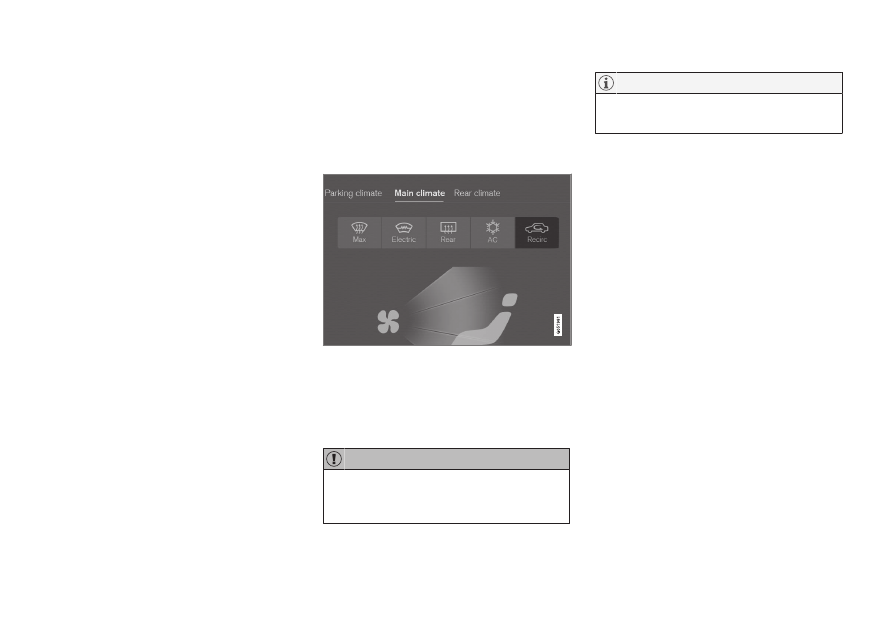

The air recirculation button in the climate view.

1. Open the climate view in the centre display.

2. Press

Recirc

> Air recirculation is activated/deactivated

and the button illuminates/extinguishes.

IMPORTANT

If the air in the car is recirculated for too long
then there is a risk of misting on the insides
of the windows.

NOTE

It is not possible to activate air recirculation
when max defroster is activated.

Activating/deactivating the timer for air
recirculation

It is possible set whether the air recirculation
timer should be activated/deactivated. When the
timer is activated, air recirculation is automatically
switched off after 20 minutes.

1. Press

Settings

in the top view in the centre

display.

2. Press

Climate

3. Select

Recirculation Timer

to activate/

deactivate the air recirculation timer.

Related information

•

Climate controls in the centre display
(p. 190)

•

Auto-regulating the climate (p. 193)

CLIMATE CONTROL

}}

* Option/accessory.

201

Air distribution

The climate control system distributes the
incoming air via a number of different vents in
the passenger compartment.

Overview of air distribution

Air distribution in the passenger compartment with 4-

zone climate.

Automatic and manual air distribution

With auto-regulated climate running the air distri-
bution takes place automatically. If necessary, the
air distribution can be controlled manually.

Adjustable air vents

There are 8 or 10

* adjustable air vents in the

passenger compartment depending on the num-
ber of seats.

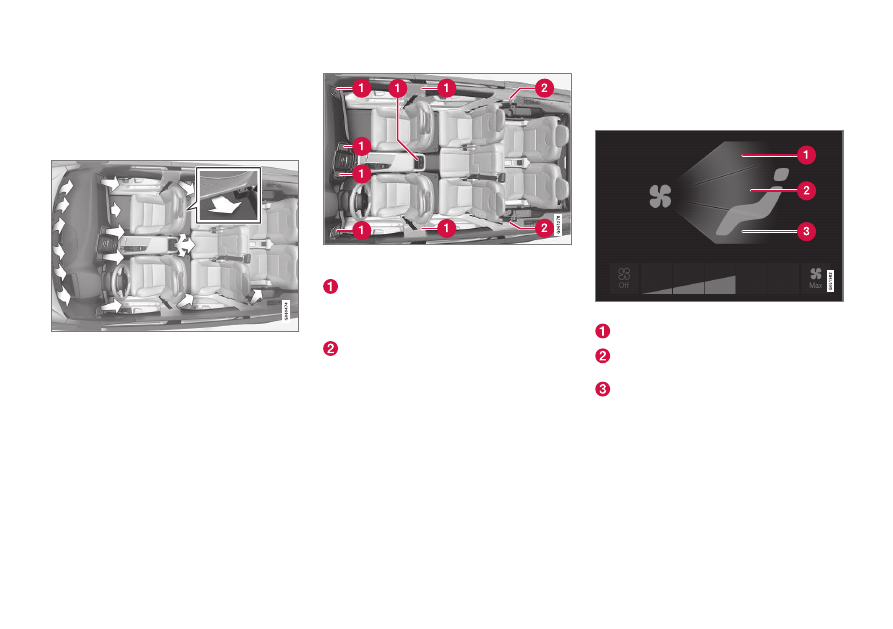

Location of adjustable air vents in the passenger com-

partment.

With five seats - four on the instrument
panel, two at the rear of the tunnel console
and one on each of the door pillars between
the front and rear doors.
Addition with seven seats - one on each of
the door pillars behind the rear doors.

Related information

•

Climate control (p. 186)

•

Changing the air distribution (p. 201)

•

Opening/closing and aiming the air vents
(p. 202)

•

Table of air distribution options (p. 203)

•

Auto-regulating the climate (p. 193)

Changing the air distribution

The air distribution can be changed manually if
required.

The air distribution buttons in the climate view.

Air distribution - windscreen defroster vents

Air distribution - air vents in instrument panel
and centre console
Air distribution - air vents in the floor

1. Open the climate view in the centre display.

2. Press one or more of the air distribution but-

tons in order to open/close the correspond-
ing air flow.
> The air distribution is changed and the

buttons illuminate/extinguish.

CLIMATE CONTROL

202

Related information

•

Air distribution (p. 201)

•

Opening/closing and aiming the air vents
(p. 202)

•

Table of air distribution options (p. 203)

•

Climate controls in the centre display
(p. 190)

•

Auto-regulating the climate (p. 193)

Opening/closing and aiming the air

vents

Some air vents in the passenger compartment
can be opened, closed and aimed individually.

If the door pillar vents and instrument panel outer
vents are aimed toward the side windows, then
misting can be removed.

If the door pillar vents are aimed inwards then, in
a hot climate, a comfortable environment is
obtained in the passenger compartment.

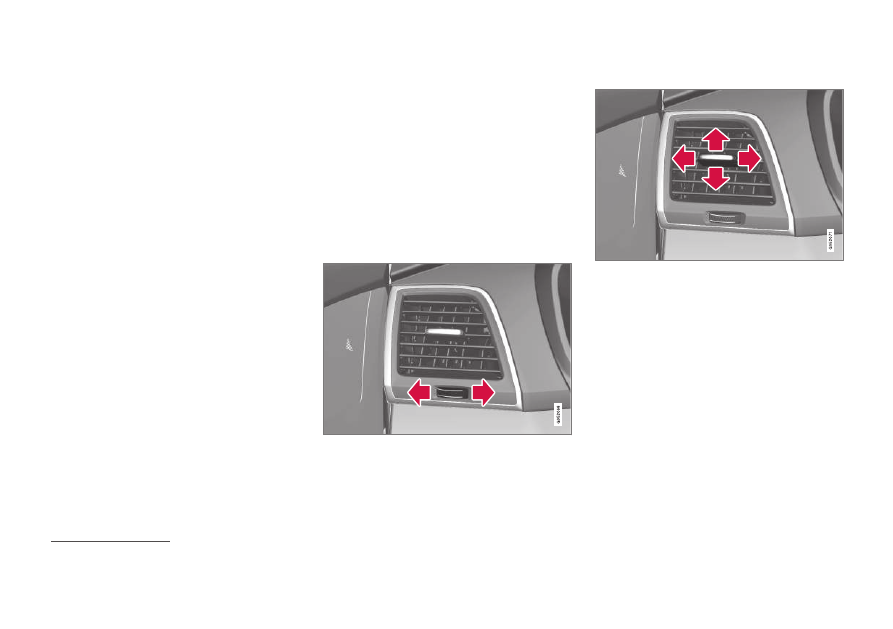

Opening/closing the air vents

The air vent's thumbwheel

–

Roll the thumbwheel in order to open/close
the air flow from the nozzle.

The longer the white lines on the thumb-
wheel that are visible, the higher the air flow.

Aiming the air vents

The air vent's lever

–

Move the lever sideways/vertically in order to
aim the air flow from the nozzle.

Related information

•

Air distribution (p. 201)

•

Changing the air distribution (p. 201)

•

Table of air distribution options (p. 203)

The illustration is schematic - nozzle design varies depending on location.

CLIMATE CONTROL

}}

203

Table of air distribution options

The air distribution can be changed manually if
required. The following options are available for
setting.

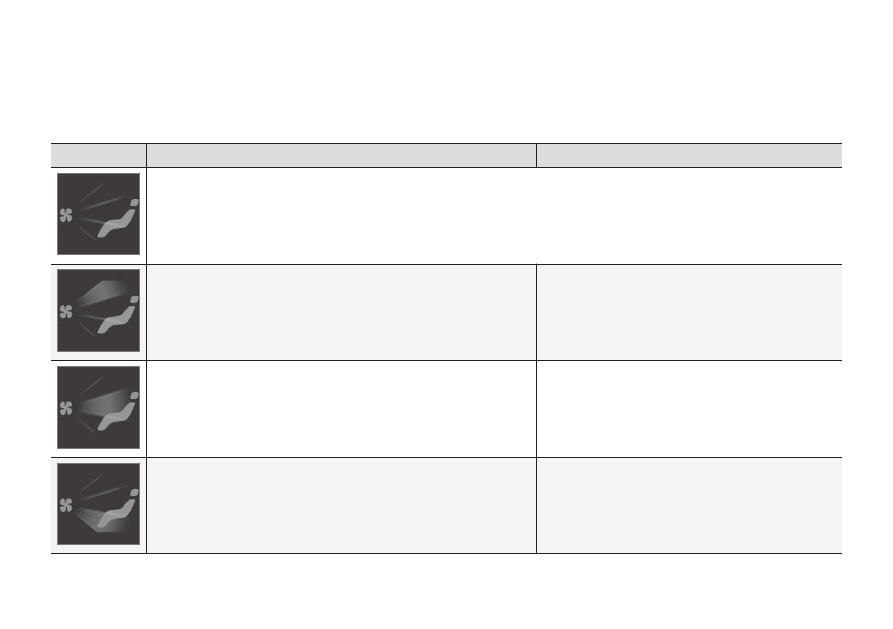

Air distribution

Purpose

If all air distribution buttons are deselected in manual mode, the climate control system returns to automatically regulated climate control.

Main air flow from the defroster vents. Some air flows from other air vents.

Counteracts misting and icing in a cold and humid climate
(to achieve this, fan level must not be low).

Main air flow from the air vents in the instrument panel. Some air flows from
other air vents.

Provides efficient cooling in a hot climate.

Main air flow from the air vents at the floor. Some air flows from other air
vents.

Provides heat or cooling to the floor.

Volvo XC90 Excellence (2018 year). Instruction - part 11
