Volvo XC90 Excellence (2018 year). Instruction

INSTRUMENTS AND CONTROLS

* Option/accessory.

156

Rear window wiper and washer

Rear window wiper and washer clean the rear
window. Washing/wiping is started and settings
are changed by means of the right-hand steering
wheel stalk switch.

NOTE

The rear window wiper is equipped with over-
heating protection which means that the
motor is switched off if it overheats. The rear
window wiper works again after a cooling-
down period.

Using the rear window wiper and
washer

Select

for intermittent wiping with the

rear window wiper.

Select

for continuous speed with the

rear window wiper.

–

Move the right-hand steering wheel stalk
switch forward to start rear window washing
and wiping.

Activating/deactivating wiping when
reversing

1. Press

Settings

in the top view in the centre

display.

2. Press

My Car

Wipers

3. Select

Auto Rear Wiper

to activate/deacti-

vate wiping when reversing.

Engaging reverse gear while the windscreen wip-
ers are on initiates rear window wiping. The func-
tion stops when reverse gear is disengaged.

If the rear window wiper is already on at continu-
ous speed, no change is made.

Related information

•

Using windscreen wipers (p. 153)

•

Windscreen and headlamp washers (p. 155)

•

Activating/deactivating the rain sensor
(p. 154)

•

Filling washer fluid (p. 569)

Power windows

Using the driver's door control panel, all power
windows can be operated - using the control
panels in the other doors operates the power
window in the individual door.

Driver's door control panel.

Electric child safety locks

* that prevent chil-

dren from being able to open the rear doors
from inside and open/close the rear win-
dows.
Controls for rear windows.

Controls for front windows.

Related information

•

Operating power windows (p. 157)

•

Child safety locks (p. 266)

INSTRUMENTS AND CONTROLS

}}

157

Operating power windows

Using the driver's door control panel, all power
windows can be operated - using the control
panels in the other doors operates the power
window in the individual door.

WARNING

Check that no children or other passengers

are trapped when the windows are closed

from the driver's door.

WARNING

Check that no children or other passengers

are trapped if/when the windows are closed

using the remote control key.

WARNING

If there are children in the car - remember to

always switch off the power supply to the

power windows by setting the car's electrical

system in ignition position 0 and then take

the remote control key with you when leaving

the car.

WARNING

Never leave children alone in the car.

Operating

Operating the power windows.

Operating without auto

Operating with auto

Using the driver's door control panel, all power
windows can be operated - using the control
panels in the other doors can only operate the
power window in the individual door. Only one
control panel can be operated at a time.

In order for the power windows to be used, the
ignition position must be at least I. The power
windows can be operated for a few minutes after
the car has been switched off and after the igni-
tion has been switched off - although not after a
door has been opened.

NOTE

One way to reduce the pulsating wind noise
when the rear windows are open is to also
open the front windows slightly.

NOTE

The windows cannot be opened at speeds
above approx. 180 km/h (approx. 112 mph),
but they can be closed.

Operating without auto

Move one of the controls up/down gently. The
power windows move up/down as long as the
control is held in position.

Operating with auto

Move one of the controls up/down to the end
position and release it. The window runs auto-
matically to its end position.

Operating with the remote control key, door
handle or central locking button

To operate the power windows with the remote
control key, door handles on the outside, or from
the inside with the central locking button, see the
section "Remote control key", "Locking/unlock-
ing from the outside" or "Locking/unlocking from
the inside".

Pinch protection

Closing of the windows is stopped and the win-
dow is opened if anything prevents its movement.

INSTRUMENTS AND CONTROLS

* Option/accessory.

158

It is possible to override the pinch protection
when closing has been interrupted, e.g. if ice has
formed on the window. After two successive clos-
ing interruptions the pinch protection will be over-
ridden and the automatic function deactivated for
a short while, now it is possible to close by hold-
ing the button in its raised position.

Resetting

If the starter battery is disconnected then the
function for automatic opening must be reset so
that it can work correctly.

1. Gently raise the front section of the button to

raise the window to its end position and hold
it there for one second.

2. Release the button briefly.

3. Raise the front section of the button again

for one second.

WARNING

A reset must take place for pinch protection

to work.

Related information

•

Power windows (p. 156)

•

Child safety locks (p. 266)

•

Using the sun blind

* (p. 158)

•

Ignition positions (p. 413)

•

Remote control key (p. 240)

•

Locking/unlocking from the outside (p. 245)

•

Locking/unlocking from the inside (p. 249)

Using the sun blind

Sun blinds can be installed, built into each rear
door.

In the rear door - manually operated

Hook with associated catch

–

Pull up the sun blind and attach it to the
hook in the upper door frame.

The window can still be opened and closed with
the sun blind up.

Related information

•

Operating power windows (p. 157)

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

159

Adjusting the door mirrors

The door mirror positions are adjusted with the
joystick in the driver's door control panel.

Controls for door mirrors.

Adjusting

1. Press the L button for the left-hand door mir-

ror or the R button for the right-hand door
mirror. The light in the button illuminates.

2. Adjust the position with the joystick in the

centre.

3. Press the L or R button again. The light

should no longer be illuminated.

WARNING

Both mirrors are bent to provide optimal

vision. Objects may appear further away than

they actually are.

Memory function in power front seat

Door mirror positions can be saved in the mem-
ory function of the power front seat.

Retractable power door mirrors

The mirrors can be retracted for parking/driving
in narrow spaces:

1. Depress the L and R buttons simultaneously

(ignition position must be at least I).

2. Release them after approximately 1 second.

The mirrors automatically stop in the fully
retracted position.

Fold out the mirrors by pressing down the L and
R buttons simultaneously. The mirrors automati-
cally stop in the fully extended position.

Angling the door mirror when parking

The door mirror can be angled down for the
driver to view the side of the road when parking
for example.

–

Engage reverse gear and press the L or R
button.

When reverse gear is disengaged the mirror
automatically returns to its original position after

approx. 10 seconds, or earlier by pressing the
button labelled L or R respectively.

Automatic angling of the door mirror
when parking

When reverse gear is engaged the door mirror is
automatically angled down so that the driver can
see the side of the road when parking for exam-
ple. When reverse gear is disengaged the mirror
automatically returns to its original position after
a short time.

Settings for this function are set via the centre
display:

1. Press

Settings

in the top view.

2. Press

My Car

Mirrors and Easy Entry

3. Under

Exterior Mirror Tilt at Reverse

select

Off

Driver

Passenger

Both

activate/deactivate and to select which
review mirror should be angled.

Automatic retraction when locking

When the car is locked/unlocked with the remote
control key the door mirrors are automatically
retracted/extended.

The function can be activated/deactivated via the
centre display:

1. Press

Settings

in the top view.

2. Press

My Car

Mirrors and Easy Entry

Only in combination with power seat with memory.

INSTRUMENTS AND CONTROLS

* Option/accessory.

160

3. Select

Fold Mirror When Locked

to acti-

vate/deactivate.

Resetting to neutral

Mirrors that have been moved out of position by
an external force must be reset electrically to the
neutral position for electric retracting/extending
to work correctly:

1. Retract the mirrors with the L and R buttons.

2. Fold them out again with the L and R but-

tons.

3. Repeat the above procedure as necessary.

The mirrors are now reset in neutral position.

Automatic dimming

Bright light from behind is automatically dimmed
by the interior rearview and door mirrors.

For the door mirrors to be fitted with this function
requires that the interior rearview mirror also has
automatic dimming, see the section "Interior rear-
view mirror".

Automatic dimming is always active while driving,
apart from when gearbox reverse position is
selected. Dimming sensitivity can be adjusted in
three levels and will affect the interior rearview
and the door mirrors.

NOTE

When sensitivity is changed there is no imme-
diately noticeable change in dimming, but the
change will be complete after a while.

Settings for this function are set via the centre
display:

1. Press

Settings

in the top view.

2. Press

My Car

Mirrors and Easy Entry

3. Under

Rearview Mirror Auto Dimming

select

Normal

Dark

Light

Related information

•

Interior rearview mirror (p. 160)

•

Settings in the centre display (p. 175)

•

Using the memory function in the power
front seat

* (p. 129)

Interior rearview mirror

The interior rearview mirror can be dimmed with
a control in the mirror's lower edge. Alternatively,
the rearview mirror dims automatically.

Control for dimming

Manual dimming

Bright light from behind could be reflected in the
rearview mirror and dazzle the driver. Use dim-
ming with the dimming control when lights from
behind are distracting:

1. Use dimming by moving the control in

towards the passenger compartment.

2. Return to normal mode by moving the control

towards the windscreen.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

161

Automatic dimming

Bright light from behind is automatically dimmed
by the rearview mirror. The control for manual
dimming is not available on mirrors with auto-
matic dimming.

The rearview mirror contains two sensors - one
forward facing and one rearward facing - that
work together to identify and eliminate dazzling
light. The forward facing sensor detects ambient
light, while the rearward facing sensor detects
the light from vehicle headlights behind.

NOTE

If the sensors are obscured by e.g. parking
permits, transponders, sun visors or objects in
the seats or in the cargo area in such a way
that light is prevented from reaching the sen-
sors, then the dimming function of the interior
rearview and door mirrors is reduced.

NOTE

When sensitivity is changed there is no imme-
diately noticeable change in dimming, but the
change will be complete after a while.

Settings for this function are set via the centre
display:

1. Press

Settings

in the top view.

2. Press

My Car

Mirrors and Easy Entry

3. Under

Rearview Mirror Auto Dimming

select

Normal

Dark

Light

Related information

•

Adjusting the door mirrors (p. 159)

•

Settings in the centre display (p. 175)

Compass

The upper right-hand corner of the rearview mir-
ror has an integrated display that shows the
compass direction in which the front of the car is
pointing.

Rearview mirror with compass.

Eight different compass directions are shown by
their English abbreviations:

(north),

(north

east),

(east),

(south east),

(south),

(south west),

(west) and

(north west).

Activating/deactivating the compass

The compass is activated automatically when the
car is started.

To deactivate/activate the compass:

–

Depress the button on the underside of the
rearview mirror using e.g. a paper clip.

INSTRUMENTS AND CONTROLS

* Option/accessory.

162

Related information

•

Calibrating the compass

* (p. 162)

•

Ignition positions (p. 413)

•

Activating/deactivating defrost of windows
and door mirrors (p. 198)

Calibrating the compass

The earth is divided into 15 magnetic zones. The
compass should be calibrated if the car is
moved between several magnetic zones.

Proceed as follows to perform calibration:

1. Stop the car in a large open area free from

steel structures and high-voltage power lines.

2. Start the car and switch off all electrical

equipment (air conditioning, wipers, etc.) and
ensure that all doors are closed.

NOTE

Calibration may fail or not start at all if electri-
cal equipment is not switched off.

3. Hold the button on the underside of the rear-

view mirror depressed (use a paper clip or
similar) for approx. 3 seconds. The number of
the current magnetic zone is shown.

Magnetic zones.

4. Press the button repeatedly until the

required magnetic zone (

1–15

) is shown.

See the map of magnetic zones for the com-
pass.

5. Wait until the display returns to showing the

character

, or hold the button on the under-

side of the rearview mirror depressed for
approx. 6 seconds until the character

shown.

6. Drive slowly in a circle at a speed of no more

than 10 km/h (6 mph) until a compass direc-
tion is shown in the display, indicating that
calibration is complete. Then drive a further 2
circles to fine-tune calibration.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

163

7. Cars with heated windscreen

*: If the char-

acter

is shown in the display when the

heated windscreen is activated, perform the
calibration in accordance with point 6 above
with the heated windscreen activated.

8. Repeat the above procedure as necessary.

Related information

•

Compass

* (p. 161)

Panorama roof

The panorama roof is divided into two glass sec-
tions. The front section can be opened vertically
at the rear edge (ventilation position) or horizon-
tally (open position). The rear section is fixed
roof glass.

The panoramic roof has a wind deflector.

The panorama roof has a sun blind made of per-
forated fabric and located under the glass roof to
provide extra protection from factors such as
strong sunlight.

The panoramic roof and sun blind are operated
with a control located in the roof.

The control is activated when the car's electrical
system is in ignition position I or II.

WARNING

Children, other passengers or objects may be

trapped by the panoramic roof's moving parts.

•

Always operate the panoramic roof with
caution.

•

Do not allow children to play with the
controls.

•

Never leave children alone in the car.

•

Remember to always switch off the power
supply to the panoramic roof by setting
the car's electrical system in ignition posi-
tion 0, and then take the remote control
key with you when leaving the car.

•

Never put an object or part of the body
through the panoramic roof, even if the
car's electrical system is fully discon-
nected.

IMPORTANT

•

Do not open the panoramic roof when
load carriers are fitted.

•

Do not place any heavy objects on the
panoramic roof.

INSTRUMENTS AND CONTROLS

* Option/accessory.

164

IMPORTANT

•

Remove ice and snow before opening the
panoramic roof.

•

Do not operate the panoramic roof if it
has frozen closed.

Wind deflector

The panorama roof has a wind deflector that is
raised when the panorama roof is in the open
position.

Related information

•

Operating the panorama roof

* (p. 164)

•

Ignition positions (p. 413)

Operating the panorama roof

When operating with the control in the roof, the
panoramic roof is first opened horizontally to a
comfort position.

In ventilation position, the front glass cover in the
roof is raised at the rear.

WARNING

Children, other passengers or objects may be

trapped by the panoramic roof's moving parts.

•

Always operate the panoramic roof with
caution.

•

Do not allow children to play with the
controls.

•

Never leave children alone in the car.

•

Never put an object or part of the body
through the panoramic roof, even if the
car's electrical system is fully discon-
nected.

IMPORTANT

•

Do not open the panoramic roof when
load carriers are fitted.

•

Do not place any heavy objects on the
panoramic roof.

IMPORTANT

•

Remove ice and snow before opening the
panoramic roof.

•

Do not operate the panoramic roof if it
has frozen closed.

In order that the panoramic roof and sun blind
can be operated, the car's electrical system must
be in at least ignition position I. Turn the start
knob clockwise and then release it. The panor-
amic roof and sun blind are operated using the
control in the ceiling.

INSTRUMENTS AND CONTROLS

}}

165

Ventilation position

Ventilation position, vertically at the rear edge.

Open by pressing the control upward.

Close by pressing the control forward/down-
ward.

When the ventilation position is selected the front
glass cover is raised at its rear edge. If the sun
blind is fully closed when ventilation position is
selected, then it opens automatically approx.
50 mm (approx. 2 inches).

The sun blind follows automatically if the panor-
amic roof is closed from ventilation position.

Operating with the control in the roof

Opening, manual

Opening, automatic

Closing, manual

Closing, automatic

Manual operation

1. To open the sun blind - press the control

backwards to the position for manual open-
ing. The sun blind moves towards maximum
opening position for as long as the control is
held depressed rearward.

2. Open the panorama roof - press the control

backwards a second time to the position for
manual opening. The panoramic roof first
reaches comfort position

. In order to open

to maximum opening position - press the
control backwards a third time.

Close the roof/blind by repeating the preceding
procedure in reverse order - press the control
forward/downward to the manual closing position
instead.

The movement of the roof is stopped if the con-
trol is released or when the glass reaches the
comfort position or the maximum opening or
closing position. The movement is also stopped if
the control is operated again in the opposite
direction to the direction of movement in pro-
gress.

NOTE

For manual opening, the sun blind must be
fully open before the panoramic roof can be
opened. When the procedure is reversed, the
panoramic roof must be fully closed before
the sun blind can be fully closed.

Comfort position is an open position for the glass cover, where wind noise and resonance noise are at a comfortably low level while driving.

INSTRUMENTS AND CONTROLS

166

Automatic operation

1. Open the sun blind to maximum position -

press the control backward to the position
for automatic opening and release.

2. To open the panorama roof, press the control

backwards a second time to the position for
automatic opening and release. The panor-
amic roof first reaches comfort position

. To

open to the maximum opening position -
press the control a third time backward to
the position for automatic opening and
release.

Close the roof/blind by repeating the preceding
procedure in reverse order - press the control
forward/downward to the automatic closing posi-
tion instead.

The movement of the roof is stopped when the
glass reaches the comfort position or the maxi-
mum opening or closing position. The movement
is also stopped if the control is operated again in
the opposite direction to the direction of move-
ment in progress.

The movement of the roof is not stopped when
the glass reaches the comfort position when
closing from maximum opening position.

Automatic operation - rapid opening/closing

The panorama roof and sun blind can be
opened/closed simultaneously:

–

To open - press the control rearward to the
automatic operation position twice and
release.

–

To close - press the control forward/down-
ward to the automatic operation position
twice and release.

The movement of the roof is stopped when the
glass reaches the comfort position or the closing
position. When closing from maximum opening
position, the movement is not stopped at comfort
position. The movement of the blind is not stop-
ped when the roof reaches comfort position. The
movement is also stopped if the control is oper-
ated again in the opposite direction to the direc-
tion of movement in progress.

Automatic closing of the sun blind

When the car is parked in hot weather, the sun
blind closes automatically 15 minutes after the
car has been locked. This is in order to lower the
passenger compartment temperature and protect
the car upholstery from being bleached by the
sun.

The function is deactivated when the car is sup-
plied from the factory and can be activated/deac-
tivated:

1. Press

Settings

in the top view in the centre

display.

2. Press

My Car

Locking

Select

Auto Close Sunroof Curtain

activate/deactivate.

Closing using the remote control key,
central locking button or door handles

Remote control key
–

Give a long press on the remote control key's
lock button

until the panorama roof and

sun blind start moving towards the closed
position. Then release the lock button.

Movement stops if the remote control key's lock
button is pressed again or when the roof/blind
has reached the closed position.

Comfort position is an open position for the glass cover, where wind noise and resonance noise are at a comfortably low level while driving.

INSTRUMENTS AND CONTROLS

* Option/accessory.

167

Central locking button

Central locking button.

When the car's electrical system is set in at least
ignition position I, the central locking button in
the driver's door or passenger door

* can be used

to close the panoramic roof.

–

Give a long press on the central locking but-
ton

until the panorama roof and sun blind

start moving towards the closed position.
Then release the button.

Movement stops if the central locking button is
pressed again or when the roof/blind has
reached the closed position.

Door handle

Cars equipped with keyless locking/unlocking

have a touch-sensitive recess on the outer part of
the outside door handle.

–

Place your finger against the touch-sensitive
recess on the outside of one of the door
handles until the panorama roof and sun
blind start moving towards the closed posi-
tion. Then remove your finger from door han-
dle's recess.

Movement stops if you place your finger against
the door handle recess again or once the roof/
blind has reached the closed position.

WARNING

If the panorama roof is closed with the remote

control key, the central locking button or door

handle, check that no one risks being trapped.

IMPORTANT

Check that the panoramic roof is properly
closed when closing.

Pinch protection

The panorama roof has pinch protection that is
triggered if the glass cover or the sun blind is
blocked by an object during closing. In the event
of blocking, the glass cover or sun blind stops
and is then opened automatically to approx.
50 mm (approx. 2 inches) from the blocked posi-
tion (or to full ventilation position). The pinch pro-
tection is also active when the glass cover or sun
blind is opened.

If the pinch protection has deployed then it is still
possible to operate the glass cover and/or sun
blind once more in the same direction without
pinch protection, if this is done within 10 seconds
after pinch protection deployment. It is therefore
possible to override the pinch protection when
closing has been interrupted e.g. if ice has
formed around the glass cover, by continually
pressing the control forward/downward until the
glass cover and/or sun blind is closed.

Related information

•

Panorama roof

* (p. 163)

•

Ignition positions (p. 413)

•

Remote control key (p. 240)

•

Locking/unlocking from the inside (p. 249)

•

Locking/unlocking from the outside (p. 245)

INSTRUMENTS AND CONTROLS

* Option/accessory.

168

HomeLink

is a programmable remote control

that is integrated into the car's electrical system.

General

Button 1

Button 2

Button 3

Indicator lamp

HomeLink

®26

is a programmable remote control

that can remotely control up to three different
devices (e.g., garage door openers, alarm sys-
tems, outdoor and indoor lighting, etc.) and thus
replace their remote controls. HomeLink

is sup-

plied built into the interior rearview mirror. The

HomeLink

panel consists of three programma-

ble buttons and one indicator lamp in the mirror
glass.

For more information about HomeLink

, visit

www.HomeLink.com, www.youtube.com/
HomeLinkGentex or call the toll-free number
00 8000 466 354 65 (or the toll number
+49 6838 907 277).

WARNING

•

If HomeLink

is used to control a garage

door or gate, ensure that nobody is near
the door or gate while it is in motion.

•

While programming HomeLink, the
garage door or gate being programmed
may activate. For this reason, make sure
that nobody is in the vicinity of the door or
gate while programming is in progress.

•

The car should be outside the garage
while a garage door opener is being pro-
grammed.

•

Do not use HomeLink

for any garage

door that does not have safety stop and
safety reverse.

Save the original remote controls for future pro-
gramming (e.g. when changing to another car or
for use in another vehicle). It is also recom-

mended that the programming for the buttons is
deleted when the car is sold; see the section
"Programming HomeLink

Related information

•

Programming HomeLink

* (p. 169)

Applies to certain markets.

HomeLink and the HomeLink house symbol are registered trademarks of Gentex Corporation.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

169

Programming HomeLink

Instructions for programming HomeLink

Programming HomeLink

NOTE

In certain vehicles the ignition must be
switched on or in "accessory position" before
HomeLink

can be programmed or used.

Preferably fit new batteries in the remote con-
trol that will be replaced by HomeLink

for

faster programming and improved transmis-
sion of the radio signal. The HomeLink

but-

tons should be reset before programming,
see the heading "Resetting the HomeLink

buttons". When the reset is complete,
HomeLink

is set in "learn mode" and ready

for programming.

1. Press the

button on HomeLink

you want

to program. The indicator lamp

HomeLink

should flash yellow once per

second. It is not necessary to hold the button
depressed.

2. Aim the remote control towards the

HomeLink

button to be programmed and

hold it approx. 2-8 cm (approx. 1-3 inches)
from the button. Do not obstruct the indicator
lamp on HomeLink

Note: The ability of some remote controls to
program HomeLink

is improved at a dis-

tance of approx. 15-20 cm (approx. 6-12
inches). Bear this in mind if you encounter
problems during programming.

3. Press and hold the button on the original

remote control to be programmed on
HomeLink

and keep an eye on the indicator

lamp. Do not release the button until the
indicator lamp has switched from flashing
yellow once per second to either flashing
green 10 times per second or illuminating in
a constant green glow. The button on the
remote control can be released once the
indicator lamp flashes or illuminates in green.

Note: For some receivers, programming step
3 may need to be replaced with the instruc-
tions in step 4.

4. Press and release the button on the original

remote control every other second until the
indicator lamp has changed from flashing
yellow once per second to either flashing
green 10 times per second or illuminating in
a constant green glow.

5. Depress the programmed HomeLink

button

and check the indicator lamp.
> Constant green glow: If the indicator

lamp illuminates in a constant green glow,
programming is complete. The garage
door, gate or similar should now be acti-
vated when the programmed button is
depressed.

Flashes green 10 times per second:
Depress the button being programmed,
hold it depressed for 2 seconds and
then release it. Repeat the sequence of
pressing/holding/releasing a second time
and, depending on the receiver model,
even a third time. Programming should
now be complete and the garage door,
gate or similar should now be activated
when the programmed button is
depressed.

If the receiver is still not activated:
Continue with programming steps 6-8 to
complete programming.

Applies to certain markets.

See section "HomeLink

*" for the location of buttons and indicator lamp.

INSTRUMENTS AND CONTROLS

170

6. Locate programming button

on the

receiver for the garage door or similar. It is
normally located near the antenna bracket on
the receiver.

7. Depress and release the receiver's program-

ming button. Step 8 must be completed
within 30 seconds of the button being
depressed.

8. Depress the button being programmed, hold

it depressed for 2 seconds and then
release it. Repeat the sequence of press-
ing/holding/releasing a second time and,
depending on the receiver model, even a
third time. Programming is now be com-
plete and the garage door, gate or similar
should now be activated when the pro-
grammed button is depressed.

Operation

When HomeLink

is fully programmed it can be

used in place of the separate original remote
controls.

Depress the programmed button. The garage
door, gate, alarm system or similar is activated
(may take a few seconds). If the button is
depressed for more than 20 seconds then the
programming is deleted. The indicator lamp illu-
minates or flashes when the button has been
depressed. Naturally the original remote controls
can still be used in parallel with HomeLink

required.

NOTE

If the ignition is switched off, HomeLink

will

work for 30 minutes after the driver's door
has been opened.

In the event of programming problems, contact
HomeLink

at www.HomeLink.com,

www.youtube.com/HomeLinkGentex or call the
toll-free number 00 8000 466 354 65 (or the
toll number +49 6838 907 277).

Resetting the HomeLink

buttons

It is only possible to reset all of the HomeLink

buttons at the same time, not each button indi-
vidually. However, individual buttons can be

reprogrammed; see the section "Programming
individual buttons" below.

1. Depress buttons 1 and 3 on HomeLink

and

hold them depressed until the indicator lamp
begins flashing green (about 10 seconds).

2. Release the buttons.

> HomeLink

is now set to "learn mode"

and is ready to be reprogrammed; see the
section "Programming HomeLink

above.

Programming individual buttons

To reprogram an individual HomeLink

button,

proceed as follows:

1. Depress the required button and do not

release.

2. After approx. 20 seconds when the indicator

lamp on HomeLink

starts to flash yellow,

start with step 1 from the section "Program-
ming HomeLink

" above.

Note: If the button to be reprogrammed is
not programmed with a new unit, it will
resume the previously saved programming.

For more information or to provide feedback
about HomeLink

, visit www.HomeLink.com,

www.youtube.com/HomeLinkGentex or call the
toll-free number 00 8000 466 354 65 (or the
toll number +49 6838 907 277).

Button designation and colour vary depending on manufacturer.

INSTRUMENTS AND CONTROLS

}}

* Option/accessory.

171

Related information

•

HomeLink

* (p. 168)

Trip computer

The car's trip computer records and calculates
vales such as e.g. distance, fuel consumption
and average speed whilst driving.

In order to facilitate fuel-efficient driving, informa-
tion is recorded about both instantaneous and

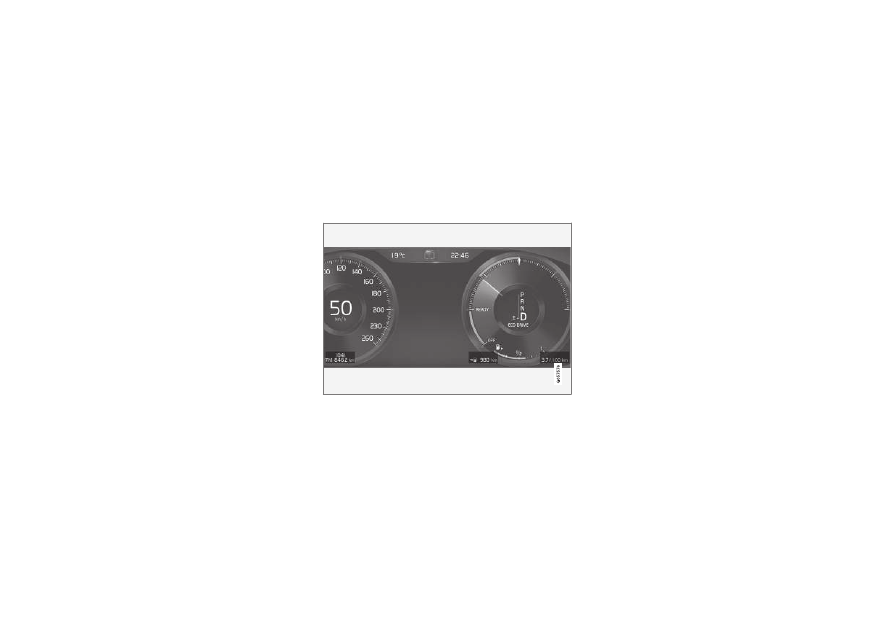

average fuel consumption. The information from
the trip computer can be shown in the driver dis-
play.

The following meters are included in the trip
computer:

•

Trip meter

•

Odometer

•

Instantaneous fuel consumption

•

Distance to empty tank

•

Distance to empty battery

•

Tourist - alternative speedometer

Trip meter

There are two trip meters, TM and TA.

TM can be reset manually and TA is reset auto-
matically if the car is not used for at least four
hours.

The following information is registered while driv-
ing:

•

Mileage

•

Driving time

•

Average speed

•

Average fuel consumption.

The values apply from the trip meter's latest
reset.

Odometer

The odometer records the car's total mileage.
This value cannot be reset to zero.

Instantaneous fuel consumption

This gauge shows the fuel consumption that the
car has at the moment. The value is updated
approximately every second.

Distance to empty tank

The trip computer calculates the remaining mile-
age with the fuel available in the tank.

The calculation is based on the average fuel con-
sumption over the last 30 km (20 miles) and the
remaining driveable fuel quantity.

Volvo XC90 Excellence (2018 year). Instruction - part 9
