Volkswagen Jetta Hybrid (2015 year). Instruction - part 25

Identifying a blown fuse

Shine a flashlight on the fuse. This makes it easier to tell if the fuse has blown.
A blown blade fuse (ATO, MINI) has metal strips that have burned through, which you can see

through the transparent housing from above and from the side

⇒

fig. 180

A blown cartridge fuse (JCASE) has metal strips that have burned through, which you can see

through the transparent housing from above

⇒

fig. 180

Replacing a fuse

There are plastic tweezers for removing blade fuses on the inside of the fuse box cover in the instru-
ment panel.

Open the cover on the instrument panel fuse box

⇒ Fuses in the vehicle and remove the plastic

tweezers.

For blade fuses: Depending on the type of fuse, slide the tweezers

⇒

fig. 181

(1)

⇒

fig. 181

(1)

onto the fuse in the direction of the arrow.

  Pull out the fuse.
  For cartridge fuses: Pull the fuse up and out by hand.
  If the fuse is blown, replace the fuse with a new fuse of the same amperage (same color and same

imprint) and same size

⇒ .

Replace the plastic tweezers in the fuse box cover.
Replace the cover.

NOTICE

If a fuse is replaced with a fuse with higher amperage, then damage can occur at various plac-
es in the electrical system.

Jump-starting hybrid vehicles

Introduction

In this section you’ll find information about:

Positive jump-start terminal for hybrid vehicles

Using jumper cables

If your engine does not start because the 12 Volt vehicle battery is dead, your vehicle's 12 Volt battery
can be connected to the 12 Volt battery of another vehicle to start your engine (jump-starting). Check

the battery acid level indicator on your 12 Volt vehicle battery before jump-starting

⇒ 12 Volt vehicle

battery.

You must use jumper cables that meet recognized industrial standards (check information provided by
the jumper cable manufacturer). For vehicles with gasoline engines, the cross-section of the jumper
cable wire must be at least 0.038 in.

(25 mm

), or about 3 ga. (AWG).

The red jumper cable must only be connected at the positive jump start terminal in the engine com-
partment!

For technical reasons your hybrid vehicle cannot be used to help start (jump-start) the dead 12 Volt
vehicle battery of another vehicle.

More information:

  Hybrid drive
  Starting assistance systems
  Working in the engine compartment
  12 Volt vehicle battery

WARNING

Working on the batteries or the electrical system in your vehicle can cause serious acid
burns, fires, or electrical shock.

Always keep children away from battery acid and vehicle batteries in general.
Sulfuric battery acid is very corrosive and can cause blindness and damage to unprotect-

ed skin. Never let battery acid or lead particles contact your eyes, skin, and clothing.

Never lean over a vehicle battery. Always wear protective gloves and eye protection. To

reduce your risk of injury, never tilt the batteries; acid could spill out through the vents and
burn you.

A highly explosive mixture of gases is given off when the battery is being charged.
Always avoid fires, sparks, open flame, and smoking. Never create sparks or electrostatic

charges when handling cables and electrical equipment. Never short-circuit the battery ter-
minals. High-energy sparks can cause serious personal injury.

If you get battery acid in your eyes or on your skin, immediately rinse with cold water for

several minutes and get medical attention immediately. If you swallow any battery acid, get
medical attention immediately.

WARNING

Improper use of jumper cables when jump-starting a vehicle with a dead battery can cause
the battery to explode, leading to serious personal injury. To help reduce the risk of battery
explosion:

All work on the batteries or the electrical system in your vehicle can cause serious acid

burns, fires, or electrical shocks. Always read and heed the following WARNINGS and safety

precautions before working on the batteries or the electrical system

⇒ 12 Volt vehicle bat-

tery.

Always make sure that the battery providing starting assistance (the booster battery) to

your vehicle has the same voltage as the dead vehicle battery (12 V) in your vehicle and
about the same amperage capacity (see battery label).

Never jump-start a vehicle with a thawed or frozen vehicle battery. The battery can ex-

plode. A dead battery can freeze at temperatures around +32 °F (0 °C).

A battery that is frozen or was frozen, but has since thawed, must be replaced.
When the vehicle battery is jump-started, it gives off hydrogen gas, which is highly explo-

sive! Always keep fire, sparks, open flame, and smoking materials far away from vehicle bat-
teries. Never use a mobile telephone while connecting or disconnecting jumper cables.

Jump-start batteries only in well-ventilated areas. Batteries give off highly explosive hy-

drogen gas during jump-starting.

Always route the jumper cables so that they cannot get caught in any moving parts in the

engine compartment.

Never short out the battery terminals by connecting the positive (+) and negative (-) termi-

nals with each other.

Never connect the negative cable from the other vehicle directly to the negative terminal

of the dead 12 Volt vehicle battery in your vehicle, as this may cause the hydrogen gas given
off by the dead battery to explode.

Never attach the negative cable from the vehicle providing starting assistance to your

vehicle to any part of the fuel system or to the brake hoses or brake lines.

Never allow the non-insulated parts of the battery clamps to touch.
Never allow the jumper cable attached to the positive battery terminal to contact metal

parts of the vehicle.

Always follow the instructions of the jumper cable manufacturer.

NOTICE

To help prevent extensive damage to your hybrid vehicle's electrical system, read and heed the
following:

Never use your vehicle to provide starting assistance to another vehicle that has a weak or

dead battery.

Connecting jumper cables improperly can cause a short circuit and do expensive damage

to the vehicle's electrical system.

Do not let the vehicles touch each other while the jumper cables are connected. If they do,

electrical current may flow between the vehicles when the positive (+) terminals are connected,
causing electrical system damage.

Positive jump-start terminal for hybrid vehicles

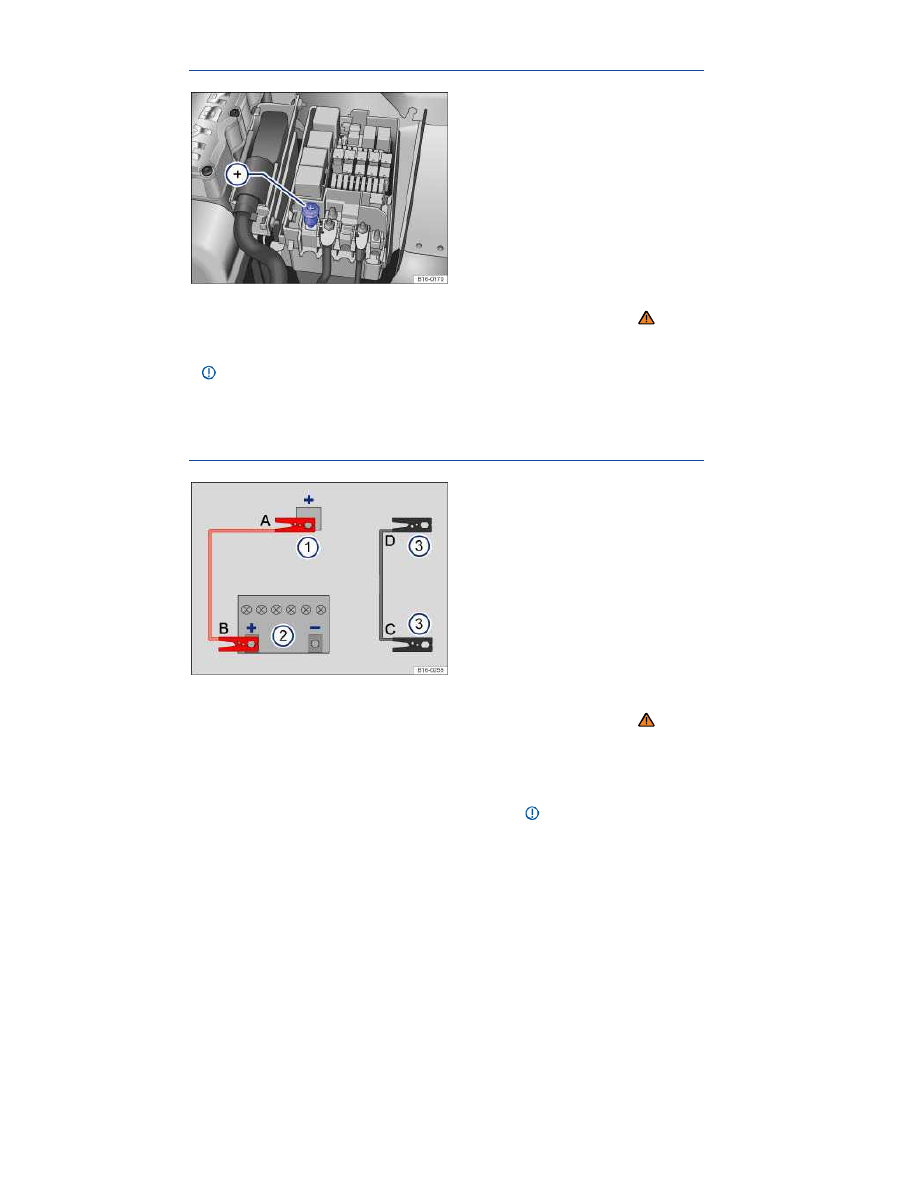

Fig. 182 In the engine compartment: Positive jump-start terminal +.

Please first read and note the introductory information and heed the WARNINGS

The positive jump-start terminal is in the engine compartment

⇒

fig. 182

(+)

. Your vehicle can only

jump-start by using this terminal. Your vehicle cannot provide starting assistance to other vehicles
⇒

The positive jump-start terminal is under the fuse box cover in the engine compartment

⇒ Fuses.

Using jumper cables

Fig. 183 Diagram for attaching the jumper cables: Jump-starting point on the hybrid vehicle A, and booster
battery B.

Please first read and note the introductory information and heed the WARNINGS

Key to

⇒

fig. 183

(1)

Positive jump-start terminal on the hybrid vehicle with a drained 12 Volt vehicle battery.

(2)

12 Volt battery of the vehicle providing starting assistance.

(3)

Negative jumper cable.

Your hybrid vehicle cannot provide a jump-start to other vehicles

⇒ .

The dead 12 Volt vehicle battery in your vehicle must be properly connected to your vehicle's electrical
system.

Make certain that the vehicles are not touching each other. Otherwise, electric current could flow as
soon as the positive terminals (+) are connected. Use longer jumper cables if necessary.

The clamps on the jumper cables must have good contact to bare metal on the battery terminal of the
vehicle that is providing your vehicle with starting assistance and the positive jump-start terminal in

your vehicle

⇒

fig. 183

If your vehicle's engine does not start, stop the process after 10 seconds and repeat after about
1 minute.

The procedure for attaching and for removing the jumper cables is described below. Perform each of
the following steps only in the order described, which follow the letters shown in the illustration
⇒

fig. 183

A – B – C – D.

Attaching jumper cables

1. Switch off the ignition in both vehicles

⇒ Starting and stopping the engine.

2. Open the fuse box cover in the engine compartment

⇒ Fuses.

3. Attach one end of the red jumper cable to the positive jump-start terminal in the engine com-

partment

⇒

fig. 182

(+)

(1)

⇒

4. Attach the other end of the red jumper cable to the positive terminal

(+)

of the good battery

(booster battery) in the vehicle that is providing starting assistance:

(2)

5. Attach one end of the black jumper cable

(3)

to a suitable negative jump-start terminal of the

vehicle providing starting assistance. If a negative terminal is not available, attach the cable to
a bare metal part of the vehicle. This part should be connected directly to the engine block. You
may also attach the cable to the engine block itself or to the towing eye installed on the front of the
vehicle.

6. Attach the other end of the black jumper cable

(3)

to a bare metal part of your vehicle with the

dead battery. This part should be connected directly to the engine block. You may also attach the

cable to the engine block itself or to the towing eye installed on the front of the vehicle

⇒ Installing

the front towing eye. Attach the clamp to a point that is as far away as possible from the dead bat-

tery

⇒

7. Route the jumper cables so that they cannot get caught in any moving parts in the engine com-

partment of either vehicle.

Starting the engine

Start the engine of the vehicle with the good battery that is providing starting assistance to your

vehicle and let it run at idle speed.

Turn on the ignition of your vehicle with the dead battery. If the engine starts, wait 2 to 3 minutes

until it “runs smoothly” before removing the jumper cables as described below

⇒

. If the engine

does not start within about 10 seconds, turn off the ignition and wait at least 1 minute; then try again.

Before removing the jumper cables

Switch off the headlights (if they are on).
In your vehicle with the dead battery, switch on the heater fan and the rear window defroster. This

helps to minimize voltage spikes when the cables are disconnected.

Removing jumper cables

With the engine running, remove the jumper cables in reverse order to the way they were connected.

1. Disconnect the black (-) cable from your vehicle with the dead battery.

2. Disconnect the black (-) cable from the other vehicle (vehicle with the good battery that is provid-

ing starting assistance).

3. Disconnect the red (+) cable from the vehicle with the good battery that is providing starting assis-

tance.

4. Disconnect the red (+) cable from your vehicle with the dead battery.

5. Close the fuse box cover in your vehicle.

6. If necessary, unscrew the towing eye on the front of the vehicle

⇒ Installing the front towing eye.

WARNING

Improper use of jumper cables when jump-starting a vehicle with a dead battery can cause
the battery to explode, leading to serious personal injury. To help reduce the risk of battery
explosion:

All work on the batteries or the electrical system in your vehicle can cause serious acid

burns, fires, or electrical shocks. Always read and heed the following WARNINGS and safety

precautions before working on the batteries or the electrical system

⇒ 12 Volt vehicle bat-

tery.

Always wear proper eye protection. Never lean over the vehicle battery.
Attach the jumper cables in the correct order: first the positive cable, then the negative

cable.

Never connect the negative cable from the vehicle providing starting assistance to parts

of the fuel system or to the brake hoses or brake lines.

Never allow the non-insulated parts of the battery clamps to touch.
Never allow the jumper cable attached to the positive battery terminal to contact metal

parts of the vehicle.

Check the battery acid level indicator window on the 12 Volt vehicle battery. Use a flash-

light, never a match, cigarette lighter, or other open flame. If you cannot see the color of the
window clearly, or if it is light yellow or colorless, do not jump-start the vehicle. Get expert
assistance.

Avoid electrostatic discharge in the vicinity of the vehicle battery. Sparks may cause the

hydrogen gas escaping from the vehicle battery to ignite.

Never jump-start a vehicle with a battery that is damaged or frozen or that was frozen and

has thawed. The battery can explode. Replace the battery instead.

Always follow the instructions of the jumper cable manufacturer.
Always make sure that the battery providing starting assistance has the same voltage as

the dead 12 Volt vehicle battery in your vehicle and about the same capacity (see battery
label).

Batteries give off explosive hydrogen gas. Always keep fire, sparks, open flame and smok-

ing materials away from batteries.

Never connect the negative cable from the vehicle with the good battery that is providing

starting assistance directly to the negative terminal of the dead battery on your vehicle. The
hydrogen gas from the battery is explosive.

Never short out the battery terminals by connecting the positive (+) and negative (-) termi-

nals with each other.

NOTICE

To help prevent extensive damage to your hybrid vehicle's electrical system, read and heed the
following:

Never use your vehicle to provide starting assistance to another vehicle that has a weak or

dead battery.

Connecting jumper cables improperly can cause a short circuit and do expensive damage

to the vehicle's electrical system.

Do not let the vehicles touch each other while the jumper cables are connected. If they do,

electrical current may flow between the vehicles when the positive (+) terminals are connected,
causing electrical system damage.

Towing

Introduction

In this section you’ll find information about:

Towing on a commercial tow truck

Tips on towing

Installing the front towing eye

Installing the rear towing eye

Driving tips while towing

Observe legal requirements when towing.

For technical reasons:

A vehicle with a dead 12 Volt vehicle battery must never be towed. Jump-start the vehicle

instead.

It is not possible to tow-start or push-start your vehicle. Jump-start the vehicle instead.

Vehicles with push-button start may only be towed with the ignition on.

Towing the vehicle when the engine is turned off and the ignition is turned on drains the vehicle bat-
tery. Depending on the charge level of the vehicle battery, it is possible that even after just a few
minutes, electrical devices such as the emergency flashers may not have the power necessary to

function. The steering wheel might lock in vehicles with push-button start

⇒

More information:

  Exterior views
  Shifting
  Engine control and emission control system
  Jump-starting

WARNING

Never tow a vehicle without any electrical power.

Never remove the key from the ignition switch or turn off the ignition with the starter but-

ton while the vehicle is moving or rolling to a stop. The electronic steering column could
suddenly lock, you would not be able to steer, and you could lose control of the vehicle,
crash, and seriously injure yourself and others.

If the vehicle loses power while it is being towed, stop towing the vehicle immediately and

contact your authorized Volkswagen dealer or authorized Volkswagen Service Facility for
assistance.

WARNING

Towing a vehicle changes the way it handles and brakes. To help reduce the risk of an acci-
dent and serious personal injury, note the following:

The driver of the vehicle that is being towed:

– Since the brake booster also does not work when the engine is stopped, you will need
to press harder on the brake pedal to slow down or stop. Always be alert so as not to rear-
end the towing vehicle.

– Will have to use considerably more force to turn the steering wheel because the power
steering is not working.

The driver of the vehicle that is doing the towing:

– Must accelerate gradually and gently and avoid jerking movements.

– Must not brake hard or steer sharply.

– Must brake earlier and more gently than in normal driving.

NOTICE

Be careful not to damage the paint when installing and removing the towing eye and the

cover for the threaded hole behind the bumper.

Unburned fuel can get into the catalytic converter during towing and damage it.

Towing on a commercial tow truck

Please first read and note the introductory information and heed the WARNINGS

To help avoid damaging the vehicle, have it towed only by a professional towing company. Read and
heed the following information:

General information

Never let the vehicle be towed at speeds above 30 mph (50 km/h).

Never let the vehicle be towed for more than 30 miles (50 km).

Towing automatic transmission vehicles

Release the parking brake.
Shift the transmission into Neutral (N).

Tow the vehicle only with its front wheels off the ground

⇒ .

When not to tow your vehicle

If there is little or no oil in the transmission because of damage to your vehicle, it must be moved with
the drive wheels off the ground. The vehicle can only be towed if its ignition is switched on and its
electrical system is operating. In the following situations, the vehicle cannot be towed at all and must
be transported on a flatbed truck or trailer:

If the front and rear wheels cannot turn.
If the vehicle battery is dead (because the electronic steering column lock engages and cannot be

released).

If you have to tow an automatic transmission vehicle more than 30 miles (50 km).

WARNING

It is not safe for children or other persons to ride in a vehicle that is being towed.

Never let children or anyone else remain in the vehicle while it is being towed.

NOTICE

The drive axle rotates while the vehicle is being towed with its rear wheels off the ground. This
can damage the automatic transmission.

Never tow automatic transmission vehicle with the rear wheels off the ground.

Tips on towing

Please first read and note the introductory information and heed the WARNINGS

Towing eye; tow rope or tow bar

A towing eye is included in your vehicle's tool kit. This can be inserted in a threaded hole in the front
bumper and used when your vehicle is being towed by another vehicle. On most vehicles, there is
another threaded hole in the rear bumper, so you can use the towing eye to tow other vehicles as well.
Towing a vehicle with a tow bar is safer and easier on both vehicles than using a tow rope. A tow rope
should be used only if a tow bar is not available.

The tow rope should be flexible enough to help protect both vehicles from damage. Use a synthetic
fiber rope or similar rope.

Attach the tow rope or tow bar only to the towing eye included in the vehicle tool kit for this purpose, or
to a trailer hitch.

Towing automatic transmission vehicles

Check whether your vehicle can be towed at all; see below

⇒ When not to tow your vehicle

If yes, note the following for the towed vehicle:

Put the transmission in Neutral (N).

  Do not tow faster than 30 mph (50 km/h).
  Do not tow more than 30 miles (50 km).
  When a commercial tow truck is being used, the vehicle must only be towed with the front wheels

lifted off the ground.

When not to tow your vehicle

In the following situations, the vehicle cannot be towed and must be transported on a flatbed truck or
trailer:

If transmission fluid has leaked out of the transmission.
If there is little or no oil in the transmission because of damage to your vehicle, it must be moved

with the drive wheels off the ground.

If the front and rear wheels cannot turn.
When the vehicle battery is dead, because the steering may remain disabled and it may not be

possible to release the electronic steering column lock.

If you have to tow an automatic transmission vehicle more than 30 miles (50 km).
If the steering or the wheel clearance might be impaired, for example, after an accident.

Towing other vehicles

Obey all legal requirements
Read and heed all towing information in the owner's manual for the other vehicle.

A vehicle can be towed only if the electronic steering column lock is released. In case of a power

loss or malfunctions of the electrical system, the engine may have to be jump-started in order to re-
lease the electronic steering column lock.

Installing the front towing eye

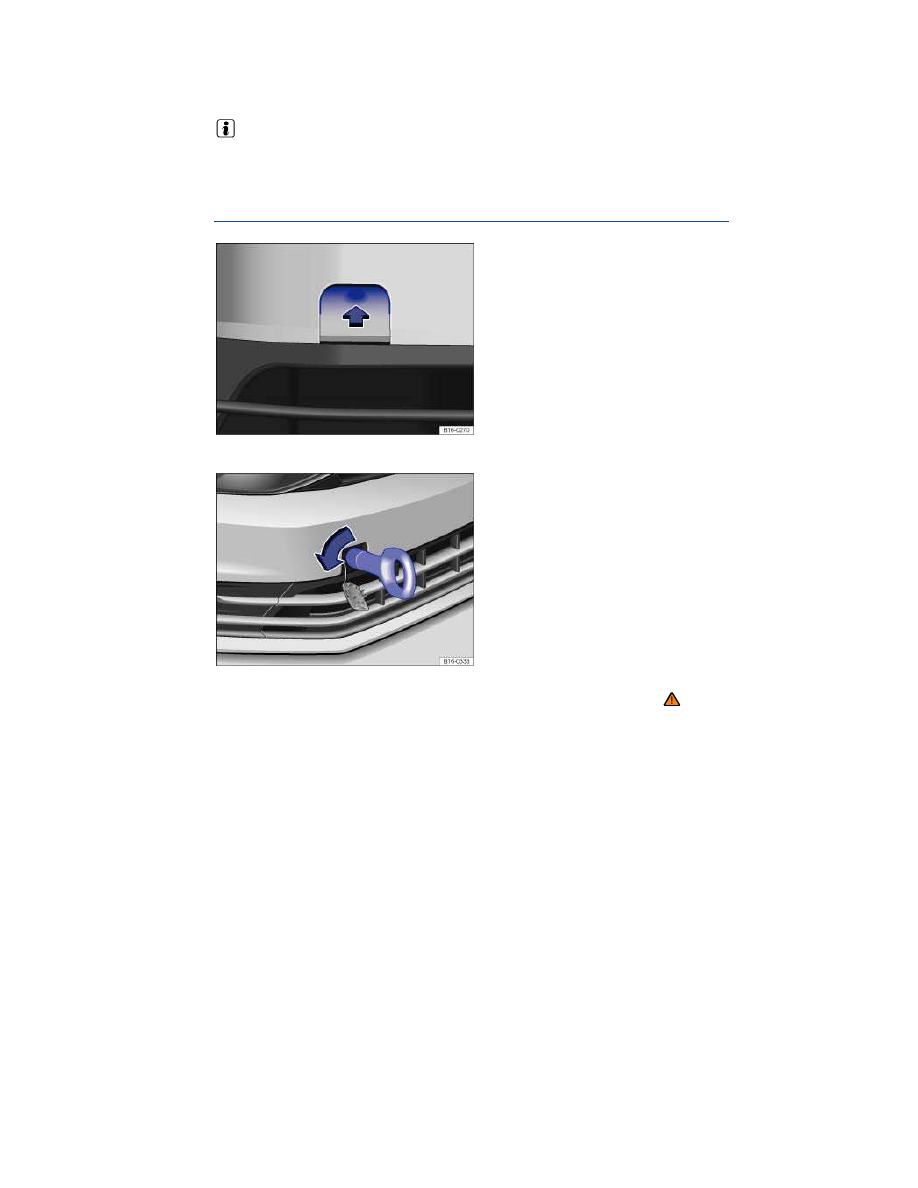

Fig. 184 In the right front bumper: Removing the cover.

Fig. 185 In the right front bumper: Installing the towing eye.

Please first read and note the introductory information and heed the WARNINGS

There is a threaded hole for the towing eye in the right front bumper

⇒

fig. 185

Always keep the towing eye in the vehicle and stow it securely.

Read and follow the notes about towing

⇒ Tips on towing.

Installing the front towing eye

Take the towing eye, the lug wrench, and the screwdriver out of the vehicle tool kit in the luggage

compartment

⇒ Vehicle tool kit.

Push on the upper part of the cover

⇒

fig. 184

(arrow) so that it pops out.

Remove the cover and let it hang from the bumper.
Screw the towing eye counterclockwise into the threaded hole as far as it will go (arrow)

⇒

fig. 185

⇒ . Use the lug wrench to turn and tighten the towing eye.

When towing is complete, unscrew the towing eye clockwise to remove it.

Position the upper lip of the cover in the opening in the bumper and carefully push the lower lip

over the edge of the opening until the cover has locked into place.

NOTICE

Always make sure the towing eye is screwed all the way into threaded hole so that it is secure.
If not, it could be pulled out while your vehicle is being towed.

Installing the rear towing eye

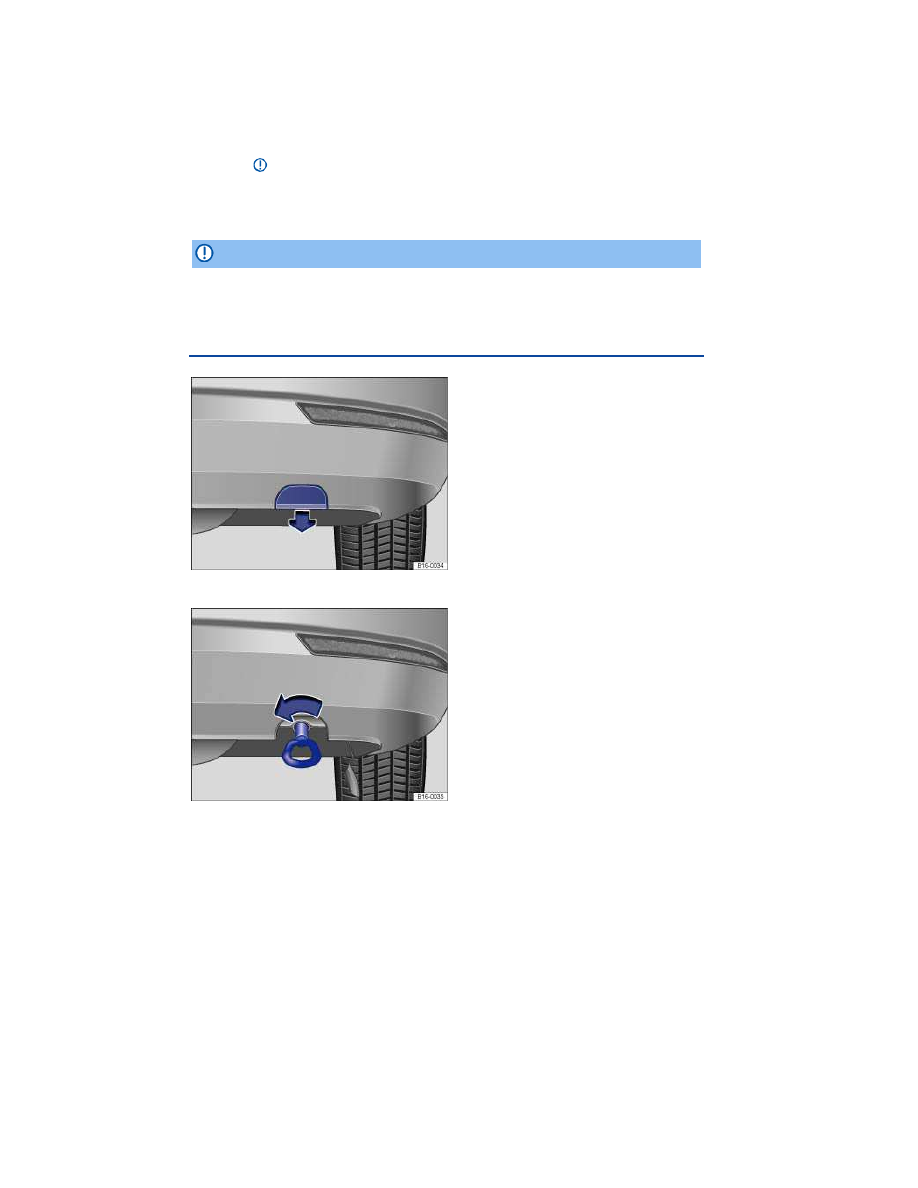

Fig. 186 In the right rear bumper: Removing the cover.

Fig. 187 In the rear right bumper: Installing the towing eye.

Please first read and note the introductory information and heed the WARNINGS

There is a threaded hole for the towing eye in the right rear bumper

⇒

fig. 187

Always keep the towing eye in the vehicle and stow it securely.

Follow the towing instructions

⇒ Tips on towing.

Installing the rear towing eye

Take the towing eye, the lug wrench, and the screwdriver out of the vehicle tool kit in the luggage

compartment

⇒ Vehicle tool kit.

Carefully pull the cover down and off in the direction of the arrow

⇒

fig. 186

. Slightly more force

may be required.

Let the cover hang from the bumper (if attached) or stow the cover in the luggage compartment, if

necessary.

Screw the towing eye counterclockwise into the threaded hole as far as it will go (arrow)

⇒

fig. 187

⇒ . Use the lug wrench to turn and tighten the towing eye.

When towing is complete, unscrew the towing eye clockwise to remove it.

Slide the cover into the bumper in the direction opposite to the arrow until locks into place

⇒

fig. 186

NOTICE

Always make sure the towing eye is screwed all the way into threaded hole so that it is secure.
If not, it could be pulled out while your vehicle is being towed.

Driving tips while towing

Please first read and note the introductory information and heed the WARNINGS

Towing requires some experience, especially when using a tow rope. Both drivers must be familiar
with the techniques required for towing. Inexperienced drivers should not try to tow a vehicle or to
drive a vehicle that is being towed.

Do not pull too hard with the towing vehicle, and avoid jerking the tow rope. When towing on an un-
paved road, there is always a risk of overloading and damaging the attachment points.

If your vehicle is being towed, it can still signal turns even if the emergency flashers are activated, as
long as the ignition is switched on. Use the turn signal in the normal way. The emergency flashers go
off as long as the turn signal is blinking. As soon as the turn signal lever returns to its neutral position,
the emergency flashers are automatically activated again.

As the driver of the vehicle being towed:

If your vehicle is the one being towed, the ignition switch must be switched on to keep the steering

wheel from locking. Also make sure that the turn signals, horn, windshield wipers, and windshield
washers work properly.

Since power steering does not work when the engine is switched off, more effort is needed to steer

the vehicle.

Since the brake booster also does not work when the engine is stopped, you will need to press

harder on the brake pedal to slow down or stop. Do not hit the towing vehicle.

Read and heed the information and WARNINGS in the towing vehicle's owner's manual.

As the driver of the towing vehicle:

Drive especially carefully and accelerate gently. Avoid sudden driving maneuvers.

Brake earlier and more gently than usual and with light pedal pressure.
Read and heed the information and WARNINGS in the owner's manual of the vehicle being towed.

Content .. 23 24 25
