Volkswagen Golf / Golf GTI / Jetta. Manual - part 781

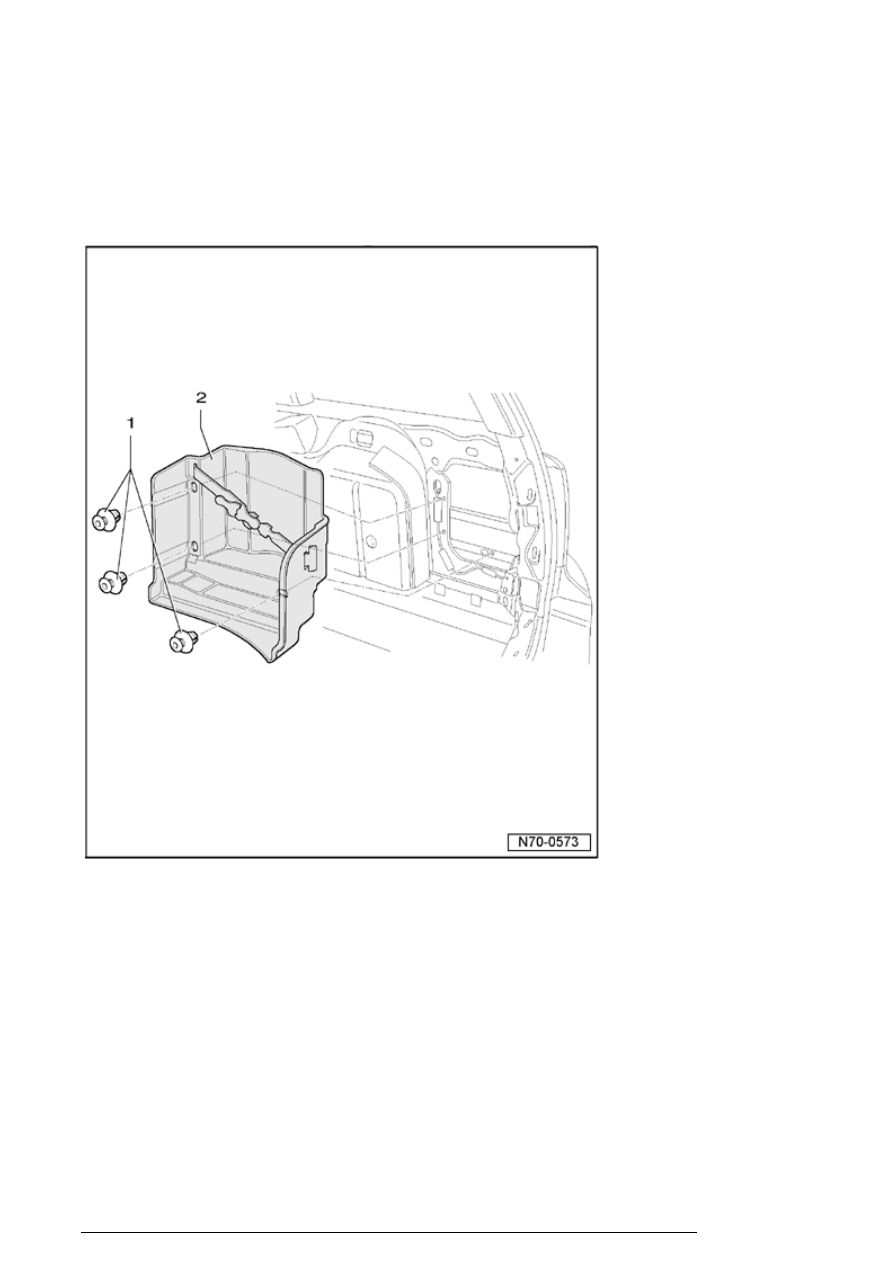

Right luggage compartment side trim, removing and
installing (Golf wagon/Jetta wagon)

 .

- Remove securing clips - 1 - .

- Remove storage compartment - 2 - .

Installing



- Installation is reverse of removal.

Note:

n

Check securing clips - 1 - and
replace if necessary before installing
storage compartment.



Luggage compartment trim

13/2/2005

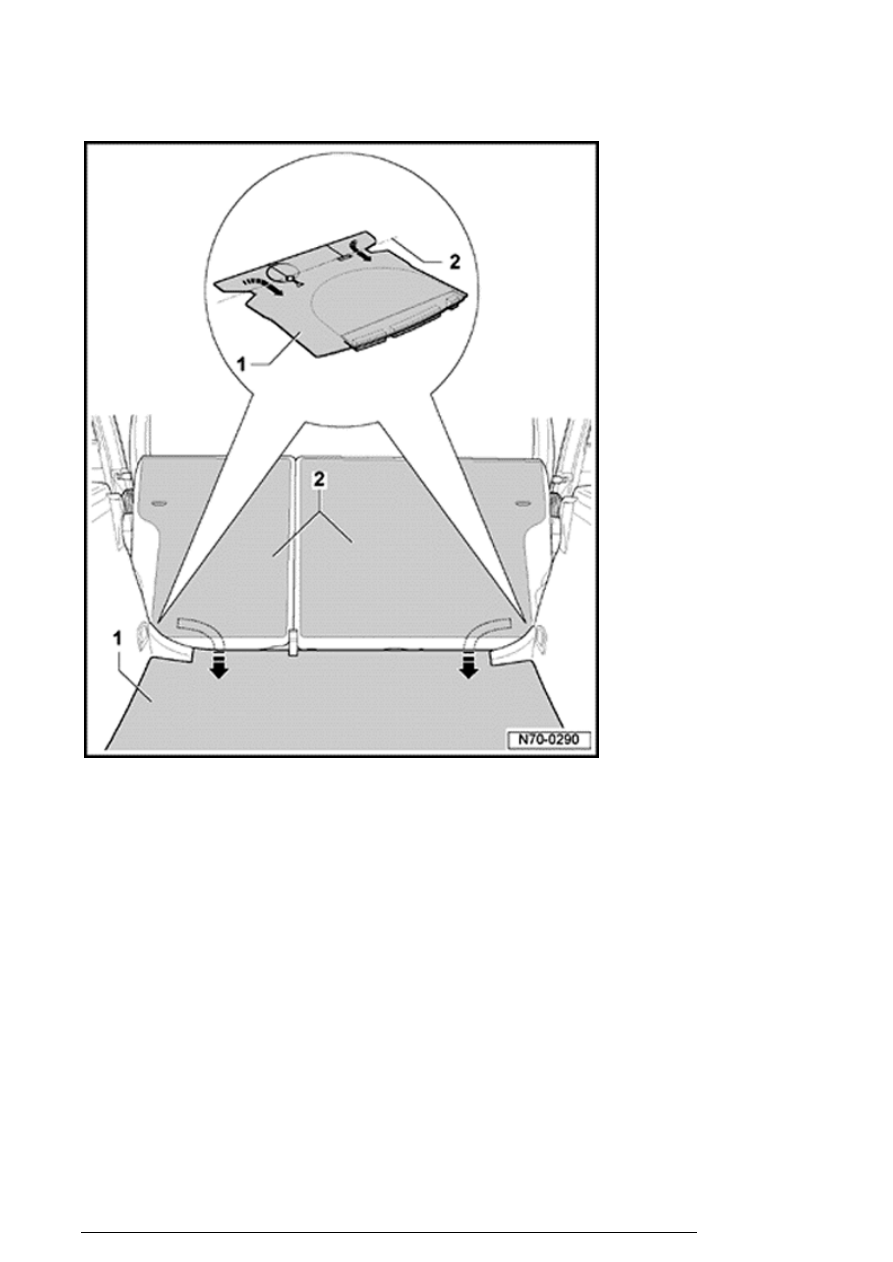

Luggage compartment floor carpet,
removing (Golf)



Removing



- Fold seat cushions and backrests forward.

Luggage compartment trim

13/2/2005



- Remove luggage compartment floor
carpet - 1 - toward rear under backrests -
2 - .

Installing



- Installation is reverse of removal.

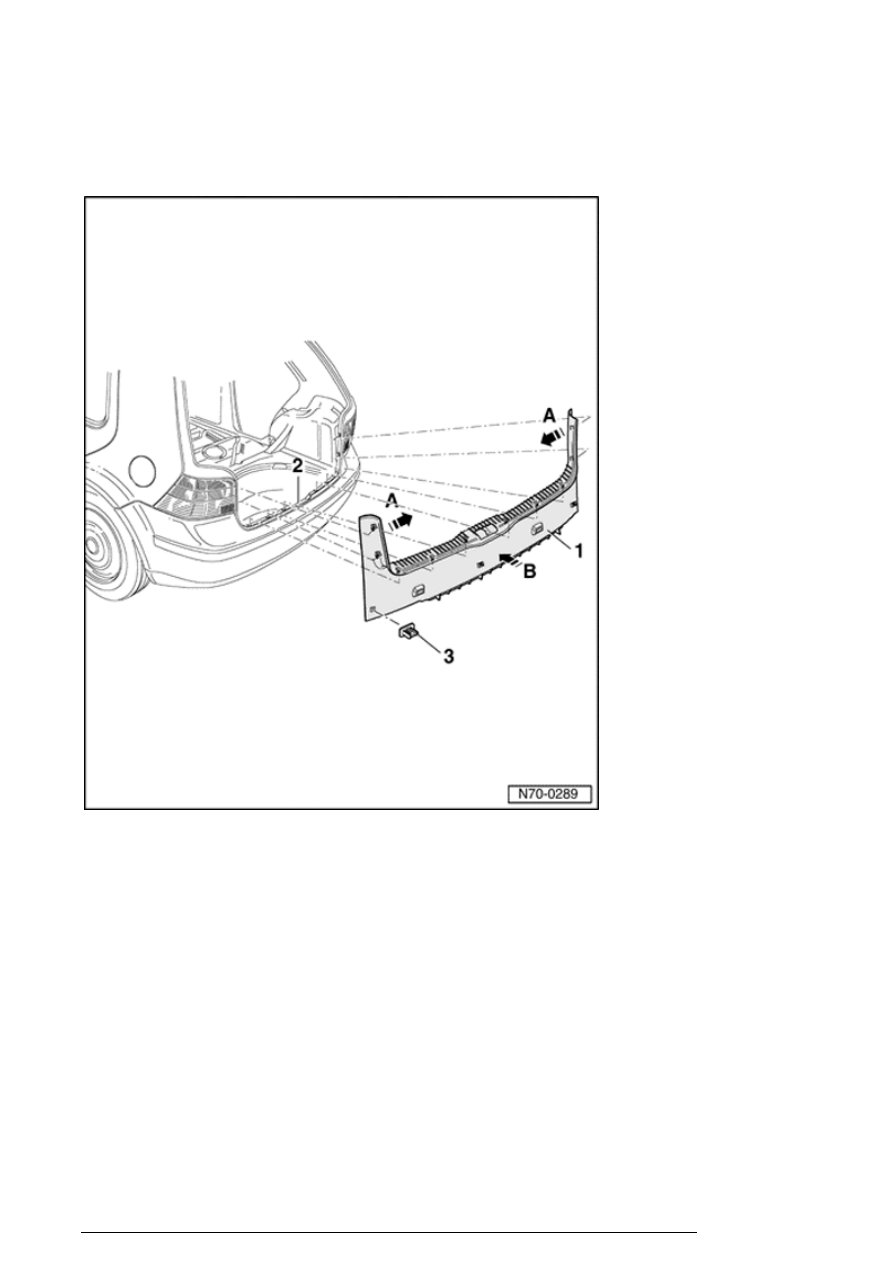

Rear lock carrier cover, removing and
installing (Golf)



Removing



- Release lock carrier cover - 1 - first at
top - arrow A - and n at bottom - arrow B
- from trim panel - 2 - .

Luggage compartment trim

13/2/2005



- Remove lock carrier cover - 1 - upward
from trim panel.

Installing



- Installation is reverse of removal.

Note:

n

Before installing, check clips - 3 - for
damage and replace if necessary.



Luggage compartment trim

13/2/2005
