Volkswagen Golf / Golf GTI / Jetta. Manual - part 779



Readiness code must be checked.






 Repair Manual, Fuel Injection Ignition,

Repair Group 01,

Right luggage compartment side trim,
assembly overview (Jetta)



Luggage compartment trim

13/2/2005

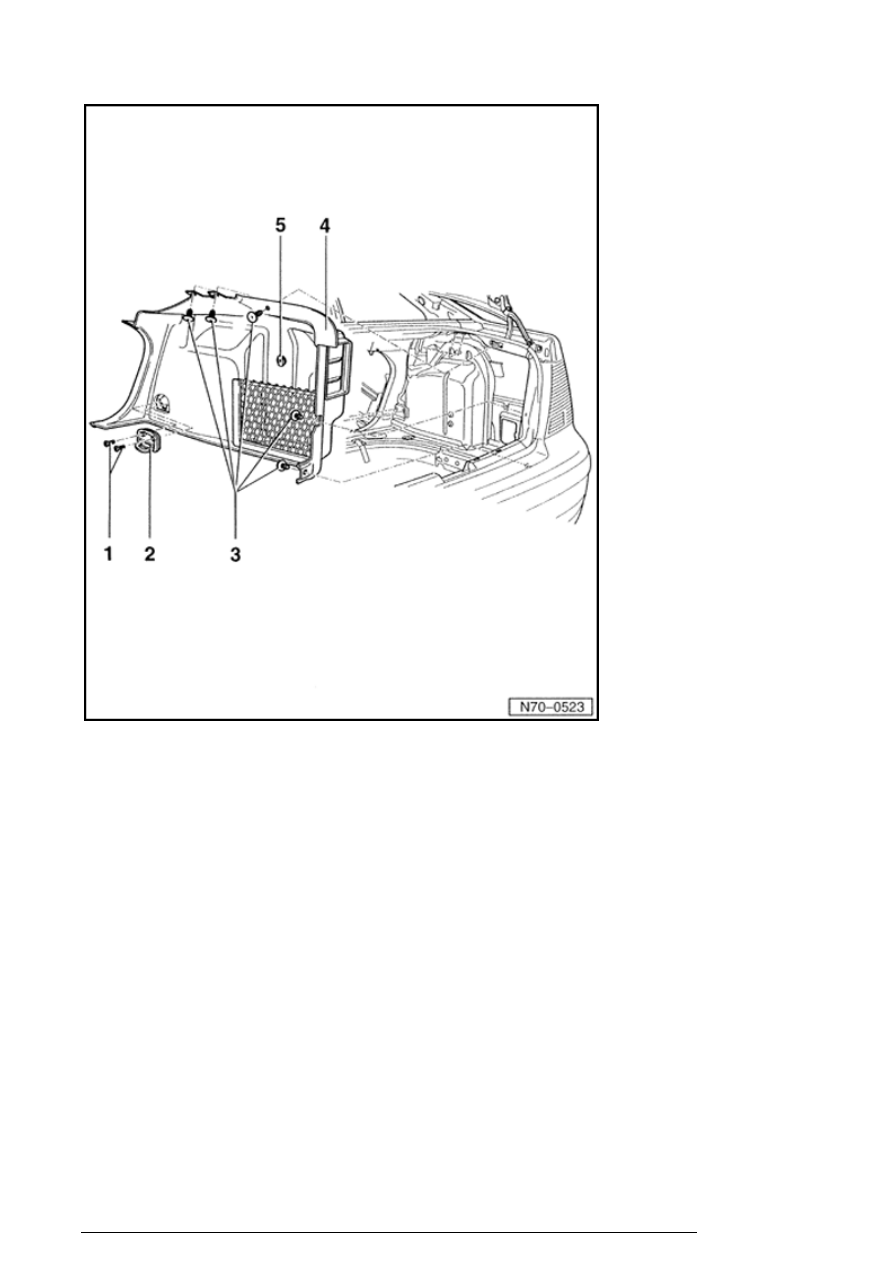

1. Bolts

2. Tie-down hook

3. Buffer plugs

4. Luggage compartment trim

¡

Removing



70-4, Right

luggage compartment side
trim, removing and installing
(Jetta)





5. 12 V socket -U5-

Right luggage compartment side trim,
removing and installing (Jetta)



Removing



Luggage compartment trim

13/2/2005

Caution!



Disconnect battery ground (GND) strap before working
on electrical system.

Note:

n

Before disconnecting battery see note concerning
radio anti-ft coding in Owners Manual.



- Switch ignition off.

- Remove right seat backrest



72-2, Backrest, removing

and installing

 .

- Remove wheel housing trim



70-3, Wheel housing trim,

removing and installing (Jetta)

 .

- Remove rear lock carrier cover



70-4, Rear lock carrier

cover, removing and installing (Jetta)

 .

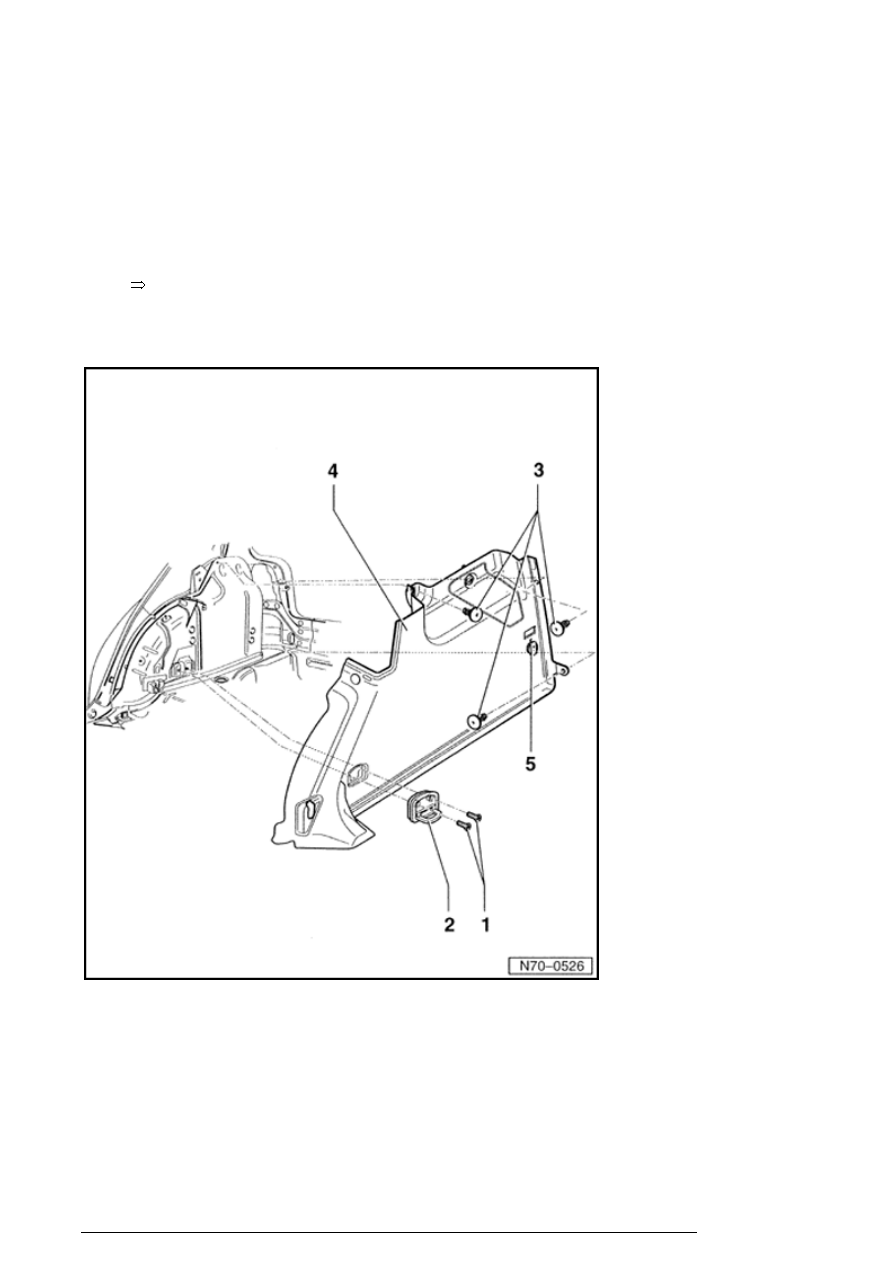

- Remove bolts - 1 - and remove tie-down
- 2 - .

- Remove plugs - 3 - (Qty. 5).

Luggage compartment trim

13/2/2005



- Loosen luggage compartment trim  - 4 -
and disconnect harness connector for 12
V socket -U5-. - 5 - .

Installing



- Installation is reverse of removal.

Note:

n

Before installing trim, check plugs -
3 - for damage and replace if
necessary.



n

After connecting battery, check
vehicle equipment (radio, clock,
electric windows) as per Repair
Manual and/or Owners Manual.



n

If engine Electronic Control Module
(ECM) is subject to low voltage with

Luggage compartment trim

13/2/2005
