Volkswagen Golf / Golf GTI / Jetta. Manual - part 659

Replacement part has two foils.
First foil covers adhesive surface,
second must be removed after
installing.

14. Wire

15. Hinge cover

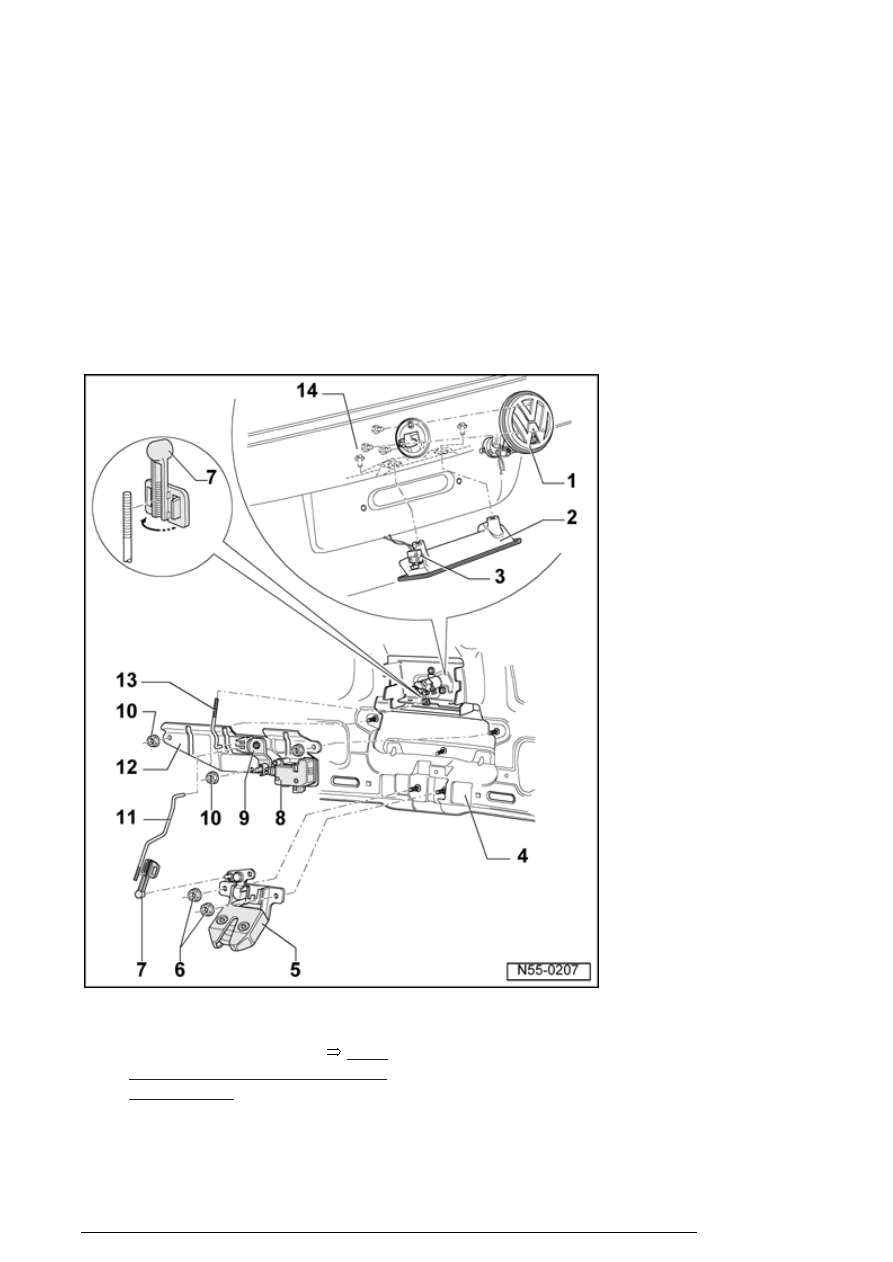

Rear lid lock, removing and installing (Jetta)

1. Lock cylinder housing

Removing and installing

55-3,

Lock cylinder housing, removing
and installing

2. Handle

Rear lid (Jetta)

13/2/2005

Removing

3. Switch for rear lid release E165

4. Rear Lid

5. Lock

Removing

Unclip operating rod

Item - 11 -

remove nuts

Item - 6 -

and

remove lock.

6. Hex nut

7 Nm

7. Actuator lever with linkage clip

8. Motor for rear lid release V139

Removing

Repair Manual, Body Interior, Repair

Group 70, Rear lid trim

- Remove bolt

Item - 14 -

, disconnect connector for
switch

Item - 3 -

and

remove handle from lid.

Repair Manual, Body Interior, Repair

Group 70, Rear lid trim

- Disconnect connector
from lock.

Repair Manual, Body Interior, Repair

Group 70, Rear lid trim, removing and
installing

- Disconnect connector
from motor.

Rear lid (Jetta)

13/2/2005

Unclip operating rods

Item - 11 -

and

Item - 13 -

9. Actuator lever

10. Hex nut

7 Nm

11. Actuator rod

Press actuator lever

Item - 7 -

against stop and engage operating
rod free of tension

12. Support bracket

13. Actuator rod

Press actuator lever with linkage
clip

Item - 7 -

against stop and

engage operating rod free of
tension

14. Bolt

7 Nm

- Remove nuts

Item - 10

and remove carrier plate

Item - 12 -

- Remove motor for rear lid
release

Item - 8 -

from

carrier plate.

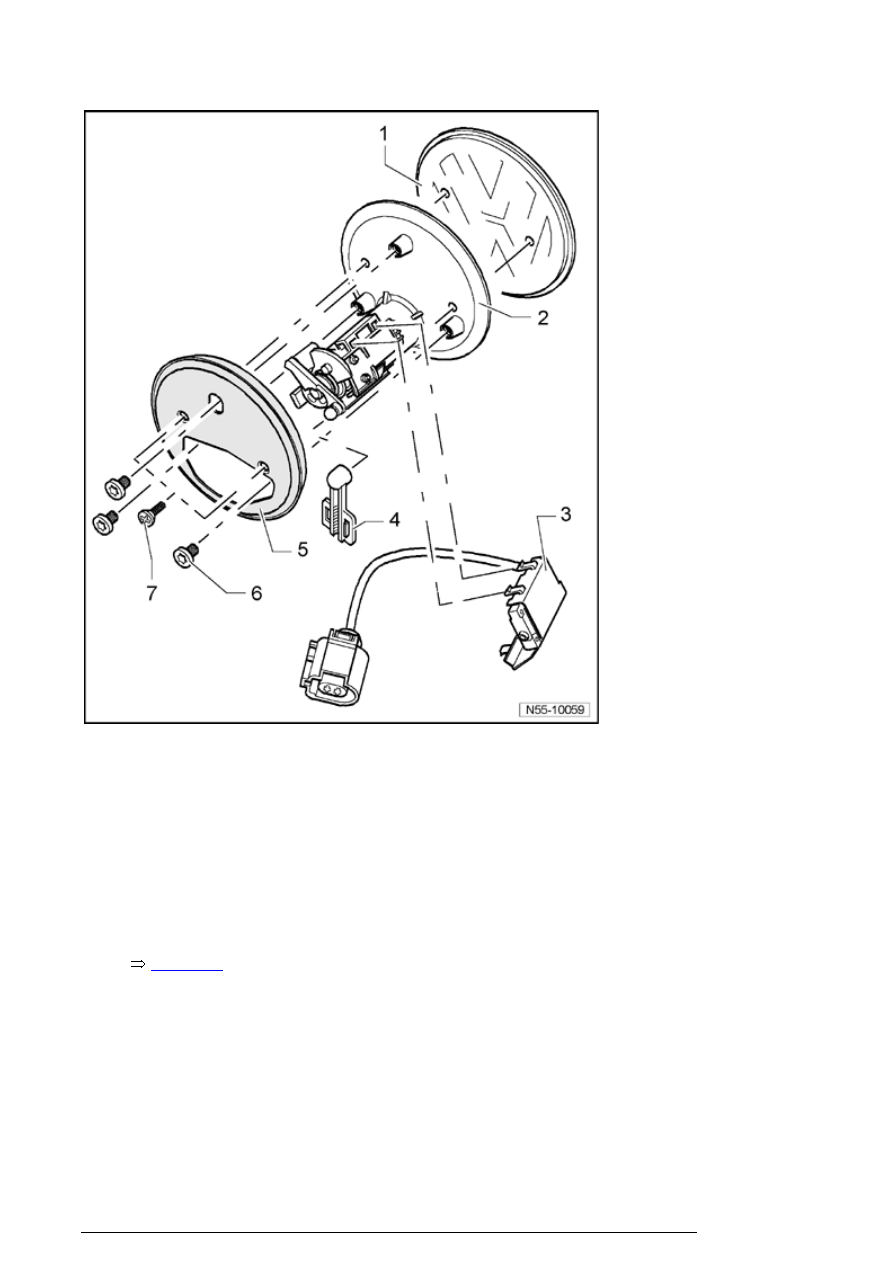

Lock cylinder housing, removing and
installing

Rear lid (Jetta)

13/2/2005

1. VW-symbol

consisting of emblem carrier and
message

To install VW symbol, remove
protective foil and adhere to lock
cylinder housing using two-sided
adhesive tape

also bolted to lock cylinder housing

Item - 7 -

2. Lock cylinder housing

Removing

- Remove rear lid trim

Rear lid (Jetta)

13/2/2005
