Volkswagen Golf / Golf GTI / Jetta. Manual - part 657

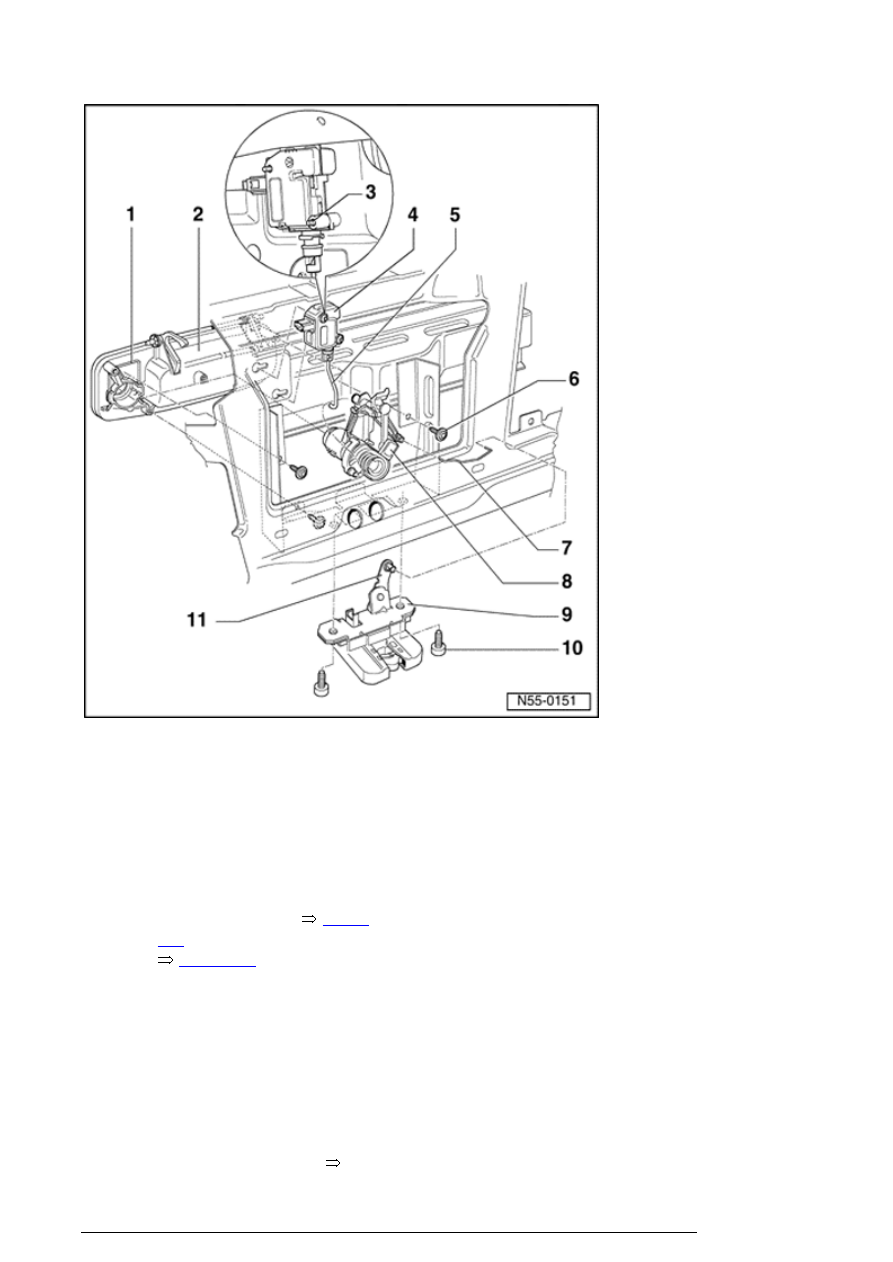

1. Locking clamp

2. Handle

Removing

- Unclip lid trim (handle is
secured with a bolt).

- Unclip pull lever

Item -

5 -

, pry out locking clamp

Item - 1 -

and remove

lock cylinder housing from
handle.

- Disconnect connector for
luggage compartment light
and unclip operating rod for
central locking system if
necessary.

- Remove Torx bolts

Rear lid (Golf)

13/2/2005

3. Actuator securing bolt

Loosen and tighten using Socket
wrench T10010

4. Central locking actuator

Removing

5. Pull lever

6. Torx screw

7. Operating rod

Press actuator lever

Item - 11 -

against stop and engage operating
rod free of tension

8. Lock cylinder housing

Removing

9. Lock

Removing

Item - 6 -

and remove

handle from lid.

- Disconnect connector
from actuator.

- Remove actuator using
Socket wrench T10010 and
remove from lid.

- Unclip lid trim (handle is
secured with a bolt).

- Unclip pull lever

Item -

5 -

, pry out locking clamp

Item - 1 -

and remove

lock cylinder housing from
handle.

- Remove lid trim

Rear lid (Golf)

13/2/2005

install - only with striker catch in
detent

10. Oval-head machine screw

20 Nm

11. Actuator lever

Repair Manual, Body Interior, Repair

Group 70, Rear lid trim; removing and
installing lower trim for rear lid

- Disconnect connector
from lock.

- Unclip operating rod

Item - 7 -

, remove bolt

Item - 10 -

and remove lock

from lid.

Installing

- Engage locking clamp again.

- Position lock cylinder housing on to grip piece and lock in
handle with an audible click.

- Then proceed in reverse order of removal.

Lock cylinder housing, removing and
installing

Rear lid (Golf)

13/2/2005

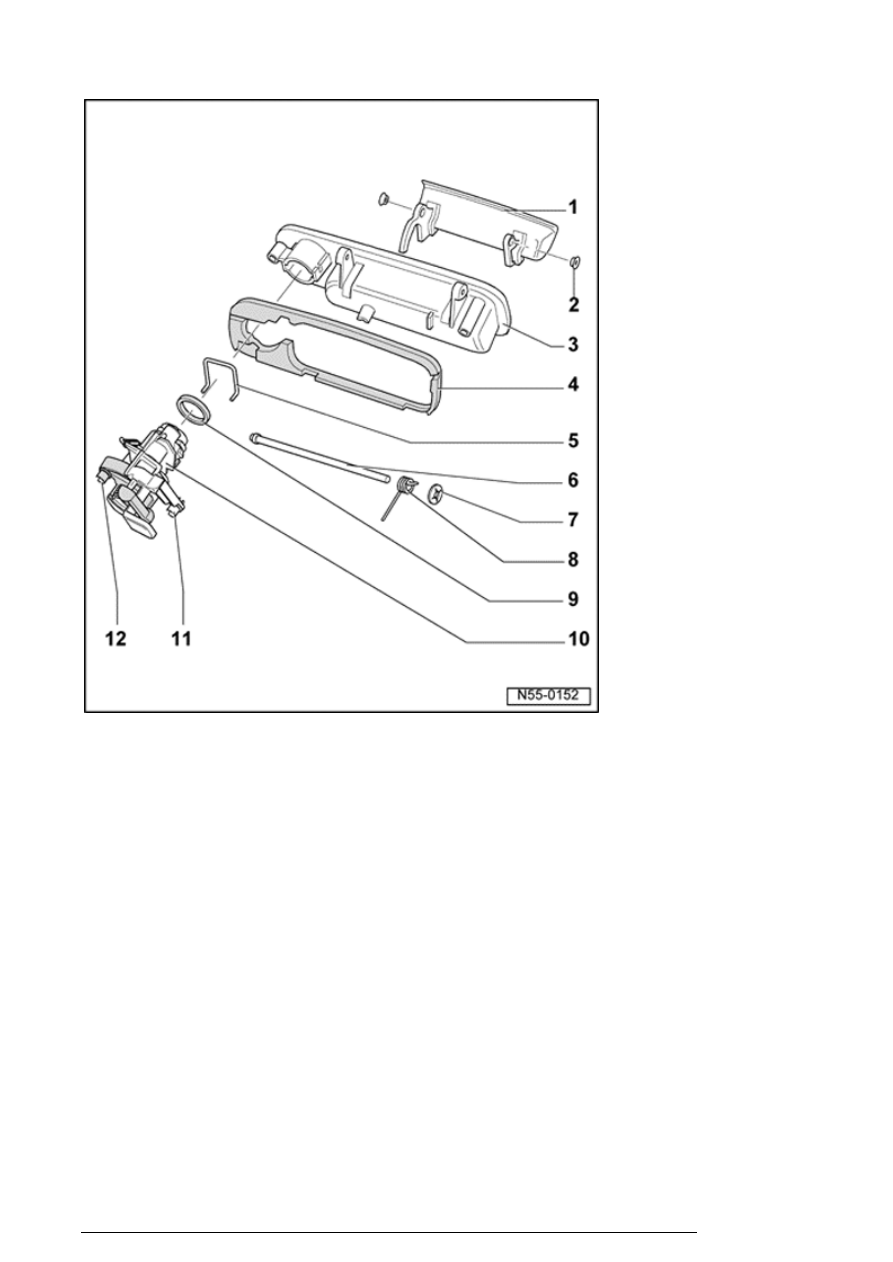

1. Handle

2. Guide sleeves

3. Handle recess

4. Seal

5. Retaining clip

6. Pin

7. Circlip

8. Spring

9. Seal

10. Lock cylinder housing

Removing

- Unclip lid trim (handle is

Rear lid (Golf)

13/2/2005
