Volkswagen Golf / Golf GTI / Jetta. Manual - part 502

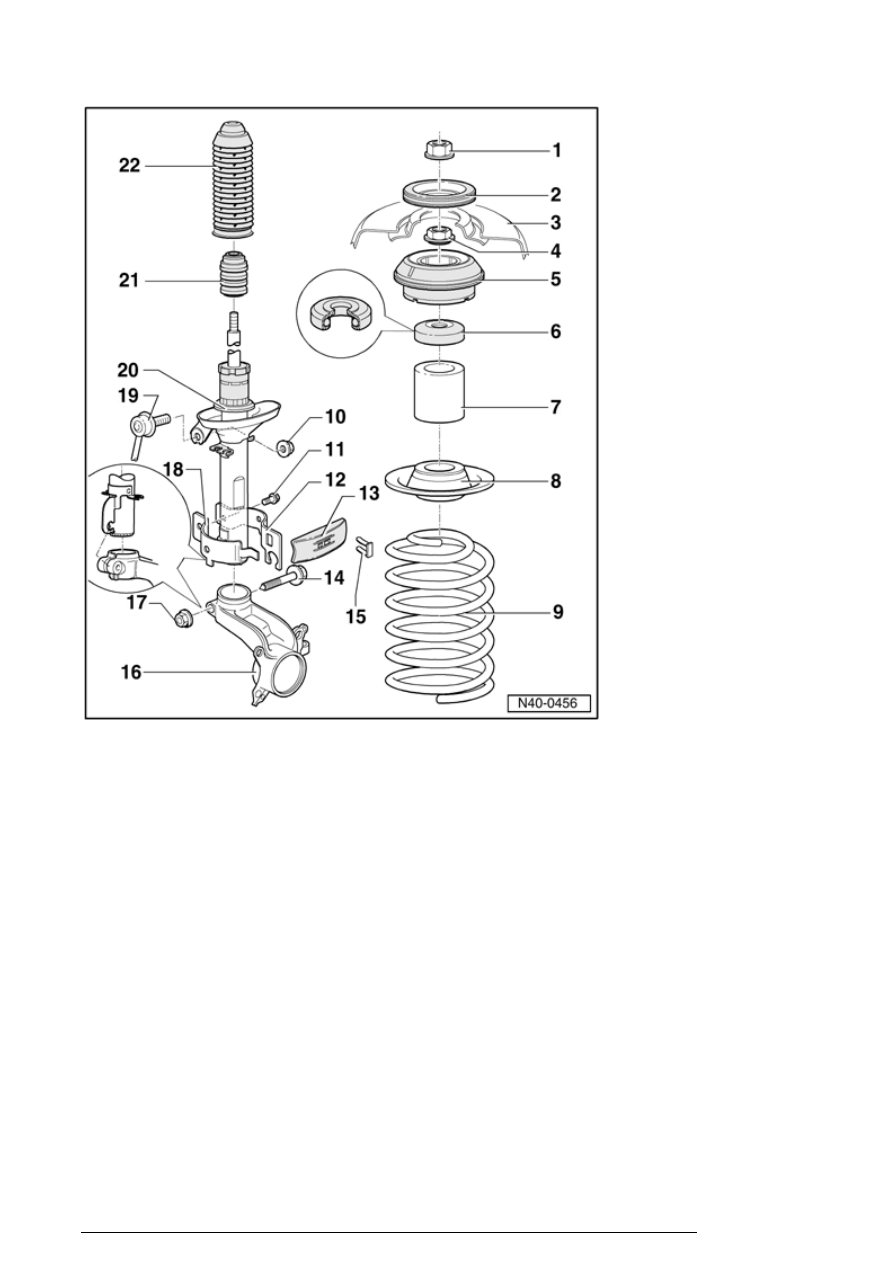

1. Self-locking hex nut, 60 Nm

Always replace

2. Stop

3. Suspension strut turret

4. Hex nut, 60 Nm

5. Strut mount

6. Axial ball bearing

7. Bushing

Only installed to vehicles with
heavy duty suspension (PR No.
1GB)

This PR No. is entered on the
vehicle data label in luggage

Front suspension, servicing

8. Spring plate

9. Coil spring

Observe color coding

Surface of winding must not be
damaged

Application to vehicle see
Vehicle data plate,

40-3,

Vehicle data sticker

10. Self-locking nut

50 Nm plus an additional

turn 90

Always replace

11. Hex bolt, 10 Nm

12. Bracket

13. Heat shield

14. Hex bolt

Always replace

The point on hex bolt must
point in normal direction of
travel

15. Clip

16. Wheel bearing housing

17. Self-locking nut

60 Nm plus an additional

turn 90

Never less than 90 !

Turning angle tolerance 90
to 120

Always replace

compartment or service booklet

Front suspension, servicing

18. Clamp

19. Connecting Link

20. Damper

Can be replaced individually

Application

See Parts

Catalog

21. Bump stop

22. Protective sleeve

Vehicle data sticker

Example of a vehicle data sticker

Various springs are installed depending on engine and
equipment level. Each spring is allocated to a certain weight
class.

For example

Weight class V46 - arrow - corresponds to coil spring 1J0
411 105 CD

Which springs are installed in the vehicle is documented on
the vehicle data label with relevant PR. number of weight
class.

With the help of this PR number you can find the
appropriate spring for the vehicle in the parts catalog.

Front suspension, servicing

The vehicle data sticker is located in spare wheel well and
in Maintenance booklet.

Suspension strut, removing and installing

Special tools, testers and auxiliary items required

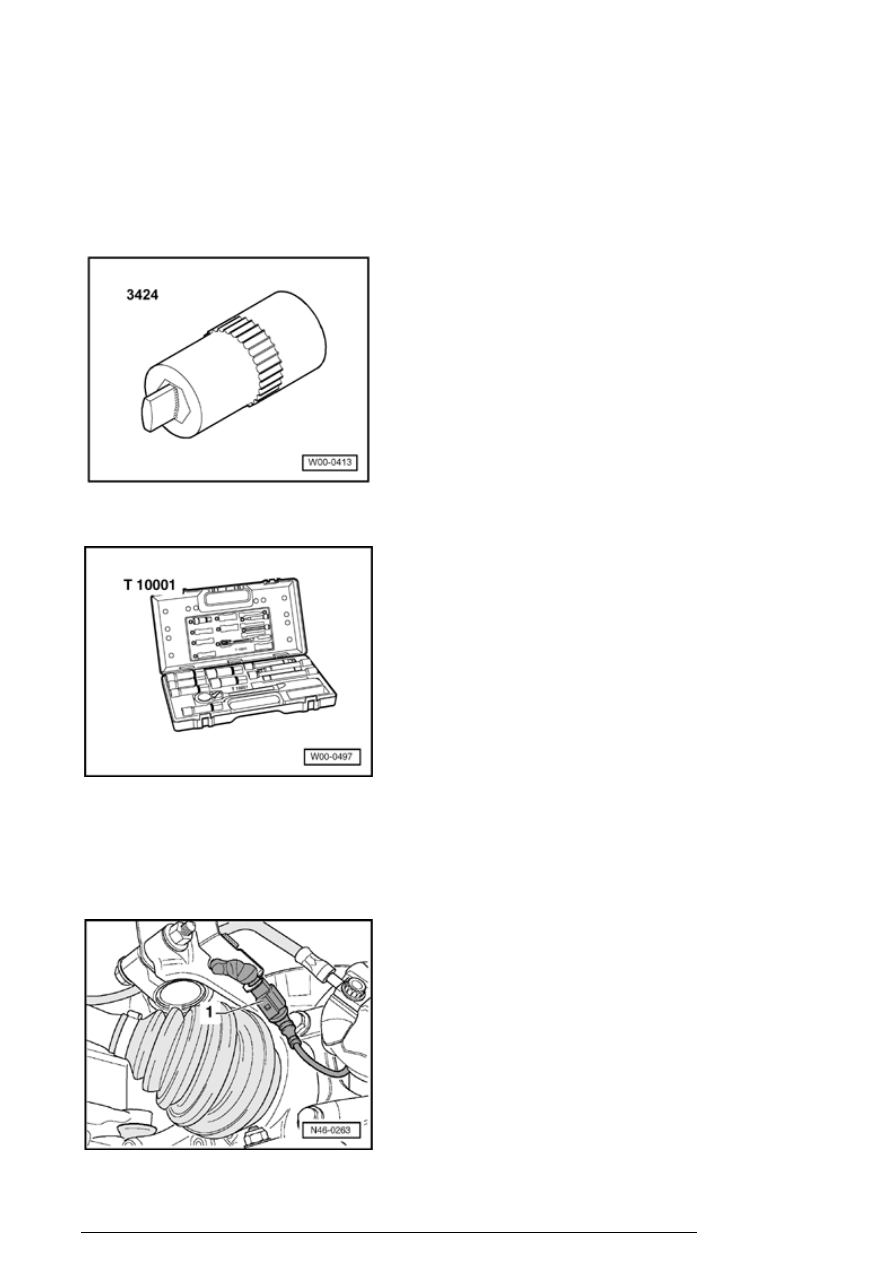

Spreader 3424

Shock absorber set T10001

Removing

- Remove wheel.
