39-20





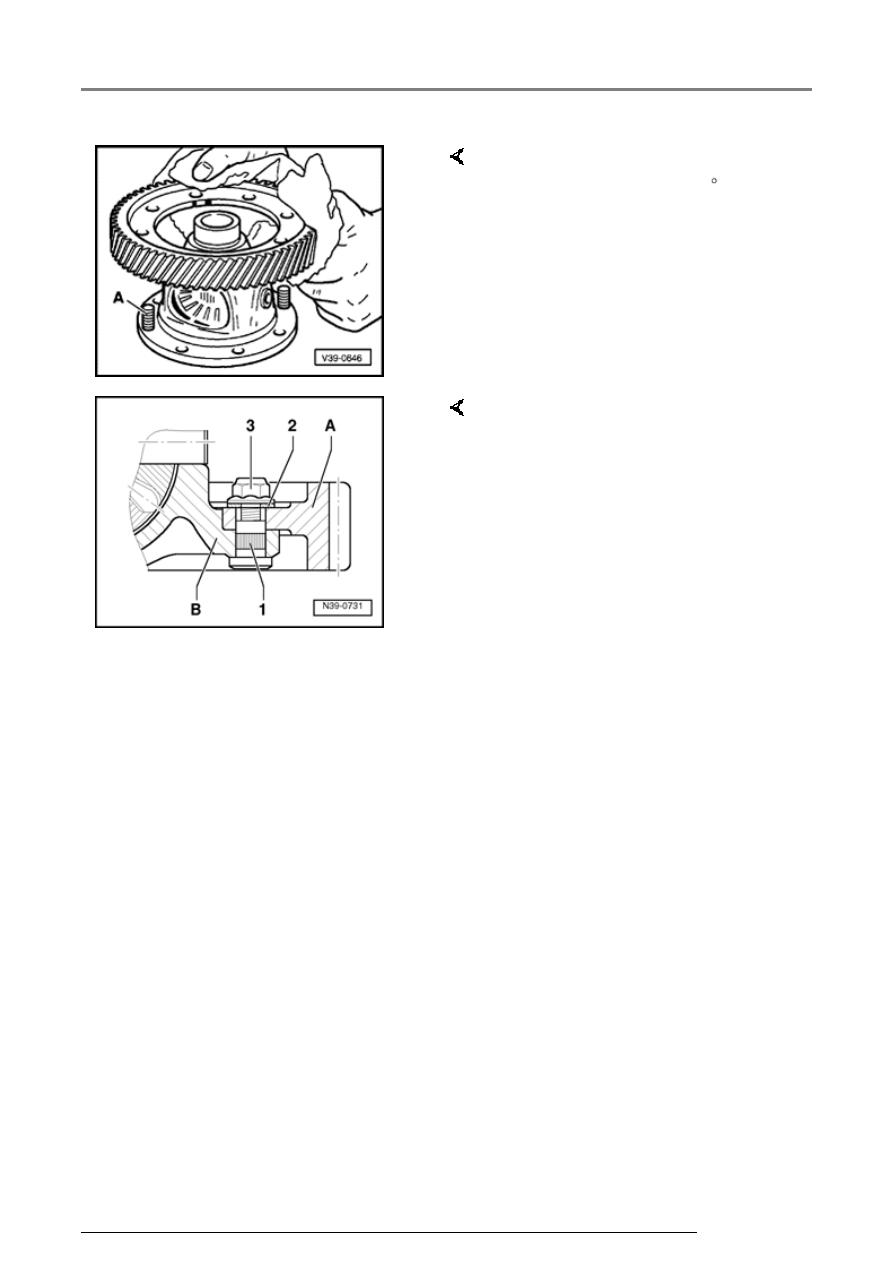

Fig. 9

Heating final drive gear
to approx. 100 C and
installing

-  Use bolts -A- from repair kit to

guide final drive gear into position
during installation.



Use special bolts -1- with backing
plates -2- and nuts -3- according to
Parts catalog.

Fig. 10  Bolting final drive gear -

A- and differential
housing -B- together

Differential, disassembling and assembling

39-21





Removing

Installing

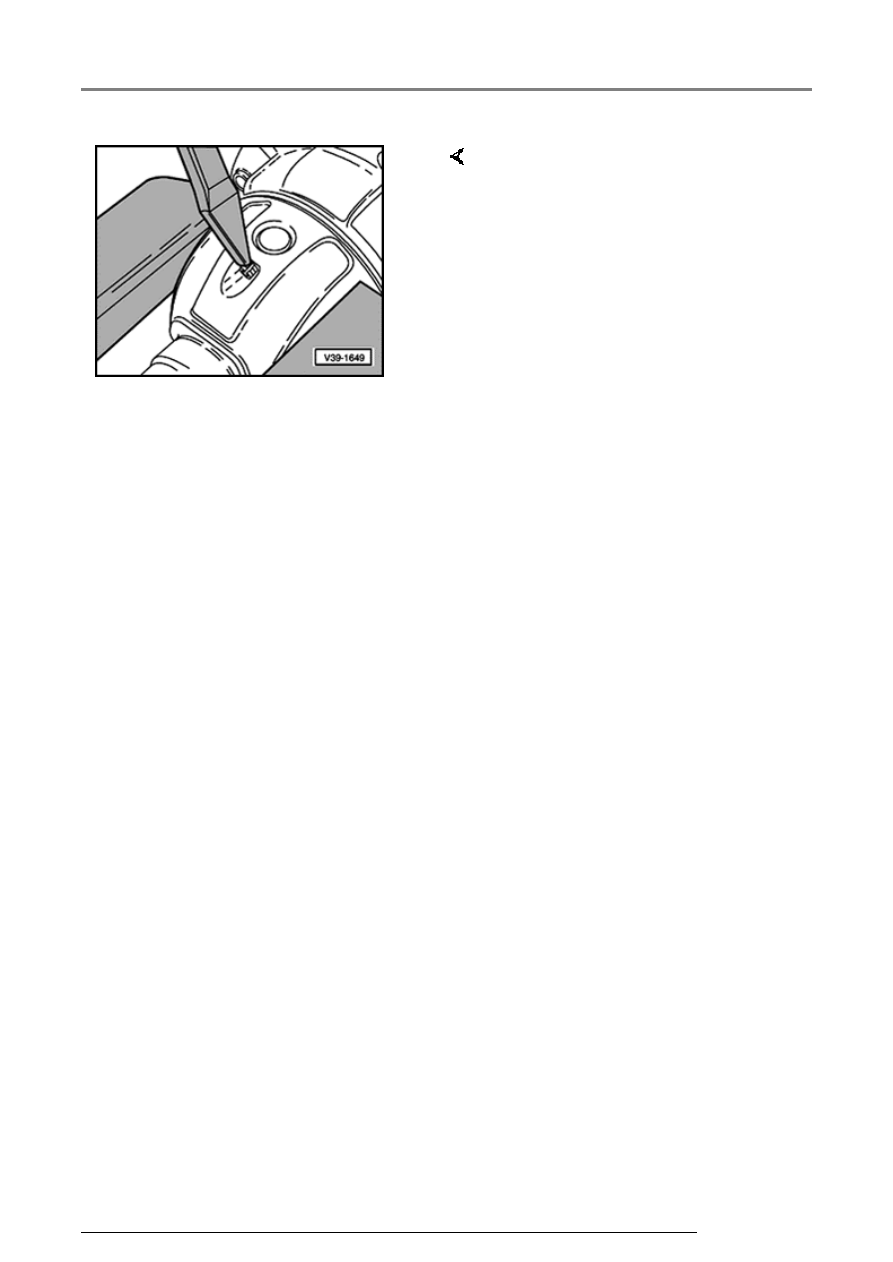

Fig. 11  Removing and installing

differential bevel gear
shaft spring pin

-  Cover tapered roller bearing inner

race to avoid possible damage
and ingress of metal particles.

-  Knock out spring pin with chisel,

inserting chisel into
circumferential groove.

-  Knock fully into differential cage.

Differential, disassembling and assembling

39-22





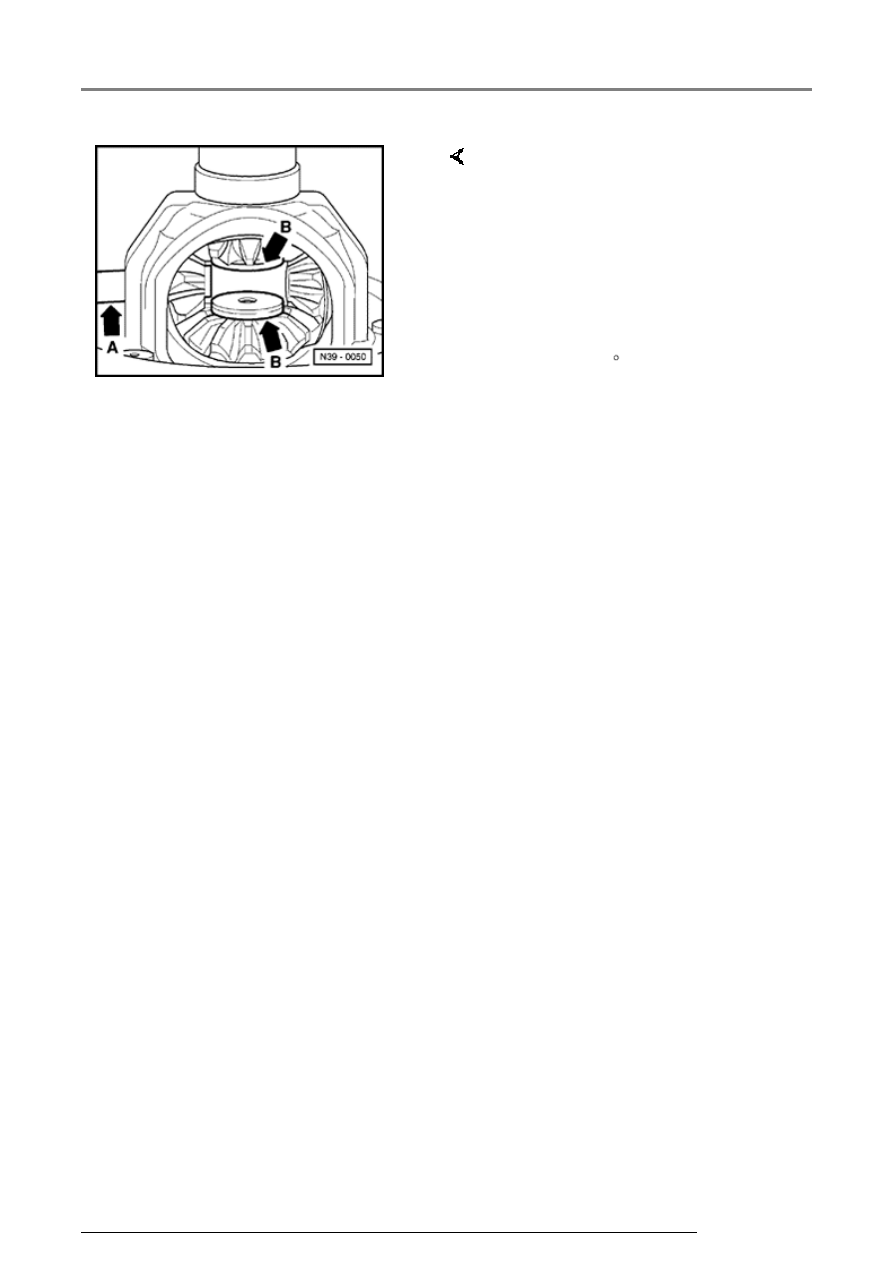

Fig. 12  Installing differential

bevel gears

-  Lubricate one piece thrust washer

with transmission oil and install.

-  Install both large differential bevel

gears and secure (e.g. with
flanged shaft).

-  Insert small differential bevel

gears (180  apart) and pivot into
position.

-  Push differential bevel gear shaft

(arrow -A-) in up to first small
bevel gear.

-  Position threaded pieces (arrow -

B-) in large bevel gears.

   Installed position: shoulder to

bevel gear

-  Drive differential bevel gear shaft

into final position and secure with
spring pin.

Differential, disassembling and assembling

39-23



Adjustment overview

Note:

If transmission repairs have been performed, it is only necessary to adjust the input
shaft, output shaft for 1st-4th gear, output shaft 5th, 6th and reverse gear or differential if
components have been replaced which have a direct effect on the adjustment of the
transmission. Refer to the following table to avoid unnecessary adjustment:





To be adjusted:





Input

shaft





Page

35-14



Output

shaft

1st-4th

gear



Page

35-46



Output

shaft

5th, 6th

and

reverse

gear



Page

35-76



Differential



Page 39-

24



Replaced
part:

Transmission
housing

x

x

x

x



Clutch housing

x

x

x

x



Input shaft

x









Output shaft for 1st-
4th gear



x







Output shaft

5th, 6th and reverse
gear





x





Differential housing







x



Input shaft tapered
roller bearing

x









Output shaft 1st-4th
gear

tapered roller
bearing



x







Output shaft 5th, 6th
and reverse

gear tapered roller
bearing





x
