Fog lights

Fault detection and fault display:
The onboard supply control unit has a self-diagnosis function,

which makes fault finding on the fog lights easier.
For fault finding, use the vehicle diagnosis, testing and informa‐

tion system -VAS 5051A- in “guided fault finding” mode.

3.1

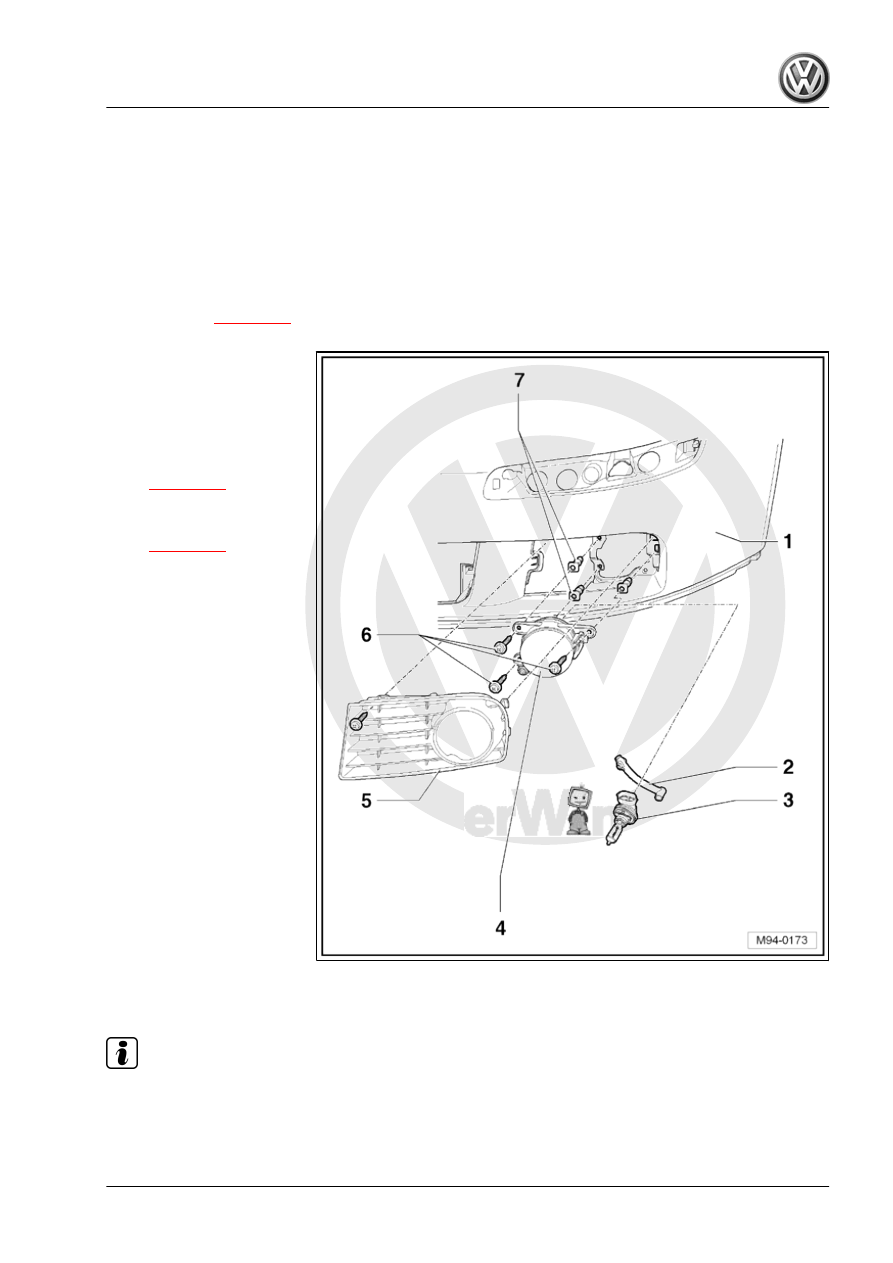

Assembly overview - fog light

Torque settings

⇒ page 238

1 - Front bumper
2 - Vent hose
3 - Left fog light bulb -L22- or

right fog light bulb -L23-

❑ Bulb H11 12 V, 55 W
❑ Removing and installing

⇒ page 206

4 - Fog light housing

❑ Removing and installing

⇒ page 205

5 - Cover cap
6 - Securing bolts
7 - Spreader nuts

3.2

Removing and installing fog lights

Note

The diagrams show how the left fog light is removed and installed.

Jetta 2005 ➤ , Bora 2006 ➤

3. Fog lights

205

ignition key.

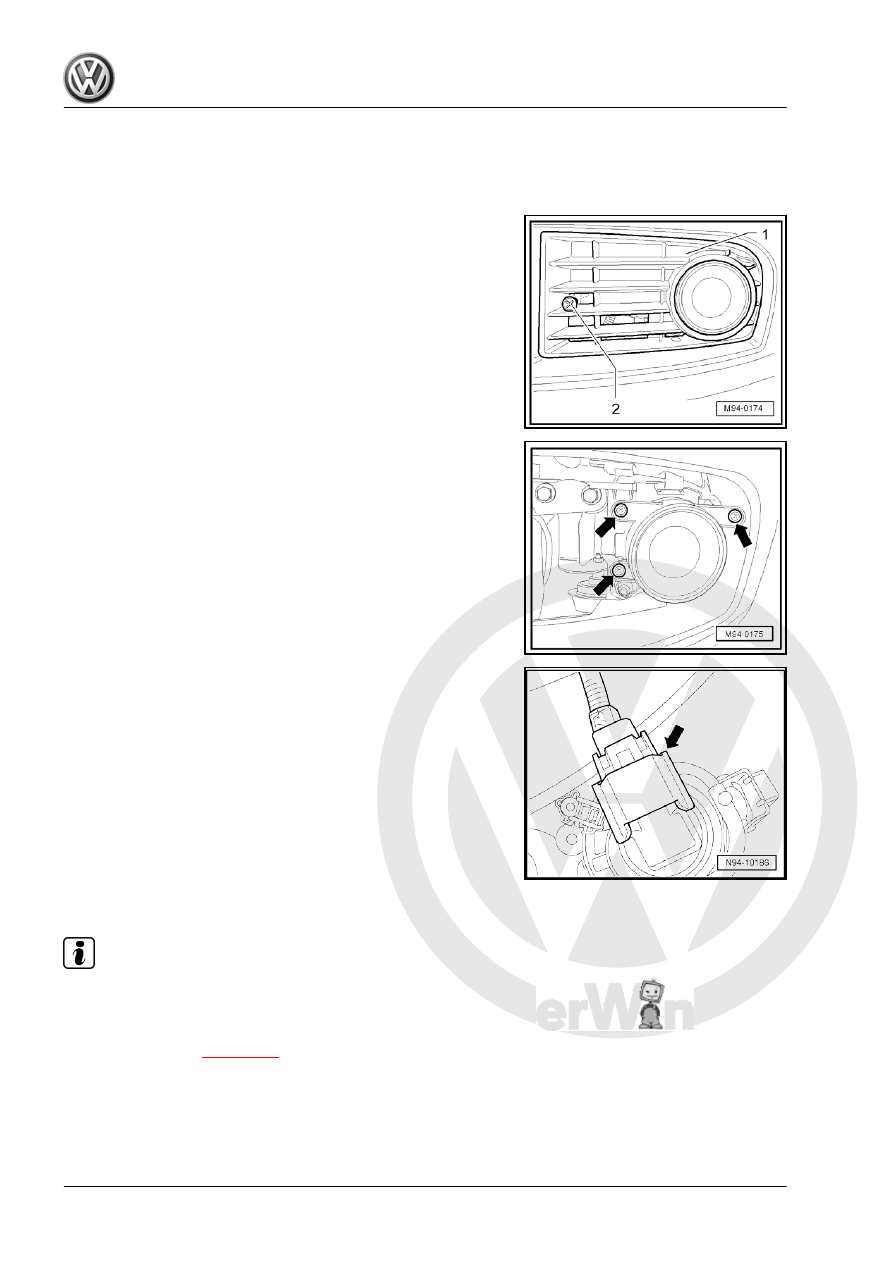

– Remove bolt -2-.
– Unclip cover cap -2- off locking device.

– Unbolt securing bolts -arrow-.

– Pull fog light housing out of front bumper and disconnect con‐

nector -arrow-.

Installing:
Installation is performed in the reverse order of installation; when

doing this, note the following:
– Check functions of headlight.
– Check fog light adjustment, adjusting if necessary ⇒ Mainte‐

nance ; Booklet  20.1 .

3.3

Removing and installing fog light bulb

Note

The diagram shows how the left fog light is removed and installed.

Removing:
– Remove fog light

⇒ page 205

 .

Jetta 2005 ➤ , Bora 2006 ➤

206

light.

The bulb for the fog light is permanently attached to the bulb

holder and cannot be renewed separately.
Fog light bulb : H11 12 V, 55 W
Installing:
Installation is performed in the reverse order of installation; when

doing this, note the following:
– Check functions of headlight.
– Check fog light adjustment, adjusting if necessary ⇒ Mainte‐

nance ; Booklet  20.1 .

3.4

Adjusting fog lights

Adjusting fog lights ⇒ Maintenance ; Booklet  20.1 .

Jetta 2005 ➤ , Bora 2006 ➤

3. Fog lights

207

Removing and installing side marker

in front bumper

4.1

Removing and installing front side mark‐

er

Removing

Note

Removal and installation of front side marker on left and right are

identical.

– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Assembly overview - noise insulation

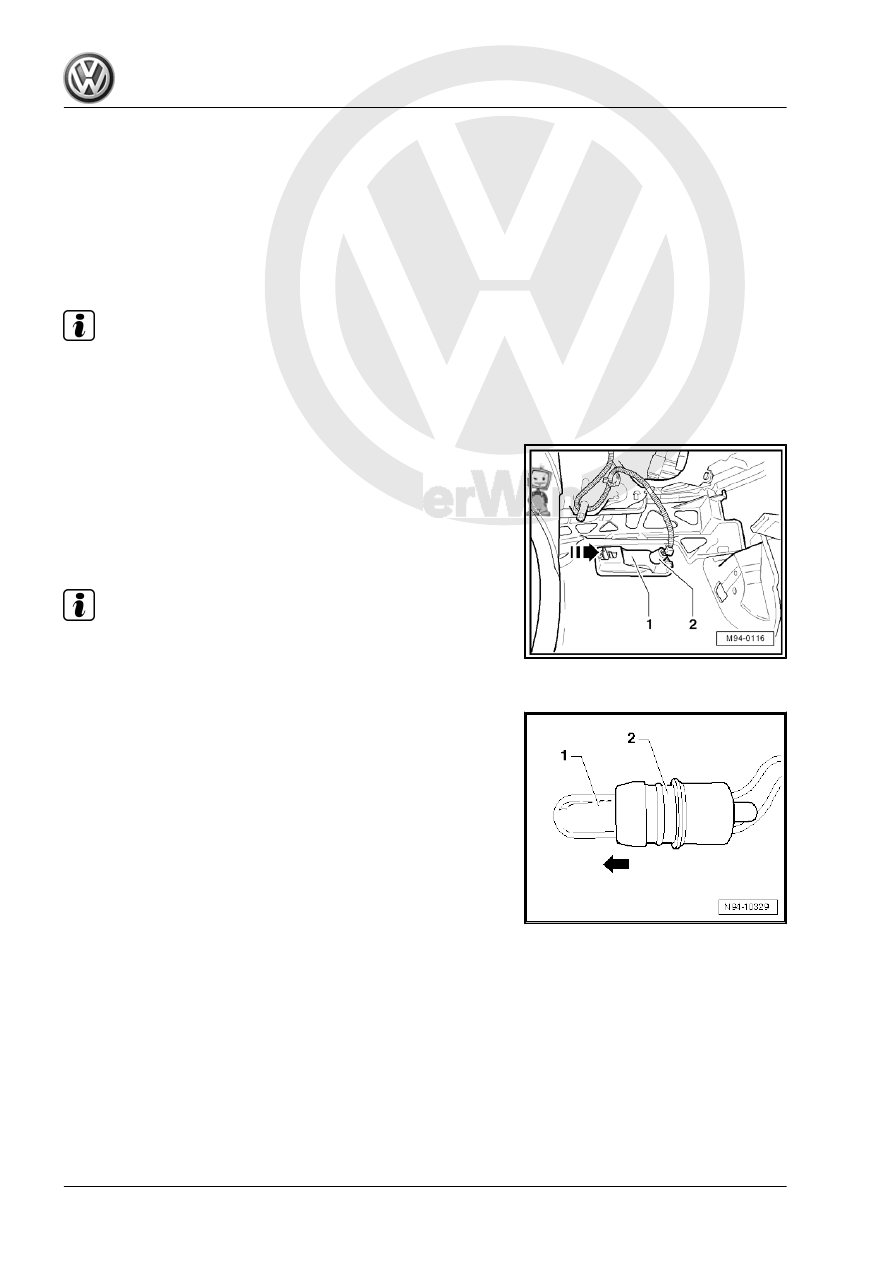

– Unlock side marker -1- by pressing the locking lug

-in direction of arrow-.

– Remove bulb holder -2- out of side marker.
Installing
Installation is performed in the reverse order of installation; when

doing this, note the following:

Note

After the installation perform functional check.

4.1.1

Renewing side marker bulb

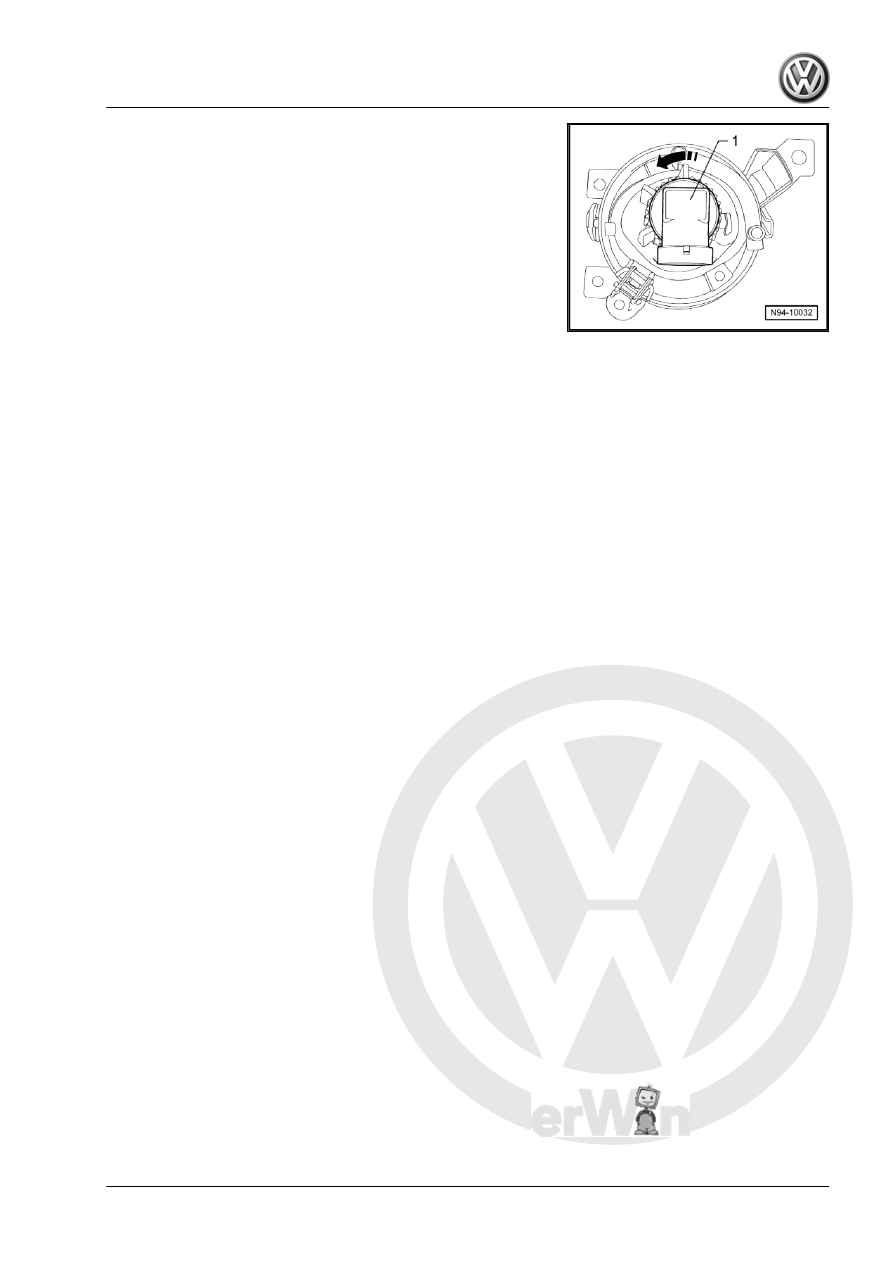

– Pull side marker bulb -1- in direction of arrow out of the bulb

holder -2-.
