minal 50 -2-.

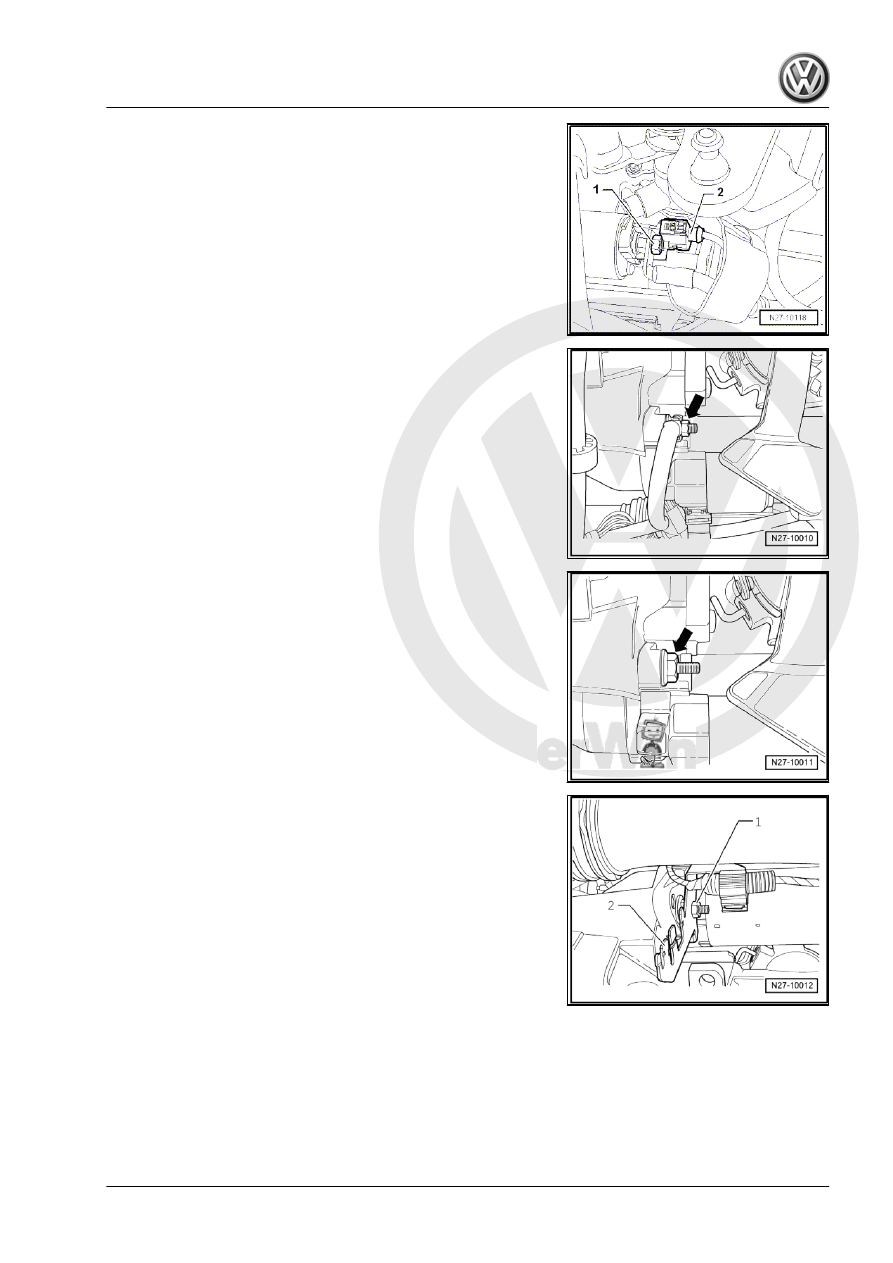

– Unscrew earth wire from starter securing bolt -arrow-.

– Unscrew starter securing bolt -arrow-.
– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Body front; Noise insulation .

– Unscrew nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

77

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

7.4.2

Vehicles with 2,0 l FSI engine

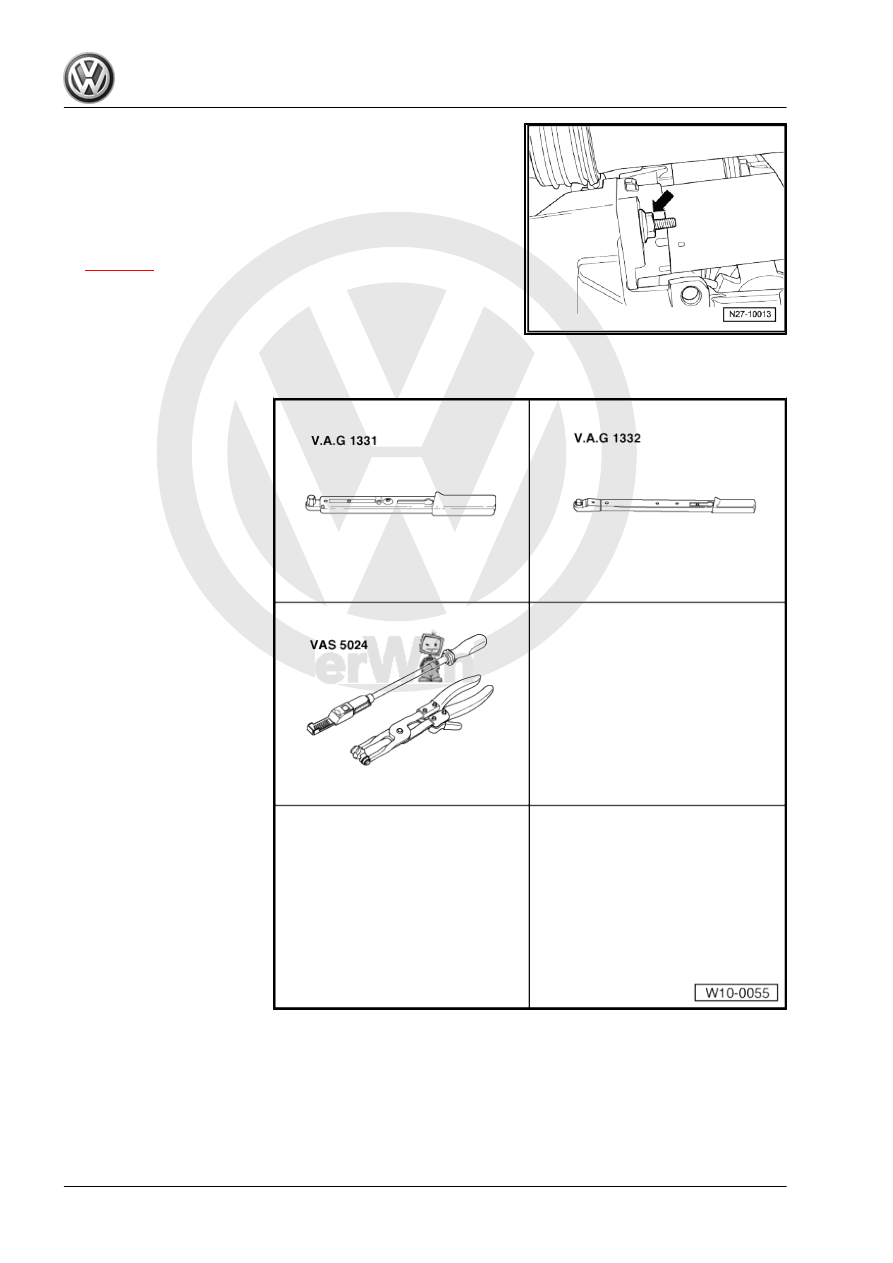

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Jetta 2005 ➤ , Bora 2006 ➤

78

⇒ page 29

 .

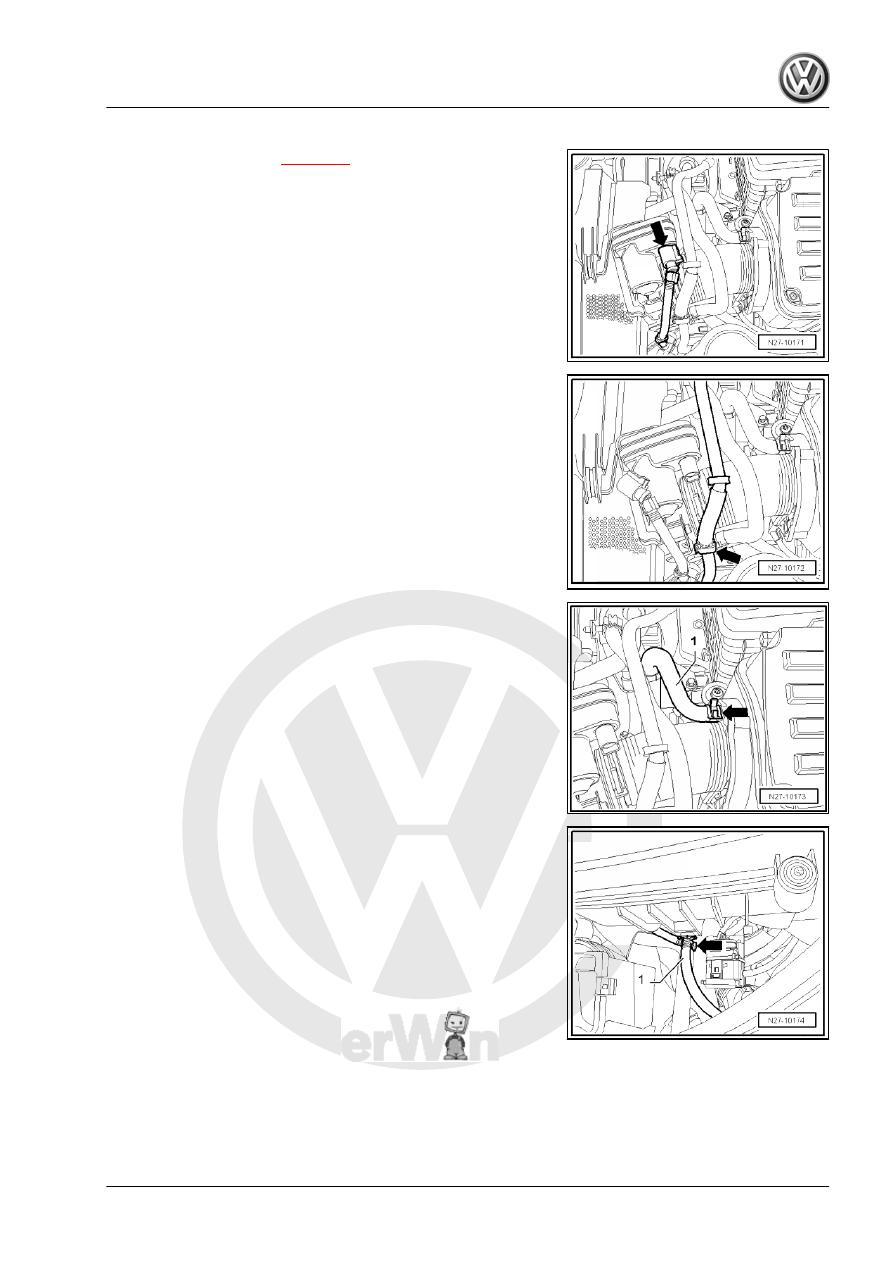

– Disconnect connector -arrow-.

– Unclip vacuum hose from its mounting -arrow-.

– Loosen spring-type clip -arrow- from hose -1- using spring type

clip pliers -VAS 5024- .

– Pull hose -1- off air filter housing.

– Open retainer -arrow- on front side of air filter housing and take

hose -1- off.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

79

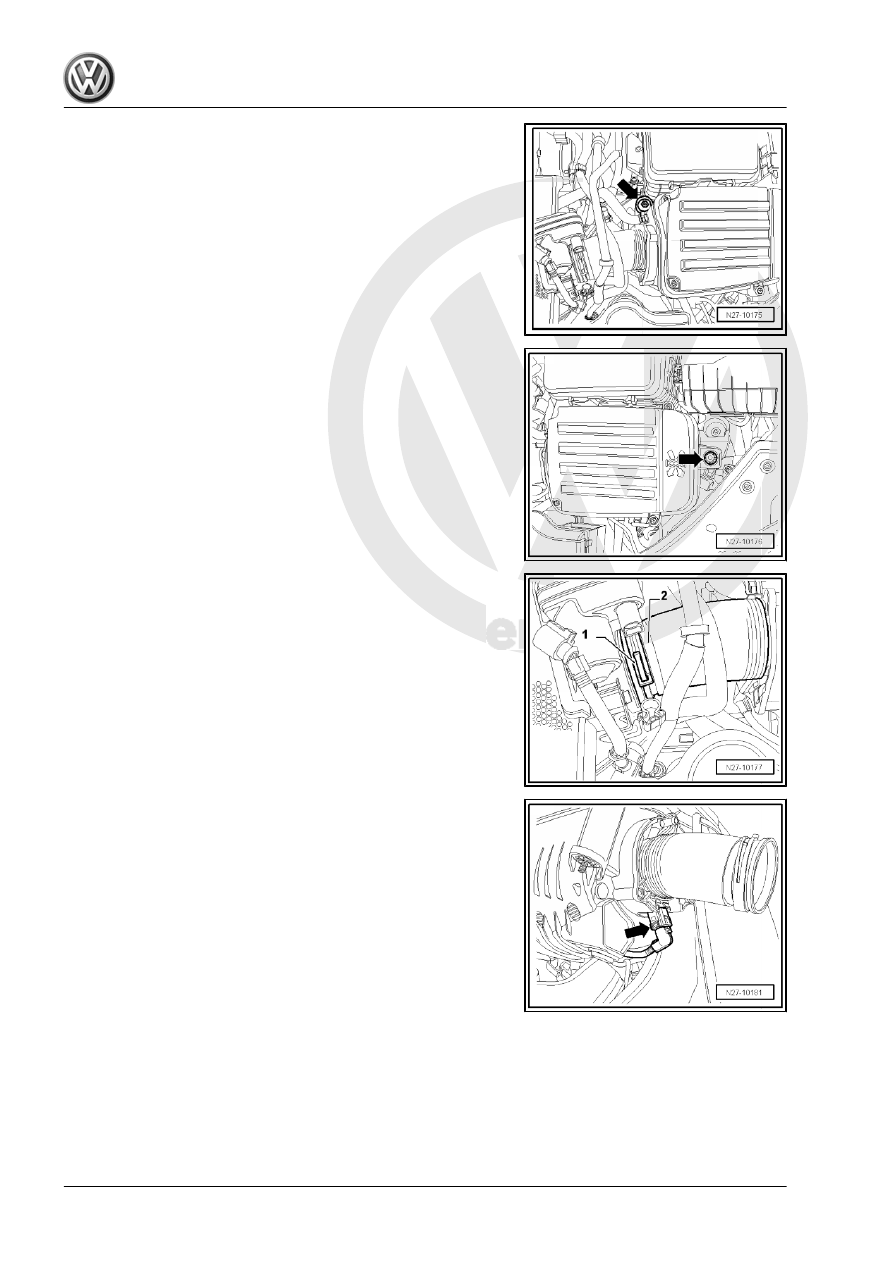

– Pull air filter housing on right side upwards off rubber mounting

-arrow-.

– Loosen spring-type clip -1- using spring type clip pliers -VAS

5024- .

– Pull hose -2- off pipe union.
– Carefully lift air filter housing upwards out of the vehicle taking

into consideration the length of the hose.

– Separate connector -arrow- on rear of air filter housing.
