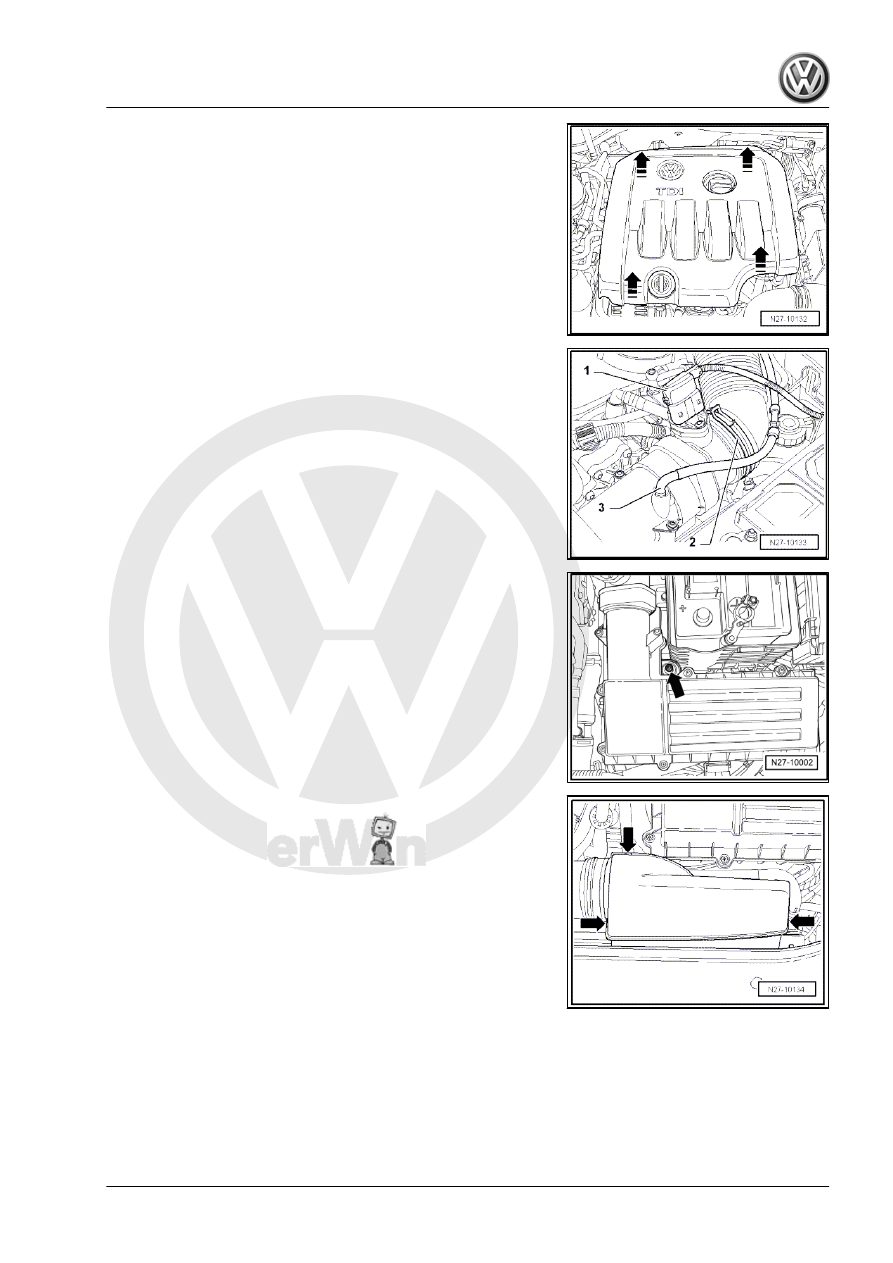

– Separate connector -1-, release spring-type clip -2- with spring

type clip pliers -VAS 5024- and pull off vacuum hose -3-.

– Unscrew air filter housing securing bolt -arrow-.

– Unlock lugs -arrows- and take cover off.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

73

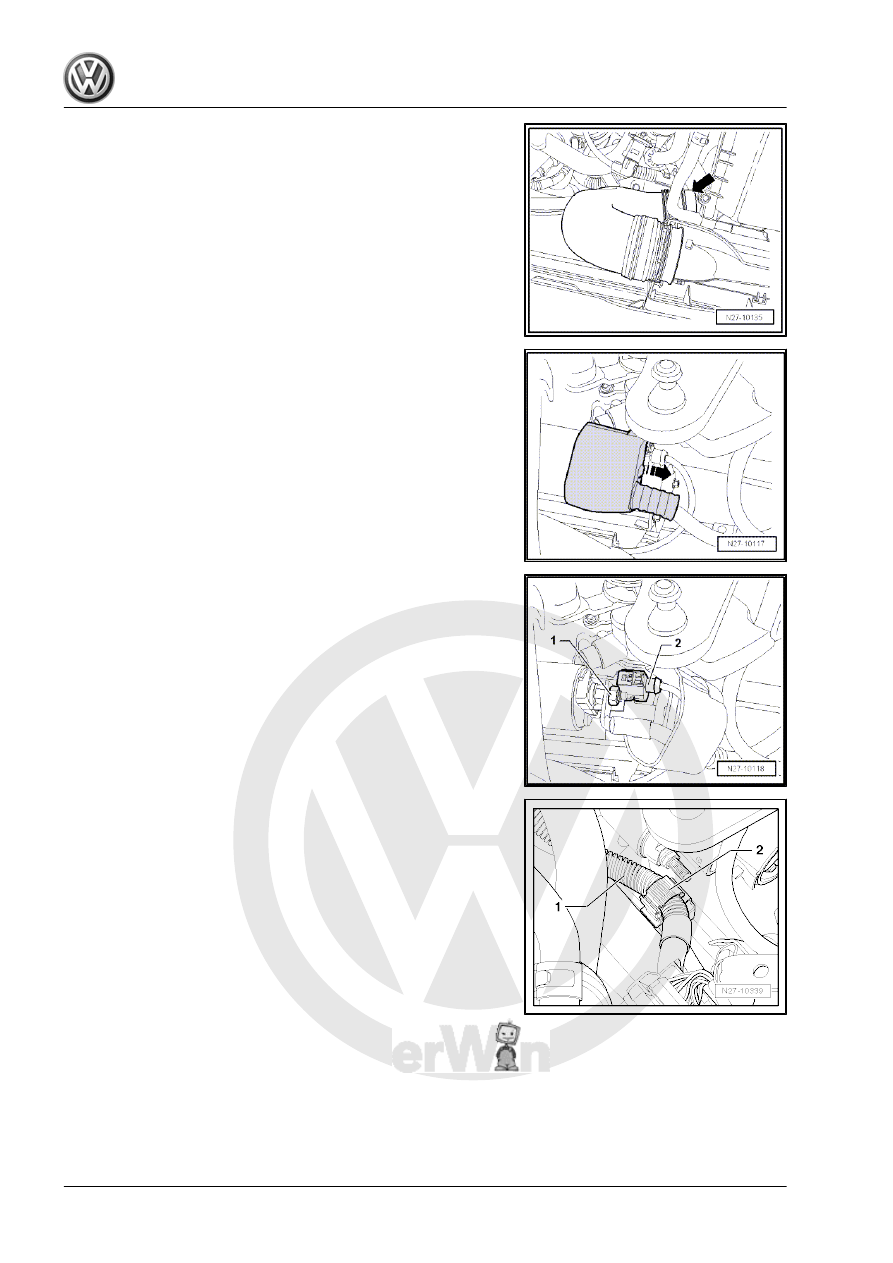

– Push down protective cap in -direction of arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Unclip hose -1- from hose retainer -2-.

Jetta 2005 ➤ , Bora 2006 ➤

74

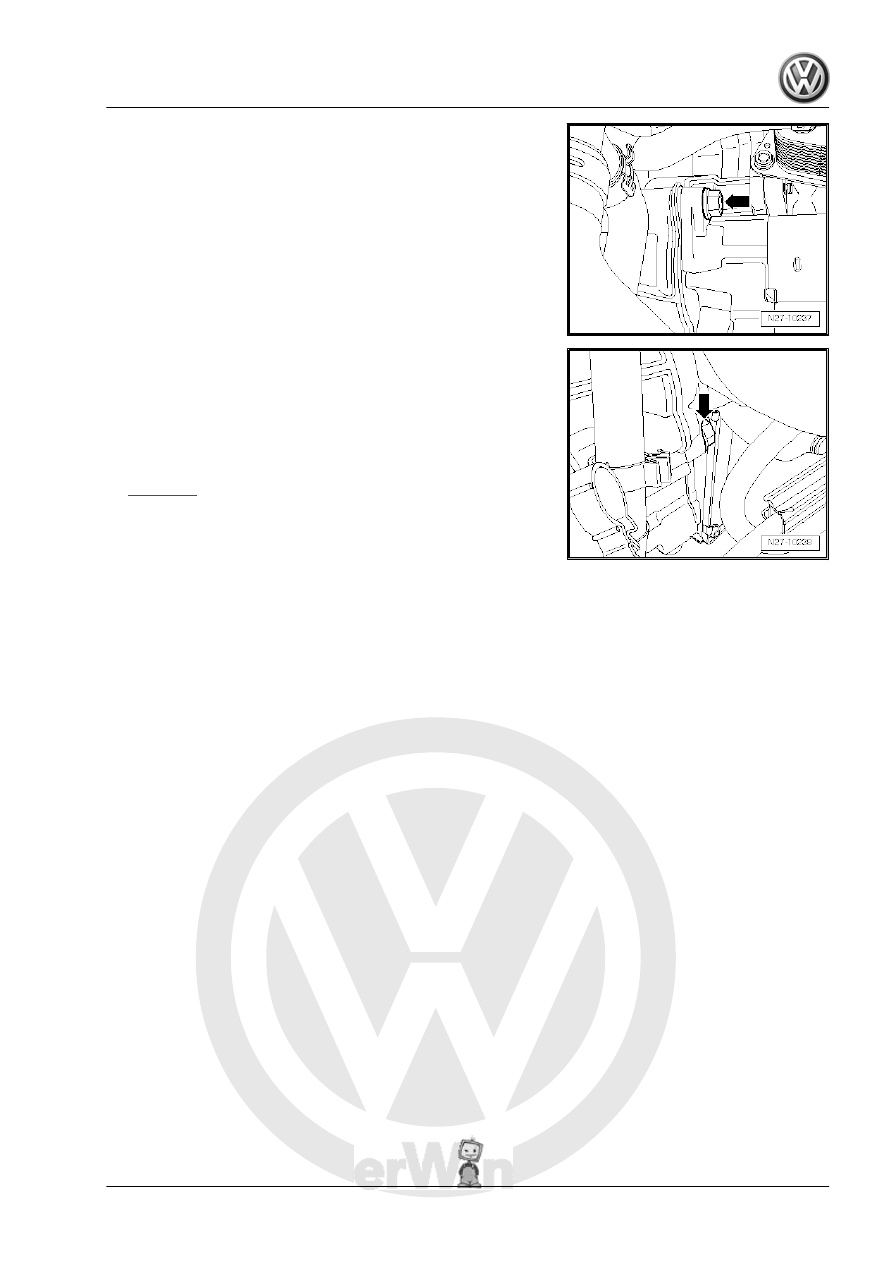

– Remove lower securing bolt of starter -arrow-.
– Remove starter from vehicle upwards.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

75

Removing and installing starter, manual

gearbox

7.4.1

Vehicles with 1.6 l engine

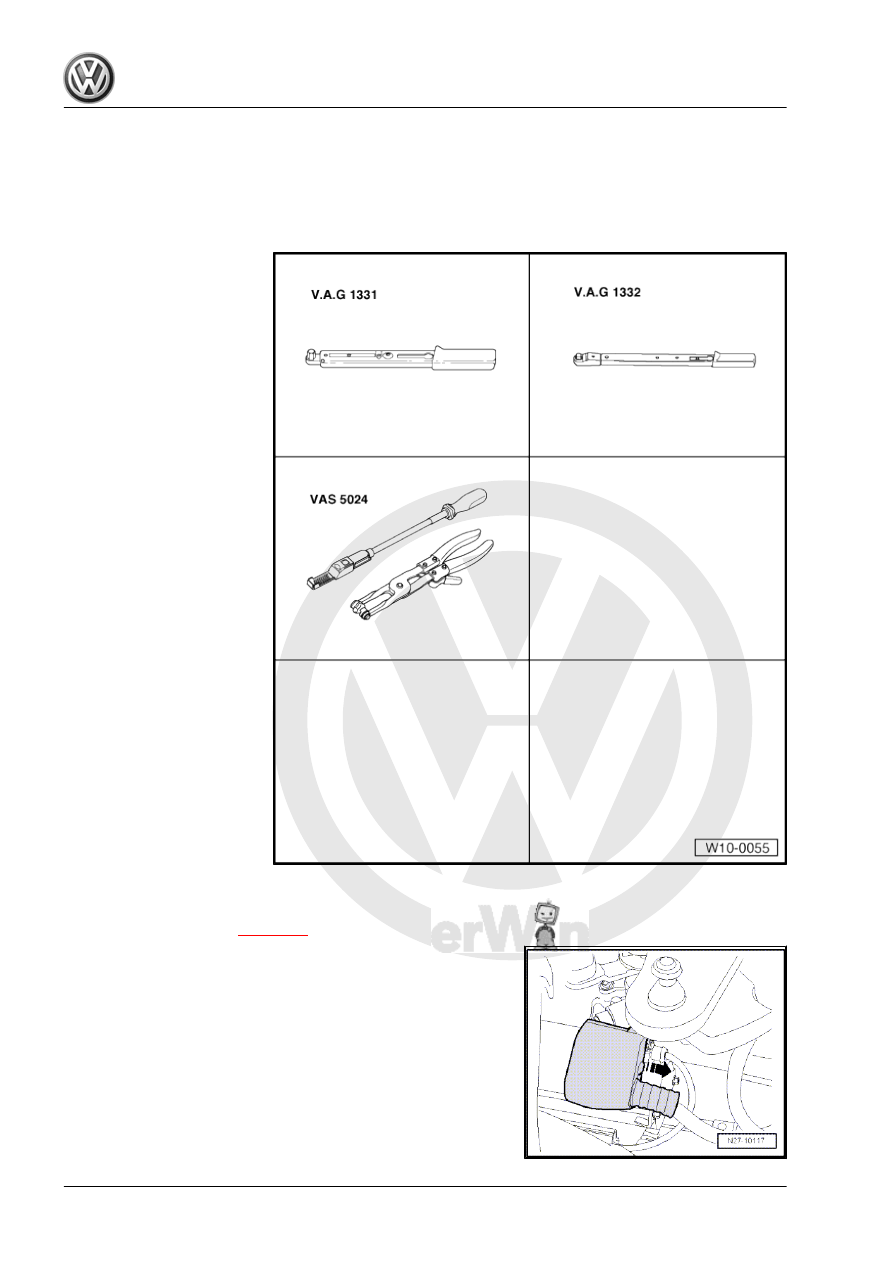

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

– Push down protective cap -direction of arrow- from solenoid

switch.
