Volkswagen 01M Transmission. Manual - part 90

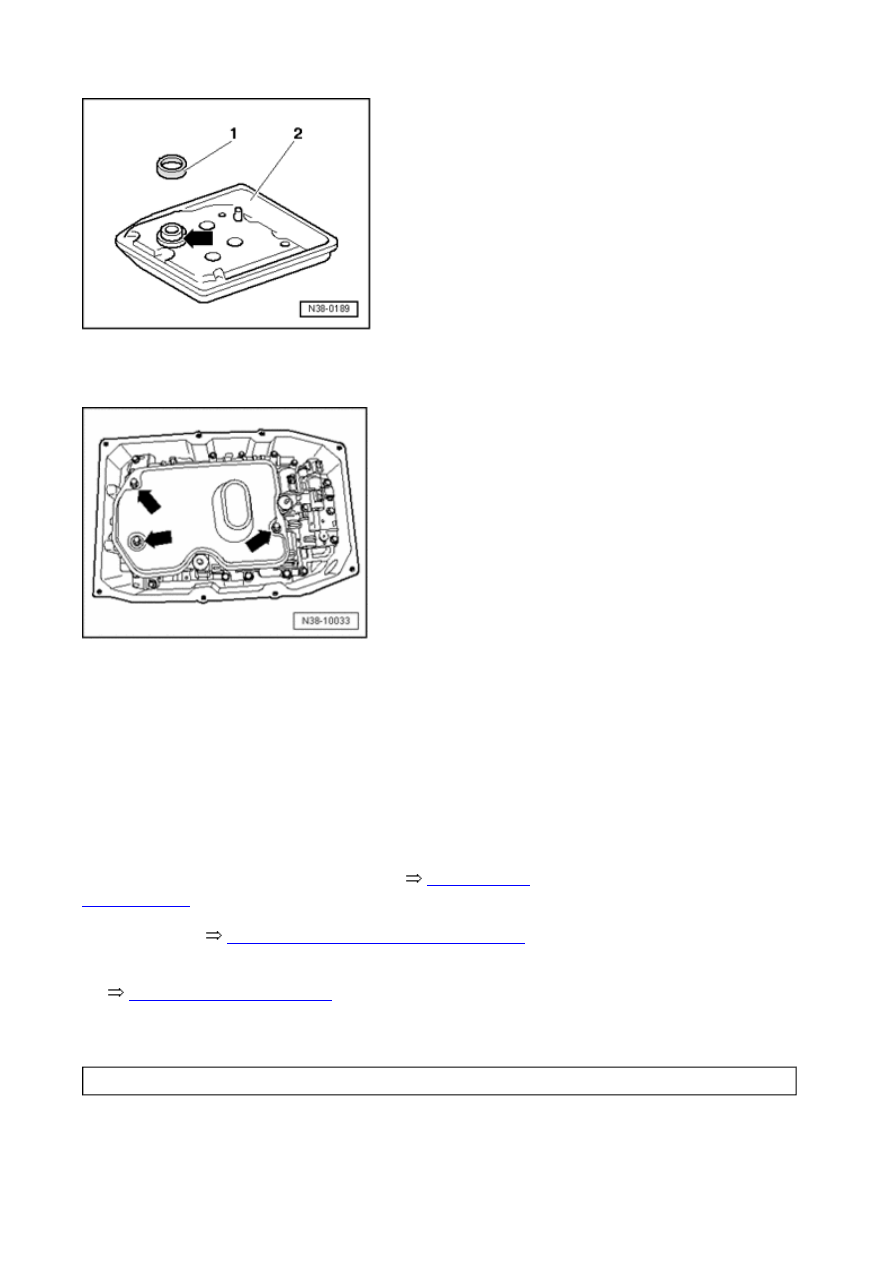

- Push new gasket - 1  - onto intake flange of oil strainer -
2   -  and wet with ATF.

The threaded studs M6 x 70 - arrows  - are needed to
guide oil strainer.

-  Install 3 threaded studs M6 x 70 into valve body by
hand.

- Place oil strainer onto threaded studs .

-  Carefully press suction collar into opening at valve body
up to stop.

- Fasten bolts - arrows  - for oil strainer

38-2, Torque

specifications

 .

-  Install oil pan



38-1, Oil pan, removing and installing

 .

-  After installation, fill with ATF, check ATF level, and top
off

37-4, ATF level, checking

 .

Torque specifications

Oil strainer bolts

10 Nm

Page 2 / 2

ATF strainer, removing and installing

WWW.ALL-TRANS.BY





Automatic Transmission Hydraulic Pressure Sensor
1 G193  and Automatic Transmission Hydraulic
Pressure Sensor 2 G194  , removing and installing

Senders must always be replaced together.

Special tools, testers and auxiliary items required

„

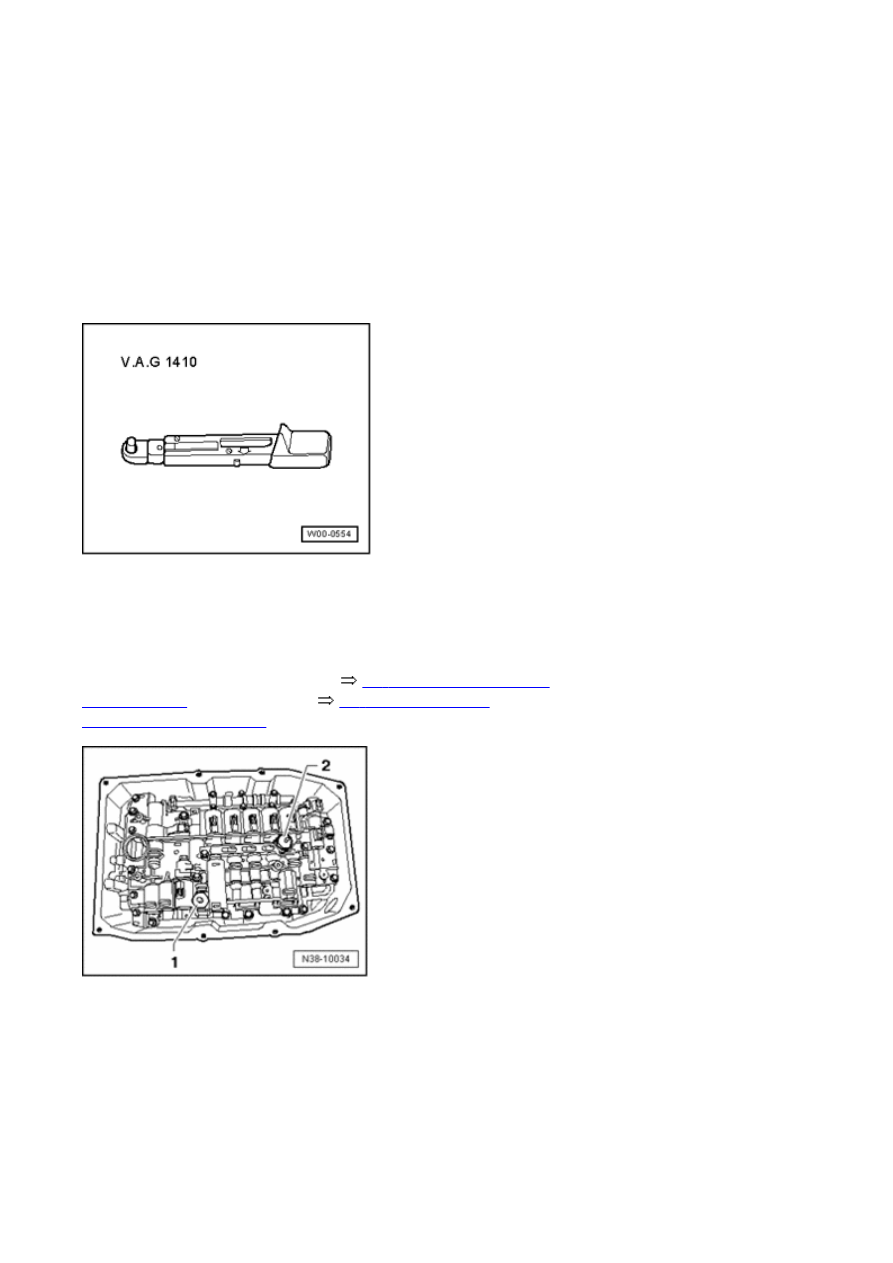

Torque wrench V.A.G 1410



Removing



- If still installed, remove oil pan



38-1, Oil pan, removing

and installing

 and oil strainer



38-2, ATF strainer,

removing and installing

 .

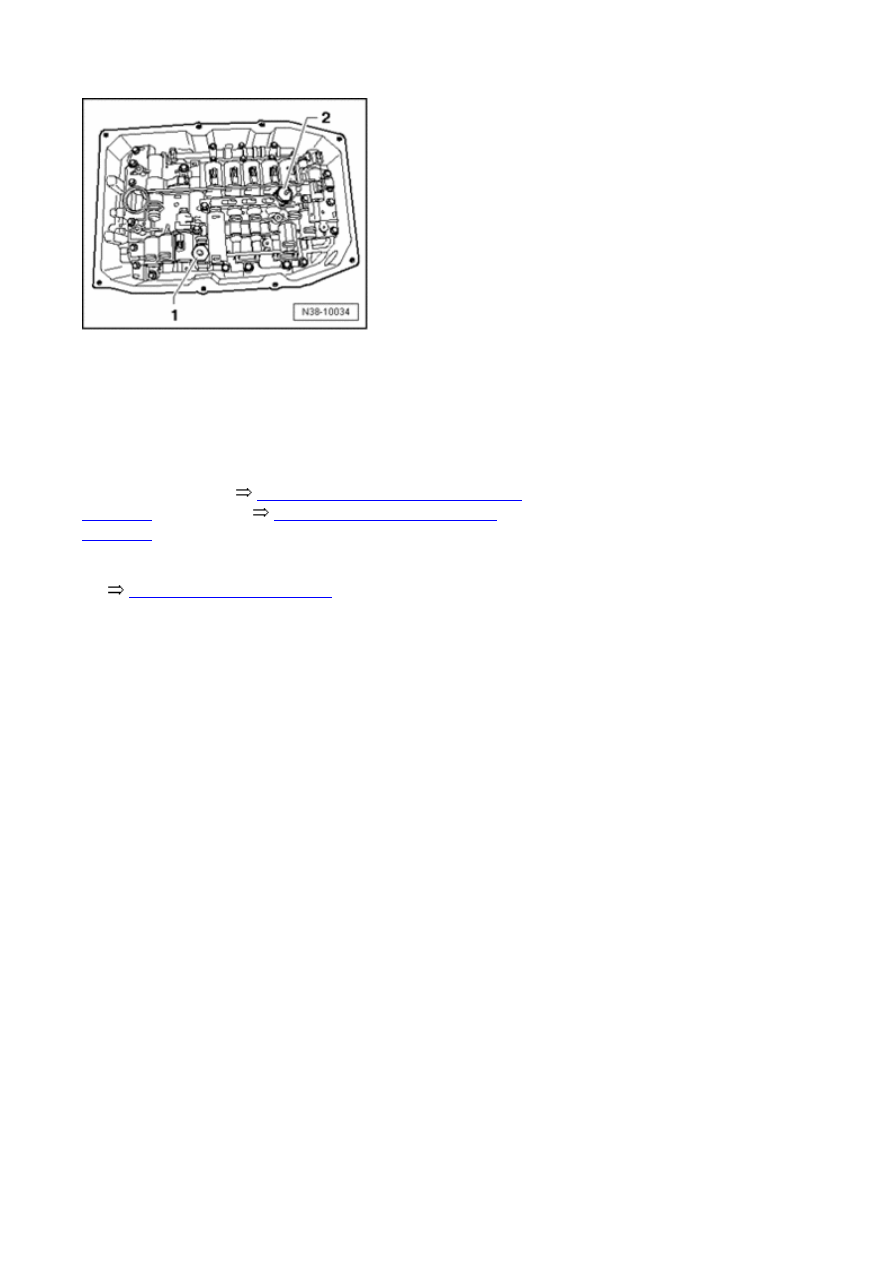

-  Carefully pull off connectors for Automatic Transmission
Hydraulic Pressure Sensor 1 G193  - 1  - and Automatic
Transmission Hydraulic Pressure Sensor 2 G194  - 2 - .

-  Remove both sensors.

Installing



Sensors must always be replaced together.

Page 1 / 2

Automatic Transmission Hydraulic Pressure Sensor 1 G193 and Automatic Transmissi...

Volkswagen Technical Site:   http://volkswagen.msk.ru   http://vwts.info   http://vwts.ru

            огромный архив документации по автомобилям Volkswagen, Skoda, Seat, Audi

WWW.ALL-TRANS.BY



-  Install 2 new sensors and fasten to 5 Nm.

-  Push connectors onto sensors - 1  - and - 2  - up to
stop.

The connectors must engage.

-  Install oil strainer



38-2, ATF strainer, removing and

installing

 and oil pan



38-1, Oil pan, removing and

installing

 .

-  After installation, fill with ATF, check ATF level, and top
off

37-4, ATF level, checking

 .

Page 2 / 2

Automatic Transmission Hydraulic Pressure Sensor 1 G193 and Automatic Transmissi...

WWW.ALL-TRANS.BY

38 - 4

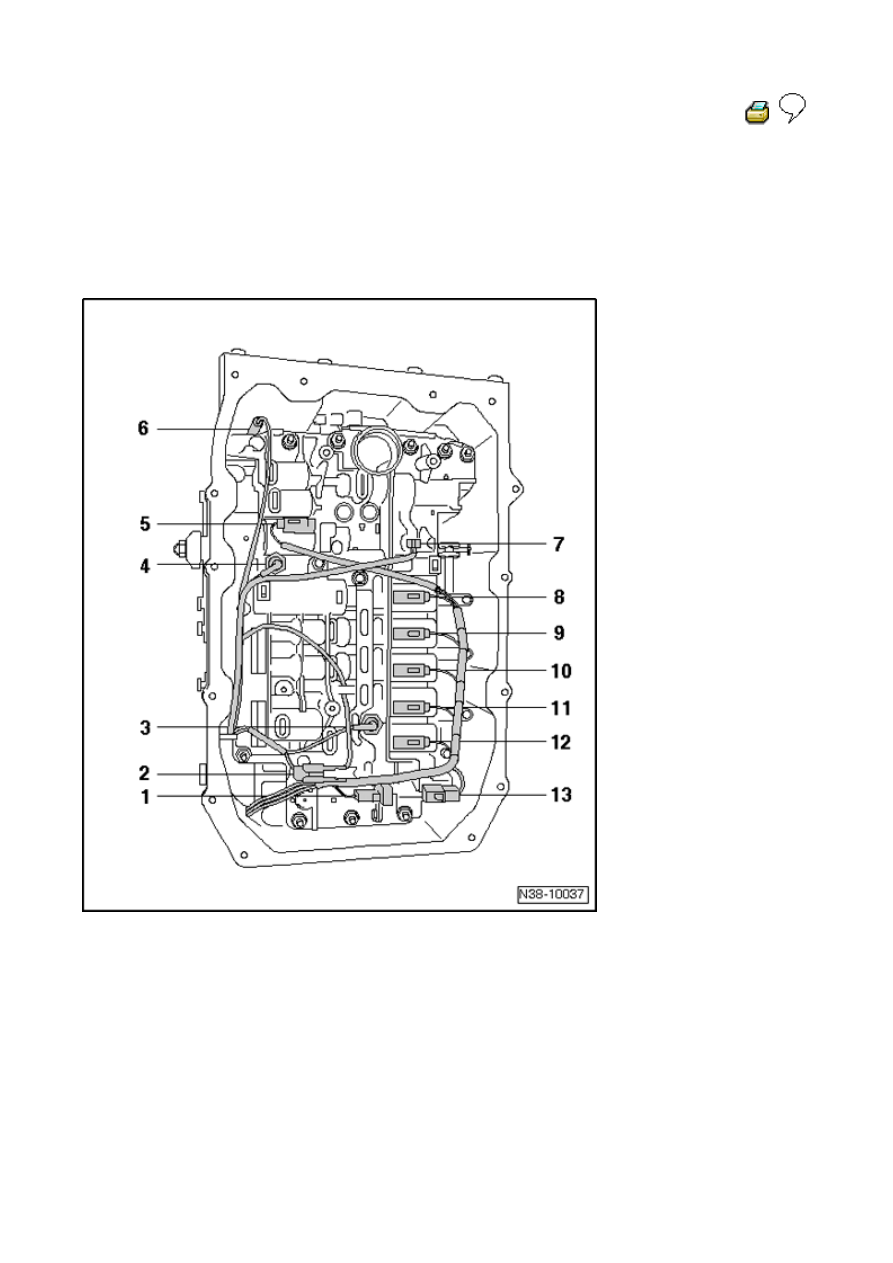

Valve body, overview

The valve body and/or the lines can be removed and
installed with transmission either removed or
installed.

„

Solenoid Valve 2 N89

„

Connector for Transmission
Output Speed (RPM) Sensor
G195

„

The sensor is located behind
valve body



„

Automatic Transmission
Hydraulic Pressure Sensor 2
G194

Page 1 / 4

Valve body, overview

WWW.ALL-TRANS.BY
