38 - 1







Oil pan, removing and installing

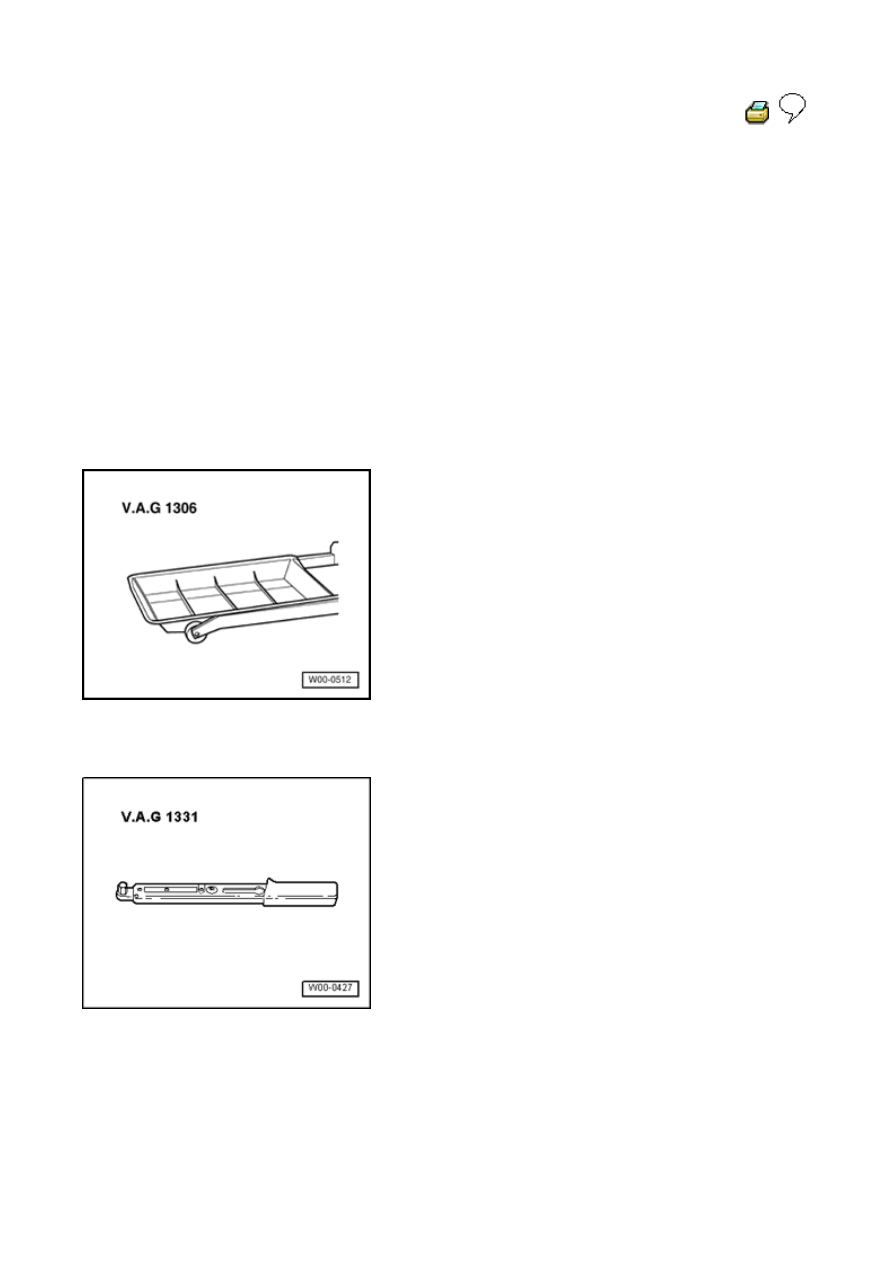

Special tools, testers and auxiliary items required

„

Drip tray V.A.G 1306



„

Torque wrench V.A.G 1331



Removing



-  Remove noise insulation for transmission.

-  Place drip tray V.A.G 1306   underneath.

Page 1 / 3

Oil pan, removing and installing

WWW.ALL-TRANS.BY

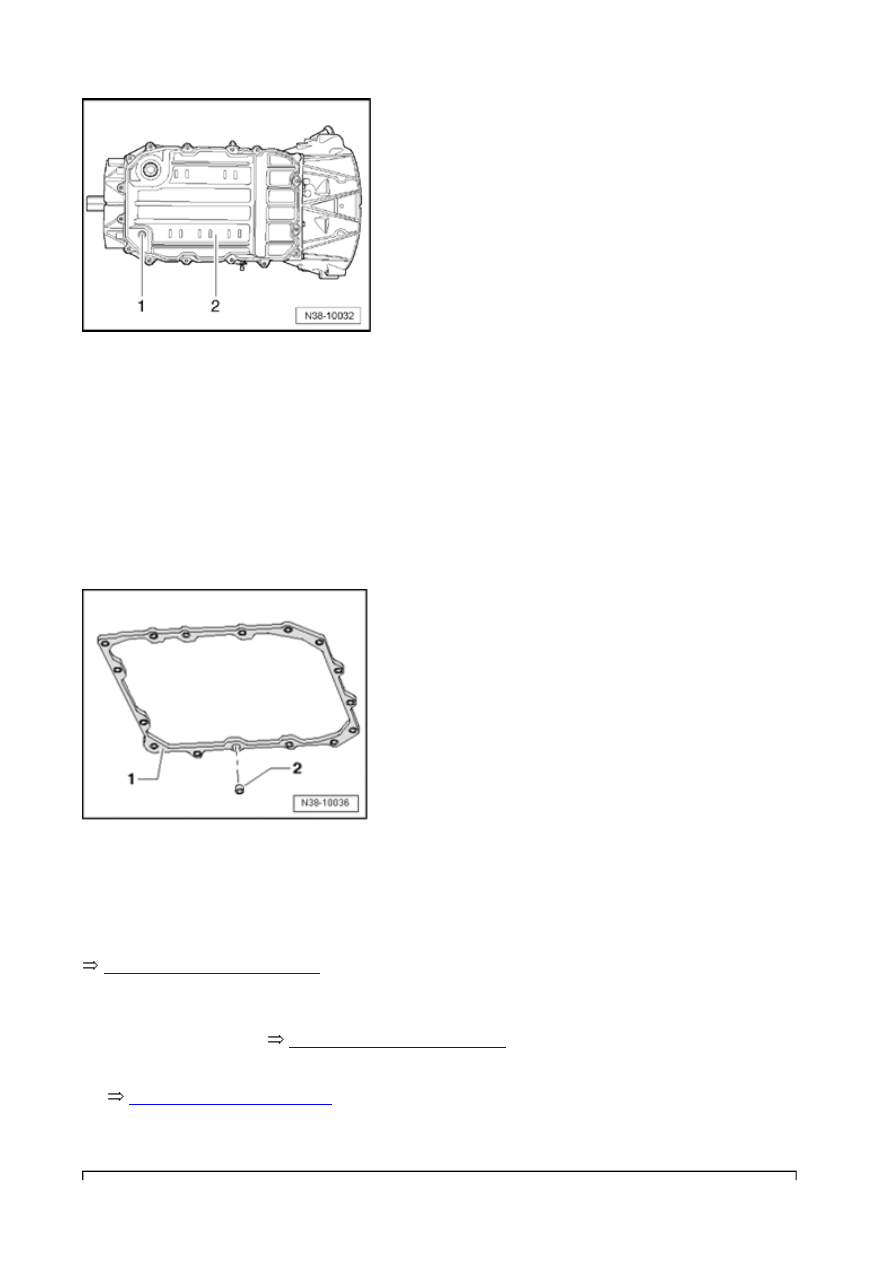

-  Remove oil drain plug - 1  - .

- Drain ATF.

-  Loosen oil pan bolts - 1  - in a diagonal pattern and
remove oil pan.

Installing



-  Clean all magnets in depressions of the oil pan. Ensure
that the magnets are in full contact with the oil pan.

-  Install oil pan with a new gasket - 1 - .

- Make sure that all spacer sleeves - 2  - are located
completely in the new gasket - 1  - .

-  Tighten oil pan bolts in diagonal sequence and in stages



38-1, Torque specifications

 .

Replace drain plug seal.

-  Tighten oil drain plug



38-1, Torque specifications

 .

-  After installation, fill with ATF, check ATF level, and top
off

37-4, ATF level, checking

 .

Torque specifications

Page 2 / 3

Oil pan, removing and installing

WWW.ALL-TRANS.BY

Drain plug

28 Nm

Oil pan bolts

8 Nm

Page 3 / 3

Oil pan, removing and installing

WWW.ALL-TRANS.BY

38 - 2







ATF strainer, removing and installing

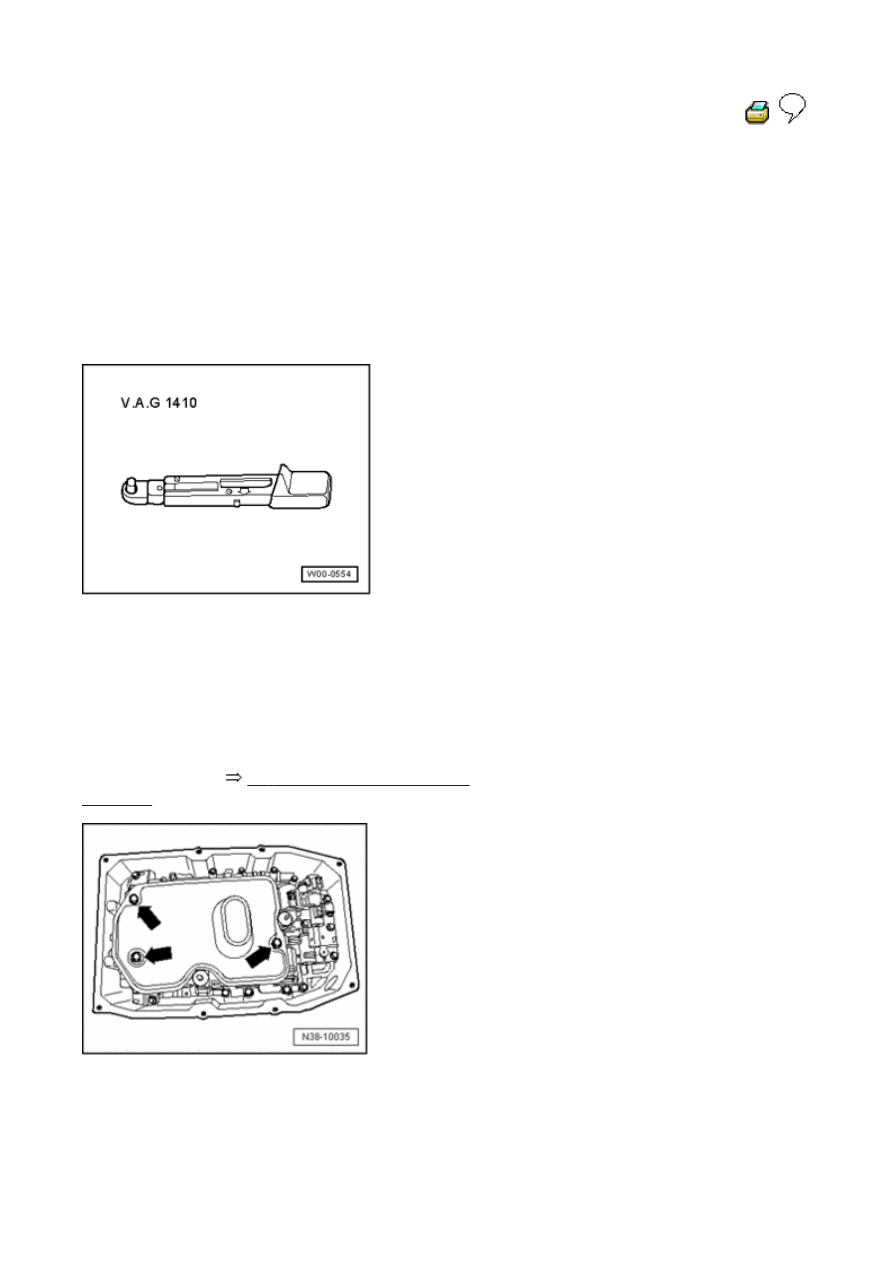

Special tools, testers and auxiliary items required

„

Torque wrench V.A.G 1410



„

3 threaded studs M6 x 70 (self-fabrication)



Removing



-  Remove oil pan



38-1, Oil pan, removing and

installing

 .

- Remove bolts - arrows  - .

-  Pull off oil strainer.

Installing



Page 1 / 2

ATF strainer, removing and installing
