Volkswagen 01M Transmission. Manual - part 52

COMPLETED F1 SPRAG ASSEMBLY

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

Figure 110

Figure 112

Figure 111

413

414

"SQUARE CUT"

POCKET

"SQUARE CUT"

POCKET

"CHAMFERED"

POCKET

"CHAMFERED"

POCKET

411

408

409

411

410

412

INSTALLED

END BEARING

RETAINER

INSTALLED

END BEARING

RETAINER

410 SPRAG END BEARING RETAINERS (2 REQUIRED).
411 SPRAG END BEARINGS ( 2 REQUIRED).
412 F1 SPRAG AND CAGE ASSEMBLY.
413 F1 SPRAG OUTER RACE.

413 F1 SPRAG OUTER RACE.
414 F1 SPRAG INNER RACE.

408 OUTER RACE TO CASE SNAP RING (1.19 MM (.047") THICK).
409 INNER RACE TO PLANE T SNAP RING (1.2 MM (.047") THICK).

COMPONENT REBUILD (CONT'D)

F1 SPRAG ASSEMBLY (CONT'D)

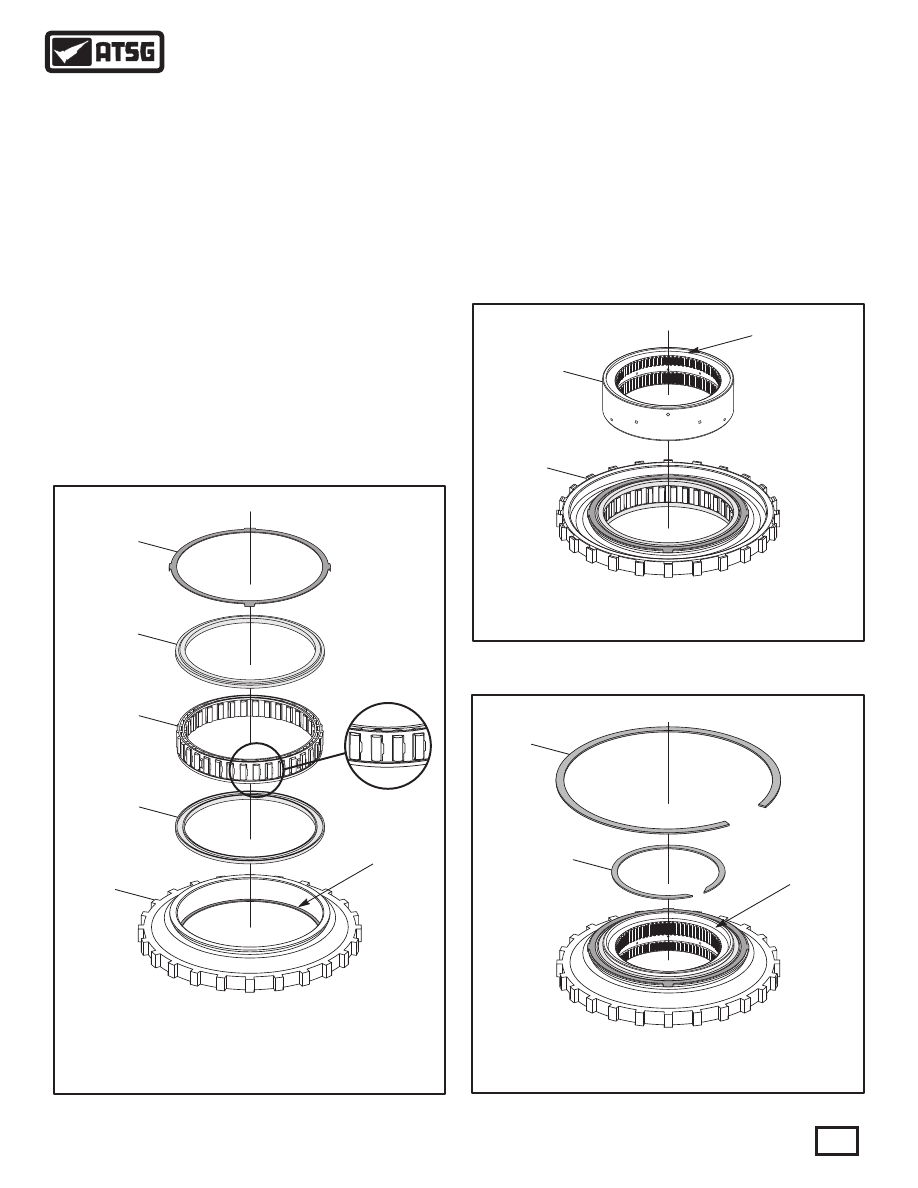

     5. Turn the outer race and retainer over, as shown
             in Figure 110, and install sprag end bearing with
groove facing up.
     6. Install the F1 sprag assembly with lip facing
             down and "windows" to the right, as shown in
Figure 110.
     7. Install the second end bearing with the groove
             facing down, as shown in Figure 110.
     8. Install the second end bearing retainer, as shown
             in Figure 110, by snapping into place and ensure
that it is fully seated.
     9. Turn F1 sprag assembly over again and install
             the F1 sprag inner race with the "square cut"
             pocket facing up, as shown in Figure 111.
Note: With the F1 sprag sprag assembly in this
             position, sprag inner race will freewheel in a
counter-clockwise direction.

10. Turn the F1 sprag assembly over once again, as
shown in Figure 112, which is the direction it is
installed into transmission.
Note: In this position sprag inner race should
freewheel clockwise and "chamfered" pocket
shoud be facing up.
11. Set the completed F1 sprag assembly aside for
the final assembly process.

Component Rebuild

Continued on Page 68

WWW.ALL-TRANS.BY

REAR GEAR TRAIN AND ASSOCIATED PARTS, EXPLODED VIEW

401

402

403

404

405

406

407

400

450

451

452

453

415

416

400 NUMBER 7 THRUST BEARING.
401 NUMBER 7 THRUST BEARING RACE.
402 K1 CLUTCH HUB.
403 NUMBER 8 THRUST BEARING RACE.
404 NUMBER 8 THRUST BEARING.
405 L ARGE REAR SUN GEAR AND SHELL ASSEMBLY.
406 NUMBER 9 THRUST BEARING.

407 NUMBER 9 THRUST BEARING RACE.
415 SPLIT "WAVE" SPRING.
416 SPRAG INNER RACE SPACER (6 TEETH ON INSIDE DIAMETER).
450 SMALL REAR SUN GEAR AND SHAFT ASSEMBLY.
451 NUMBER 10 THRUST BEARING RACE.
452 NUMBER 10 THRUST BEARING.
453 REAR PL ANETARY CARRIER ASSEMBLY.

450 SMALL REAR SUN GEAR AND SHAFT ASSEMBLY.
451 NUMBER 10 THRUST BEARING RACE.

SUN GEARS AND THRUST BEARINGS

COMPONENT REBUILD (CONT'D)

Continued on Page 69

Figure 113

Figure 114

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

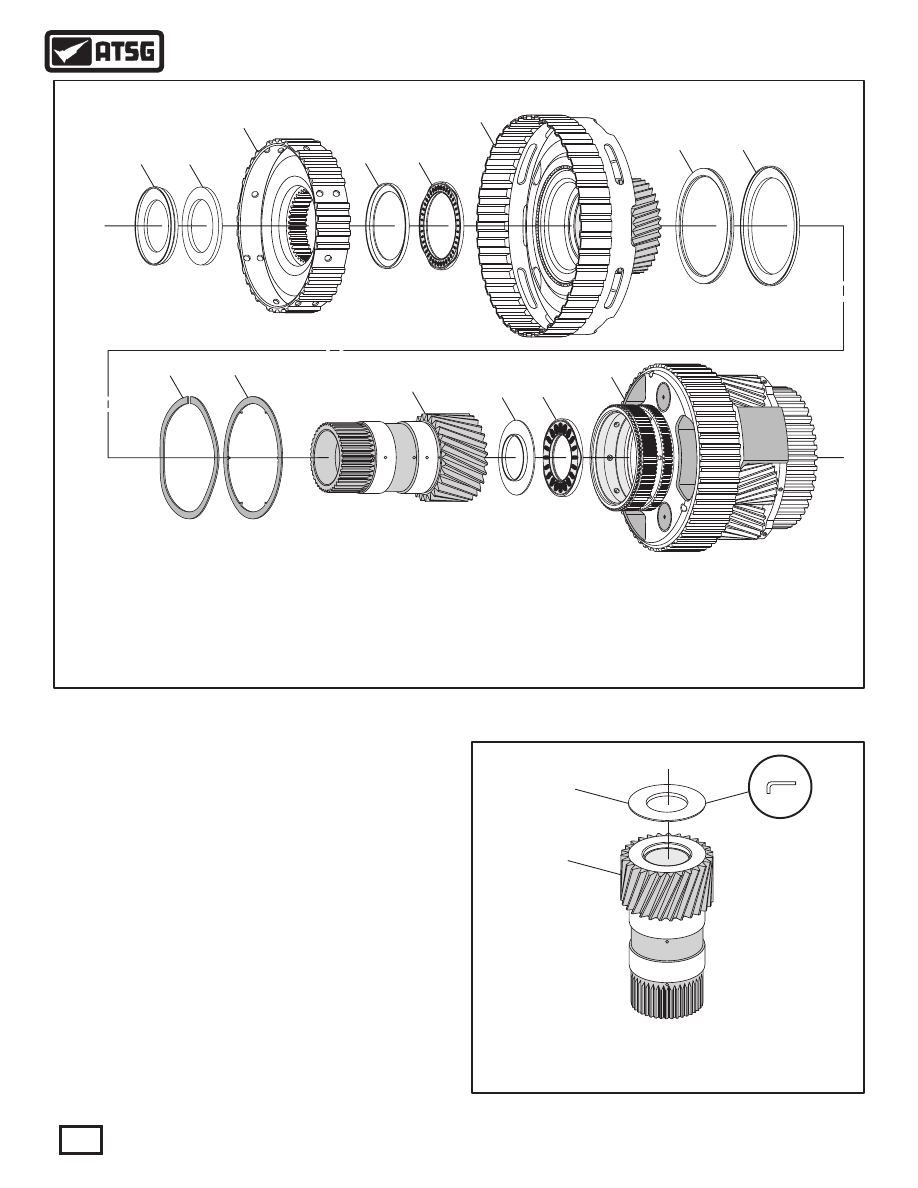

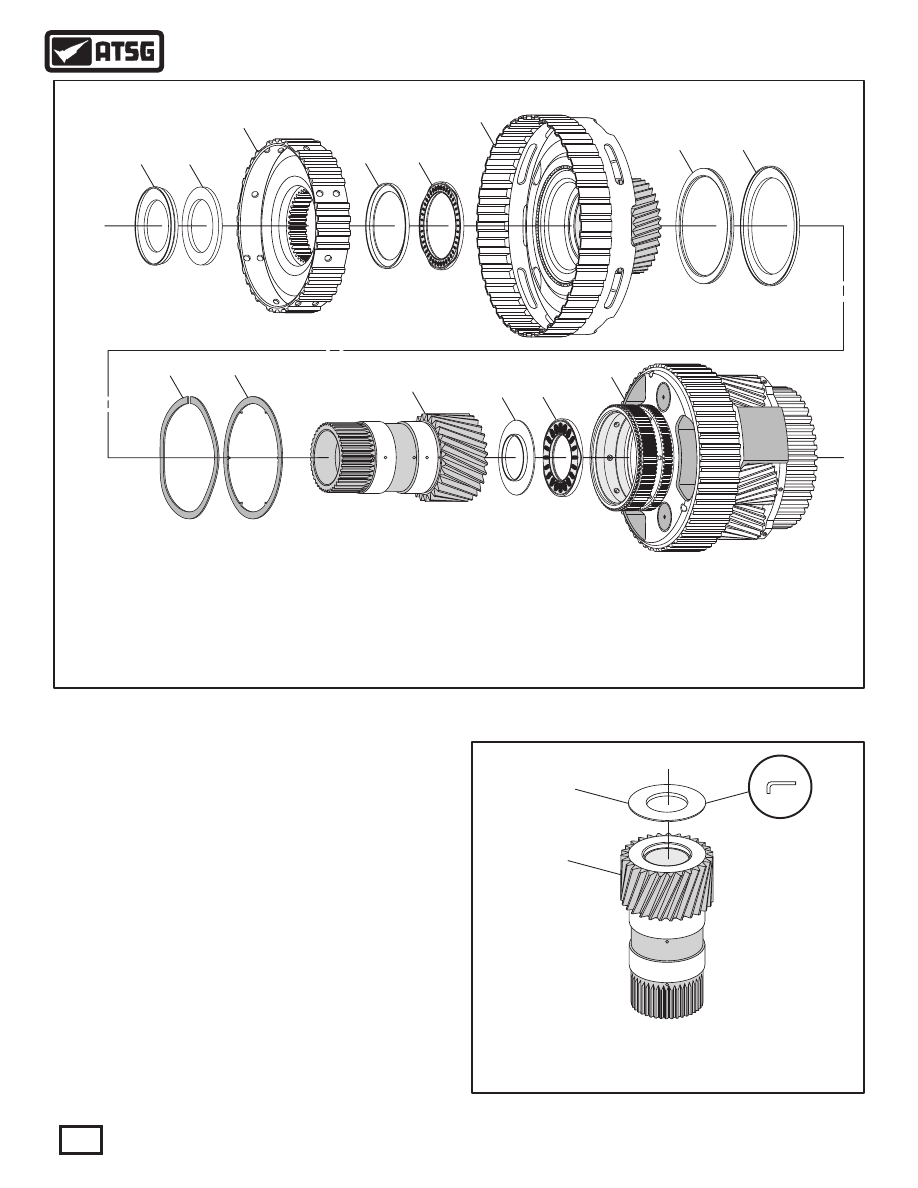

     1. Exploded view of sun gears and associated parts
is shown in Figure 113.
     2. Clean all sun gear parts thoroughly and dry with
compressed air.
     3. Inspect all sun gear parts thoroughly for any
wear and/or damage, replace as necessary.
     4. Install the number 10 thrust bearing race onto
             the small sun gear, as shown in Figure 114, and
retain with small amount of Trans-Jel®.
     5. Set the small sun gear assembly aside for the
final assembly process (See Figure 115).

WWW.ALL-TRANS.BY

403

404

405

403 THRUST BEARING

RACE INSTALLS ON

K1 CLUTCH HUB

403 THRUST BEARING

RACE INSTALLS ON

K1 CLUTCH HUB

403 NUMBER 8 THRUST BEARING RACE.
404 NUMBER 8 THRUST BEARING.
405 L ARGE REAR SUN GEAR AND SHELL ASSEMBLY.

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

406

405

407

407 THRUST BEARING

RACE INSTALLS ON

REAR PLANETARY

DURING ASSEMBLY

407 THRUST BEARING

RACE INSTALLS ON

REAR PLANETARY

DURING ASSEMBLY

405 L ARGE REAR SUN GEAR AND SHELL ASSEMBLY.
406 NUMBER 9 THRUST BEARING.
407 NUMBER 9 THRUST BEARING RACE.

Figure 115

Figure 116

Figure 118

Figure 117

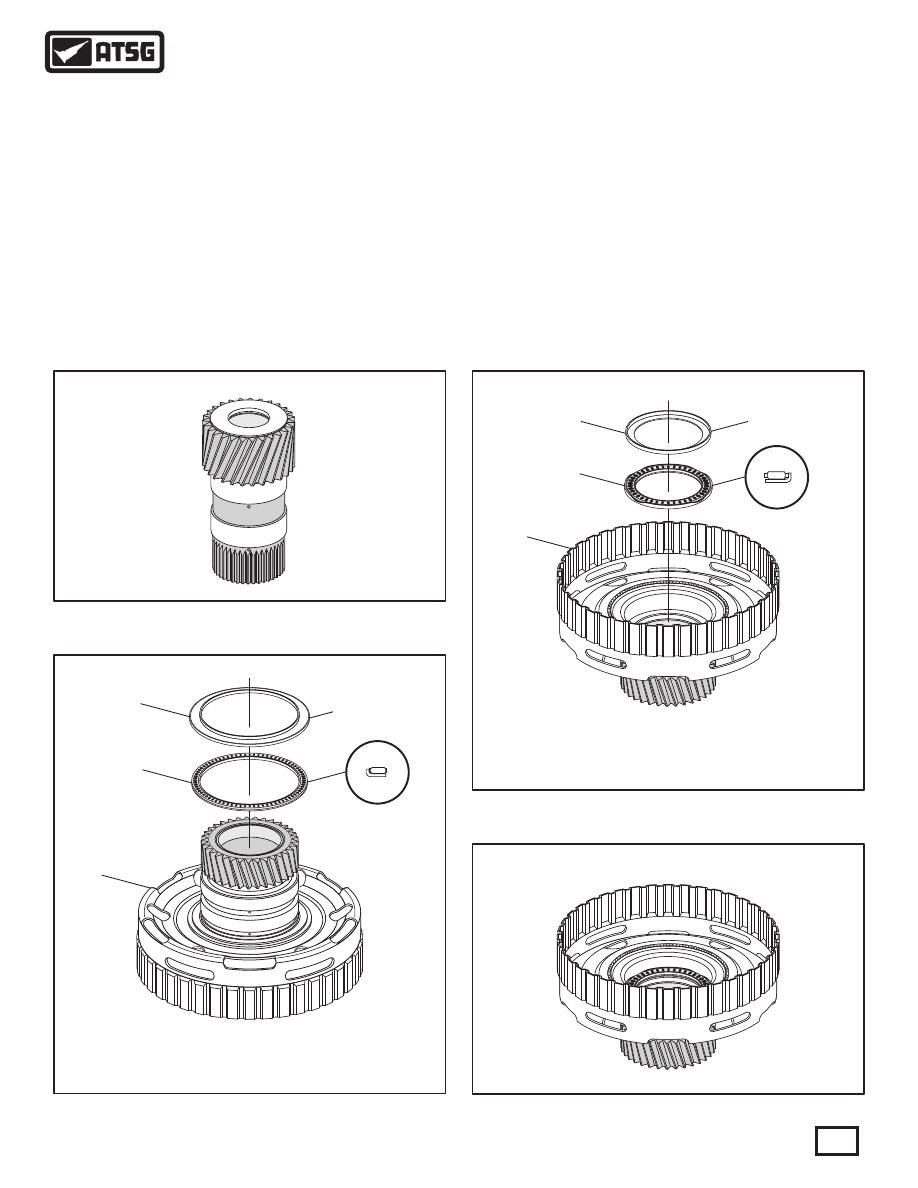

8. Set the completed large sun gear and shell aside
for the final assembly process (See Figure 118).

     6. Install number 9 thrust bearing on sun gear shell,
             with needles facing up, as shown in Figure 116,
retain with Trans-Jel®.
Note: Number 9 thrust bearing race installs on
rear carrier during final assembly process.
     7. Turn sun gear shell over and install number 8
             thrust bearing into sun gear shell with needles
             facing up, as shown in Figure 117, retain with
Trans-Jel®.
Note: Number 8 thrust bearing race installs on
K1 clutch hub (See Figure 119).

COMPLETED LARGE SUN GEAR AND SHELL

SUN GEARS AND THRUST BEARINGS (CONT'D)

COMPONENT REBUILD (CONT'D)

COMPLETED SMALL SUN GEAR

Continued on Page 70

WWW.ALL-TRANS.BY

400 NUMBER 7 THRUST BEARING.
401 NUMBER 7 THRUST BEARING RACE.
402 K1 CLUTCH HUB.

401

402

400 THRUST BEARING

INSTALLED ON K1

CLUTCH HOUSING

400 THRUST BEARING

INSTALLED ON K1

CLUTCH HOUSING

400

Figure 119

Figure 120

Figure 121

COMPLETED K1 CLUTCH HUB

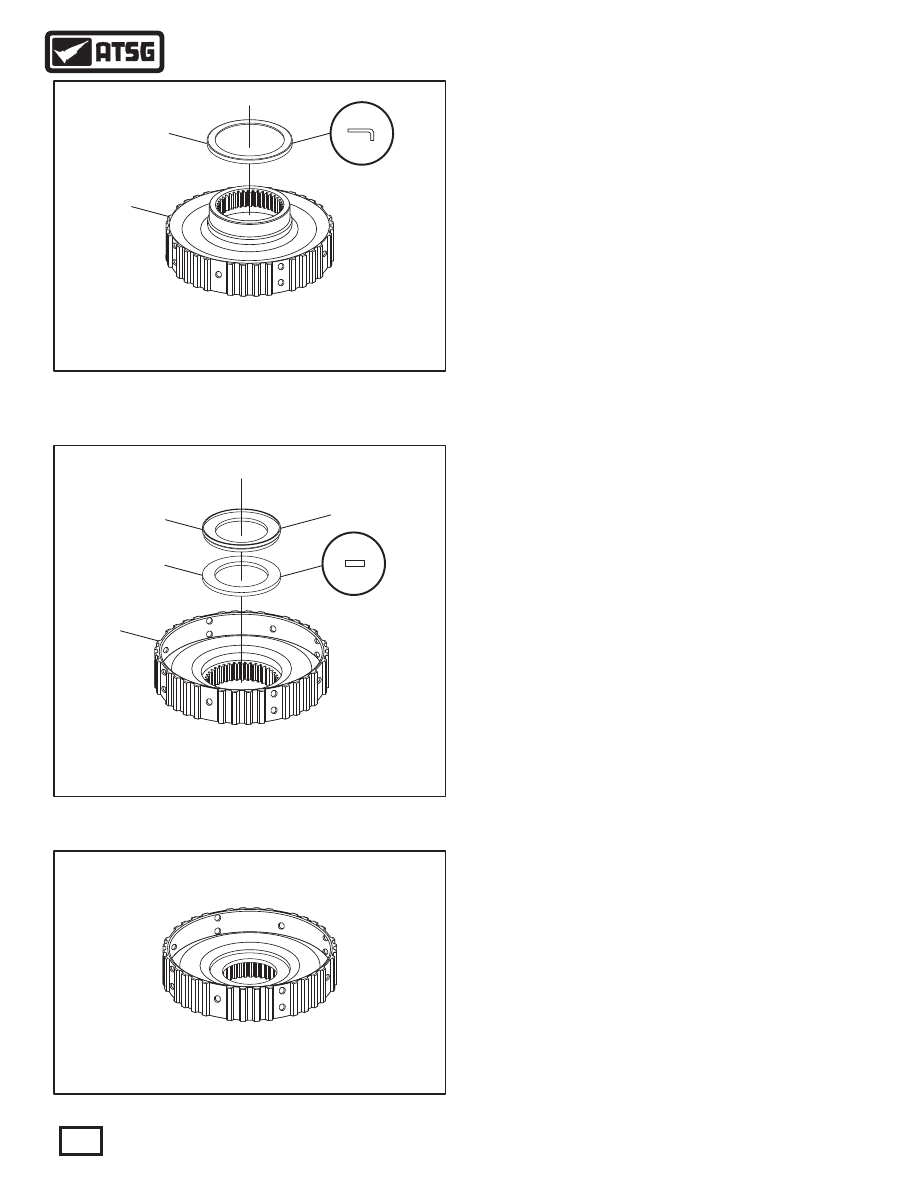

     9. Install number 8 thrust bearing race on the back
             side of K1 clutch hub, as shown in Figure 119,
and retain with Trans-Jel®.
10. Turn K1 clutch hub over and install number 7
             thrust bearing race, as shown in Figure 120, and
retain with Trans-Jel®.
Note: Number 7 thrust bearing is installed on
back side of K1 clutch housing.
11. Set the K1 clutch hub assembly aside for the
final assembly process (See Figure 121).

SUN GEARS AND THRUST BEARINNGS (CONT'D)

COMPONENT REBUILD (CONT'D)

402

403

402 K1 CLUTCH HUB.
403 NUMBER 8 THRUST BEARING RACE.

Component Rebuild

Continued on Page 71

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

WWW.ALL-TRANS.BY
