COMPONENT REBUILD (CONT'D)

OUTPUT SHAFT/REAR RING GEAR ASSEMBLY (CONT'D)

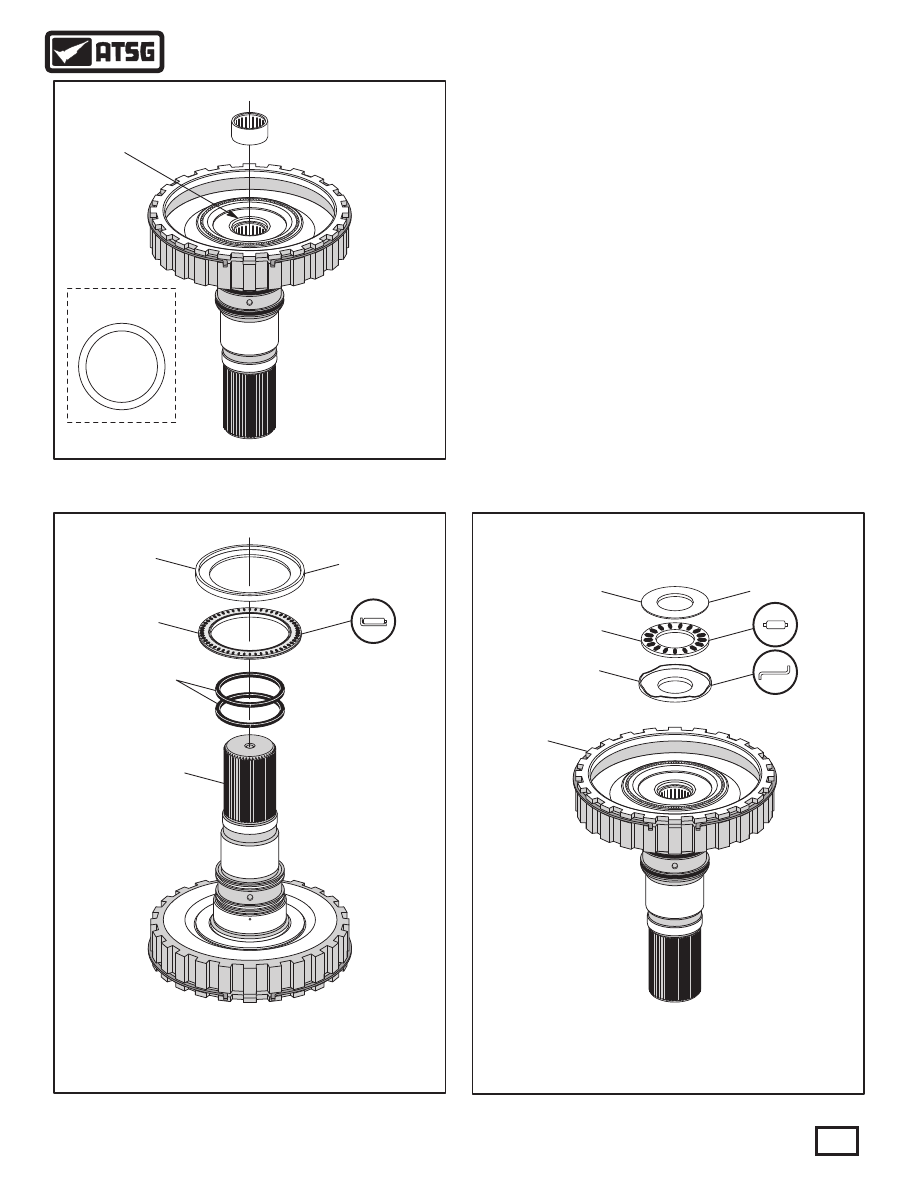

     4. If the caged needle bearing in output shaft needs
             replacement, try one of the local bearing supply
       houses.  Number DB502405W is on the bearing,
       as shown in Figure 100.
     5. Install 2 new sealing rings on the output shaft, as
       shown in Figure 101.
     6. Install the number 13 thrust bearing on output
             shaft, as shown in Figure 101, retain with small
       amount of Trans-Jel®.
     7. Turn output shaft over and install the number 12
       thrust bearing rear race and number 12 thrust
             bearing, as shown in Figure 102, retain with a
       small amount of Trans-Jel®.
       Note: The number 12 thrust bearing front race
             is installed on the K2 clutch housing.

Continued on Page 64

63

Copyright © 2010 ATSG

Copyright © 2010 ATSG

Copyright © 2010 ATSG

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

Figure 100

Figure 101

Figure 102

WWW.ALL-TRANS.BY

SNAP RING OPENING

MUST BE IN ONE OF

THE WIDE SLOTS

SNAP RING OPENING

MUST BE IN ONE OF

THE WIDE SLOTS

64

Copyright © 2010 ATSG

Copyright © 2010 ATSG

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

Figure 103

Figure 104

OUTPUT SHAFT/REAR RING GEAR ASSEMBLY (CONT'D)

COMPONENT REBUILD (CONT'D)

Component Rebuild

Continued on Page 65

 458  NUMBER 12 THRUST BEARING FRONT RACE.
 462  COMPLETED 4WD OUTPUT SHAFT.
 501  COMPLETED K2 CLUTCH HOUSING.

501

462

458

NO. 12 THRUST

BEARING AND

REAR RACE

NO. 12 THRUST

BEARING AND

REAR RACE

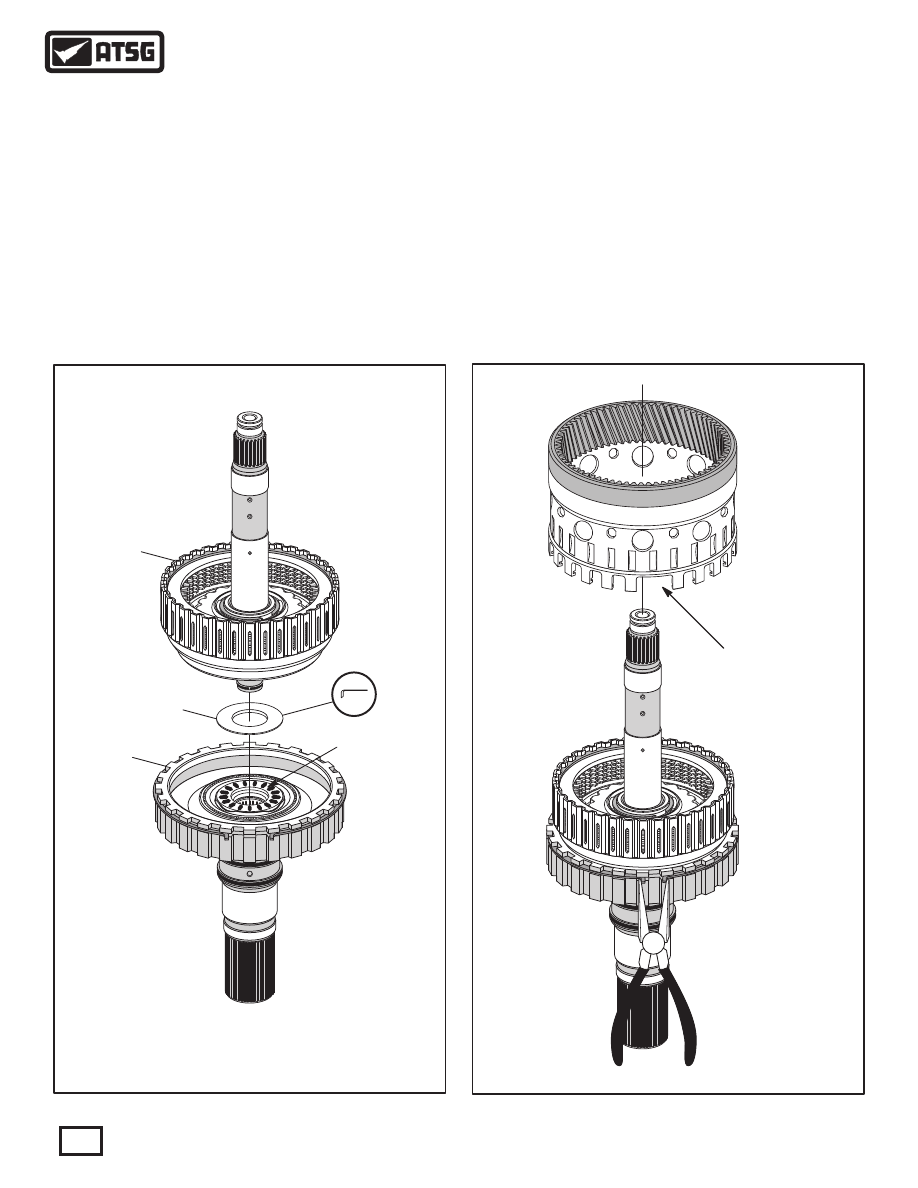

     8. Ensure that the number 12 thrust bearing front
             race is still stuck to the K2 clutch housing, as
       shown in Figure 103.
     9. Install the completed K2 clutch housing onto the
             output shaft, as shown in Figure 103.
 10. Install the rear planetary ring gear, with one of
             wide slots toward the opening in the snap ring,
             as shown in Figure 104, and onto the tabs on the
       output shaft.

 11. Squeeze the snap ring together using needle nose
             pliers, as shown in Figure 104, and tap ring gear
       with a small hammer if necessary.
       Note: Ensure that snap ring is fully seated in
             the internal groove of the rear ring gear.
 12. Set completed output shaft, rear planetary ring
             gear and K2 clutch housing assembly aside for
       final assembly process  (See Figure 105).

WWW.ALL-TRANS.BY

65

Copyright © 2010 ATSG

Copyright © 2010 ATSG

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

REAR PLANETARY ASSEMBLY

COMPONENT REBUILD (CONT'D)

Copyright © 2010 ATSG

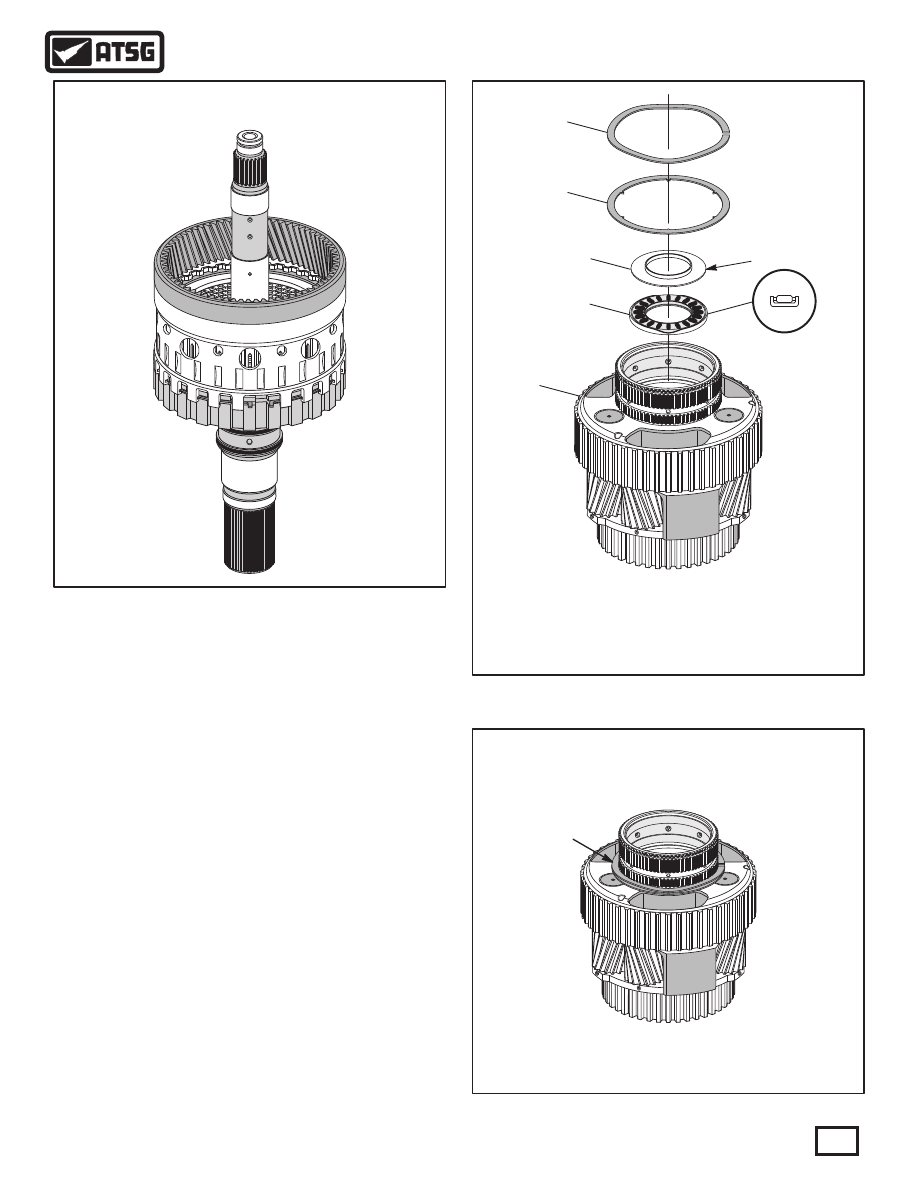

COMPLETED OUTPUT SHAFT, REAR PLANETARY

RING GEAR AND K2 CLUTCH HOUSING

COMPLETED REAR PLANETARY CARRIER

 415  SPLIT "WAVE" SPRING.
 416  SPRAG INNER RACE SPACER   (6 TEETH ON INSIDE DIAMETER).
 451  NUMBER 10 THRUST BEARING RACE.
 452  NUMBER 10 THRUST BEARING.
 453  REAR PL ANETARY CARRIER ASSEMBLY.

451

451 THRUST BEARING

RACE WILL BE INSTALLED

ON SMALL SUN GEAR

451 THRUST BEARING

RACE WILL BE INSTALLED

ON SMALL SUN GEAR

SPRAG RACE
SPACER AND

WAVE SPRING

SPRAG RACE
SPACER AND

WAVE SPRING

452

453

415

416

Figure 105

Figure 106

Figure 107

     1. Clean all rear planetary carrier parts thoroughly
             and dry with compressed air   (See Figure 108).
     2. Inspect all rear planetary carrier parts thoroughly
             for any wear and/or damage, and replace parts
       as necessary.
   3. CAUTION: At the time of this printing, there
             are not any new "hard parts" available from
             the manufacturer for this unit.   The only source
       will be used aftermarket suppliers.
     4. Install number 10 thrust bearing into bottom of
             planetary carrier with the needles facing up, as
       shown in Figure 106.
       Note: Number 10 thrust bearing race will be
       installed on small sun gear.
     5. Install the sprag inner race spacer, as shown in
       Figure 106.
     6. Install the split "wave" spring on top of sprag
             inner race spacer, as shown in Figure 106.
     7. Set the completed rear planetary carrier aside
       for the final assembly process.

Continued on Page 66

WWW.ALL-TRANS.BY

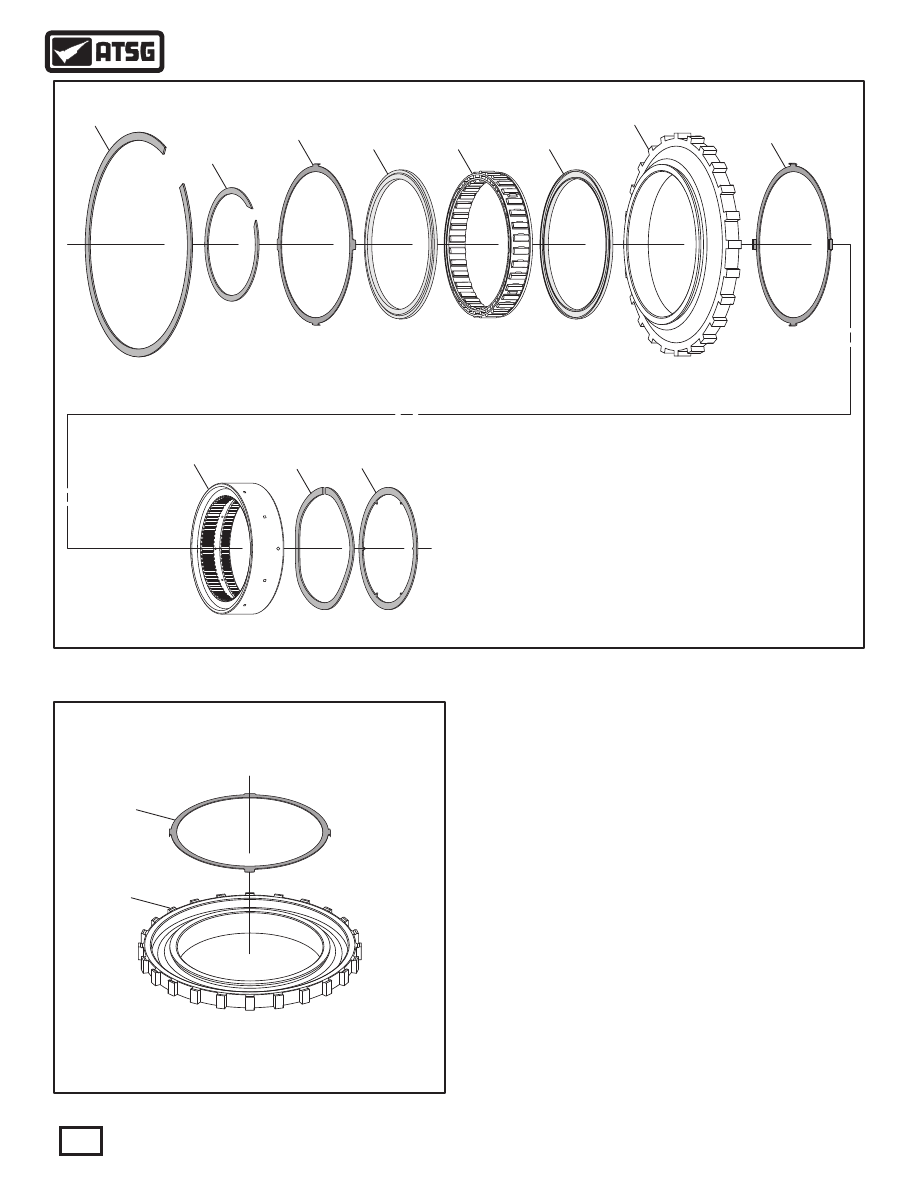

F1 SPRAG AND RELATED PARTS, EXPLODED VIEW

408

409

410

411

410

412

411

413

413

414

415

416

410

 408  OUTER SPRAG RACE TO CASE RETAINING SNAP RING.
         (1.19 MM (.047") THICK)
 409  INNER SPRAG RACE TO REAR PLANET RETAINING SNAP RING.
         (1.19 MM (.047") THICK)
 410  SPRAG END BEARING RETAINERS   (2 REQUIRED).
 411  SPRAG END BEARINGS   ( 2 REQUIRED).
 412  F1 SPRAG AND CAGE ASSEMBLY.
 413  F1 SPRAG OUTER RACE.
 414  F1 SPRAG INNER RACE.
 415  SPLIT "WAVE" SPRING.
 416  SPRAG INNER RACE SPACER   (6 TEETH ON INSIDE DIAMETER).

 410  SPRAG END BEARING RETAINERS   (2 REQUIRED).
 413  F1 SPRAG OUTER RACE.

66

Copyright © 2010 ATSG

Copyright © 2010 ATSG

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

Figure 108

Figure 109

COMPONENT REBUILD (CONT'D)

F1 SPRAG ASSEMBLY
     1. Disassemble the complete  F1 sprag assembly
       using Figure 108 as a guide.
     2. Clean all F1 sprag assembly parts thoroughly
       and dry with compressed air.
     3. Inspect all F1 sprag assembly parts thoroughly
             for any wear and/or damage, and replace parts
       as necessary.
       Caution: At the time of this printing, there are
             not any new "hard parts" available from the
       manufacturer for this unit.  The only source
       will be used aftermarket suppliers.
     4. Install one end bearing retainer on the back side
             of the sprag outer race, as shown in Figure 109.

Continued on Page 67

WWW.ALL-TRANS.BY
