AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

The output shaft, the rear planetary ring gear and the
K2 clutch housing are removed as an assembly and
installed as an assembly. The K2 clutch housing
cannot be removed with out seperating the rear
planetary ring gear from the output shaft. They are
connected with an internal snap ring in the output
shaft that locks into an internal groove in the rear
planetary ring gear.

458 NUMBER 12 THRUST BEARING FRONT RACE.
459 NUMBER 12 THRUST BEARING.
460 NUMBER 12 THRUST BEARING REAR RACE.
462 4WD OUTPUT SHAFT AND SNAP RING ASSEMBLY.
501 K2 CLUTCH HOUSING COMPLETE.

501

460

459

458

462

TRANSMISSION DISASSEMBLY (CONT'D)

Figure 69

Figure 70

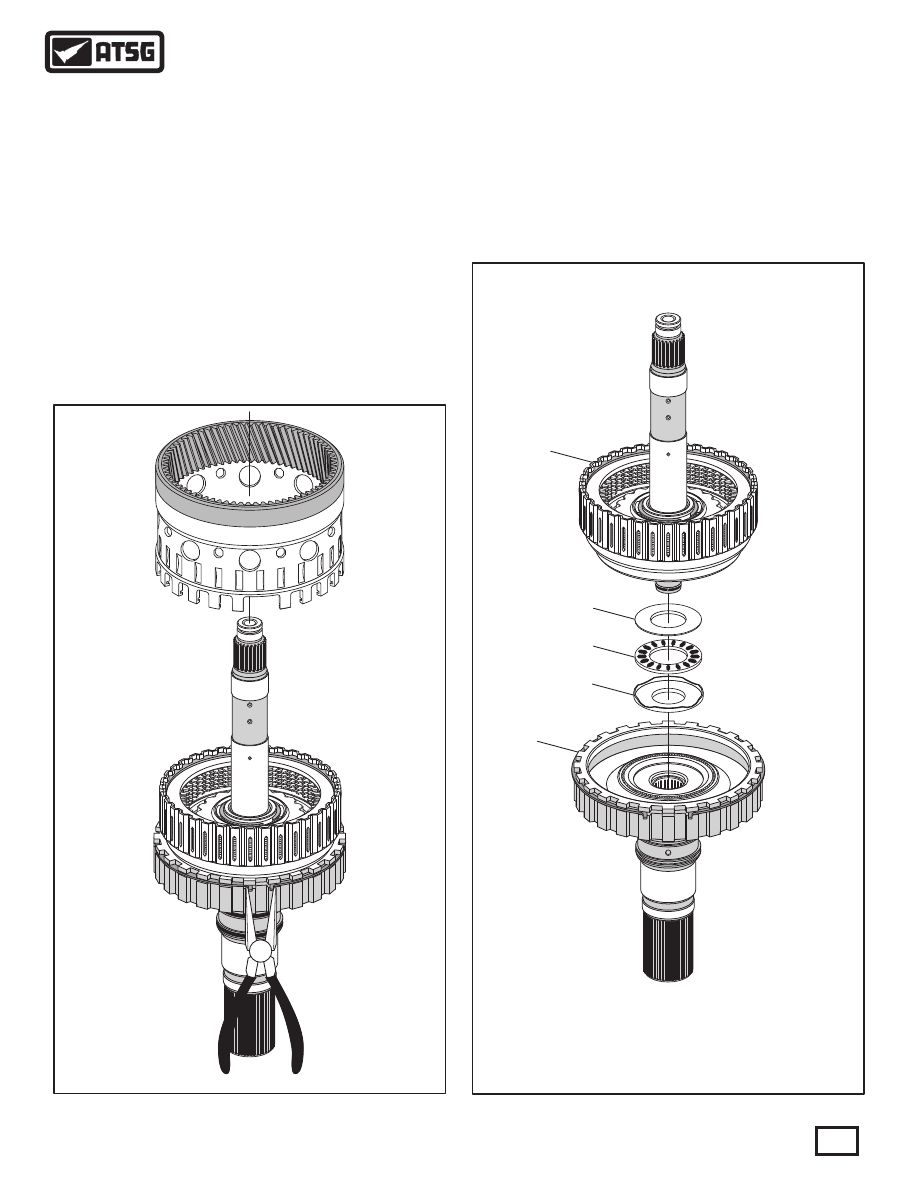

63. Squeeze the internal snap ring together using a
             pair of needle nose pliers, as shown in Figure 69,
             to release the rear planetary ring gear.
Note: An assistant may have to tap on the ring
             gear to move it off the snap ring.

64. Seperate the output shaft, rear planetary ring gear
             and K2 clutch housing, as shown in Figure 70,
             and set aside for the component rebuild process.
Note: The number 12 thrust bearing front race
             may be stuck to the back of K2 clutch housing.

Continued on Page 48

WWW.ALL-TRANS.BY

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

* 20SGL

J00037

465

466

465 NUMBER 13 THRUST BEARING.
466 NUMBER 13 THRUST BEARING RACE.

422 B2 CLUTCH APPLY PISTON RETURN SPRING SNAP RING.
423 B2 CLUTCH APPLY PISTON.

APT

-A

-CASE

"THE DRUM BUDDY" BY ADAPT-A-CASE

20SGL

J00037

SNAP RING

0.80 MM (0.031")

THICKNESS

SNAP RING

0.80 MM (0.031")

THICKNESS

422

423

Figure 73

Figure 72

Figure 71

TRANSMISSION DISASSEMBLY (CONT'D)

Continued on Page 50

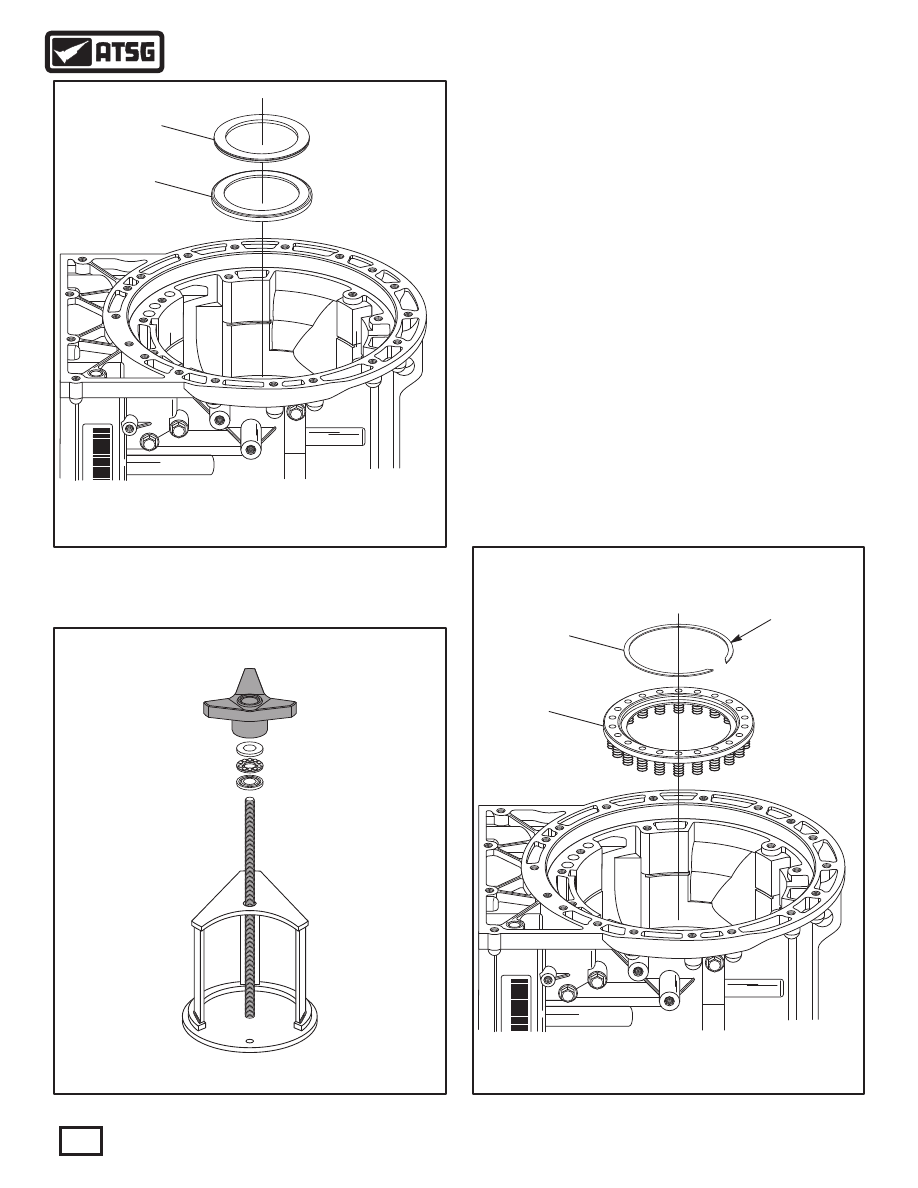

65. Remove the number 13 thrust bearing and thrust
             bearing race, as shown in Figure 71.
Note: Number 13 thrust bearing may be stuck
             to back side of the output shaft.
66. Compress the B2 clutch piston return spring
assembly and remove the snap ring.
Note: This is a deep case and the compressor
from "Adapt-A-Case", shown in Figure 72,
             gave great access to the snap ring and worked
very well.
67. Remove snap ring and return spring assembly
             from the case, as shown in Figure 73.

CAUTION: The parking pawl and all linkage
"must" be removed from the case "before" the
B2 clutch piston can be removed, as the parking
pawl passes through the piston.

WWW.ALL-TRANS.BY

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

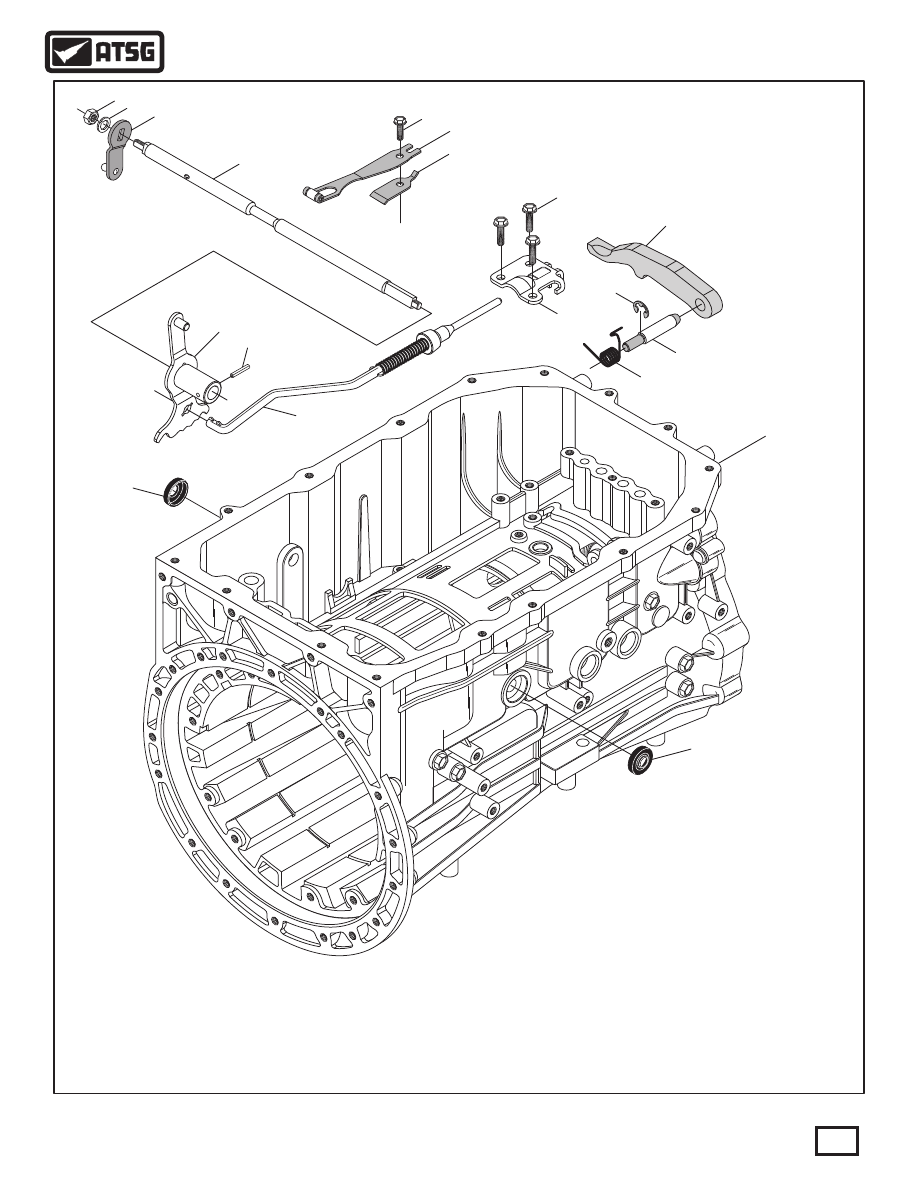

TRANSMISSION CASE EXPLODED VIEW

100

101

102

103

104

105

106

107

108

109

110

111

112

113

116

117

114

115

106 OUTSIDE MANUAL LEVER.
107 LOCKING WASHER.
108 RETAINING NUT.
109 DETENT SPRING RETAINING BOLT 15.45 MM (0.608") LONG.
110 INSIDE DETENT SPRING.
111 INSIDE DETENT SPRING SPACER.
112 ACTUATOR GUIDE RETAINING BOLT, 18.45 MM (0.726") (3 REQ).
113 PARKING ROD ACTUATOR GUIDE.
114 PARKING PAWL RETURN SPRING.
115 PARKING PAWL PIVOT PIN.
116 PARKING PAWL PIVOT PIN "E" CLIP.
117 PARKING PAWL.

100 TRANSMISSION CASE ASSEMBLY.
101 MANUAL SHAFT SEALS (2 REQUIRED).
102 PARKING ROD AND ACTUATOR ASSEMBLY.
103 ROLLED PIN.
104 INSIDE DETENT LEVER.
105 MANUAL SHAFT.

Figure 74

WWW.ALL-TRANS.BY

AUTOMATIC TRANSMISSION SERVICE GROUP

Technical Service Information

* 20SGL

J00037

424

472 B2 CLUTCH APPLY PISTON.

MADE I

N U.S.A

MADE I

N U.S.A

MADE

S.A

MADE

S.A

TRANSMISSION DISASSEMBLY (CONT'D)

Continued on Page 51

68. Remove the "rolled" pin from the inside detent
             lever using a 3/16" punch and hammer.
Note: There is a safety band around the inside
             detent lever that must be removed first.   Only
             way to get it off is to break it and discard it.
             The safety band will not be reused.
69. Remove the manual shaft from the right hand
             side of case, as shown in Figure 74, by sliding it
             out through the inside detent lever and case bore.
70. Remove the inside detent lever and park rod, as
shown in Figure 74.
Note: It is not necessary to remove the inside
detent spring unless damaged.
71. Remove the 3 bolts from park rod guide and
             remove park rod guide, as shown in Figure 74.

72. Rotate park pawl to straight up position which
will relieve the return spring tension.
73. Remove the park pawl return spring, park pawl
             pivot pin and park pawl, as shown in Figure 74.

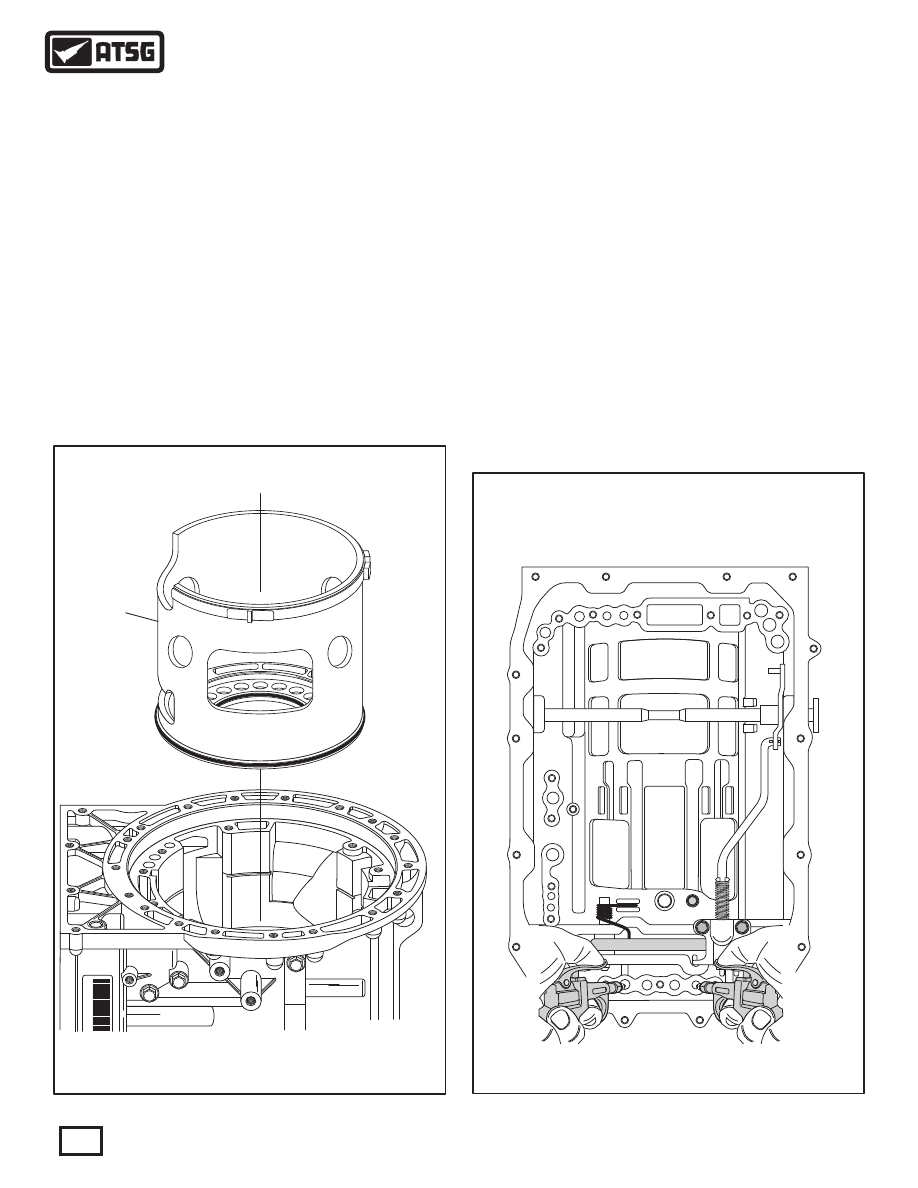

74. Now, you can remove the B2 clutch apply piston,
as shown in Figure 75.
Note: There are two passages to the B2 clutch
             piston that can be charged with air to loosen
             the piston, as shown in Figure 76.
75. Remove and discard the manual shaft seals and
             notice that there is one on each side of the case.

Figure 76

Figure 75

B2 CLUTCH PASSAGE IDENTIFICATION

WWW.ALL-TRANS.BY
