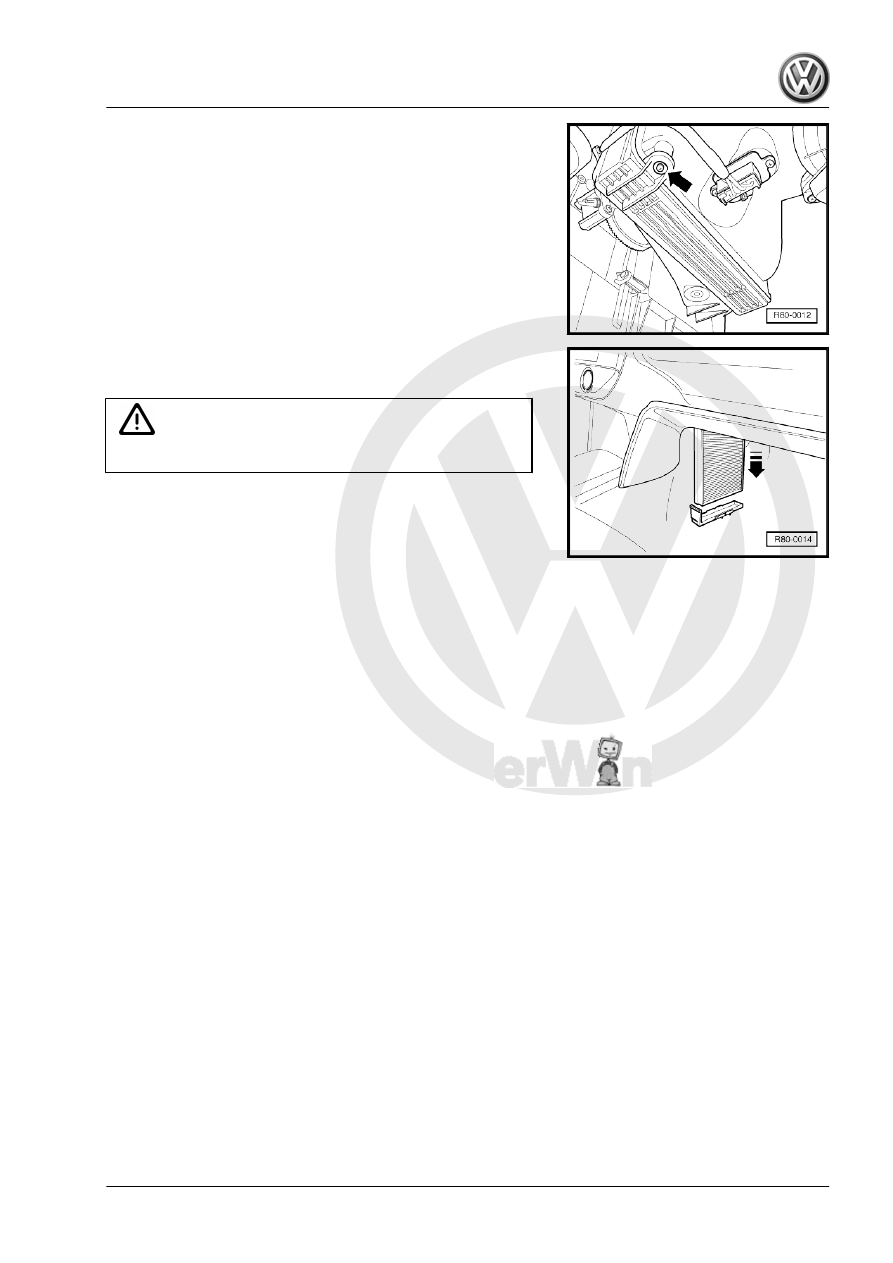

– Remove the dust and pollen filter -arrow- with the filter support.
– Separate the filter from its support.

WARNING

♦ Follow the rules for disposal!

– Installation is performed in the reverse sequence to the re‐

moval.

4.34

Timing belt - replace; Semi-automatic

camshaft tensioning pulley - check

4.34.1

Engine identification letters ASY

head, camshaft mechanism .

4.34.2

Engine identification letters BNM

head, camshaft mechanism .

4.35

Camshaft activation timing belt - check

4.35.1

Engine identification letters AQZ, BAH,

BLH, BKR, BMD, and CFZA

– Remove the upper mechanical distribution cover.
– Check the timing belt condition for:
♦ Tears, section fractures.
♦ Layer separation (timing belt body, cord strands).
♦ Fracture in the timing belt body.
♦ Unthreaded cord strands.
♦ Surface tears (plastic coating).
♦ Oil and grease residues.

FOX 2004 ➤

4. Service descriptions

85

If there are faults, you must replace the timing belt. This will avoid

failures and faults during operation.

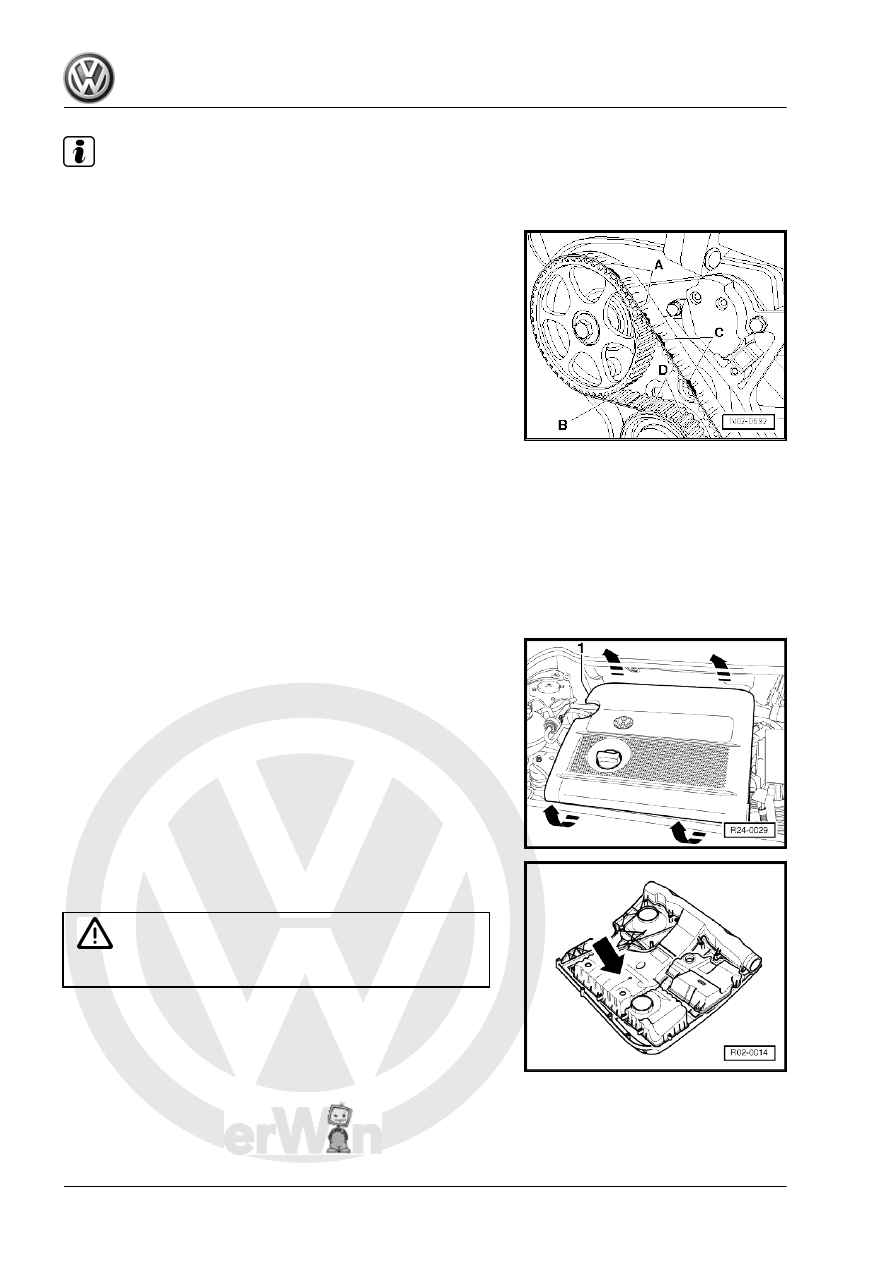

When checking the timing belt condition, pay special attention to

the following damage:
A - Tears (on the cover side).
B - Side wearing.
C - Unthreading.
D - Tears (at the teeth base)

4.36

Air filter - clean the case and replace the

filter element

4.36.1

Engine identification letters BAH and

BLH

Carry out work sequence as follows:
– Remove the crankcase air vent hose -1- from the air filter case.
– Remove the air filter case from the supports and the Butterfly

valve command unit from the accelerator -J338- -arrows- and

remove the air filter case.

– Remove the air filter case fastening screws -arrow-.
– Remove the filtering element.

WARNING

♦ Follow the rules for disposal!

– Clean the filter's case and install a new filtering element.
– The installation is performed in the reverse order from remov‐

al.

4.36.2

Engine identification letters AQZ and

BKR

Carry out work sequence as follows:

FOX 2004 ➤

86

    4. Service descriptions

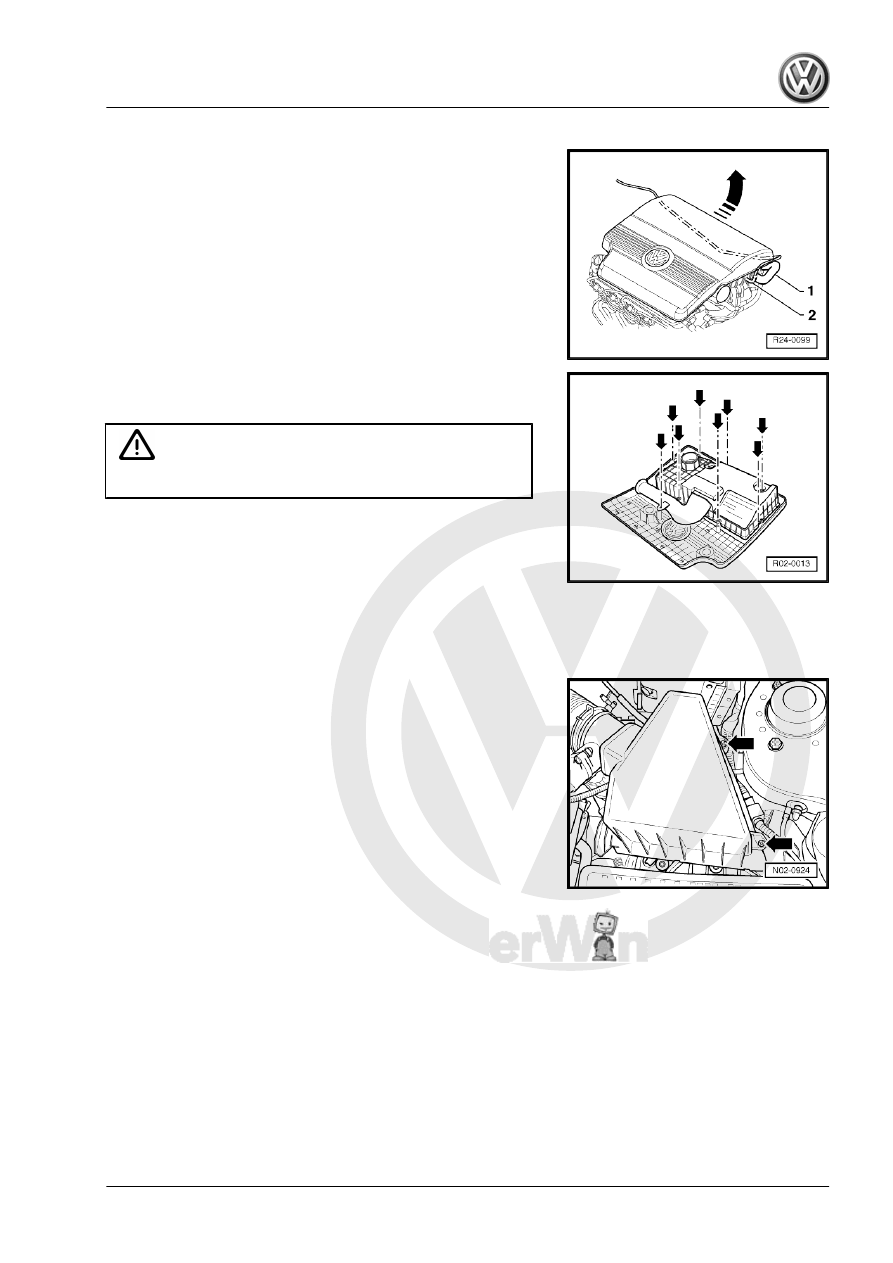

valve command unit and, then, from the front supports -arrow-.

– Remove the air filter case fastening screws -arrows-.
– Remove the filtering element.

WARNING

♦ Follow the rules for disposal!

– Clean the filter's case and install a new filtering element.
– The installation is performed in the reverse order from remov‐

al.

4.36.3

Engine identification letters ASY, BNM,

BMD, and CFZA

Carry out work sequence as follows:
– Loosen the screws -arrows- and remove the air filter cover.
– Clean the filter's case and install a new filtering element.
– The installation is performed in the reverse order from remov‐

al.

4.37

Fuel filter - replace

4.37.1

Engine identification letters AQZ, BAH,

BLH, and CFZA

⇒  Engine - Supply and ignition system; Rep. Gr.  20 ; Supply

system - reservoir, fuel pump

FOX 2004 ➤

4. Service descriptions

87

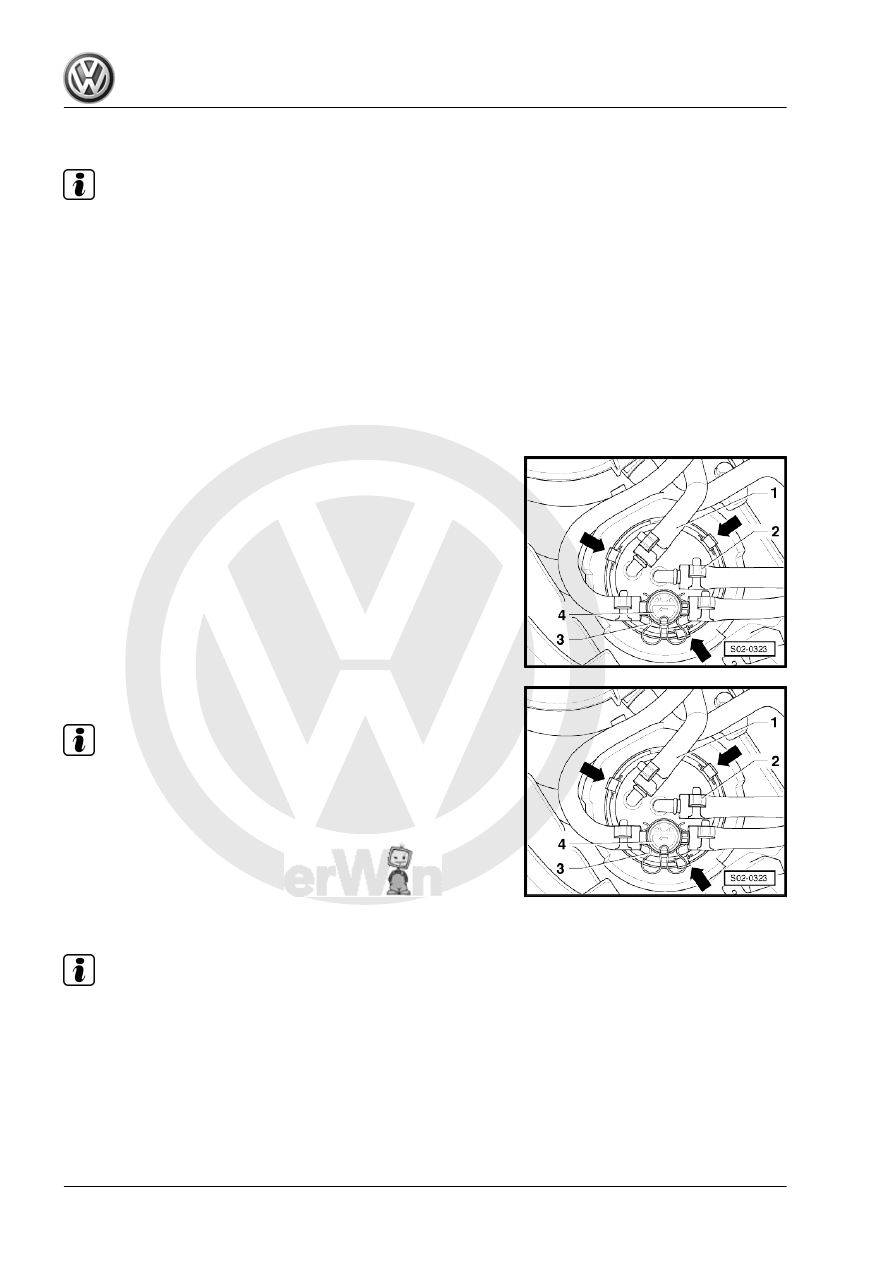

Engine identification letters ASY

Note

♦

Make sure that the fuel does not reach the cooling system ho‐

ses. If necessary, clean the hoses immediately!

♦

Do not dispose of the fuel filter with fuel inside.

♦

Comply with the waste disposal standards!

Carry out work sequence as follows:
Removal
– Remove the fastening clip -3- and remove the regulating valve

-4- with the fuel ducts connected.

– Disconnect the fuel hoses -1- and -2-.
– Unlock the -arrows- hooks.
– Remove the fuel filter cover upwards.
Installing
– Fill the new filter with new diesel fuel. Thus, the engine works

faster.

– Install the new sealing ring to seal the regulating valve.
– Install the filter.
– Lock the -arrows- small hooks.
– Assemble the regulating valve -4- with the ducts connected.
– Install the fastening hook -3-.

– Install the fuel hoses -1- and -2- and lock with hose clamps.

Note

The fuel flow direction is marked by -arrows-: (Do not invert the

connections).

4.37.3

Engine identification letters BNM

Note

♦

Make sure that the fuel does not reach the cooling system ho‐

ses. If necessary, clean the hoses immediately!

♦

Do not dispose of the fuel filter with fuel inside.

♦

Comply with the waste disposal standards!

Carry out work sequence as follows:
