Volkswagen Fox (2004 year). Manual - part 46

half load front and

rear

full load front and

rear

185/60 R14 82T

32

29

35

41

195/55 R15 85V

28

28

30

36

Engine identification letters BNM
185/60 R14 82T

33

30

36

42

195/55 R15 85V

29

28

32

38

CrossFox

Engine identification letters BKR
205/60 R15 91V

29

32

29

38

Engine identification letters BNM
205/60 R15 91V

29

32

29

38

Engine identification letters BAH, BJA and BPA
205/60 R15 91V

29

32

29

38

Tyre pressure values in bar.

Note

Values obtained at publishing date!



half load front and

rear

full load front and

rear

Engine identification letters AQZ, BJE, BNX, with mechanical

steering
175/65 R14 82T

2,1

1,9

2,3

2,7

Engine identification letters AQZ, BJE, BNX
175/65 R14 82T

2,0

1,9

2,1

2,5

185/60 R14 82H

2,1

2,0

2,3

2,6

195/55 R15 85H

1,9

1,9

1,9

2,3

Engine identification letters BAH, BJA, BPA
175/65 R14 82T

2,1

2,0

2,3

2,6

185/60 R14 82H

2,1

2,0

2,3

2,6

195/55 R15 85H

1,9

1,9

2,1

2,3

Engine identification letters BLH
185/60 R14 82H

2,1

2,0

2,3

2,6

Engine identification letters ASY
175/65 R14 82T

2,2

2,1

2,4

2,7

195/55 R15 85H

2,1

2,0

2,1

2,4

Engine identification letters BMD with mechanical steering
165/70 R14 81T

2,4

2,2

2,4

2,8

Engine identification letters BMD
165/70 R14 81T

2,0

1,9

2,2

2,6

185/60 R14 82T

2,0

1,9

2,2

2,6

195/55 R15 85V

1,9

1,9

2,1

2,5

Engine identification letters BKR
165/70 R14 81T

2,2

2,0

2,4

2,8

185/60 R14 82T

2,2

2,0

2,4

2,8

195/55 R15 85V

1,9

1,9

2,1

2,5

FOX 2004 ➤

4. Service descriptions

57

half load front and

rear

full load front and

rear

Engine identification letters BNM
165/70 R14 81T

2,3

2,1

2,5

2,9

185/60 R14 82T

2,3

2,1

2,5

2,9

195/55 R15 85V

2,0

1,9

2,2

2,6

CrossFox

Engine identification letters BKR
205/60 R15 91V

2,0

2,2

2,0

2,6

Engine identification letters BNM
205/60 R15 91V

2,0

2,2

2,0

2,6

Engine identification letters BAH, BJA and BPA
205/60 R15 91V

2,0

2,2

2,0

2,6

4.19

Engine oil - drain and fill; change the oil

filter

Special tools and workshop equipment required

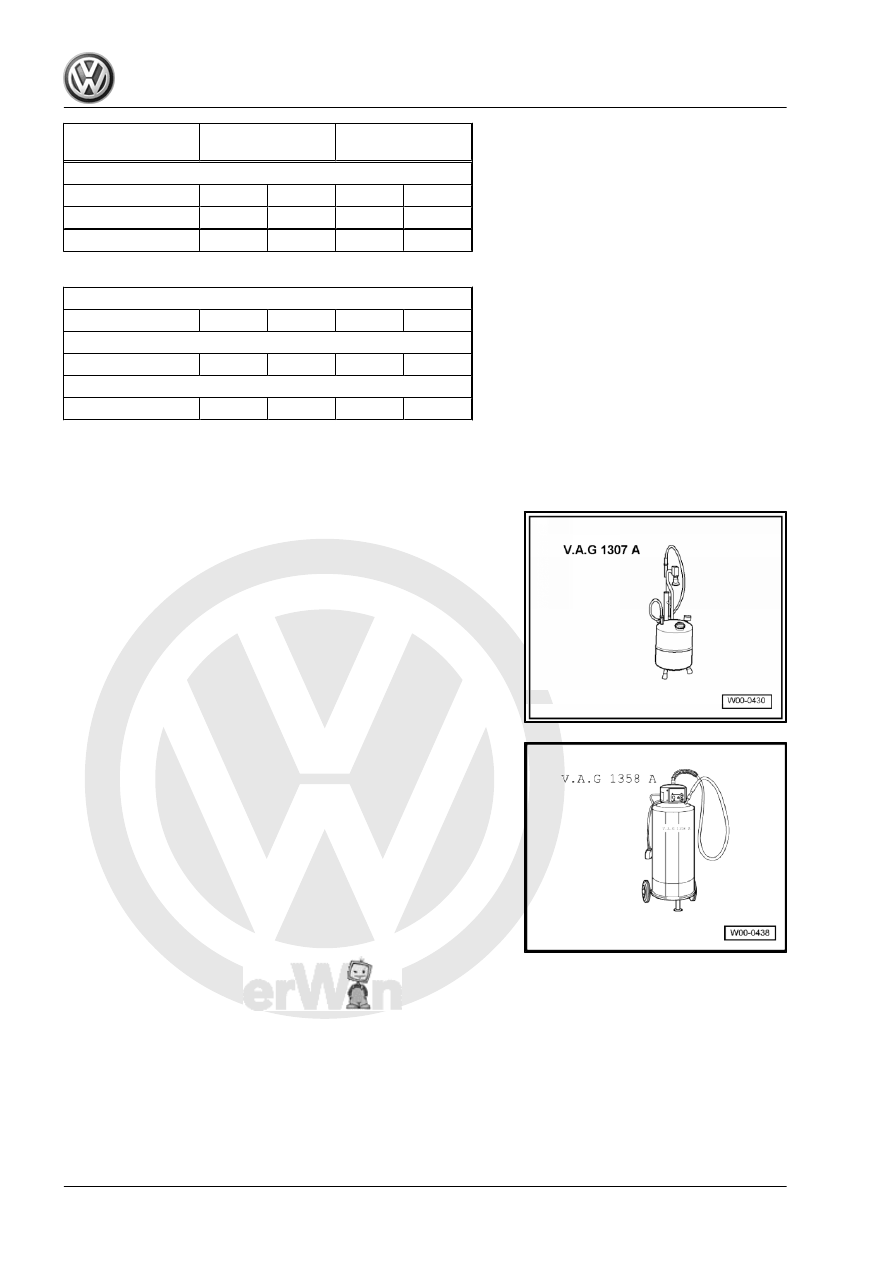

♦ Oil aspirator -VAG 1307 A-

♦ Oil aspirator -V.A.G 1358 A-

FOX 2004 ➤

58

    4. Service descriptions

Carry out work sequence as follows:
Engine identification letters BAH, BLH, and CFZA
– Aspirate the engine oil with the Oil aspirator -VAG 1307 A- or

Oil aspirator -VAG 1358 A-

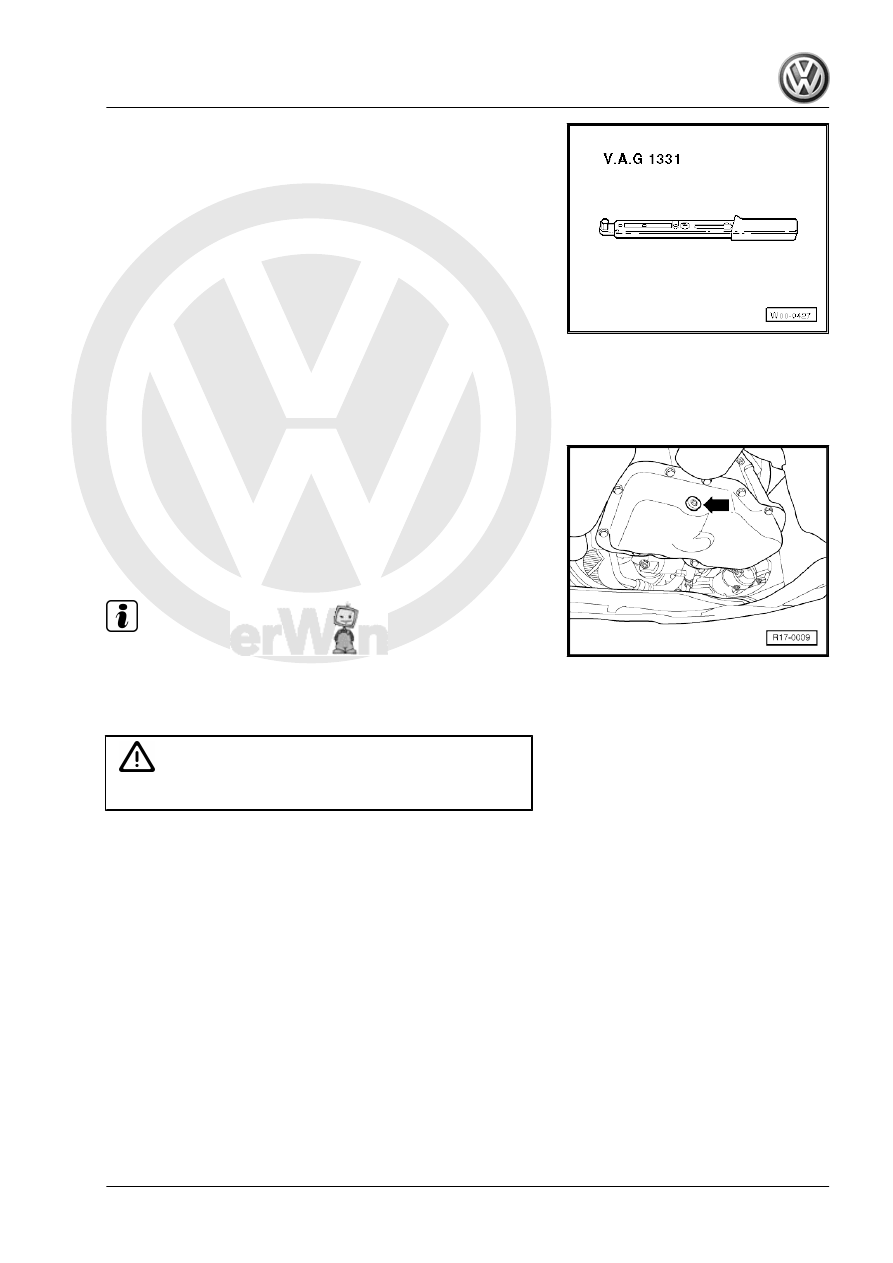

– Remove the oil draining plug -arrow-.
– Remove the sealing ring from the oil draining plug and cut if

necessary.

– Drain the engine oil.
– Tightening torque for the draining plug:
seta - 4-cylinder engines 30 Nm.

Note

♦

Please note that the tightening torque must not be exceeded.

A very high tightening torque may lead to damage or even

leaks in the oil draining plug area.

♦

Install a new sealing ring in the oil draining plug.

WARNING

♦ Follow the rules for disposal!

Engine identification letters AQZ, BKR, and BMD

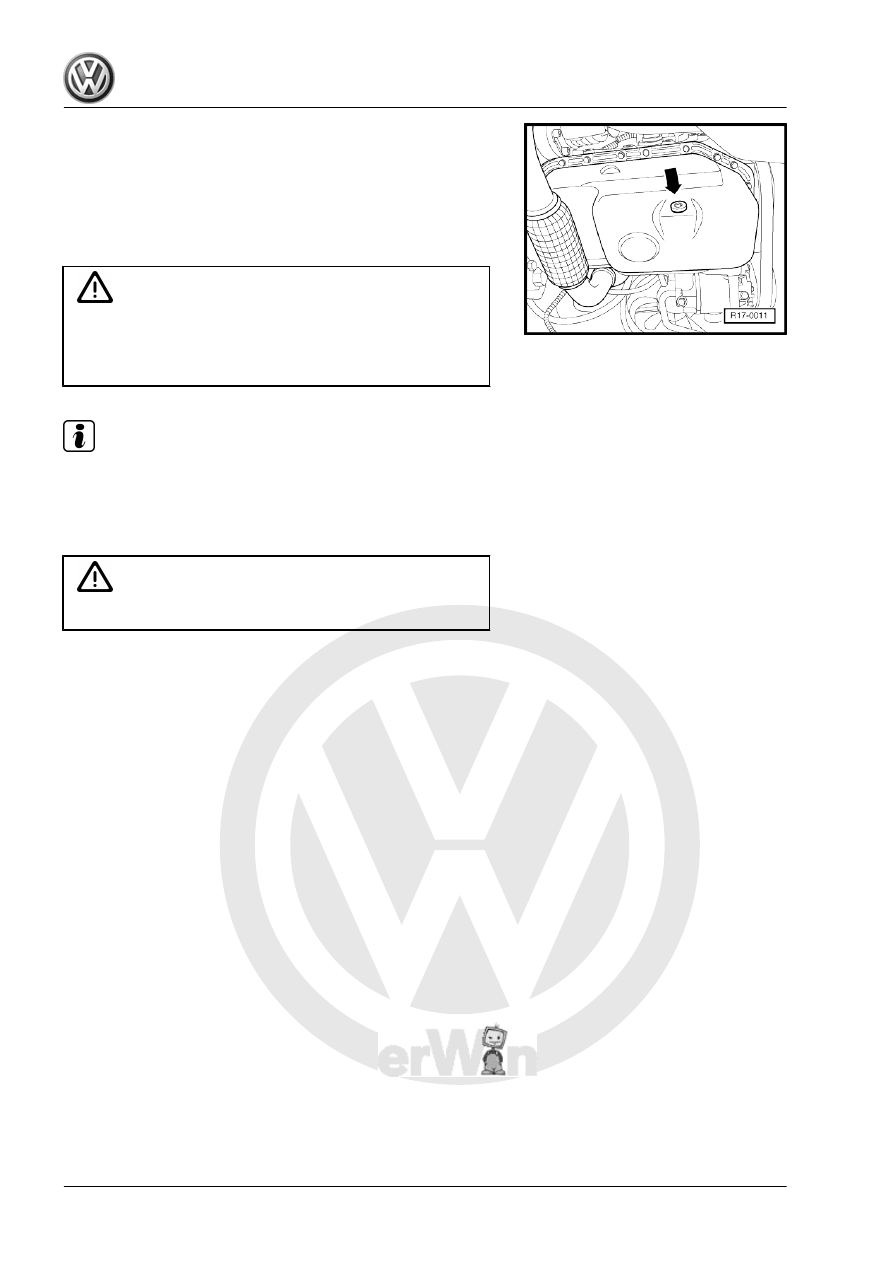

– Aspirate the engine oil with the Oil aspirator - VAG 1307 A- or

Oil aspirator -VAG 1358 A-

FOX 2004 ➤

4. Service descriptions

59

necessary.

– Drain the engine oil.
– Tightening torque for the draining plug:
seta - 3- and 4-cylinder engines 30 Nm.

WARNING

• In 3-cylinder petrol engines an oil drain plug with hexag‐

onal interior and a oil drain plug sealing ring are used. With

this type of plug, replace only the oil drain plug sealing

ring⇒  Etka .

Note

♦

Please note that the tightening torque must not be exceeded.

A very high tightening torque may lead to damage or even

leaks in the oil draining plug area.

♦

Install a new sealing ring in the oil draining plug.

WARNING

♦ Follow the rules for disposal!

Engine identification letters ASY
– Aspirate the engine oil with the Oil aspirator - VAG 1307 A- or

Oil aspirator -VAG 1358 A-

FOX 2004 ➤

60

    4. Service descriptions
