cation: Black line on the bearing shell surface, in the union area.

❑ Do not interchange used bearing shells.
❑ Insert bearing shells centrally.
❑ Distance from the bearing shell edge to the external edge of connecting rod/connecting rod cap: 2.5 mm,

measured from one side.

❑ Check it is securely seated.
❑ Axial clearance. Wear limit: 0.37 mm.
❑ Check radial clearance with Plastigage: Wear limit: 0.08 mm. Do not rotate crankshaft while checking

radial clearance.

7 - Engine block

❑ Check cylinder diameters

⇒ page 34

❑ Piston and cylinder dimensions

⇒ page 36

 .

8 - Connecting rod cap

❑ Check installation position.

9 - Oil ejector

❑ For piston cooling.
❑ Check assembly position: Install by turning the oil ejector in counterclockwise direction up to the end.

10 - 25 Nm

❑ Insert without sealant.

11 - Connecting rod screw, 30 Nm + 90°

❑ Replace after each removal.
❑ Lubricate threads and contact surface.
❑ First tighten evenly to 5 Nm.
❑ To measure radial clearance, use old bolts.

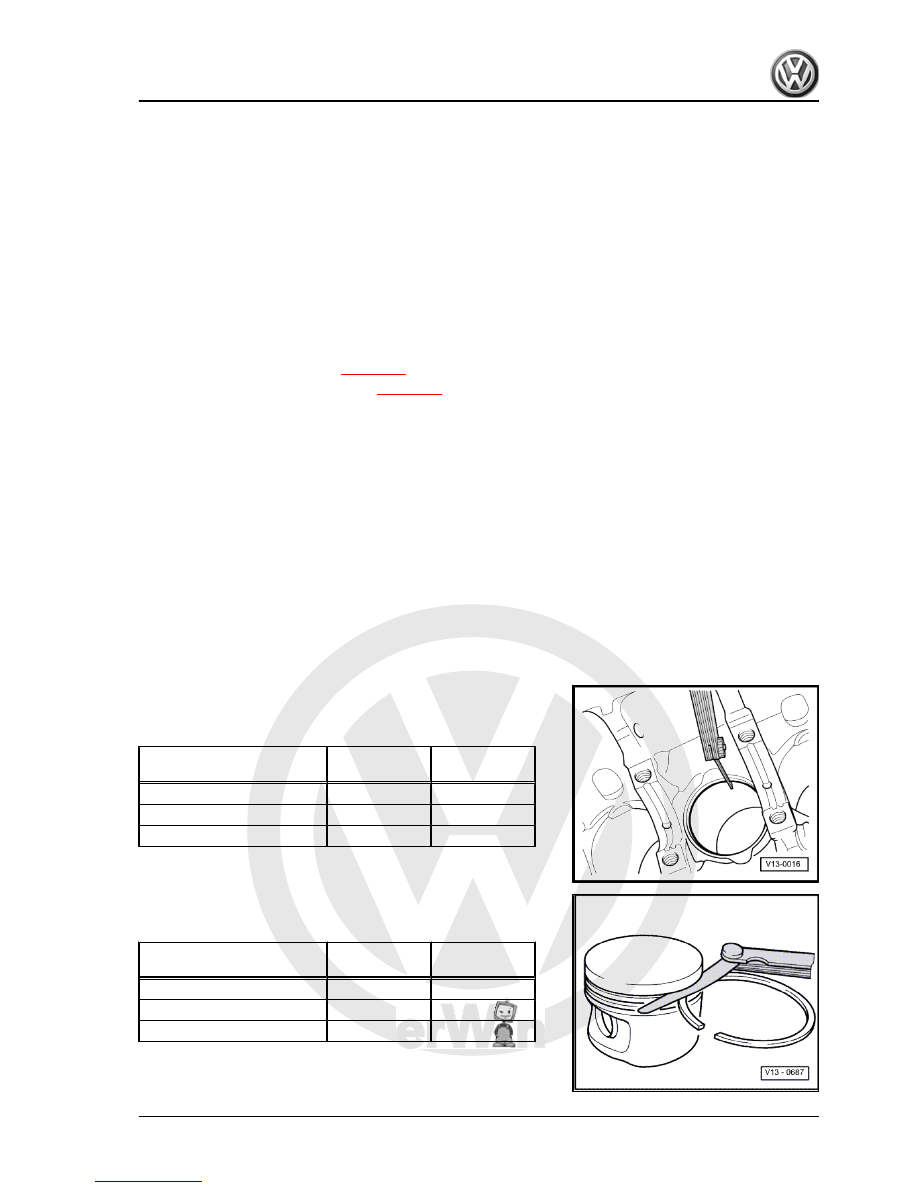

Check piston ring gap
– Push ring firmly from above down to approx. 15 mm from bot‐

tom end of cylinder.

Piston ring

Dimensions in mm

New

Wear limit

1. compression ring

0,25...0,40

1,0

2. compression ring

0,20...0,40

1,0

Oil scraper ring

0,25...0,50

1,0

Checking ring to groove clearance
Clean groove before check.

Piston ring

Dimensions in mm

New

Wear limit

1. compression ring

0,06...0,09

0,25

2. compression ring

0,05...0,08

0,25

Oil scraper ring

0,03...0,06

0,15

Fox 2004 ➤

5. Pistons and connecting rods - dismantle and assemble

33



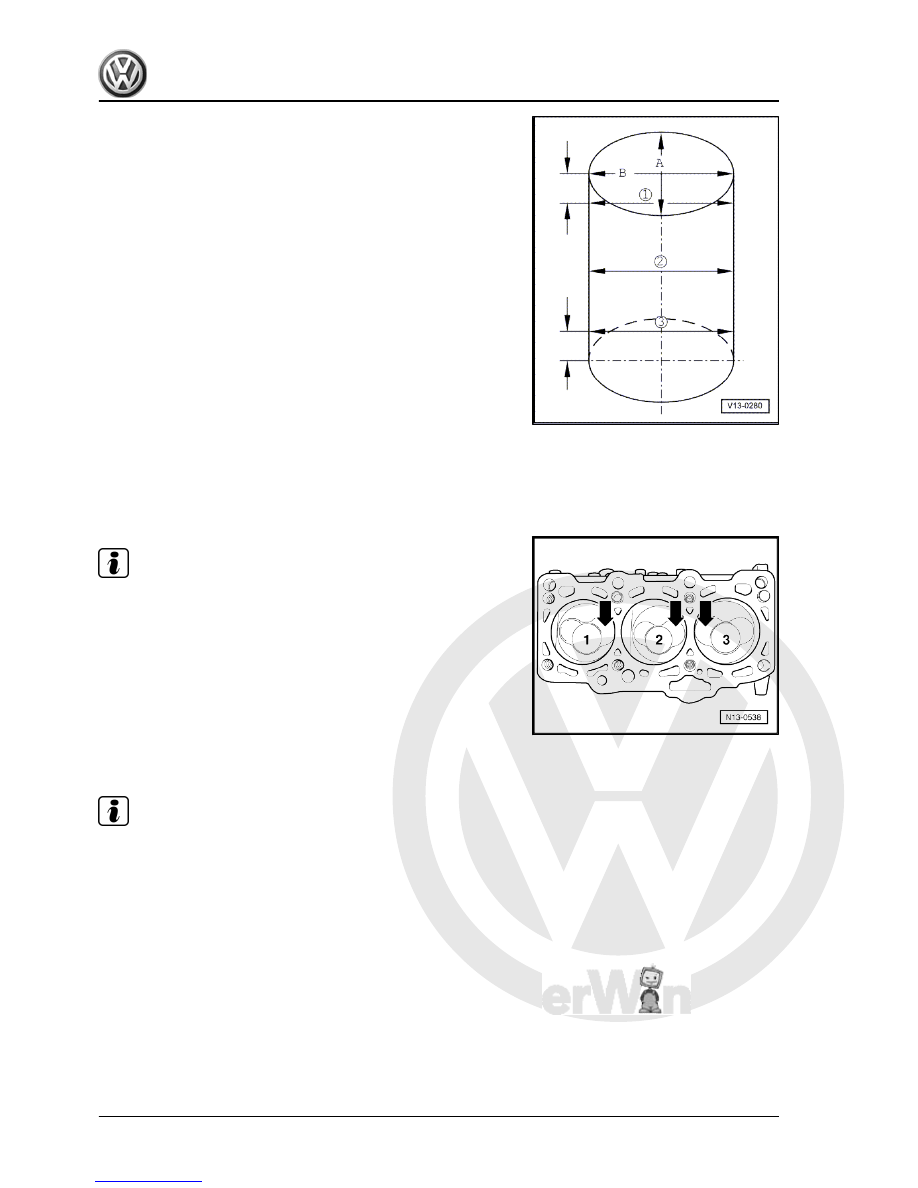

lateral -A- and longitudinal -B- directions, as illustrated. Max.

nominal dimension deviation 0.10 mm.

Note

The cylinder diameter cannot be measured while the engine block

is secured to the assembly stand with the Engine and gearbox

support -VW 540- , for in this case inaccurate measurements are

possible.

Installation position and correspondence to respective cylinder
Piston in cylinders 1 and 2.
Larger intake valve chamber towards the flywheel -arrows-.
Piston in cylinder 3.
Larger intake valve chamber towards the pulley -arrow-.

Note

The new correspondence between pistons and cylinders is in‐

dicated by color marking on the piston head.

Piston for cylinders 1 and 2: marking 1/2.

Piston for cylinder 3: marking 3.

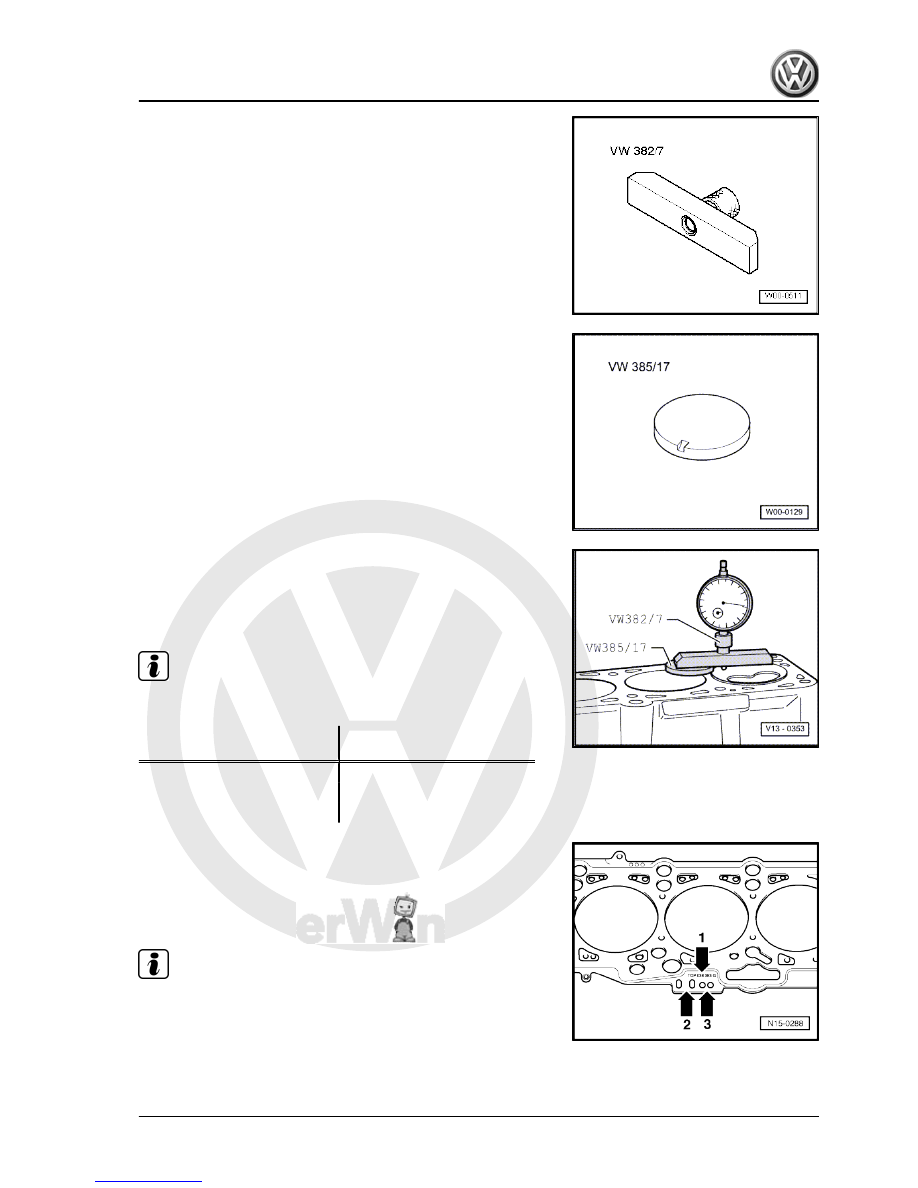

Check the piston projection at TDC

Special tools and workshop equipment required

Fox 2004 ➤

34



Test sequence
– The piston projection at TDC must be measured when instal‐

ling the new pistons. Depending on the piston projections,

install the corresponding head gasket, in compliance with the

table below:

Note

Turn the engine clockwise to check the piston projections in TDC.

Piston projection

Identification

Holes/grooves

0.91 mm...1.00 mm

1

1.01 mm...10.10 mm

2

1.11 mm...10.20 mm

3

Identification of cylinder head gasket
♦ Part number = -arrow 1-.
♦ Production control code = -arrow 2- (can be disregarded).
♦ Holes = -arrow 3-.

Note

If different figures are obtained when measuring piston projection,

the highest figure should be taken when selecting the head gas‐

ket.

Fox 2004 ➤

5. Pistons and connecting rods - dismantle and assemble

35



Dimension for fin‐

ishing



∅ Piston

∅ cilinder

Basic dimension

mm

79,47

79,51

1. rework

mm

79,97

80,01

Fox 2004 ➤
