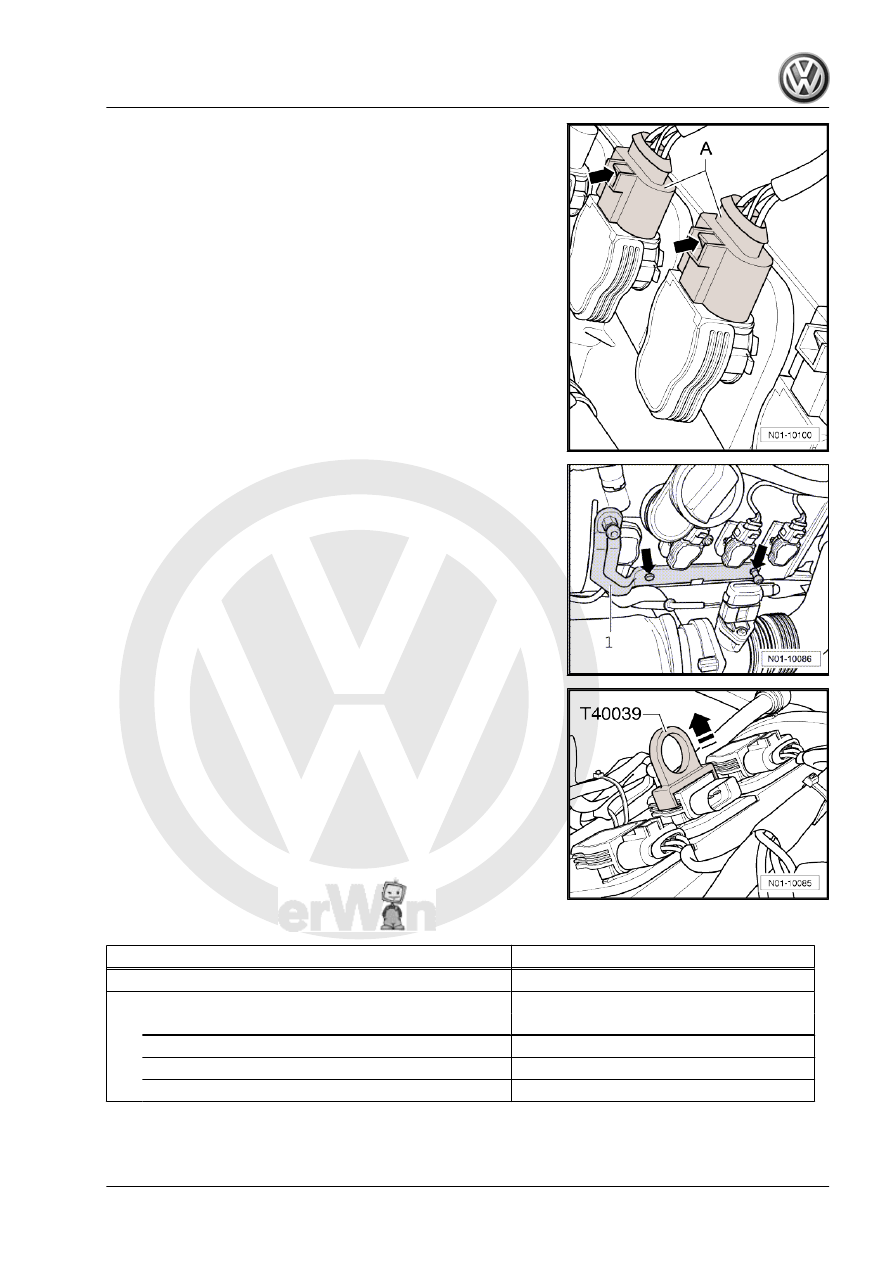

-direction of arrow- and disconnect connector.

– Before disconnecting connectors of cylinders 5 to 8 remove

bracket -1- by unscrewing bolts -arrows-.

– Fit puller -T40039- onto ignition coil with output stage and pull

off ignition coil with output stage in -direction of arrow-.

– To install, insert ignition coil with output stage in correct posi‐

tion into respective spark plug recess and push ignition coil

with output stage by hand onto spark plug to stop.

1.4

Test data, spark plugs

Engine code

AXQ / BHX

Firing order

1-5-4-8-6-3-7-2

Spark plugs





VW/Audi

101,905,615 A



Manufacturer's designation

FGR 7 KQE 0



Electrode gap

max. 1.1 mm



Specified torque

4)

.

30 Nm

4) Remove and install spark plugs with spark plug socket and extension 3122 B.
