weld seam.

– Weld in bumper mounting -2-, RP spot weld seam.

Passat 2011 ➤ , Passat Variant 2011 ➤

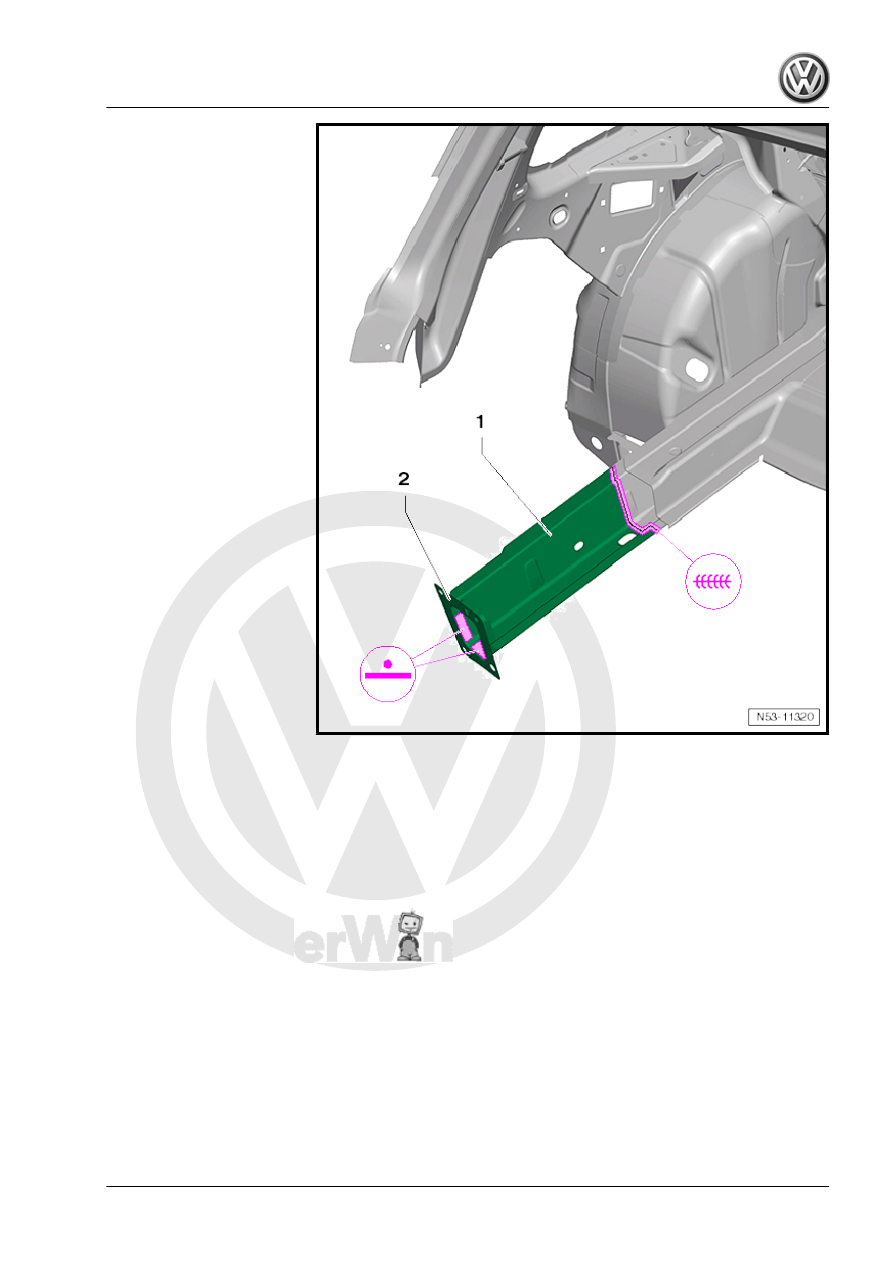

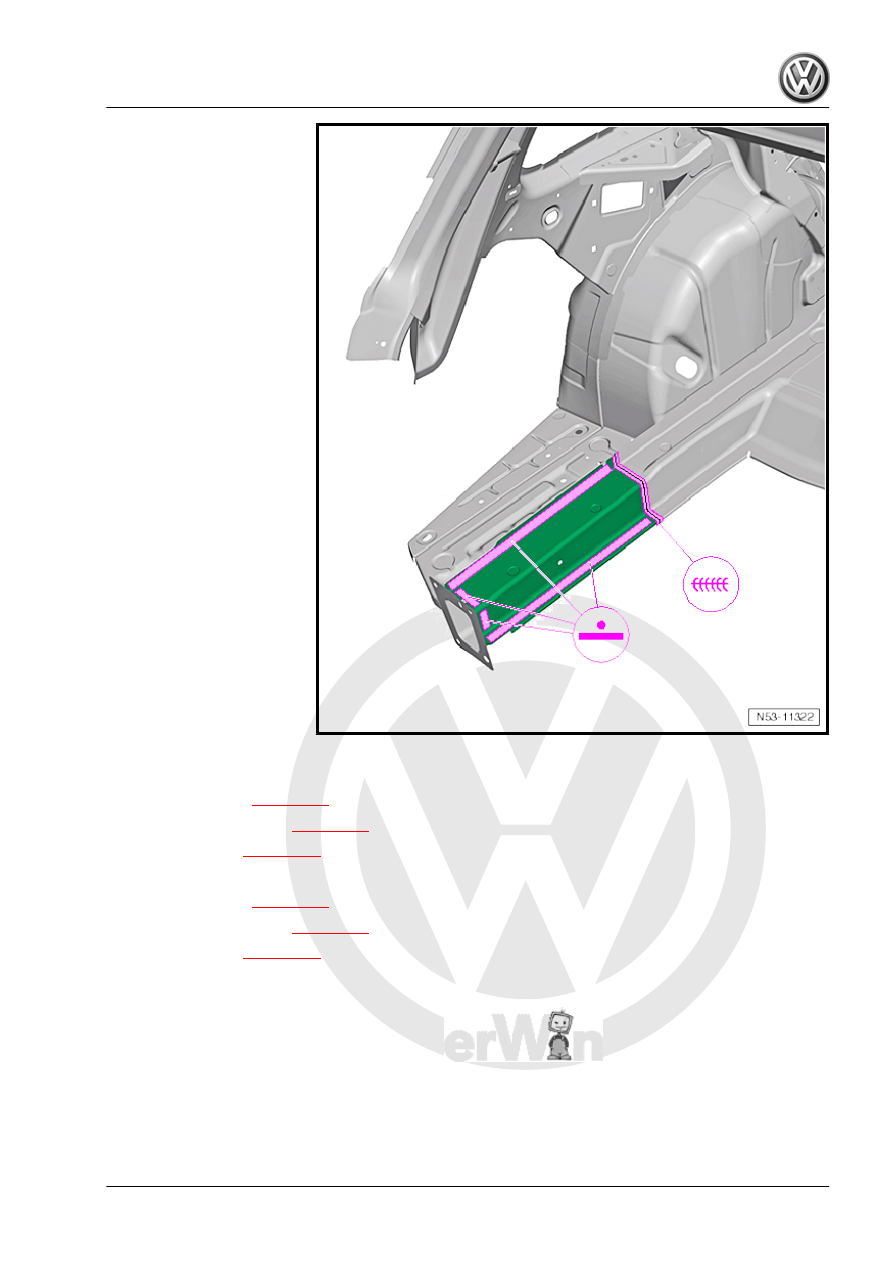

10. Renewing rear longitudinal member - part section

329

Passat 2011 ➤ , Passat Variant 2011 ➤

330

⇒ page 269

 .

• Install tail light mounting

⇒ page 287

 .

• Install side panel

⇒ page 335

 .

Variant
• Install cross panel

⇒ page 276

 .

• Install tail light mounting

⇒ page 293

 .

• Install side panel

⇒ page 345

 .

Passat 2011 ➤ , Passat Variant 2011 ➤

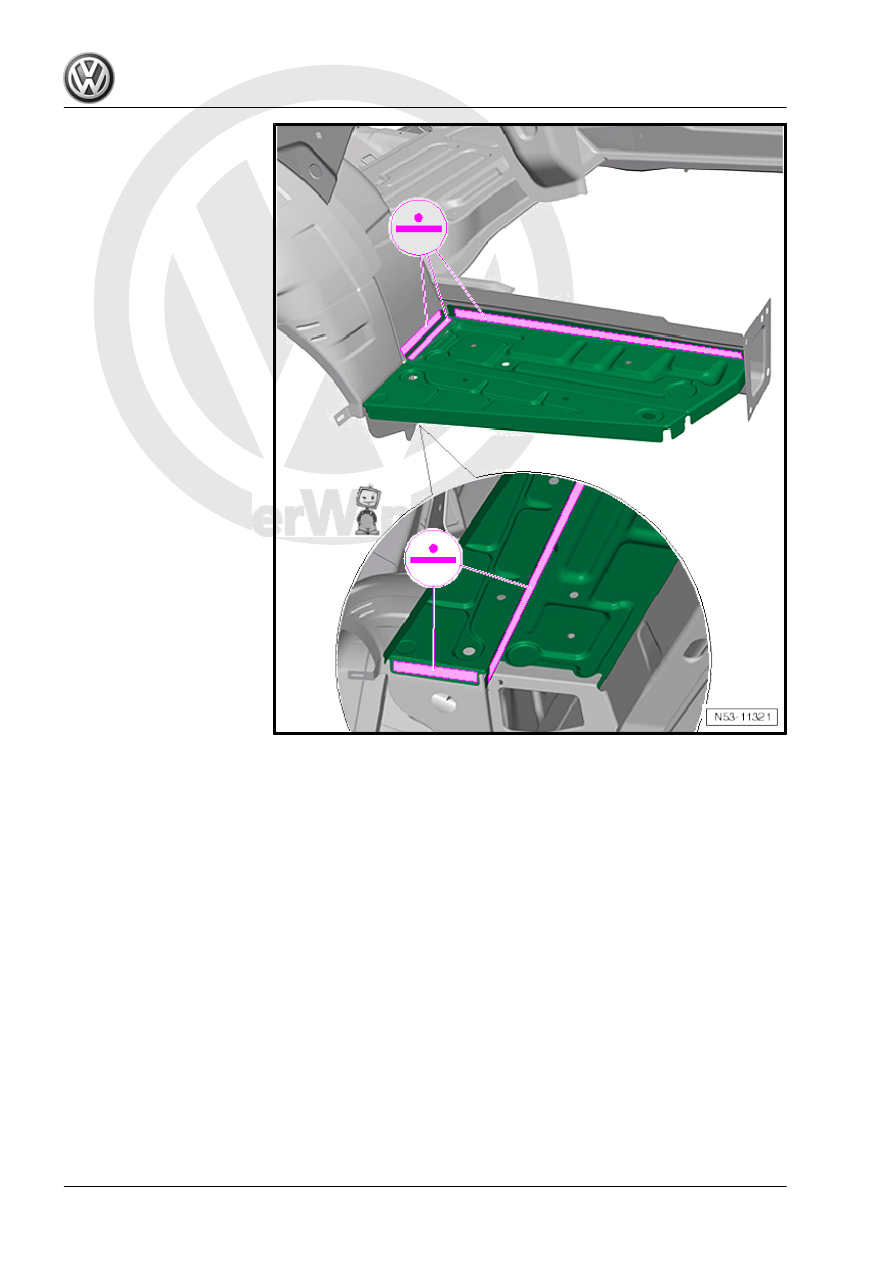

10. Renewing rear longitudinal member - part section

331

11

Renewing side panel - part section

WARNING

Observe safety notes!
Welding, parting using spark generating machines/tools or tin‐

ning in foam treated areas creates gases which are hazardous

to health and environment. Therefore, refrain from using these

processes.

Safety notes ⇒ General Information; Body Repairs, General Body

Repairs ; Safety notes

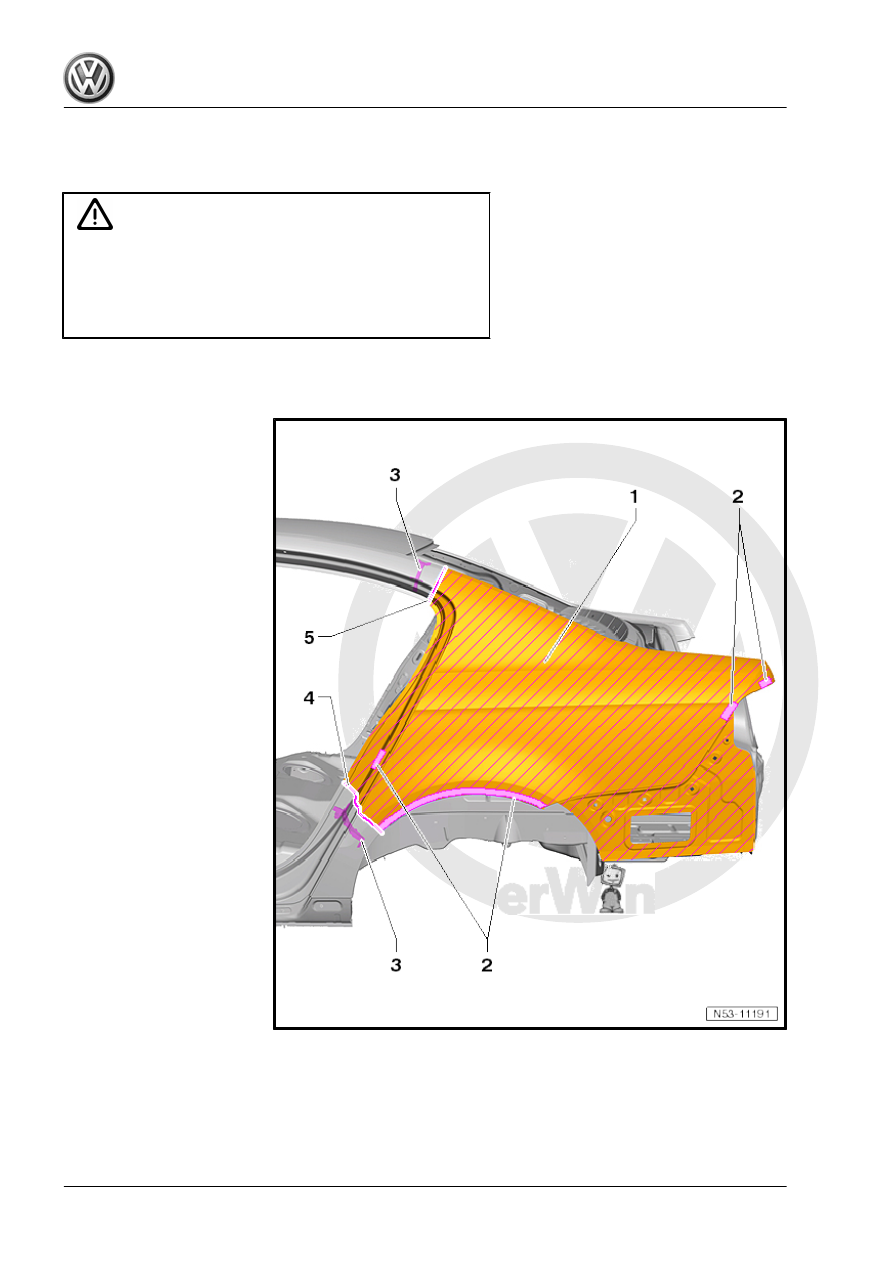

1 - Side panel
2 - Bonded area
3 - Moulded foam elements
4 - Parting cut to side member
5 - Parting cut to roof member

Passat 2011 ➤ , Passat Variant 2011 ➤

332
