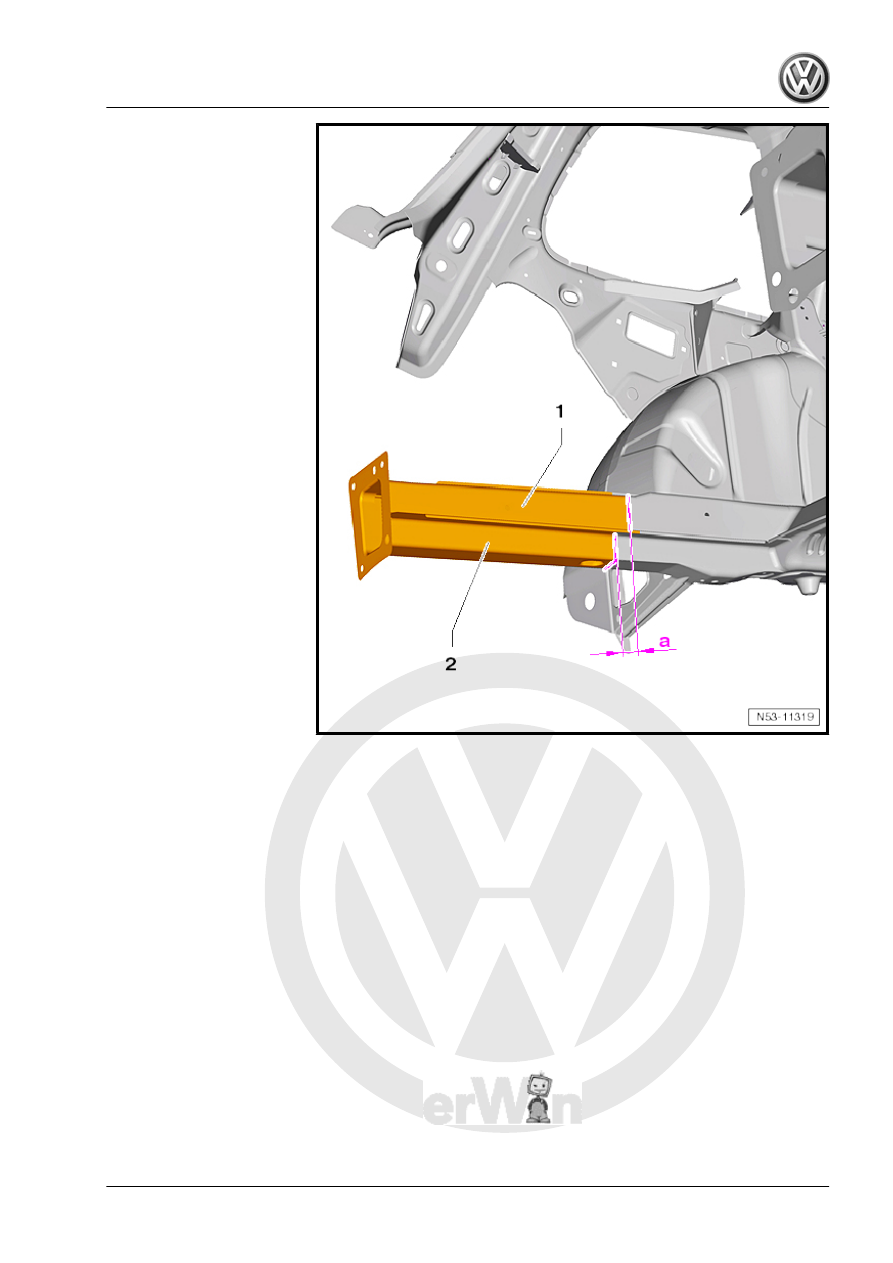

longitudinal member cover part -1- and cut out.

Dimension -a- approx. 50 mm

Passat 2011 ➤ , Passat Variant 2011 ➤

10. Renewing rear longitudinal member - part section

325

10.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 323

 .

10.3.1

Preparing new part

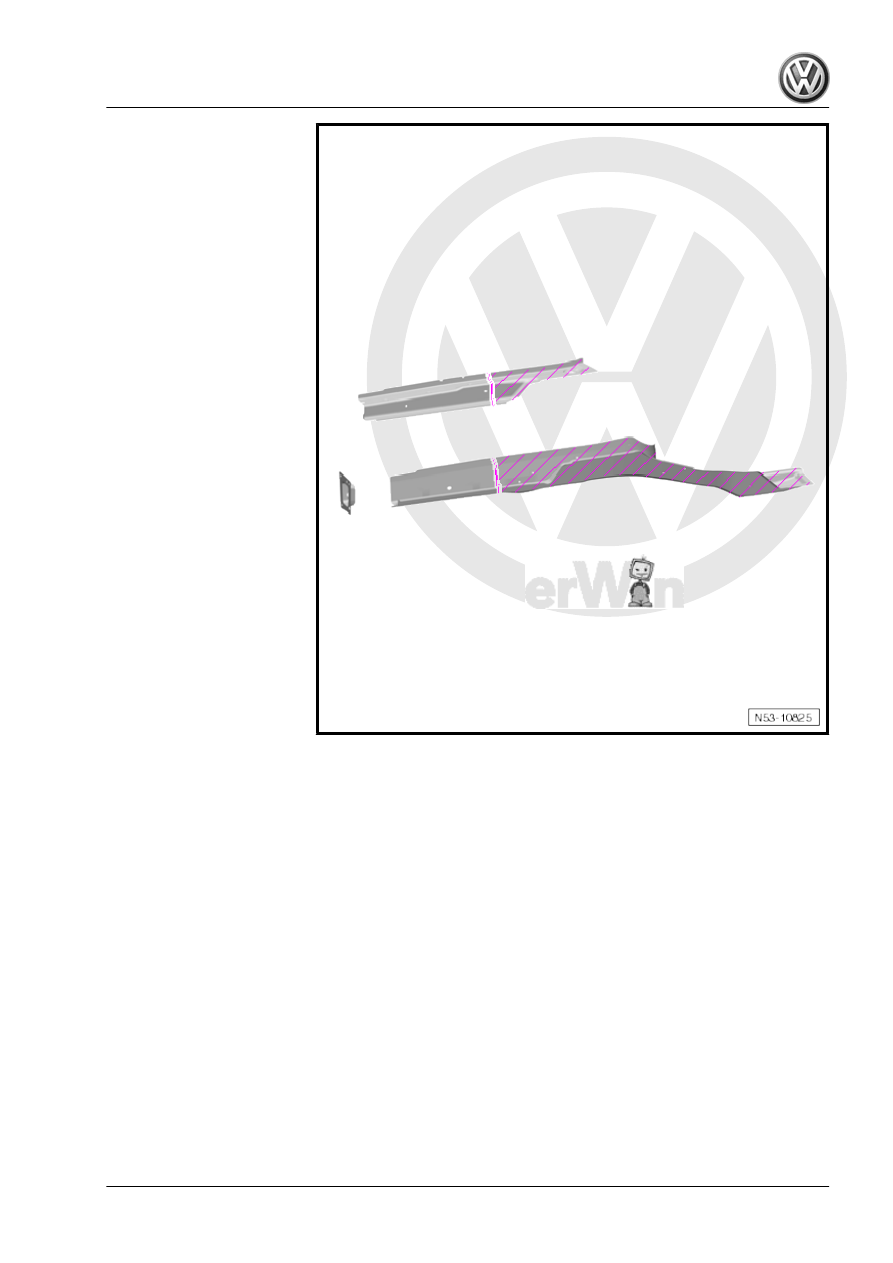

New part
♦ Rear longitudinal member
♦ Cover plate for longitudinal member
♦ Bumper mounting
♦ Floor panel (not illustrated)
♦ Connecting plate (not illustrated)

Passat 2011 ➤ , Passat Variant 2011 ➤

326

Passat 2011 ➤ , Passat Variant 2011 ➤

10. Renewing rear longitudinal member - part section

327

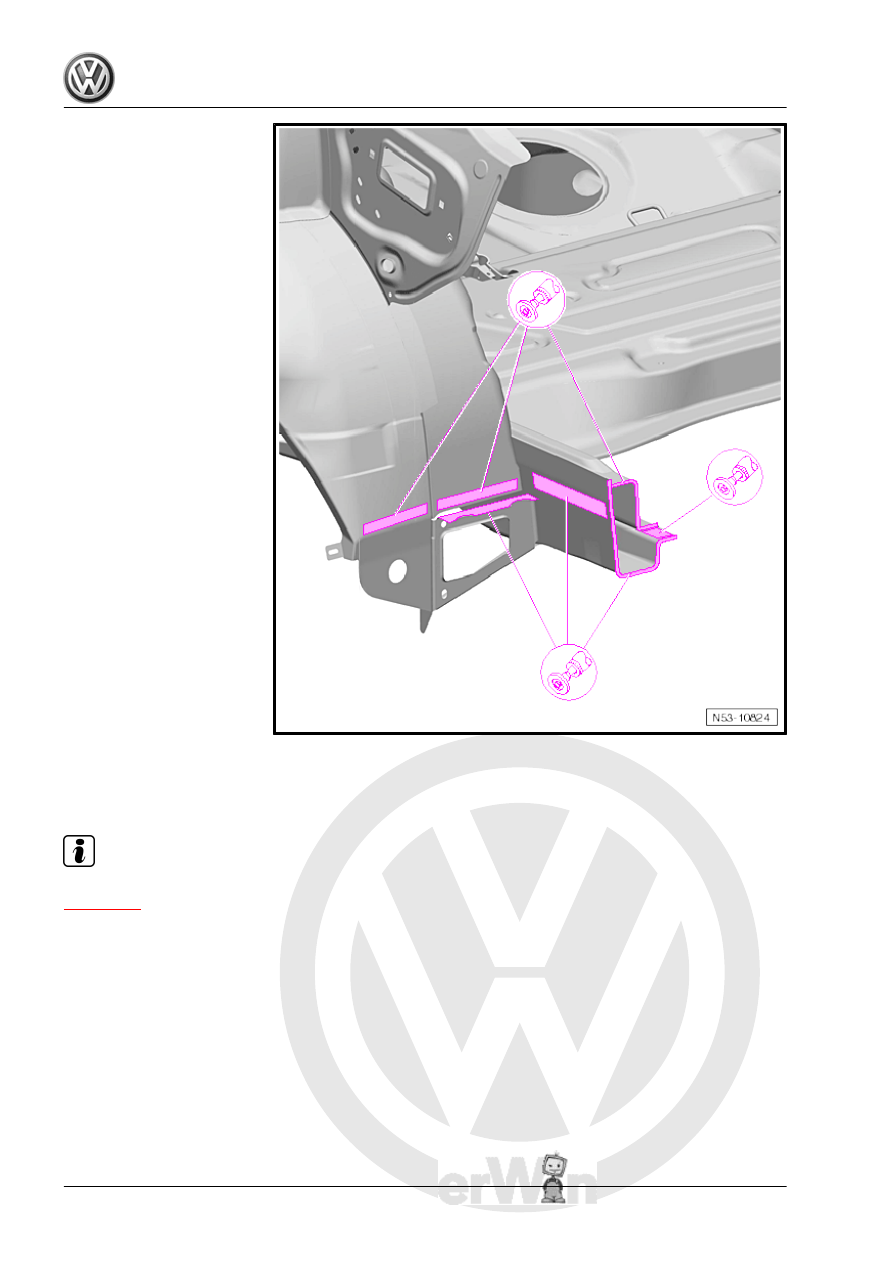

Welding in

Note

♦

In the area of the A, B and C-pillars, high tensile, highest tensile and hot formed steels are used. The weld

flanges in these areas are about 13mm wide.

♦

If spot welds are located at the edge of hot formed steel panels, the high temperature will cause the bond

between the panels to change, which will subsequently have an effect on crash safety.

Therefore, locate spot welds as close to the centre as possible.

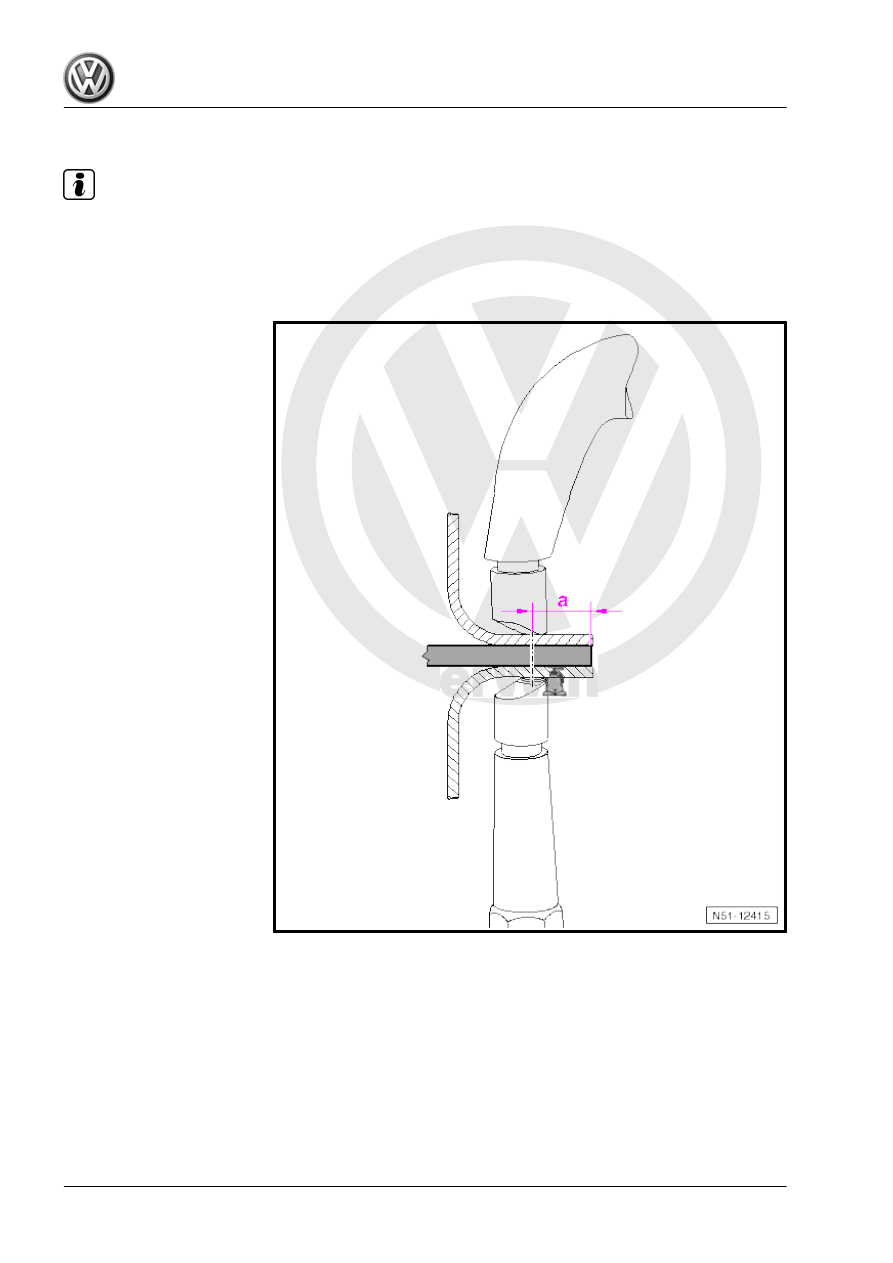

• Dimension -a- of 8mm can be achieved using angled welding

tips.

– Adapt new parts with vehicle positioned on alignment bracket

set and fix in place.

– Check fit with bolt-on parts.

Passat 2011 ➤ , Passat Variant 2011 ➤
