surface back to bare metal.

8.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 311

 .

8.3.1

Preparing new part

New part
♦ Inner side panel
♦ Sealing channel
♦ 2K body adhesive -D 180 KD3 A2-

Passat 2011 ➤ , Passat Variant 2011 ➤

8. Renewing D-pillar reinforcement - part section

313

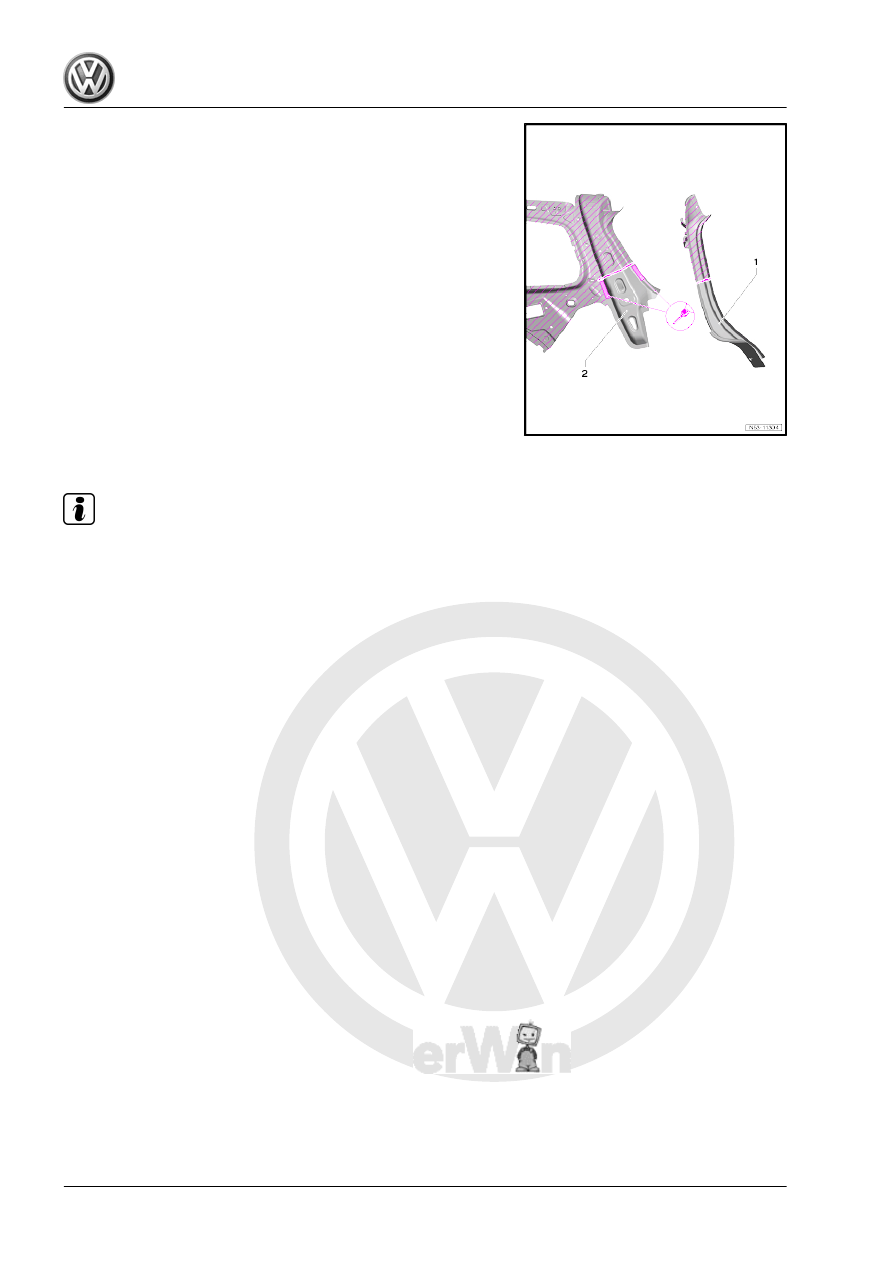

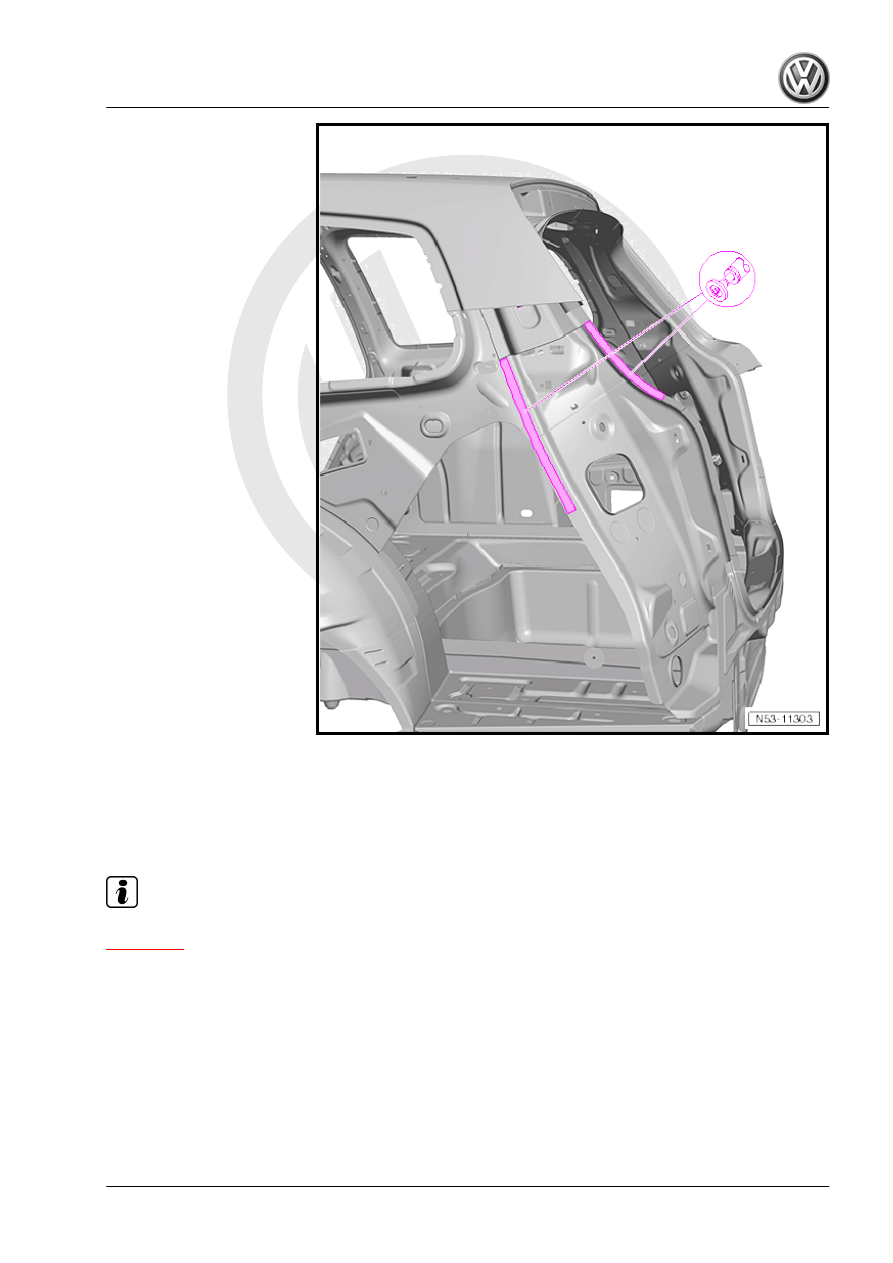

inforcing -2- and cut to size.

– Separate original joint from D-pillar reinforcement part section.

8.3.2

Welding in

Note

New part must be welded in within 90 minutes or adhesion of ad‐

hesive will be impaired.

– Adapt new part with vehicle positioned on alignment bracket

set and fix in place.

– Check fit with bolt-on parts.

Passat 2011 ➤ , Passat Variant 2011 ➤

314

the factory.

– Adapt D-pillar reinforcing to fit and secure in position.
– Weld in parting cut, SG continuous weld seam.
– Weld in D-pillar reinforcing, RP spot weld seam.

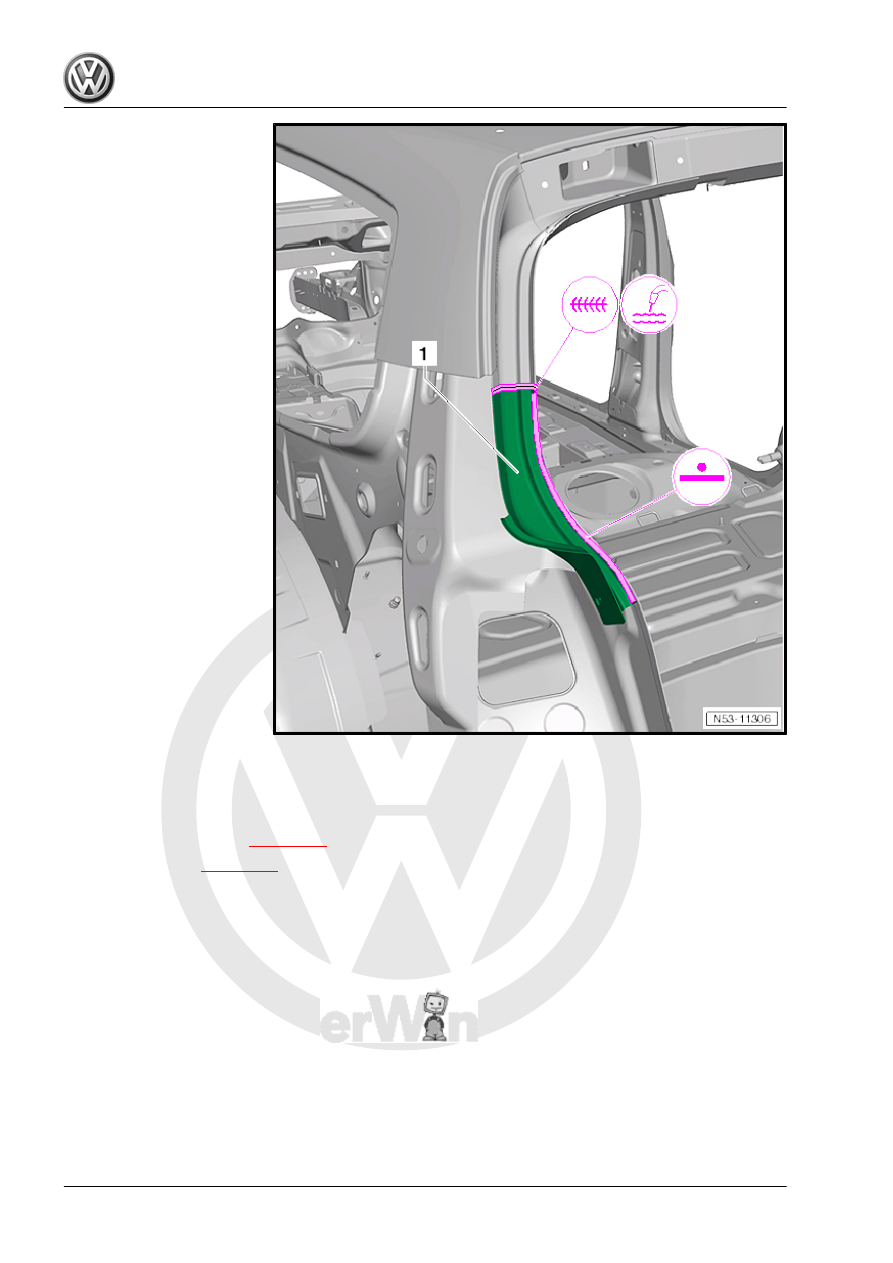

– Adapt sealing channel -1- to fit and fix in position.
– Check fit with bolt-on parts.

Passat 2011 ➤ , Passat Variant 2011 ➤

8. Renewing D-pillar reinforcement - part section

315

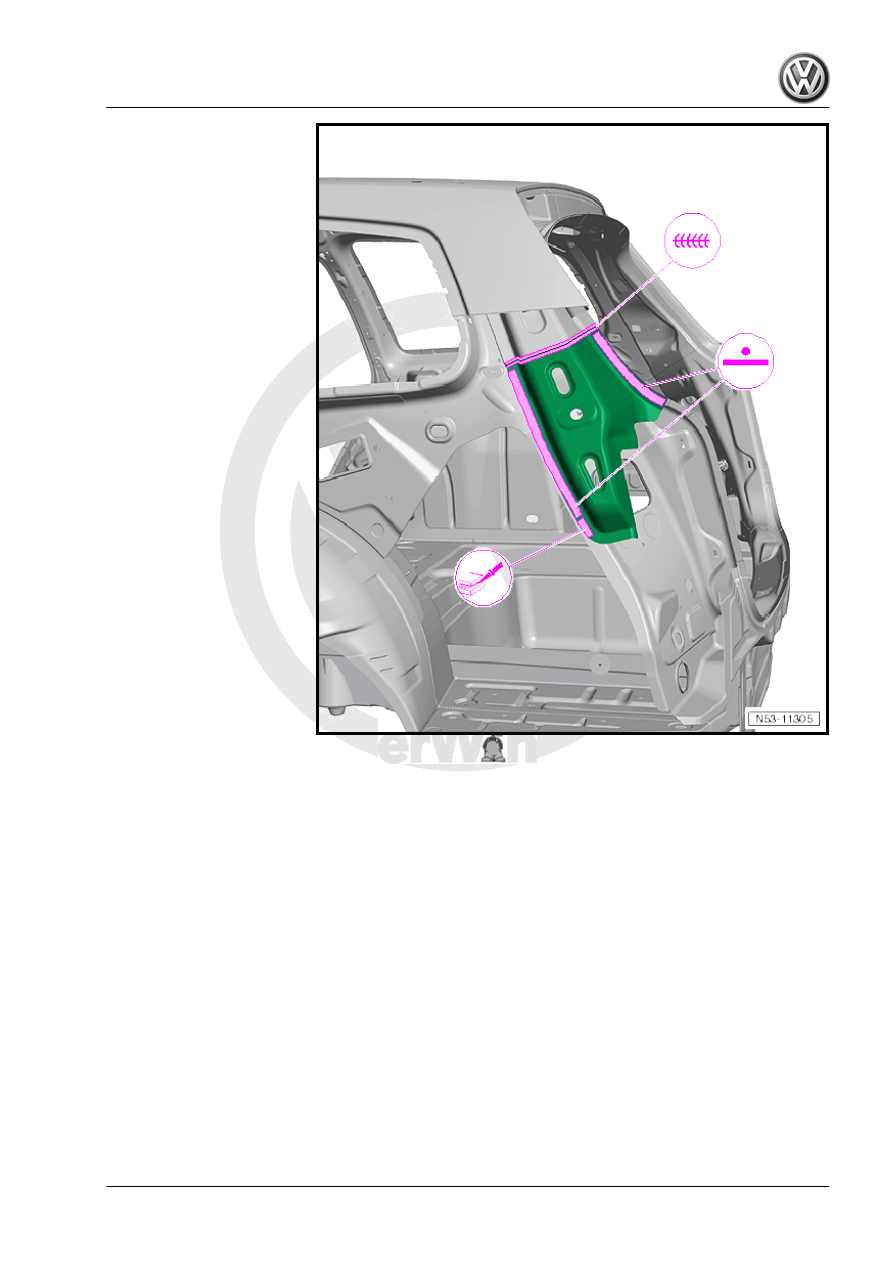

weld seam or SG continuous weld seam are permitted.

– Spot weld remaining joint in, RP spot weld seam.
– Install tail light mounting

⇒ page 293

 .

– Install side panel

⇒ page 345

 .
