surface back to bare metal.

7.3

Installing

Note

Only welding units authorised by Volkswagen AG may be used

⇒ page 303

 .

7.3.1

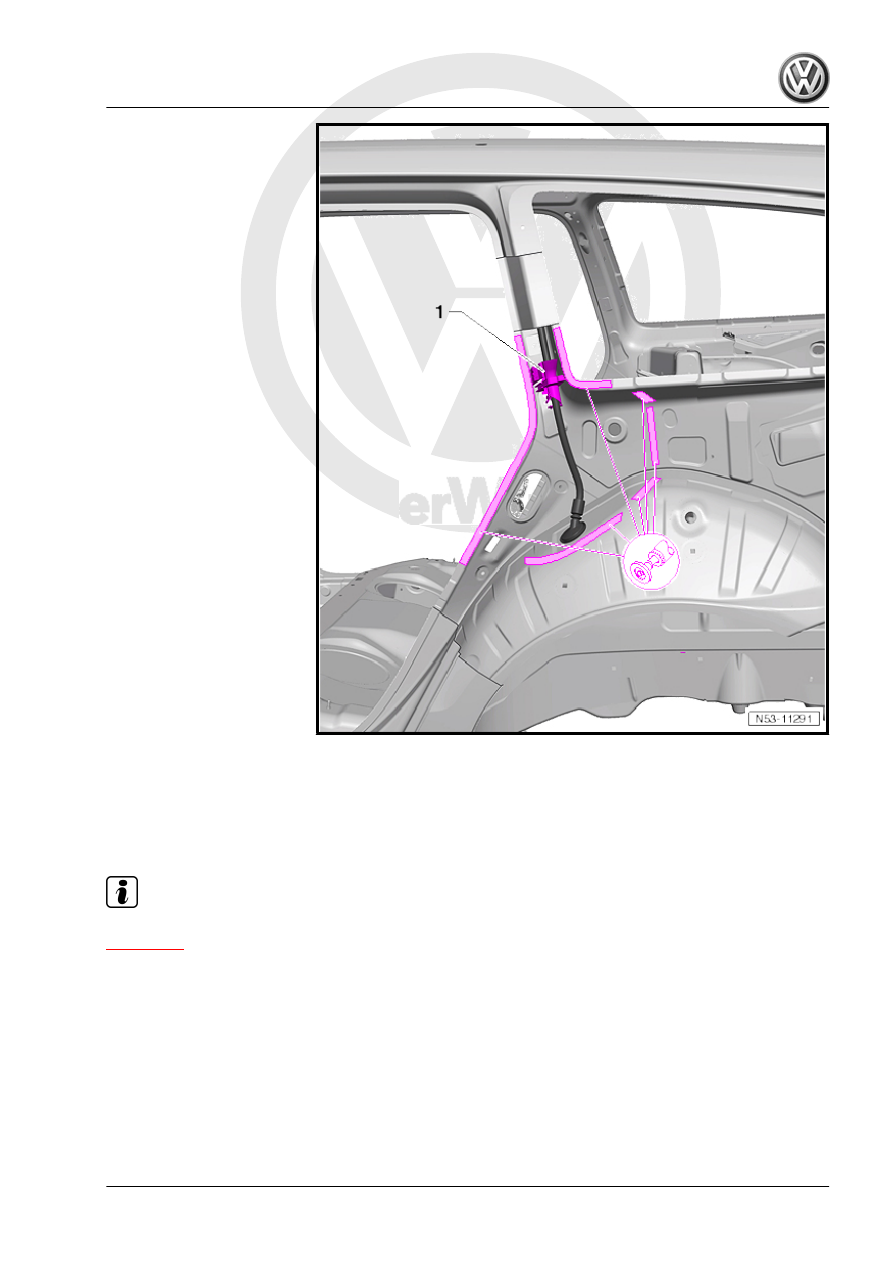

Preparing new parts

New part
♦ C-pillar reinforcement
♦ Lock reinforcement
♦ 2K body adhesive -D 180 KD3 A2-

Passat 2011 ➤ , Passat Variant 2011 ➤

7. Renewing C-pillar reinforcement (Variant)

305

7.3.2

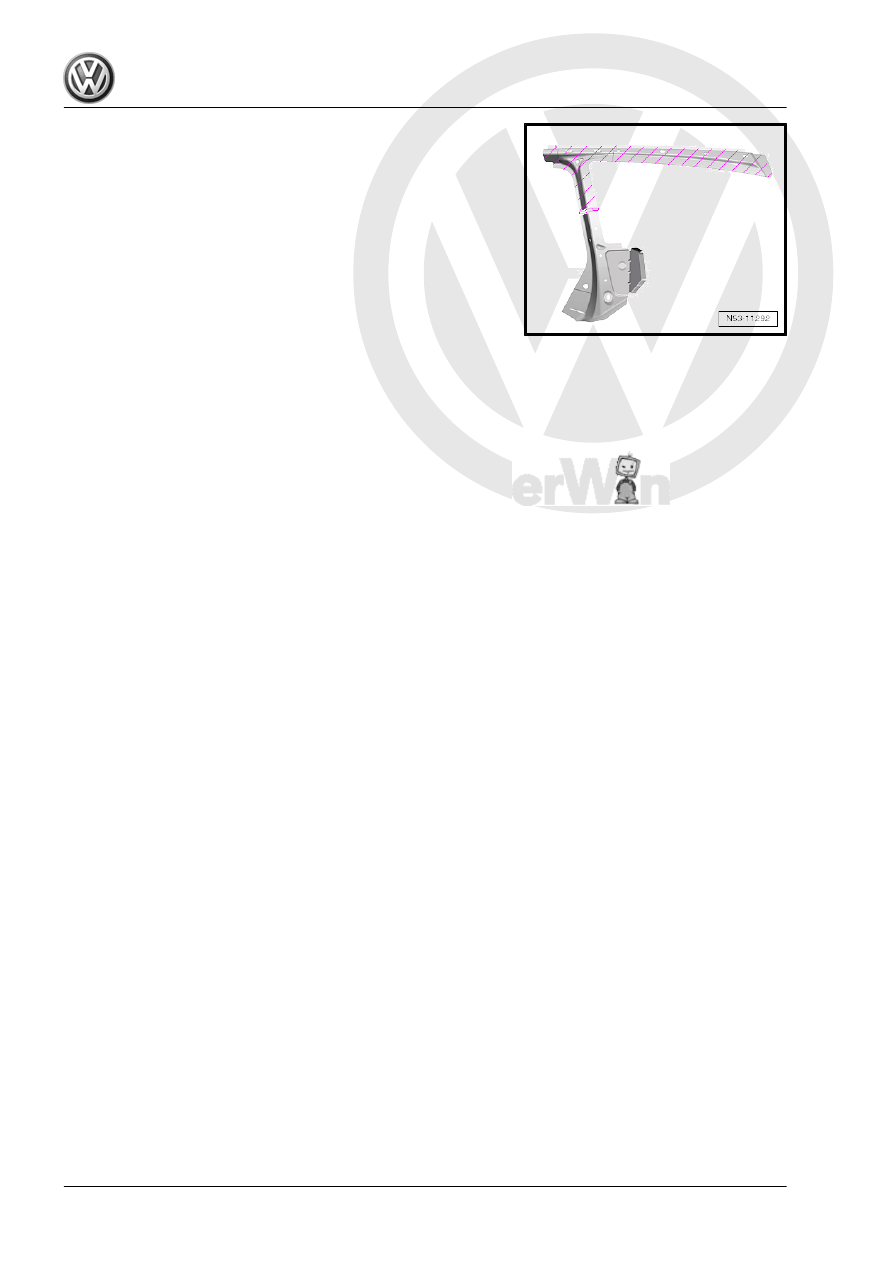

Moulded foam elements

Follow repair instructions.
Moulded foam element ⇒ General Information; Body Repairs,

General Body Repairs ; General Notes; Moulded foam elements

Passat 2011 ➤ , Passat Variant 2011 ➤

306

Welding in

Note

♦

In the area of the A, B and C-pillars, high tensile, highest tensile and hot formed steels are used. The weld

flanges in these areas are about 13mm wide.

♦

If spot welds are located at the edge of hot formed steel panels, the high temperature will cause the bond

between the panels to change, which will subsequently have an effect on crash safety.

Therefore, locate spot welds as close to the centre as possible.

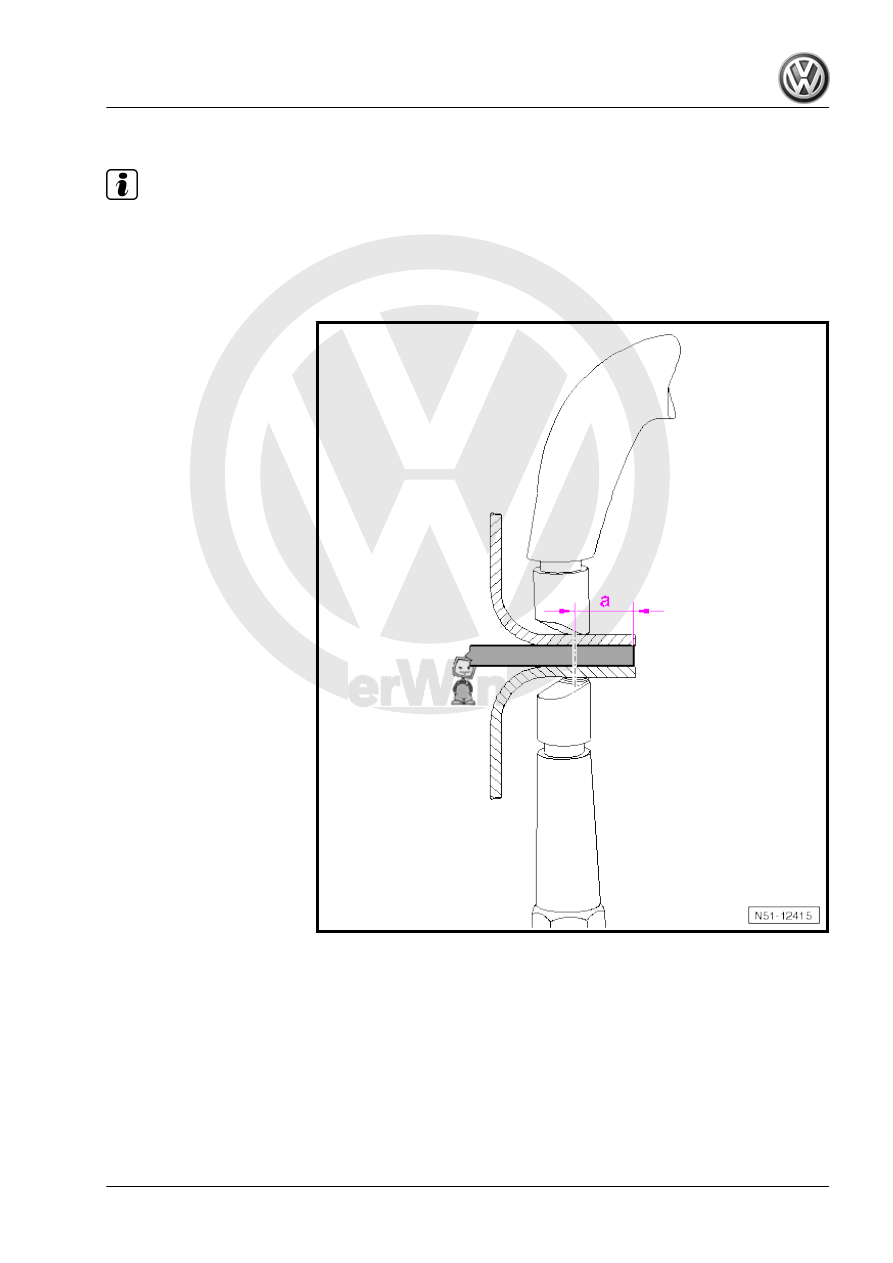

• Dimension -a- of 8mm can be achieved using angled welding

tips.

– Adapt new part with vehicle positioned on alignment bracket

set and fix in place.

– Check fit with bolt-on parts.

Passat 2011 ➤ , Passat Variant 2011 ➤

7. Renewing C-pillar reinforcement (Variant)

307

adhesion of adhesive will be impaired.

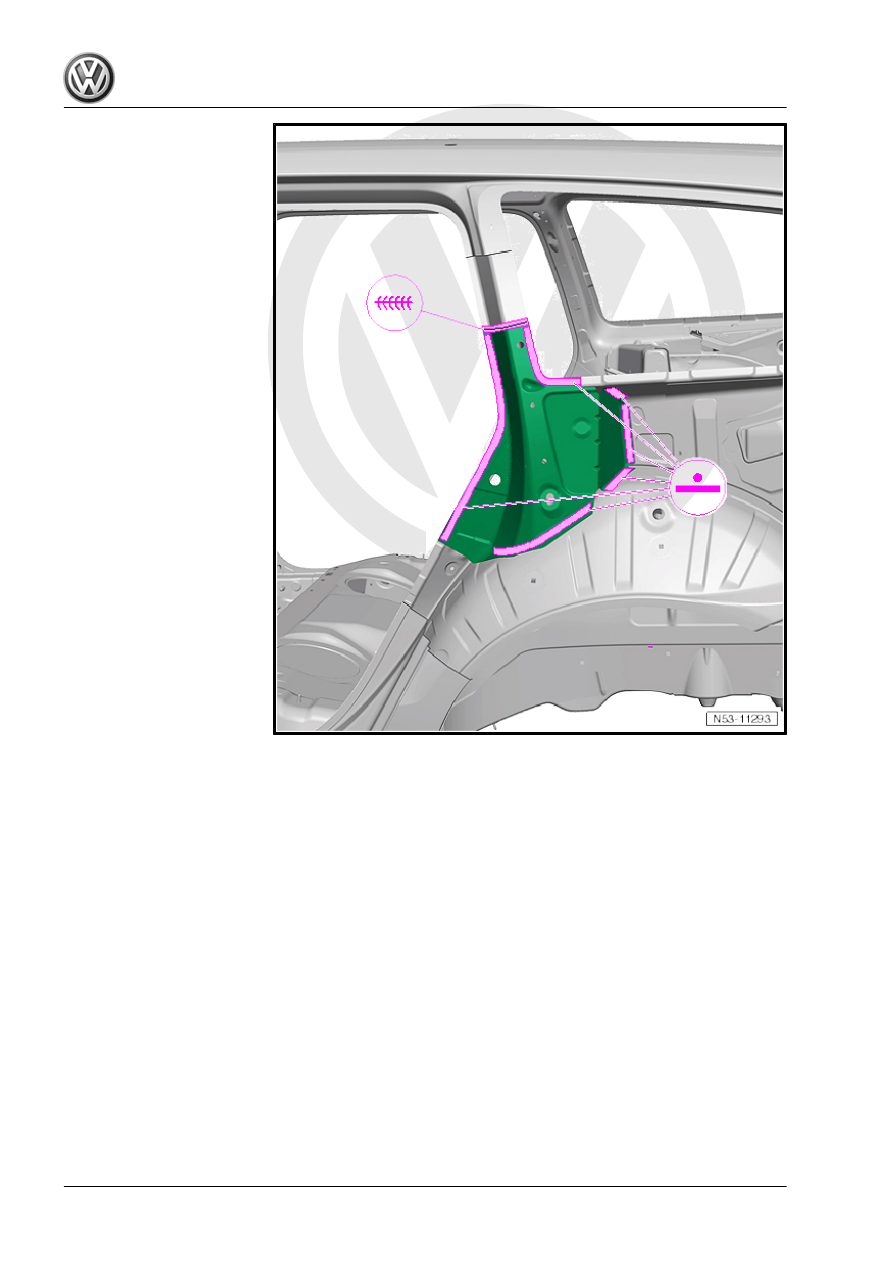

– Check fit with side panel.

Passat 2011 ➤ , Passat Variant 2011 ➤
