Note

♦

Number plate carrier is not installed in all models or in all markets.

♦

Number plate carriers of different sizes are fitted in various markets.

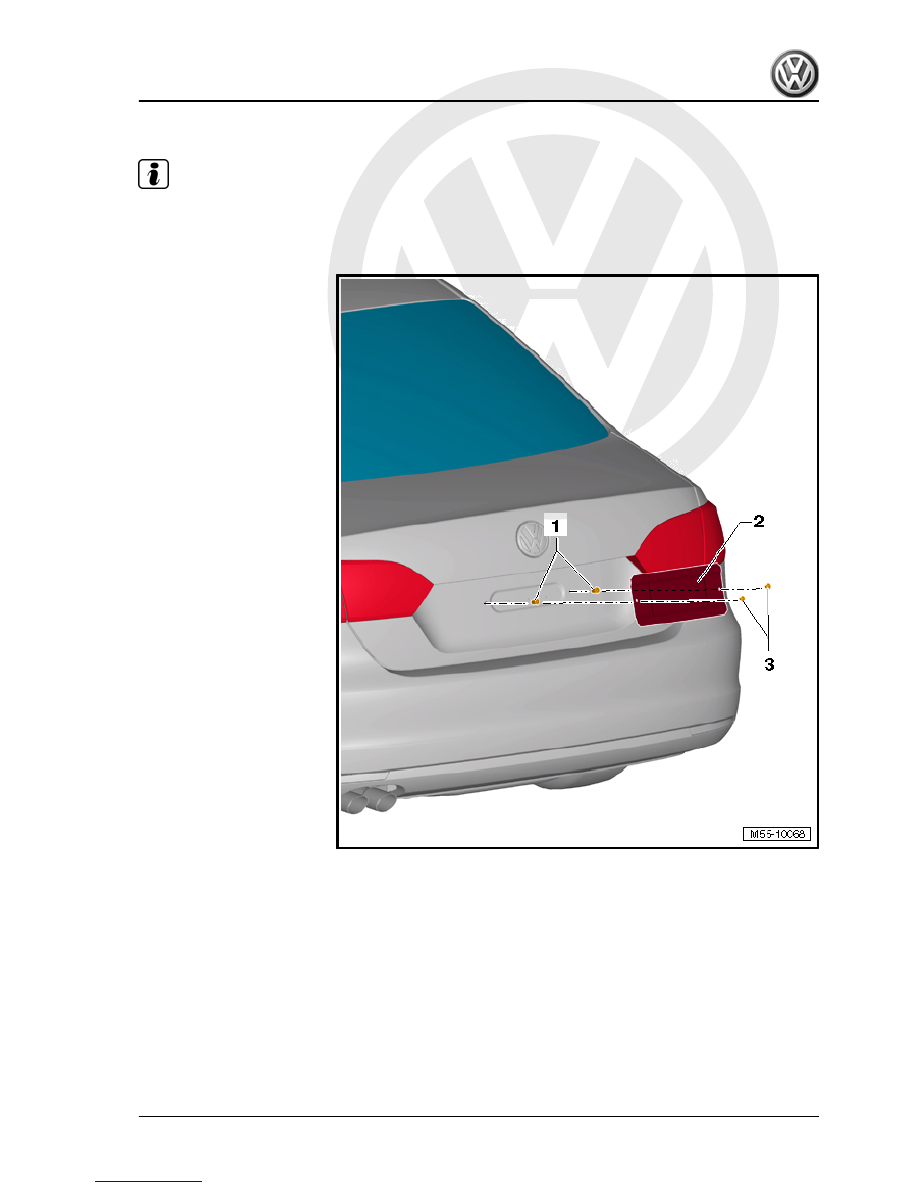

1 - Pop rivet nut

❑ Qty. 2.

2 - Registration plate carrier

❑ Assignment ⇒  Parts

catalogue “ETKA”

3 - Bolt

❑ Qty. 2.
❑ Specified torque: 4 Nm

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Rear lid

69



3.1

Tools

Special tools and workshop equipment required

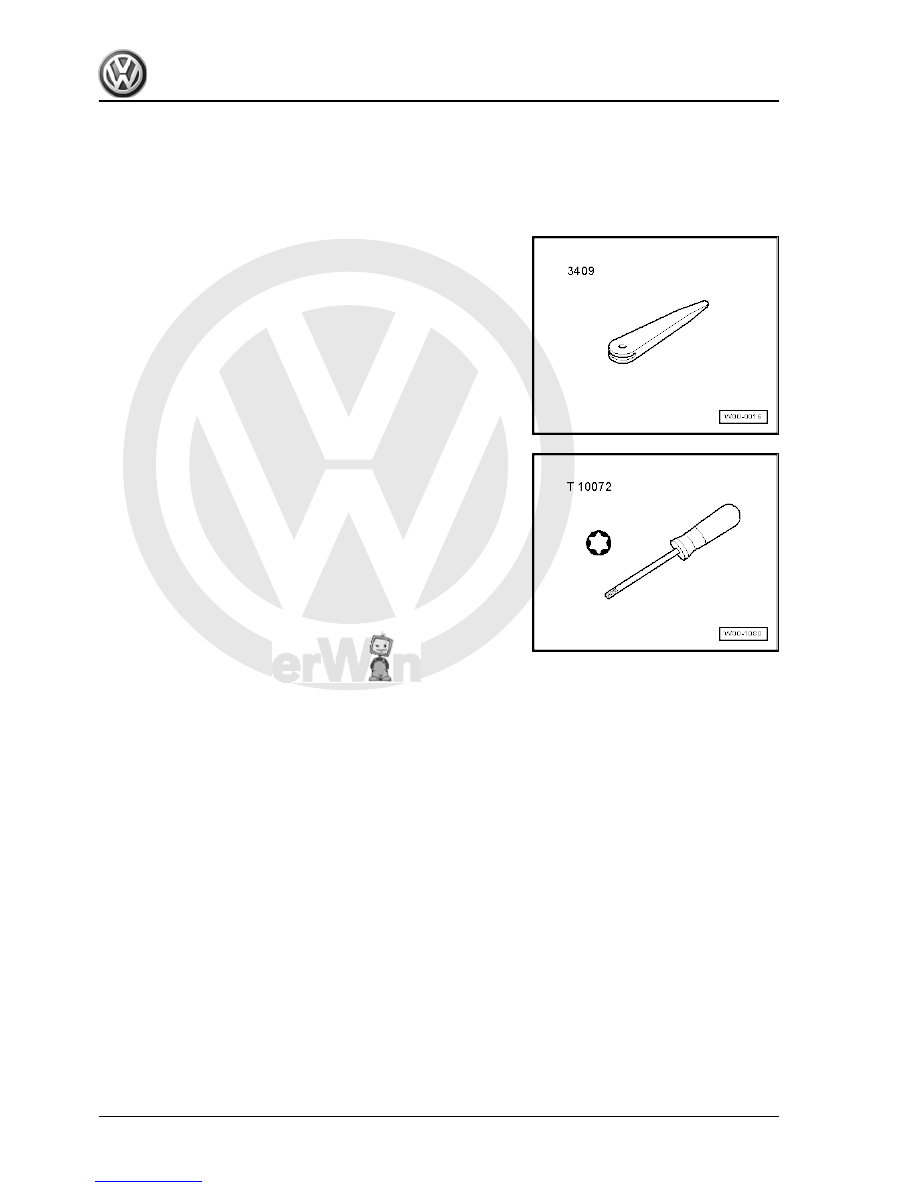

♦ Removal wedge -3409-

♦ Socket -T10072-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

70

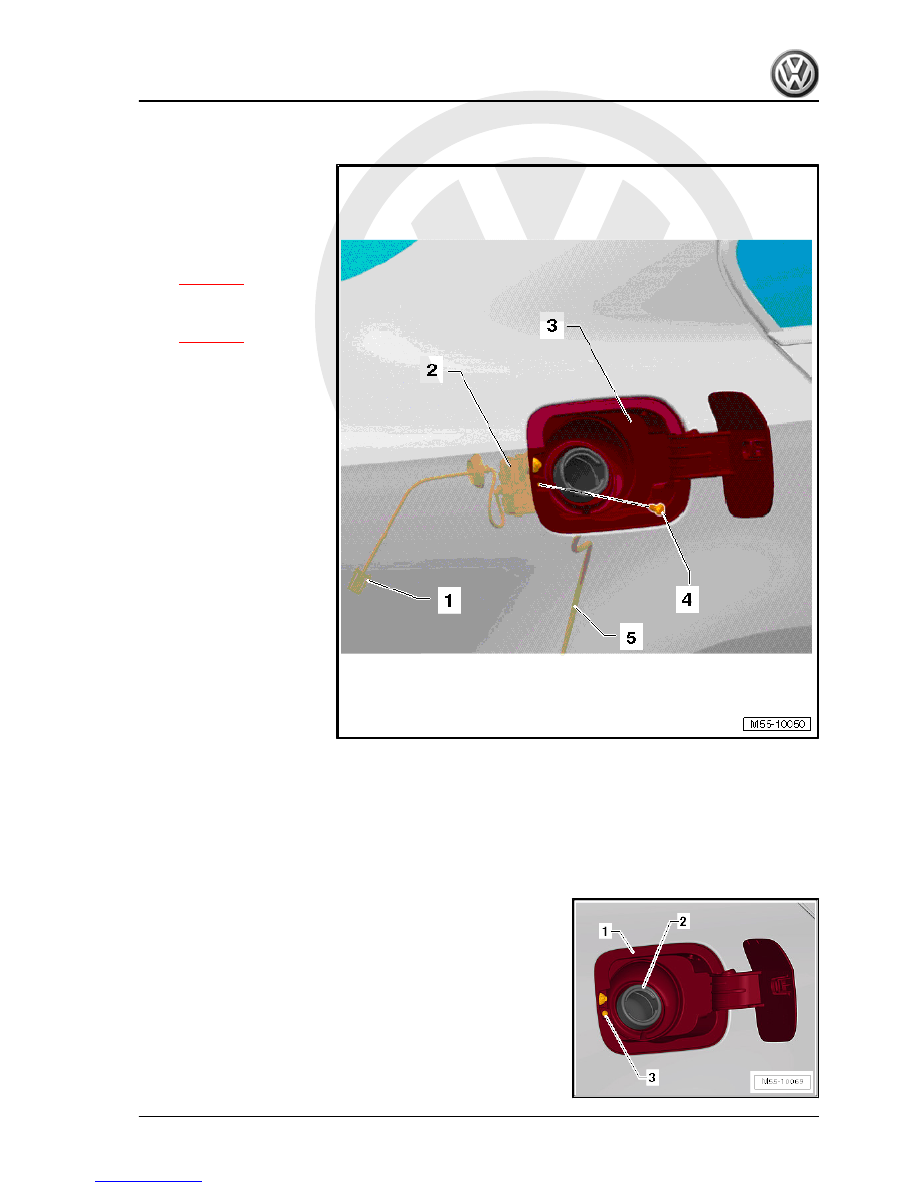

1 - Connector

❑ For tank filler flap lock‐

ing motor -V155-

2 - Tank filler flap locking motor

-V155-

❑ Removing and installing

⇒ page 73

3 - Tank flap unit

❑ Removing and installing

⇒ page 71

4 - Bolt

❑ Specified torque: 1.5

Nm

5 - Water drain hose

❑ Routed between wheel

housing and wheel

housing liner

3.3

Removing and installing tank flap unit

3.3.1

Removing

Carry out following work:
– Screw off tank cover.
– Peel rubber grommet of tank flap unit -1- off tank filler neck

-2-.

– Remove bolt -3-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

3. Tank flap unit

71

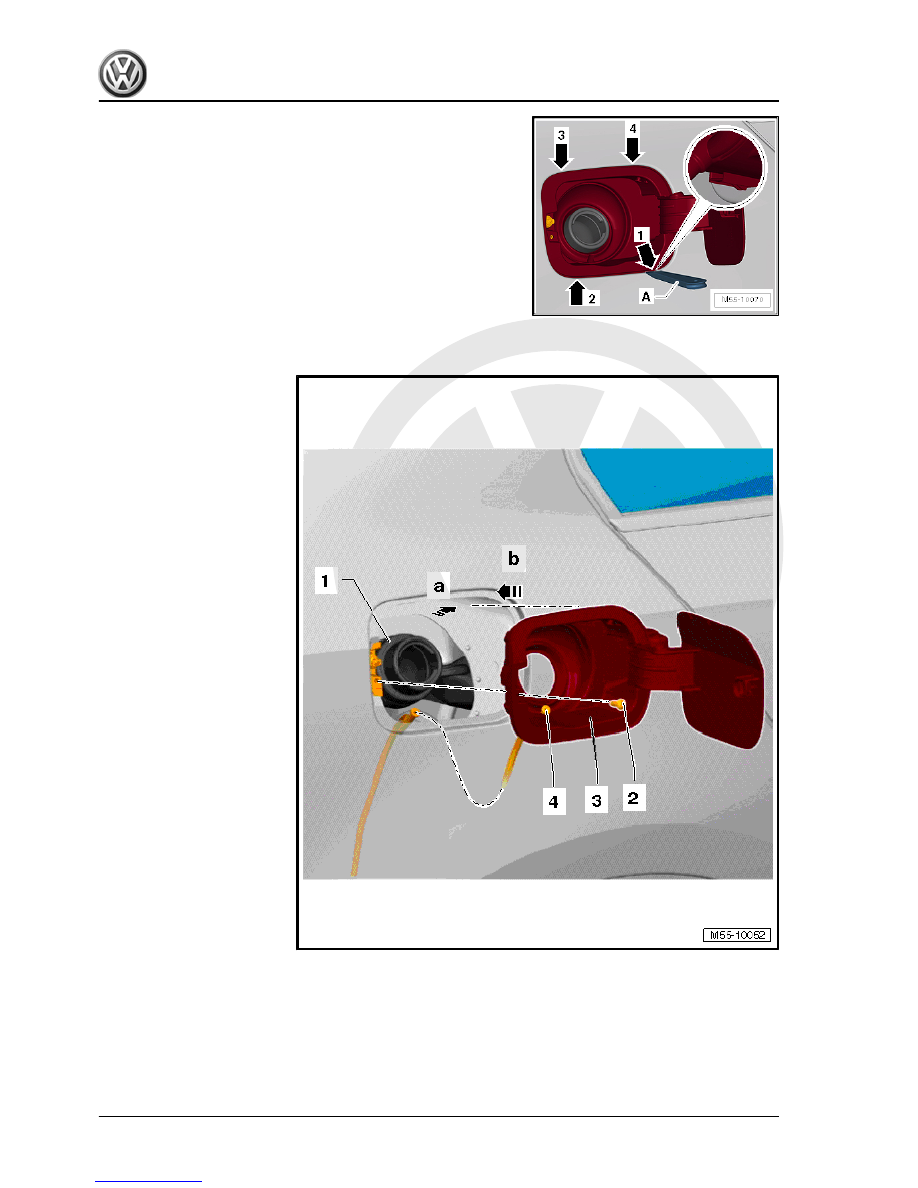

– Release remaining locking mechanisms of tank flap unit using

removal wedge -3409- in specified sequence -arrows 2 … 4-.

– Swing out tank flap unit with water drainage hose from side

panel.

3.3.2

Installing

Carry out following work:
– Insert water drainage hose -4- through opening in tank flap unit

-3- and pull through water drainage hose as far as it will go.

– Push water drainage hose-4- between wheel housing and

wheel housing liner and into the side panel.
