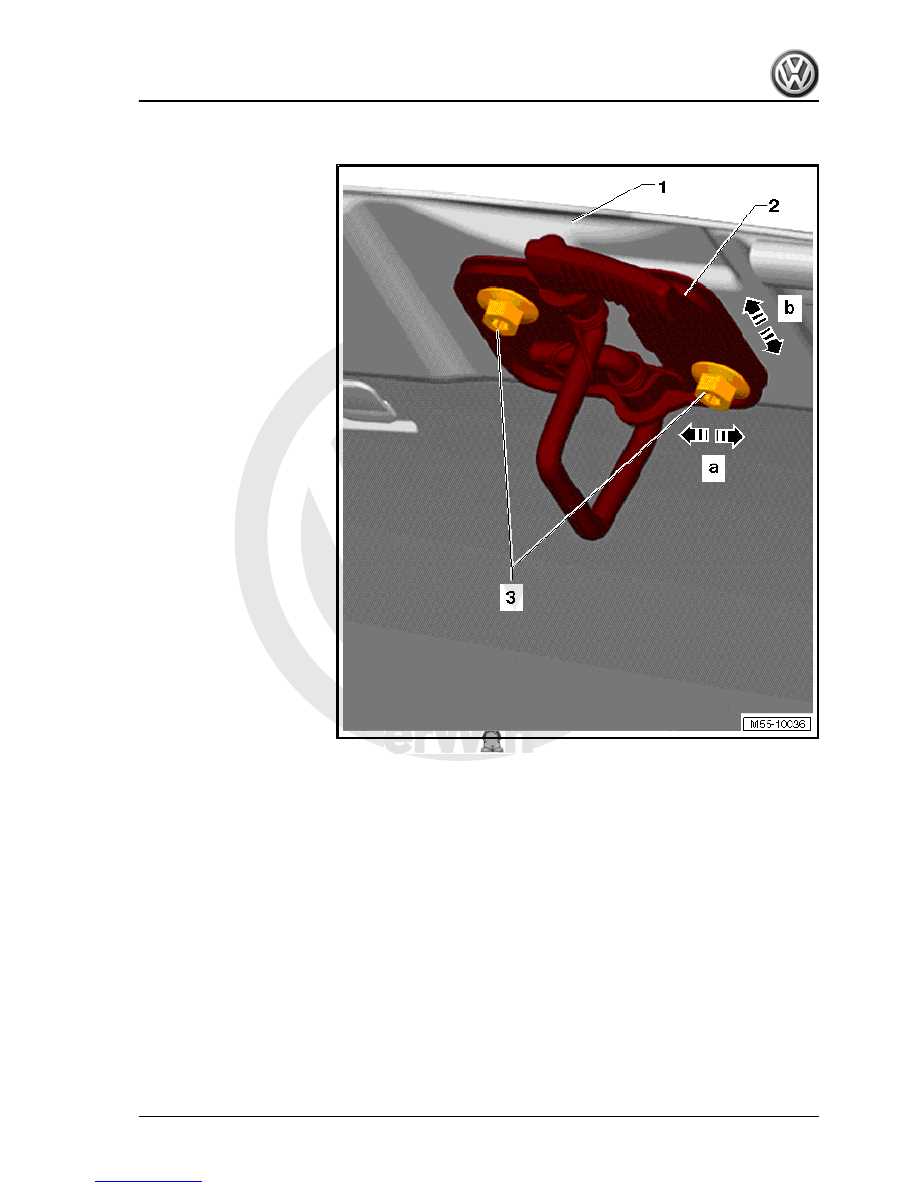

Carry out following work:
– Loosen bolts -3-.
– Striker pin -2- can now be adjusted in oversized holes.
Specified torque for bolts -3-: 10 Nm.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Bonnet

53



2.1

Tools

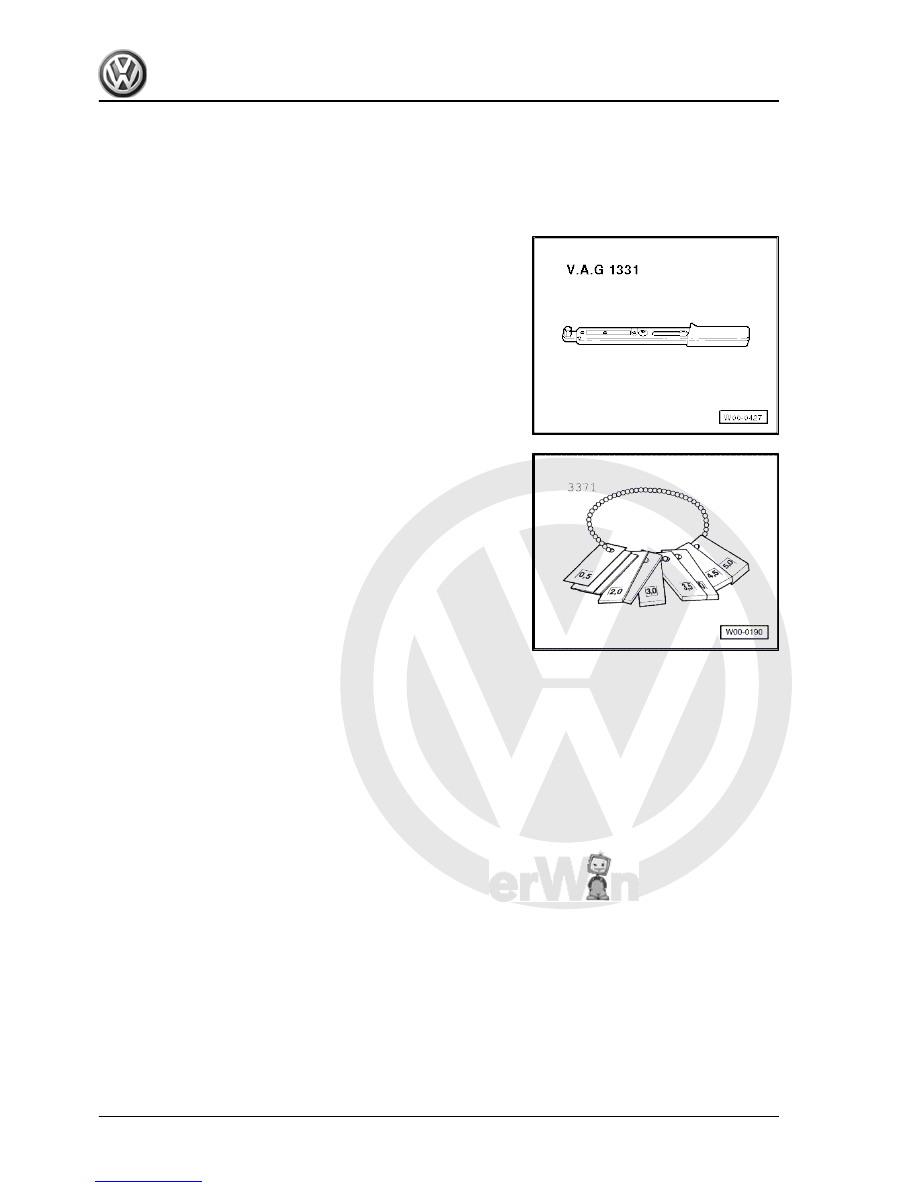

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1331-

♦ Setting gauge -3371-

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

54

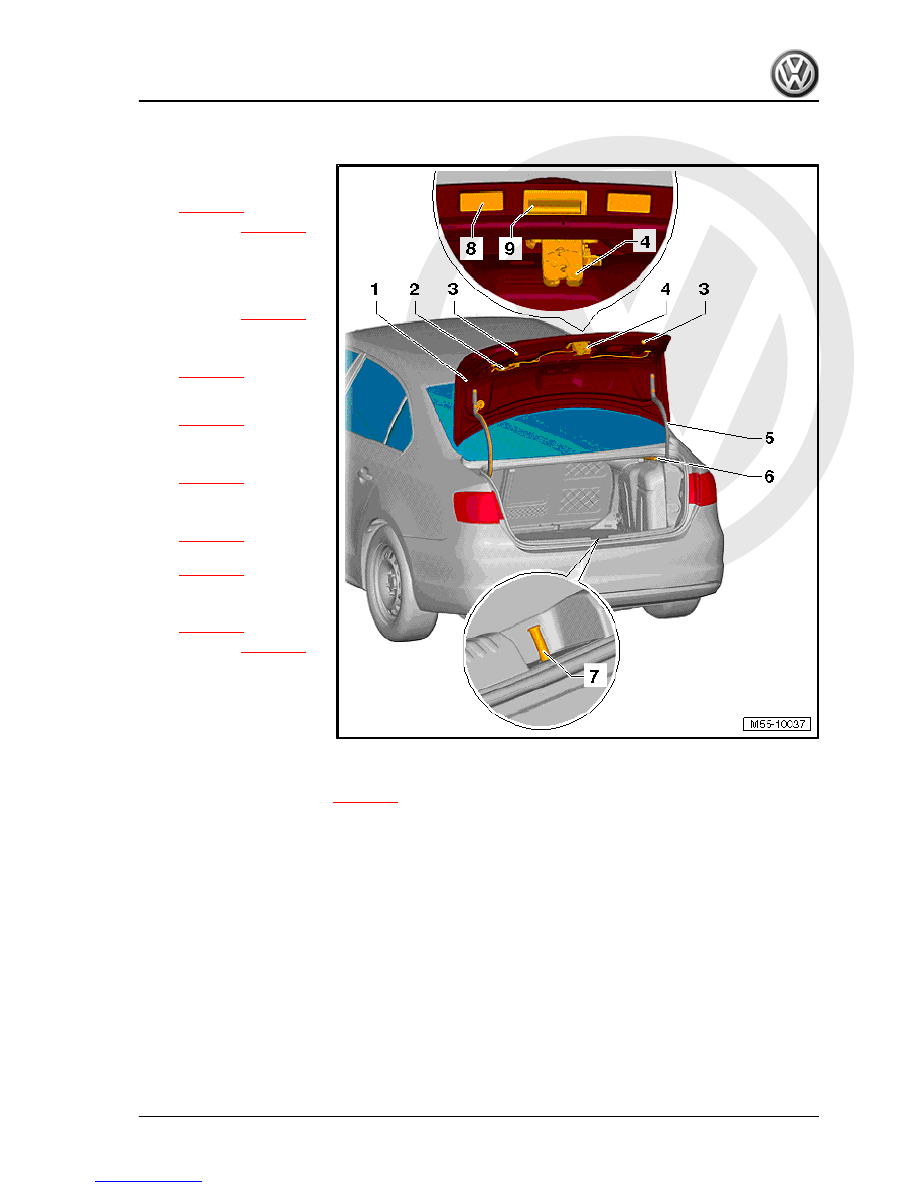

1 - Rear lid

❑ Removing and installing

⇒ page 55

❑ Adjusting

⇒ page 64

2 - Wiring harness
3 - Adjustment buffer

❑ Left and right.
❑ Adjusting

⇒ page 64

4 - Lid lock

❑ Removing and installing

⇒ page 66

❑ With emergency re‐

lease function

⇒ page 66

5 - Hinge

❑ Removing and installing

⇒ page 61

6 - Gas strut

❑ Removing and installing

⇒ page 57

❑ Releasing gas

⇒ page 60

7 - Striker plate

❑ Removing and installing

⇒ page 63

❑ Adjusting

⇒ page 65

❑ Assignment ⇒  Parts

catalogue “ETKA”

8 - Registration plate light

❑ Removing and installing

⇒  Electrical system;

Rep. gr.  94 ; Removing and installing registration plate lights .

9 - Button to release rear lid

❑ Removing and installing

⇒ page 65

2.3

Removing and installing rear lid

2.3.1

Removing

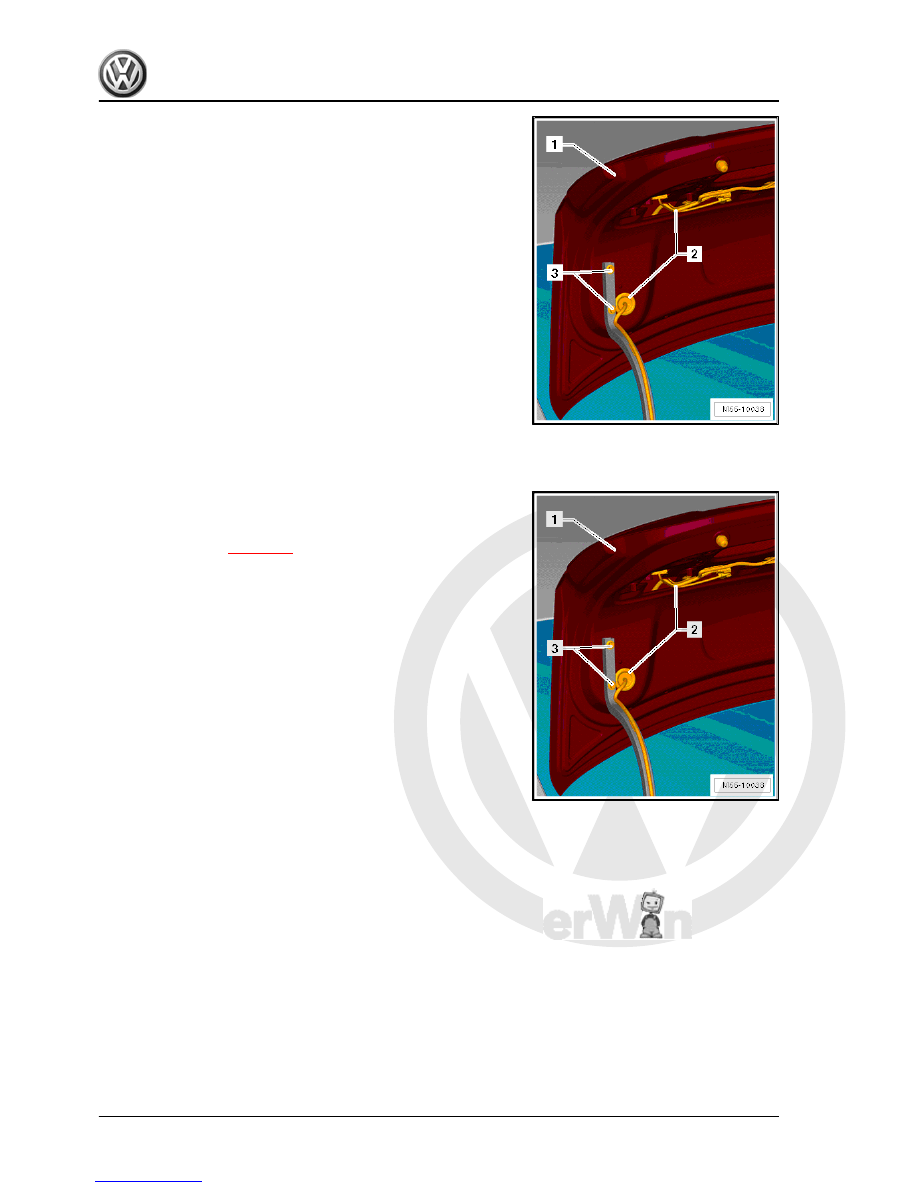

Carry out following work:
– Remove rear lid trim ⇒  General body repairs, interior; Rep.

gr.  70 ; Rear lid trim .

– Remove connectors of all installed electrical components.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

2. Rear lid

55



– Loosen bolts -3- on left and right hinges (do not unbolt com‐

pletely).

Further dismantling requires the assistance of a second mechan‐

ic.
– Now, remove bolts -3- completely and then remove rear lid

-1-.

2.3.2

Installing

Carry out following work:
Installation of rear lid -1- is carried out in reverse order of removal.
Specified torque for bolts -3- 9 Nm
– Adjusting rear lid

⇒ page 64

 .

• Before closing rear lid, check function of lid release compo‐

nents.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

56
