Volkswagen Jetta / Jetta Hybrid. Manual - part 12

– Fit cable -2- to cable coupling

⇒ page 45

– Adjust bonnet lock

⇒ page 52

– Install radiator grille

⇒ page 261

• Before closing bonnet, check function of release lever and re‐

lease cable.

1.10

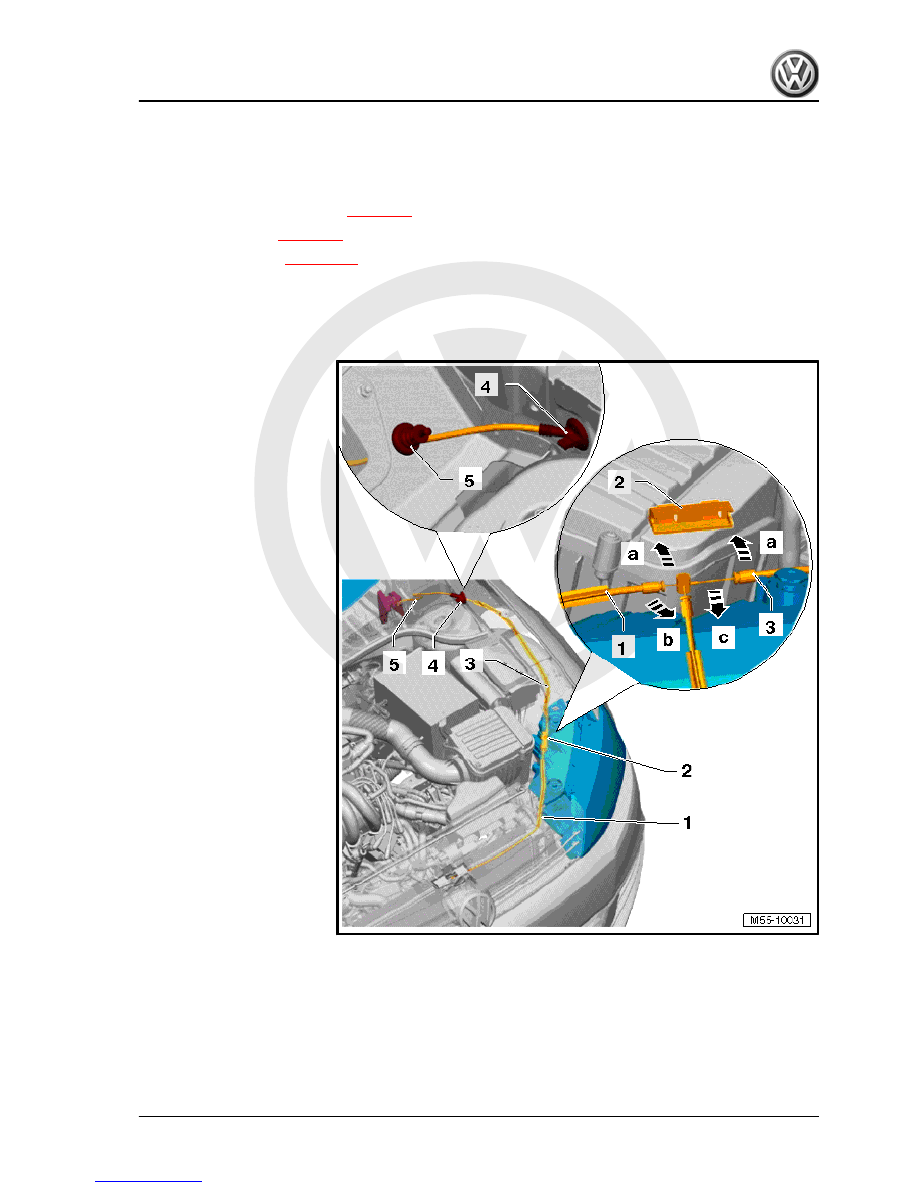

Detaching release cable

Carry out following work:
– Open bonnet.
– Unclip cable coupling cover -2- above driver-side headlight

from lock carrier.

– Remove cover -2- from cables -1- and -3- -arrows a-.
– Turn cable -1- by 90° -arrow b- and remove cable -1- in

-direction of arrow c- from the cable mounting -2-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Bonnet

• Before closing bonnet, check function of release lever and re‐

lease cables.

1.11

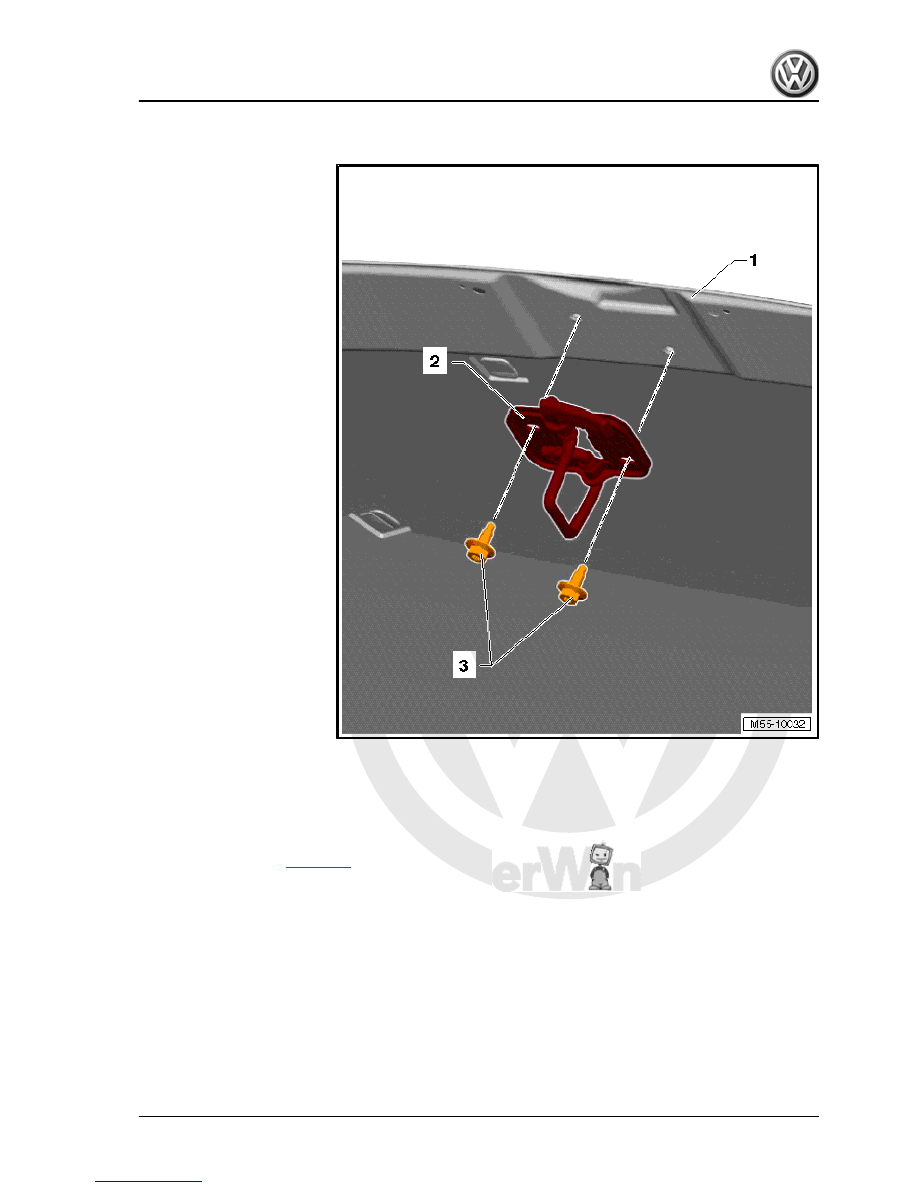

Removing and installing striker pin

1.11.1

Removing

Carry out following work:
– Open bonnet -1-.
– Remove bolts -3-.
– Remove striker pin -2- from bonnet -1-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

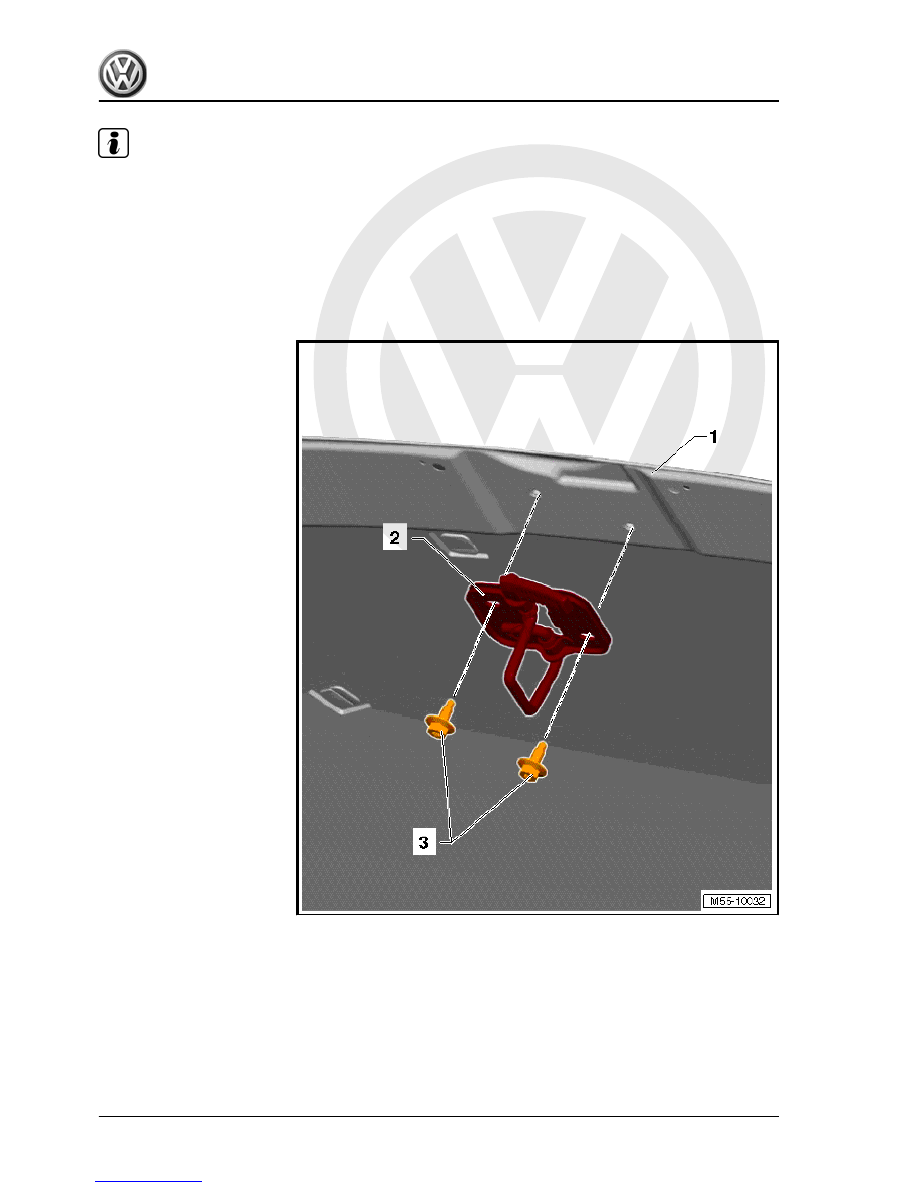

Carry out following work:
Installation of the striker pin -2- is carried out in the reverse order

of removal.
Specified torque for bolts -3-: 10 Nm.
– Adjusting striker pin

⇒ page 53

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Bonnet

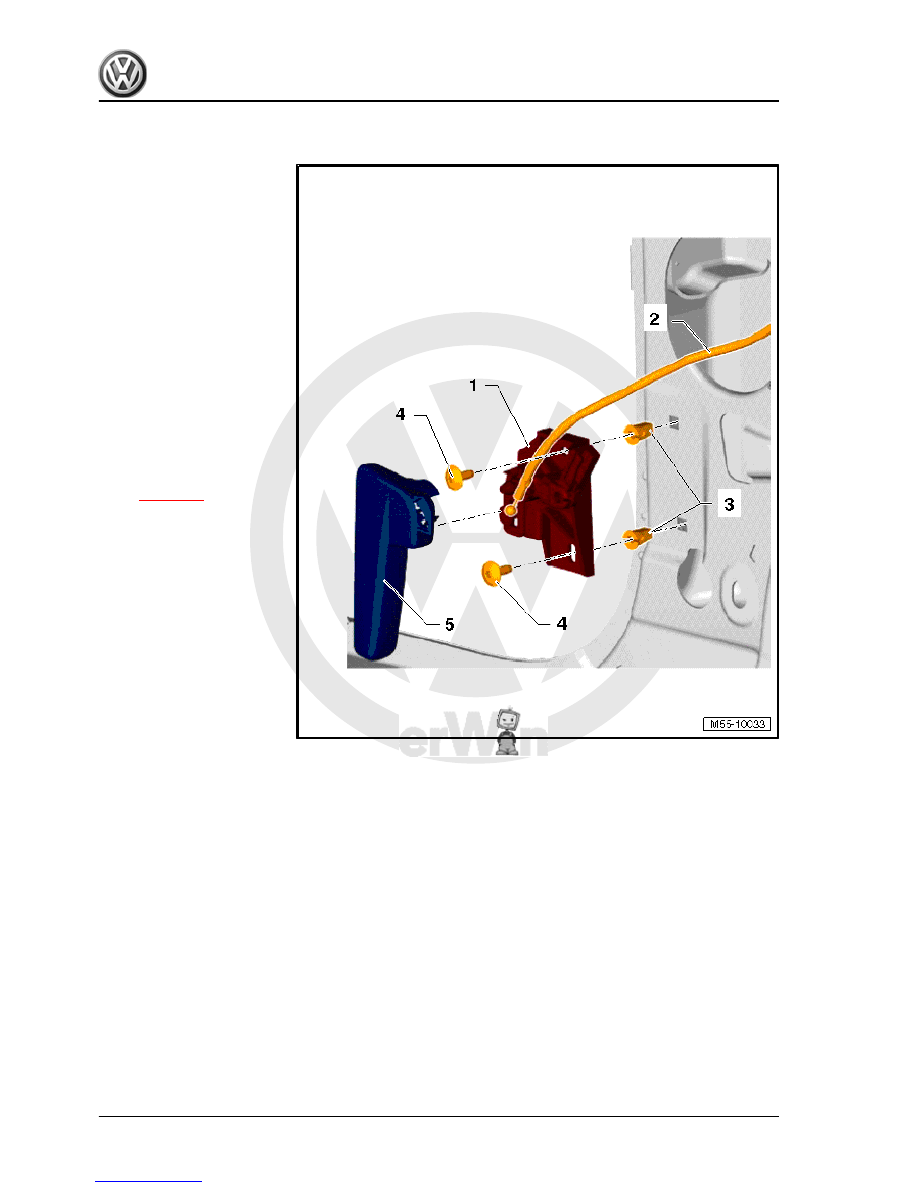

1 - Mounting bracket
2 - Cable

❑ Installing:
– Insert ball of cable into

holder on mounting

bracket.

– Clip cable into mounting

bracket

3 - Expanding nut

❑ Qty. 2.

4 - Bolt

❑ Qty. 2.
❑ Specified torque: 1.5

5 - Release lever

❑ Removing and installing

⇒ page 49

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤
