1.3.1

Removing

dow washer system; Removing and installing spray jets for

window washer system .

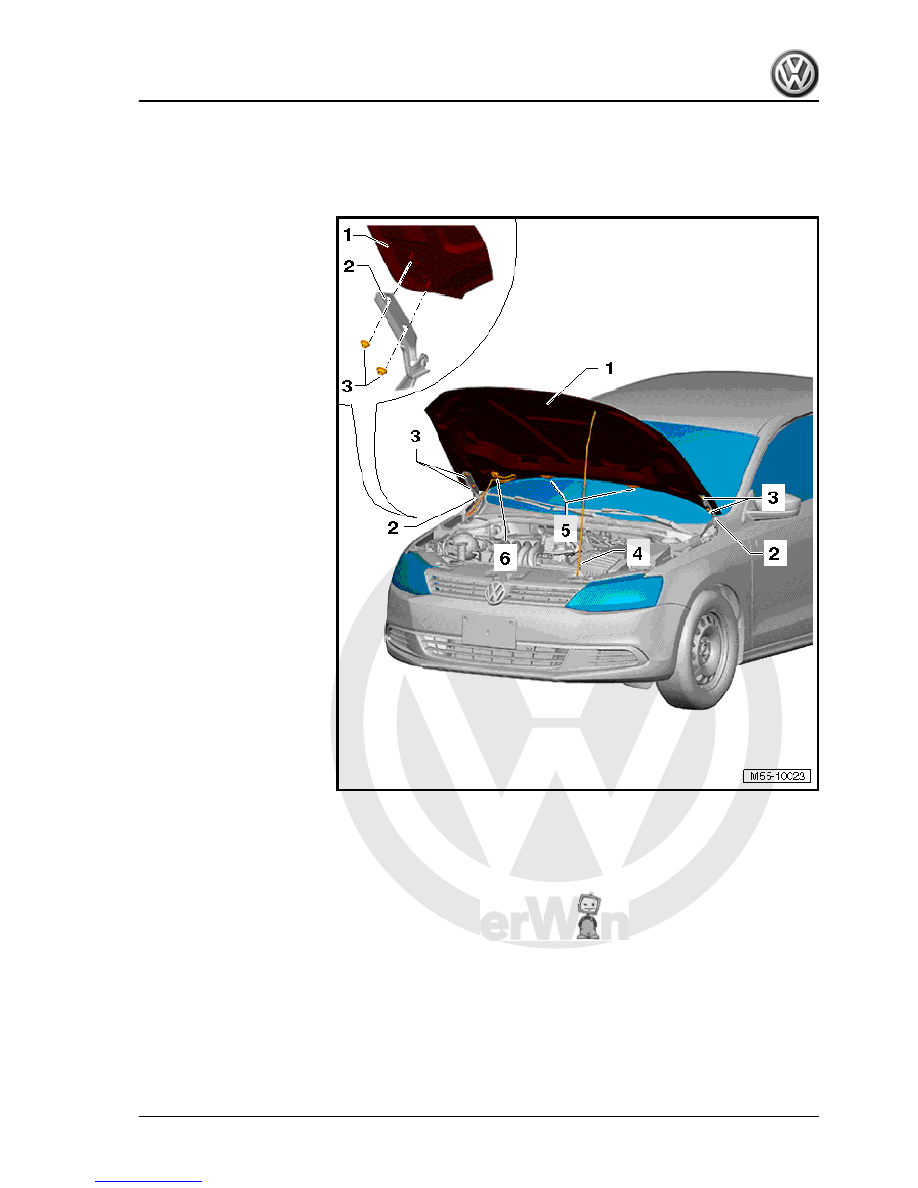

– Unclip line -6- from bonnet -1-.
– Pull line -6- out of opening in bonnet -1-.
– Loosen nuts -3- on left and right hinges -2- (do not remove

completely).

Further dismantling requires the assistance of a second mechan‐

ic.
– Remove support rod -4- from bonnet.
– Now, unscrew and remove nuts -3- and lift bonnet -1- out of

hinges -2-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Bonnet

33



Carry out following work:

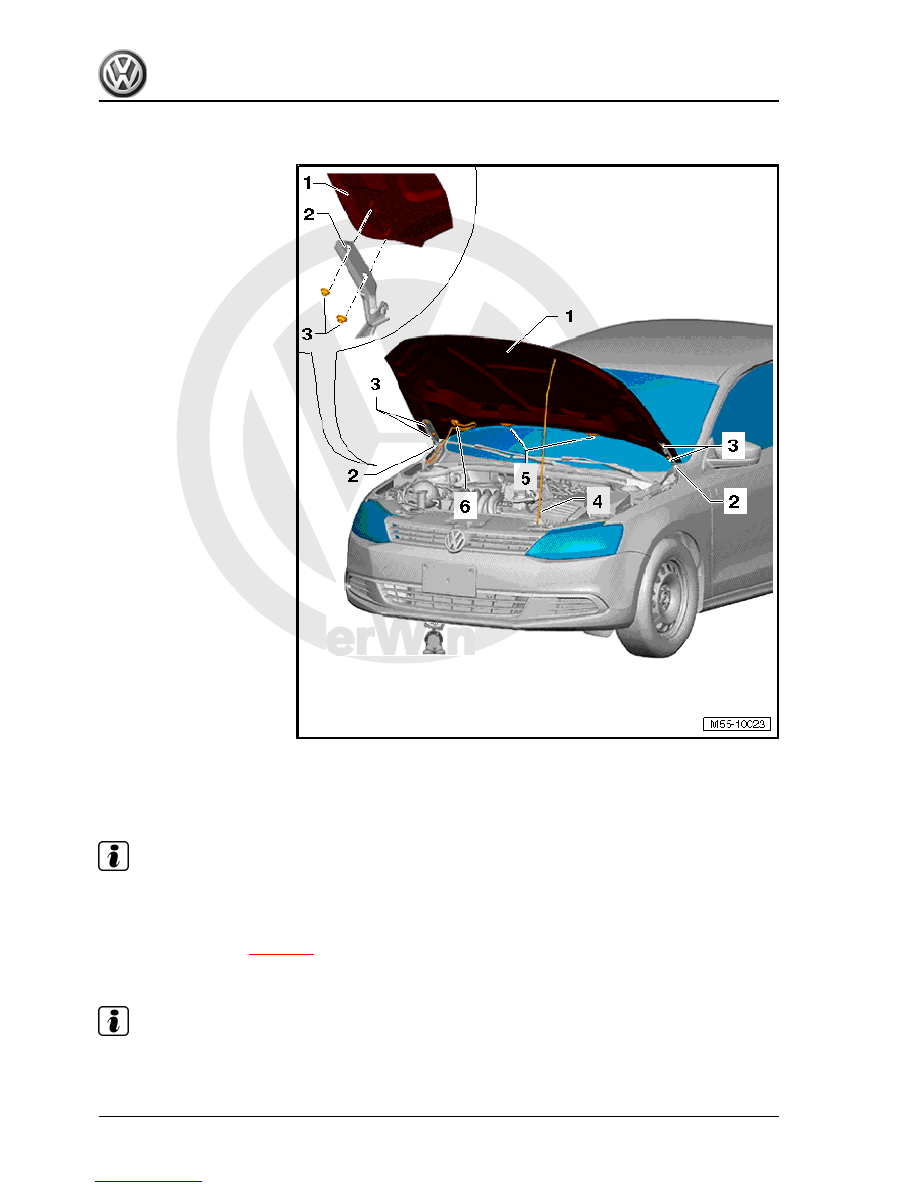

Installation of bonnet -1- is carried out accordingly in reverse or‐

der of removal.

Note

Install the line -6- in a curve. If line is installed twisted it will kink.

Specified torque for nuts -3-: 22 Nm
– Adjusting bonnet -1-

⇒ page 51

 .

1.4

Removing and installing bonnet hinge

Note

Removal and installation is described for the right hinge only. Re‐

moval and installation of the left hinge are similar.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

34



Carry out following work:
– Removing bonnet -1-

⇒ page 33

– Removing plenum chamber cover

⇒ page 17

 .

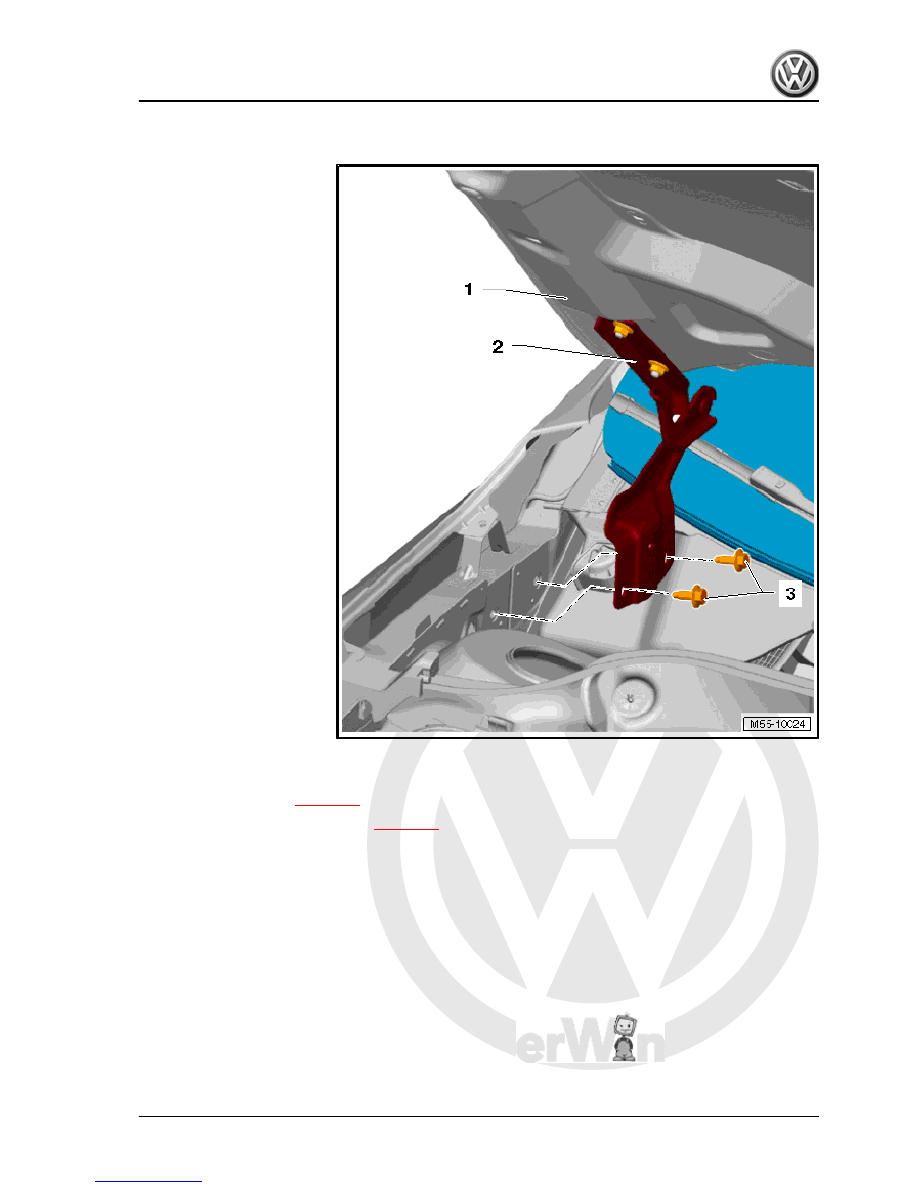

– Remove bolts -3-.
– Pull off hinge -2-.

Jetta 2011 ➤ , Jetta Hybrid 2013 ➤

1. Bonnet

35



Carry out following work:

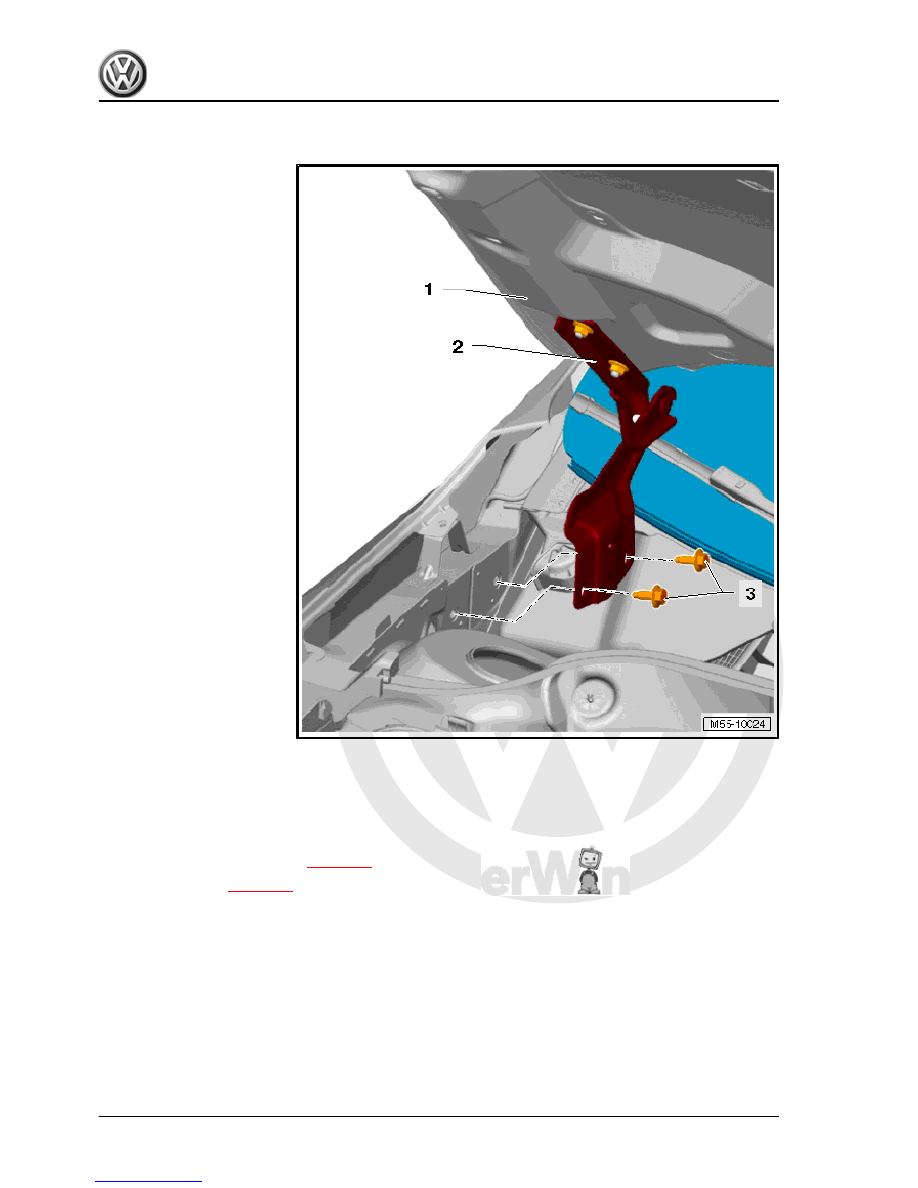

Installation of the hinge -2- is carried out in the reverse order of

removal.
Specified torque for bolts -3-: 22 Nm.
– Install plenum chamber cover

⇒ page 17

 .

– Install bonnet -1-

⇒ page 33

 .
