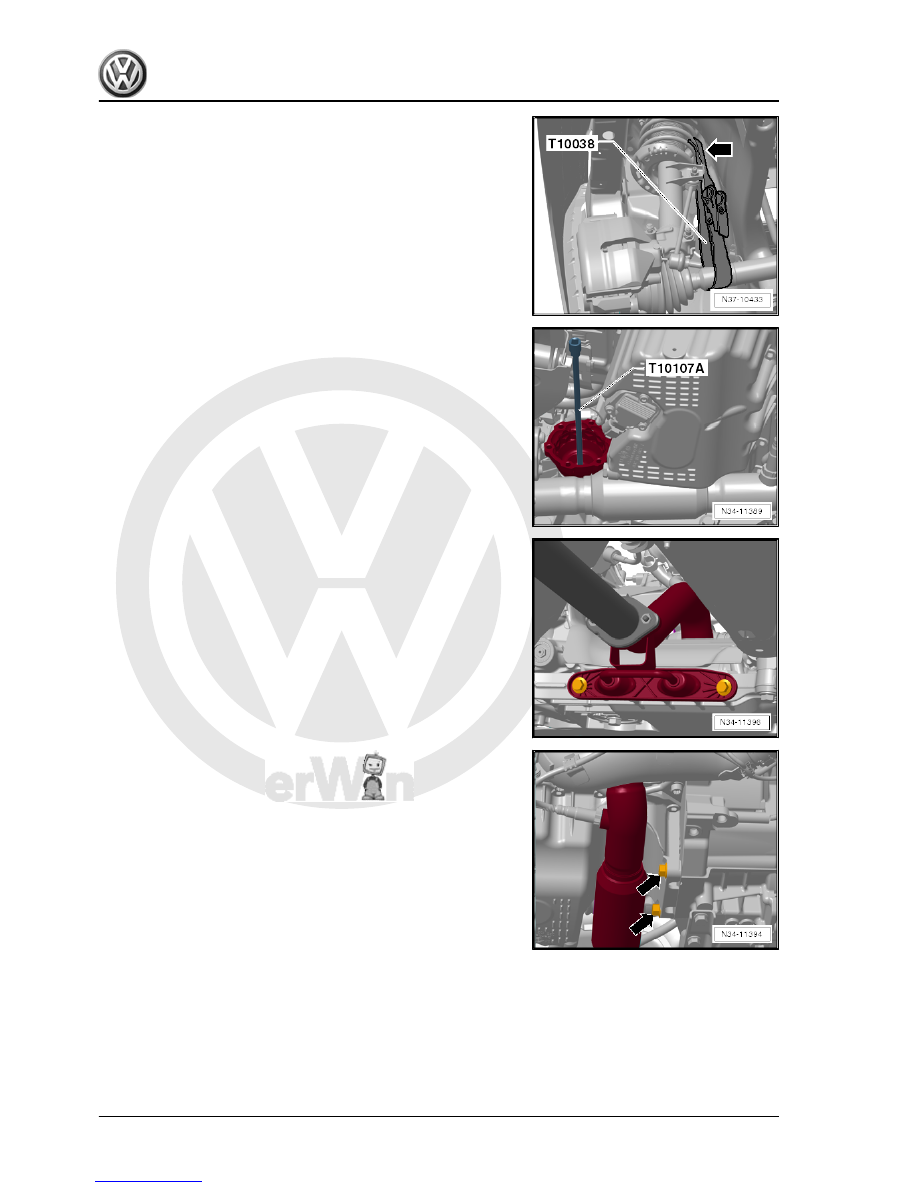

– If fitted, remove the heat shield over the right-hand drive shaft.

– Disconnect left and right-hand drive shafts from flanges on

gearbox.

– Unbolt only left suspension link from swivel joint -arrows-.
– Swing left drive shaft into wheel housing onto longitudinal

member. This will keep the shaft out of the way during further

work.

The surface protection of the shafts must not be damaged. Plastic

cable ties or a pair of tensioning straps -T10038- are therefore

very good for this.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

4. Removing and installing gearbox

85

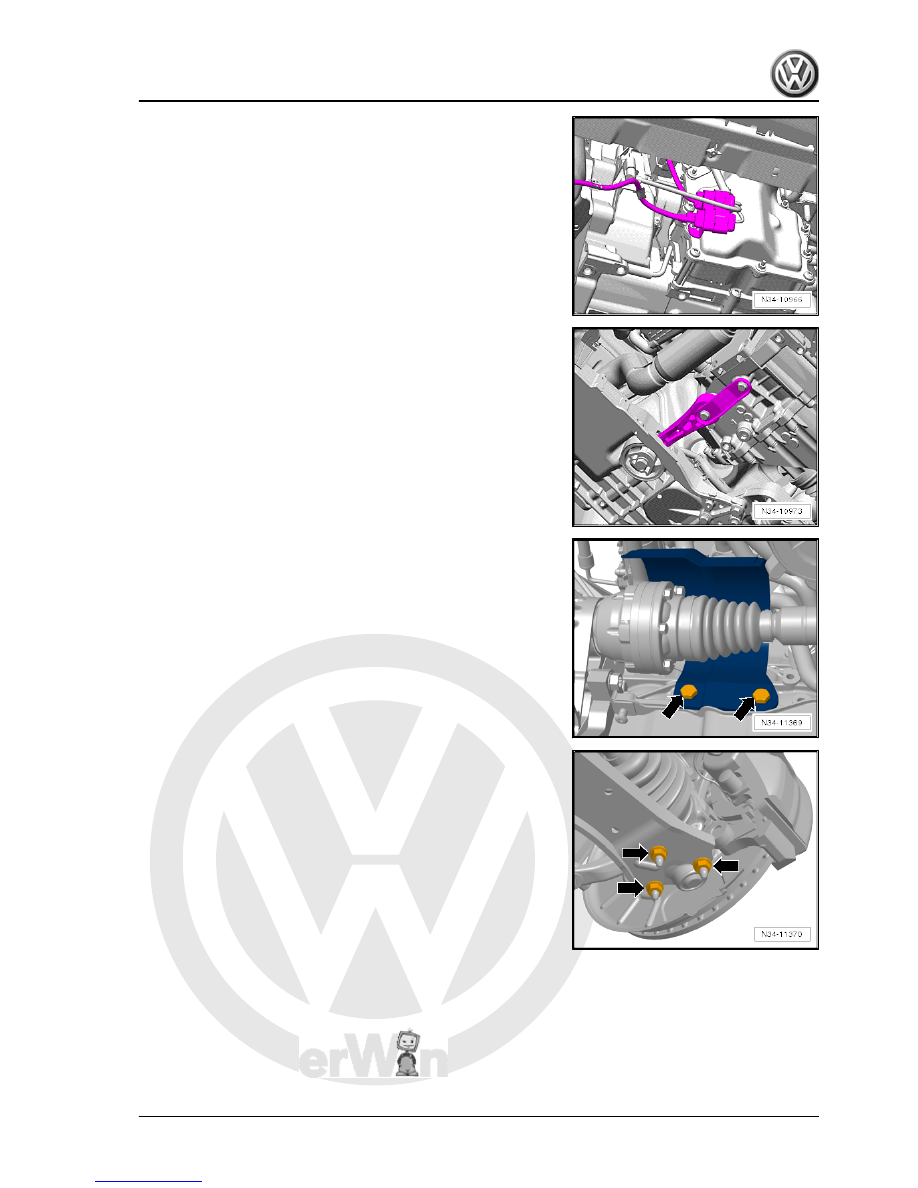

– Remove right flange shaft of gearbox.
Bolt has a 6 mm hexagon socket. Bolt can also be removed and

installed with socket -V.A.G 1669- .
Torque setting: 30 Nm

– Unbolt exhaust system bracket from subframe.

– Remove front exhaust pipe so that lower bolts can be removed

-arrows-.

– Remove engine cover from cylinder head.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

86

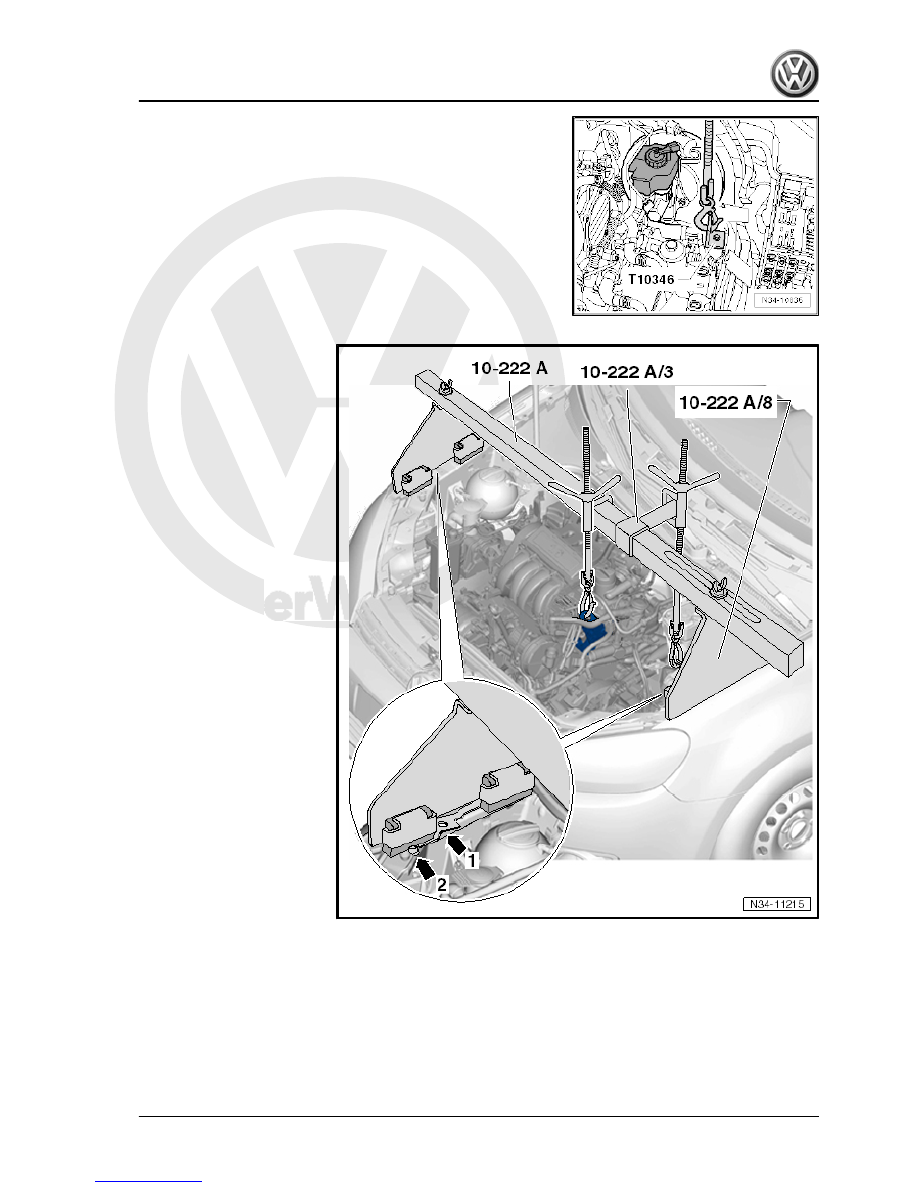

– To do this, use a collar bolt M 6 or a securing bolt for battery

tray.

– If there are hose and cable connections in area of engine sup‐

port eye for support bracket -10 - 222 A- , remove these now.

– Set up support bracket -10-222 A- in front of bonnet support.
– Use:
♦ Adapter -10 - 222 A /8-
♦ Adapter -10 - 222 A /3-
• Place adapters -10 - 222 A /8- on upper longitudinal carriers,

directly before the raised portion (-arrow 1-) next to bolt

(-arrow 2-).

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

4. Removing and installing gearbox

87

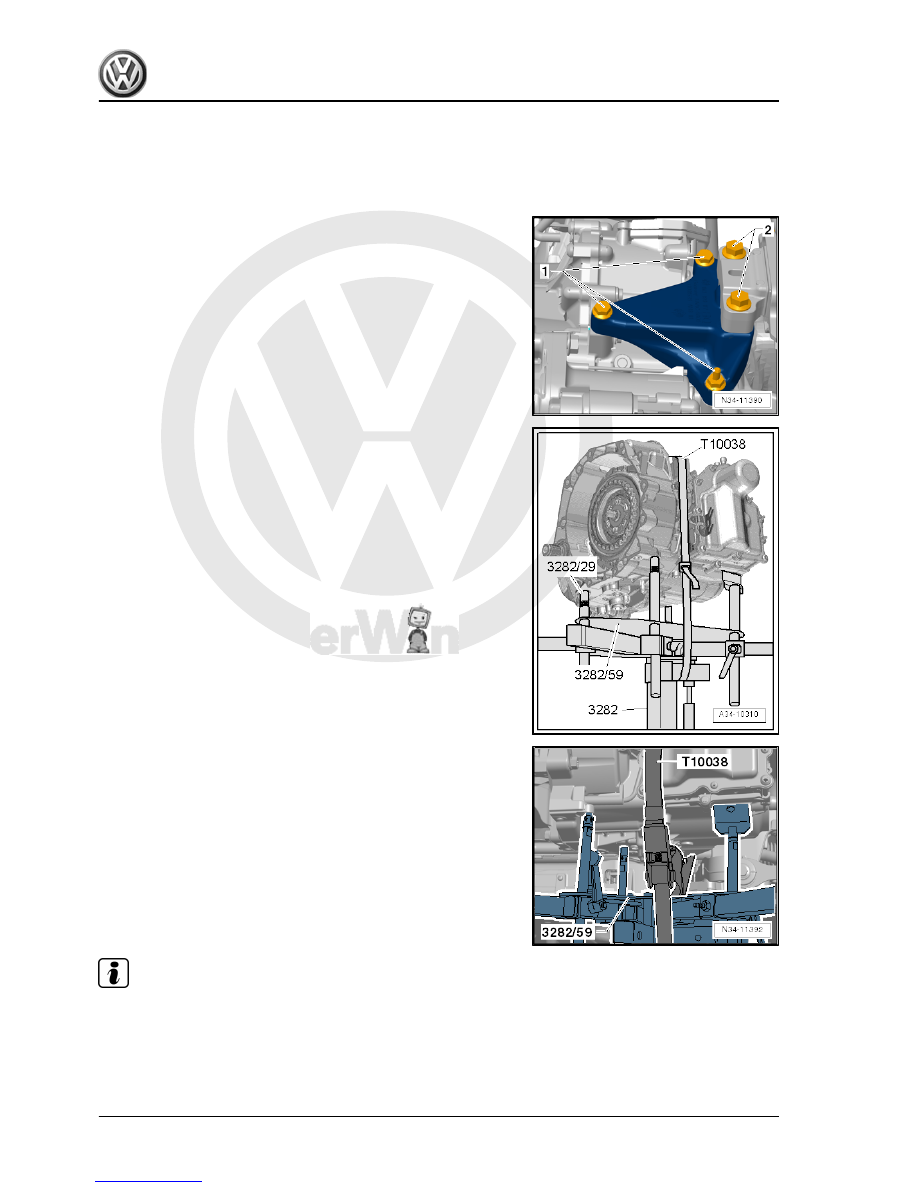

– Take up weight of engine/gearbox assembly and support

bracket on spindles.

Remove all bolts -1- and -2- for bracket.
– Then lower engine and gearbox slightly using spindles of sup‐

port bracket -10 - 222 A- so that bracket can be removed.

At most, 5 turns are sufficient to remove bracket.

To remove gearbox 0AM, set up gearbox support -3282- with ad‐

justment plate -3282/59- and push onto engine and gearbox

support -V.A.G 1383 A- .
– Align arms of gearbox support according to holes in adjust‐

ment plate -3282/59- .

– Screw in support elements as illustrated on adjustment plate

-3282/59- .

– Position engine and gearbox jack -V.A.G 1383 A- under vehi‐

cle.

• Arrow on adjustment plate -3282/59- points in direction of trav‐

el.

– Align gearbox support -3282- parallel to gearbox.
– Screw pin -3282/29- into “rear” hole for pendulum support.

– Place both remaining attachments onto gearbox as shown.

When doing this, place sheet metal of drift under gearbox

housing and not under mechatronic unit.

– Secure gearbox with tensioning strap -T10038- .
– Raise gearbox and engine support -V.A.G 1383 A- from below

to support gearbox.

The gearbox is separated from the engine in this position.
– Remove remaining engine/gearbox connecting bolts.
– Press gearbox off engine, “observing selector lever cable” and

lower gearbox.

Note

♦

Distance between engine flange and gearbox flange should

be about 50 mm before gearbox is lowered.

♦

Be careful of all lines and coolant hoses when lowering gear‐

box.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

88
