7-2. Steps to take in an emergency

en tro

uble

ris

4RUNNER (U)

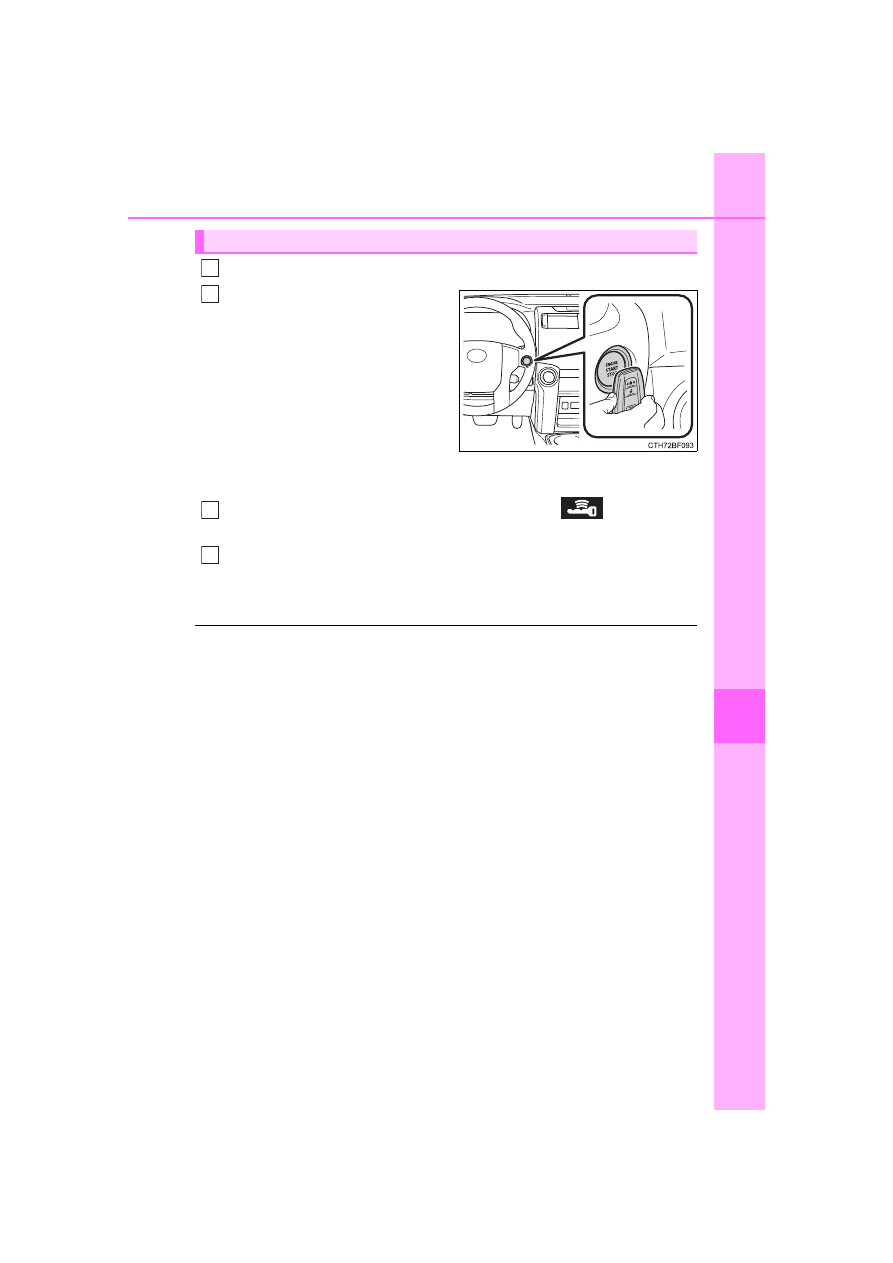

Ensure that the shift lever is in P and depress the brake pedal.

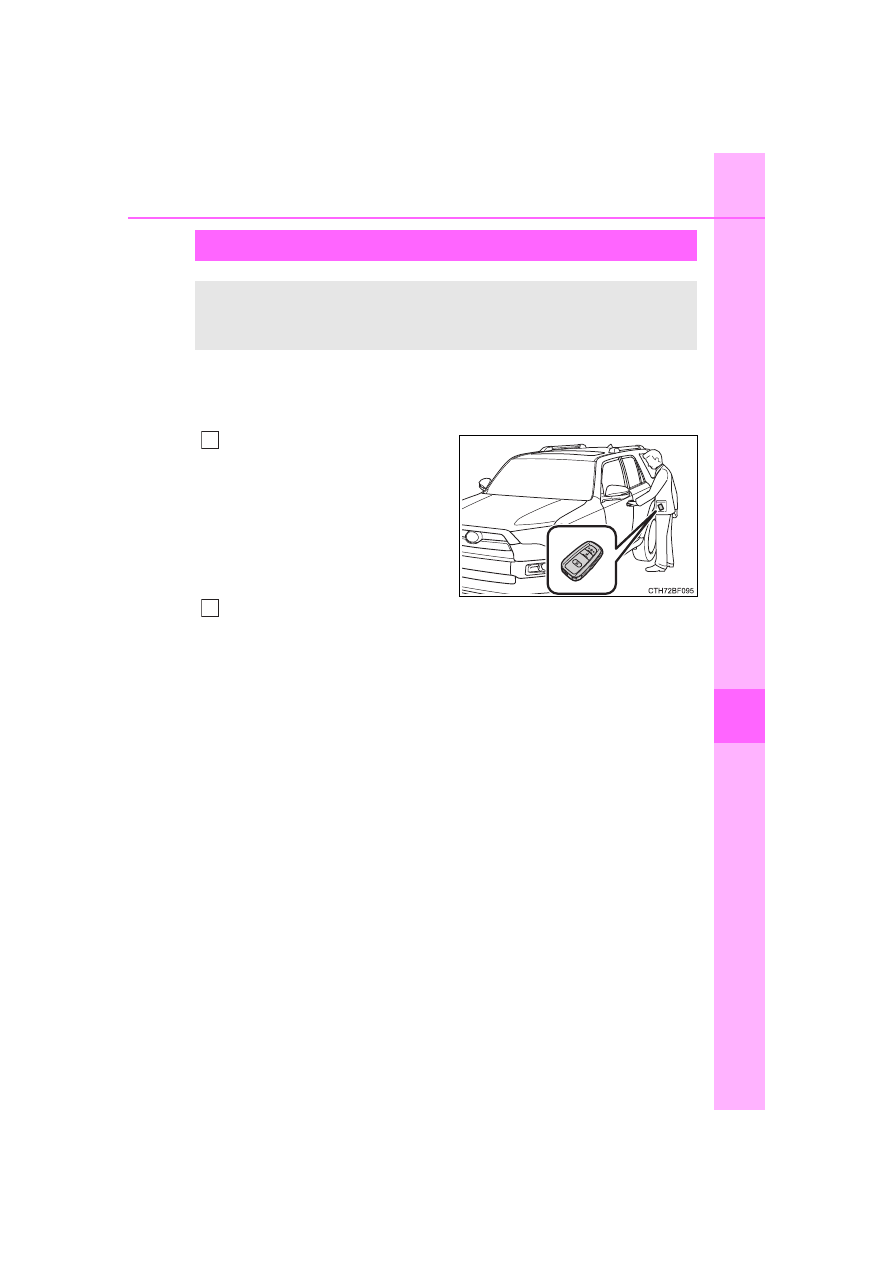

Touch the Toyota emblem side
of the electronic key to the
engine switch.

When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.

When the smart key system is
deactivated in customization set-
ting, the engine switch will turn to
ACCESSORY mode.

Firmly depress the brake pedal and check that

is displayed

on the multi-information display.

Press the engine switch shortly and firmly.

In the event that the engine still cannot be started, contact your Toyota
dealer.

■

Stopping the engine

Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.

■

Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(



P. 447)

■

Changing engine switch modes

Within 10 seconds of the buzzer sounding, release the brake pedal and press
the engine switch.
The engine does not start and modes will be changed each time the switch is
pressed.(



P. 200)

■

When the electronic key does not work properly

●

Make sure that the smart key system has not been deactivated in the cus-
tomization setting. If it is off, turn the function on.
(Customizable features:



P. 549)

●

Check if battery-saving mode is set. If it is set, cancel the function.
(



P. 116)

Starting the engine

514

7-2. Steps to take in an emergency

4RUNNER (U)

WARNING

■

When using the mechanical key and operating the power windows,

power back window or moon roof

Operate the power windows, power back window or moon roof after check-

ing to make sure that there is no possibility of any passenger having any of

their body parts caught in the window or moon roof.

Also, do not allow children to operate the mechanical key. It is possible for

children and other passengers to get caught in the power windows, power

back window or moon roof.

515

7-2. Steps to take in an emergency

en tro

uble

ris

4RUNNER (U)

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your vehicle by following the
steps below.

Confirm that the electronic key
is being carried.

When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and doors locked. (



P. 80)

Open the hood (



P. 412)

If the vehicle battery is discharged

The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can also call your Toyota dealer or a qualified repair shop.

516

7-2. Steps to take in an emergency

4RUNNER (U)

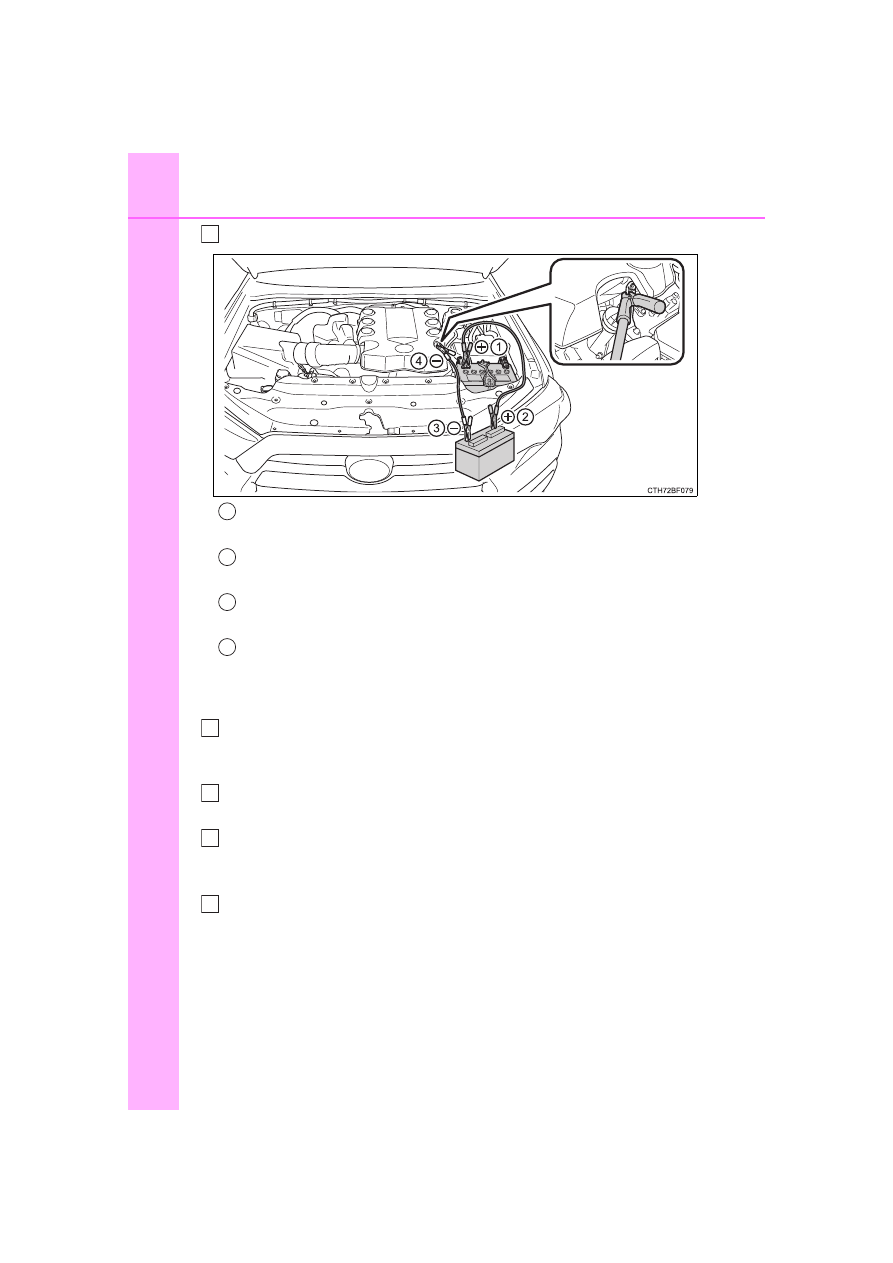

Connect the jumper cables according to the following procedure:

Connect a positive jumper cable clamp to the positive (+) battery
terminal on your vehicle.

Connect the clamp on the other end of the positive cable to the
positive (+) battery terminal on the second vehicle.

Connect a negative cable clamp to the negative (-) battery termi-
nal on the second vehicle.

Connect the clamp at the other end of the negative cable to a
metallic point shown in the illustration.

Use jumper cables that can reach the specified terminals and connecting
point.

Start the engine of the second vehicle. Increase the engine speed
slightly and maintain at that level for approximately 5 minutes to
recharge the battery of your vehicle.

Open and close any of the doors of your vehicle with the engine
switch off.

Maintain the engine speed of the second vehicle and turn the
engine switch to IGNITION ON mode, then start the vehicle’s
engine.

Once the vehicle’s engine has started, remove the jumper cables in
the exact reverse order from which they were connected.

Once the engine starts, have the vehicle inspected at your Toyota
dealer as soon as possible.

517

7-2. Steps to take in an emergency

en tro

uble

ris

4RUNNER (U)

■

Starting the engine when the battery is discharged

The engine cannot be started by push-starting.

■

To prevent battery discharge

●

Turn off the headlights and the audio system while the engine is off.

●

Turn off any unnecessary electrical components when the vehicle is running
at a low speed for an extended period, such as in heavy traffic.

■

Charging the battery

The electricity stored in the battery will discharge gradually even when the
vehicle is not in use, due to natural discharge and the draining effects of cer-
tain electrical appliances. If the vehicle is left for a long time, the battery may
discharge, and the engine may be unable to start. (The battery recharges
automatically during driving.)

■

When recharging or replacing the battery

●

In some cases, it may not be possible to unlock the doors using the smart
key system when the battery is discharged. Use the wireless remote control
or the mechanical key to lock or unlock the doors.

●

The engine may not start on the first attempt after the battery has recharged
but will start normally after the second attempt. This is not a malfunction.

●

The engine switch mode is memorized by the vehicle. When the battery is
reconnected, the system will return to the mode it was in before the battery
was discharged. Before disconnecting the battery, turn the engine switch off.
If you are unsure what mode the engine switch was in before the battery dis-
charged, be especially careful when reconnecting the battery.

●

Make sure that the key is not inside the vehicle when recharging or replac-
ing the battery. The key may be locked in the vehicle if the alarm is acti-
vated. (



P. 80)

518

7-2. Steps to take in an emergency

4RUNNER (U)

WARNING

■

Avoiding battery fires or explosions

Observe the following precautions to prevent accidentally igniting the flam-

mable gas that may be emitted from the battery:

●

Make sure each jumper cable is connected to the correct terminal and that

it is not unintentionally in contact with any other than the intended terminal.

●

Do not allow the other end of the jumper cable connected to the “+” termi-

nal to come into contact with any other parts or metal surfaces in the area,

such as brackets or unpainted metal.

●

Do not allow the + and - clamps of the jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette lighters or allow open flame near

the battery.

■

Battery precautions

The battery contains poisonous and corrosive acidic electrolyte, while

related parts contain lead and lead compounds. Observe the following pre-

cautions when handling the battery:

●

When working with the battery, always wear safety glasses and take care

not to allow any battery fluids (acid) to come into contact with skin, clothing

or the vehicle body.

●

Do not lean over the battery.

●

In the event that battery fluid comes into contact with the skin or eyes,

immediately wash the affected area with water and seek medical attention.

Place a wet sponge or cloth over the affected area until medical attention

can be received.

●

Always wash your hands after handling the battery support, terminals, and

other battery-related parts.

●

Do not allow children near the battery.

NOTICE

■

When handling jumper cables

When connecting the jumper cables, ensure that they do not become entan-

gled in the cooling fans or engine drive belt.

■

When connecting jumper cables

Make sure to connect jumper cables to the specified terminals and connect-

ing point. Failure to do so may adversely affect the electronic devices or

damage to them.

519

7-2. Steps to take in an emergency

en tro

uble

ris

4RUNNER (U)

●

The needle of the engine coolant temperature gauge (



P. 88)

enters the red zone or a loss of engine power is experienced.
(For example, the vehicle speed does not increase.)

●

Steam comes out from under the hood.

Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.

If you see steam:
Carefully lift the hood after the steam subsides.

If you do not see steam:
Carefully lift the hood.

After the engine has cooled
down sufficiently, inspect the
hoses and radiator core (radia-
tor) for any leaks.

Radiator

Cooling fan

If a large amount of coolant leaks,
immediately contact your Toyota
dealer.

The coolant level is satisfactory
if it is between the “F” and “L”
lines on the reservoir.

Reservoir

“F” line

“L” line

Radiator cap

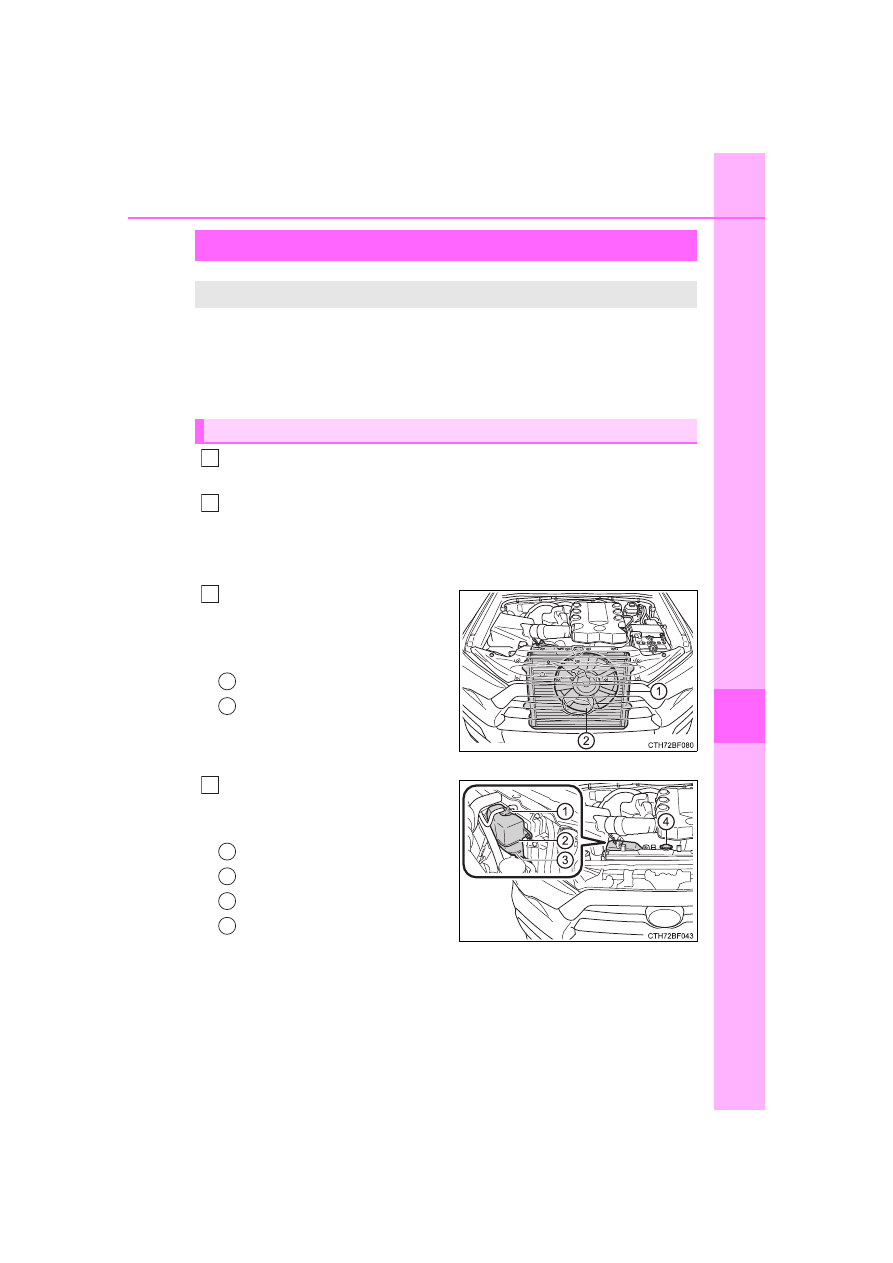

If your vehicle overheats

The following may indicate that your vehicle is overheating:

Correction procedures

520

7-2. Steps to take in an emergency

4RUNNER (U)

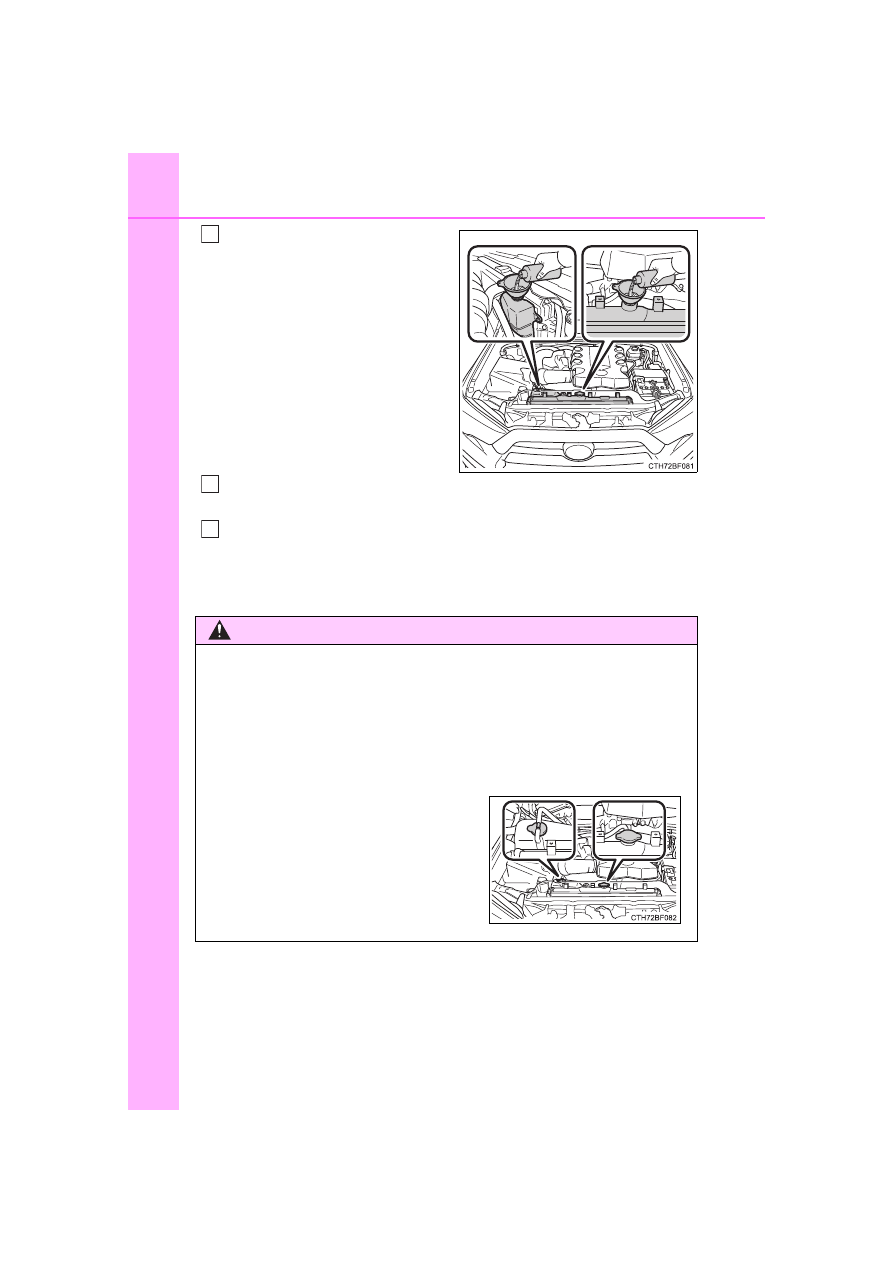

Add engine coolant if neces-

sary. (



P. 414)

Water can be used in an emer-

gency if engine coolant is unavail-

able.

Start the engine to check that the radiator cooling fan operate and

to check for coolant leaks from the radiator or hoses.
If the fan are not operating:

Stop the engine immediately and contact your Toyota dealer.
If the fan are operating:

Have the vehicle inspected at the nearest Toyota dealer.

WARNING

■

When inspecting under the hood of your vehicle

Observe the following precautions.

Failure to do so may result in serious injury such as burns.

●

If steam is seen coming from under the hood, do not open the hood until

the steam has subsided. The engine compartment may be very hot.

●

Keep hands and clothing (especially a tie, a scarf or a muffler) away from

the fans and belts.

●

Do not loosen the radiator cap and the

coolant reservoir cap while the engine

and radiator are hot.

High temperature steam or coolant

could spray out.

521

7-2. Steps to take in an emergency

Wh
en
tro

uble
a

ris

4RUNNER (U)

NOTICE

■

When adding engine coolant

Wait until the engine has cooled down before adding engine coolant.

When adding coolant, do so slowly. Adding cool coolant to a hot engine too

quickly can cause damage to the engine.

■

To prevent damage to the cooling system

Observe the following precautions:

●

Avoid contaminating the coolant with foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additives.

522

7-2. Steps to take in an emergency

4RUNNER (U)

Stop the engine. Set the parking brake and shift the shift lever to P.
Remove the mud, snow or sand from around the stuck tire.
Place wood, stones or some other material under the tires to help

provide traction.
Restart the engine.
Shift the shift lever to D or R position and carefully apply the accel-

erator to free the vehicle.

Turn off TRAC and VSC if these functions are hampering your attempts to

free the vehicle. (



P. 324)

If the vehicle becomes stuck

Carry out the following procedures if the tires spin or the vehicle

becomes stuck in mud, dirt or snow:

WARNING

■

When attempting to free a stuck vehicle

If you choose to push the vehicle back and forth to free it, make sure the

surrounding area is clear to avoid striking other vehicles, objects or people.

The vehicle may also lunge forward or lunge back suddenly as it becomes

free. Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with the accelerator pedal depressed.

This may lead to unexpected rapid acceleration of the vehicle that may

cause an accident resulting in death or serious injury.

NOTICE

■

To avoid damaging the transmission and other components

●

Avoid spinning the wheels and depressing the accelerator pedal more

than necessary.

●

If the vehicle remains stuck even after these procedures are performed,

the vehicle may require towing to be freed.

●

When a warning message for the automatic transmission fluid temperature

is displayed while attempting to free a stuck vehicle, immediately remove

your foot from the accelerator pedal and wait until the warning message

disappears. Otherwise, the transmission may become damaged.

(



P. 488)

524

4RUNNER (U)

8-1. Specifications

: Unladen vehicle

: With 5 occupants

: With 7 occupants

: TRD-PRO

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

189.8 in. (4820 mm)

Overall width

75.8 in. (1925 mm)

Overall height

70.1 in. (1780 mm)

Wheelbase

109.8 in. (2790 mm)

Tread

Front

63.2 in. (1605 mm)

Rear

63.2 in. (1605 mm)

Vehicle capacity weight
(Occupants + luggage)

880 lb. (395 kg)

1000lb. (455 kg)

1165 lb. (525 kg)

Trailer weight rating
(trailer weight + cargo weight)

5000 lb. (2270 kg)

Seating capacity

Seating capacity

Vehicle without third

seats

Vehicle with third

seats

5 (Front 2, Rear 3)

7 (Front 2, Rear 5)

525

8-1. Specifications

Vehi

e specificatio

4RUNNER (U)

■

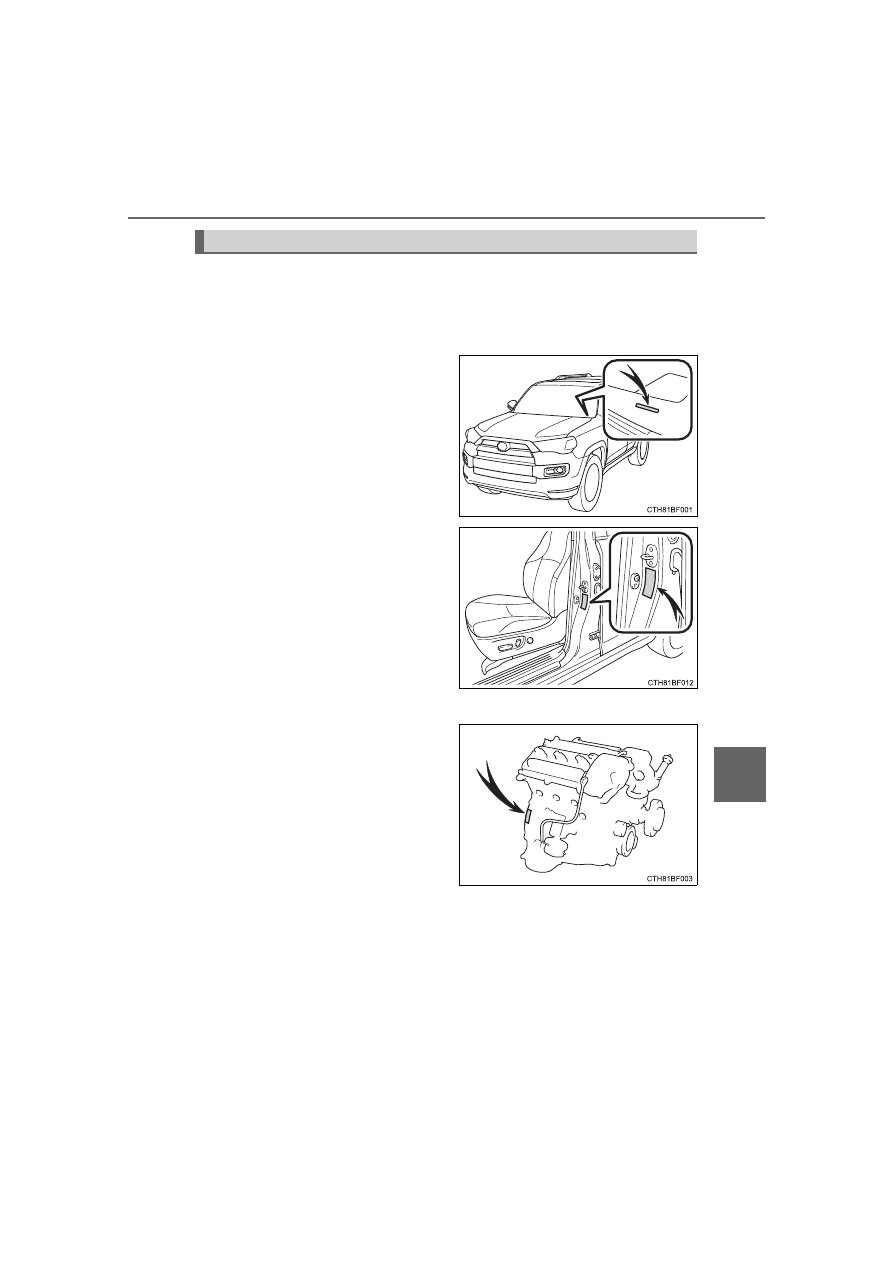

Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.

This number is stamped on the
top left of the instrument panel.

This number is also on the Cer-
tification Label.

■

Engine number

The engine number is stamped
on the engine block as shown.

Vehicle identification

526

8-1. Specifications

4RUNNER (U)

Engine

Model

1GR-FE

Type

6-cylinder V type, 4-cycle, gasoline

Bore and stroke

3.70



3.74 in. (94.0



95.0 mm)

Displacement

241.4 cu.in. (3956 cm

)

Valve clearance
(engine cold)

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane rating

87 (Research octane number 91) or
higher

Fuel tank capacity
(Reference)

23.0 gal. (87.0 L, 19.1 Imp. gal.)

527

8-1. Specifications

Vehi

e specificatio

4RUNNER (U)

: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.

Oil grade: ILSAC GF-6A multigrade engine oil

Recommended viscosity: SAE 0W-20

SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.

If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow
for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.

Lubrication system

Oil capacity
(Drain and refill



reference

)

With filter
Without filter

6.6 qt. (6.2 L, 5.5 Imp. qt.)
6.0 qt. (5.7 L, 5.0 Imp. qt.)

Outside temperature

528

8-1. Specifications

4RUNNER (U)

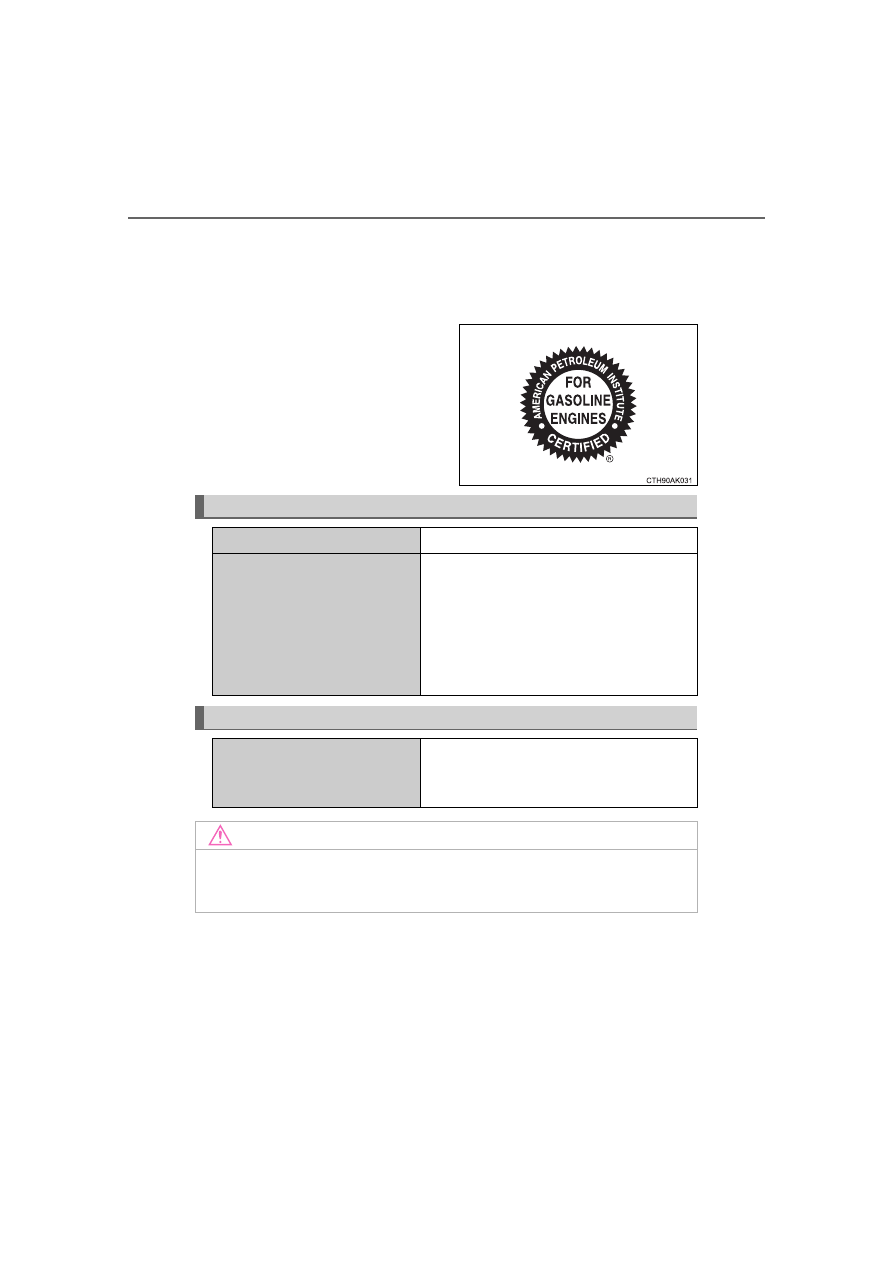

How to read oil container label:
The International Lubricant Specification Advisory Committee

(ILSAC) Certification Mark is added to some oil containers to help

you select the oil you should use.

Cooling system

Capacity

11.1 qt. (10.5 L, 9.2 Imp. qt.)

Coolant type

Use either of the following:

• “Toyota Super Long Life Coolant”

• A similar high-quality ethylene glycol-

based non-silicate, non-amine, non-

nitrite, and non-borate coolant with

long-life hybrid organic acid technol-

ogy

Do not use plain water alone.

Ignition system

Spark plug
Make

Gap

DENSO SK16HR11

0.043 in. (1.1 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

529

8-1. Specifications

Vehi

e specificatio

4RUNNER (U)

: Voltage checked 20 minutes after the engine and all the lights are turned

off.

: Your Toyota vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at

the factory. Use Toyota approved “Toyota Genuine Transfer Gear oil LF” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.

Electrical system

Battery

Open voltage



F (20



C):

12.3 V or higher
If the voltage is lower than the standard
value, charge the battery.

Charging rates

5 A max.

Transfer (4WD models)

Oil capacity



Part-time 4WD models

1.1 qt. (1.0 L, 0.9 Imp. qt.)



Full-time 4WD models

1.5 qt. (1.4 L, 1.2 Imp. qt.)

Oil type

Toyota Genuine Transfer gear oil LF or
equivalent

Recommended oil viscosity

SAE 75W

530

8-1. Specifications

4RUNNER (U)

: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at

the factory. Use Toyota approved “Toyota Genuine Differential Gear Oil” or
an equivalent of matching quality to satisfy the above specification. Please
contact your Toyota dealer for further details.

: Your Toyota vehicle is filled with “Toyota Genuine Differential Gear Oil” at

Front differential (4WD models)

Oil capacity



Part-time 4WD models

1.6 qt. (1.55 L, 1.4 Imp. qt.)



Full-time 4WD models

1.5 qt. (1.40 L, 1.2 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

Rear differential

Oil capacity



Vehicles without a rear differential lock

2.9 qt. (2.70 L, 2.4 Imp. qt.)



Vehicles with a rear differential lock

2.8 qt. (2.65 L, 2.3 Imp. qt.)

Oil type and viscosity

Toyota Genuine Differential gear oil LT
75W-85 GL-5 or equivalent

531

8-1. Specifications

Vehi
cl

e specificatio

4RUNNER (U)

: The fluid capacity is a reference quantity. If replacement is necessary, con-

tact your Toyota dealer.

: Minimum pedal clearance when depressed with a force of 110 lbf (490 N,

50 kgf) while the engine is running.

: Parking brake pedal travel when depressed with a force of 67 lbf (300 N,

30 kgf).

Automatic transmission

Fluid capacity

11.3 qt. (10.7 L, 9.4 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or damage the transmission of your vehicle.

Brakes

Pedal clearance



2WD models

3.36 in. (86 mm) Min.



4WD models

3.54 in. (90 mm) Min.

Pedal free play

Less than 0.04



0.24 in. (1



6 mm)

Brake pad wear limit

0.04 in. (1.0 mm)

Parking brake lining wear limit 0.04 in. (1.0 mm)
Parking brake pedal travel



7 clicks

Fluid type

SAE J1703 or FMVSS No.116 DOT 3

532

8-1. Specifications

4RUNNER (U)

Chassis lubrication

Propeller shafts

Spider

Lithium base chassis grease, NLGI No.2

Slide yoke

Molybdenum-disulfide lithium base chas-
sis grease, NLGI No.2 or lithium base
chassis grease, NLGI No.2

Steering

Free play

Less than 1.2 in. (30 mm)

Power steering fluid type

Automatic transmission fluid DEXRON

or III

Tires and wheels

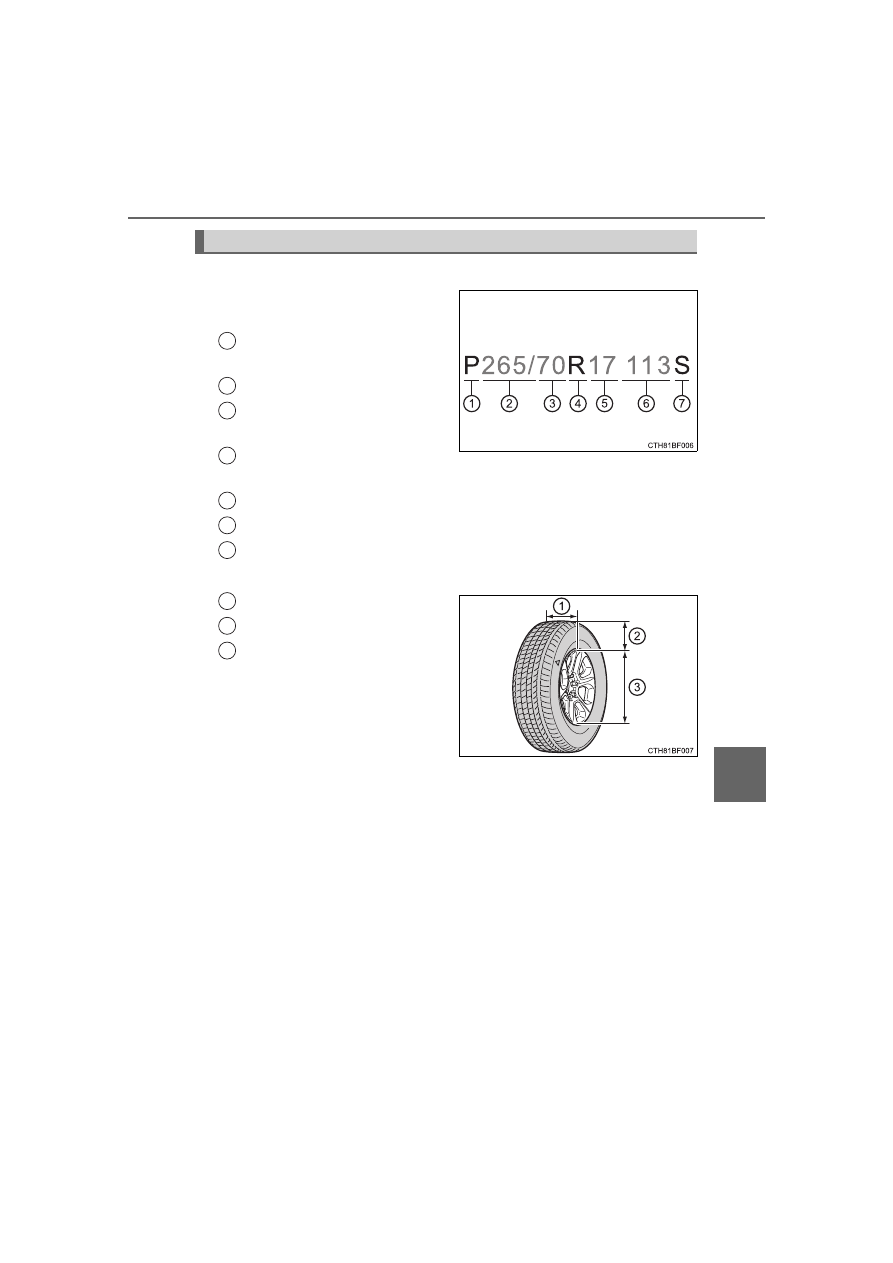

Tire size

P265/70R17 113S, P245/60R20 107H

Tire inflation pressure
(Recommended cold tire
inflation pressure)

Front:
32 psi (220 kPa, 2.2 kgf/cm

or bar)

Rear:
32 psi (220 kPa, 2.2 kgf/cm

or bar)

Spare:
32 psi (220 kPa, 2.2 kgf/cm

or bar)

Wheel size



7J, 17



7 1/2J, 20



Wheel nut torque

Steel wheels:
83 ft•lbf (112 N•m, 11.4 kgf•m)
Aluminum wheels:
76 ft•lbf (103 N•m, 10.5 kgf•m)

533

8-1. Specifications

Vehi

e specificatio

4RUNNER (U)

Light bulbs

Light bulbs

Bulb No.

Type

Exterior

Headlight high beam (if
equipped) /daytime running
lights

9005

Front turn signal and parking
lights

7444NA

28/8

Front side marker lights



Rear turn signal lights



Back-up lights



License plate lights



Interior

Front personal/ front interior
lights



Rear interior light



Vanity lights



Door courtesy lights

168

Luggage compartment lights



A: HB3 halogen bulbs

B: Wedge base bulbs (clear)

C: Wedge base bulbs (amber)

D: Double end bulbs

534

8-1. Specifications

4RUNNER (U)

■

Gasoline quality

In very few cases, driveability problems may be caused by the brand of gaso-
line you are using. If driveability problems persist, try changing the brand of
gasoline. If this does not correct the problem, consult your Toyota dealer.

Fuel information

You must only use unleaded gasoline.
Select octane rating 87 (Research Octane Number 91) or higher.
Use of unleaded gasoline with an octane rating lower than 87
may result in engine knocking. Persistent knocking can lead to
engine damage.

At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A..

535

8-1. Specifications

Vehi

e specificatio

4RUNNER (U)

■

Recommendation of the use of gasoline containing detergent additives

●

Toyota recommends the use of gasoline that contains detergent additives to
avoid the build-up of engine deposits.

●

All gasoline sold in the U.S.A. contains minimum detergent additives to
clean and/or keep clean intake systems, per EPA's lowest additives concen-
tration program.

●

Toyota strongly recommends the use of Top Tier Detergent Gasoline. For
more information on Top Tier Detergent Gasoline and a list of marketers,
please go to the official website www.toptiergas.com.

■

Recommendation of the use of low emissions gasoline

Gasolines containing oxygenates such as ethers and ethanol, as well as
reformulated gasolines, are available in some cities. These fuels are typically
acceptable for use, providing they meet other fuel requirements.

Toyota recommends these fuels, since the formulations allow for reduced
vehicle emissions.

■

Non-recommendation of the use of blended gasoline

●

If you use gasohol in your vehicle, be sure that it has an octane rating no
lower than 87.

●

Toyota does not recommend the use of gasoline containing methanol.

●

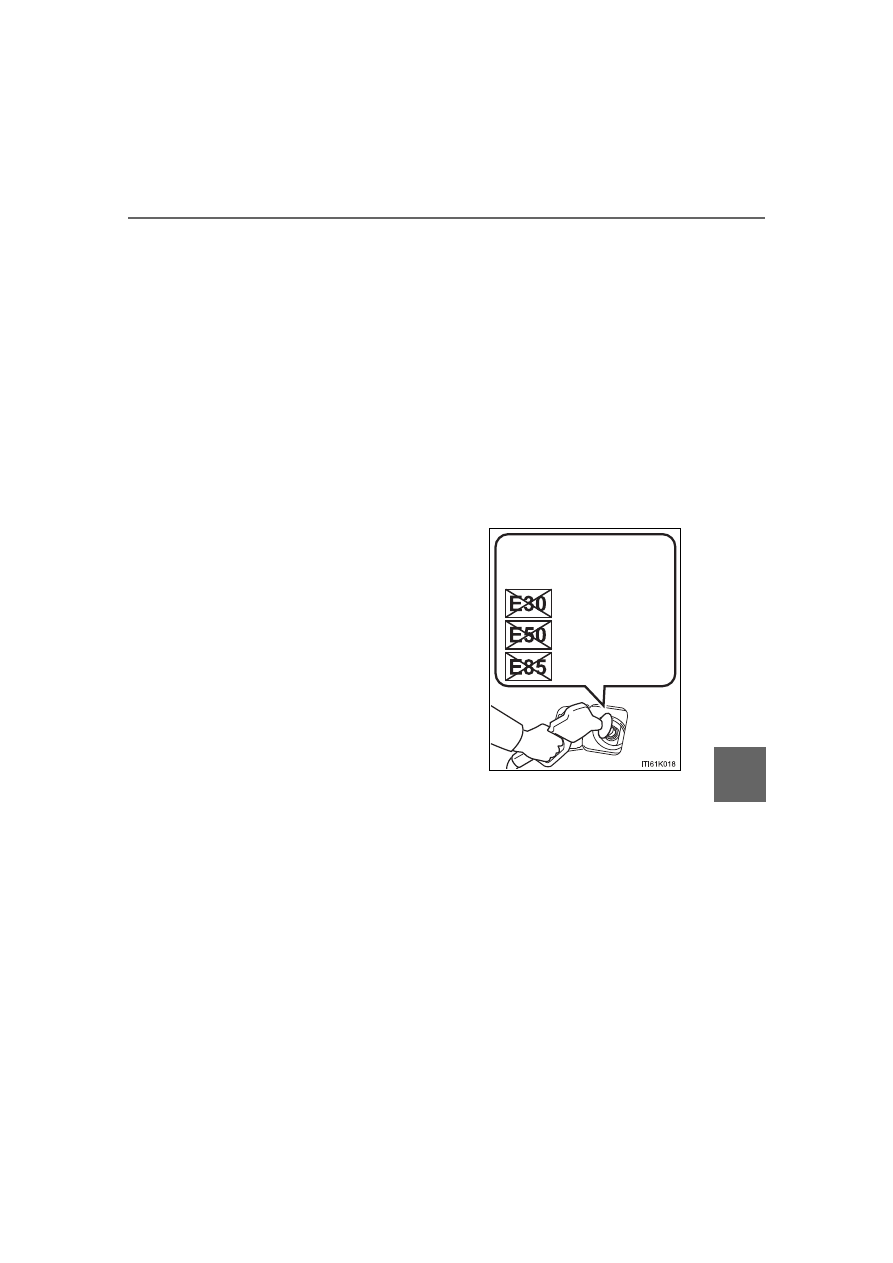

Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30, E50, E85 (which are only some
examples of fuel containing more than
15% ethanol).

DO NOT use gasoline
containing more than
15% ethanol.

(30% ethanol)

(50% ethanol)

(85% ethanol)

536

8-1. Specifications

4RUNNER (U)

■

Non-recommendation of the use of gasoline containing MMT

Some gasoline contains an octane enhancing additive called MMT (Methylcy-

clopentadienyl Manganese Tricarbonyl).
Toyota does not recommend the use of gasoline that contains MMT. If fuel

containing MMT is used, your emission control system may be adversely

affected.
The malfunction indicator lamp on the instrument cluster may come on. If this

happens, contact your Toyota dealer for service.

■

If your engine knocks

●

Consult your Toyota dealer.

●

You may occasionally notice light knocking for a short time while accelerat-

ing or driving uphill. This is normal and there is no need for concern.

NOTICE

■

Notice on fuel quality

●

Do not use improper fuels. If improper fuels are used, the engine will be

damaged.

●

Do not use leaded gasoline.

Leaded gasoline can cause damage to your vehicle’s three-way catalytic

converters causing the emission control system to malfunction.

●

Do not use gasohol other than the type previously stated.

Other gasohol may cause fuel system damage or vehicle performance

problems.

●

Using unleaded gasoline with an octane number or rating lower than the

level previously stated will cause persistent heavy knocking.

At worst, this will lead to engine damage.

■

Fuel-related poor driveability

If poor driveability (poor hot starting, vaporization, engine knocking, etc.) is

encountered after using a different type of fuel, discontinue the use of that

type of fuel.

■

When refueling with gasohol

Take care not to spill gasohol. It can damage your vehicle’s paint.

537

8-1. Specifications

Vehi

e specificatio

4RUNNER (U)

Tire size

(



P. 539)

Summer tires or all season tires

(



P. 434)

An all season tire has “M+S” on the sidewall. A tire not marked “M+S”
is a summer tire.

Uniform tire quality grading

For details, see “Uniform Tire Quality Grading” that follows.

DOT and Tire Identification Number (TIN)

(



P. 538)

Tire ply composition and materials

Plies are layers of rubber-coated parallel cords. Cords are the strands
which form the plies in a tire.

Location of treadwear indicators

(



P. 427)

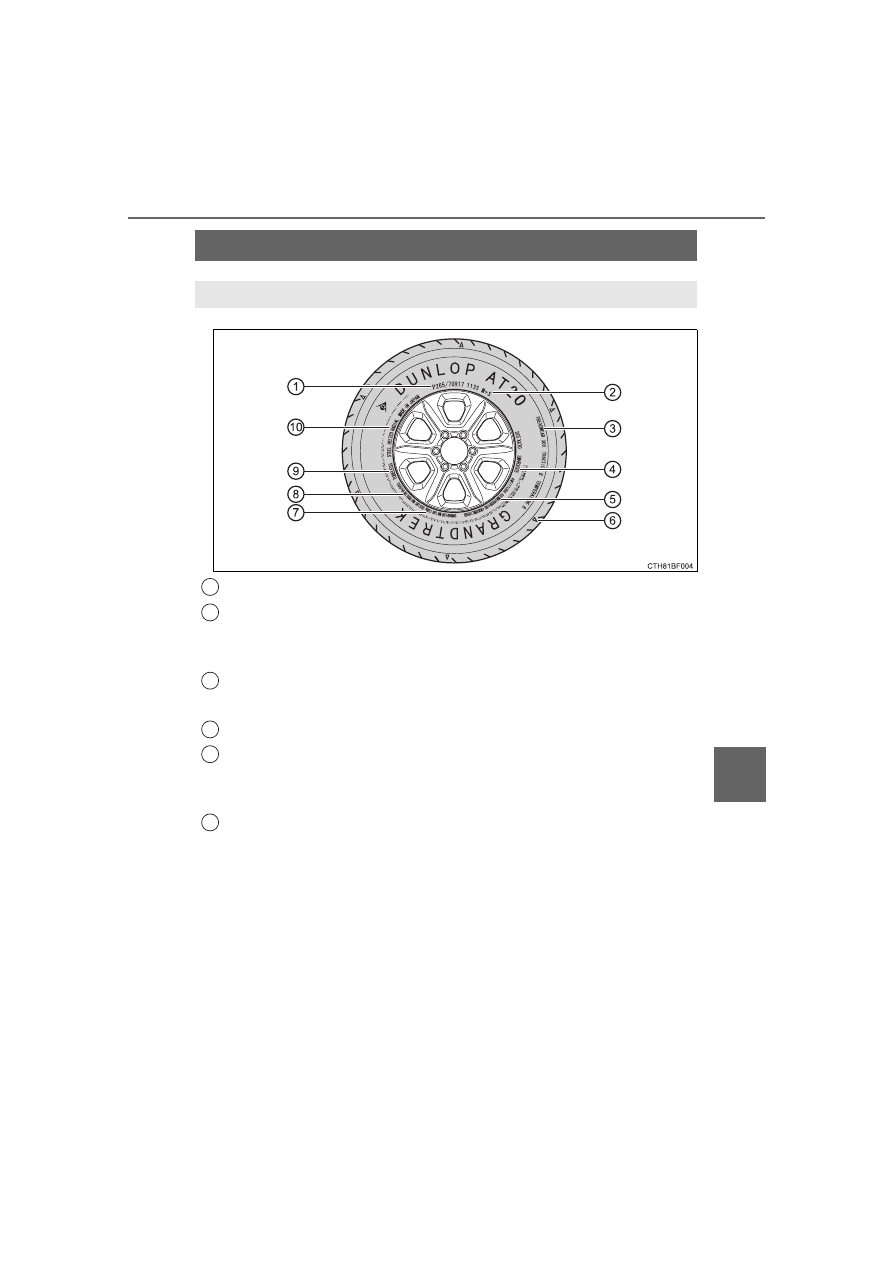

Tire information

Typical tire symbols

538

8-1. Specifications

4RUNNER (U)

Load limit at maximum cold tire inflation pressure

(



P. 543)

Maximum cold tire inflation pressure

(



P. 543)

This means the pressure to which a tire may be inflated.

TUBELESS or TUBE TYPE

A tubeless tire does not have a tube and air is directly put into the tire.
A tube type tire has a tube inside the tire and the tube maintains the air
pressure.

Radial tires or bias-ply tires

A radial tire has “RADIAL” on the sidewall. A tire not marked “RADIAL”
is a bias-ply tire.

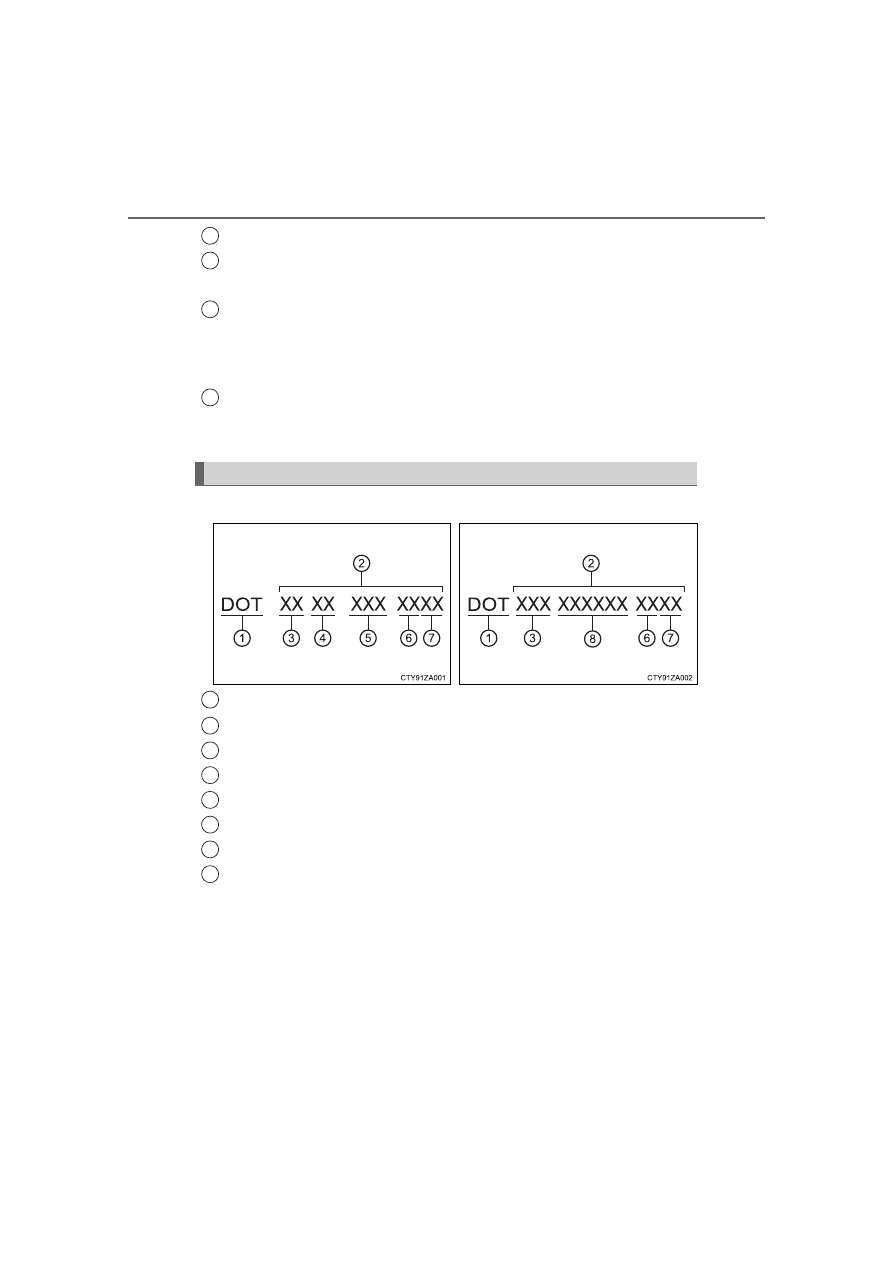

DOT symbol

Tire Identification Number (TIN)

Tire manufacturer's identification mark

Tire size code

Manufacturer's optional tire type code (3 or 4 letters)

Manufacturing week

Manufacturing year

Manufacturer's code

: The DOT symbol certifies that the tire conforms to applicable Federal

Motor Vehicle Safety Standards.

Typical DOT and Tire Identification Number (TIN)



Type A



Type B

539

8-1. Specifications

Vehi

e specificatio

4RUNNER (U)

■

Typical tire size information

The illustration indicates typical
tire size.

Tire use (P = Passenger car,
T = Temporary use)

Section width (millimeters)

Aspect ratio
(tire height to section width)

Tire construction code
(R = Radial, D = Diagonal)

Wheel diameter (inches)

Load index (2 digits or 3 digits)

Speed symbol (alphabet with one letter)

■

Tire dimensions

Section width

Tire height

Wheel diameter

Tire size

540

8-1. Specifications

4RUNNER (U)

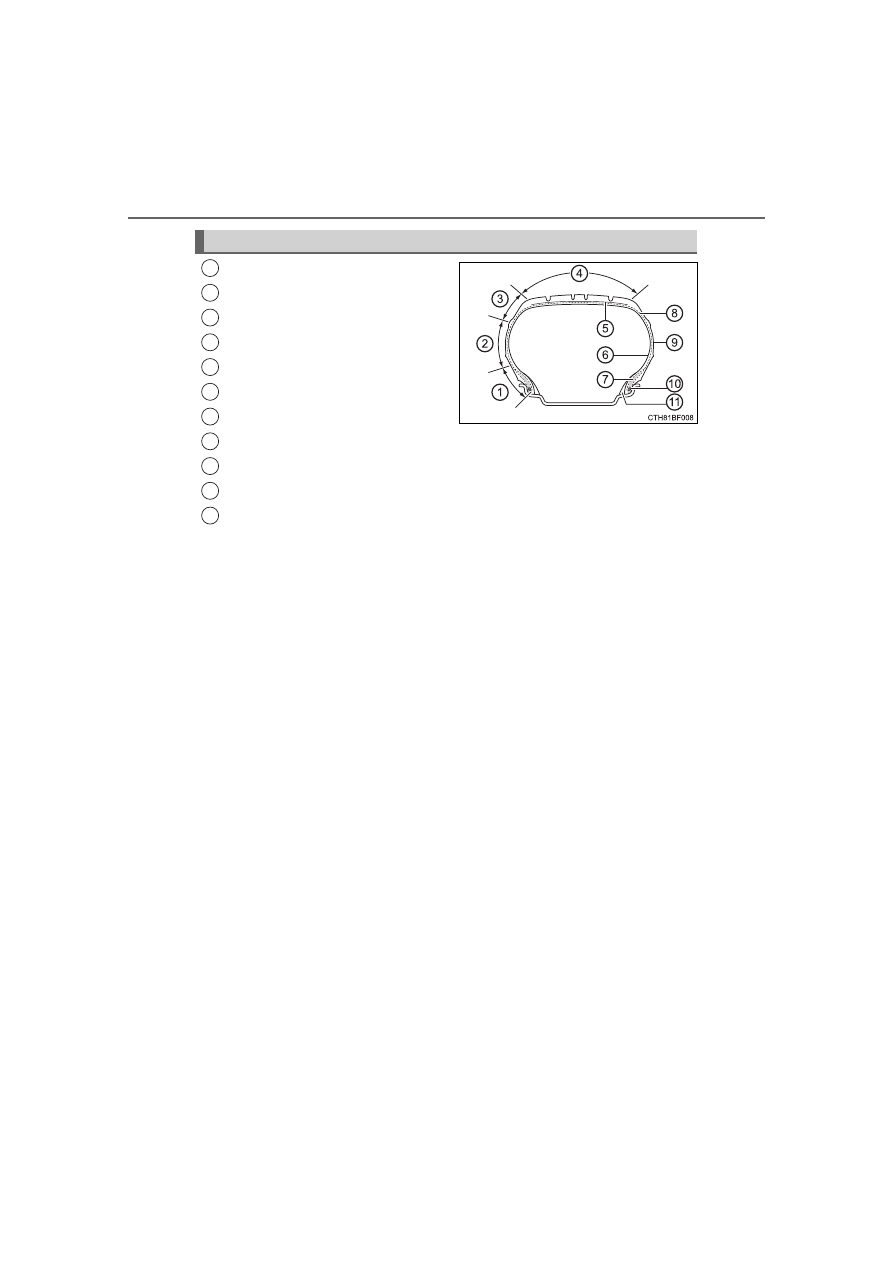

Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

Tire section names

541

8-1. Specifications

Vehi

e specificatio

4RUNNER (U)

This information has been prepared in accordance with regulations
issued by the National Highway Traffic Safety Administration of the
U.S. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Toyota
vehicles with information on uniform tire quality grading.

Your Toyota dealer will help answer any questions you may have as
you read this information.

■

DOT quality grades

All passenger vehicle tires must conform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found
where applicable on the tire sidewall between tread shoulder and
maximum section width.

For example: Treadwear 200 Traction AA Temperature A

■

Treadwear

The treadwear grade is a comparative rating based on the wear
rate of the tire when tested under controlled conditions on a speci-
fied government test course.

For example, a tire graded 150 would wear one and a half (1 - 1/2)
times as well on the government course as a tire graded 100.
The relative performance of tires depends upon the actual condi-
tions of their use. Performance may differ significantly from the norm
due to variations in driving habits, service practices and differences
in road characteristics and climate.

■

Traction AA, A, B, C

The traction grades, from highest to lowest, are AA, A, B and C,
and they represent the tire’s ability to stop on wet pavement as
measured under controlled conditions on specified government test
surfaces of asphalt and concrete.

A tire marked C may have poor traction performance.

Warning: The traction grade assigned to this tire is based on braking
(straight ahead) traction tests and does not include cornering (turn-
ing) traction.

Uniform Tire Quality Grading

542

8-1. Specifications

4RUNNER (U)

■

Temperature A, B, C

The temperature grades are A (the highest), B, and C, representing
the tire’s resistance to the generation of heat and its ability to dissi-
pate heat when tested under controlled conditions on a specified
indoor laboratory test wheel.

Sustained high temperature can cause the material of the tire to
degenerate and reduce tire life, and excessive temperature can lead
to sudden tire failure.

Grade C corresponds to a level of performance which all passenger
car tires must meet under the Federal Motor Vehicle Safety Stan-
dard No. 109.

Grades B and A represent higher levels of performance on the labo-
ratory test wheel than the minimum required by law.

Warning: The temperature grades of a tire assume that it is properly
inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either sepa-
rately or in combination, can cause heat buildup and possible tire
failure.

543

8-1. Specifications

Vehi

e specificatio

4RUNNER (U)

Glossary of tire terminology

Tire related term

Meaning

Cold tire inflation pres-
sure

Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition

Maximum inflation
pressure

The maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire

Recommended infla-
tion pressure

Cold tire inflation pressure recommended by a
manufacturer

Accessory weight

The combined weight (in excess of those stan-
dard items which may be replaced) of auto-
matic transmission, power steering, power
brakes, power windows, power seats, radio
and heater, to the extent that these items are
available as factory-installed equipment
(whether installed or not)

Curb weight

The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine

Maximum loaded vehi-
cle weight

The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight

Normal occupant
weight

150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1

that follows

Occupant distribution

Distribution of occupants in a vehicle as speci-
fied in the third column of Table 1

below

544

8-1. Specifications

4RUNNER (U)

Production options
weight

The combined weight of installed regular pro-
duction options weighing over 5 lb. (2.3 kg) in
excess of the standard items which they
replace, not previously considered in curb
weight or accessory weight, including heavy
duty brakes, ride levelers, roof rack, heavy
duty battery, and special trim

Rim

A metal support for a tire or a tire and tube
assembly upon which the tire beads are
seated

Rim diameter
(Wheel diameter)

Nominal diameter of the bead seat

Rim size designation

Rim diameter and width

Rim type designation

The industry manufacturer’s designation for a
rim by style or code

Rim width

Nominal distance between rim flanges

Vehicle capacity
weight (Total load
capacity)

The rated cargo and luggage load plus 150 lb.
(68 kg) times the vehicle’s designated seating
capacity

Vehicle maximum load
on the tire

The load on an individual tire that is deter-
mined by distributing to each axle its share of
the maximum loaded vehicle weight, and
dividing by two

Vehicle normal load on
the tire

The load on an individual tire that is deter-
mined by distributing to each axle its share of
curb weight, accessory weight, and normal
occupant weight (distributed in accordance
with Table 1

below), and dividing by two

Weather side

The surface area of the rim not covered by the
inflated tire

Bead

The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim

Bead separation

A breakdown of the bond between compo-
nents in the bead

Tire related term

Meaning

Toyota 4Runner (2024 year). Manual in english - page 17
