4-3. Operating the lights and wipers

riv

ing

4RUNNER (U)

■

The windshield wiper and washer can be operated when

The engine switch is in IGNITION ON mode.

■

If no windshield washer fluid sprays

Check that the washer nozzles are not blocked if there is washer fluid in the

washer fluid reservoir.

WARNING

■

Caution regarding the use of washer fluid

When it is cold, do not use the washer fluid until the windshield becomes

warm. The fluid may freeze on the windshield and cause low visibility. This

may lead to an accident, resulting in death or serious injury.

NOTICE

■

When the windshield is dry

Do not use the wipers, as they may damage the windshield.

■

When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-

heat.

■

When a nozzle becomes blocked

In this case, contact your Toyota dealer.

Do not try to clear it with a pin or other object. The nozzle will be damaged.

226

4-3. Operating the lights and wipers

4RUNNER (U)

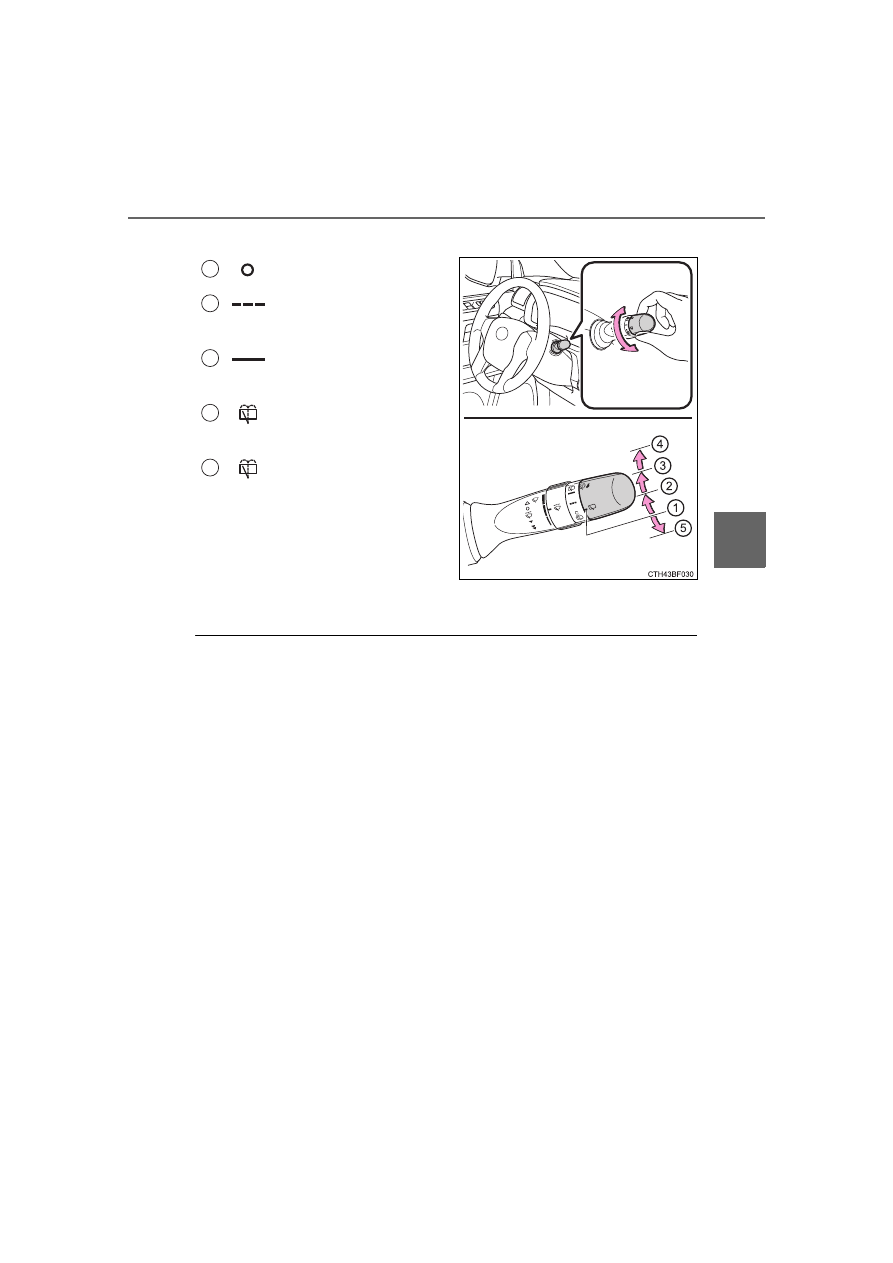

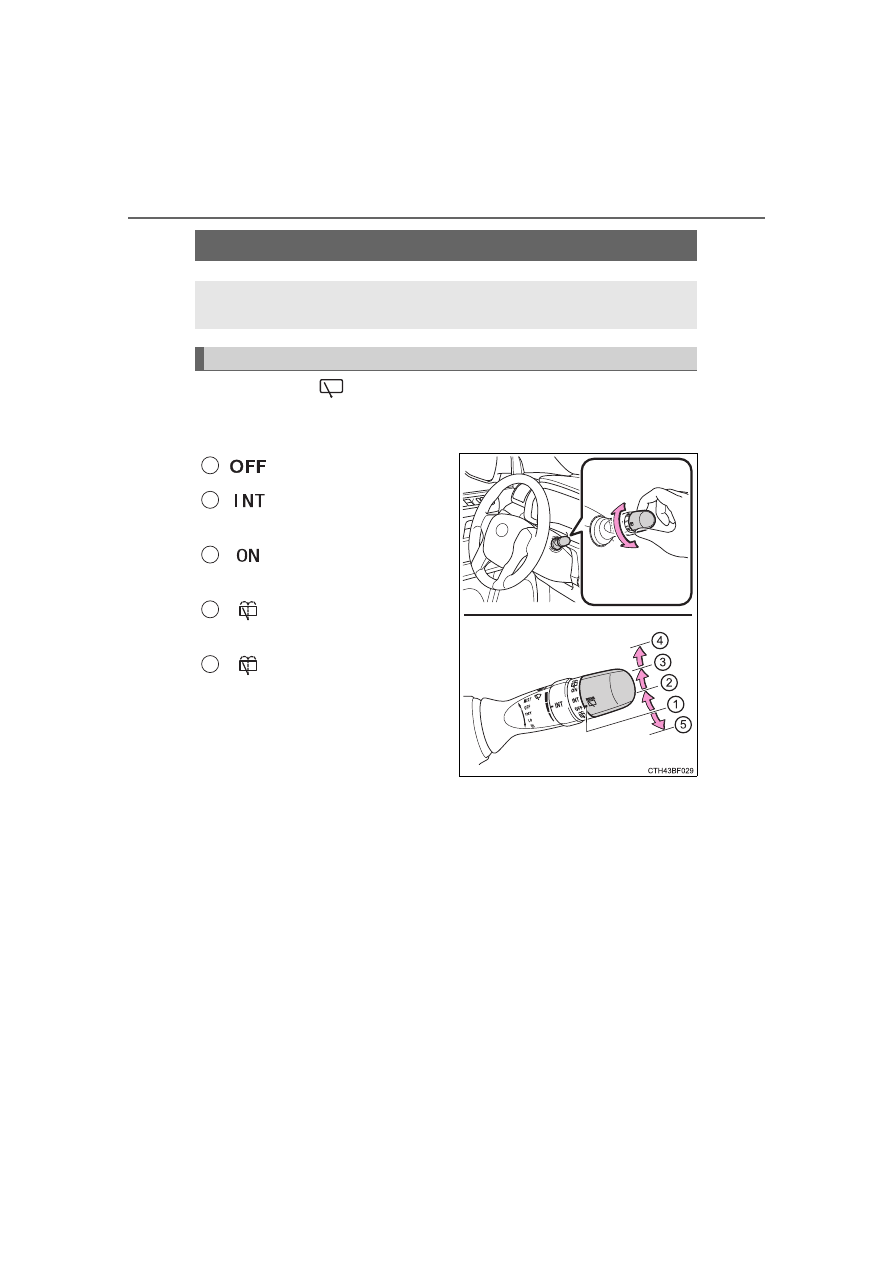

Operating the

switch operates the rear wiper or washer as fol-

lows:



Type A

Off

Intermittent window

wiper operation

Normal window wiper

operation

Washer/wiper dual oper-

ation

Washer/wiper dual oper-

ation

The wiper will automatically
operate a couple of times after
the washer squirts.
(After operating several times,
the wiper operates one more
time after a short delay to pre-
vent dripping.)

Rear window wiper and washer

Before operating the rear window wiper and washer switch,
make sure the back window is completely closed. (



P. 158)

Operating instructions

227

4-3. Operating the lights and wipers

Drivin

4RUNNER (U)



Type B

Off

Intermittent window

wiper operation

Normal window wiper

operation

Washer/wiper dual oper-

ation

Washer/wiper dual oper-

ation

The wiper will automatically
operate a couple of times after
the washer squirts.
(After operating several times,
the wiper operates one more
time after a short delay to pre-
vent dripping.)

■

The rear window wiper and washer can be operated when

●

The engine switch is in IGNITION ON mode.

●

The back window is completely closed.

■

Intermittent window wiper operation

●

When intermittent window wiper operation mode is selected, the wiper will
operate a couple of times and then switch to intermittent operation.

●

During intermittent operation, the wiper stops temporarily at the reversing
position.

■

When the rear window wiper and washer switch is turned off

The rear wiper will stop operation, and return to the retracted position after
approximately 3 seconds.
However, if the engine switch is turned to the engine switch is turned to
ACCESSORY mode or turned off while the rear wiper is operating, the rear
wiper will stop at that position and will not return to the retracted position.

■

If no washer fluid sprays

Check that the washer nozzle is not blocked if there is washer fluid in the
washer fluid reservoir.

■

Customization

Settings (e.g. drip prevention function) can be changed.
(Customizable features



P. 549)

228

4-3. Operating the lights and wipers

4RUNNER (U)

NOTICE

■

When the rear window is dry

Do not use the wiper, as it may damage the rear window.

■

When the washer fluid tank is empty

Do not operate the switch continually as the washer fluid pump may over-

heat.

■

When a nozzle becomes blocked

In this case, contact your Toyota dealer.

Do not try to clear it with a pin or other object. The nozzle will be damaged.

229

Drivin

4RUNNER (U)

4-4. Refueling

●

Close all the doors and windows, and turn the engine switch off.

●

Confirm the type of fuel.

■

Fuel types



P. 534

■

Fuel tank opening for unleaded gasoline

To help prevent incorrect fueling, your vehicle has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.

■

If the malfunction indicator lamp illuminates

The malfunction indicator lamp may illuminate erroneously if refueling is per-
formed repeatedly when the fuel tank is nearly full.

Opening the fuel tank cap

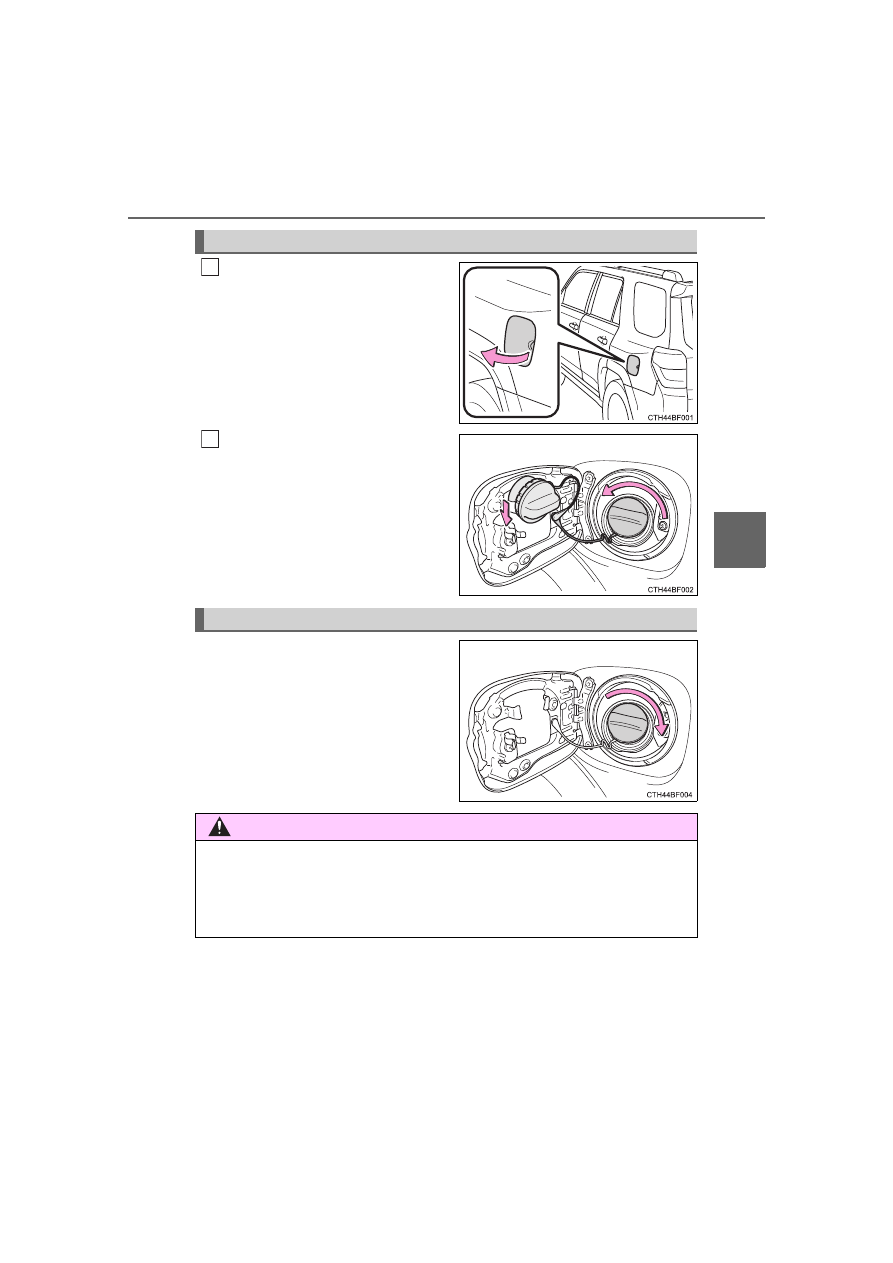

Perform the following steps to open the fuel tank cap:

Before refueling the vehicle

230

4-4. Refueling

4RUNNER (U)

WARNING

■

When refueling the vehicle

Observe the following precautions while refueling the vehicle. Failure to do

so may result in death or serious injury.

●

After exiting the vehicle and before opening the fuel door, touch an

unpainted metal surface to discharge any static electricity. It is important to

discharge static electricity before refueling because sparks resulting from

static electricity can cause fuel vapors to ignite while refueling.

●

Always hold the grips on the fuel tank cap and turn it slowly to remove it.

A whooshing sound may be heard when the fuel tank cap is loosened.

Wait until the sound cannot be heard before fully removing the cap. In hot

weather, pressurized fuel may spray out the filler neck and cause injury.

●

Do not allow anyone that has not discharged static electricity from their

body to come close to an open fuel tank.

●

Do not inhale vaporized fuel.

Fuel contains substances that are harmful if inhaled.

●

Do not smoke while refueling the vehicle.

Doing so may cause the fuel to ignite and cause a fire.

●

Do not return to the vehicle or touch any person or object that is statically

charged.

This may cause static electricity to build up, resulting in a possible ignition

hazard.

■

When refueling

Observe the following precautions to prevent fuel overflowing from the fuel

tank:

●

Securely insert the fuel nozzle into the fuel filler neck.

●

Stop filling the tank after the fuel nozzle automatically clicks off.

●

Do not top off the fuel tank.

NOTICE

■

Refueling

Do not spill fuel during refueling.

Doing so may damage the vehicle, such as causing the emission control

system to operate abnormally or damaging fuel system components or the

vehicle’s painted surface.

231

4-4. Refueling

riv

ing

4RUNNER (U)

Open the fuel filler door.

Turn the fuel tank cap slowly to

open. Hang the fuel tank cap on

the back of the fuel filler door.

After refueling, turn the fuel tank

cap until you hear a click. Once

the cap is released, it will turn

slightly in the opposite direction.

Opening the fuel tank cap

Closing the fuel tank cap

WARNING

■

When replacing the fuel tank cap

Do not use anything but a genuine Toyota fuel tank cap designed for your

vehicle. Doing so may cause a fire or other incident which may result in

death or serious injury.

232

4RUNNER (U)

4-5. Using the driving support systems

◆

PCS (Pre-Collision System)



P. 239

◆

LDA (Lane Departure Alert)



P. 249

◆

AHB (Automatic High Beam)



P. 217

◆

Dynamic radar cruise control



P. 257

Toyota Safety Sense P

The Toyota Safety Sense P consists of the following drive assist

systems and contributes to a safe and comfortable driving expe-

rience:

Driving assist system

WARNING

■

Toyota Safety Sense P

The Toyota Safety Sense P is designed to operate under the assumption

that the driver will drive safely, and is designed to help reduce the impact to

the occupants and the vehicle in the case of a collision or assist the driver in

normal driving conditions.
As there is a limit to the degree of recognition accuracy and control perfor-

mance that this system can provide, do not overly rely on this system. The

driver is always responsible for paying attention to the vehicle's surround-

ings and driving safely.

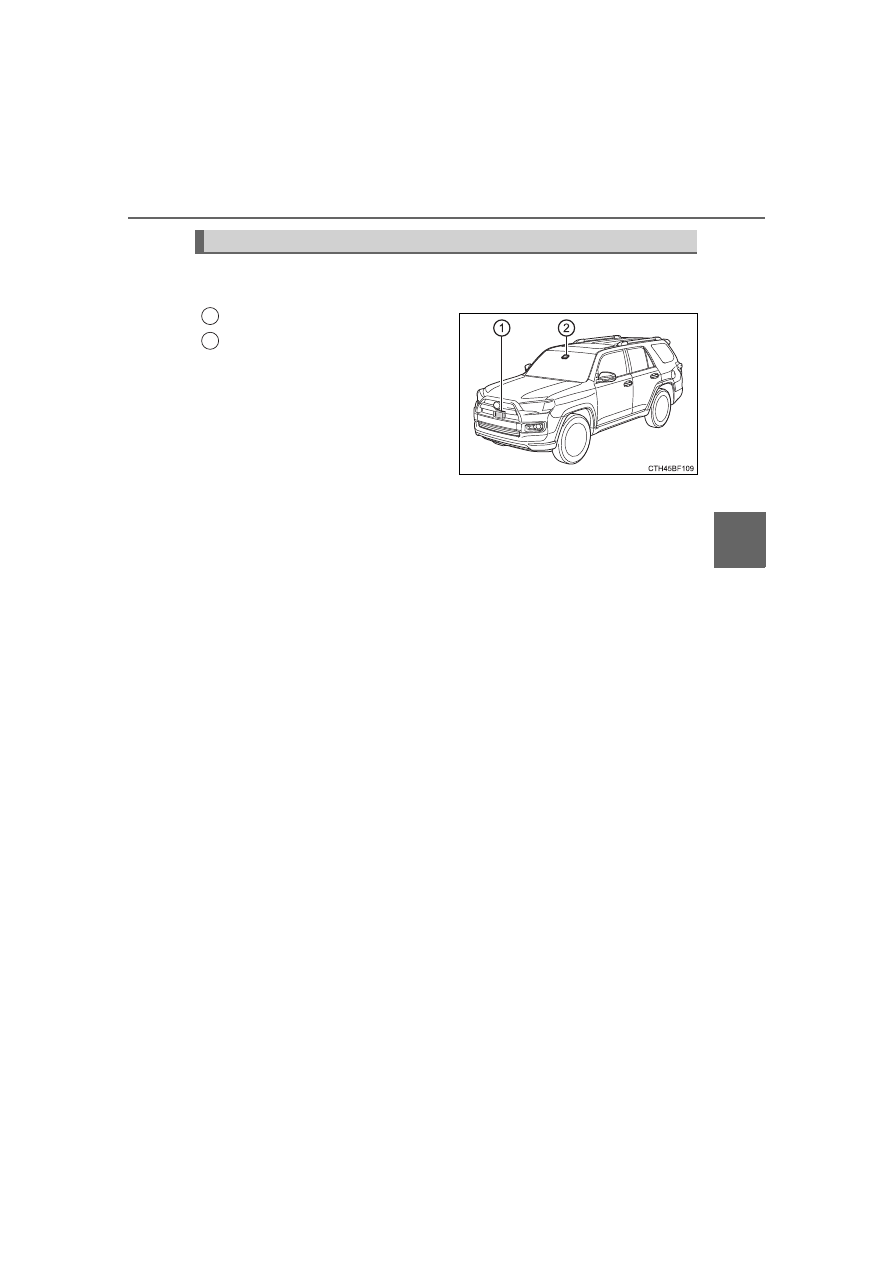

234

4-5. Using the driving support systems

4RUNNER (U)

WARNING

■

To avoid malfunction of the radar sensor

Observe the following precautions.
Otherwise, the radar sensor may not operate properly, possibly leading to

an accident resulting in death or serious injury.

●

Keep the radar sensor and the radar sensor cover clean at all times.

●

Do not attach accessories, stickers (including transparent stickers) or

other items to the radar sensor, radar sensor cover or surrounding area.

●

Do not subject the radar sensor or its surrounding area to a strong impact.

If the radar sensor, front grille, or front bumper has been subjected to a

strong impact, have the vehicle inspected by your Toyota dealer.

●

Do not disassemble the radar sensor.

●

Do not modify or paint the radar sensor or radar sensor cover.

●

In the following cases, the radar sensor must be recalibrated. Contact your

Toyota dealer for details.
• When the radar sensor or front grille are removed and installed, or

replaced

• When the front bumper is replaced

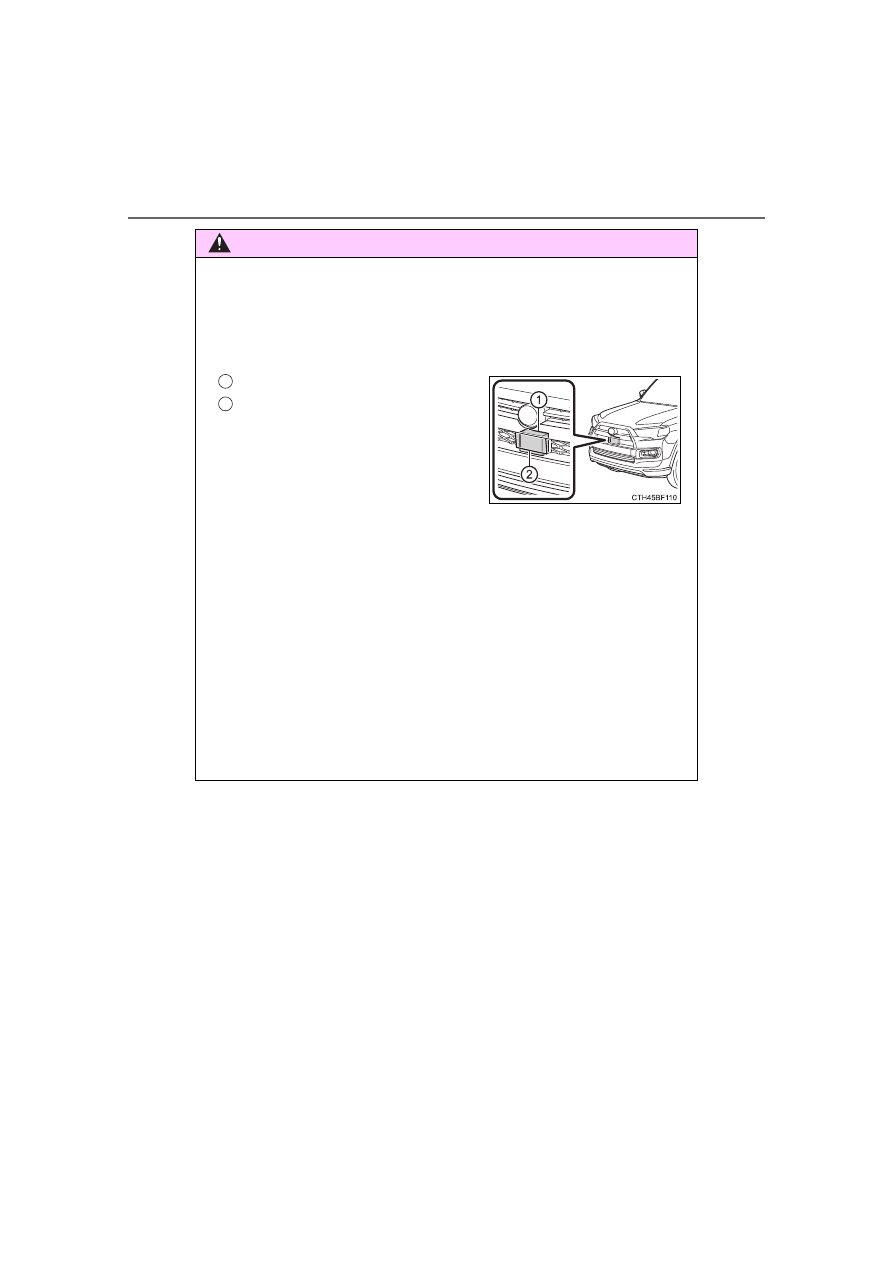

Radar sensor
Radar sensor cover

If the front of the radar sensor or the

front or back of the radar sensor cover

is dirty or covered with water droplets,

snow, etc., clean it.
Clean the radar sensor and radar sen-

sor cover with a soft cloth to avoid

damaging them.

235

4-5. Using the driving support systems

riv

ing

4RUNNER (U)

WARNING

■

To avoid malfunction of the front camera

Observe the following precautions.
Otherwise, the front camera may not operate properly, possibly leading to

an accident resulting in death or serious injury.

●

Keep the windshield clean at all times.
• If the windshield is dirty or covered with an oily film, water droplets,

snow, etc., clean the windshield.

• If a glass coating agent is applied to the windshield, it will still be neces-

sary to use the windshield wipers to remove water droplets, etc. from

the area of the windshield in front of the front camera.

• If the inner side of the windshield where the front camera is installed is

dirty, contact your Toyota dealer.

●

If the part of the windshield in front of the front camera is fogged up or cov-

ered with condensation or ice, use the windshield defogger to remove the

fog, condensation or ice. (



P. 344)

●

If water droplets cannot be properly removed from the area of the wind-

shield in front of the front camera by the windshield wipers, replace the

wiper insert or wiper blade.

●

Do not attach window tint to the windshield.

●

Replace the windshield if it is damaged or cracked.

After replacing the windshield, the front camera must be recalibrated. Con-

tact your Toyota dealer for details.

●

Do not allow liquids to contact the front camera.

●

Do not allow bright lights to shine into the front camera.

●

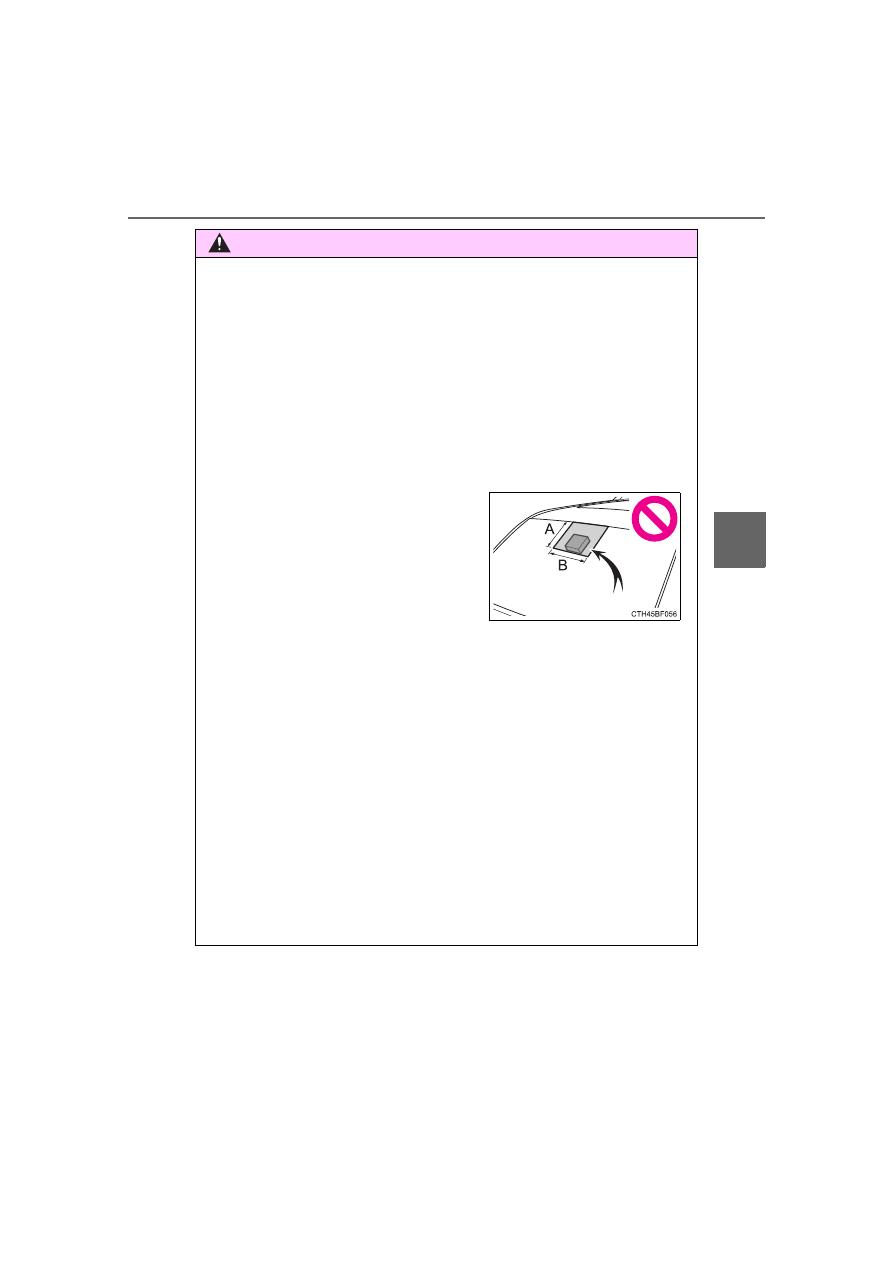

Do not attach objects, such as stickers,

transparent stickers, etc., to the outer

side of the windshield in front of the

front camera (shaded area in the illus-

tration).
A: From the top of the windshield to

approximately 0.4 in. (1 cm) below the

bottom of the front camera
B: Approximately 7.9 in. (20 cm)

(Approximately 4.0 in. [10 cm] to the

right and left from the center of the

front camera)

236

4-5. Using the driving support systems

4RUNNER (U)

WARNING

●

Do not dirty or damage the front camera.

When cleaning the inside of the windshield, do not allow glass cleaner to

contact the lens of the front camera. Also, do not touch the lens.

If the lens is dirty or damaged, contact your Toyota dealer.

●

Do not subject the front camera to a strong impact.

●

Do not change the installation position or direction of the front camera or

remove it.

●

Do not disassemble the front camera.

●

Do not modify any components of the vehicle around the front camera

(inside rear view mirror, etc.) or ceiling.

●

Do not attach any accessories to the hood, front grille or front bumper that

may obstruct the front camera. Contact your Toyota dealer for details.

●

If a surfboard or other long object is to be mounted on the roof, make sure

that it will not obstruct the front camera.

●

Do not modify the headlights or other lights.

237

4-5. Using the driving support systems

Drivin

4RUNNER (U)

■

If a warning message is displayed on the multi-information display

A system may be temporarily unavailable or there may be a malfunction in
the system.

●

In the following situations, perform the actions specified in the table. When
the normal operating conditions are detected, the message will disappear
and the system will become operational.

If the message does not disappear, contact your Toyota dealer.

Situation

Actions

When the area around a cam-
era is covered with dirt, mois-
ture (fogged up, covered with
condensation, ice, etc.), or
other foreign matter

Using the wiper and A/C function,
remove the dirt and other attached mat-
ter. (



P. 344, 351)

When the temperature around
the front camera is outside of
the operational range, such as
when the vehicle is in the sun or
in an extremely cold environ-
ment

If the front camera is hot, such as after
the vehicle had been parked in the sun,
use the air conditioning system to
decrease the temperature around the
front camera.

If a sunshade was used when the vehi-
cle was parked, depending on its type,
the sunlight reflected from the surface
of the sunshade may cause the tem-
perature of the front camera to become
excessively high.

If the front camera is cold, such after the
vehicle is parked in an extremely cold
environment, use the air conditioning
system to increase the temperature
around the front camera.

The area in front of the front
camera is obstructed, such as
when the hood is open or a
sticker is attached to the part of
the windshield in front of the
front camera.

Close the hood, remove the sticker, etc.
to clear the obstruction.

When “Pre-Collision System
Unavailable” is displayed.

Check whether there is attached materi-
als on the radar sensor and radar sensor
cover, and if there is, remove it.

238

4-5. Using the driving support systems

4RUNNER (U)

●

In the following situations, if the situation has changed (or the vehicle has
been driven for some time) and the normal operating conditions are
detected, the message will disappear and the system will become opera-
tional.

If the message does not disappear, contact your Toyota dealer.

• When the temperature around the radar sensor is outside of the opera-

tional range, such as when the vehicle is in the sun or in an extremely
cold environment

• When the front camera cannot detect objects in front of the vehicle, such

as when driving in the dark, snow, or fog, or when bright lights are shining
into the front camera

• Depending on the conditions in the vicinity of the vehicle, the radar may

judge the surrounding environment can not be properly recognized. In
that case, “Pre-Collision System Unavailable” is displayed.

239

4-5. Using the driving support systems

Drivin

4RUNNER (U)

◆

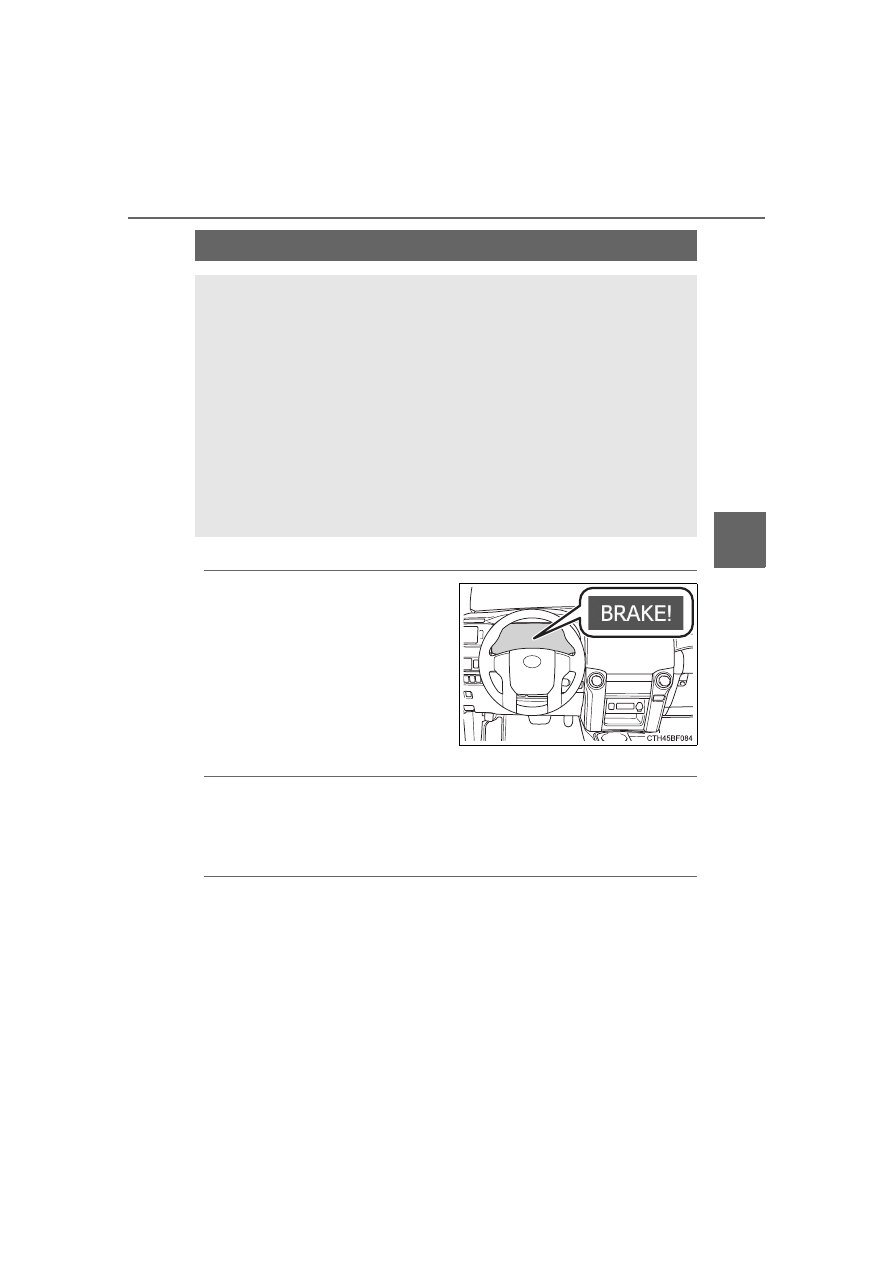

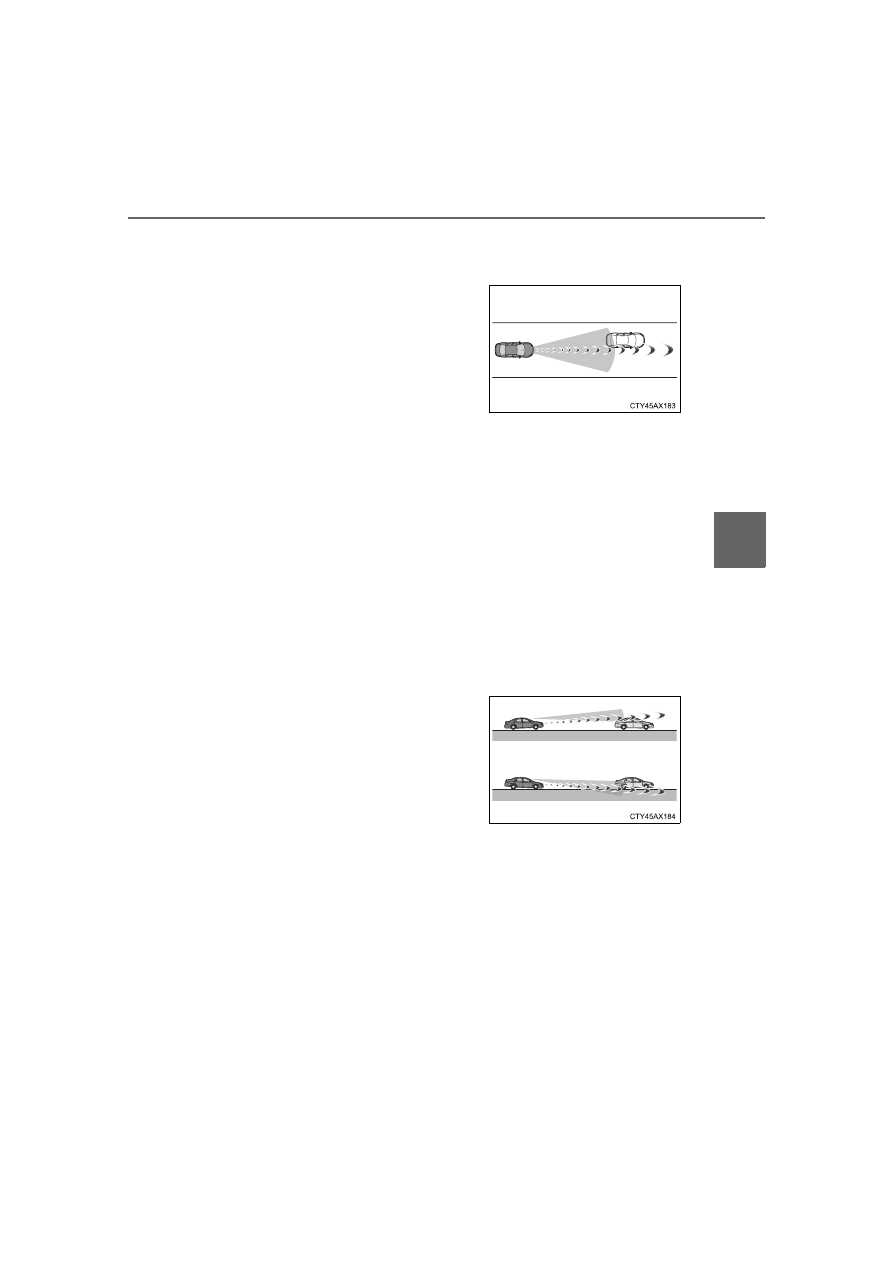

Pre-collision warning

When the system determines
that the possibility of a frontal
collision is high, a buzzer will
sound and a warning message
will be displayed on the multi-
information display to urge the
driver to take evasive action.

◆

Pre-collision brake assist

When the system determines that the possibility of a frontal colli-
sion is high, the system applies greater braking force in relation to
how strongly the brake pedal is depressed.

◆

Pre-collision braking

When the system determines that the possibility of a frontal colli-
sion is high, the system warns the driver. If the system determines
that the possibility of a frontal collision is extremely high, the brakes
are automatically applied to help avoid the collision or reduce the
collision speed.

PCS (Pre-Collision System)

The pre-collision system uses a radar sensor and front camera
to detect vehicles and pedestrians in front of your vehicle. When
the system determines that the possibility of a frontal collision
with a vehicle or pedestrian is high, a warning operates to urge
the driver to take evasive action and the potential brake pres-
sure is increased to help the driver avoid the collision. If the sys-
tem determines that the possibility of a frontal collision with a
vehicle or pedestrian is extremely high, the brakes are automati-
cally applied to help avoid the collision or help reduce the
impact of the collision.

The pre-collision system can be disabled/enabled and the warning
timing can be changed. (



P. 242)

240

4-5. Using the driving support systems

4RUNNER (U)

WARNING

■

Limitations of the pre-collision system

●

The driver is solely responsible for safe driving. Always drive safely, taking

care to observe your surroundings.

Do not use the pre-collision system instead of normal braking operations

under any circumstances. This system will not prevent collisions or lessen

collision damage or injury in every situation. Do not overly rely on this sys-

tem. Failure to do so may lead to an accident, resulting in death or serious

injury.

●

Although this system is designed to help avoid a collision or help reduce

the impact of the collision, its effectiveness may change according to vari-

ous conditions, therefore the system may not always be able to achieve

the same level of performance.

Read the following conditions carefully. Do not overly rely on this system

and always drive carefully.
• Conditions under which the system may operate even if there is no pos-

sibility of a collision:



P. 244

• Conditions under which the system may not operate properly:



P. 246

●

Do not attempt to test the operation of the pre-collision system yourself.

Depending on the objects used for testing (dummies, cardboard objects

imitating detectable objects, etc.), the system may not operate properly,

possibly leading to an accident.

■

Pre-collision braking

●

When the pre-collision braking function is operating, a large amount of

braking force will be applied.

●

If the vehicle is stopped by the operation of the pre-collision braking func-

tion, the pre-collision braking function operation will be canceled after

approximately 2 seconds. Depress the brake pedal as necessary.

●

The pre-collision braking function may not operate if certain operations are

performed by the driver. If the accelerator pedal is being depressed

strongly or the steering wheel is being turned, the system may determine

that the driver is taking evasive action and possibly prevent the pre-colli-

sion braking function from operating.

●

In some situations, while the pre-collision braking function is operating,

operation of the function may be canceled if the accelerator pedal is

depressed strongly or the steering wheel is turned and the system deter-

mines that the driver is taking evasive action.

●

If the brake pedal is being depressed, the system may determine that the

driver is taking evasive action and possibly delay the operation timing of

the pre-collision braking function.

241

4-5. Using the driving support systems

riv

ing

4RUNNER (U)

WARNING

■

When to disable the pre-collision system

In the following situations, disable the system, as it may not operate prop-

erly, possibly leading to an accident resulting in death or serious injury:

●

When the vehicle is being towed

●

When your vehicle is towing another vehicle

●

When transporting the vehicle via truck, boat, train or similar means of

transportation

●

When the vehicle is raised on a lift with the engine running and the tires

are allowed to rotate freely

●

When inspecting the vehicle using a drum tester such as a chassis dyna-

mometer or speedometer tester, or when using an on vehicle wheel bal-

ancer

●

When a strong impact is applied to the front bumper or front grille, due to

an accident or other reasons

●

If the vehicle cannot be driven in a stable manner, such as when the vehi-

cle has been in an accident or is malfunctioning

●

When the vehicle is driven in a sporty manner or off-road

●

When the tires are not properly inflated

●

When the tires are very worn

●

When tires of a size other than specified are installed

●

When tire chains are installed

●

When a compact spare tire or an emergency tire puncture repair kit is used

●

If equipment (snow plow, etc.) that may obstruct the radar sensor or front

camera is temporarily installed to the vehicle

242

4-5. Using the driving support systems

4RUNNER (U)

■

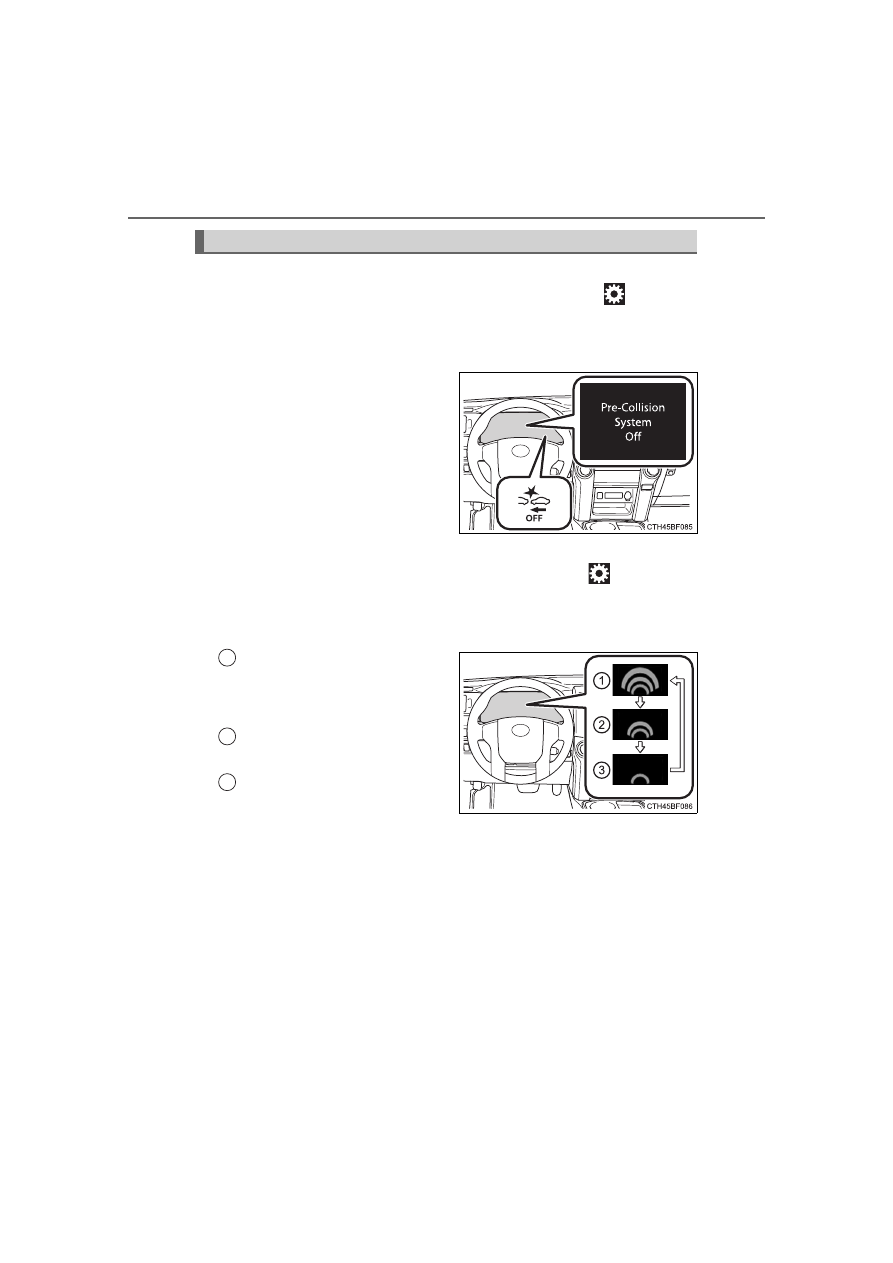

Enabling/disabling the pre-collision system

The pre-collision system can be enabled/disabled on

(



P. 96)

of the multi-information display.

The system is automatically enabled each time the engine switch is
turned to IGNITION ON mode.

If the system is disabled, the
PCS warning light will turn on
and a message will be dis-
played on the multi-information
display.

■

Changing the pre-collision warning timing

The pre-collision warning timing can be changed on

(



P. 96) of

the multi-information display.

The operation timing setting is retained when the engine switch is
turned off.

Far

The warning will begin to oper-
ate earlier than with the default
timing.

Middle

This is the default setting.

Near

The warning will begin to oper-
ate later than with the default
timing.

Changing settings of the pre-collision system

243

4-5. Using the driving support systems

Drivin

4RUNNER (U)

■

Operational conditions

The pre-collision system is enabled and the system determines that the pos-
sibility of a frontal collision with a vehicle or pedestrian is high.

Each function is operational at the following speeds:

●

Pre-collision warning:

• Vehicle speed is between approximately 7 and 110 mph (10 and 180

km/h). (For detecting a pedestrian, vehicle speed is between approxi-
mately 7 and 50 mph [10 and 80 km/h].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 7 mph (10 km/h) or more.

●

Pre-collision brake assist:

• Vehicle speed is between approximately 20 and 110 mph (30 and 180

km/h). (For detecting a pedestrian, vehicle speed is between approxi-
mately 20 and 50 mph [30 and 80 km/h].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 20 mph (30 km/h) or more.

●

Pre-collision braking:

• Vehicle speed is between approximately 7 and 110 mph (10 and 180

km/h). (For detecting a pedestrian, vehicle speed is between approxi-
mately 7 and 50 mph [10 and 80 km/h].)

• The relative speed between your vehicle and the vehicle or pedestrian

ahead is approximately 7 mph (10 km/h) or more.

The system may not operate in the following situations:

●

If a battery terminal has been disconnected and reconnected and then the
vehicle has not been driven for a certain amount of time

●

If the shift lever is in R

●

If VSC is disabled (only the pre-collision warning function will be opera-
tional)

●

If the low speed four-wheel drive indicator is illuminated (only the pre-colli-
sion warning function will be operational)

■

Pedestrian detection function

The pre-collision system detects pedestri-
ans based on the size, profile, and motion
of a detected object. However, a pedes-
trian may not be detected depending on
the surrounding brightness and the
motion, posture, and angle of the
detected object, preventing the system
from operating properly. (



P. 248)

244

4-5. Using the driving support systems

4RUNNER (U)

■

Cancelation of the pre-collision braking

If either of the following occur while the pre-collision braking function is oper-
ating, it will be canceled:

●

The accelerator pedal is depressed strongly.

●

The steering wheel is turned sharply or abruptly.

■

Conditions under which the system may operate even if there is no pos-
sibility of a collision

●

In some situations such as the following, the system may determine that
there is a possibility of a frontal collision and operate.

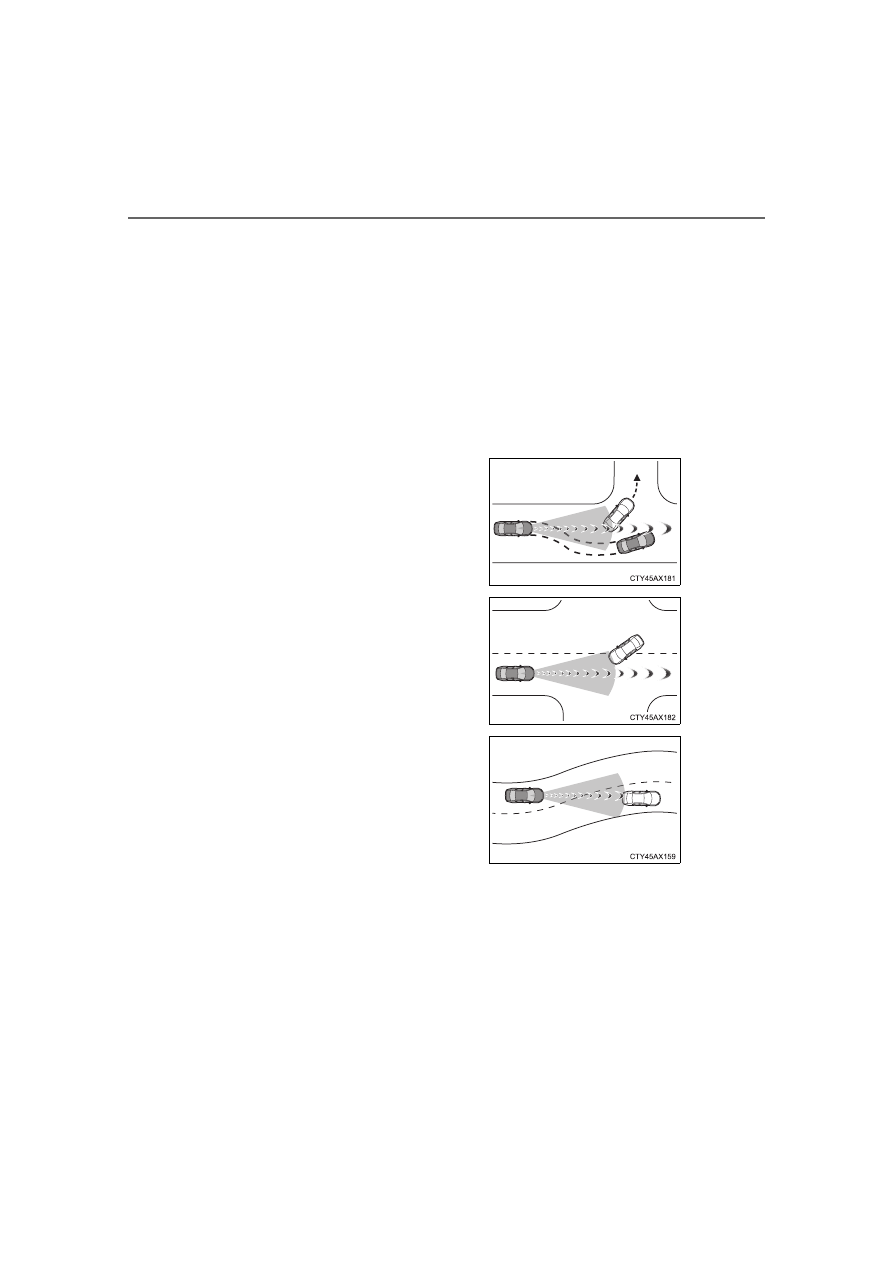

• When passing a vehicle or pedestrian
• When changing lanes while overtaking a preceding vehicle
• When overtaking a preceding vehicle that is changing lanes

• When rapidly closing on a vehicle ahead
• If the front of the vehicle is raised or lowered, such as when the road sur-

face is uneven or undulating

• When approaching objects on the roadside, such as guardrails, utility

poles, trees, or walls

• When overtaking a preceding vehicle

that is making a left/right turn

• When passing a vehicle in an oncom-

ing lane that is stopped to make a
right/left turn

• When driving on a road where relative

location to vehicle ahead in an adja-
cent lane may change, such as on a
winding road

245

4-5. Using the driving support systems

Drivin

4RUNNER (U)

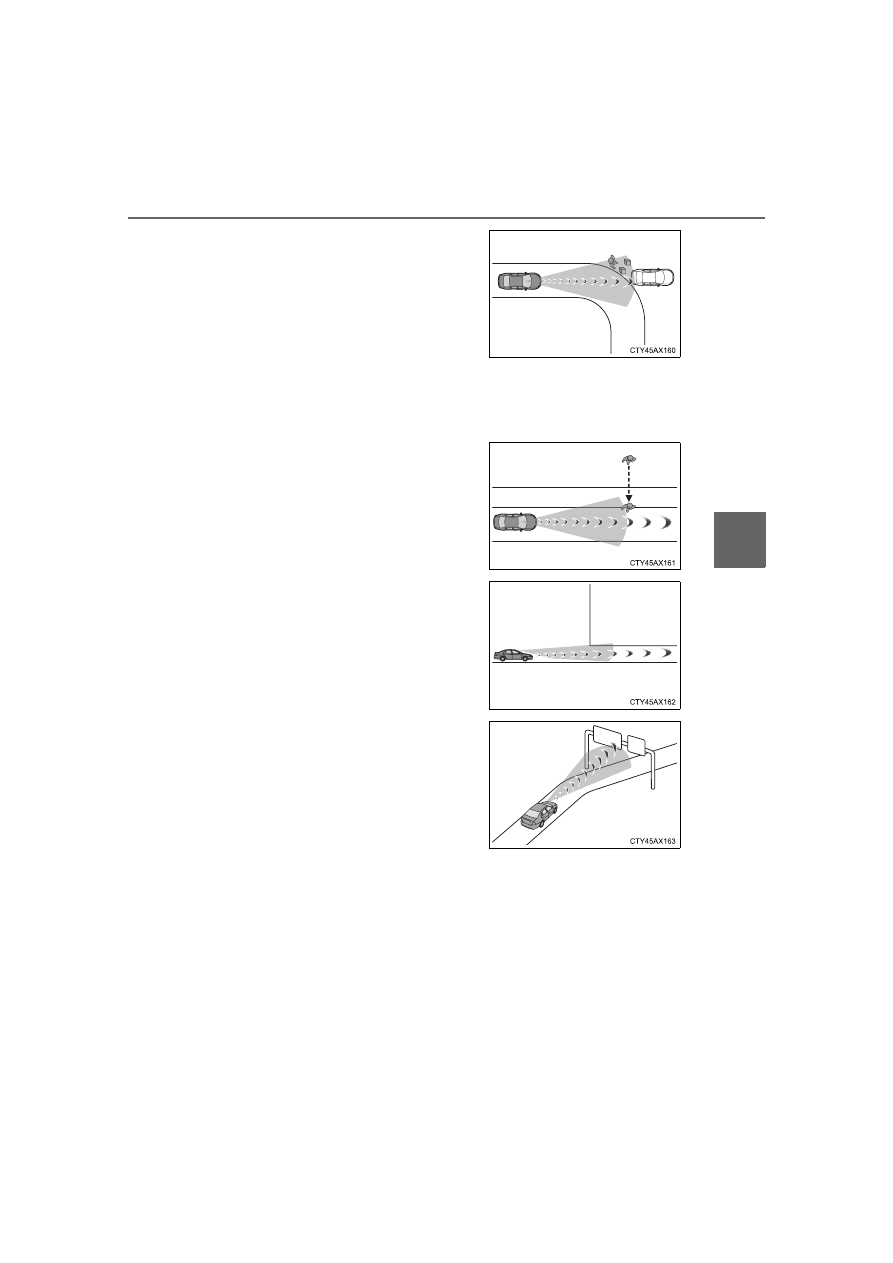

• When driving on a narrow path surrounded by a structure, such as in a

tunnel or on an iron bridge

• When there is a metal object (manhole cover, steel plate, etc.), steps, or a

protrusion on the road surface or roadside

• When rapidly closing on an electric toll gate barrier, parking area barrier,

or other barrier that opens and closes

• When using an automatic car wash

• When there is a vehicle, pedestrian,

or object by the roadside at the
entrance of a curve

• When a crossing pedestrian

approaches very close to the vehicle

• When passing through a place with a

low structure above the road (low ceil-
ing, traffic sign, etc.)

• When passing under an object (bill-

board, etc.) at the top of an uphill road

246

4-5. Using the driving support systems

4RUNNER (U)

• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke
• When there are patterns or paint on the road or a wall that may be mis-

taken for a vehicle or pedestrian

• When driving near an object that reflects radio waves, such as a large

truck or guardrail

• When driving near a TV tower, broadcasting station, electric power plant,

or other location where strong radio waves or electrical noise may be
present

■

Situations in which the system may not operate properly

●

In some situations such as the following, a vehicle may not be detected by
the radar sensor and front camera, preventing the system from operating
properly:

• If an oncoming vehicle is approaching your vehicle
• If a vehicle ahead is a motorcycle or bicycle
• When approaching the side or front of a vehicle
• If a preceding vehicle has a small rear end, such as an unloaded truck

• If a vehicle ahead is carrying a load which protrudes past its rear bumper

• If a vehicle ahead is irregularly shaped, such as a tractor or side car
• If the sun or other light is shining directly on a vehicle ahead
• If a vehicle cuts in front of your vehicle or emerges from beside a vehicle

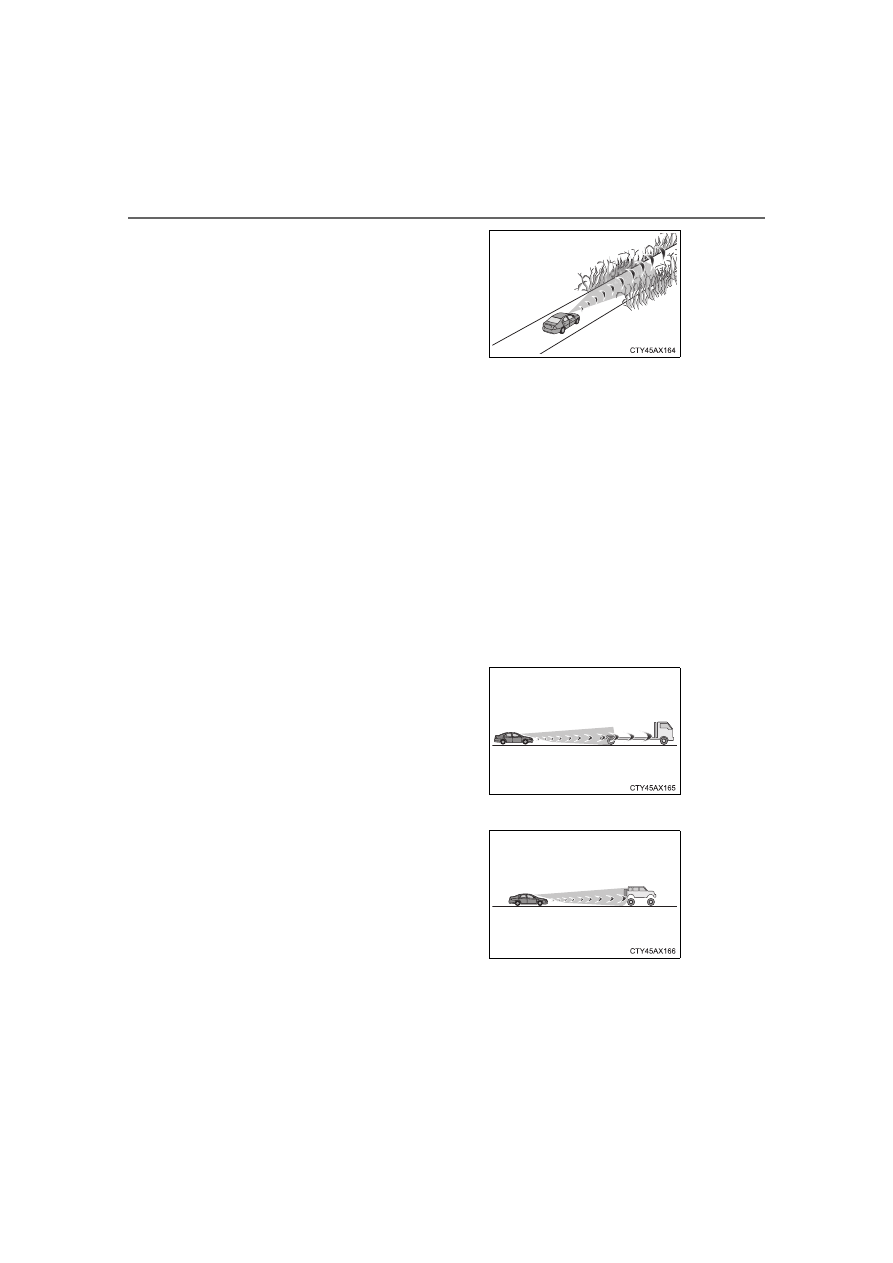

• When driving through or under

objects that may contact the vehicle,
such as thick grass, tree branches, or
a banner

• If a preceding vehicle has a low rear

end, such as a low bed trailer

• If a vehicle ahead has extremely high

ground clearance

247

4-5. Using the driving support systems

Drivin

4RUNNER (U)

• If a vehicle ahead makes an abrupt maneuver (such as sudden swerving,

acceleration or deceleration)

• When suddenly cutting behind a preceding vehicle

• When driving in inclement weather such as heavy rain, fog, snow or a

sandstorm

• When the vehicle is hit by water, snow, dust, etc. from a vehicle ahead
• When driving through steam or smoke
• When driving in a place where the surrounding brightness changes sud-

denly, such as at the entrance or exit of a tunnel

• When a very bright light, such as the sun or the headlights of oncoming

traffic, shines directly into the front camera

• When the surrounding area is dim, such as at dawn or dusk, or while at

night or in a tunnel

• After the engine has started the vehicle has not been driven for a certain

amount of time

• While making a left/right turn and for a few seconds after making a left/

right turn

• While driving on a curve and for a few seconds after driving on a curve
• If your vehicle is skidding

• If the wheels are misaligned
• If a wiper blade is blocking the front camera
• The vehicle is wobbling.
• The vehicle is being driven at extremely high speeds.
• When driving on a hill
• If the radar sensor or front camera is misaligned

• When a vehicle ahead is not directly

in front of your vehicle

• If the front of the vehicle is raised or

lowered

248

4-5. Using the driving support systems

4RUNNER (U)

●

In some situations such as the following, sufficient braking force may not be
obtained, preventing the system from performing properly:

• If the braking functions cannot operate to their full extent, such as when

the brake parts are extremely cold, extremely hot, or wet

• If the vehicle is not properly maintained (brakes or tires are excessively

worn, improper tire inflation pressure, etc.)

• When the vehicle is being driven on a gravel road or other slippery sur-

face

●

Some pedestrians such as the following may not be detected by the radar
sensor and front camera, preventing the system from operating properly:

• Pedestrians shorter than approximately 3.2 ft. (1 m) or taller than approx-

imately 6.5 ft. (2 m)

• Pedestrians wearing oversized clothing (a rain coat, long skirt, etc.), mak-

ing their silhouette obscure

• Pedestrians who are carrying large baggage, holding an umbrella, etc.,

hiding part of their body

• Pedestrians who are bending forward or squatting
• Pedestrians who are pushing a stroller, wheelchair, bicycle or other vehi-

cle

• Groups of pedestrians which are close together
• Pedestrians who are wearing white and look extremely bright
• Pedestrians in the dark, such as at night or while in a tunnel
• Pedestrians whose clothing appears to be nearly the same color or

brightness as their surroundings

• Pedestrians near walls, fences, guardrails, or large objects
• Pedestrians who are on a metal object (manhole cover, steel plate, etc.)

on the road

• Pedestrians who are walking fast
• Pedestrians who are changing speed abruptly
• Pedestrians running out from behind a vehicle or a large object
• Pedestrians who are extremely close to the side of the vehicle (outside

rear view mirror, etc.)

■

If VSC is disabled

●

If VSC is disabled (



P. 324, 325), the pre-collision brake assist and pre-col-

lision braking functions are also disabled.

●

The PCS warning light will turn on and “VSC Turned Off Pre-Collision Brake
System Unavailable” will be displayed on the multi-information display.

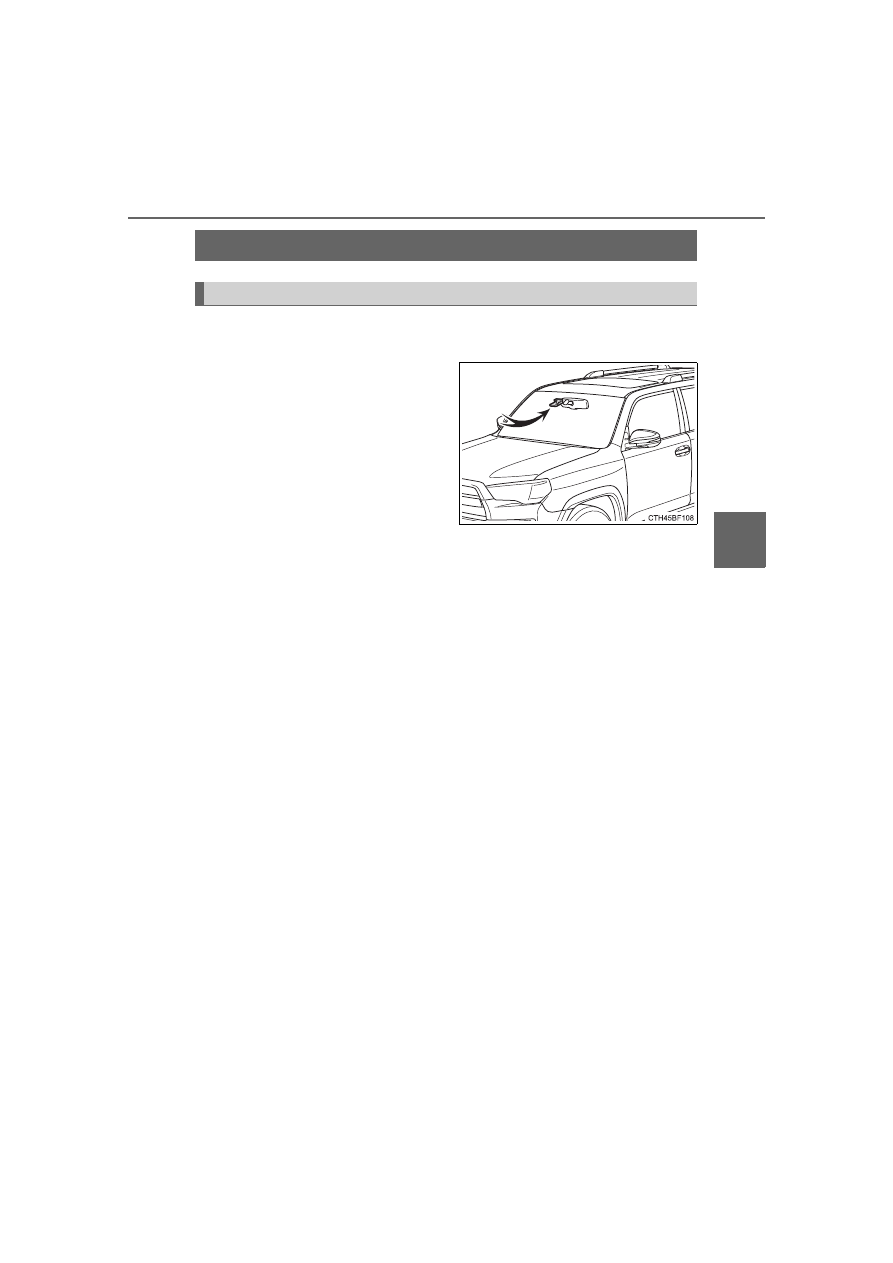

250

4-5. Using the driving support systems

4RUNNER (U)

◆

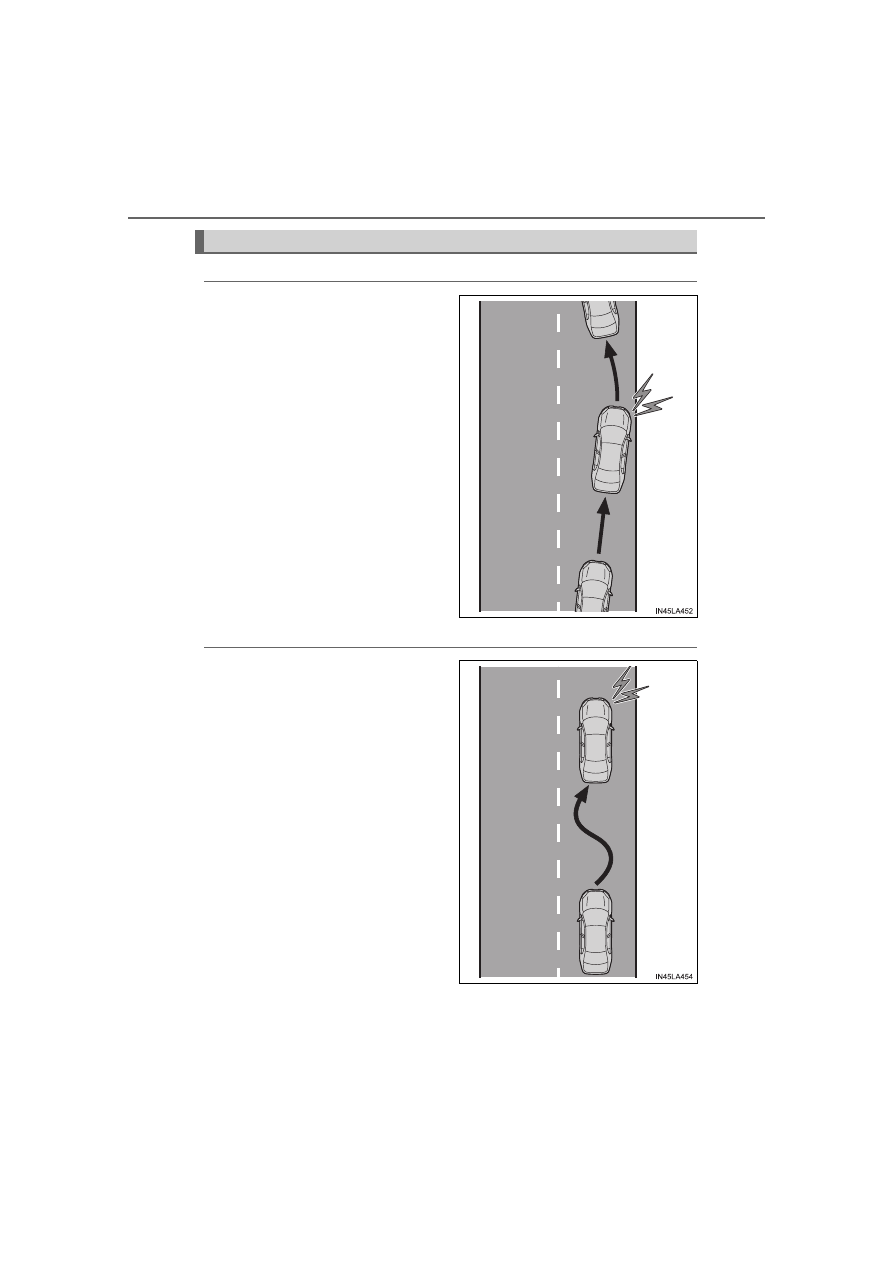

Lane departure alert function

When the system determines
that the vehicle might depart
from its lane, a warning is dis-
played on the multi-information
display and the warning buzzer
sounds to alert the driver.

When the warning buzzer
sounds, check the surrounding
road situation and carefully
operate the steering wheel to
move the vehicle back to the
center of the lane.

◆

Vehicle sway warning function

When the vehicle is swaying or
appears as if it may depart from
its lane multiple times, the
warning buzzer sounds and a
message is displayed on the
multi-information display to alert
the driver.

Functions included in LDA system

251

4-5. Using the driving support systems

riv

ing

4RUNNER (U)

WARNING

■

Before using LDA system

Do not rely solely upon the LDA system. The LDA system does not auto-

matically drive the vehicle or reduce the amount of attention that must be

paid to the area in front of the vehicle. The driver must always assume full

responsibility for driving safely by paying careful attention to the surround-

ing conditions and operating the steering wheel to correct the path of the

vehicle. Also, the driver must take adequate breaks when fatigued, such as

from driving for a long period of time.

Failure to perform appropriate driving operations and pay careful attention

may lead to an accident, resulting in death or serious injury.

■

To avoid operating LDA system by mistake

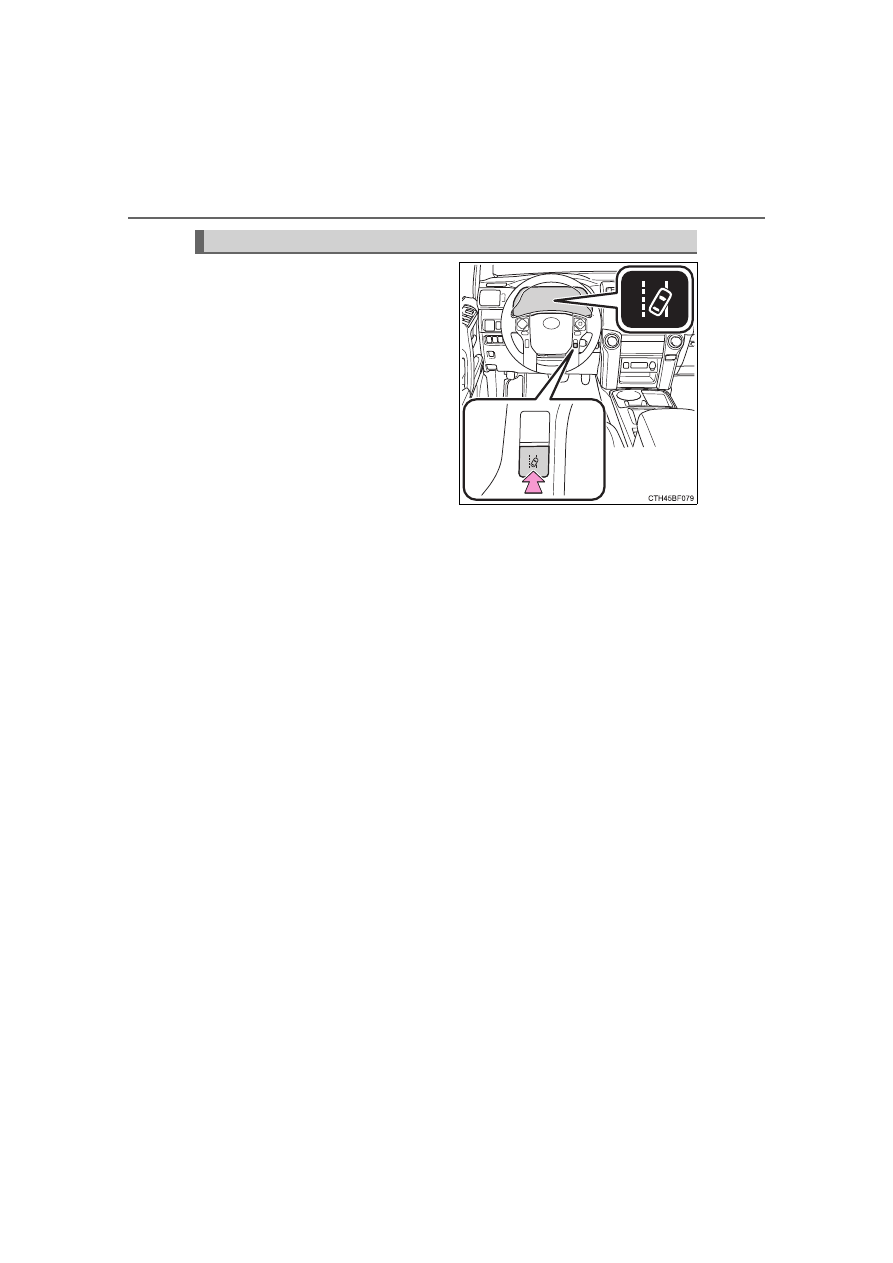

When not using the LDA system, use the LDA switch to turn the system off.

■

Situations unsuitable for LDA system

Do not use the LDA system in the following situations.

The system may not operate properly and lead to an accident, resulting in

death or serious injury.

●

A spare tire, tire chains, etc. are equipped.

●

Objects or patterns that could be mistaken for white (yellow) lines are

present on the side of the road (guardrails, curbs, reflective poles, etc.).

●

Vehicle is driven on a snow-covered road.

●

White (yellow) lines are difficult to see due to rain, snow, fog, dust, etc.

●

Asphalt repair marks, white (yellow) line marks, etc. are present due to

road repair.

●

Vehicle is driven in a temporary lane or restricted lane due to construction

work.

●

Vehicle is driven in a construction zone.

■

Preventing LDA system malfunctions and operations performed by

mistake

●

Do not modify the headlights or place stickers, etc. on the surface of the

lights.

●

Do not modify the suspension etc. If the suspension etc. needs to be

replaced, contact your Toyota dealer.

●

Do not install or place anything on the hood or grille. Also, do not install a

grille guard (bull bars, kangaroo bar, etc.).

●

If your windshield needs repairs, contact your Toyota dealer.

253

4-5. Using the driving support systems

Drivin

4RUNNER (U)

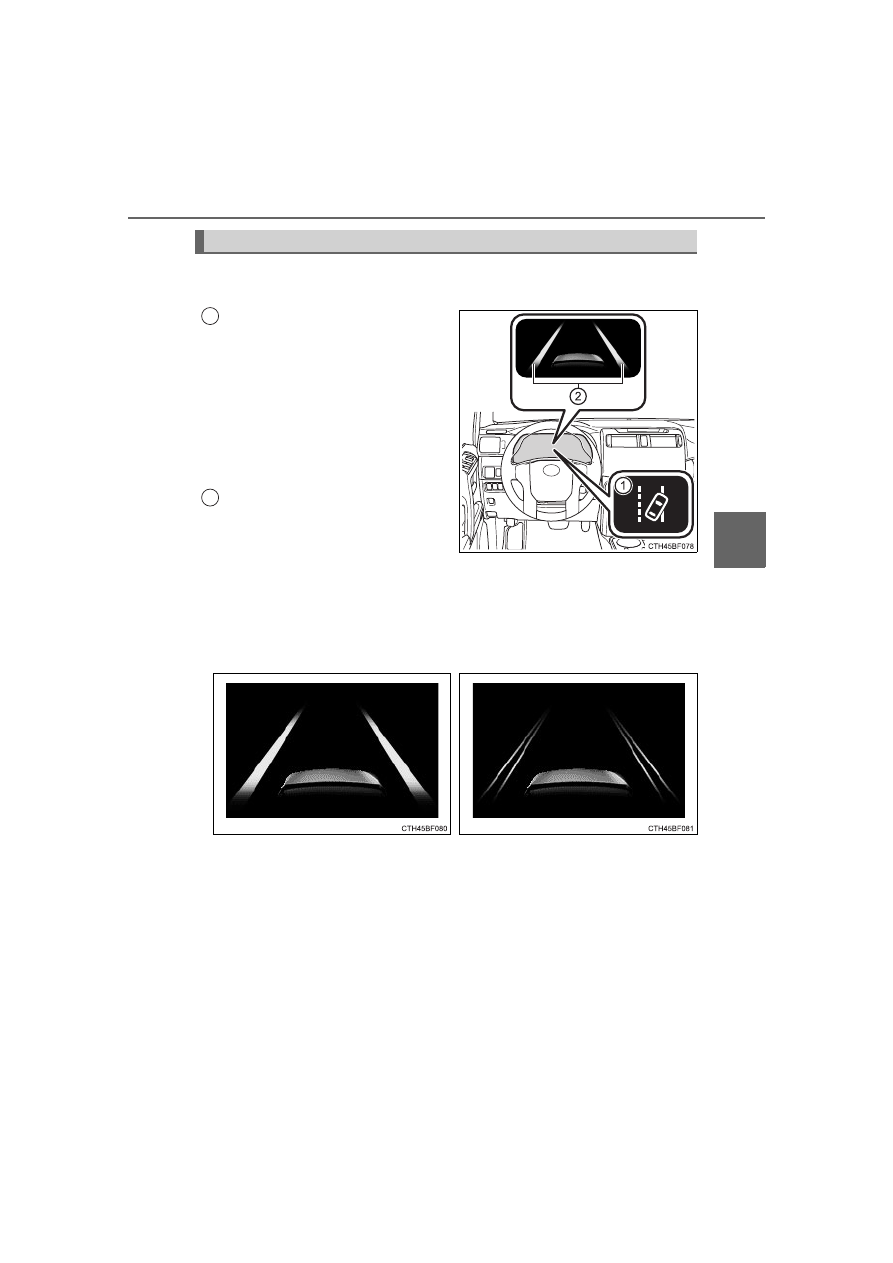

The illustration used is intended as an example, and may differ from
the image that is actually displayed on the multi-information display.

LDA indicator

The illumination condition of the
indicator informs the driver of
the system operation status.

Illuminated in green:
LDA system is operating.

Flashing in Yellow:
Lane departure alert function is
operating.

Lane departure alert function
display

Displayed when the multi-infor-
mation display is switched to
the driving assist system infor-
mation screen.

Indications on multi-information display



Inside of displayed white lines
is white



Inside of displayed white lines
is black

Indicates that the system is recog-
nizing white (yellow) lines. When
the vehicle departs from its lane,
the white line displayed on the
side the vehicle departs from
flashes yellow.

Indicates that the system is not
able to recognize white (yellow)
lines or is temporarily canceled.

254

4-5. Using the driving support systems

4RUNNER (U)

■

Operation conditions of each function

●

Lane departure alert function

This function operates when all of the following conditions are met.

• LDA is turned on.
• Vehicle speed is approximately 32 mph (50 km/h) or more.
• System recognizes white (yellow) lines.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• Turn signal lever is not operated.
• Vehicle is driven on a straight road or around a gentle curve with a radius

of more than approximately 492 ft. (150 m).

• No system malfunctions are detected. (



P. 256)

●

Vehicle sway warning function

This function operates when all of the following conditions are met.

• Setting for “Sway Warning” in

of the multi-information display is set to

“On”. (



P. 96)

• Vehicle speed is approximately 32 mph (50 km/h) or more.
• Width of traffic lane is approximately 9.8 ft. (3 m) or more.
• No system malfunctions are detected. (



P. 256)

■

Temporary cancellation of functions

When the operation conditions are no longer met, a function may be tempo-
rarily canceled. However, when the operation conditions are met again, oper-
ation of the function is automatically restored. (



P. 254)

■

Lane departure alert function

The warning buzzer may be difficult to hear due to external noise, audio play-
back, etc.

■

Vehicle sway warning function

Depending on the vehicle and road conditions, the warning may not operate.

■

White (yellow) lines are only on one side of road

The LDA system will not operate for the side on which white (yellow) lines
could not be recognized.

When the system determines that the
vehicle is swaying while the vehicle sway
warning function is operating, a buzzer
sounds and a warning message urging
the driver to rest and the symbol shown
in the illustration are simultaneously dis-
played on the multi-information display.

255

4-5. Using the driving support systems

Drivin

4RUNNER (U)

■

Conditions in which functions may not operate properly

In the following situations, the camera sensor may not detect white (yellow)
lines and various functions may not operate normally.

●

There are shadows on the road that run parallel with, or cover, the white
(yellow) lines.

●

The vehicle is driven in an area without white (yellow) lines, such as in front
of a tollgate or checkpoint, or at an intersection, etc.

●

The white (yellow) lines are cracked, “Botts’ dots”, “Raised pavement
marker” or stones are present.

●

The white (yellow) lines cannot be seen or are difficult to see due to sand,
etc.

●

The vehicle is driven on a road surface that is wet due to rain, puddles, etc.

●

The traffic lines are yellow (which may be more difficult to recognize than
lines that are white).

●

The white (yellow) lines cross over a curb, etc.

●

The vehicle is driven on a bright surface, such as concrete.

●

The vehicle is driven on a surface that is bright due to reflected light, etc.

●

The vehicle is driven in an area where the brightness changes suddenly,
such as at the entrances and exits of tunnels, etc.

●

Light from the headlights of an oncoming vehicle, the sun, etc. enters the
camera.

●

The vehicle is driven where the road diverges, merges, etc.

●

The vehicle is driven on a slope.

●

The vehicle is driven on a road which tilts left or right, or a winding road.

●

The vehicle is driven on an unpaved or rough road.

●

The vehicle is driven around a sharp curve.

●

The traffic lane is excessively narrow or wide.

●

The vehicle is extremely tilted due to carrying heavy luggage or having
improper tire pressure.

●

The distance to the preceding vehicle is extremely short.

●

The vehicle is moving up and down a large amount due to road conditions
during driving (poor roads or road seams).

●

The headlight lenses are dirty and emit a faint amount of light at night, or the
beam axis has deviated.

●

The vehicle has just changed lanes or crossed an intersection.

256

4-5. Using the driving support systems

4RUNNER (U)

■

Warning message

If the following warning message is displayed on the multi-information display
and the LDA indicator illuminates in amber, follow the appropriate trouble-
shooting procedure.

If a different warning message is displayed, follow the instructions displayed
on the screen.

■

Customization

Some functions can be customized. (



P. 549)

Warning message

Details/Actions

“LDA Malfunction

Visit Your Dealer”

The system may not be operating
properly.



Have the vehicle inspected at your
Toyota dealer.

“Front Camera Unavailable”

The operation conditions of the cam-
era sensor (temperature, etc.) are not
met.



When the operation conditions of
the camera sensor (temperature,
etc.) are met, the LDA system will
become available. Turn the LDA
system off, wait for a little while,
and then turn the LDA system back
on.

“LDA Unavailable”

The LDA system is temporarily can-
celed due to a malfunction in a sensor
other than the camera sensor.



Turn the LDA system off and follow
the appropriate troubleshooting
procedures for the warning mes-
sage. Afterward, wait for a little
while, and then turn the LDA sys-
tem back on.

“LDA Unavailable Below

Approx 32MPH”

The LDA system cannot be used as
the vehicle speed is less than approxi-
mately 32 mph (50 km/h).



Drive the vehicle at approximately
32 mph (50 km/h) or more.

Toyota 4Runner (2024 year). Manual in english - page 8
