Toyota Camry (2024 year). Manual in english - page 3





65

1-2. Child safety

1

Fo

safety and securi

ty

CAMRY_U

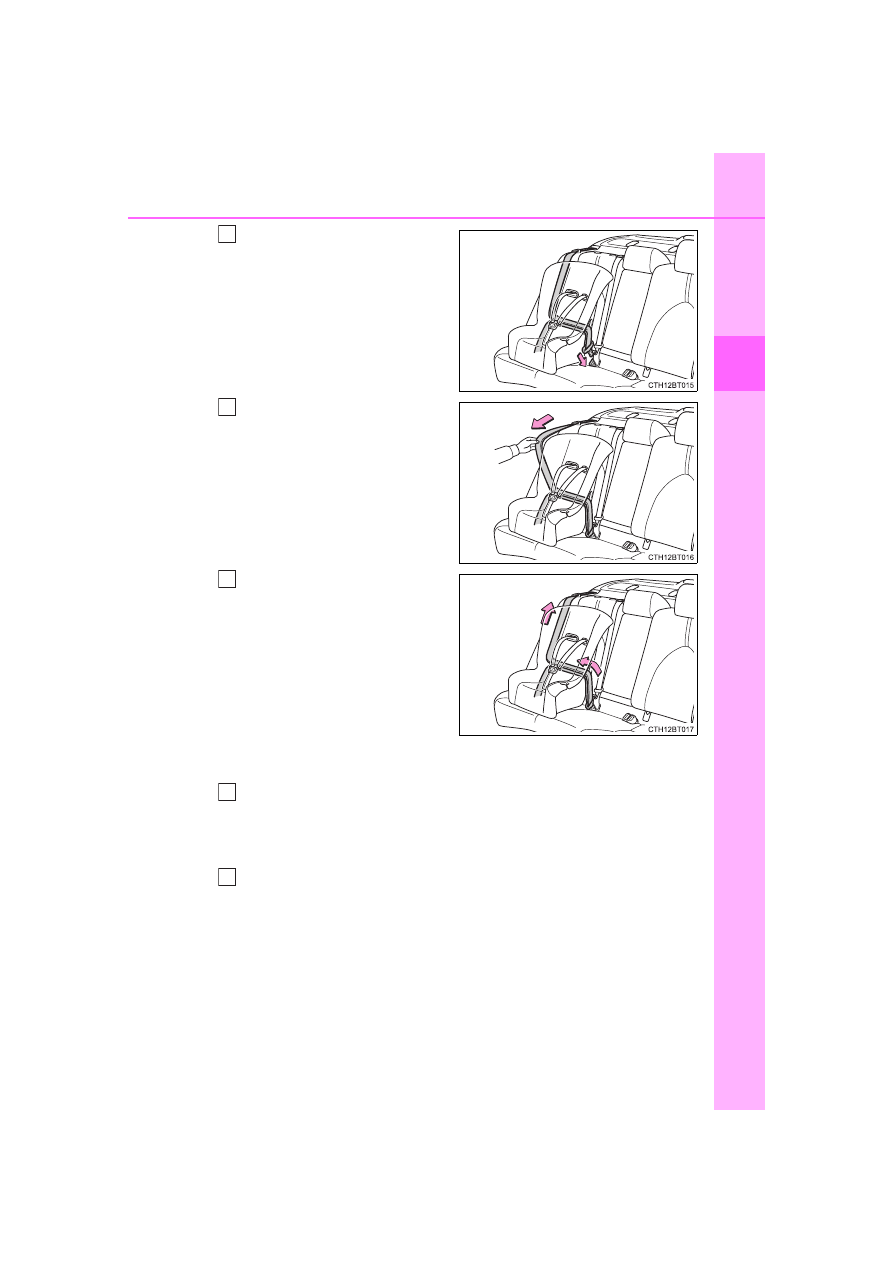

Run the seat belt through the
child restraint system and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

Fully extend the shoulder belt
and allow it to retract to put it
in lock mode. In lock mode,
the belt cannot be extended.

While pushing the child
restraint system into the rear
seat, allow the shoulder belt
to retract until the child
restraint system is securely
in place.

After the shoulder belt has
retracted to a point where there
is no slack in the belt, pull the
belt to check that it cannot be
extended.

If the child restraint has a top tether strap, follow the child
restraint manufacturer’s operation manual regarding the installa-
tion, using the top tether strap to latch onto the top tether strap
anchor. (

P. 72)

After installing the child restraint system, rock it back and forth to
ensure that it is installed securely. (

P. 68)

4

5

6

7

8

66

1-2. Child safety

CAMRY_U

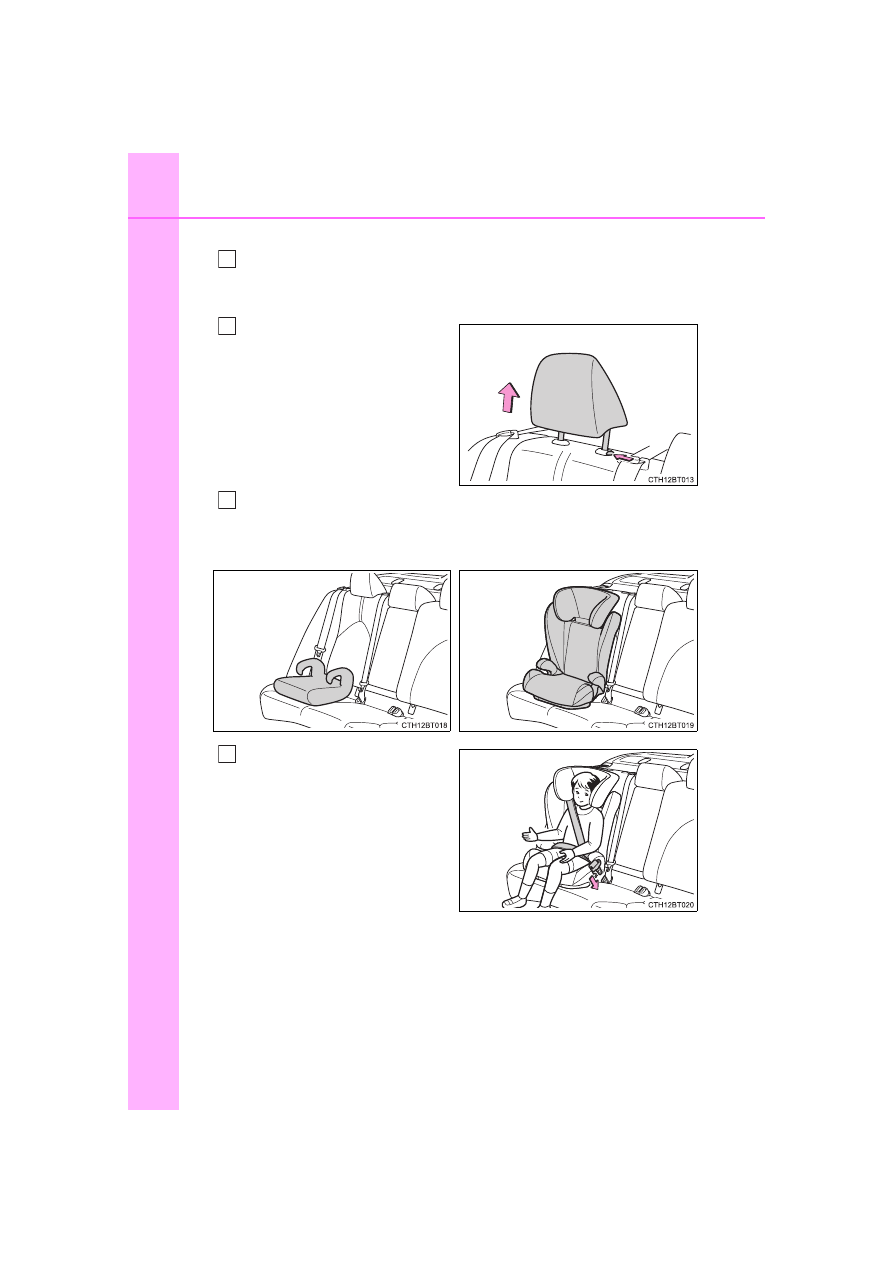

Booster seat

If installing the child restraint system to the front passenger seat
is unavoidable, refer to P. 60 for the front passenger seat adjust-
ment.

High back type: If the head
restraint interferes with your
child restraint system, and
the head restraint can be
removed, remove the head
restraint. (

P. 171)

Place the child restraint system on the seat facing the front of the
vehicle.

Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.

Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. (

P. 30)

1

2

3

Booster type

High back type

4

67

1-2. Child safety

1

Fo

safety and securi

ty

CAMRY_U

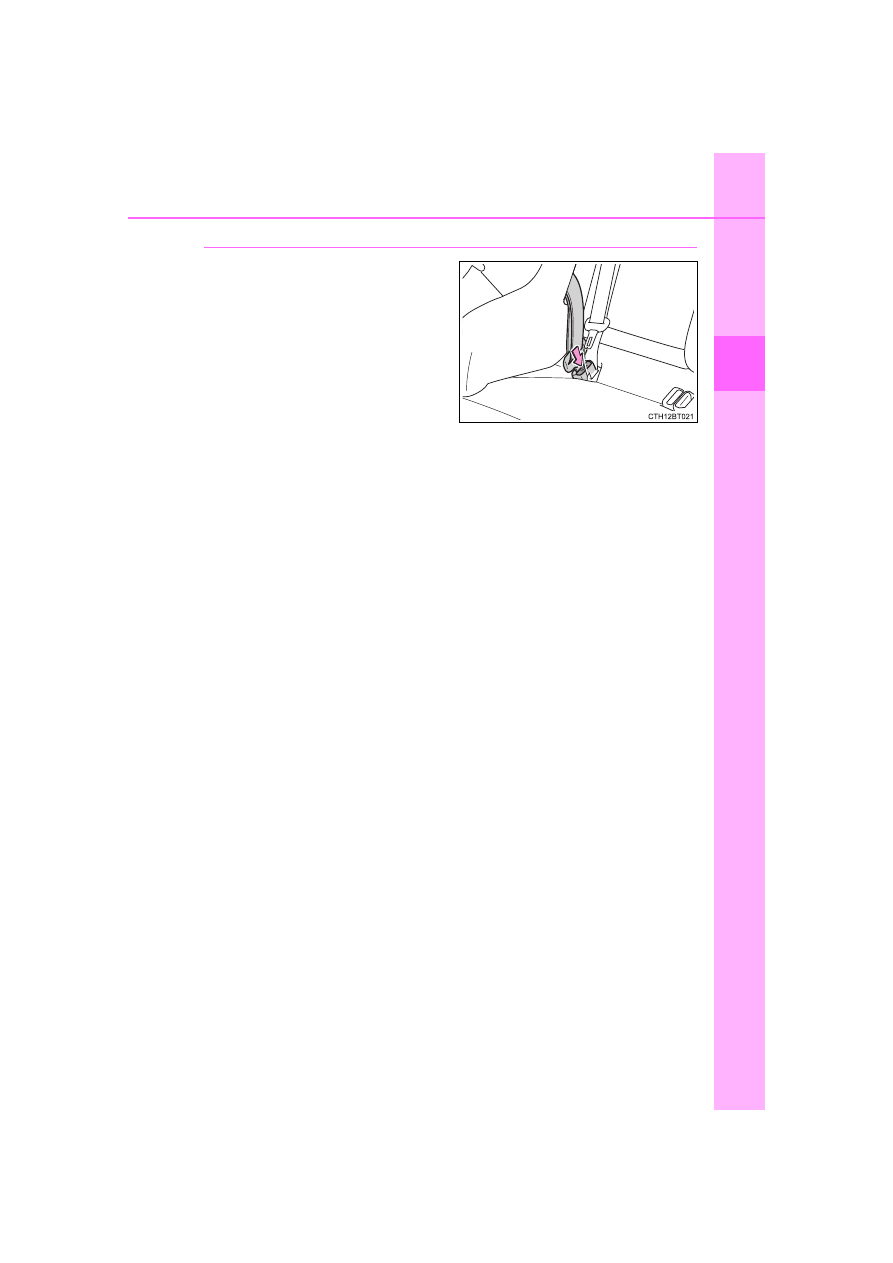

Removing a child restraint system installed with a seat belt

Press the buckle release button
and fully retract the seat belt.

When releasing the buckle, the
child restraint system may
spring up due to the rebound of
the seat cushion. Release the
buckle while holding down the
child restraint system.

Since the seat belt automatically
reels itself, slowly return it to the
stowing position.

68

1-2. Child safety

CAMRY_U

WARNING

When installing a child restraint system

Observe the following precautions.

Failure to do so may result in death or serious injury.

Do not allow children to play with the seat belt. If the seat belt becomes

twisted around a child’s neck, it may lead to choking or other serious inju-

ries that could result in death.

If this occurs and the buckle cannot be unfastened, scissors should be

used to cut the belt.

Ensure that the belt and plate are securely locked and the seat belt is not

twisted.

Shake the child restraint system left and right, and forward and backward

to ensure that it has been securely installed.

After securing a child restraint system, never adjust the seat.

When a booster seat is installed, always ensure that the shoulder belt is

positioned across the center of the child’s shoulder. The belt should be

kept away from the child’s neck, but not so that it could fall off the child’s

shoulder.

Follow all installation instructions provided by the child restraint system

manufacturer.

When securing some types of child restraint systems in rear seats, it may

not be possible to properly use the seat belts in positions next to the child

restraint without interfering with it or affecting seat belt effectiveness. Be

sure your seat belt fits snugly across your shoulder and low on your hips. If

it does not, or if it interferes with the child restraint, move to a different

position. Failure to do so may result in death or serious injury.

When installing a booster seat

To prevent the belt from going into ALR lock mode, do not fully extend the

shoulder belt. ALR mode causes the belt to tighten only. This could cause

injury or discomfort to the child. (

P. 32)

Do not use a seat belt extender

If a seat belt extender is used when installing a child restraint system, the

seat belt will not securely hold the child restraint system, which could cause

death or serious injury to the child or other passengers in the event of sud-

den braking, sudden swerving or an accident.

69

1-2. Child safety

1

Fo

safety and securi

ty

CAMRY_U

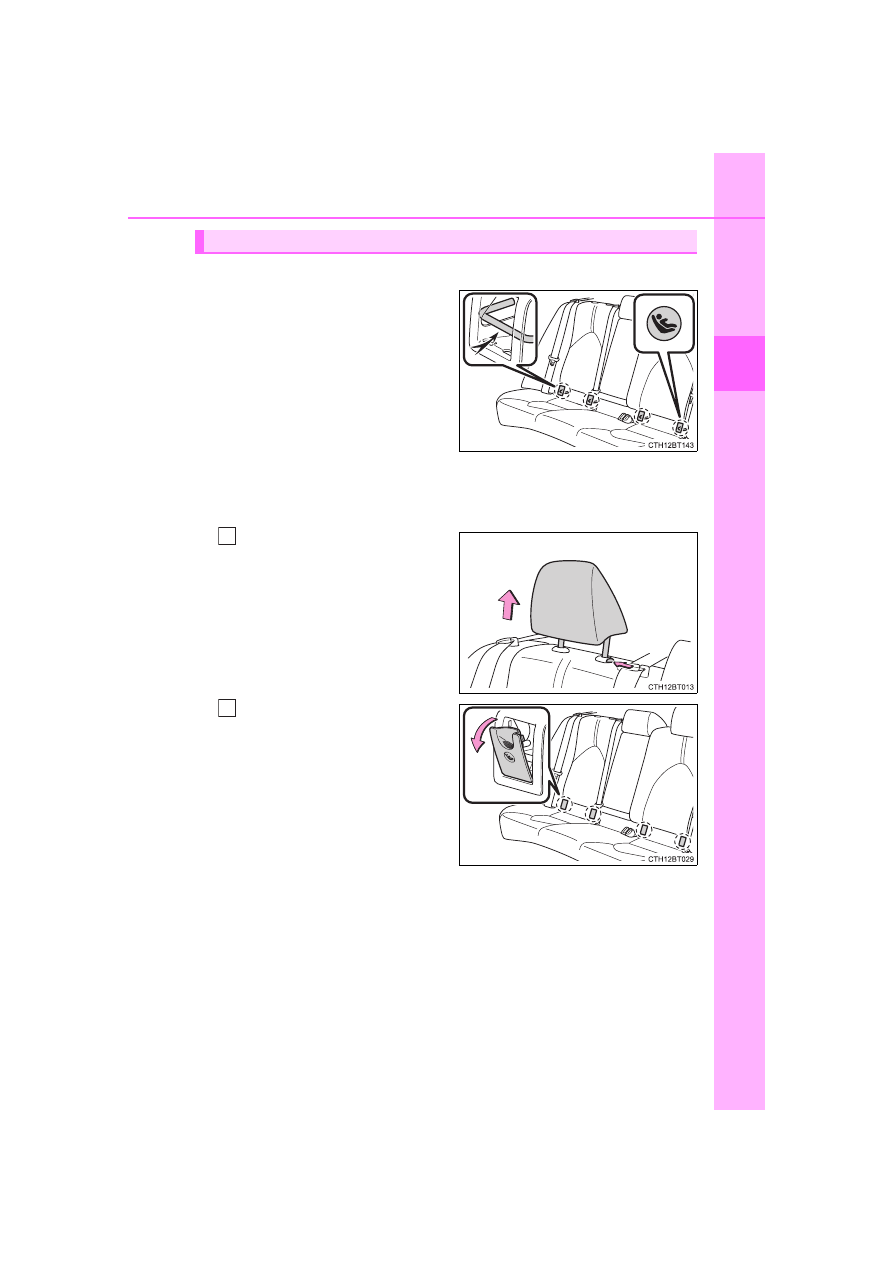

Child restraint LATCH anchors

LATCH anchors are provided
for the outboard rear seats.
(Marks displaying the location
of the anchors are attached to
the seats.)

When installing in the rear outboard seats

Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.

If the head restraint interferes
with the child restraint sys-
tem installation and the head
restraint can be removed,
remove the head restraint.
(

P. 171)

Remove the cover.

Child restraint system fixed with a child restraint LATCH anchor

1

2

70

1-2. Child safety

CAMRY_U

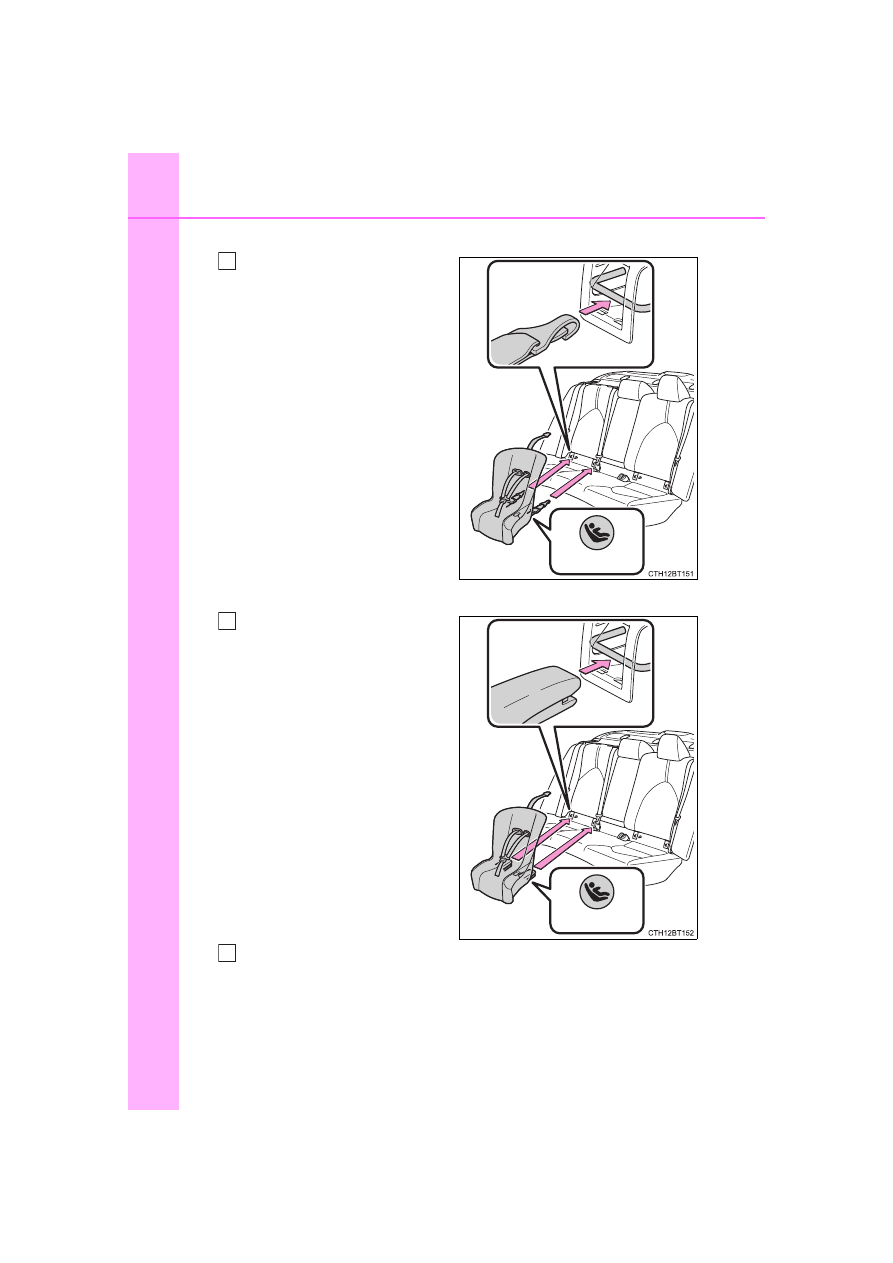

With flexible lower attachments
Latch the hooks of the lower

attachments onto the LATCH

anchors.
For owners in Canada:

The symbol on a child

restraint system indicates the

presence of a lower connec-

tor system.

With rigid lower attachments
Latch the buckles onto the

LATCH anchors.
For owners in Canada:

The symbol on a child

restraint system indicates the

presence of a lower connec-

tor system.

If the child restraint has a top tether strap, follow the child

restraint manufacturer’s operation manual regarding the installa-

tion, using the top tether strap to latch onto the top tether strap

anchor. (

P. 72)

Canada only

3

Canada only

3

4

71

1-2. Child safety

1

Fo

r safety

 and securi

ty

CAMRY_U

After installing the child restraint system, rock it back and forth to

ensure that it is installed securely. (

P. 68)

When installing in the rear center seat

There are no LATCH anchors behind the rear center seat. How-

ever, the inboard LATCH anchors of the outboard seats, which are

16.1 in. (410 mm) apart, can be used if the child restraint system

manufacturer’s instructions permit use of those anchors with the

anchor spacing stated.
Child restraint systems with rigid lower attachments cannot be

installed in the center seat. This type of child restraint system can

only be installed in the outboard seat.

Laws and regulations pertaining to anchors

The LATCH system conforms to FMVSS225 or CMVSS210.2.

Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-

tions can be used.

This vehicle is designed to conform to SAE J1819.

WARNING

When installing a child restraint system

Observe the following precautions.

Failure to do so may result in death or serious injury.

When using the LATCH anchors, be sure that there are no foreign objects

around the anchors and that the seat belt is not caught behind the child

restraint system.

Follow all installation instructions provided by the child restraint system

manufacturer.

Never attach two child restraint system attachments to the same anchor. In

a collision, one anchor may not be strong enough to hold two child

restraint system attachments and may break.

If the LATCH anchors are already in use, use the seat belt to install a child

restraint system in the center seat.

When securing some types of child restraint systems in rear seats, it may

not be possible to properly use the seat belts in positions next to the child

restraint without interfering with it or affecting seat belt effectiveness. Be

sure your seat belt fits snugly across your shoulder and low on your hips. If

it does not, or if it interferes with the child restraint, move to a different

position. Failure to do so may result in death or serious injury.

If the seat is adjusted, reconfirm the security of the child restraint system.

5

72

1-2. Child safety

CAMRY_U

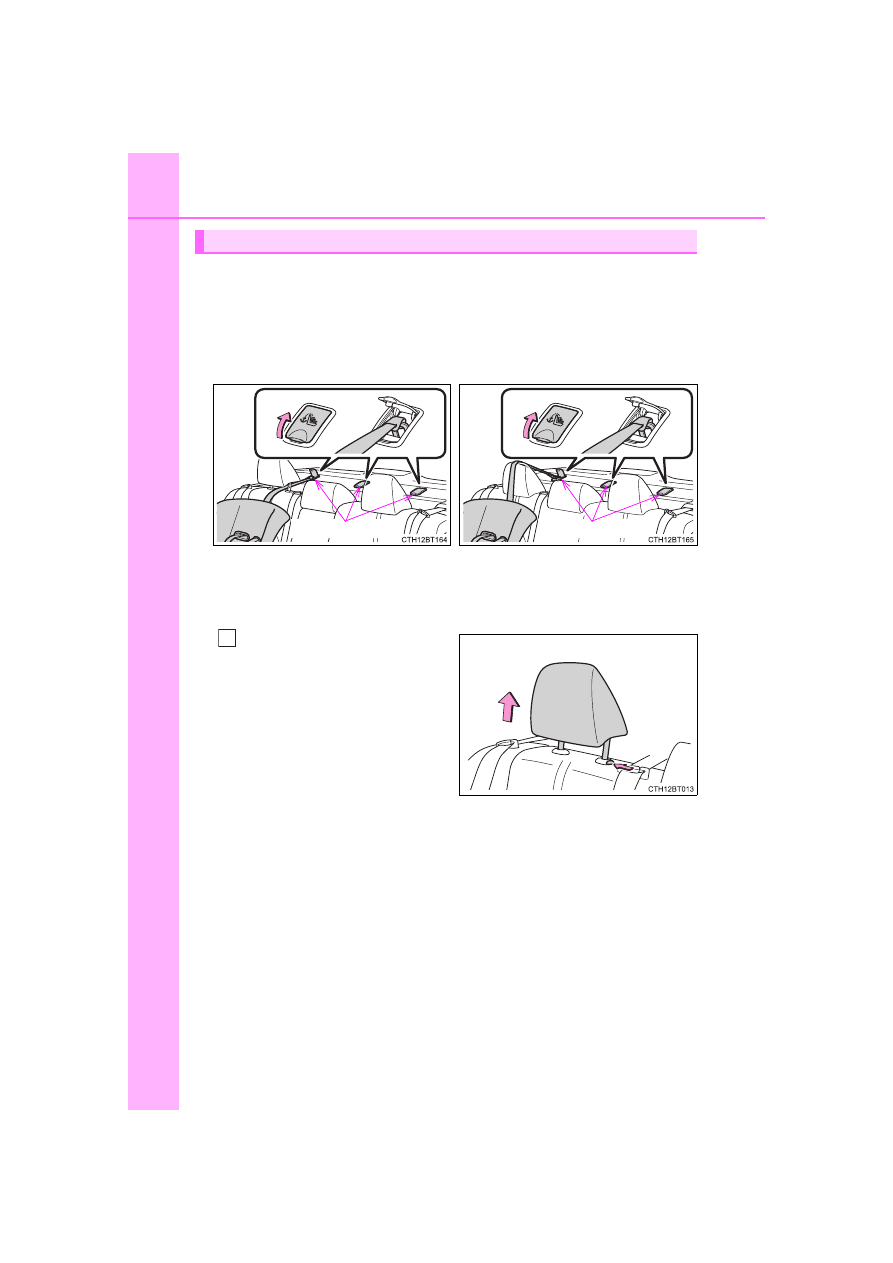

Anchor brackets (for top tether strap)

Anchor brackets are provided for each rear seat.
Use anchor brackets when fixing the top tether strap.

Fixing the top tether strap to the anchor bracket

Install the child restraint system in accordance to the operation
manual enclosed with the child restraint system.

Adjust the head restraint to
the upmost position.

If the head restraint interferes
with the child restraint system
installation and the head
restraint can be removed,
remove the head restraint.
(

P. 171)

Using an anchor bracket (for top tether strap)

Seats with an adjustable type
head restraint

Seats with an integrated type
head restraint

Anchor brackets

Anchor brackets

1

73

1-2. Child safety

1

Fo

safety and securi

ty

CAMRY_U

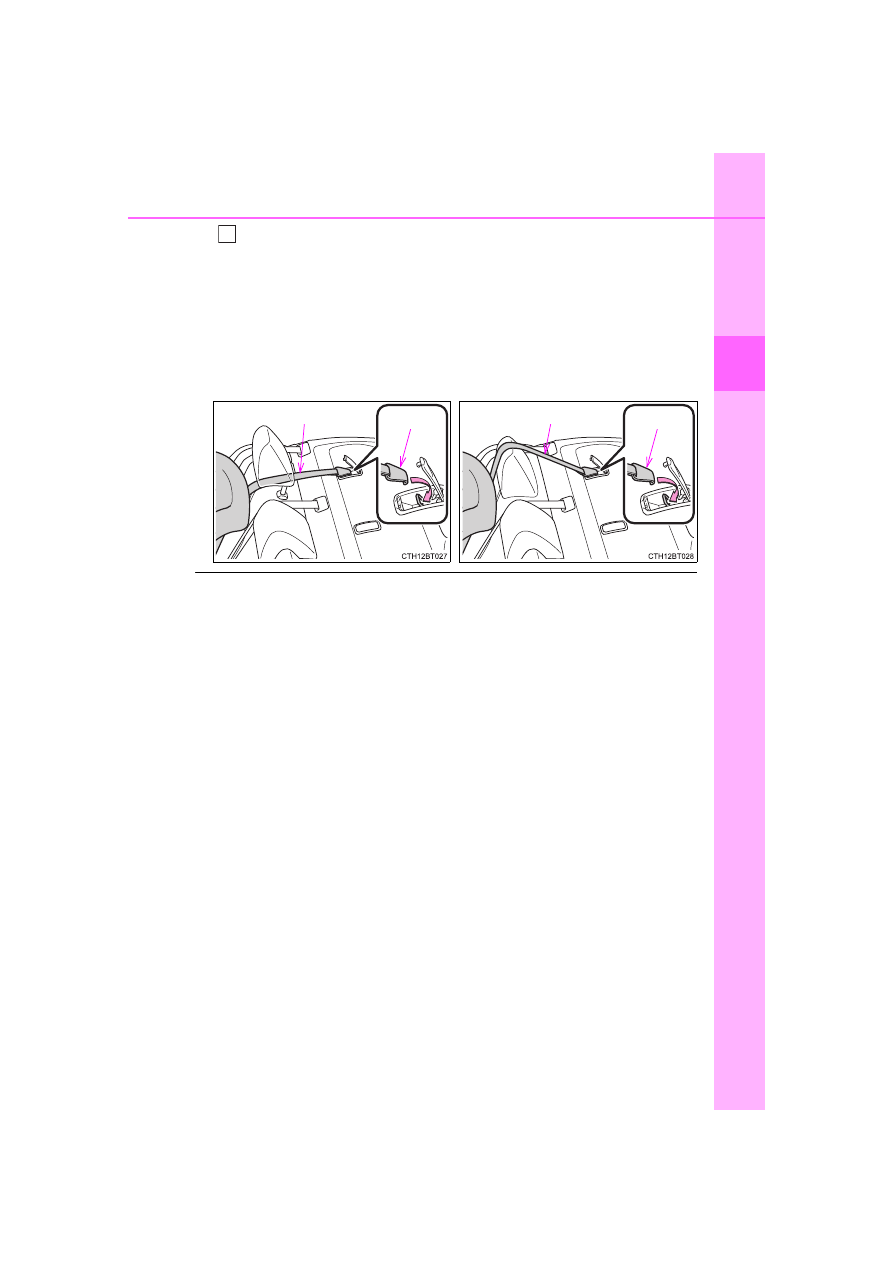

Open the anchor bracket cover, latch the hook onto the anchor
bracket and tighten the top tether strap.

Make sure the top tether strap is securely latched. (

P. 68)

When installing the child restraint system with the head restraint being
raised, be sure to have the top tether strap pass underneath the head
restraint.

Laws and regulations pertaining to anchors

The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to SAE J1819.

2

Seats with an adjustable type
head restraint

Seats with an integrated type
head restraint

Hook

Top tether strap

Hook

Top tether strap

74

1-2. Child safety

CAMRY_U

WARNING

When installing a child restraint system

Observe the following precautions.

Failure to do so may result in death or serious injury.

Firmly attach the top tether strap and make sure that the belt is not twisted.

Do not attach the top tether strap to anything other than the anchor

bracket.

After securing a child restraint system, never adjust the seat.

Follow all installation instructions provided by the child restraint system

manufacturer.

When installing the child restraint system with the head restraint being

raised, after the head restraint has been raised and then the anchor

bracket has been fixed, do not lower the head restraint.

NOTICE

Anchor brackets (for top tether strap)

When not in use, make certain to close the lid. If it remains open, the lid

may be damaged.

75

1

Fo

safety and securi

ty

CAMRY_U

1-3. Emergency assistance

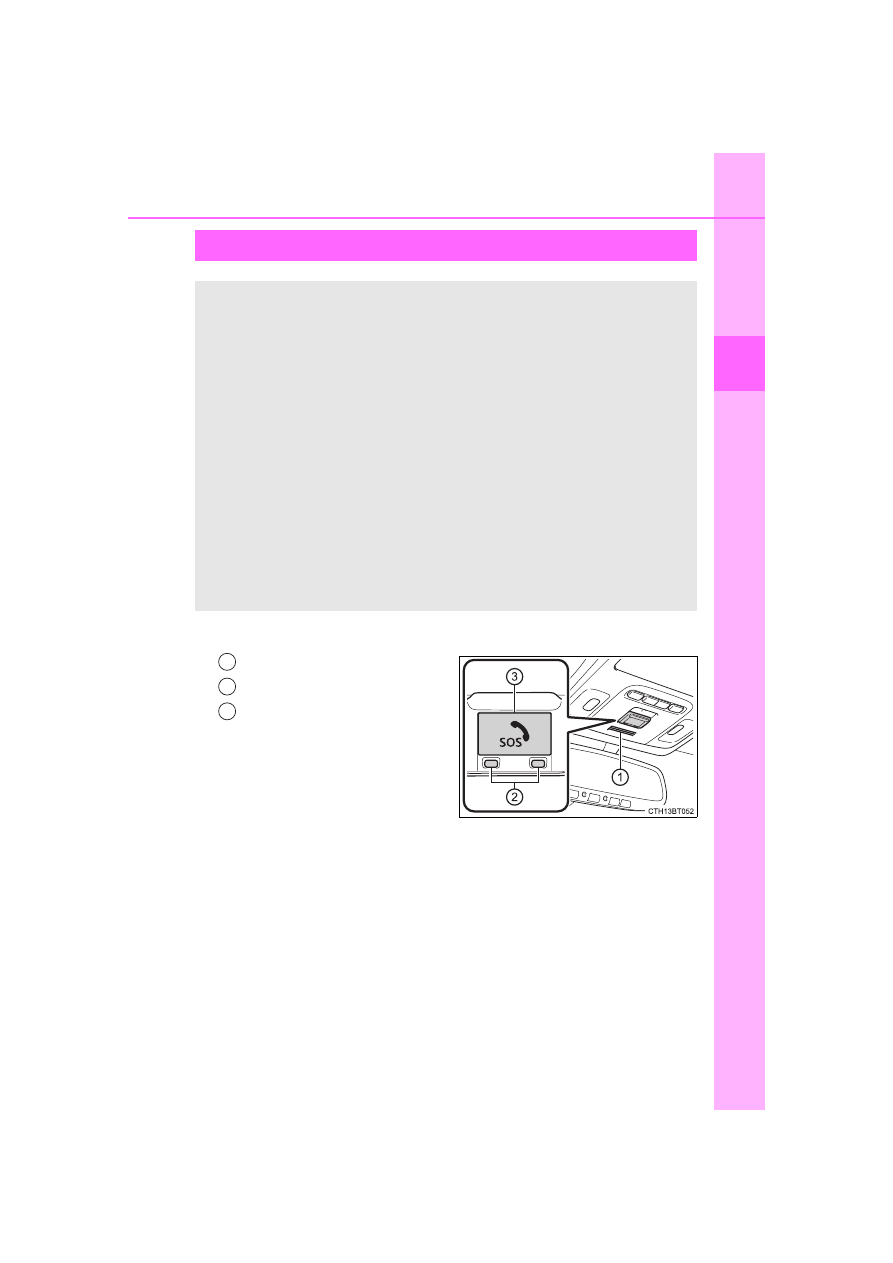

System components

Microphone

LED light indicators

“SOS” button

Safety Connect

: If equipped

Safety Connect is a subscription-based telematics service that
uses Global Positioning System (GPS) data and embedded cel-
lular technology to provide safety and security features to sub-
scribers. Safety Connect is supported by Toyota’s designated
response center, which operates 24 hours per day, 7 days per
week.

Safety Connect service is available by subscription on select,
telematics hardware-equipped vehicles.

By using the Safety Connect service, you are agreeing to be
bound by the Telematics Subscription Service Agreement and
its Terms and Conditions, as in effect and amended from time to
time, a current copy of which is available at Toyota.com in the
United States, Toyotapr.com in Puerto Rico and Toyota.ca in
Canada. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.

1

2

3

76

1-3. Emergency assistance

CAMRY_U

Services

Subscribers have the following Safety Connect services available:

Automatic Collision Notification

*

Helps drivers receive necessary response from emergency ser-
vice providers. (

P. 78)

*

: U.S. Patent No. 7,508,298 B2

Stolen Vehicle Location
Helps drivers in the event of vehicle theft. (

P. 78)

Emergency Assistance Button (“SOS”)
Connects drivers to response-center support. (

P. 78)

Enhanced Roadside Assistance
Provides drivers various on-road assistance. (

P. 79)

Subscription

After you have signed the Telematics Subscription Service Agree-
ment and are enrolled, you can begin receiving services.
A variety of subscription terms are available for purchase. Contact
your Toyota dealer, call the following appropriate Customer Experi-
ence Center or push the “SOS” button in your vehicle for further
subscription details.

• The United States

1-800-331-4331

• Canada

1-888-869-6828

• Puerto Rico

1-877-855-8377

77

1-3. Emergency assistance

1

Fo

safety and securi

ty

CAMRY_U

Safety Connect Services Information

Phone calls using the vehicle’s Bluetooth

®

 technology will not be possible

when Safety Connect is active and in use.

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the contiguous United States only). Contact with the Safety Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which can limit the ability to reach the response center or receive emer-
gency service support. Enrollment and Telematics Subscription Service
Agreement are required. A variety of subscription terms are available;
charges vary by subscription term selected and location.

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location are available in the United States, including Hawaii and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

Languages

The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

When contacting the response center

You may be unable to contact the response center if the network is busy.

When the engine switch is turned to IGNITION ON mode, the red indi-
cator light comes on for 2 seconds then turns off. Afterward, the green
indicator light comes on, indicating that the service is active.
The following indicator light patterns indicate specific system usage
conditions:

Green indicator light on = Active service

Green indicator light flashing = Safety Connect call in process

Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)

No indicator light (off) = Safety Connect service not active

Safety Connect LED light Indicators

78

1-3. Emergency assistance

CAMRY_U

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to
speak with the vehicle occupants to assess the level of emergency.
If the occupants are unable to communicate, the agent automati-
cally treats the call as an emergency, contacts the nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Customer Experience Center at 1-800-331-
4331 in the United States, 1-877-855-8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow the prompts for Safety Connect to
initiate this service.
In addition to assisting law enforcement with recovery of a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain circumstances, be shared with third parties to locate your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach the Safety Connect response center. The answering agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If you accidentally press the “SOS” button, tell the response-center
agent that you are not experiencing an emergency.

Safety Connect services

79

1-3. Emergency assistance

1

Fo

safety and securi

ty

CAMRY_U

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds GPS data to the already
included warranty-based Toyota roadside service.

Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced Roadside Assistance services and their limitations,
please see the Safety Connect Terms and Conditions, which are
available at Toyota.com in the United States, Toyotapr.com in
Puerto Rico and Toyota.ca in Canada.

Important! Read this information before using Safety Connect.

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.

In August 1996, the Federal Communications Commission (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards previously set by the following U.S. and international
standards bodies.

ANSI (American National Standards Institute) C95.1 [1992]

NCRP (National Council on Radiation Protection and Measure-
ment) Report 86 [1986]

ICNIRP (International Commission on Non-Ionizing Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers, and physicians from universities, and government health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).

The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

80

CAMRY_U

1-4. Theft deterrent system

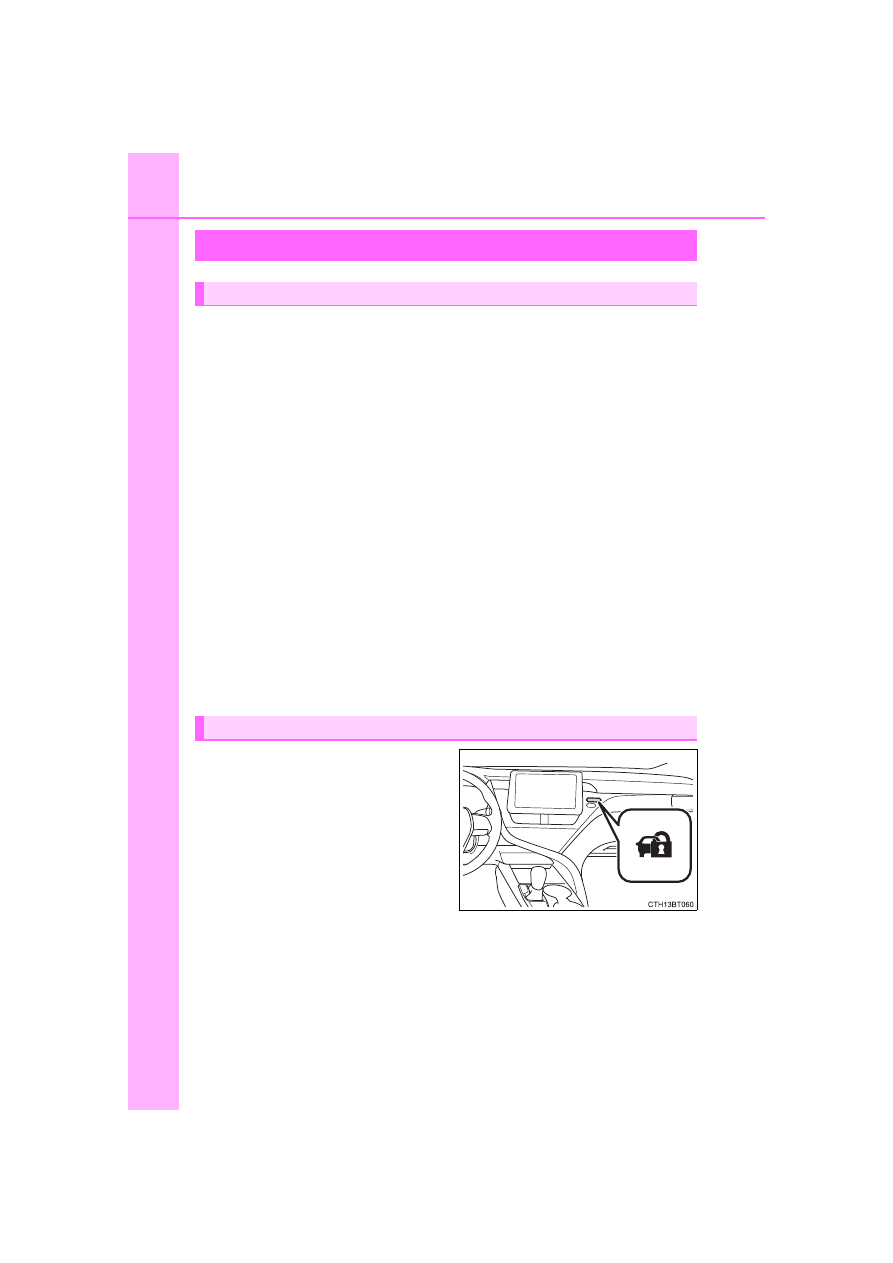

Vehicles without a smart key sys-
tem:

The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.

The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.

Vehicles with a smart key system:

The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.

The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

Conditions that may cause the system to malfunction

If the grip portion of the key is in contact with a metallic object

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.

Never leave the keys inside the vehicle when you leave the vehi-
cle.

This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

81

1-4. Theft deterrent system

1

Fo

r safety

 and securi

ty

CAMRY_U

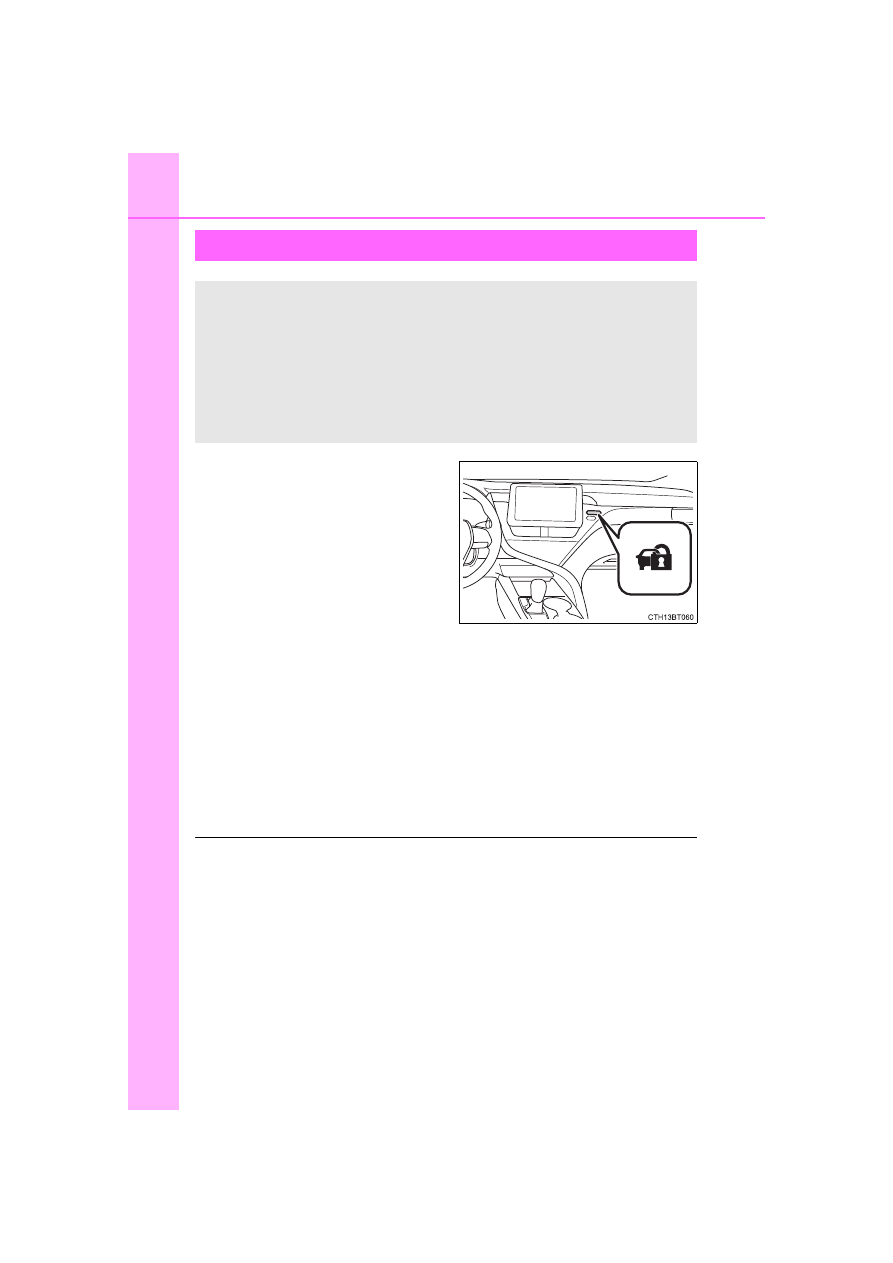

NOTICE

To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper

operation of the system cannot be guaranteed.

82

1-4. Theft deterrent system

CAMRY_U

The alarm uses light and sound to give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is
set:

Vehicles without a smart key system

A locked door is unlocked or opened in any way other than using
the wireless remote control or key. (The doors will lock again auto-
matically.)

The trunk is opened in any way other than using the wireless
remote control.

The hood is opened.

Vehicles with a smart key system

A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)

The trunk is opened in any way other than using the entry function
or wireless remote control.

The hood is opened.

Close the doors, trunk and hood,
and lock all the doors. The system
will be set automatically after 30
seconds.

The indicator light changes from
being on to flashing when the sys-
tem is set.

Alarm

The alarm

Setting the alarm system

83

1-4. Theft deterrent system

1

Fo

safety and securi

ty

CAMRY_U

Do one of the following to deactivate or stop the alarm:

Vehicles without a smart key system

Unlock the doors.

Open the trunk using the wireless remote control.

Turn the engine switch to the “ACC” or “ON” position, or start the
engine. (The alarm will be deactivated or stopped after a few sec-
onds.)

Vehicles with a smart key system

Unlock the doors.

Open the trunk using the entry function or wireless remote control.

Turn the engine switch to ACCESSORY or IGNITION ON mode, or
start the engine. (The alarm will be deactivated or stopped after a
few seconds.)

System maintenance

The vehicle has a maintenance-free type alarm system.

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

Nobody is in the vehicle.

The windows and moon roof or panoramic moon roof are closed before the
alarm is set.

No valuables or other personal items are left in the vehicle.

Deactivating or stopping the alarm

84

1-4. Theft deterrent system

CAMRY_U

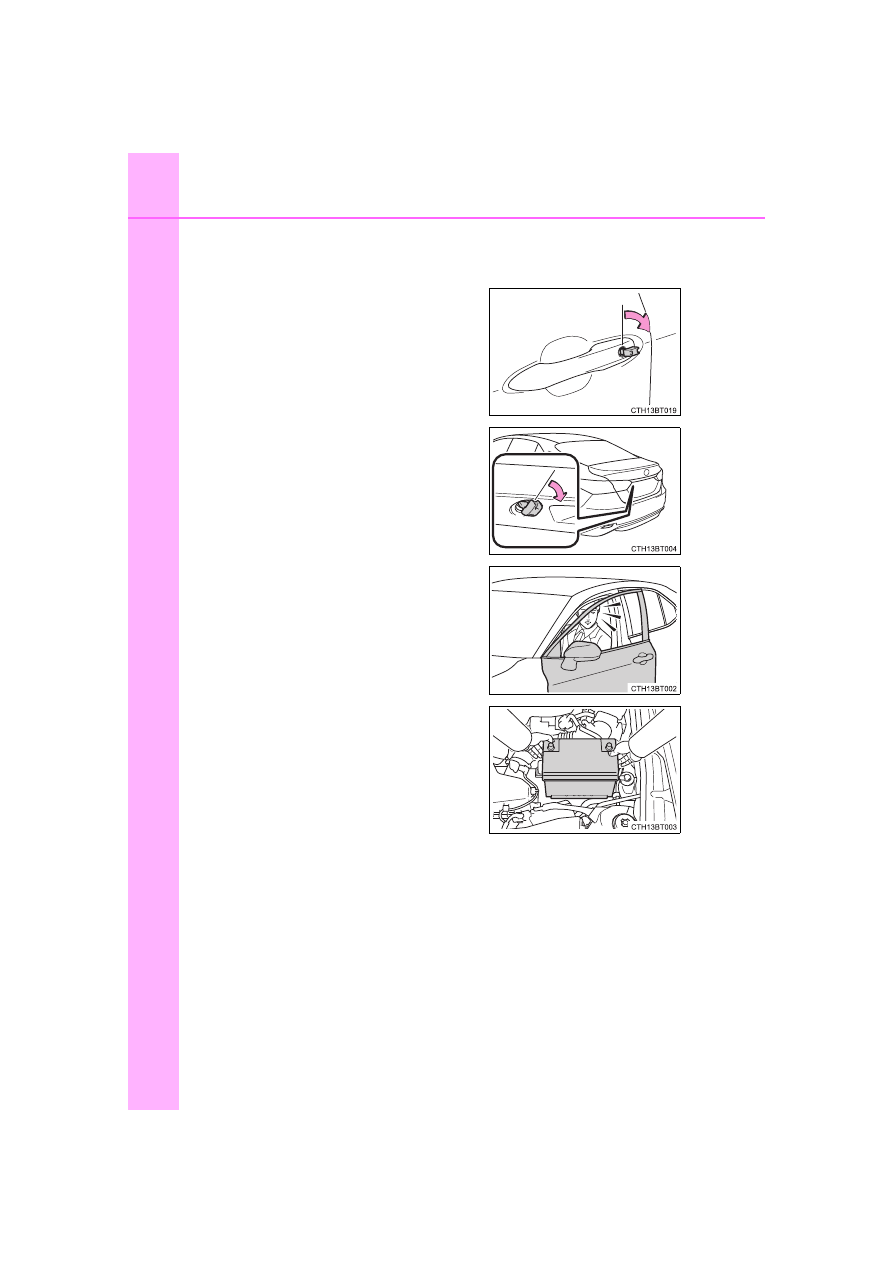

Triggering of the alarm

The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

Alarm-operated door lock

In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

When a person remaining in the vehicle unlocks the door and the alarm is
activated.

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

When recharging or replacing the battery

For Canada: The doors are unlocked
using the key or mechanical key.

Except for Canada: The trunk is opened
using the key or mechanical key.

A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.

The battery is recharged or replaced
when the vehicle is locked. (

P. 565)

85

1-4. Theft deterrent system

1

Fo

r safety

 and securi

ty

CAMRY_U

NOTICE

To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper

operation of the system cannot be guaranteed.

86

1-4. Theft deterrent system

CAMRY_U

88

CAMRY_U

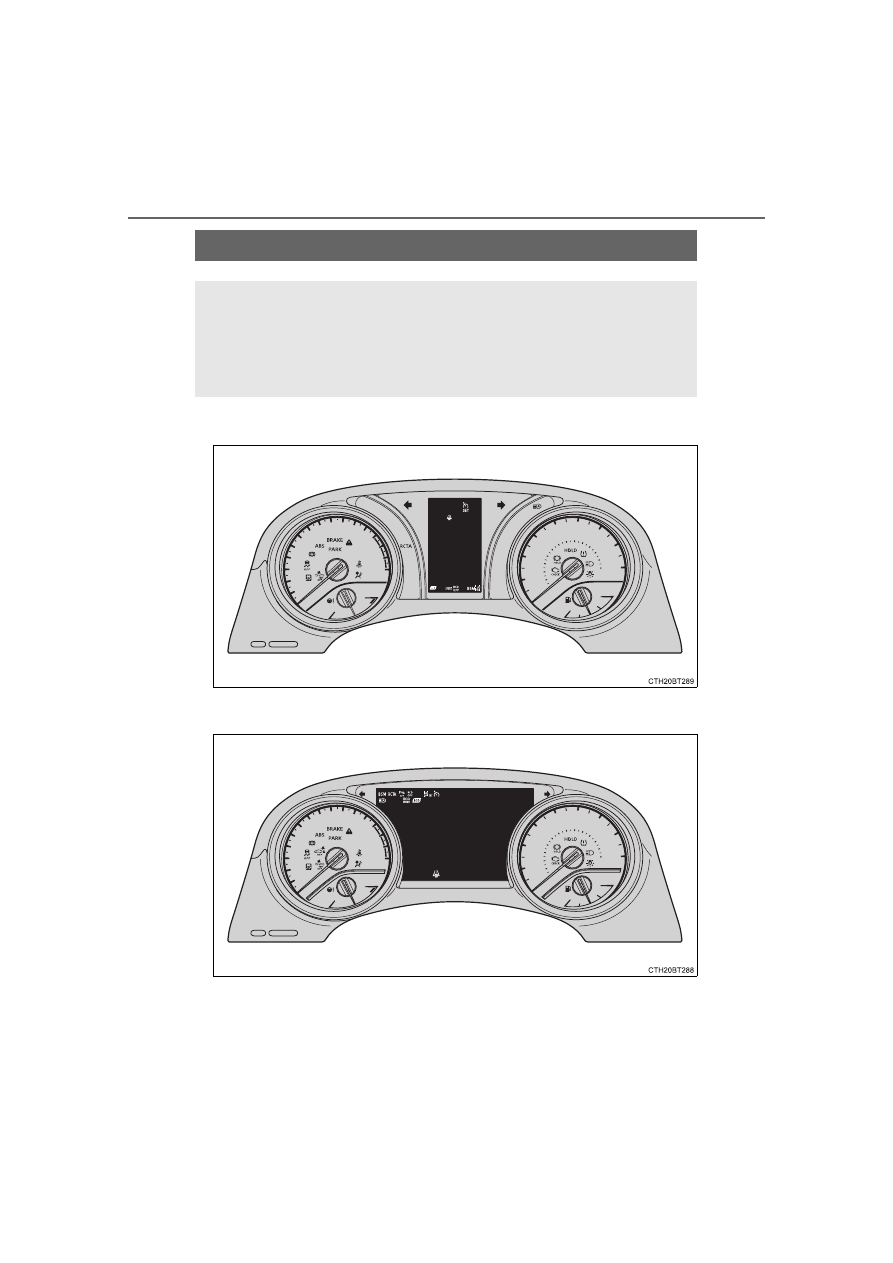

2. Instrument cluster

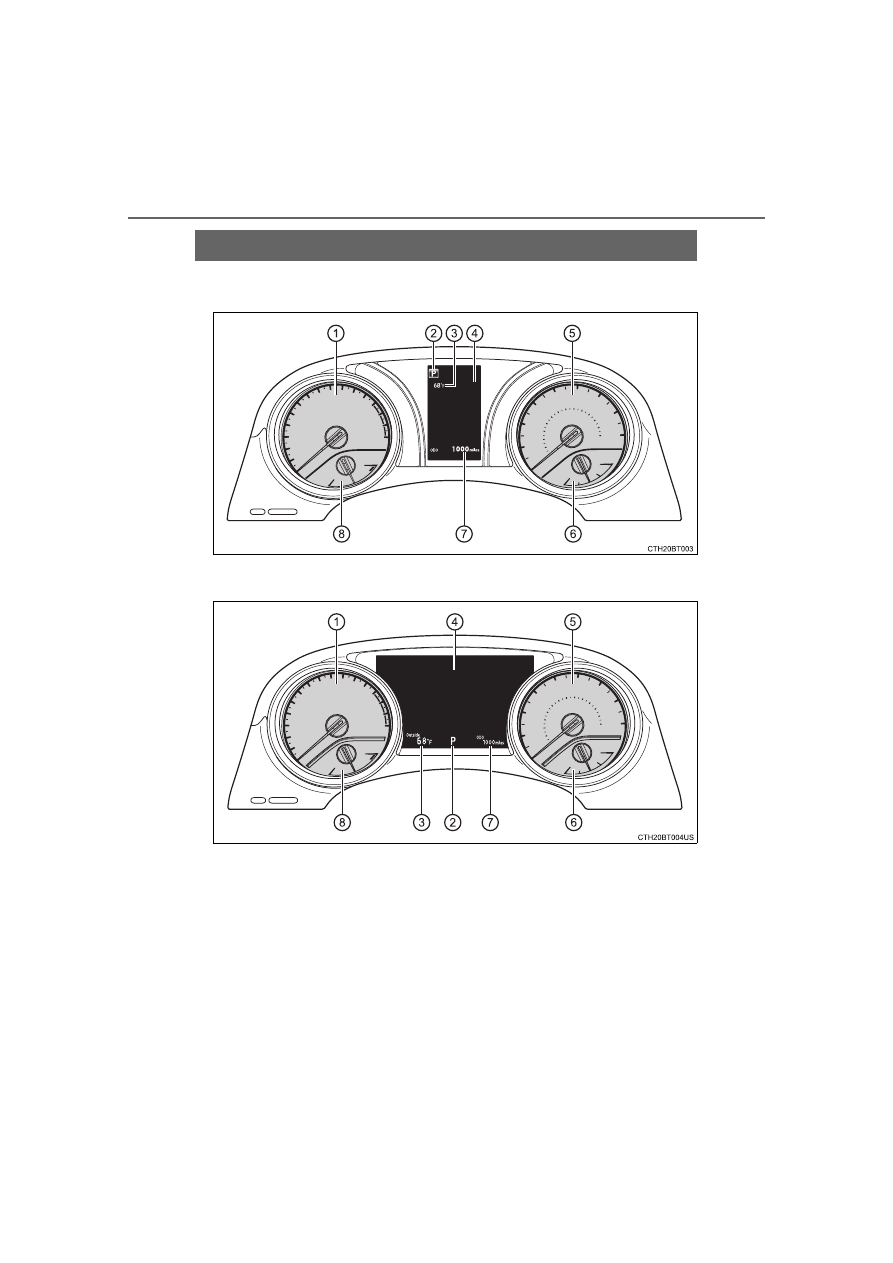

4.2-inch display

7-inch display

The units used on the meters and some indicators may differ depending on
the target region.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.

For the purpose of explanation, the following illustrations dis-
play all warning lights and indicators illuminated.

89

2. Instrument cluster

2

Instrum

e

nt clus

ter

CAMRY_U

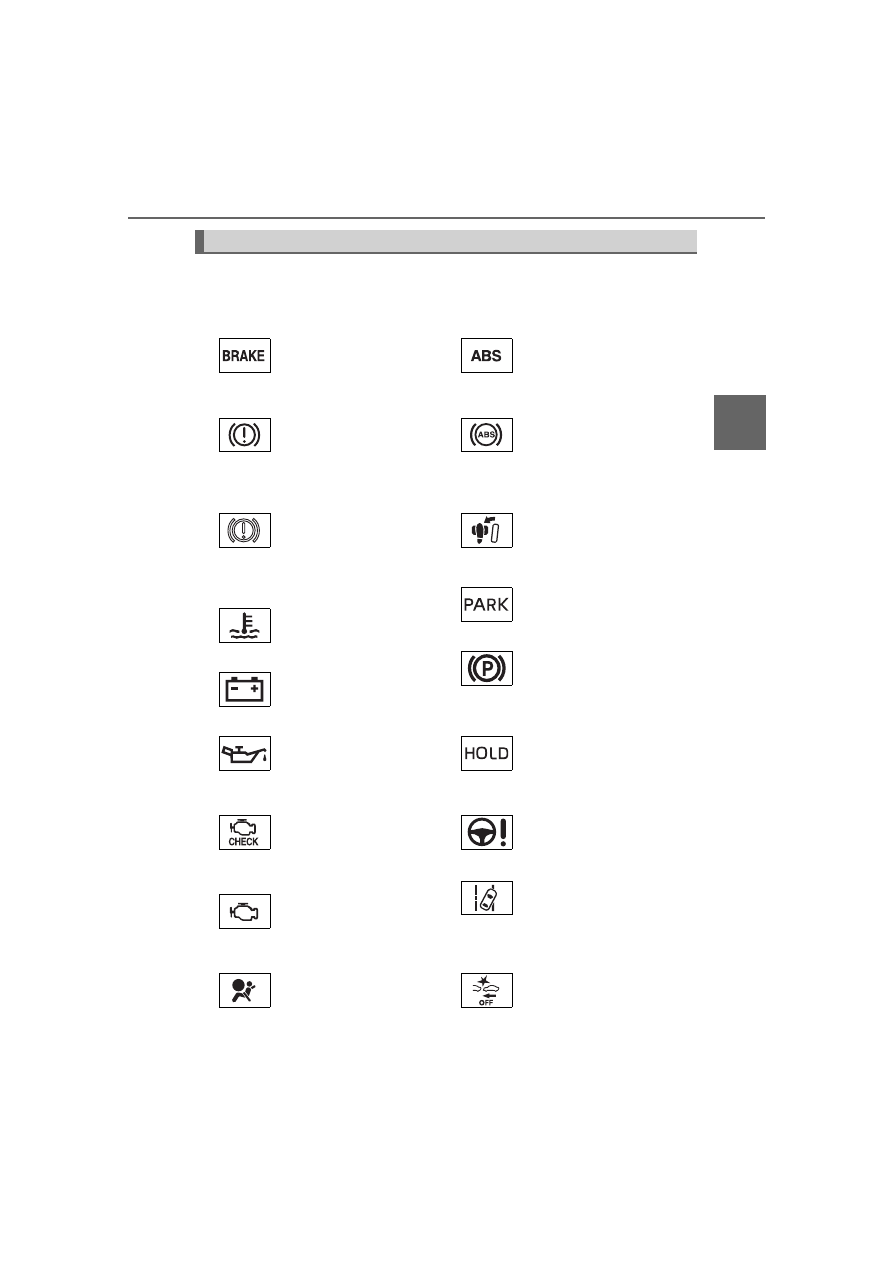

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

*

1

(U.S.A.)

Brake system warning
light (

P. 528)

*

1

(U.S.A.)

ABS warning light
(

P. 529)

*

1

(Canada)

(Red)

Brake system warning
light (

P. 528)

*

1

(Canada)

ABS warning light
(

P. 529)

*

1

(If equipped)

(Yellow)

Brake system warning
light (

P. 528)

*

2

Inappropriate pedal
operation warning light
(

P. 529)

*

2

High coolant
temperature warning
light (

P. 528)

(U.S.A.)

Parking brake indicator
(

P. 529)

*

2

Charging system
warning light (

P. 528)

(Canada)

Parking brake indicator
(

P. 529)

*

2

Low engine oil pressure
warning light (

P. 528)

*

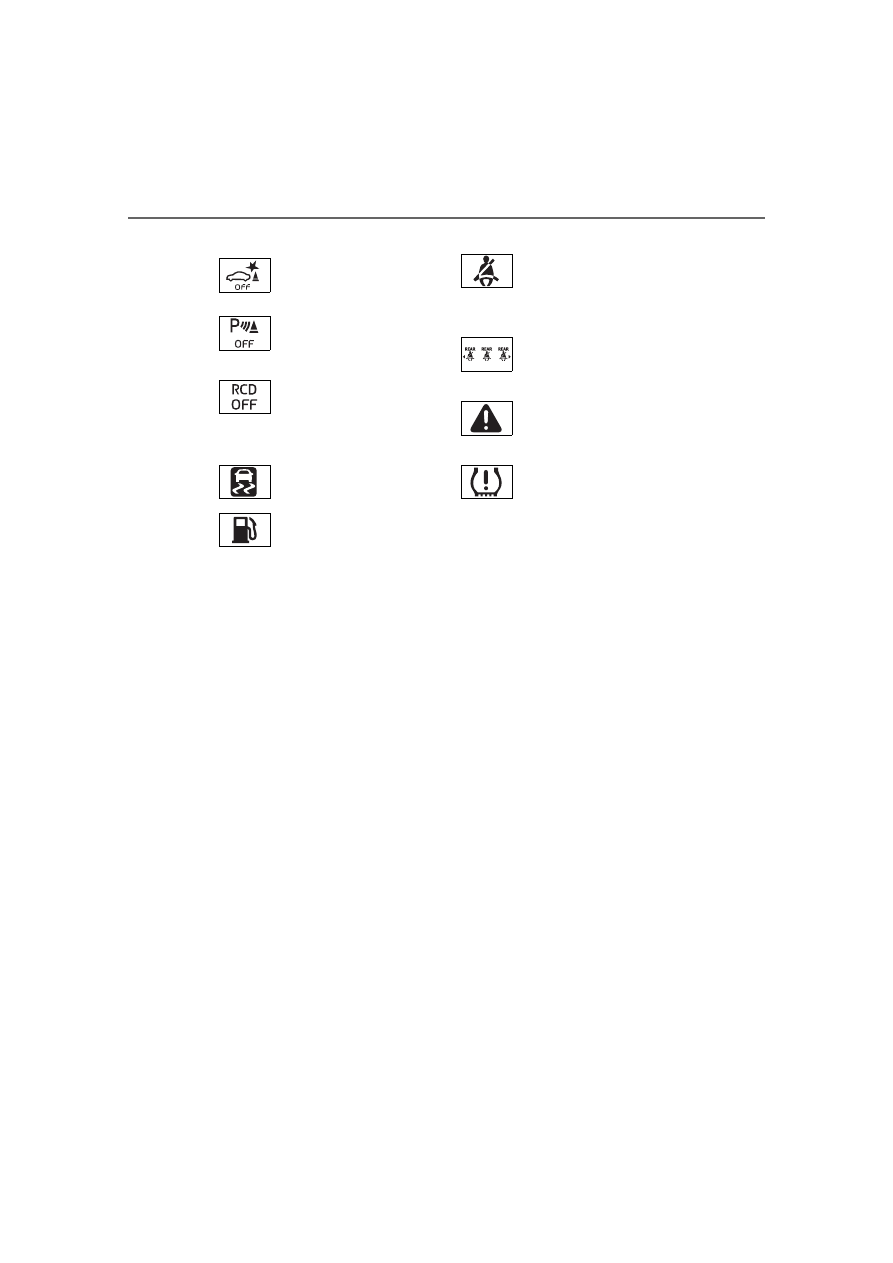

1, 3

(If equipped)

Brake hold operated
indicator (

P. 529)

*

1

(U.S.A.)

Malfunction indicator
lamp (

P. 529)

*

1

(Red/yellow)

Electric power steering
system warning light
(

P. 530)

*

1

(Canada)

Malfunction indicator
lamp (

P. 529)

(Yellow)

LTA indicator (

P. 530)

*

1

SRS warning light
(

P. 529)

*

1

(Flashes or
illuminates)

PCS warning light
(

P. 530)

90

2. Instrument cluster

CAMRY_U

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without a smart key system) or IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few seconds.
There may be a malfunction in a system if a light does not come on, or turn
off. Have the vehicle inspected by your Toyota dealer.

*

2

: This light illuminates on the multi-information display with a message.

*

3

: This light flashes to indicate a malfunction.

*

4

: This light illuminates on the center panel.

*

1, 3

(If equipped)

PKSB OFF indicator
(

P. 530)

Driver’s and front
passenger’s seat belt
reminder light (

P. 531)

(If equipped)

Intuitive parking assist
OFF indicator (

P. 530)

*

4

Rear passengers’ seat
belt reminder lights
(

P. 531)

(If equipped)

RCD OFF indicator
(

P. 531)

*

1

Master warning light
(

P. 532)

*

1

Slip indicator (

P. 531)

*

1

Tire pressure warning
light (

P. 532)

Low fuel level warning
light (

P. 531)

91

2. Instrument cluster

2

Instrum

e

nt clus

ter

CAMRY_U

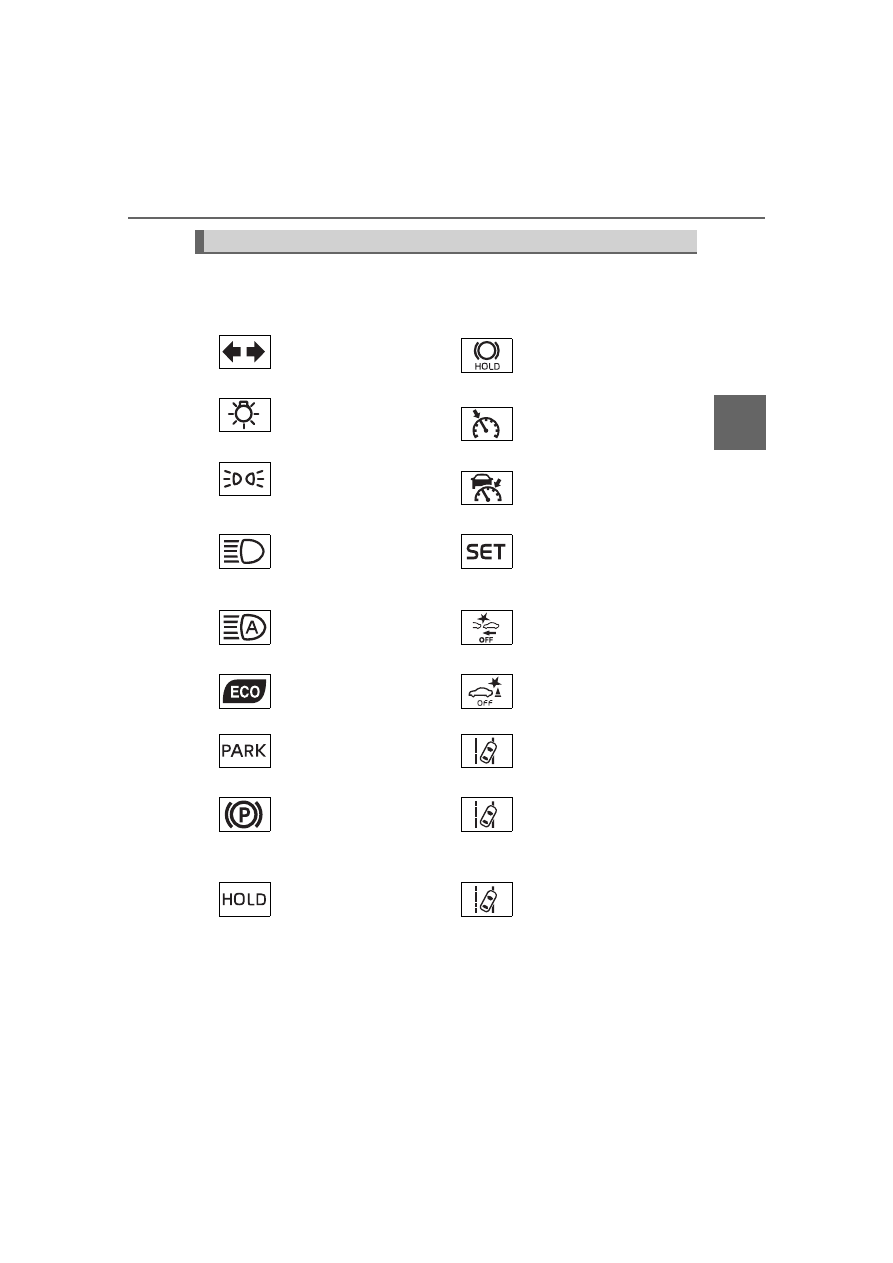

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(

P. 223)

*

1

(If equipped)

Brake hold standby
indicator (

P. 229)

(U.S.A.)

Headlight indicator
(

P. 231)

Cruise control indicator
(

P. 290, 306)

(Canada)

Tail light indicator
(

P. 231)

Dynamic radar cruise
control indicator
(

P. 290, 306)

Headlight high beam
indicator (

P. 232)

Cruise control “SET”
indicator
(

P. 290, 306)

*

1

Automatic High Beam
indicator (

P. 236)

*

1, 3

PCS warning light
(

P. 254)

*

1, 2

Eco driving indicator
(

P. 109, 126)

*

1, 3

(If equipped)

PKSB OFF indicator
(

P. 361)

(U.S.A.)

Parking brake indicator
(

P. 224, 225)

(White)

LTA indicator (

P. 279)

(Canada)

Parking brake indicator
(

P. 224, 225)

(Green)

LTA indicator
(

P. 255, 279)

*

1

(If equipped)

Brake hold operated
indicator (

P. 229)

*

4

(Yellow)

LTA indicator (

P. 279)

92

2. Instrument cluster

CAMRY_U

*

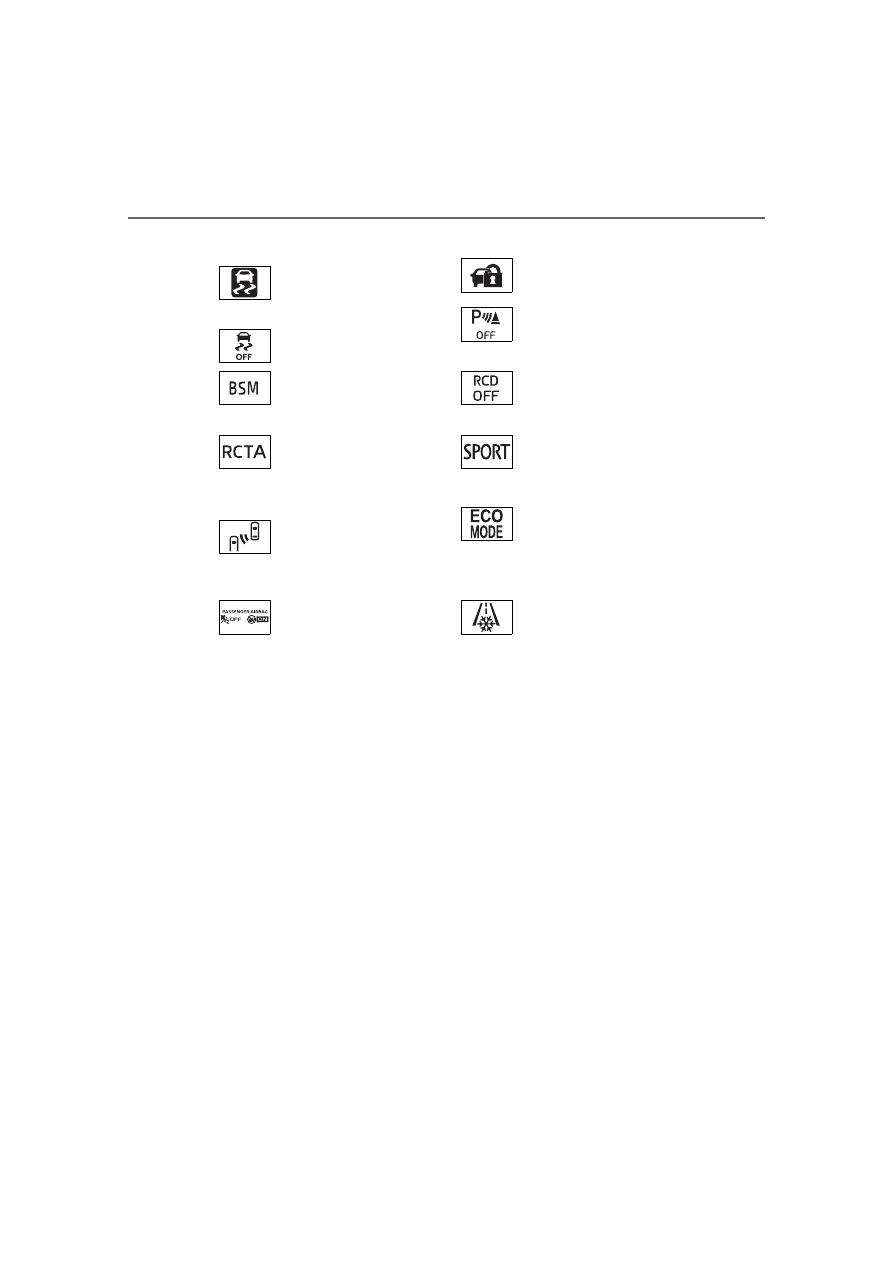

1, 4

Slip indicator (

P. 323)

*

7

Security indicator
(

P. 80, 82)

*

1, 3

VSC OFF indicator
(

P. 325)

(If equipped)

Intuitive parking assist
OFF indicator (

P. 336)

(If equipped)

“BSM” indicator
(

P. 330)

(If equipped)

RCD OFF indicator
(

P. 354)

(If equipped)

“RCTA” indicator
(

P. 345)

(If equipped)

“SPORT” indicator
(

P. 375)

*

5, 6

(If equipped)

BSM (Blind Spot Moni-
tor) outside rear view
mirror indicators
(

P. 330)

(If equipped)

“ECO MODE” indicator
(

P. 375)

*

1, 7

“AIRBAG ON/OFF”
indicator (

P. 49)

*

8

Low outside tempera-
ture indicator (

P. 94)

93

2. Instrument cluster

2

Instrum

ent

clus
ter

CAMRY_U

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles without a smart key system) or IGNITION ON mode (vehicles

with a smart key system) to indicate that a system check is being per-

formed. They will turn off after the engine is started, or after a few seconds.

There may be a malfunction in a system if a light does not come on, or turn

off. Have the vehicle inspected by your Toyota dealer.

*

2

: This light does not turn on when the system is disabled.

*

3

: This light turns on when the system is off.

*

4

: This light flashes to indicate that the system is operating.

*

5

: These indicators will illuminate in the following situations to indicate that

the system initial check is being performed:

• When the BSM function or RCTA function is enabled and the engine

switch is turned to the “ON” position (vehicles without a smart key sys-

tem) or IGNITION ON mode (vehicles with a smart key system).

• When the engine switch is in the “ON” position (vehicles without a smart

key system) or IGNITION ON mode (vehicles with a smart key system)

and the BSM function is enabled.

• When the engine switch is in the “ON” position (vehicles without a smart

key system) or IGNITION ON mode (vehicles with a smart key system)

and the RCTA function is enabled. (At this time, a buzzer will also

sound.)

The indicators will turn off after a few seconds. If the indicators do not

illuminate or turn off, or if a buzzer does not sound when the RCTA func-

tion is enabled, the system may be malfunctioning. Have the vehicle

inspected by your Toyota dealer.

*

6

: This light illuminates on the outside rear view mirrors.

*

7

: This light illuminates on the center panel.

*

8

: When the outside temperature is approximately 37°F (3°C) or lower, this

indicator will flash for approximately 10 seconds, then stay on.

WARNING

If a safety system warning light does not come on

Should a safety system light such as the ABS and SRS warning lights not

come on when you start the engine, this could mean that these systems are

not available to help protect you in an accident, which could result in death

or serious injury. Have the vehicle inspected by your Toyota dealer immedi-

ately if this occurs.

94

2. Instrument cluster

CAMRY_U

4.2-inch display

7-inch display

Gauges and meters

95

2. Instrument cluster

2

Instrum

e

nt clus

ter

CAMRY_U

Tachometer

Displays the engine speed in revolutions per minute

Shift position (

P. 217)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C). Low outside temperature indicator comes on when the
ambient temperature is 37°F (3°C) or lower.

Multi-information display

Presents the driver with a variety of vehicle data (

P. 98, 111)

Displays warning messages in case of a malfunction (

P. 538)

Speedometer

Fuel gauge

Displays the fuel level. In the following situations, the actual fuel level may
not be displayed correctly:

• After refueling only a small amount (approximately 5 L or less)
• When stopped on a hill or other slope
• When driving on a slope or around a curve

Odometer and trip meter (

P. 108, 125)

Engine coolant temperature gauge

Displays the engine coolant temperature

The brightness of the instrument panel lights can be adjusted.

Darker

Brighter

• The brightness of the instrument

panel lights can be adjusted
individually for day mode and

night mode

*

.

• If the brightness is adjusted

when the surroundings are
bright and the tail lights are on
(day mode brightness adjust-
ment), the brightness level of
night mode will be adjusted at
the same time.

*

: Day mode and night mode:

P. 96

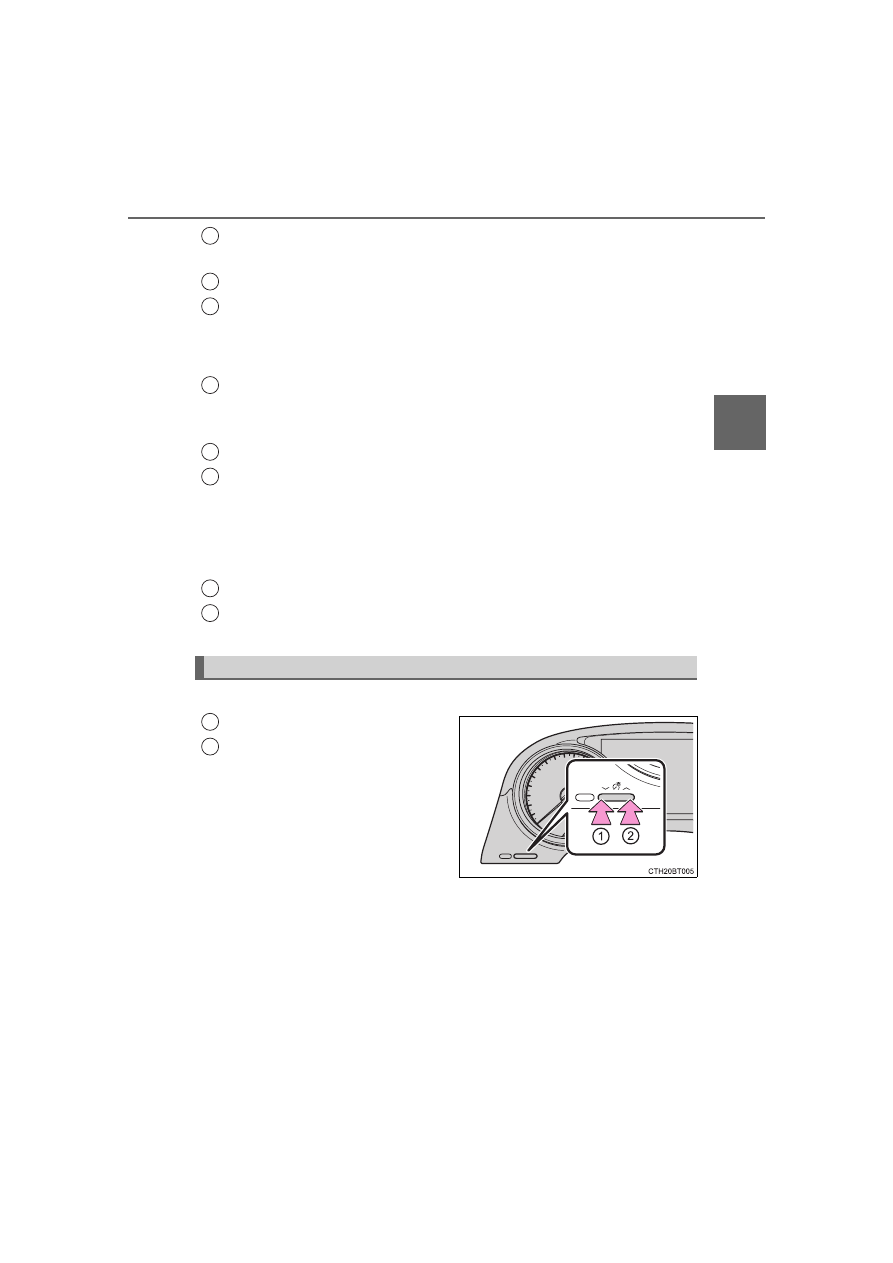

Instrument panel light control

1

2

3

4

5

6

7

8

1

2

96

2. Instrument cluster

CAMRY_U

The meters and display illuminate when

Vehicles without a smart key system

The engine switch is in the “ON” position.

Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

Brightness of the meters (day mode and night mode)

The brightness of the meters is changed between day mode and night
mode.

• Day mode: When the tail lights are off or when the tail lights are on but

the surrounding area is bright

• Night mode: When the tail lights are on and the surrounding area is dark

When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.

Outside temperature display

In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change:

When stopped, or driving at low speeds (less than 16 mph [25 km/h])

When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

When “



” or “E” is displayed, the system may be malfunctioning.

Take your vehicle to your Toyota dealer.

Fuel gauge and driving range display

The fuel gauge and driving range display are linked. If the fuel gauge and
driving range display do not update after refueling a small amount, they can
be updated by performing the following procedure:

Stop the vehicle on a level surface.
Wait until the fuel in the fuel tank stabilizes.

Press the ODO/TRIP switch to change the odometer and trip meter display
to the odometer.

Turn the engine switch off.

Vehicles without a smart key system:
While pressing and holding the ODO/TRIP switch, turn the engine switch to
the “ON” position.

Vehicles with a smart key system:
While pressing and holding the ODO/TRIP switch, turn the engine switch to
IGNITION ON mode.

Continue holding the ODO/TRIP switch for approximately 5 seconds.
Release the switch when the odometer begins blinking.
Updating will be complete when the odometer blinks for approximately 5
seconds and then returns to the normal display.

1

2

3

4

5

















Content      ..     1      2      3      4      ..
