6-3. Do-it-yourself maintenance

nan
ce and

With the engine at operating temperature and turned off, check the oil
level on the dipstick.

■

Checking the engine oil

Park the vehicle on level ground. After warming up the engine
and turning off the hybrid system, wait more than 5 minutes for
the oil to drain back into the bottom of the engine.
Holding a rag under the end,
pull the dipstick out.

Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.

Low
Normal
Excessive

Wipe the dipstick and reinsert it fully.

Engine oil

1
2
3

516

6-3. Do-it-yourself maintenance

■

Adding engine oil

If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

Make sure to check the oil type and prepare the items needed
before adding oil.

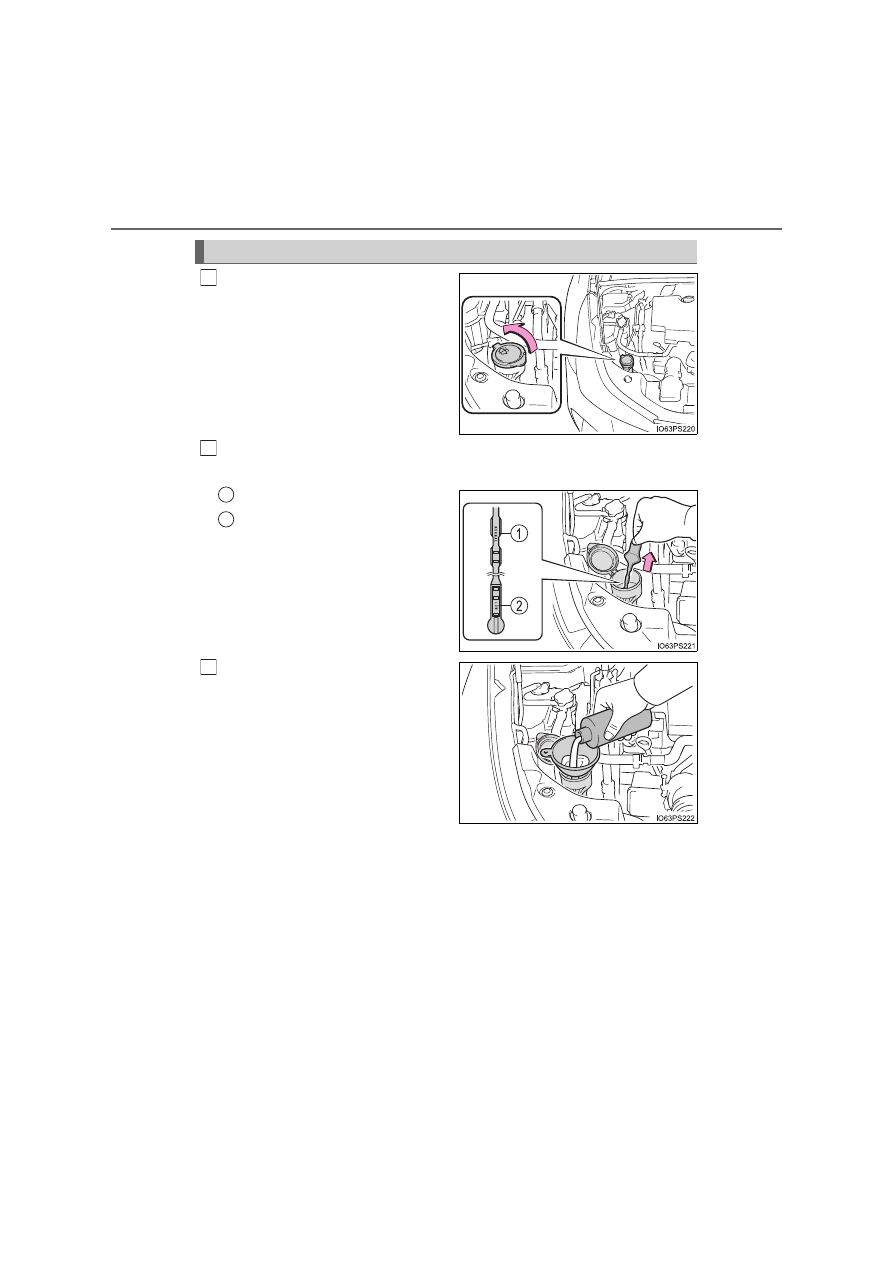

Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.

■

Engine oil consumption

A certain amount of engine oil will be consumed while driving. In the following
situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.

●

When the engine is new, for example directly after purchasing the vehicle or
after replacing the engine

●

If low quality oil or oil of an inappropriate viscosity is used

●

When driving at high engine speeds or with a heavy load, when towing, or
when driving while accelerating or decelerating frequently

●

When leaving the engine idling for a long time, or when driving frequently
through heavy traffic

Engine oil selection



P. 658

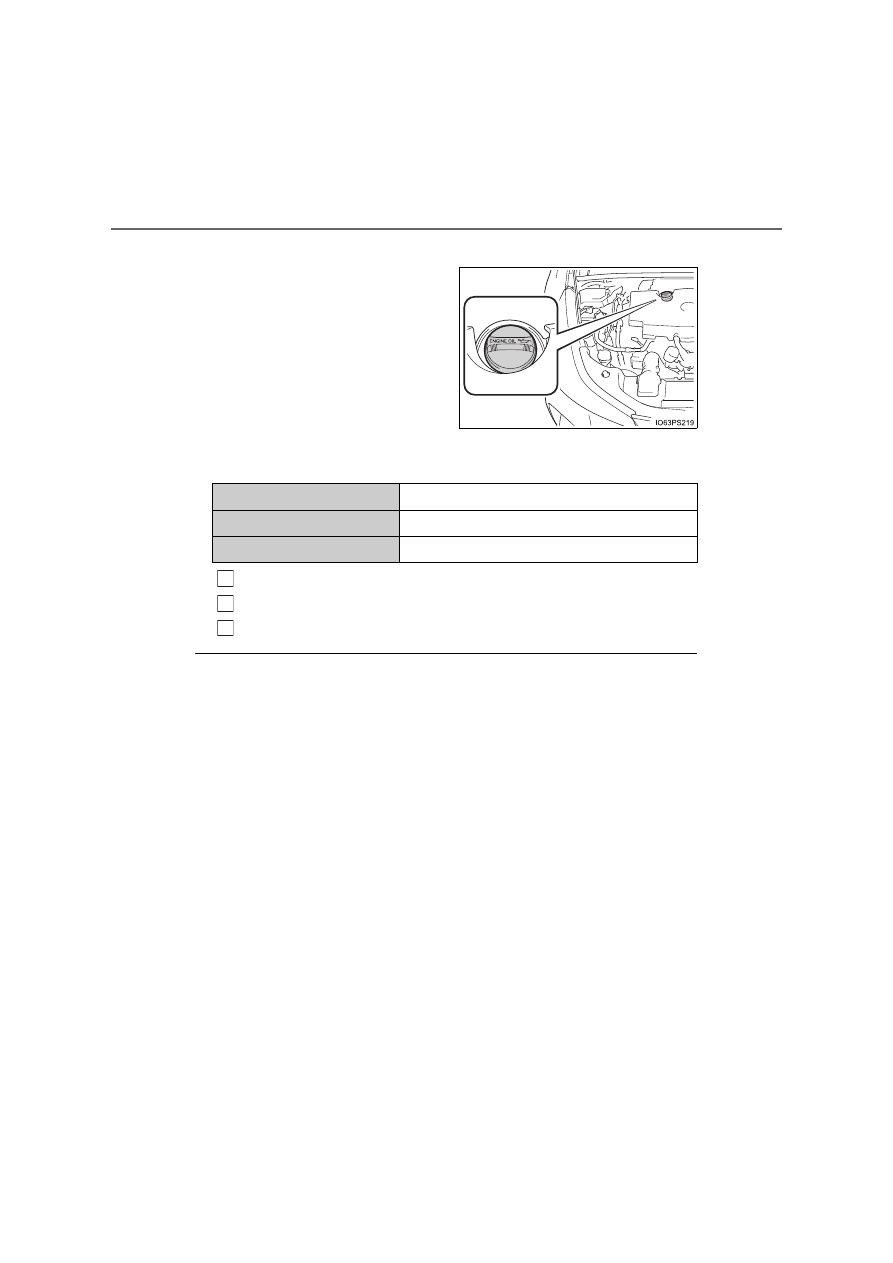

Oil quantity (Low



Full)

1.5 L (1.6 qt., 1.3 lmp. qt.)

Items

Clean funnel

517

6-3. Do-it-yourself maintenance

nan
ce and

WARNING

■

Used engine oil

●

Used engine oil contains potentially harmful contaminants which may
cause skin disorders such as inflammation and skin cancer, so care
should be taken to avoid prolonged and repeated contact. To remove used
engine oil from your skin, wash thoroughly with soap and water.

●

Dispose of used oil and filters only in a safe and acceptable manner. Do
not dispose of used oil and filters in household trash, in sewers or onto the
ground. Call any authorized Toyota retailer or Toyota authorized repairer,
or any reliable repairer, service station or auto parts store for information
concerning recycling or disposal.

●

Do not leave used engine oil within the reach of children.

NOTICE

■

To prevent serious engine damage

Check the oil level on a regular basis.

■

When replacing the engine oil

●

Be careful not to spill engine oil on the vehicle components.

●

Avoid overfilling, or the engine could be damaged.

●

Check the oil level on the dipstick every time you refill the vehicle.

●

Be sure the engine oil filler cap is properly tightened.

518

6-3. Do-it-yourself maintenance

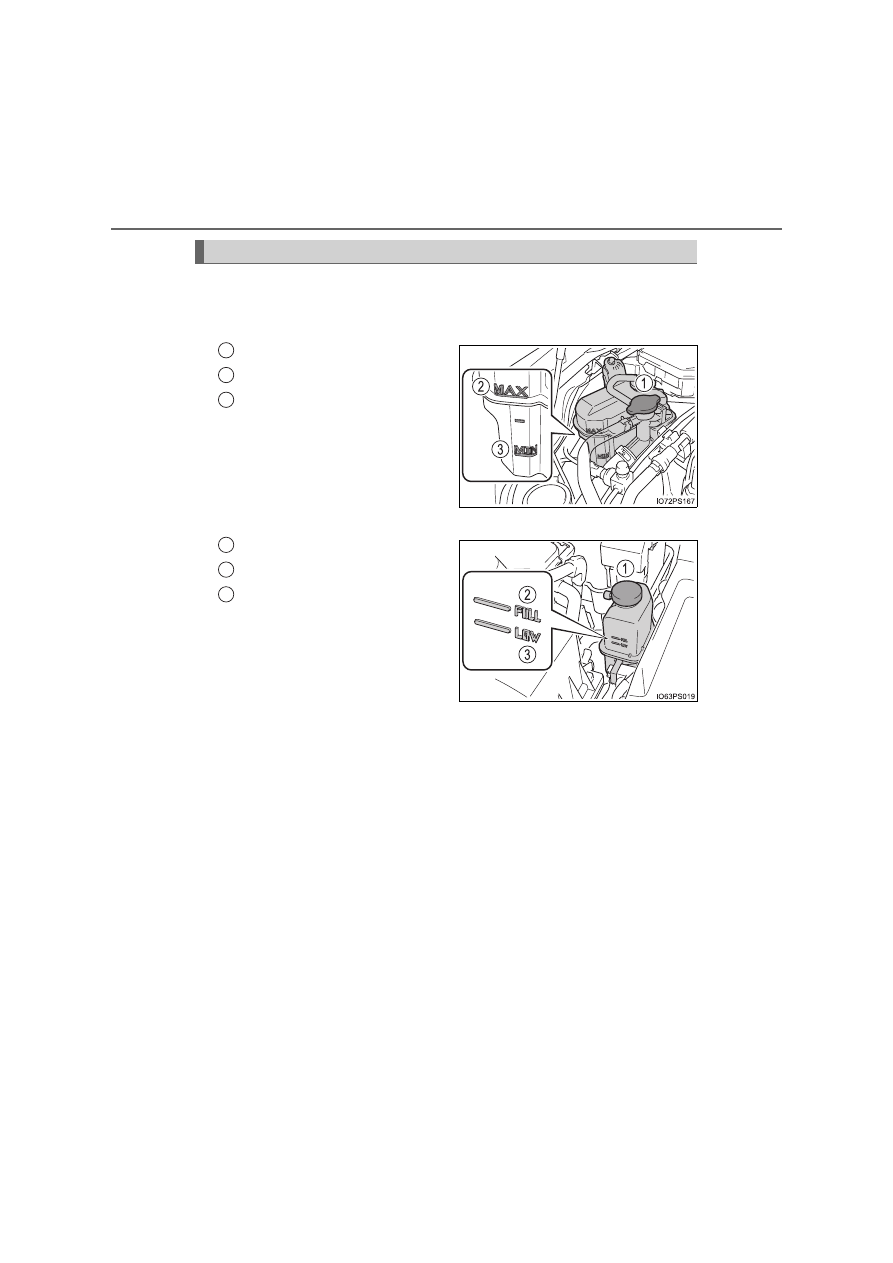

The coolant level is satisfactory if it is between the “MAX” and “MIN”
lines on the reservoir when the hybrid system is cold.

■

Engine coolant reservoir

Reservoir cap
“MAX” line
“MIN” line

If the level is on or below the
“MIN” line, add coolant up to the
“MAX” line. (



P. 645)

■

Power control unit coolant reservoir

Reservoir cap
“FULL” line
“LOW” line

If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line. (



P. 647)

Coolant

1
2
3

519

6-3. Do-it-yourself maintenance

nan
ce and

■

Coolant selection

Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35



C [-31



F])

For more details about coolant, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.

■

If the coolant level drops within a short time of replenishing

Visually check the radiator, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer, test the cap and check for leaks in the
cooling system.

WARNING

■

When the hybrid system is hot

Do not remove the engine/power control unit coolant reservoir caps.
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.

NOTICE

■

When adding coolant

Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.

■

If you spill coolant

Be sure to wash it off with water to prevent it from damaging parts or paint.

520

6-3. Do-it-yourself maintenance

Check the radiator and condenser and clear away any foreign objects.
If either of the above parts is extremely dirty or you are not sure of
their condition, have your vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.

Radiator and condenser

WARNING

■

When the hybrid system is hot

Do not touch the radiator or condenser as they may be hot and cause seri-
ous injuries, such as burns.

■

When the electric cooling fans are operating

Do not touch the engine compartment.
With the power switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature
is high. Be sure the power switch is off when working near the electric cool-
ing fans or radiator grille.

521

6-3. Do-it-yourself maintenance

nan
ce and

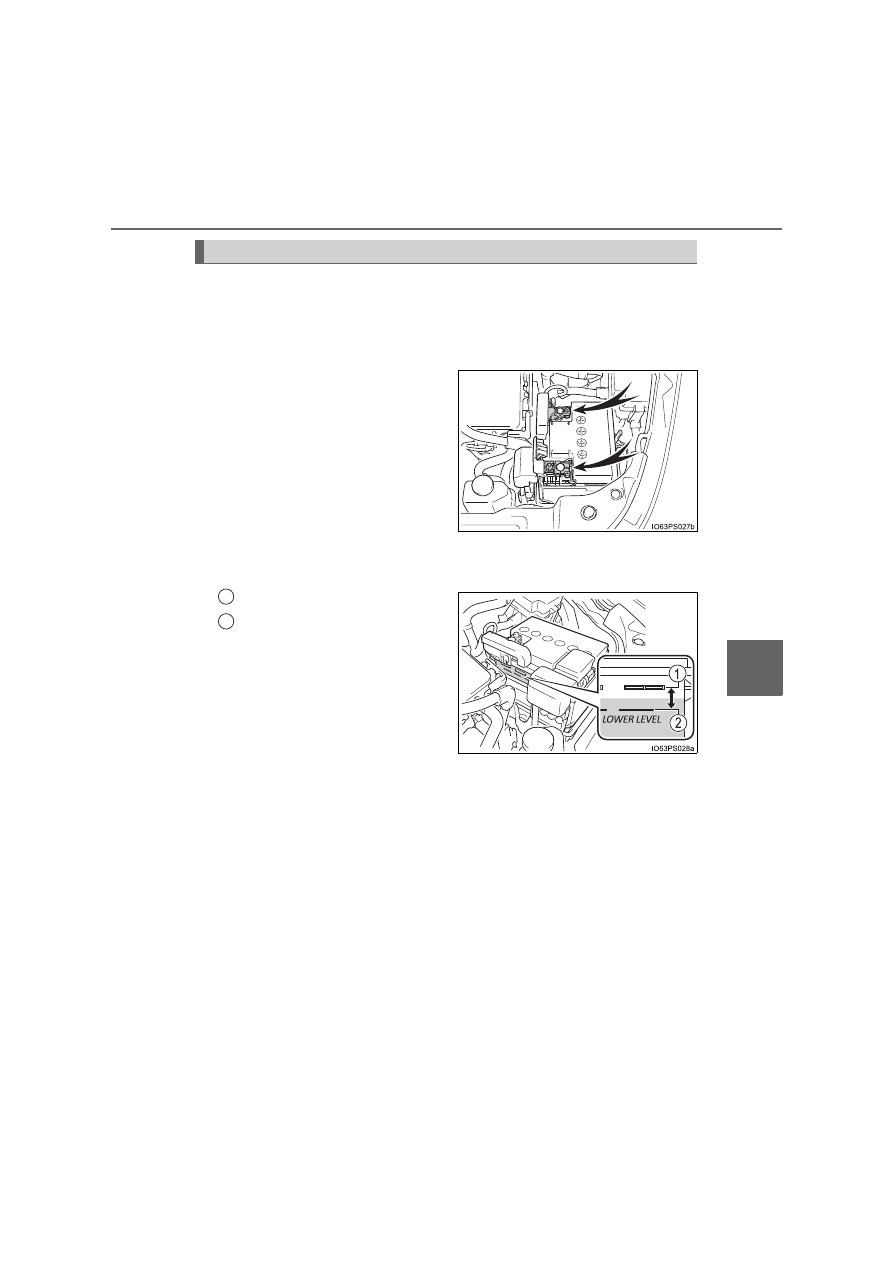

Check the 12-volt battery as follows.

■

12-volt battery exterior

Make sure that the 12-volt battery terminals are not corroded and
that there are no loose connections, cracks, or loose clamps.
Terminals

■

Checking battery fluid

Check that the level is between the upper and lower line.

Upper line
Lower line
If the fluid level is at or below
the lower line, add distilled
water.

12-volt battery

1
2

522

6-3. Do-it-yourself maintenance

■

Adding distilled water

Remove the vent plug.

Add distilled water.

If the upper line cannot be seen,
check the fluid level by looking
directly at the cell.

Put the vent plug back on and close it securely.

LOW

O.K.

523

6-3. Do-it-yourself maintenance

nan
ce and

■

When opening the cover of the positive (+) battery terminal

■

Before recharging

When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore, observe the following precautions before
recharging:

●

If recharging with the 12-volt battery installed on the vehicle, be sure to dis-
connect the ground cable.

●

Make sure the power switch on the charger is off when connecting and dis-
connecting the charger cables to the 12-volt battery.

■

After recharging/reconnecting the 12-volt battery

●

Unlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the 12-volt battery. If this happens, use
the wireless remote control or the mechanical key to lock/unlock the doors.

●

Start the hybrid system with the power switch in ACCESSORY mode. The
hybrid system may not start with the power switch turned off. However, the
hybrid system will operate normally from the second attempt.

●

The power switch mode is recorded by the vehicle. If the 12-volt battery is
reconnected, the vehicle will return the power switch mode to the status it
was in before the 12-volt battery was disconnected. Make sure to turn off
the power switch before disconnect the 12-volt battery. Take extra care
when connecting the 12-volt battery if the power switch mode prior to dis-
charge is unknown.

If the system will not start even after multiple attempts at all methods above,
contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

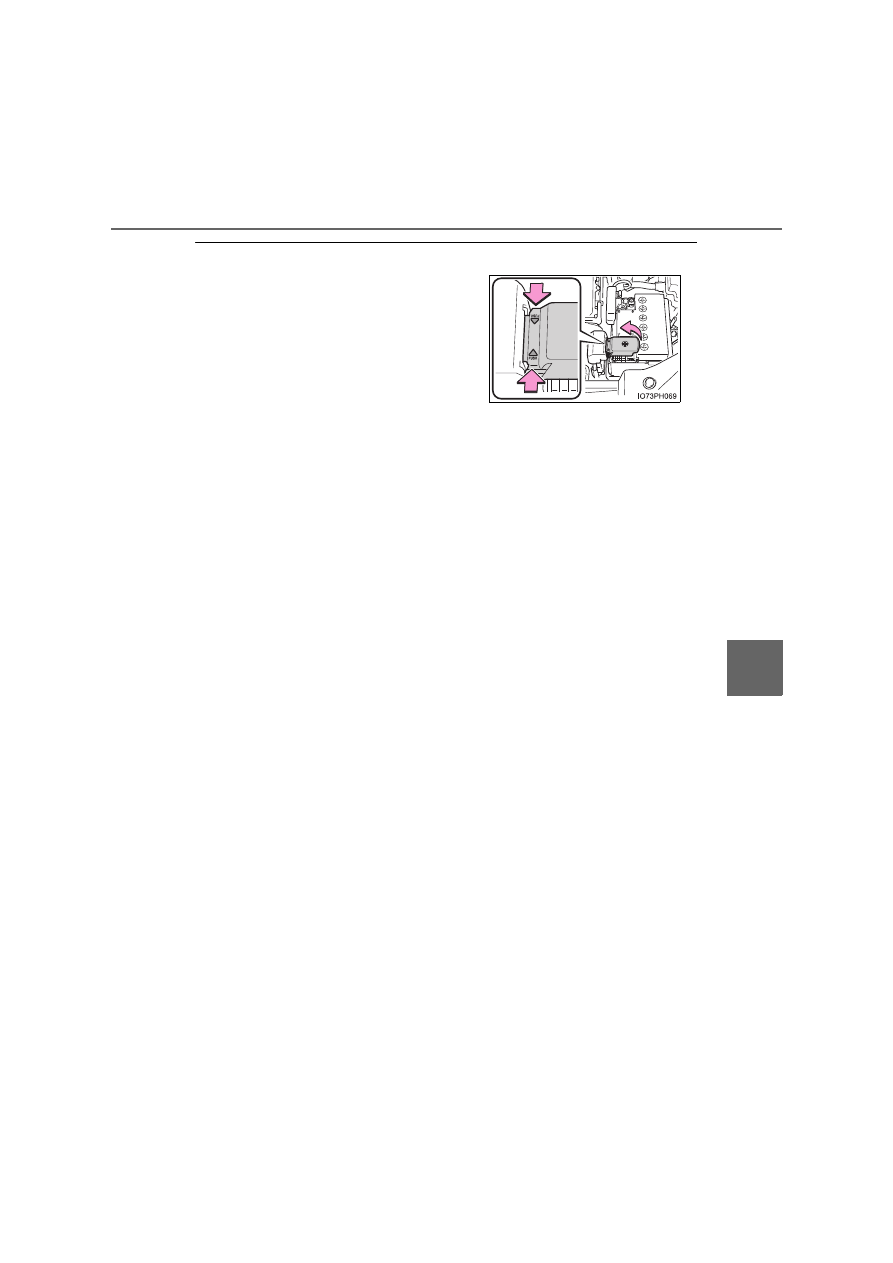

While pushing the portion shown in the
illustration from both sides, lift the end of
the cover up.

524

6-3. Do-it-yourself maintenance

WARNING

■

Chemicals in the 12-volt battery

The 12-volt battery contains poisonous and corrosive sulfuric acid and may
produce hydrogen gas which is flammable and explosive. To reduce the risk
of death or serious injury, take the following precautions while working on or
near the 12-volt battery:

●

Do not cause sparks by touching the 12-volt battery terminals with tools.

●

Do not smoke or light a match near the 12-volt battery.

●

Avoid contact with eyes, skin and clothes.

●

Never inhale or swallow electrolyte.

●

Wear protective safety glasses when working near the 12-volt battery.

●

Keep children away from the 12-volt battery.

■

Where to safely charge the 12-volt battery

Always charge the 12-volt battery in an open area. Do not charge the 12-
volt battery in a garage or closed room where there is insufficient ventila-
tion.

■

Emergency measures regarding electrolyte

●

If electrolyte gets in your eyes
Flush your eyes with clean water for at least 15 minutes and get immedi-
ate medical attention. If possible, continue to apply water with a sponge or
cloth while traveling to the nearest medical facility.

●

If electrolyte gets on your skin
Wash the affected area thoroughly. If you feel pain or burning, get medical
attention immediately.

●

If electrolyte gets on your clothes
It can soak through clothing on to your skin. Immediately take off the cloth-
ing and follow the procedure above if necessary.

●

If you accidentally swallow electrolyte
Drink a large quantity of water or milk. Get emergency medical attention
immediately.

525

6-3. Do-it-yourself maintenance

nan
ce and

WARNING

■

When disconnecting the 12-volt battery

Do not disconnect the negative (-) terminal on the body side. The discon-
nected negative (-) terminal may touch the positive (+) terminal, which may
cause a short and result in death or serious injury.

NOTICE

■

When recharging the 12-volt battery

Never recharge the 12-volt battery while the hybrid system is operating.
Also, be sure all accessories are turned off.

■

When adding distilled water

Avoid overfilling. Water spilled during 12-volt battery recharging may cause
corrosion.

526

6-3. Do-it-yourself maintenance

Open the lid.

Vehicles with the level gauge: Check the washer fluid level on the
level gauge.

“NORMAL”
“LOW”

If the washer fluid level is at
“LOW”, add washer fluid.

Washer fluid

1
2

527

6-3. Do-it-yourself maintenance

nan
ce and

■

Using the gauge (if equipped)

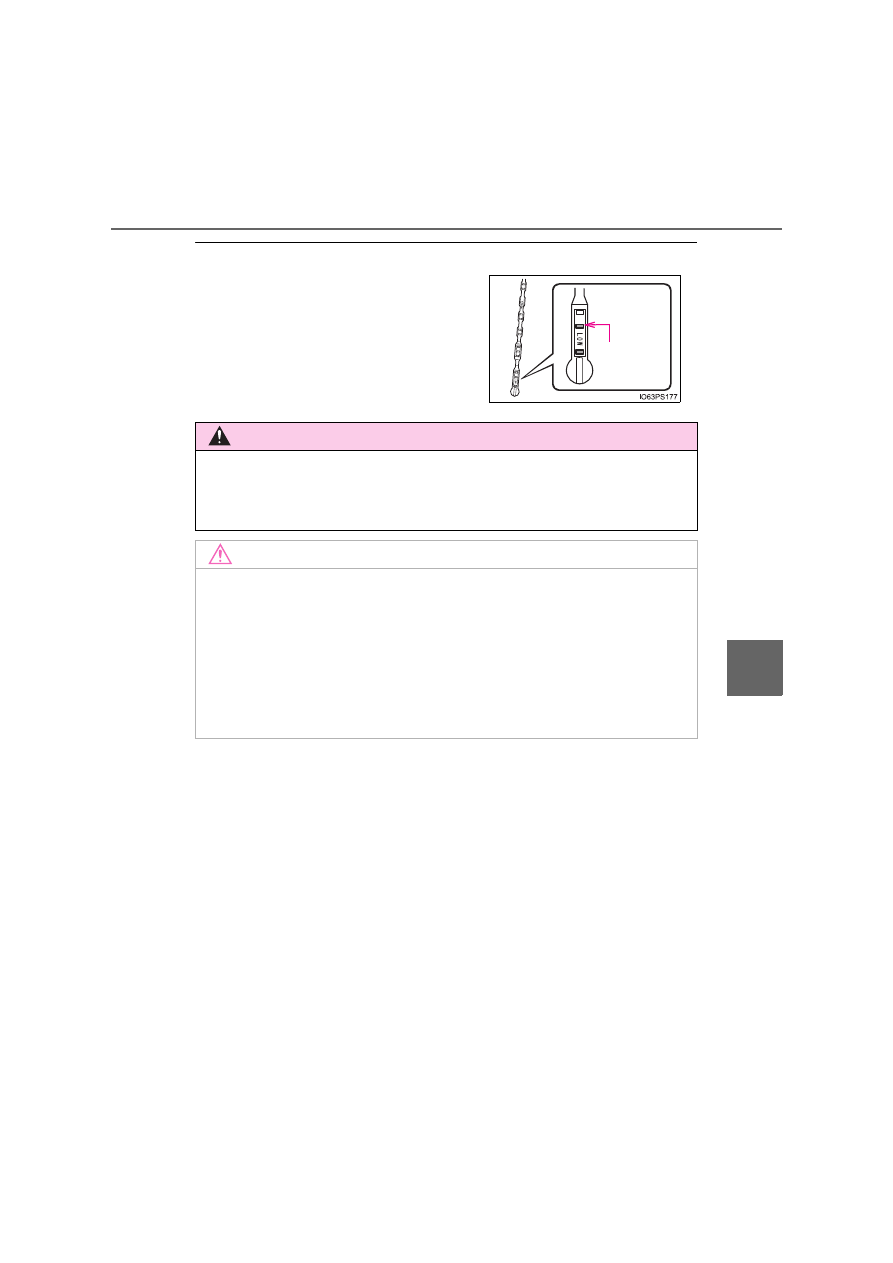

The washer fluid level can be checked by
observing the position of the level on the
liquid-covered holes in the gauge.
If the level falls below the second hole
from the bottom (the “LOW” position), refill
the washer fluid.

WARNING

■

When adding washer fluid

Do not add washer fluid when the hybrid system is hot or operating as
washer fluid contains alcohol and may catch fire if spilled on the engine etc.

NOTICE

■

Do not use any fluid other than washer fluid

Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces, as well as
damaging the pump leading to problems of the washer fluid not spraying.

■

Diluting washer fluid

Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-

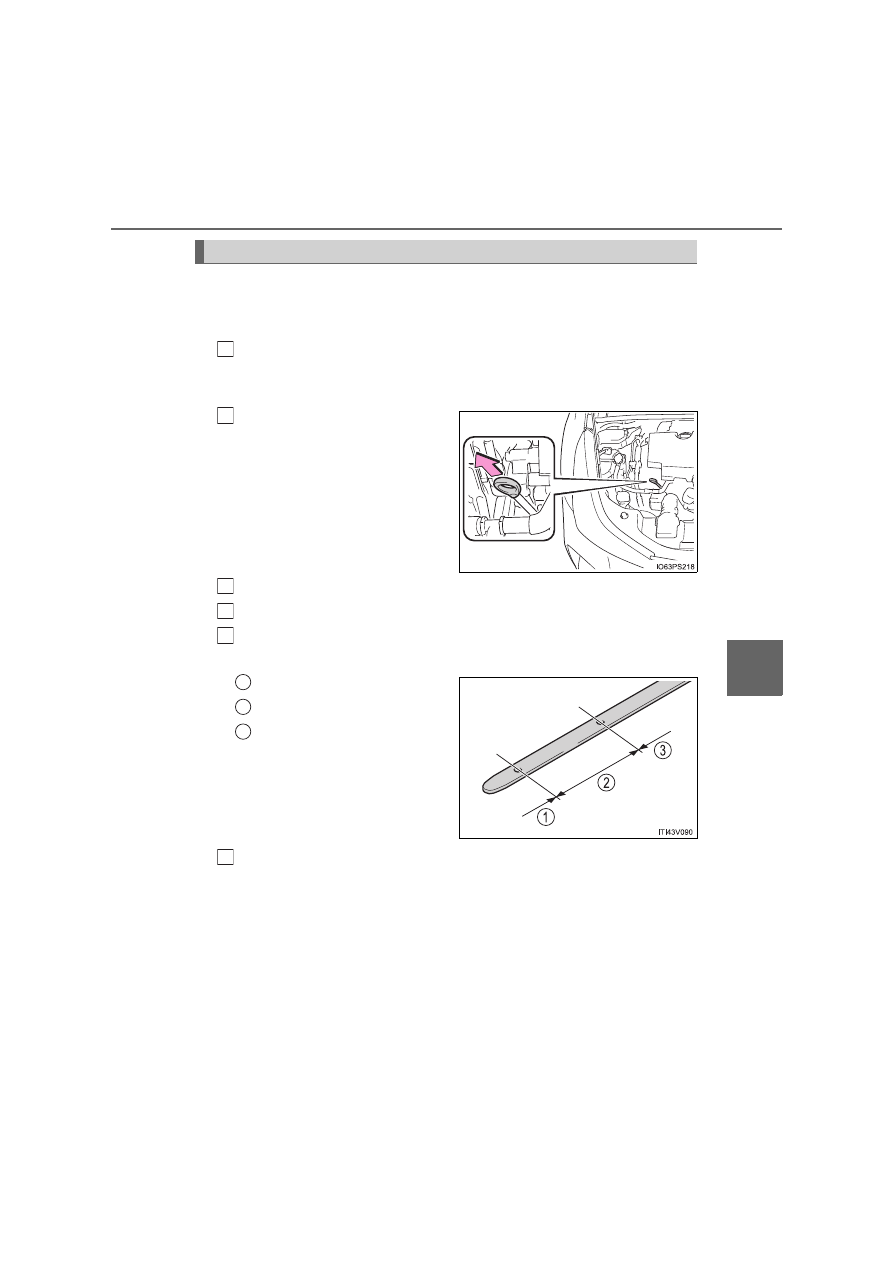

tle.

Current
fluid level

528

6-3. Do-it-yourself maintenance

Tires

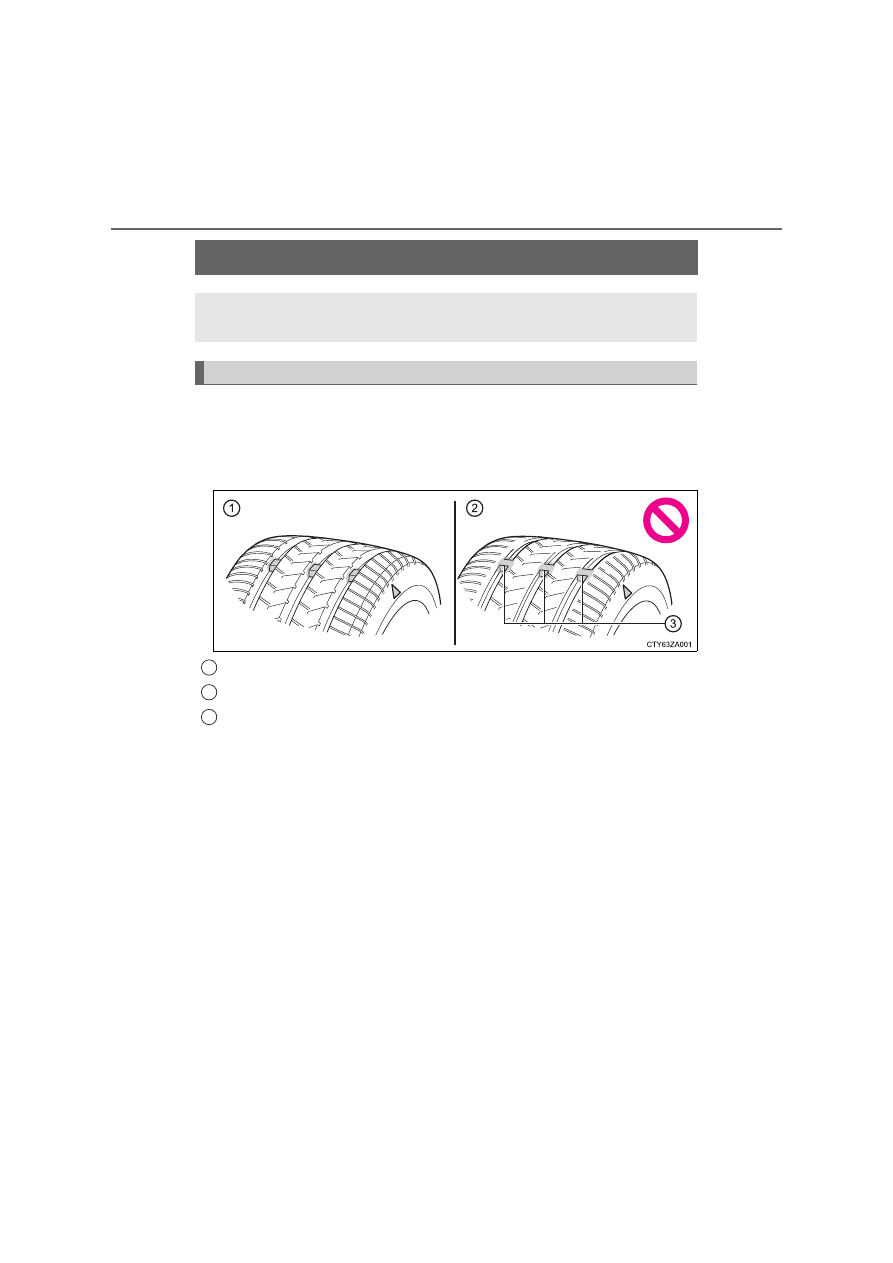

Check if the treadwear indicators are showing on the tires. Also check
the tires for uneven wear, such as excessive wear on one side of the
tread.
Check the spare tire condition and pressure if not rotated.

New tread
Worn tread
Treadwear indicator

The location of treadwear indicators is shown by a “TWI” or “



” mark, etc.,

molded into the sidewall of each tire.
Replace the tires if the treadwear indicators are showing on a tire.

Replace or rotate tires in accordance with maintenance sched-
ules and treadwear.

Checking tires

1
2
3

529

6-3. Do-it-yourself maintenance

nan
ce and

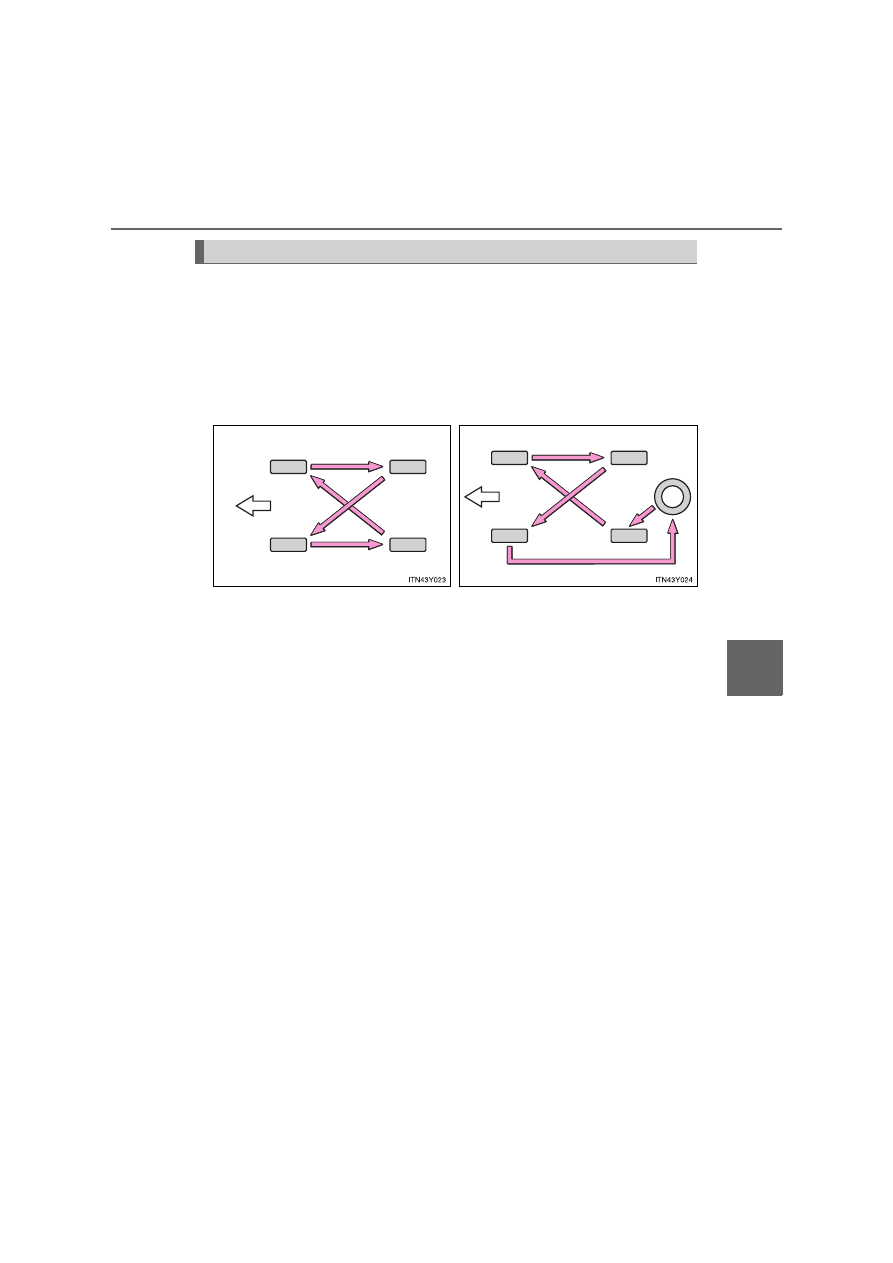

Rotate the tires in the order shown.

To equalize tire wear and help extend tire life, Toyota recommends that tire
rotation is carried out approximately every 10000 km (6000 miles).
Vehicle with the tire pressure warning system:
Do not fail to initialize the tire pressure warning system after tire rotation.

Tire rotation



Vehicles without full-size spare
tire



Vehicles with full-size spare
tire

Front

530

6-3. Do-it-yourself maintenance

Your vehicle is equipped with a tire pressure warning system that uses
tire pressure warning valves and transmitters to detect low tire infla-
tion pressure before serious problems arise.
If the tire pressure drops below a predetermined level, the driver is
warned by a warning light. (



P. 584)

The compact spare tire is not equipped with a tire pressure warning
valve and transmitter.

◆

Installing tire pressure warning valves and transmitters

When replacing tires or wheels, tire pressure warning valves and
transmitters must also be installed.
When new tire pressure warning valves and transmitters are
installed, new ID codes must be registered in the tire pressure
warning computer and the tire pressure warning system must be
initialized. Have tire pressure warning valve and transmitter ID
codes registered by any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer. (



P. 531)

◆

Initializing the tire pressure warning system

■

The tire pressure warning system must be initialized in the fol-
lowing circumstances:

●

When rotating front and rear tires which have different tire infla-
tion pressures

●

When the tire inflation pressure is changed such as when chang-
ing traveling speed or load weight.

When the tire pressure warning system is initialized, the current tire
inflation pressure is set as the benchmark pressure.

Tire pressure warning system (if equipped)

Content .. 29 30 31 32 ..
