1-5. Theft deterrent system

Fo
r s

ty a
n

d se
cu

rity

■

Alarm-operated door lock

In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

●

When a person remaining in the vehicle unlocks the door and the alarm is
activated.

●

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

●

When recharging or replacing the 12-volt battery

NOTICE

■

To ensure the system operates correctly

Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

1-5. Theft deterrent system

The intrusion sensor detects intruders or movement in the vehicle.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.

■

Setting the intrusion sensor

The intrusion sensor will be set automatically when the alarm is set.
(



P. 93)

■

Canceling the intrusion sensor

If you are leaving pets or other moving things inside the vehicle,
make sure to disable the intrusion sensor before setting the alarm,
as they will respond to movement inside the vehicle.

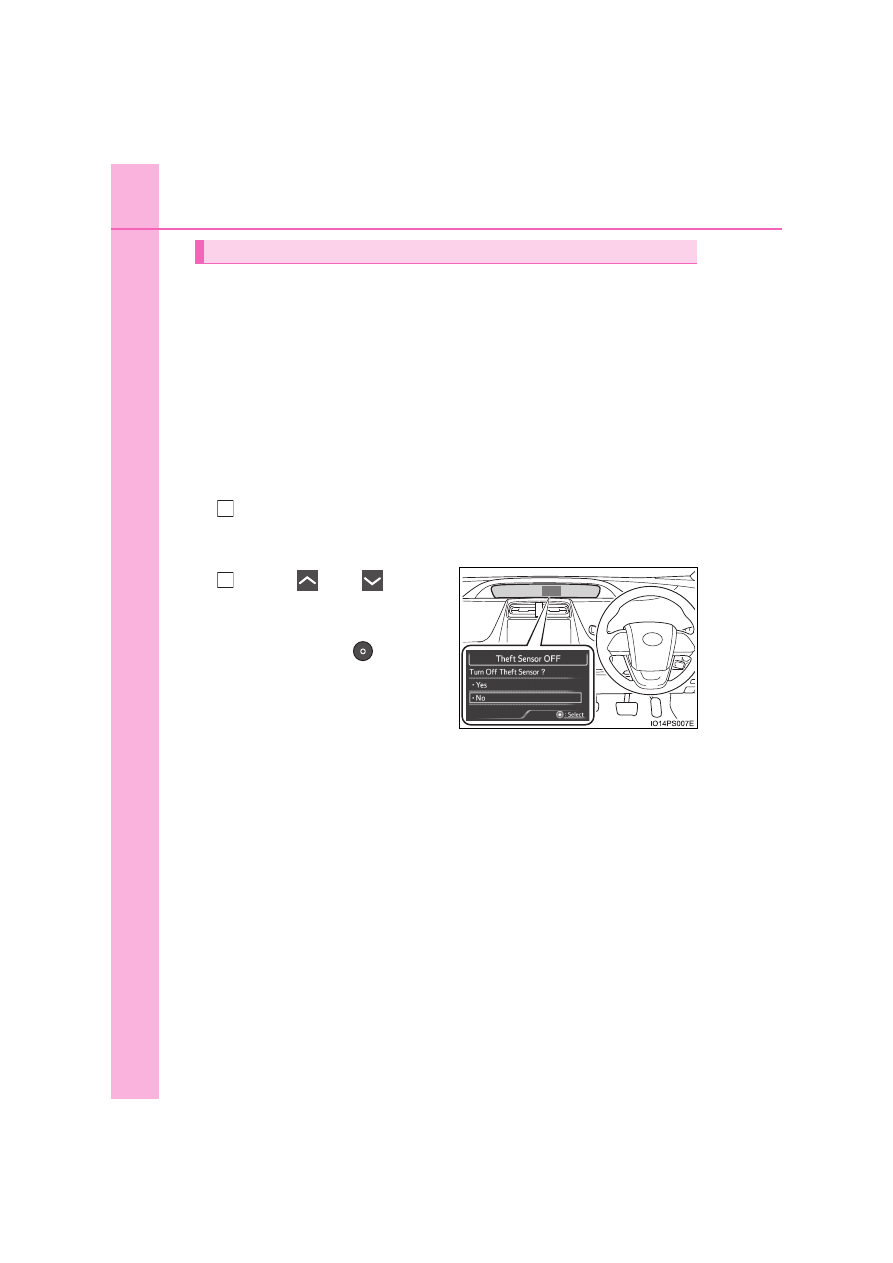

Turn the power switch off.

A message is displayed on the multi-information display for approxi-
mately 4 seconds asking if you wish to cancel the intrusion sensor.

Press

of the

meter control switch on the
steering wheel, select “Yes”

and then press

If an operation is not performed
for approximately 5 seconds,
the message will be automati-
cally extinguished and the intru-
sion sensor will not be canceled.
The intrusion sensor will revert to on each time the power switch is
turned to ON mode.

Intrusion sensor (if equipped)

1-5. Theft deterrent system

Fo
r s

ty a
n

d se
cu

rity

■

When the message asking if you wish to cancel the intrusion sensor is
not displayed

The message may not be displayed if other message is displayed. In this
case, turn the power switch to ON mode, follow the instructions on the display
and turn the power switch off again.

■

Canceling and automatic re-enabling of the intrusion sensor

●

The alarm will still be set even when the intrusion sensor is canceled.

●

After the intrusion sensor is canceled, pressing the power switch or unlock-
ing the doors using the entry function or wireless remote control will re-
enable the intrusion sensor.

●

The intrusion sensor will automatically be re-enabled when the alarm sys-
tem is deactivated.

■

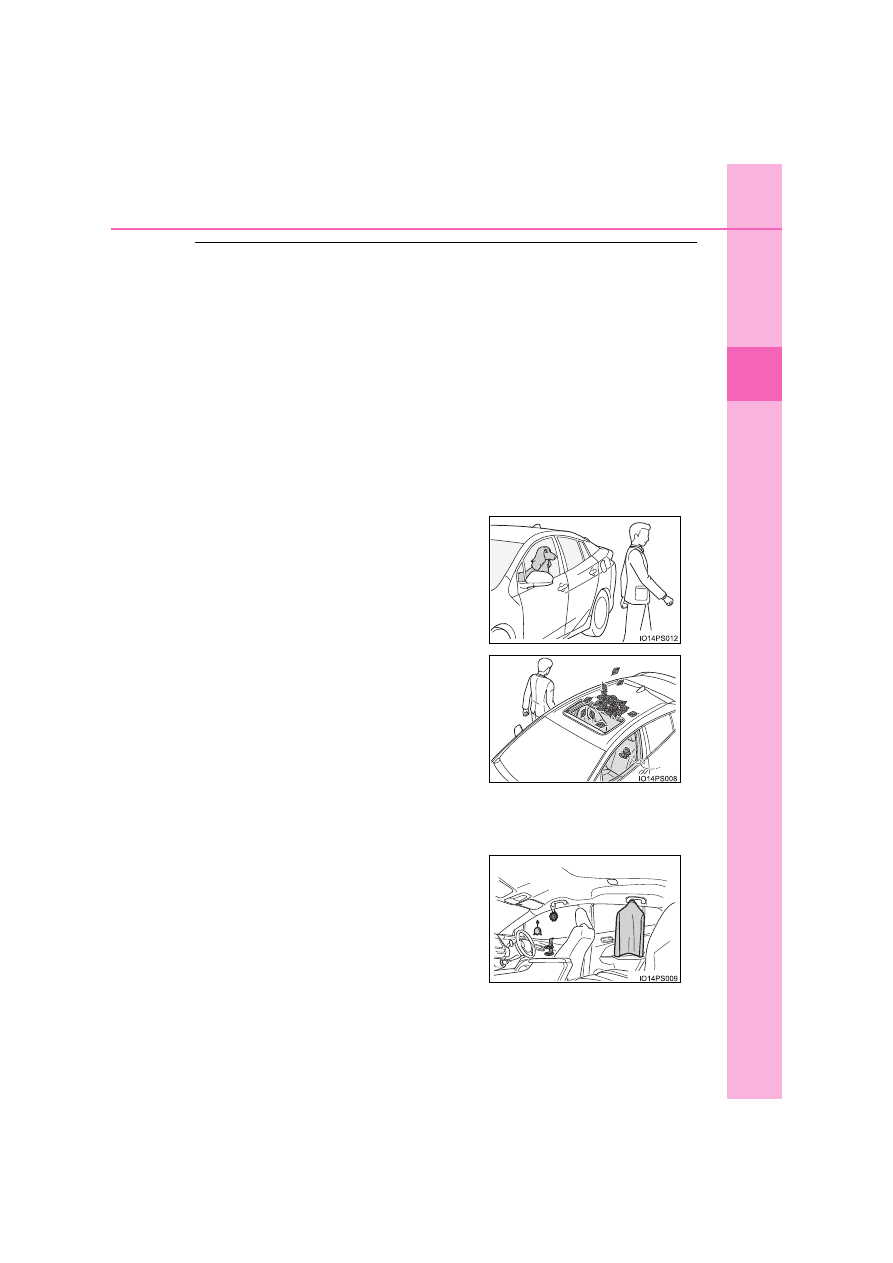

Intrusion sensor detection considerations

The sensor may trigger the alarm in the following situations:

• The movement of people outside the vehicle

●

People or pets are in the vehicle.

●

A side window or moon roof (if
equipped) is open.
In this case, the sensor may detect the
following:
• Wind or the movement of objects

such as leaves and insects inside the
vehicle

• Ultrasonic waves emitted from

devices such as the intrusion sensors
of other vehicles

●

Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.

1-5. Theft deterrent system

●

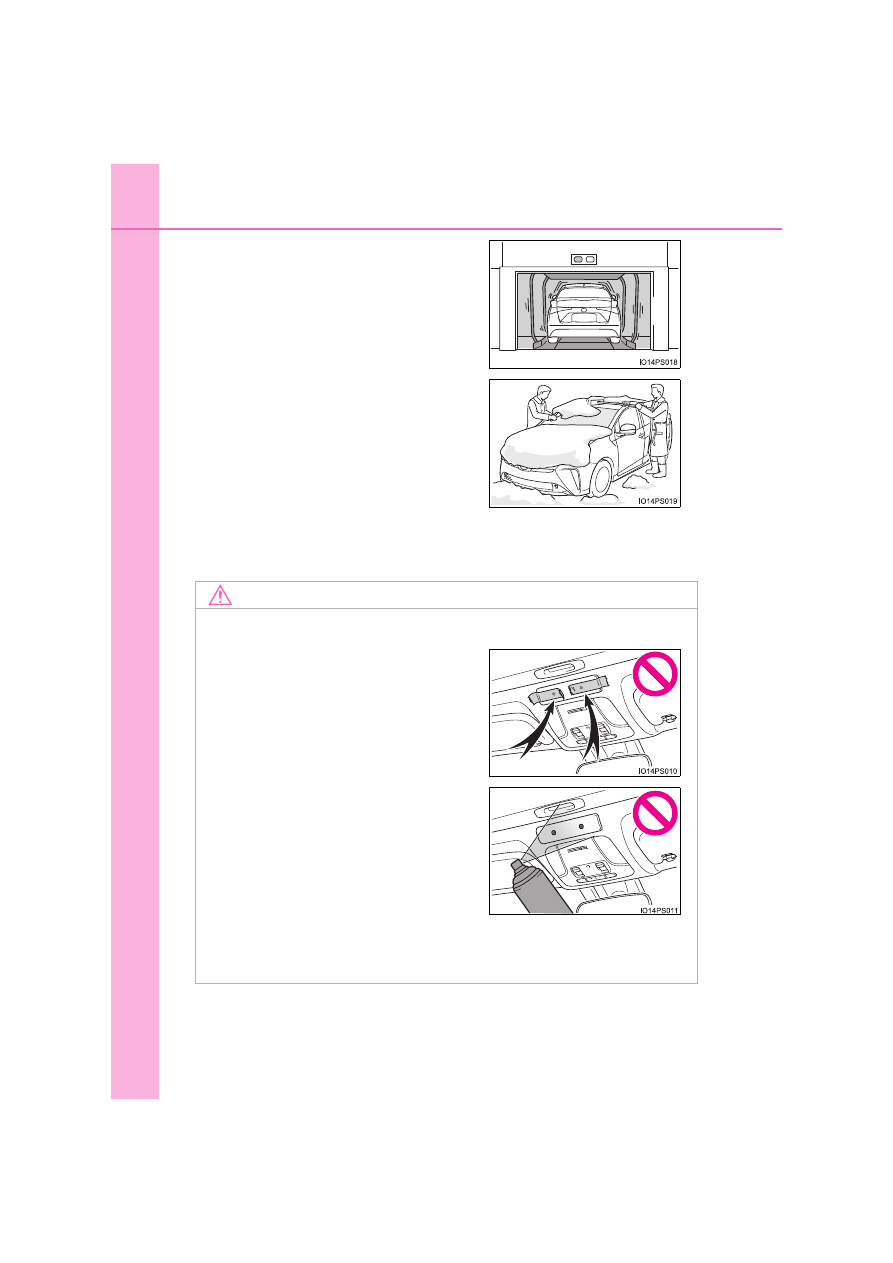

The vehicle is inside an automatic or high-pressure car wash.

●

The vehicle experiences impacts, such as hail, lightning strikes, and other
kinds of repeated impacts or vibrations.

●

The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.

●

Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.

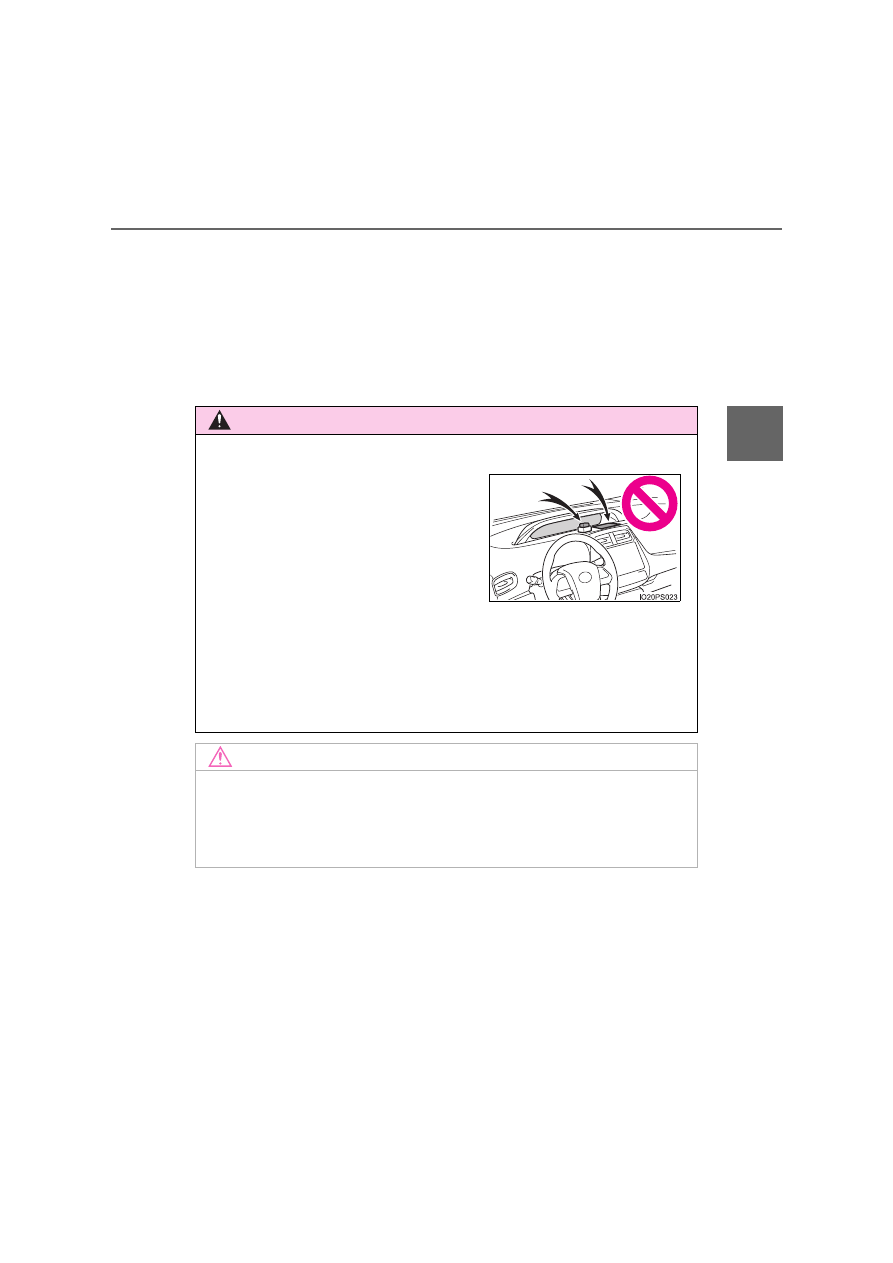

NOTICE

■

To ensure the intrusion sensor functions correctly

●

Installing accessories other than genuine Toyota parts or leaving objects
between the driver’s seat and front passenger’s seat may reduce the
detection performance.

●

To ensure that the sensors operate
properly, do not touch or cover them.

●

Do not spray air fresheners or other
products directly into the sensor holes.

Instrument cluster

Combination meter ............100
Warning lights and

indicators .........................110

Main display.......................117
Multi-information

display .............................127

Head-up display.................160
Energy monitor/

consumption screen ........166

100

2. Instrument cluster

Combination meter

The units used on the display may differ depending on the target region.

Main display (



P. 117)

The main display shows basic information related to driving, such as the
vehicle speed and remaining fuel amount.

Multi-information display (



P. 127)

The multi-information display shows information which makes the vehicle
convenient-to-use, such as the hybrid system operation condition and fuel
consumption history. Also, the operation contents of the driving support
systems and the combination meter display settings can be changed by
switching to the settings screen.

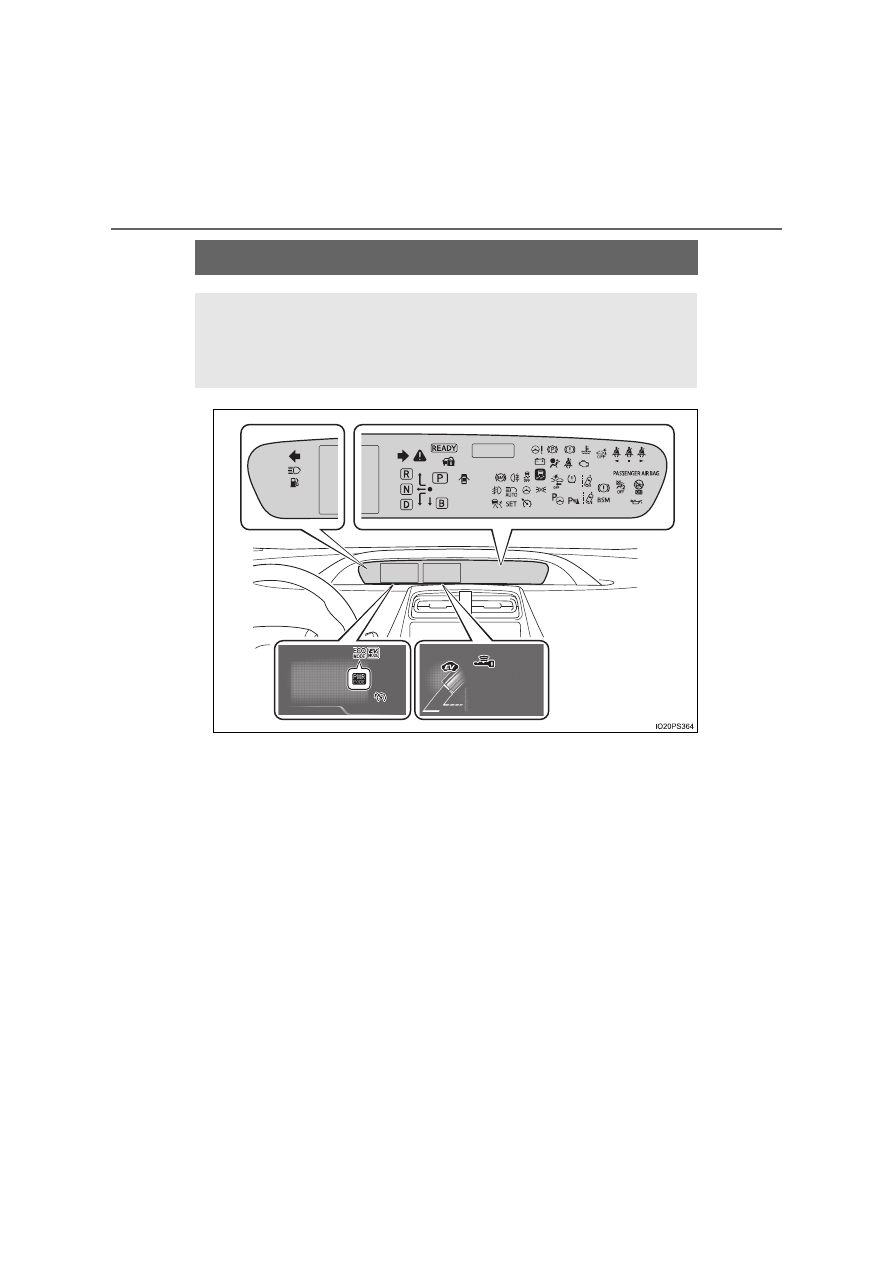

Warning lights and indicators (



P. 110)

The warning lights and indicators comes on or flashes to indicate problems
with the vehicle or to show the operation status of the vehicle’s systems.

Clock (



P. 106)

The large meter uses 2 liquid crystal displays to display informa-
tion such as the vehicle condition, driving status and fuel con-
sumption.

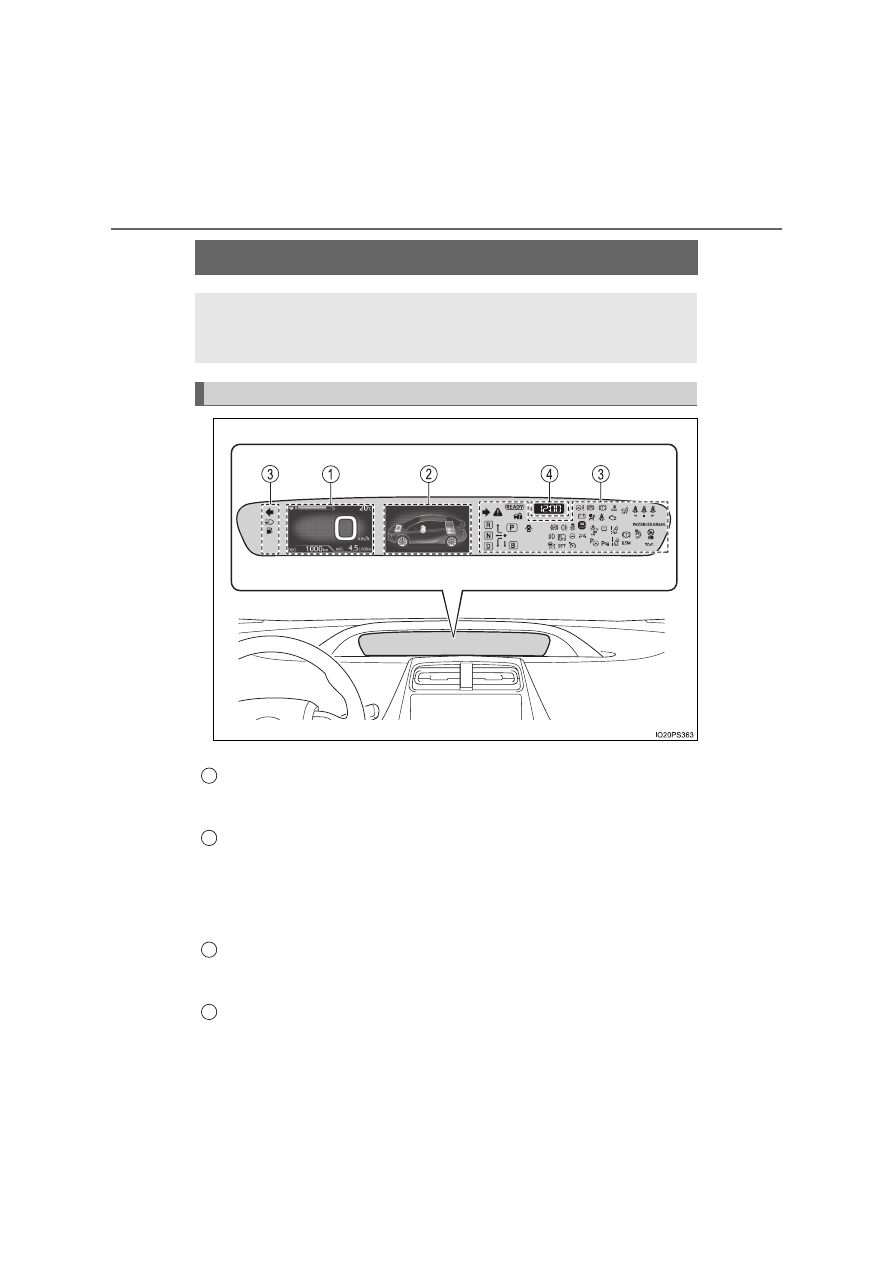

Combination meter layout

101

2. Instrument cluster

rum

ent cl

ust
e

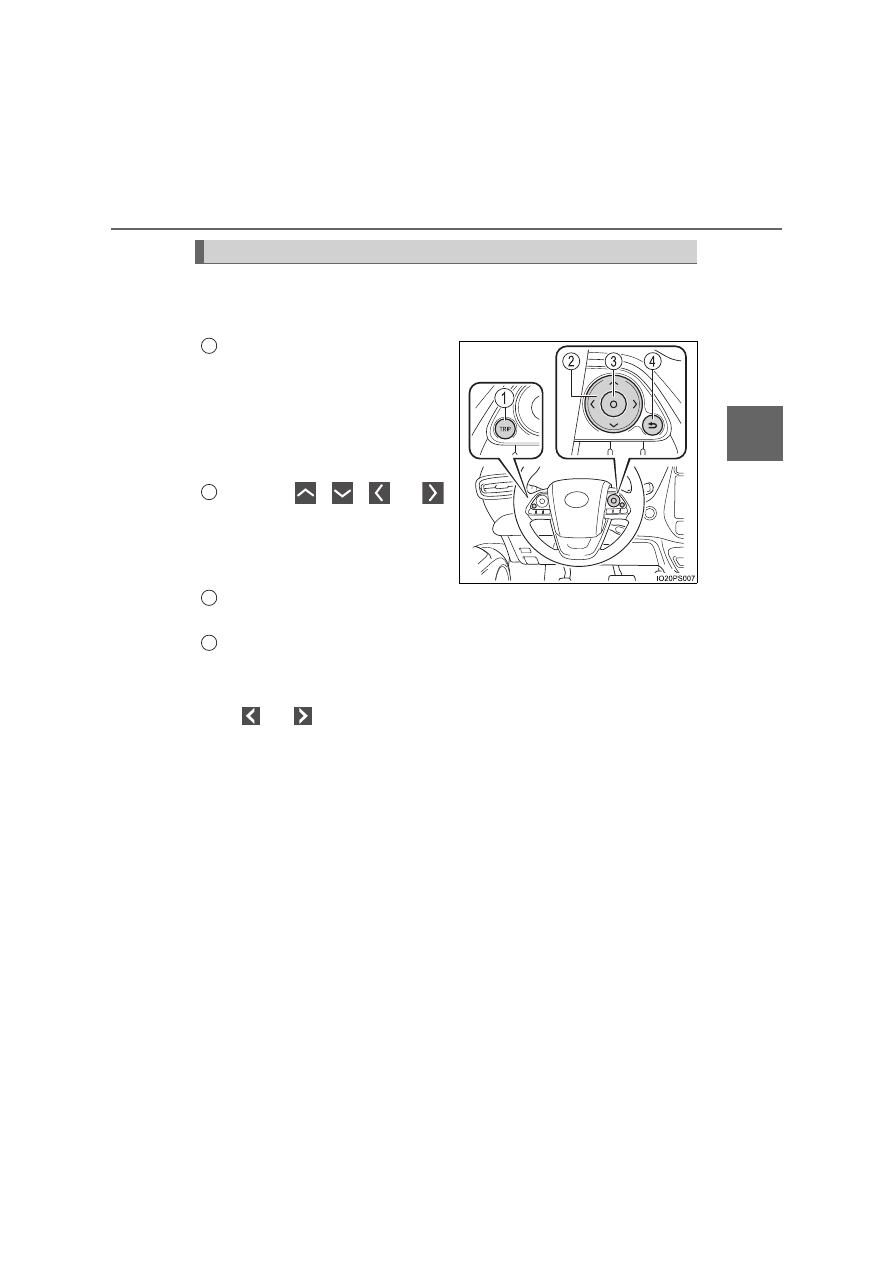

The meter control switches equipped on the steering wheel can be
used to switch the screen display and change settings related to func-
tions displayed on the screen.

Each time the button is
pressed, the mileage display
switches among odometer, trip
meters, etc., and the fuel con-
sumption information for each
distance switches as well.
(



P. 121)

Pressing , ,

performs such operations as
scrolling the screen

, switching

the contents of the display

and

moving the cursor.
This button is used to perform such operations as selecting the cur-
rent item or switching between on and off.
When pressed, the display returns to the previous screen.

: On screens where the screen can be scrolled and the display can be

switched, marks are displayed to indicate the direction of operation (such
as

and ).

Operations related to the combination meter

102

2. Instrument cluster



Left-hand drive vehicles

When the switches are pressed, the instrument cluster light changes
as follows.

The instrument cluster brightness levels that can be selected differ
depending on whether the tail lights are on and surrounding brightness lev-
els. (



P. 108)

Darker
Brighter

When the switches are pressed,
the adjustment level check screen
(pop-up display

) is displayed on

the main display.

: A short time after the operation is completed, the pop-up display turns off.

Furthermore, the pop-up display can be turned on and off in the “Meter
Customize” settings. (



P. 156)



Right-hand drive vehicles

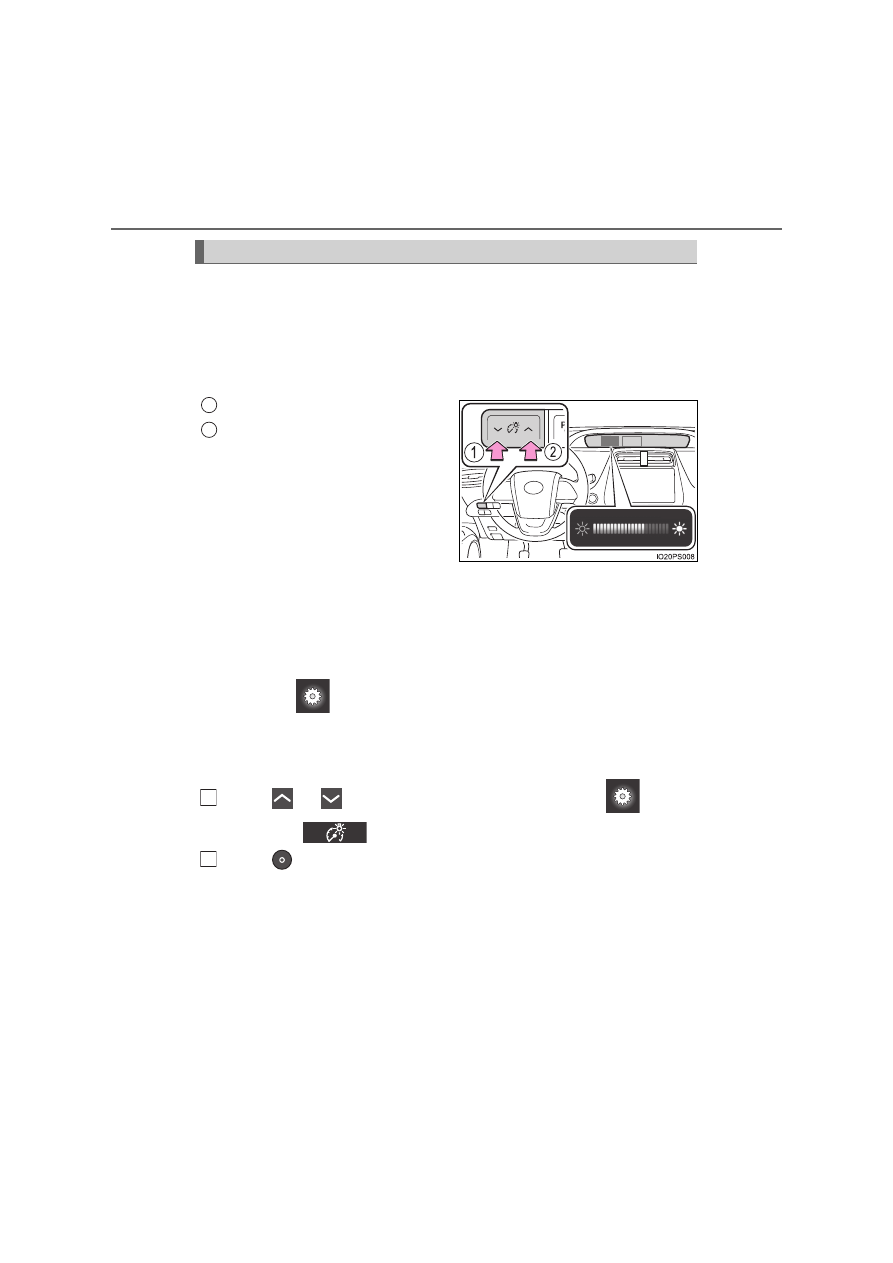

To adjust the brightness of the instrument cluster light, perform opera-

tions on the

screen of the multi-information display. (



P. 153)

The instrument cluster brightness levels that can be selected differ
depending on whether the tail lights are on and surrounding brightness lev-
els. (



P. 108)

Press

of the meter control switches on the

screen

and select

Press

to display the cursor.

Instrument cluster light control

1
2

103

2. Instrument cluster

rum

ent cl

ust
e

Press

of the meter control switches to adjust the bright-

ness of the instrument cluster light.

Darker
Brighter

After adjustment is completed,
press

to return to the previous

screen.

Some information will be displayed automatically according to power
switch operation, vehicle condition, etc.

■

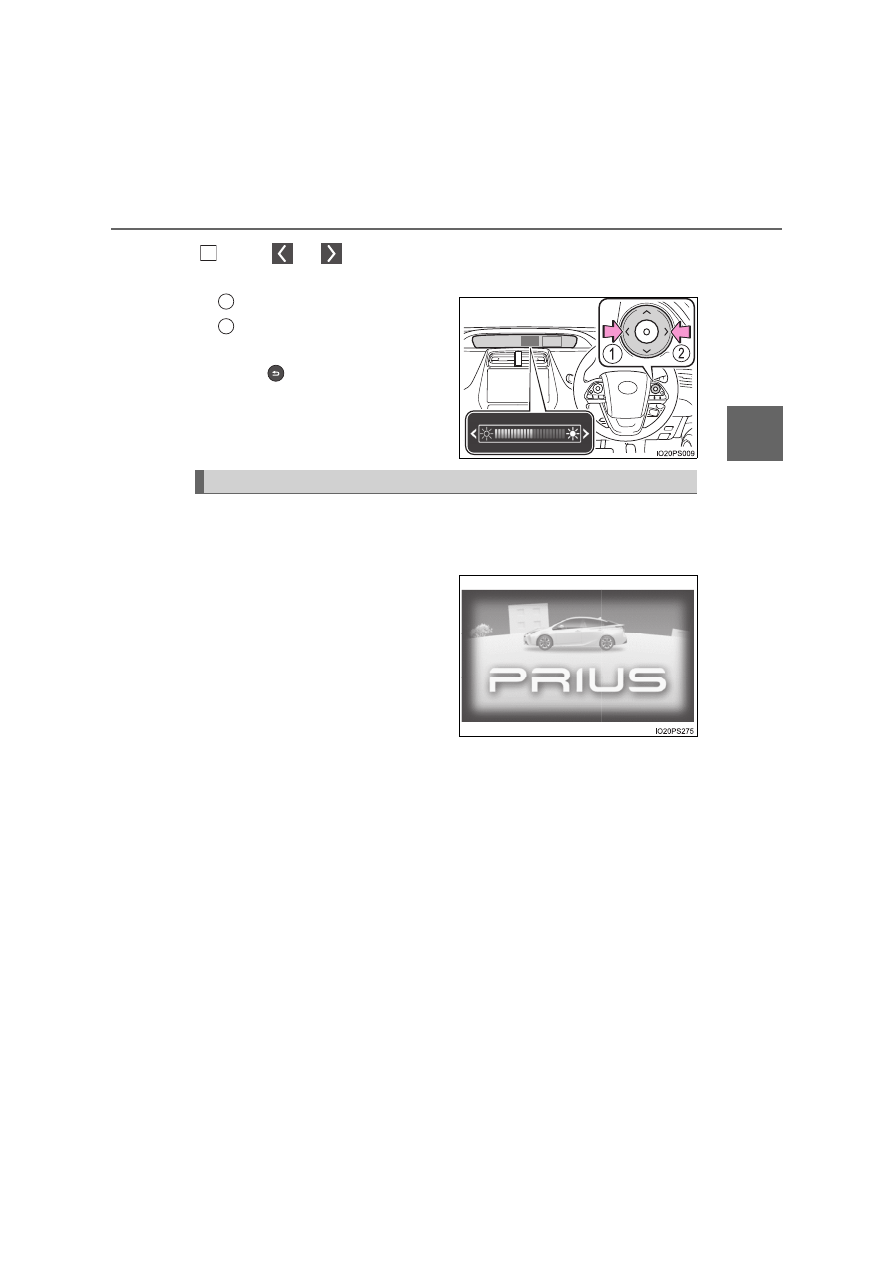

When starting the hybrid system

When the hybrid system starts,
an opening animation is dis-
played on the 2 displays.

After the animation ends, the
screens switch to the normal
screen.
The opening animation will be
stopped in any of the following
situations.

• When the shift position is changed to other than P
• When the Simple Intelligent Parking Assist System (if equipped) is

turned on

1
2

Information automatically displayed

104

2. Instrument cluster

■

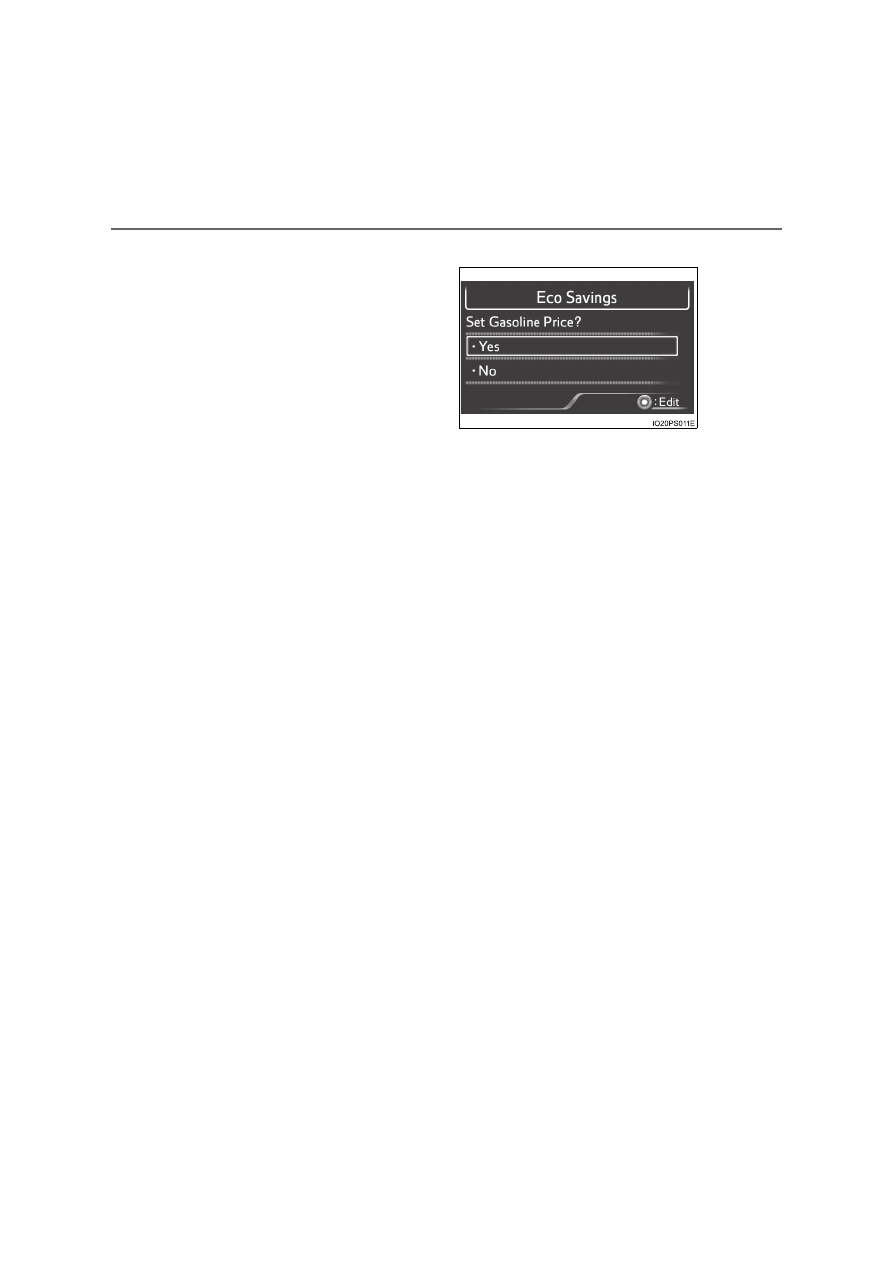

After refueling (if equipped)

When the power switch is
turned to ON mode after refuel-
ing, the gasoline price setting
screen* is displayed on the
multi-information display.

After refueling, always set the
gasoline price so that the “Eco
Savings” function (



P. 141) may

operate properly.
Settings related to the “Eco Savings” function can be changed in the
“Meter Customize” settings. (



P. 156)

: If the amount of fuel that the vehicle is refueled with is too small, this

screen may not be displayed. (



P. 126)

■

When the driving assist systems are operating

When using driving assist systems such as the dynamic radar
cruise control with full-speed range

(



P. 329) and LTA (Lane Trac-

ing Assist)

(



P. 307), information related to each system is auto-

matically displayed on the multi-information display depending on
the situation.

For details regarding the displayed information and the contents of the
display, refer to the explanation page of each system.

: If equipped

■

When there is information to be notified about the vehicle

When a shift position is mistakenly selected or a problem occurs in
a vehicle system, a warning message (or image) is displayed on
the multi-information display.

When a warning message is displayed, follow the instructions displayed
on the display. (



P. 589)

105

2. Instrument cluster

rum

ent cl

ust
e

■

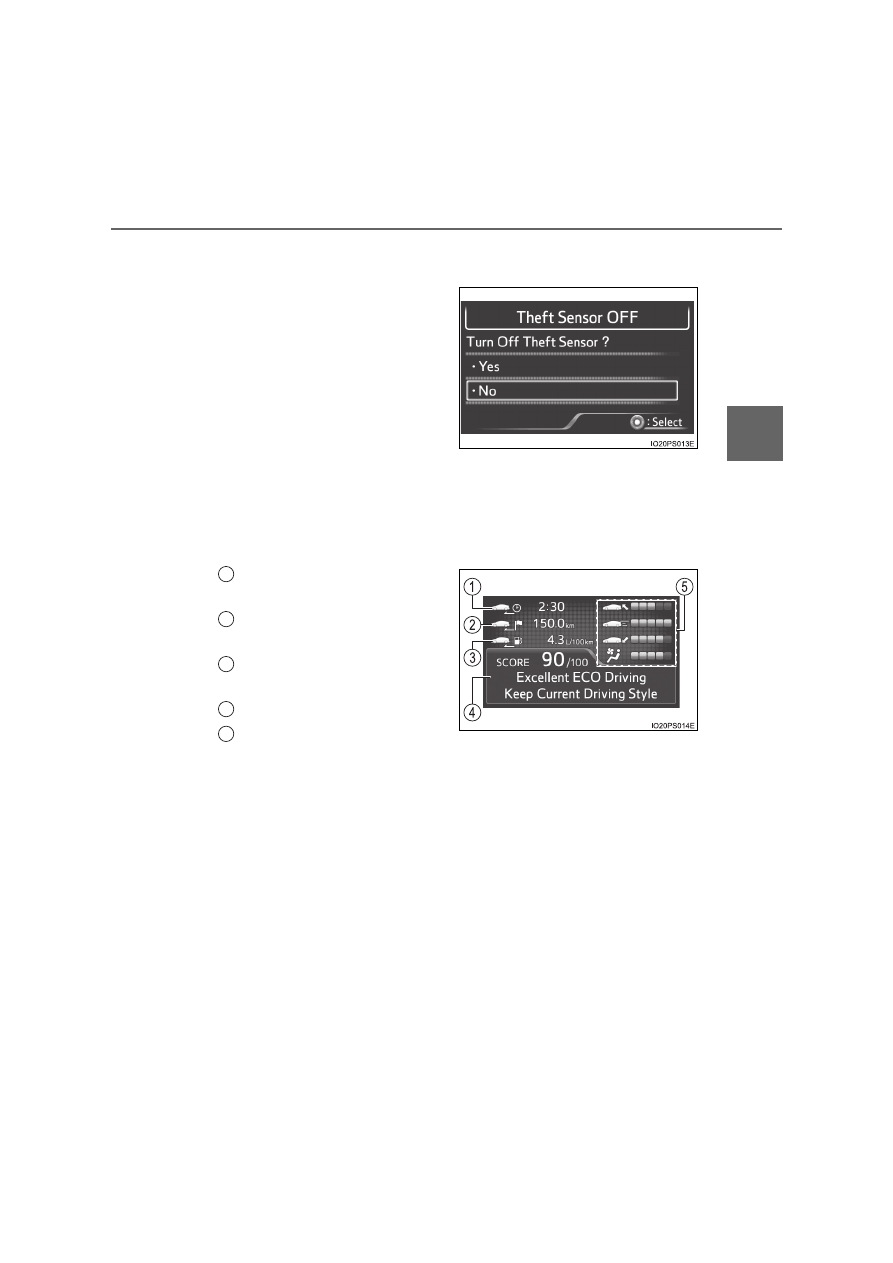

When the power switch is turned off (vehicles with the intru-
sion sensor)

The intrusion sensor on/off
selection screen is displayed on
the multi-information display.
(



P. 96)

■

When stopping the hybrid system

From the time the hybrid system is started until it is turned off, the
driving time, distance traveled, average fuel consumption and Eco
score (



P. 134, 150) result are displayed on the multi-information

display approximately every 30 seconds.

Driving time since hybrid sys-
tem started
Distance traveled since
hybrid system started
Average fuel consumption
after hybrid system started
Eco score result and advice
Score display for each Eco
score item (



P. 134, 150)

4
5

106

2. Instrument cluster

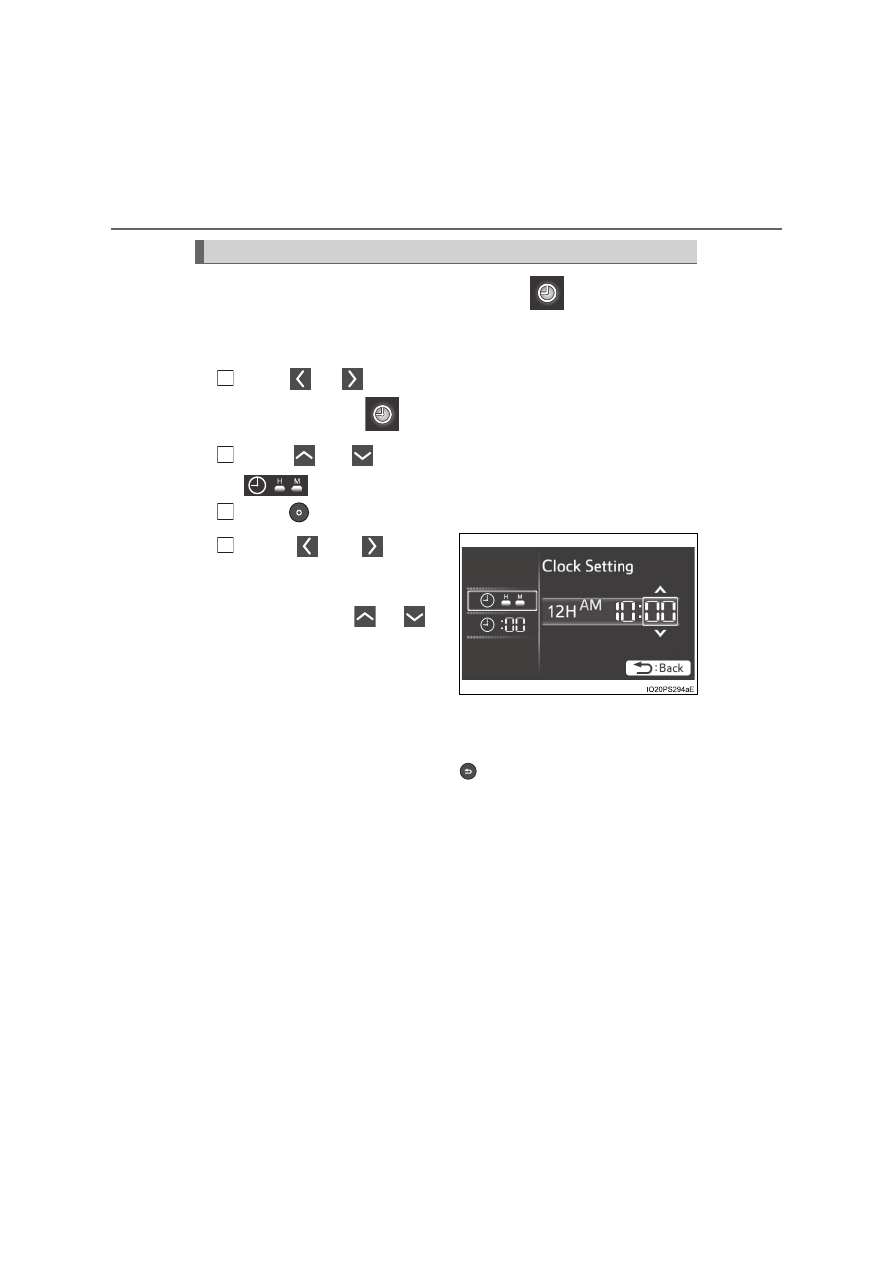

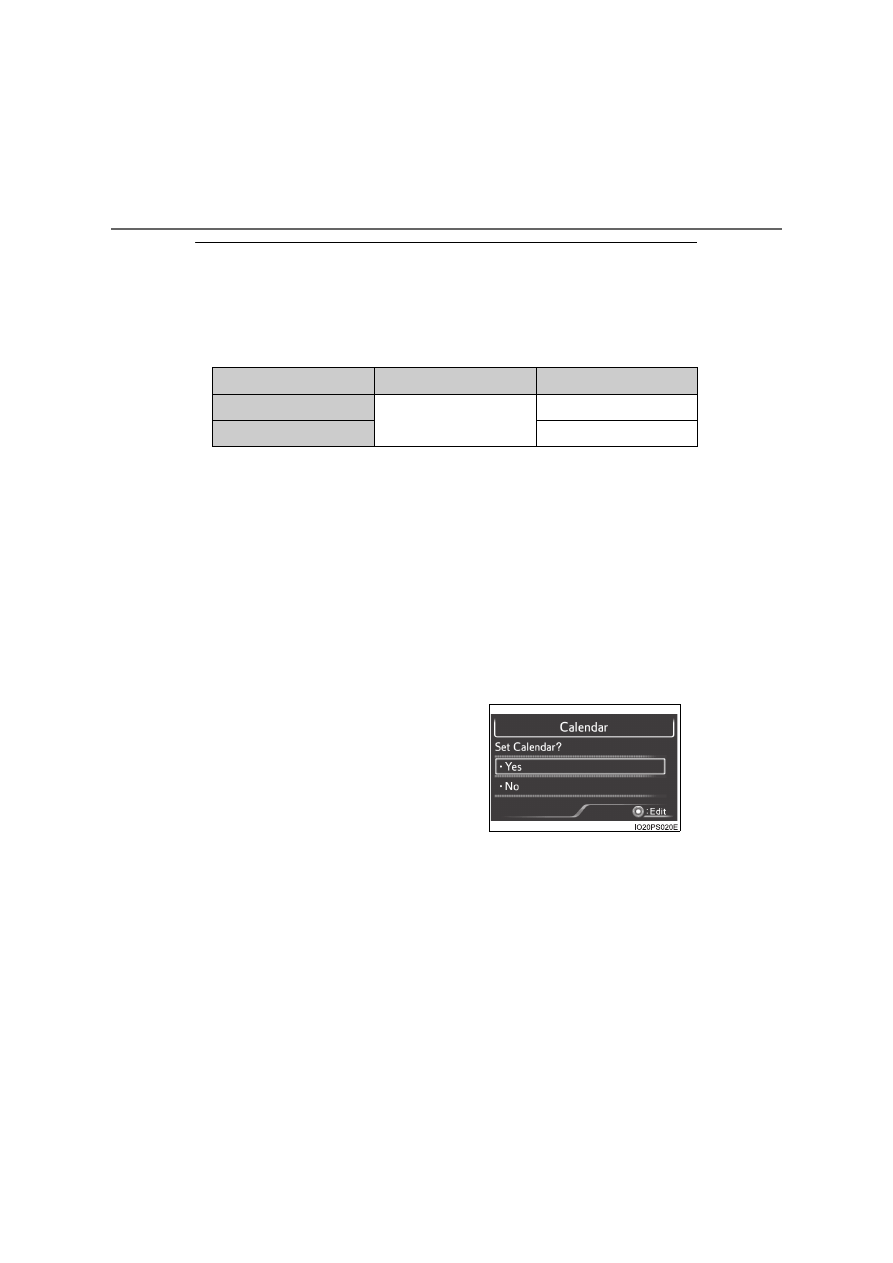

To adjust the time, perform operations on the

screen (



P. 147)

of the multi-information display.

■

Adjusting the time

Press

of the meter control switches on the steering

wheel and select

Press

of the meter control switches and select

Press

to display the cursor.

Press

of the

meter control switches to
adjust the cursor position,

and then press

change the setting.

When the 12-hour display is
selected, “12H” is displayed,
and when the 24-hour display is
selected, “24H” is displayed.
When adjusting minutes, operation automatically starts from 00 sec-
onds.
After changing the settings, press

to return to the previous screen.

Clock adjustment

107

2. Instrument cluster

rum

ent cl

ust
e

■

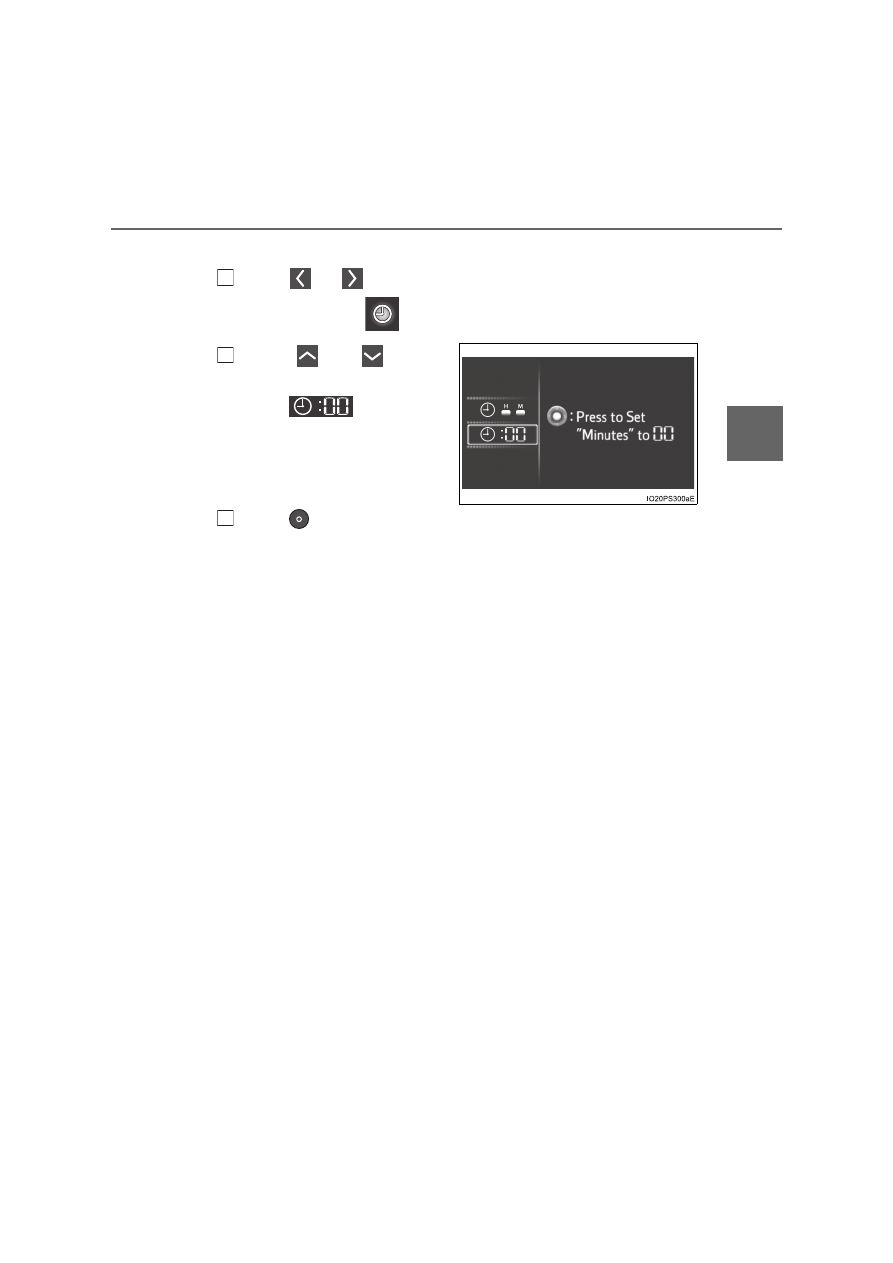

Resetting the minutes display

Press

of the meter control switches on the steering

wheel and select

Press

of the

meter control switches and

select .

Press .

The minutes display switches to “00”.

: e.g. 1:00 to 1:29



1:00

1:30 to 1:59



2:00

108

2. Instrument cluster

■

The meters and display illuminate when

The power switch is in ON mode.

■

Adjusting the instrument cluster brightness (



P. 102)

●

The brightness levels that can be selected differ depending on whether the
tail lights are on and surrounding brightness levels, as shown in the table
below.

: 22 levels of the brightness are displayed on the setting screen. However,

the brightness setting will be the brightest when other than 1st level (the
darkest) is selected. If other than 1st or 22nd level is selected, when the
tail lights are turned on in a dark place, the instrument cluster brightness
setting will be the selected level.

●

If the taillights are illuminated in a dark environment, the instrument cluster
light dims. However, when the brightness of the instrument cluster is set to
minimum or maximum (1st or 22nd level of the instrument cluster bright-
ness), even if the taillights are illuminated, the instrument cluster light will
not dim.

■

When disconnecting and reconnecting 12-volt battery terminals

The settings of the clock will be reset.

■

Calendar settings

●

Until the calendar settings are set, the check screen is displayed every time
the power switch is turned to ON mode.

●

After the calendar information is set, it can be changed in the “Meter Custo-
mize” settings. (



P. 156)

The tail lights are off

The tail lights are on

In a bright place

2 levels

In a dark place

22 levels

If calendar recording is interrupted due to
replacement of the 12-volt battery or 12-
volt battery discharge, etc., when the
power switch is turned to ON mode after
maintenance, the calendar settings check
screen is automatically displayed on the
multi-information display.

●

If date information is not set, the fuel
consumption record cannot be stored
correctly. When the calendar settings
check screen is displayed, make sure to
always set the settings. (



P. 153)

109

2. Instrument cluster

rum

ent cl

ust
e

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Pop-up display

Some functions, such as the driving mode select switch and air conditioning
system, are operation-linked and display pop-up screens on the multi-infor-
mation display. If the pop-up screens of these functions are not desired, they
can be turned off in the “Meter Customize” settings. (



P. 156)

WARNING

■

To prevent an accident

■

Caution for use while driving

For safety, avoid operating the meter control switch while driving as much
as possible, and do not look continuously at the multi-information display
while driving. Stop the vehicle and operate the meter control switch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.

NOTICE

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

Do not place anything or attach a sticker
in front of the instrument cluster. The item
may obscure or obstruct the display, or
could reflect off the display, possibly
causing an accident.

110

2. Instrument cluster

Warning lights and indicators

The warning lights and indicators inform the driver of the status
of the vehicle’s various systems.
For the purpose of explanation, the following illustration dis-
plays all indicators and warning lights illuminated.

Content .. 4 5 6 7 ..
