8-2. Steps to take in an emergency

hen
trou

e ari

Vehicles without Jack handle: Assembling the wheel nut wrench
(used with jack handle).

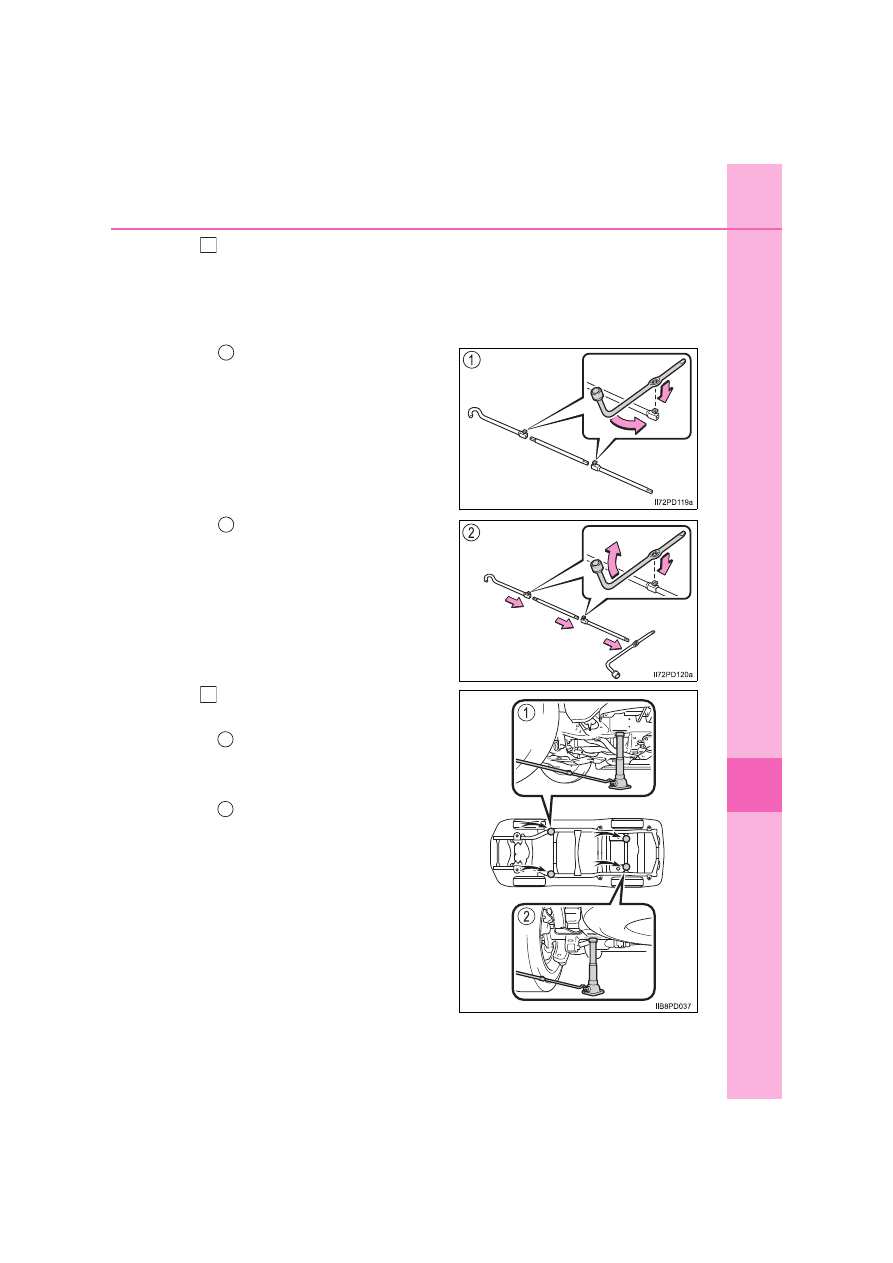

Remove the wheel nut wrench, jack handle extension bar and jack
handle bar from the tool box and assemble by following these
steps.

Loosen the bolt using a
wheel nut wrench.

Assemble the jack handle
bar, jack handle extension
bar and wheel nut wrench
and tighten the bolts.

Check that the bolts are firmly
tightened.

Position the jack at the jack
points as shown.

Front
Under the chassis frame side
rail
Rear
Under the rear axle housing

708

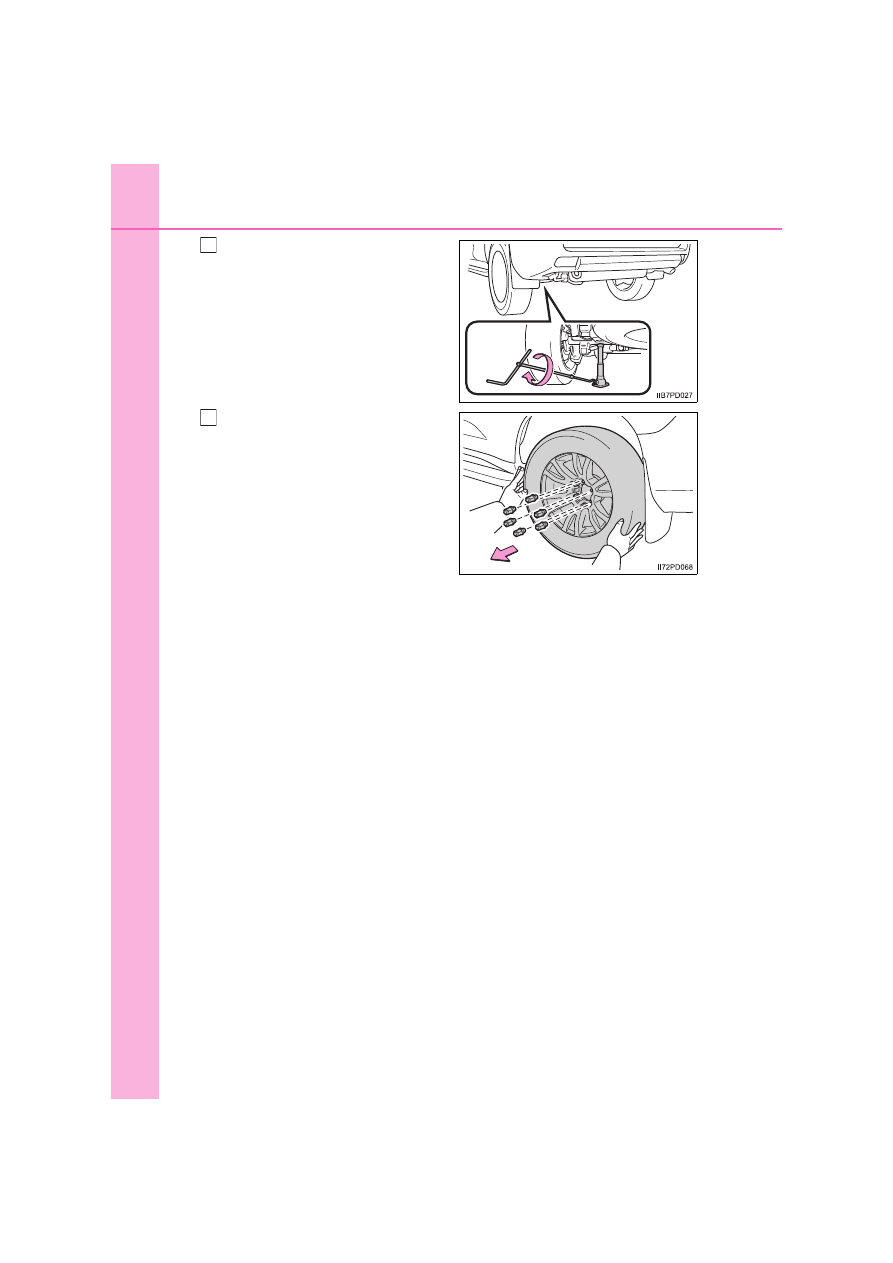

8-2. Steps to take in an emergency

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and
the tire.

When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.

709

8-2. Steps to take in an emergency

hen
trou

e ari

WARNING

■

Replacing a flat tire

●

Observe the following precautions.
Failure to do so may result in serious injury:
• Vehicles with under floor mounted spare tire: Lower the spare tire com-

pletely to the ground before removing it from under the vehicle.

• Do not try to remove the wheel ornament by hand. Take due care in

handling the ornament to avoid unexpected personal injury.

• Do not touch the disc wheels or the area around the brakes immediately

after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.

●

Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 112 N•m

(11.4 kgf•m, 83 ft•lbf) steel wheels, 103 N•m (10.5 kgf•m, 76 ft•lbf) alu-
minum wheels, as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen and
the wheel may fall off, which could lead to an accident causing death or
serious injury.

• Do not attach a heavily damaged wheel ornament, as it may fly off the

wheel while the vehicle is moving.

• If there are any cracks or deformations in the bolt screws, nut threads or

bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

• When installing a tire, only use wheel nuts that have been specifically

designed for that wheel.

• When installing the wheel nuts, be sure to install them with the tapered

ends facing inward.

710

8-2. Steps to take in an emergency

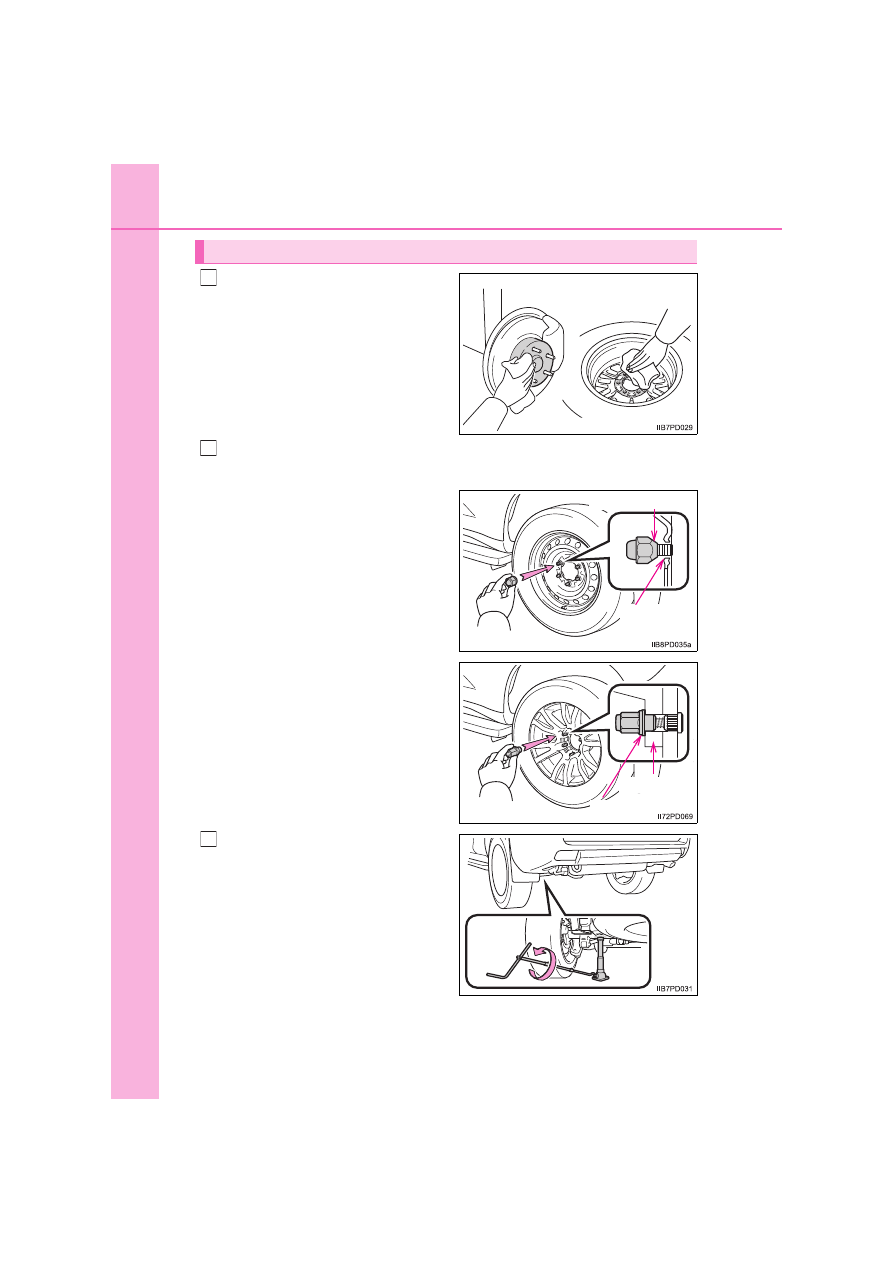

Remove any dirt or foreign mat-
ter from the wheel contact sur-
face.

If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is in
motion, and the tire to come off.

Install the spare tire and loosely tighten each nut by hand to
approximately the same amount.

When replacing a steel wheel
with a steel wheel, tighten the
wheel nuts until the tapered
portion comes into loose con-
tact with the disc wheel seat.

When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.

Lower the vehicle.

Installing the spare tire

Tapered portion

Disc wheel

seat

Washer

Disc wheel

711

8-2. Steps to take in an emergency

hen
trou

e ari

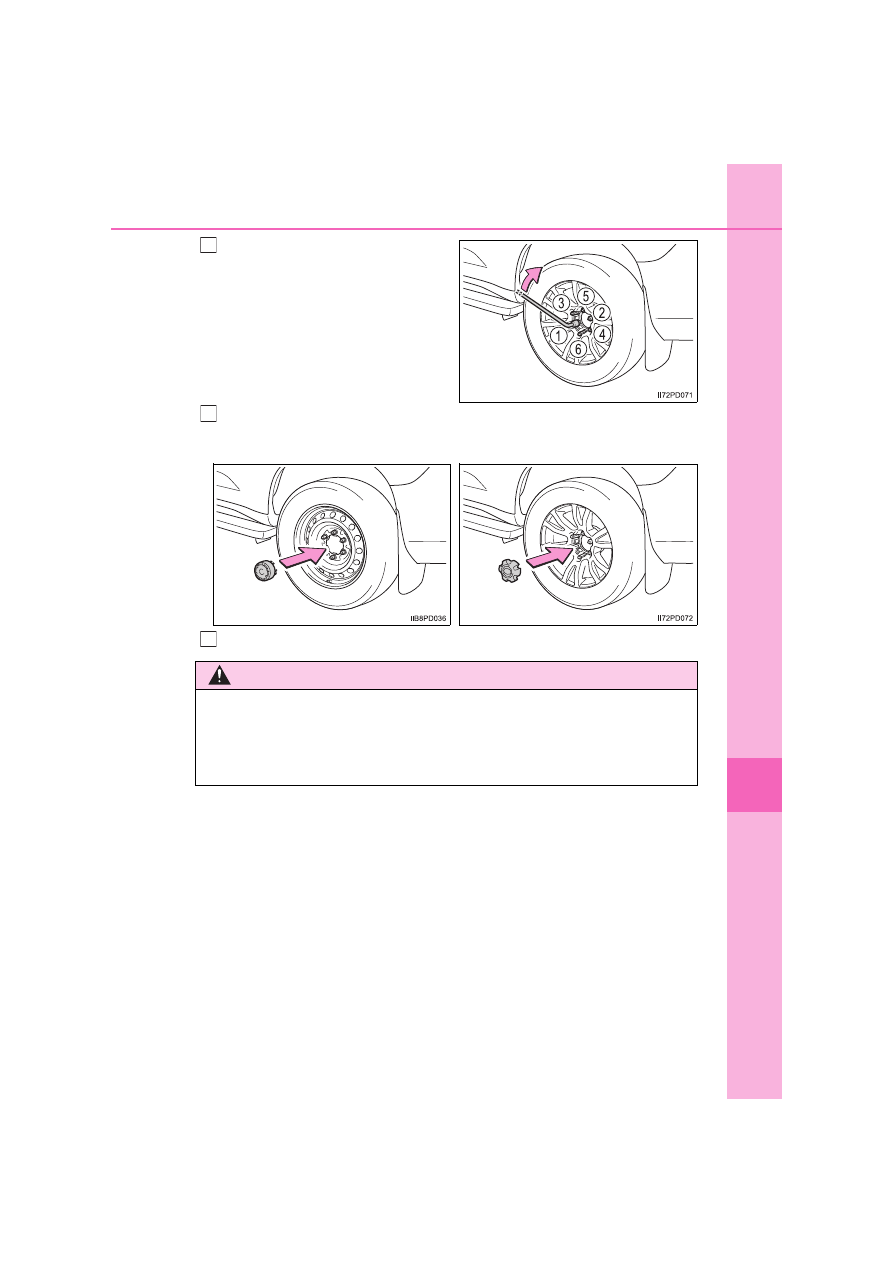

Firmly tighten each nut two or
three times in the order shown
in the illustration.

Tightening torque

Steel wheels:
112 N•m (11.4 kgf•m, 83 ft•lbf)
Aluminum wheels:
103 N•m (10.5 kgf•m, 76 ft•lbf)

Reinstall the wheel ornament.

Stow the flat tire, tools and jack securely, and replace all covers.



Steel wheels



Aluminum wheels

WARNING

■

Stowing the flat tire

Failure to follow steps listed under stowing the tire may result in damage to
the spare tire carrier and loss of the tire, which could result in death or seri-
ous injury.

712

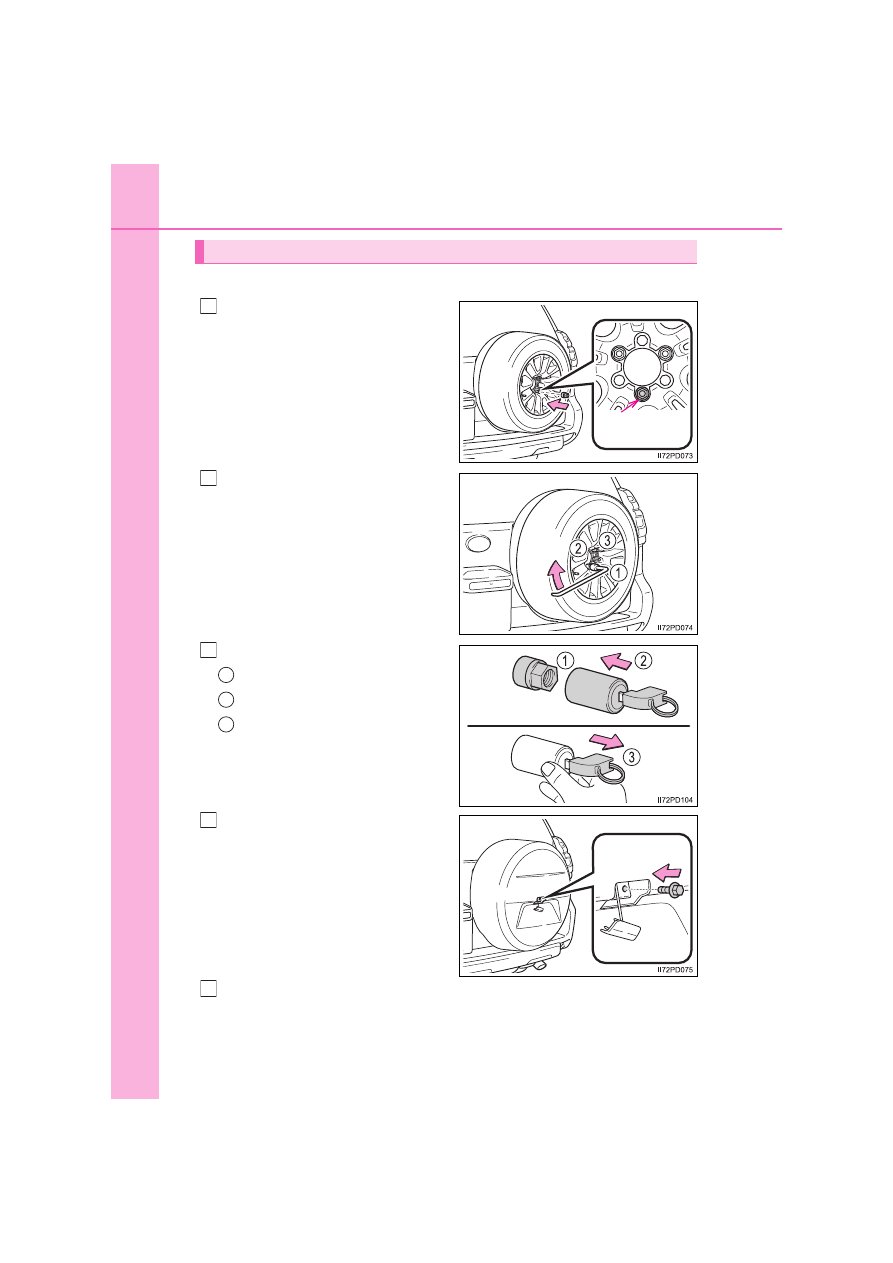

8-2. Steps to take in an emergency



Vehicles with back door mounted spare tire

Install the tire and loosely
tighten each nut by hand to
approximately the same
amount.

Firmly tighten each nut two or
three times in the order shown
in the illustration.

Tightening torque:

60 N•m (6.0 kgf•m, 44 ft•lbf)
Tighten the spare tire lock nut first.

Lock the spare tire lock system

Spare tire lock nut.
Insert the key and cylinder.
Remove the key while hold-
ing the cylinder in place.

Check that the cylinder is locked
securely.

Vehicles with the spare tire
cover: Install the spare tire
cover in the reverse order of
removal.

Tightening torque:

14 N•m (1.4 kgf•m, 10 ft•lbf)

Stow the tools and jack securely, and replace all covers.

Stowing the flat/spare tire, jack and tools

Spare tire
lock nut

1
2
3

713

8-2. Steps to take in an emergency

hen
trou

e ari



Vehicles with under floor mounted spare tire

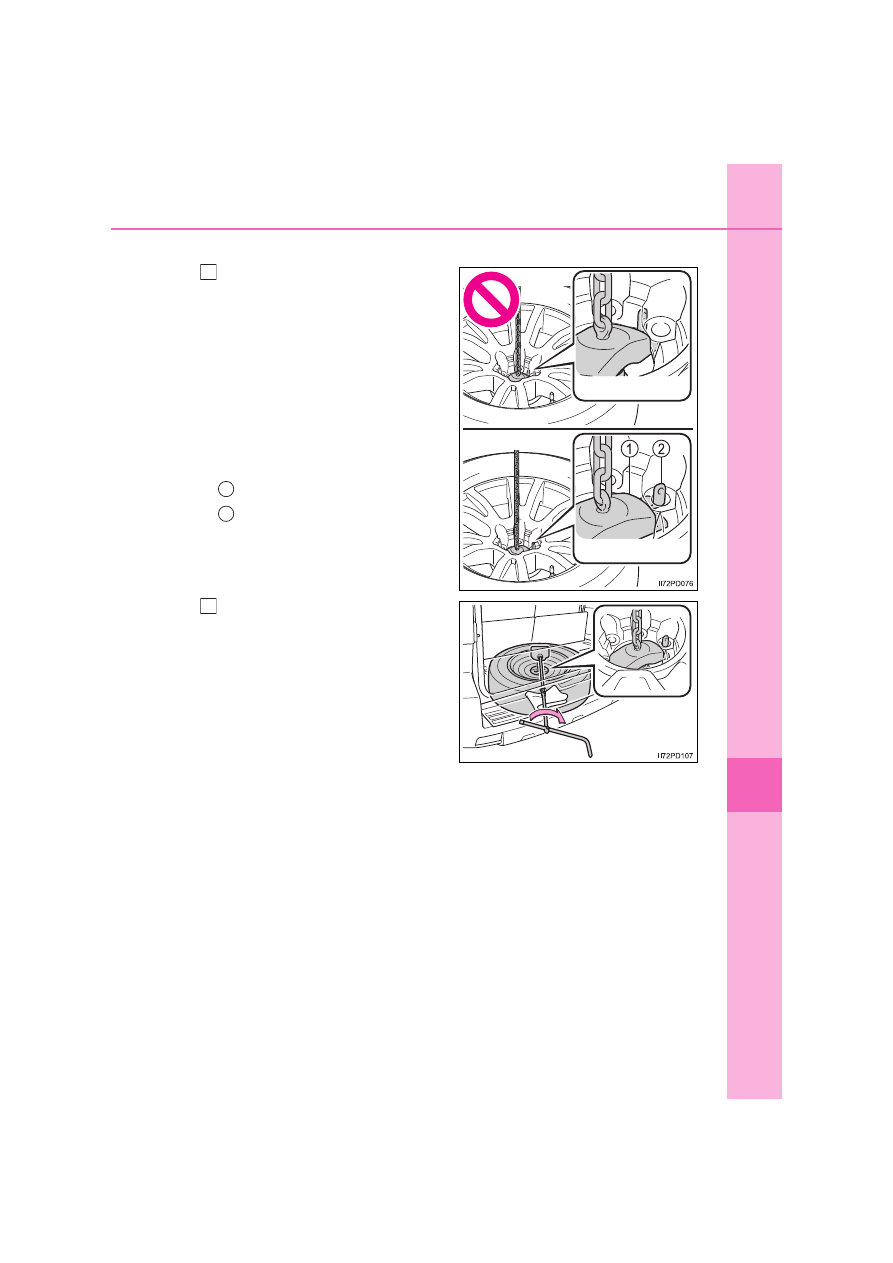

Lay down the tire with the valve
stem facing up and install the
holding bracket, inserting the
claw into the wheel lug nut hole.
Turn the jack handle extension
clockwise to take up slack in
the chain.

Then, check to ensure the claw is
in the wheel lug nut hole and the
holding bracket is centered in the
wheel hub.

Holding bracket
Claw

Raise the tire.



Vehicles without kinetic
dynamic suspension

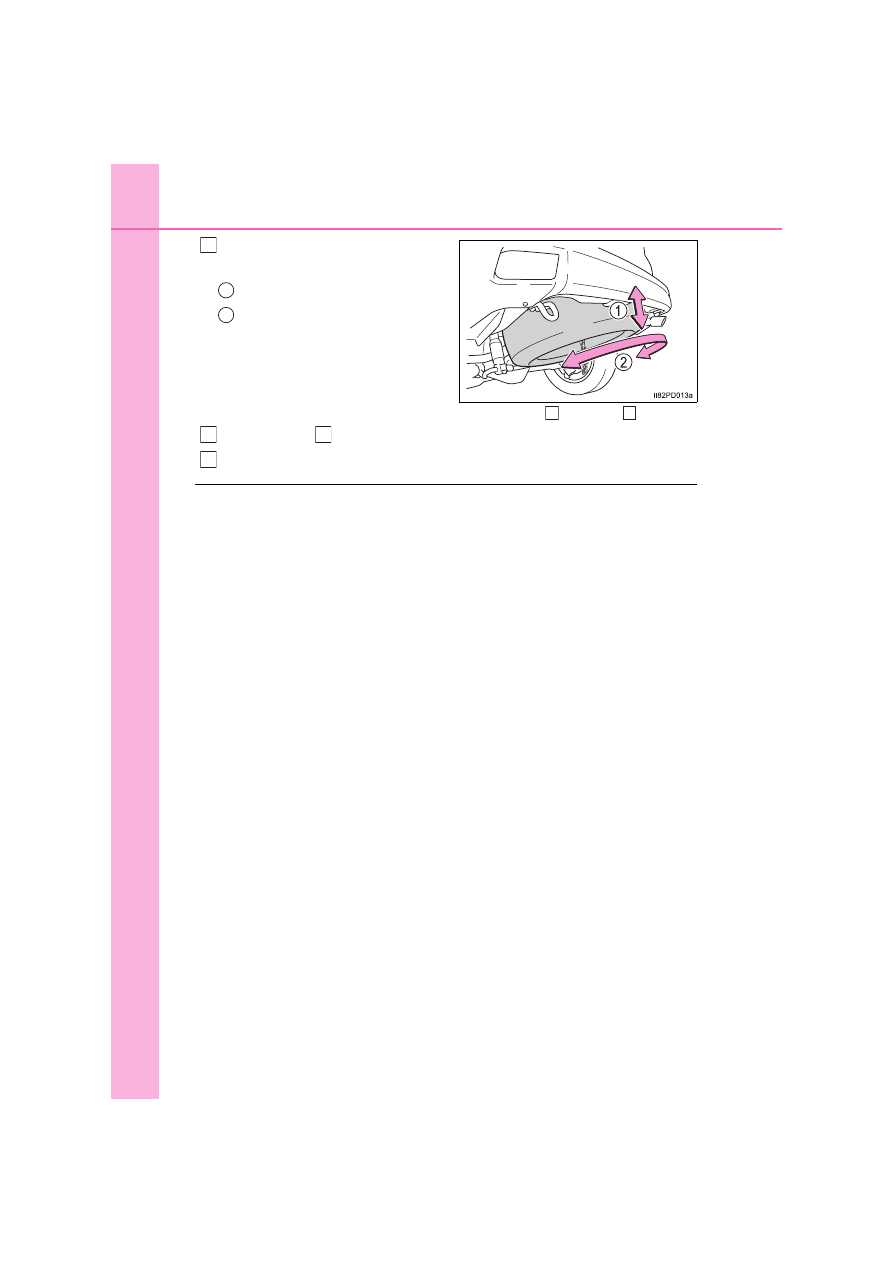

While raising, secure the tire, tak-
ing care that the tire goes straight
up without catching on any sur-
rounding part, to prevent it from fly-
ing forward during a collision or
sudden braking.



Vehicles with kinetic dynamic suspension

While raising, pull the tire towards the rear of the vehicle, taking care that
the tire goes up without catching on any surrounding part, to prevent it
from flying forward during a collision or sudden braking.
After the tire goes half way up, check that the suspended chain is able to
enter the tire hole, for proper storage.

Tightening torque:

46.6 N•m (4.8 kgf•m, 34.4 ft•lbf)

incorrect

correct

1
2

714

8-2. Steps to take in an emergency

Confirm that the tire is not loose
after tightening:

Push and pull the tire
Try rotating

Visually check to ensure the tire
is not hung on surrounding
parts.

If looseness or misassembly exists, repeat step and step .

Repeat step

, any time the tire is lowered or disturbed.

Stow the tools and jack securely, and replace all covers.

■

Vehicles with spare tire lock system (vehicles with back door mounted
spare tire)

Use the spare tire lock nut only for the spare tire carrier.

1
2

716

8-2. Steps to take in an emergency

WARNING

■

After using the tools and jack

Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.

NOTICE

■

When stowing the flat tire (vehicles with under floor mounted spare
tire)

Ensure that there is no object caught between the tire and the vehicle
underbody.

■

When assembling the jack handle extension

Tighten all the joints securely. Otherwise the extension may come off and it
may damage the paint or vehicle body.

717

8-2. Steps to take in an emergency

hen
trou

e ari

If the engine will not start

One of the following may be the cause of the problem:

●

There may not be sufficient fuel in the vehicle’s tank.
Gasoline engine: Refuel the vehicle.
Diesel engine:



P. 734

●

The engine may be flooded. (gasoline engine)
Try to restart the engine again following correct starting procedures.
(



P. 266, 270)

●

There may be a malfunction in the engine immobilizer system.
(



P. 111)

One of the following may be the cause of the problem:

●

The battery may be discharged. (



P. 723)

●

The battery terminal connections may be loose or corroded.

If the engine will not start even though correct starting proce-
dures are being followed (



P. 266, 270), consider each of the fol-

lowing points:

The engine will not start even when the starter motor operates
normally.

The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.

718

8-2. Steps to take in an emergency

The engine starting system may be malfunctioning due to an electrical
problem such as an open circuit or a blown fuse. However, an interim
measure is available to start the engine. (



P. 718)

One of the following may be the cause of the problem:

●

One or both of the battery terminals may be disconnected.

●

The battery may be discharged. (



P. 723)

●

Vehicles with a smart entry & start system: There may be a mal-
function in the steering lock system (if equipped).

Contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer if the problem cannot be repaired, or if repair procedures
are unknown.

When the engine does not start, the following steps can be used as an
interim measure to start the engine if the engine switch is functioning
normally.

Set the parking brake.
Put the shift lever in P (automatic transmission) or N (manual trans-
mission).
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while
depressing the brake pedal (automatic transmission) or brake and
clutch pedals (manual transmission) firmly.

Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.

The starter motor does not turn over (vehicles with a smart entry
& start system).

The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.

Emergency start function (vehicles with a smart entry & start
system)

719

8-2. Steps to take in an emergency

hen
trou

e ari

If the electronic key does not operate properly

(vehicles with a smart entry & start system)

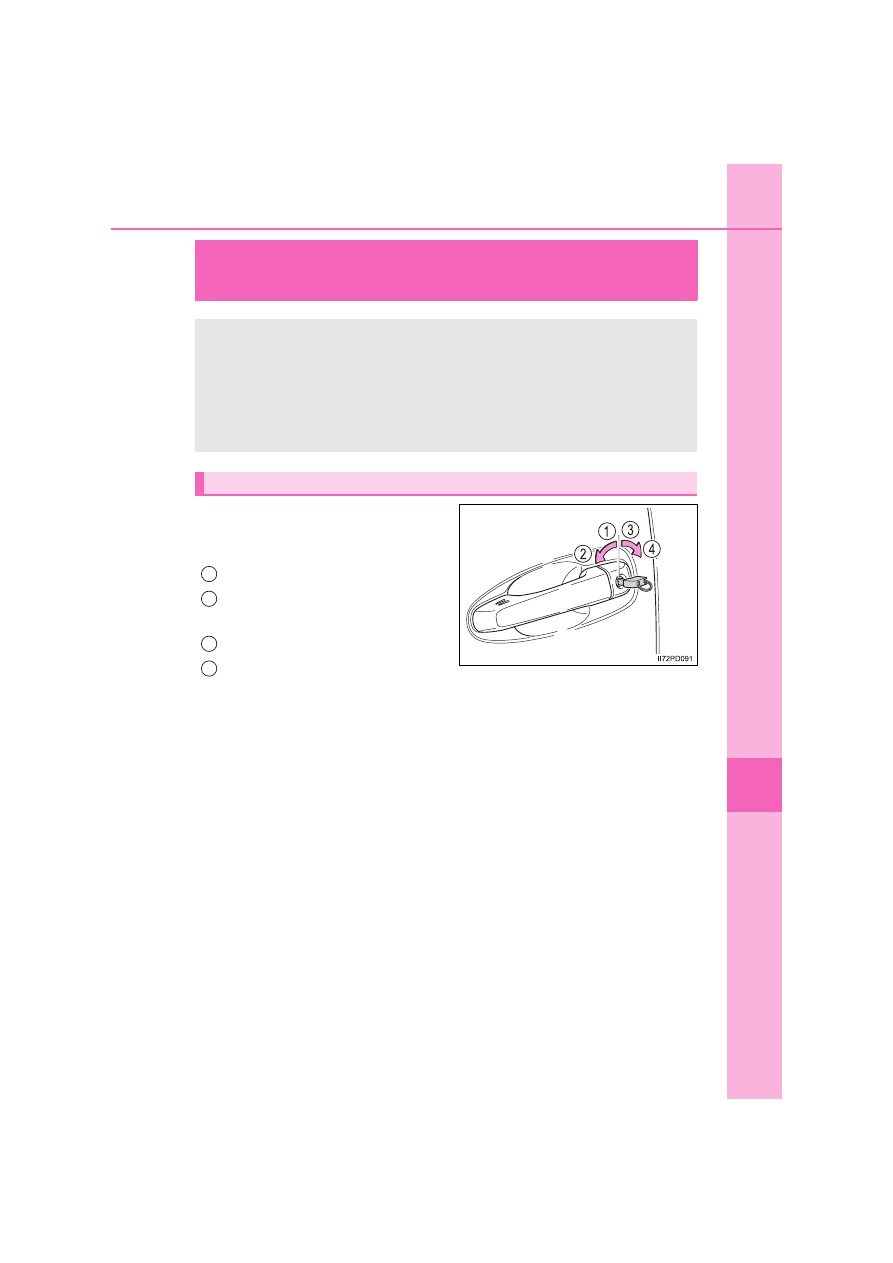

Use the mechanical key (



P. 160)

in order to perform the following
operations:

Locks all doors
Closes the windows and moon
roof

(turn and hold)

Unlocks all doors
Opens the windows and moon
roof

(turn and hold)

: These settings must be customized at any authorized Toyota retailer or

Toyota authorized repairer, or any reliable repairer.

If communication between the electronic key and vehicle is
interrupted (



P. 191) or the electronic key cannot be used

because the battery is depleted, the smart entry & start system
and wireless remote control cannot be used. In such cases, the
doors can be opened and the engine can be started by following
the procedure below.

Locking and unlocking the doors and key linked functions

1
2

3
4

720

8-2. Steps to take in an emergency



Automatic transmission
Ensure that the shift lever is in P and depress the brake pedal.

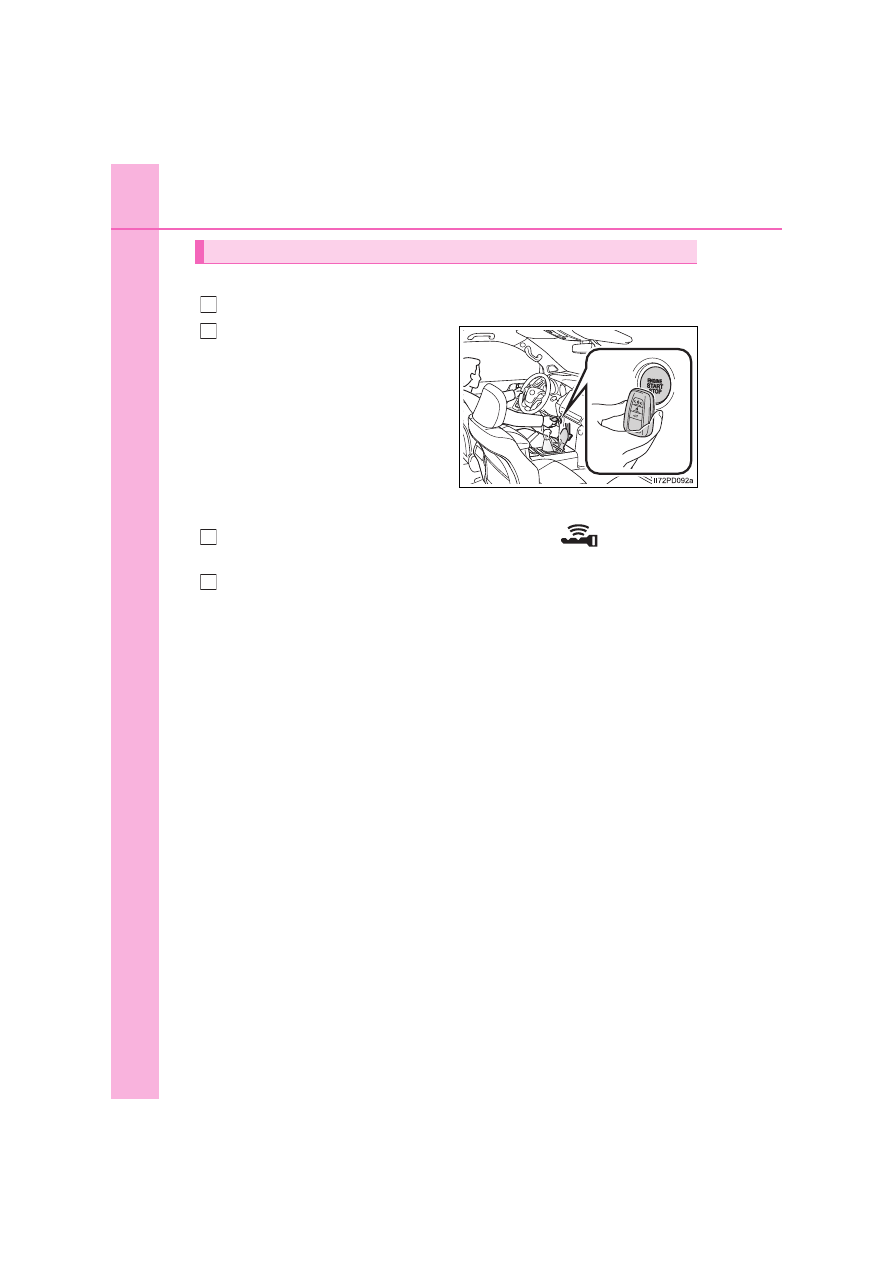

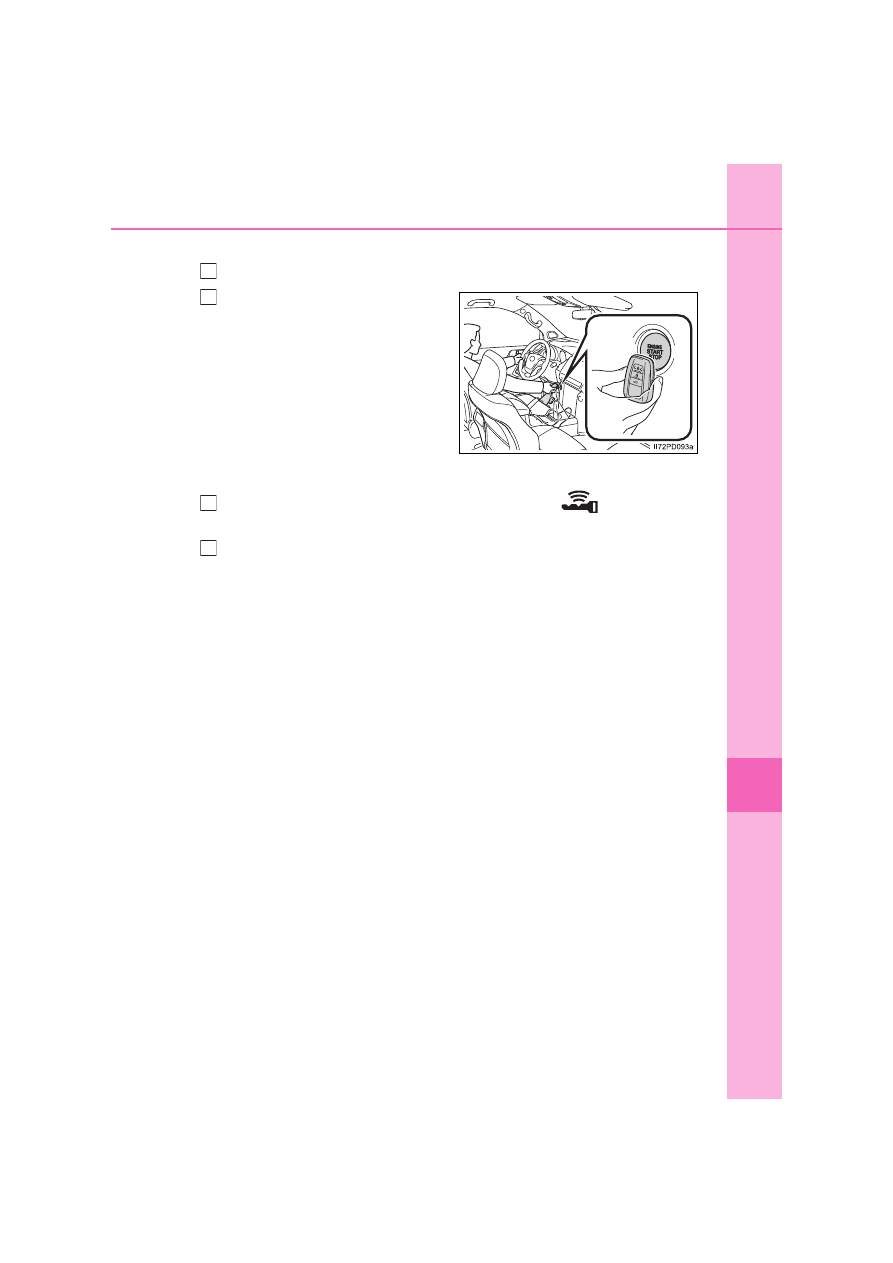

Touch the Toyota emblem side
of the electronic key to the
engine switch.

When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart entry & start sys-
tem is deactivated in customization
setting, the engine switch will turn
to ACCESSORY mode.

Firmly depress the brake pedal and check that

is shown on

the instrument cluster.
Press the engine switch shortly and firmly.

In the event that the engine switch still cannot be operated, contact
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

Starting the engine

721

8-2. Steps to take in an emergency

hen
trou

e ari



Manual transmission
Shift the shift lever to N and depress the clutch pedal.

Touch the Toyota emblem side
of the electronic key to the
engine switch.

Firmly depress the clutch pedal and check that

is shown on

the instrument cluster.
Press the engine switch shortly and firmly.

In the event that the engine switch still cannot be operated, contact
any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.

722

8-2. Steps to take in an emergency

■

Stopping the engine



Vehicles with an automatic transmission

Shift the shift lever to P and press the engine switch as you normally do when
stopping the engine.



Vehicles with a manual transmission

Shift the shift lever to N and press the engine switch as you normally do when
stopping the engine.

■

Replacing the key battery

As the above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery is depleted.
(



P. 619)

■

Alarm (if equipped)

Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. (



P. 114)

■

Changing engine switch modes



Vehicles with an automatic transmission

Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. (



P. 273)



Vehicles with a manual transmission

Release the clutch pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is
pressed. (



P. 273)

■

When the electronic key does not work properly

●

Make sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on.
(Customizable features:



P. 769)

●

Check if battery-saving mode is set. If it is set, cancel the function.
(



P. 190)

WARNING

■

When using the mechanical key and operating the power windows or
moon roof

Operate the power window or moon roof after checking to make sure that
there is no possibility of any passenger having any of their body parts
caught in the window or moon roof.
Also, do not allow children to operate the mechanical key. It is possible for
children and other passengers to get caught in the power window or moon
roof.

723

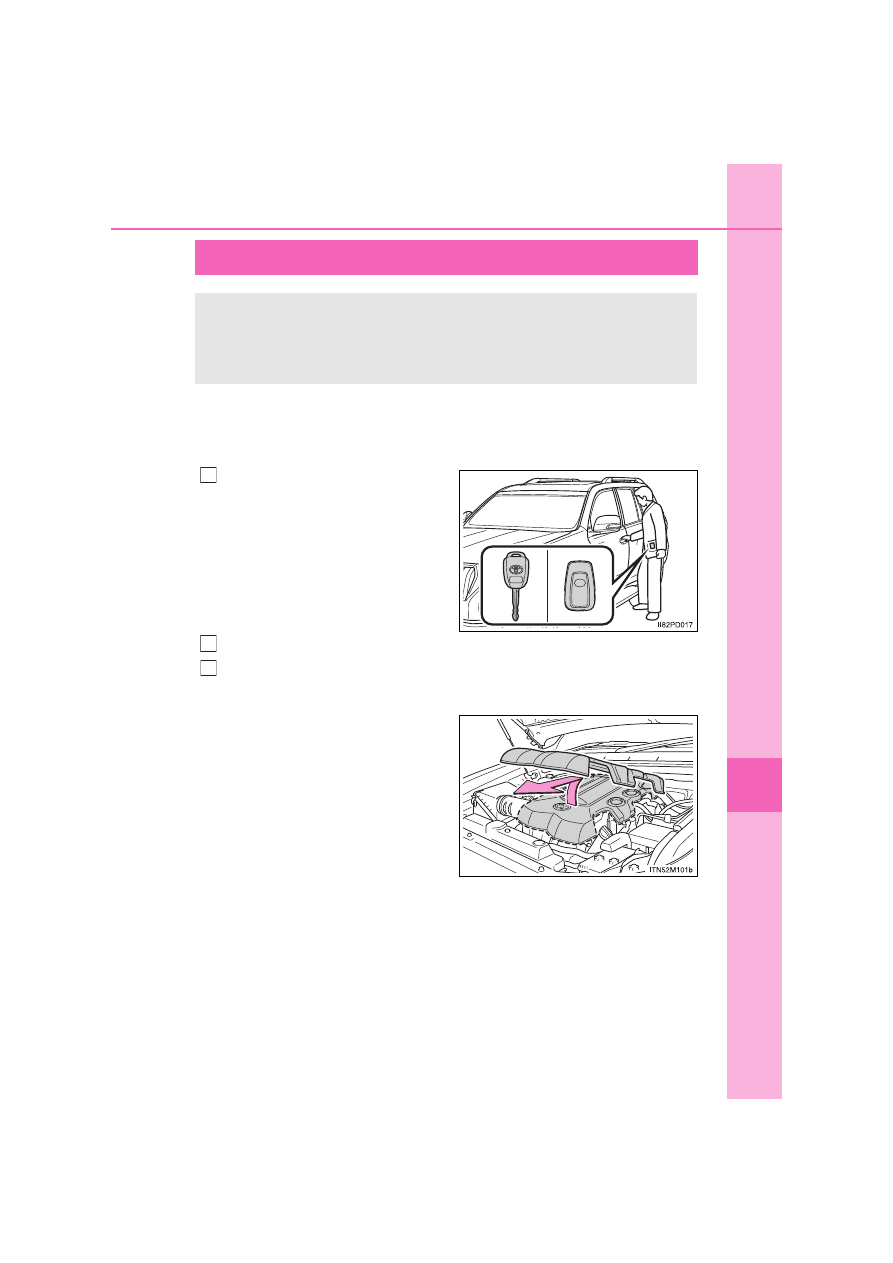

8-2. Steps to take in an emergency

hen
trou

e ari

If the vehicle battery is discharged

If you have a set of jumper (or booster) cables and a second vehicle
with a 12-volt battery, you can jump start your Toyota following the
steps below.

Confirm that the key is being
carried.

When connecting the jumper (or
booster) cables, depending on the
situation, the alarm may activate
and the doors may lock. (



P. 116)

Open the hood. (



P. 574)

Remove the engine cover.



Vehicles with 1GR-FE engine

Lift the edge of the cover to disen-
gage the fixed pins, and then pull
the cover towards you to remove it.

The following procedures may be used to start the engine if the
vehicle’s battery is discharged.
You can call any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

Content .. 42 43 44 45 ..
