7-2. Steps to take in an emergency

hen
trou

e ari



Type A

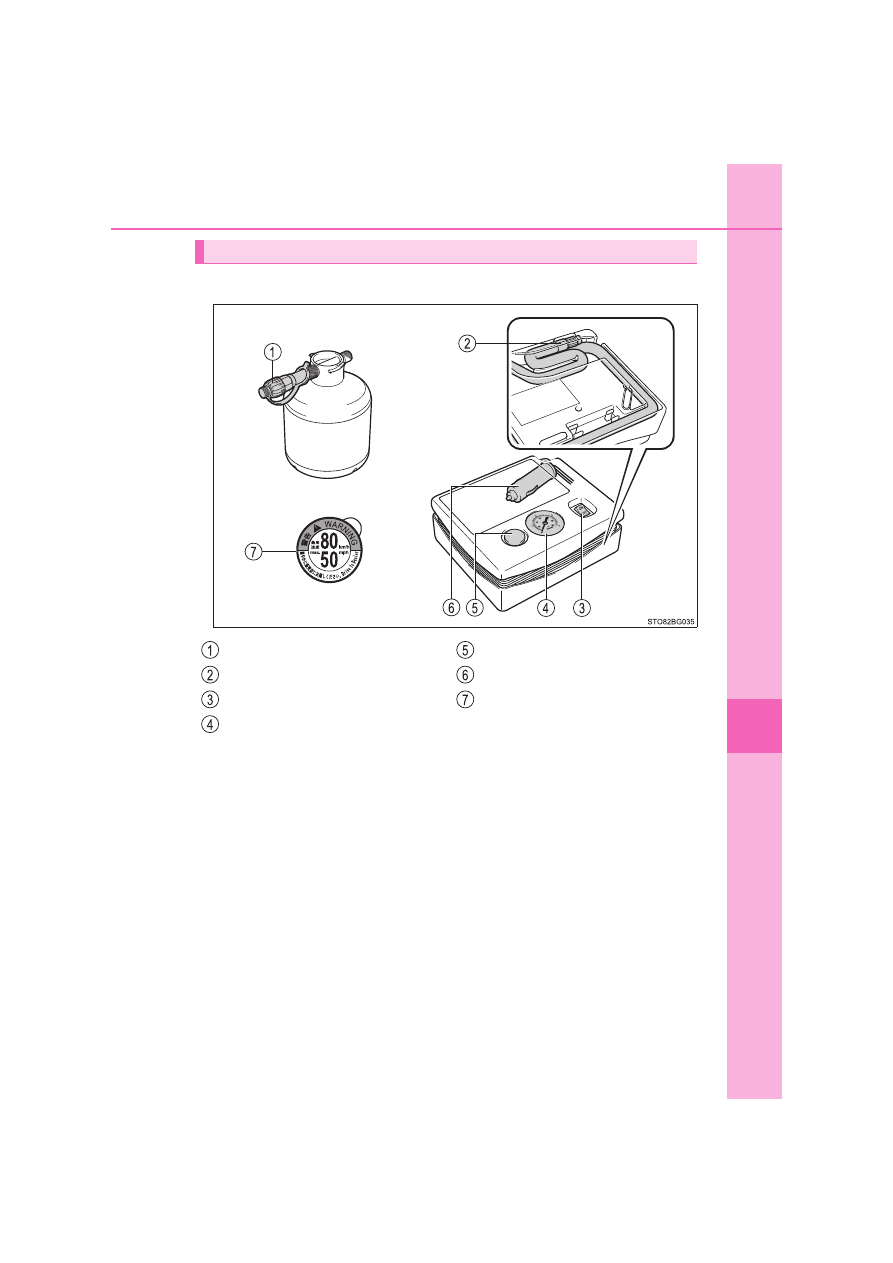

Emergency tire puncture repair kit components

Nozzle
Hose
Compressor switch
Air pressure gauge

Pressure release button
Power plug
Sticker

704

7-2. Steps to take in an emergency



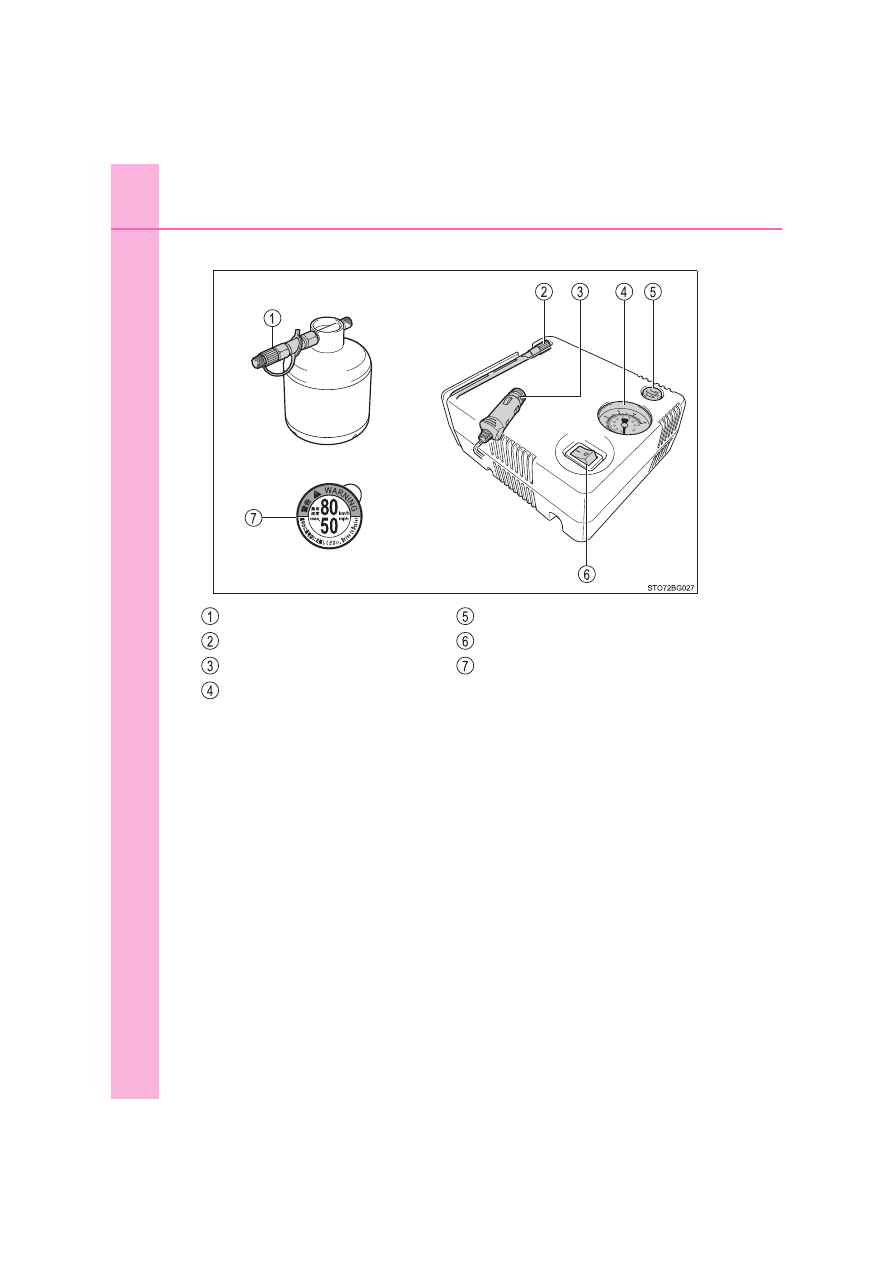

Type B

Nozzle
Hose
Power plug
Air pressure gauge

Pressure release button
Compressor switch
Sticker

705

7-2. Steps to take in an emergency

hen
trou

e ari

Remove the deck board. (



P. 565)

Take out the emergency tire puncture repair kit. (



P. 700)



Type A

Take out the repair kit.

When taking out the bottle from the original bag, do not tear or discard the
bag.

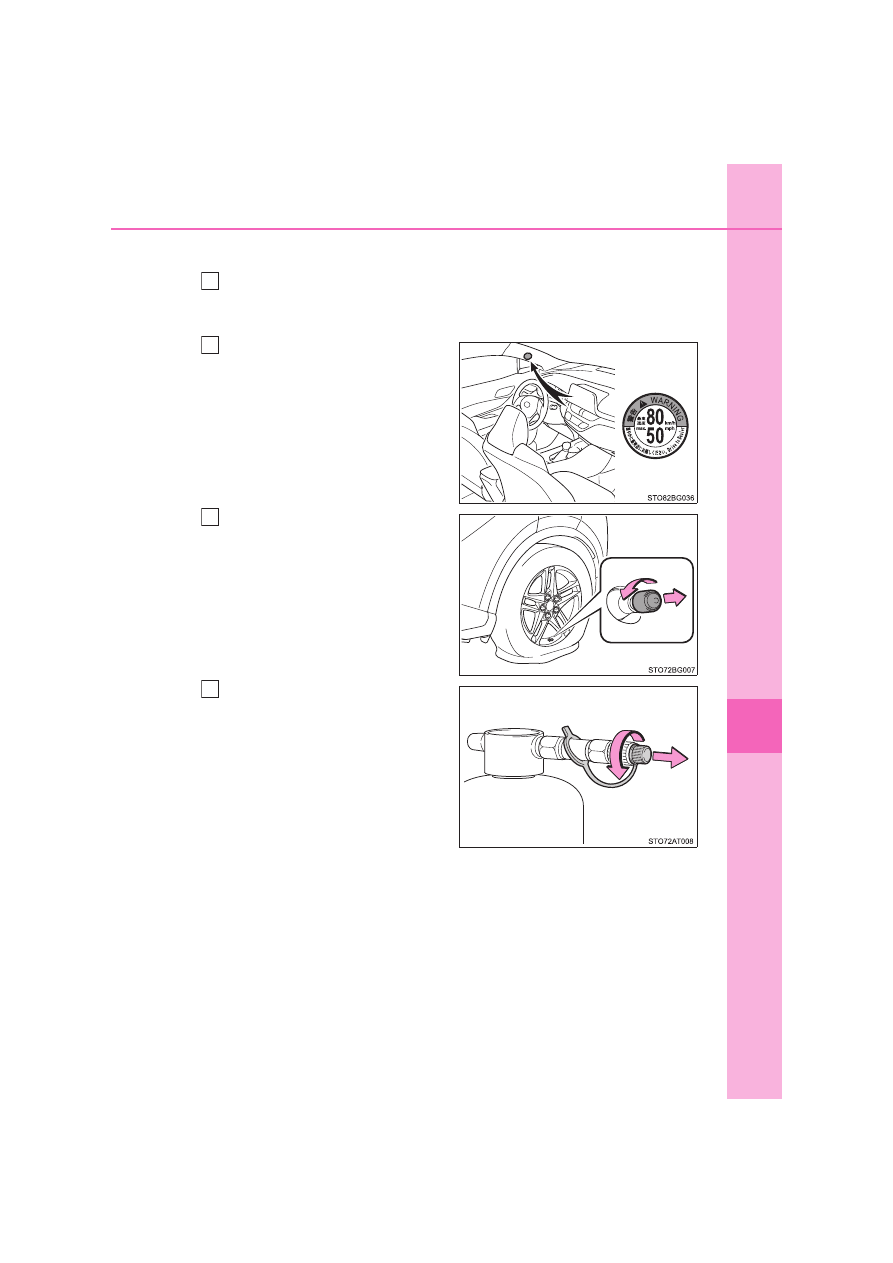

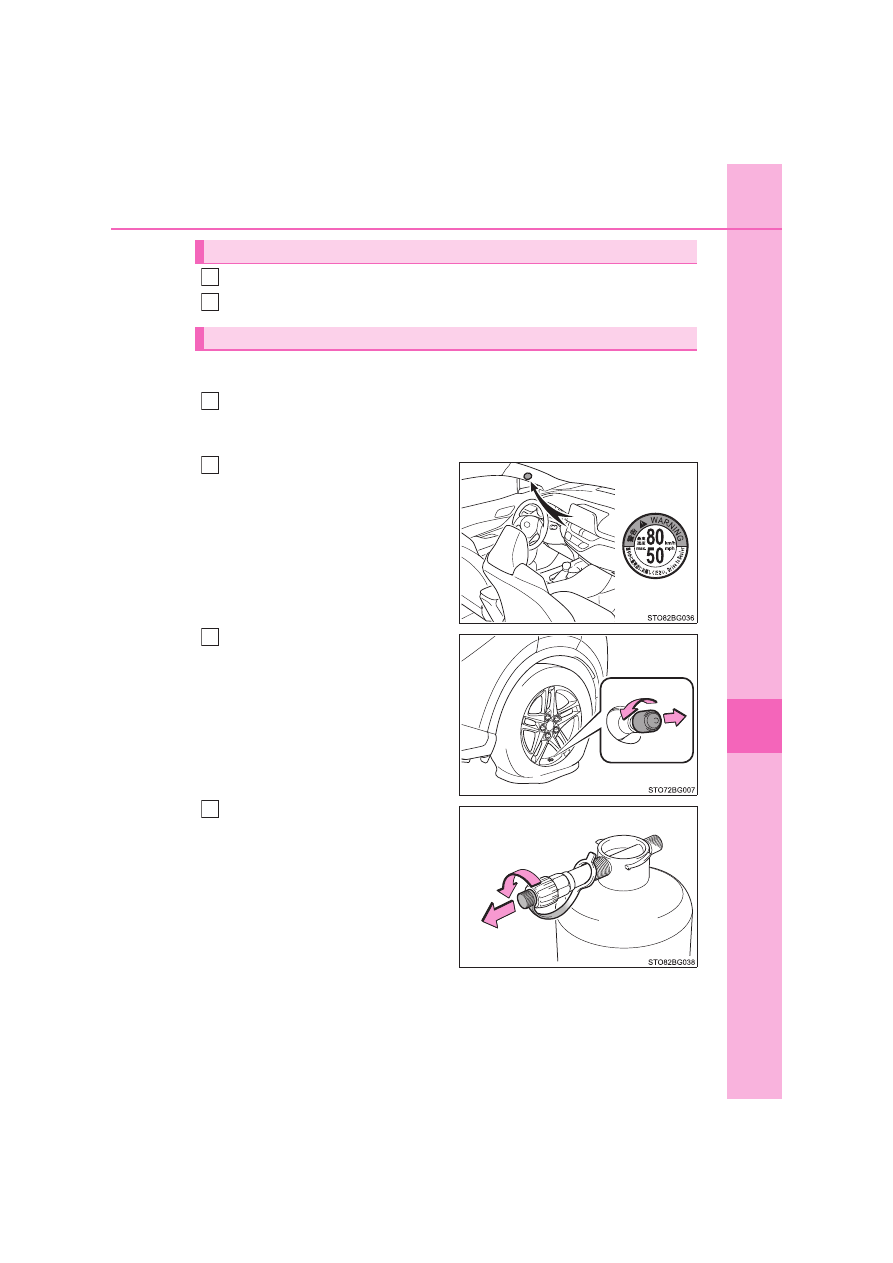

Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.

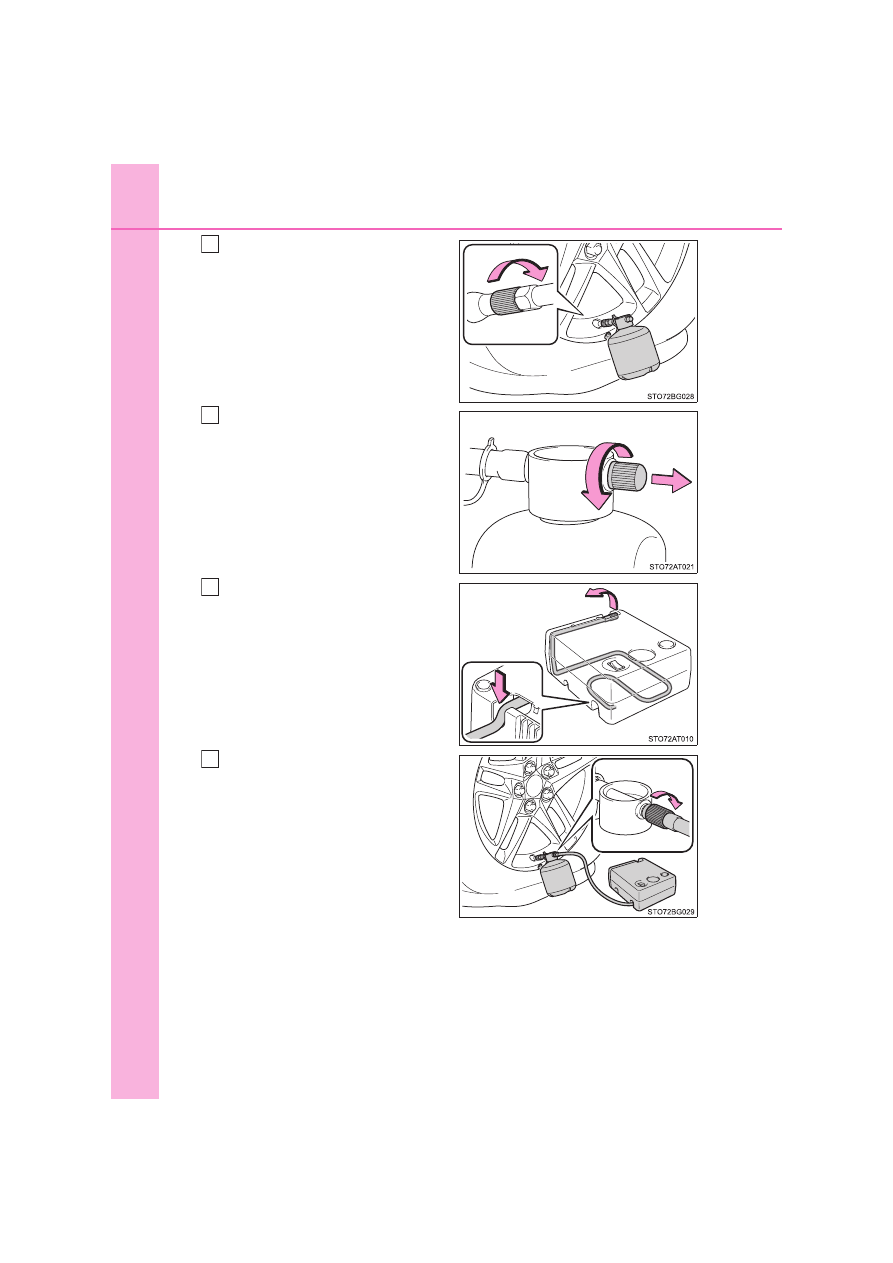

Remove the valve cap from the
valve of the punctured tire.

Remove the cap from the noz-
zle.

Taking out the emergency tire puncture repair kit

Emergency repair method

1
2

706

7-2. Steps to take in an emergency

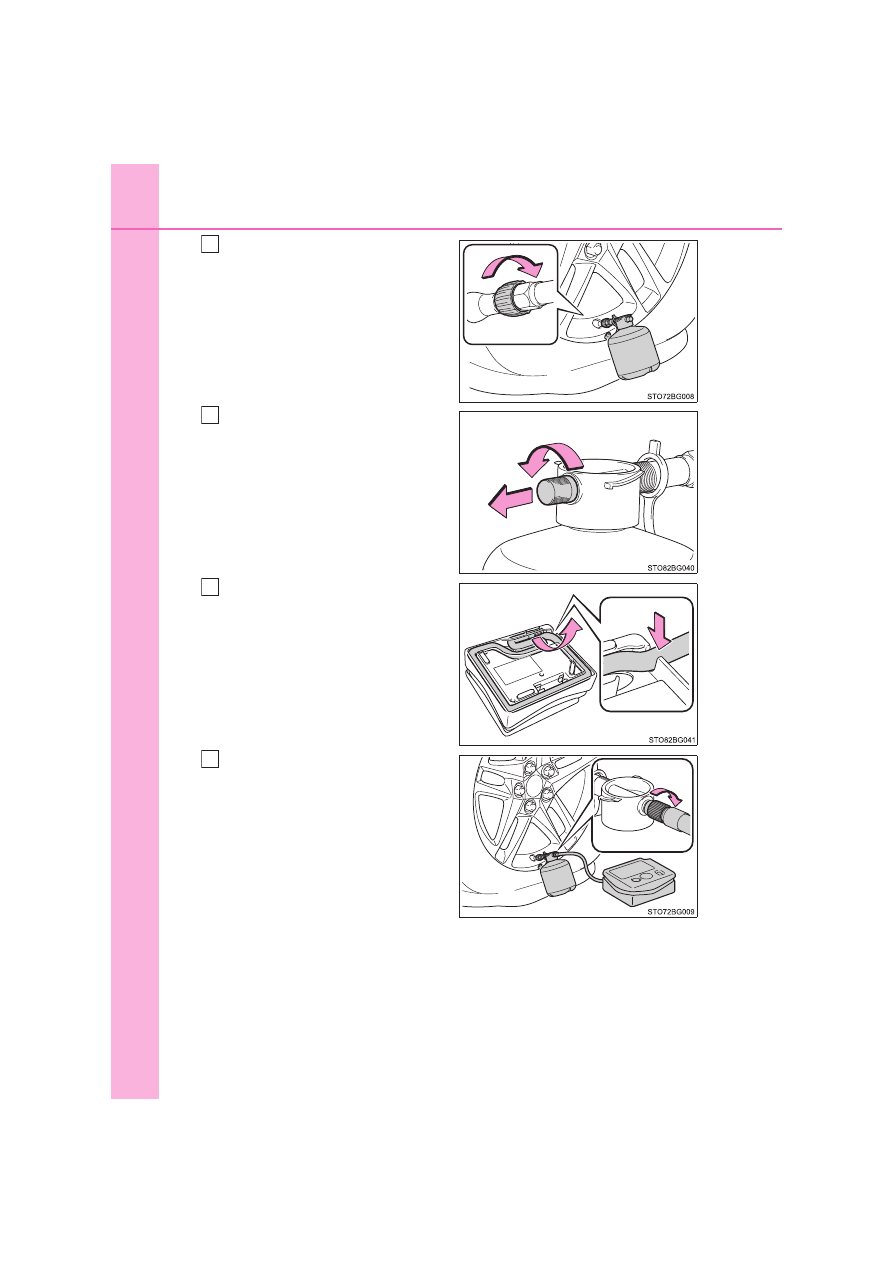

Connect the nozzle to the
valve.

Screw the end of the nozzle clock-
wise as far as possible.
The  bottle  should  hang  vertically
without  contacting  the  ground.  If
the bottle does not hang vertically,
move  the  vehicle  so  that  the  tire
valve is located properly.

Remove the cap from the bot-
tle.

Pull the hose out from the com-
pressor.

Connect the bottle to the com-
pressor.

Screw the end of the nozzle clock-
wise as far as possible.

707

7-2. Steps to take in an emergency

hen
trou

e ari

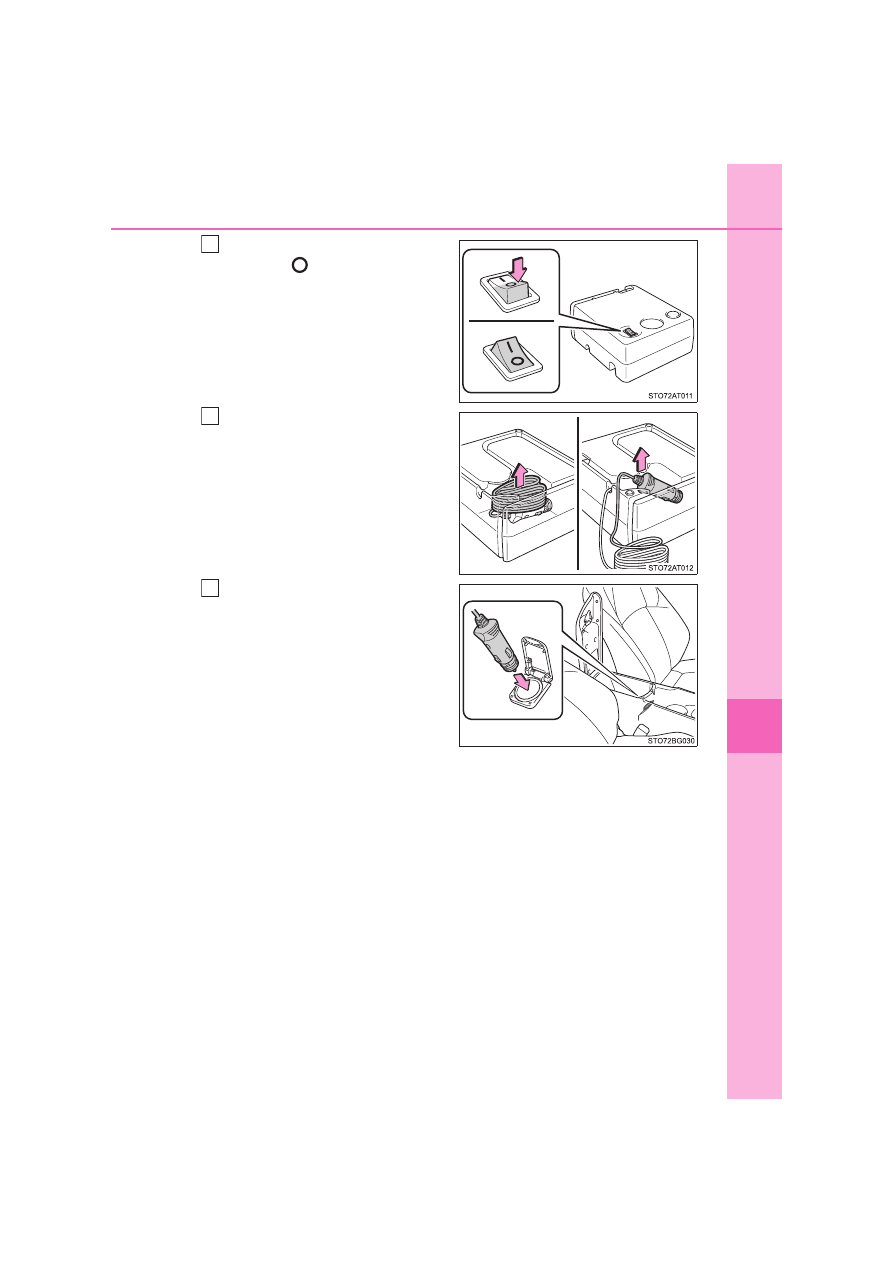

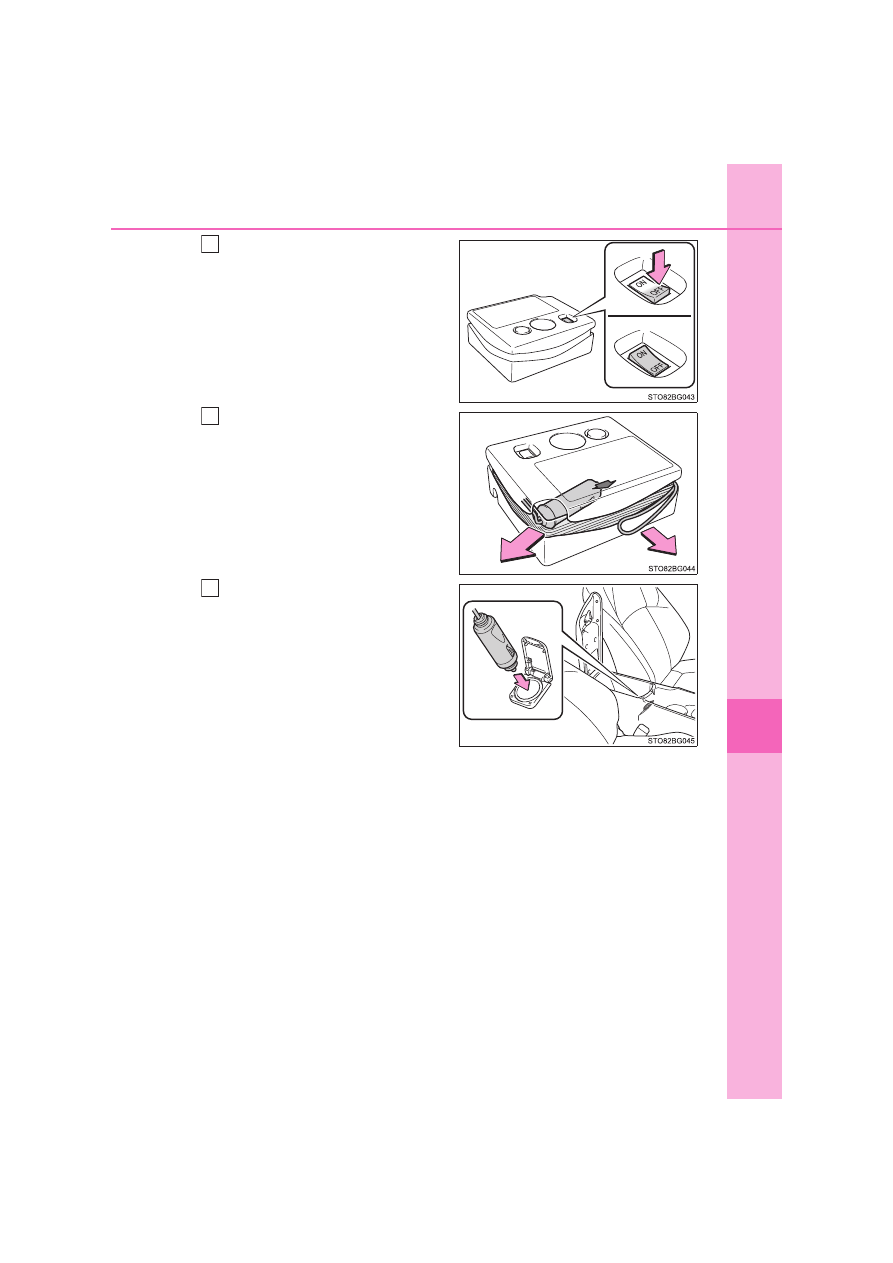

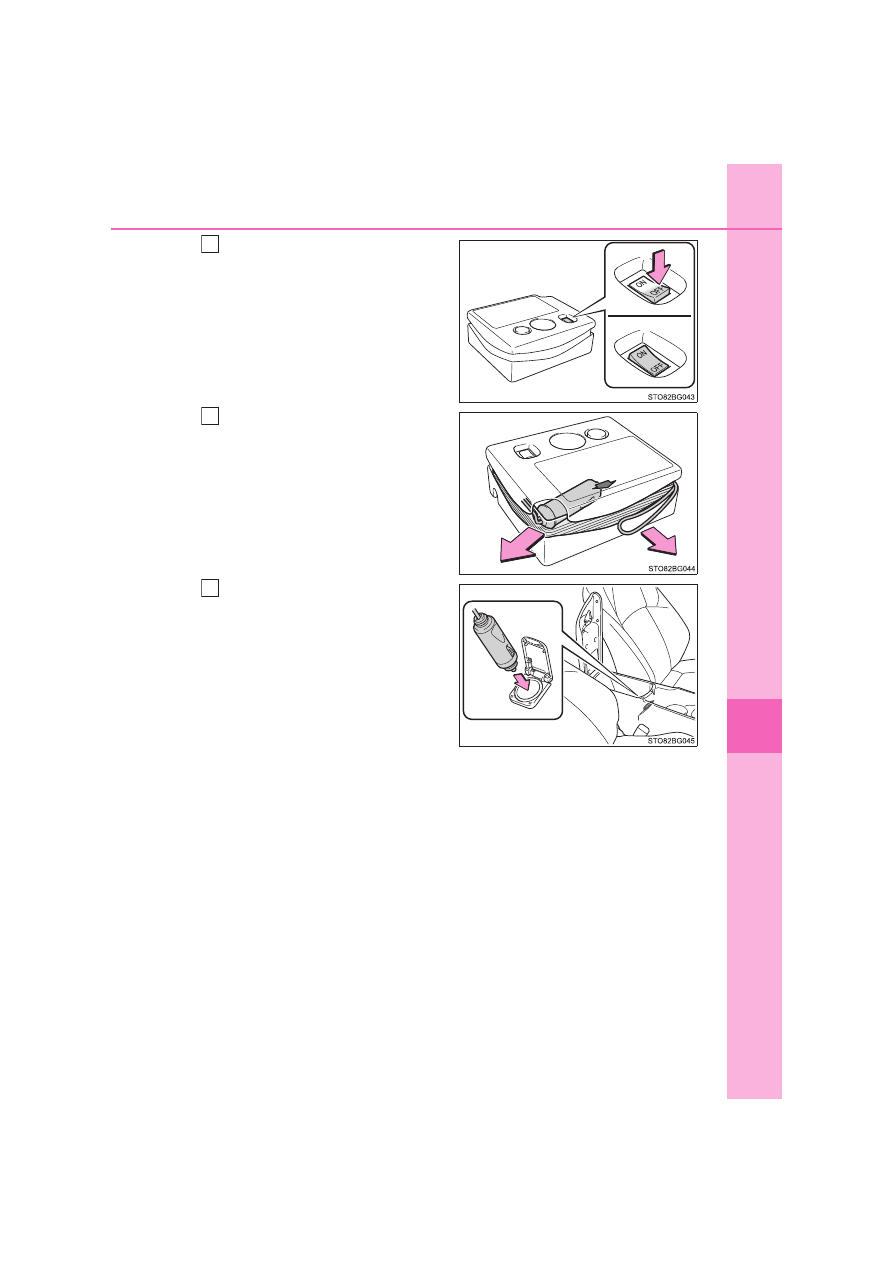

Make sure that the compressor
switch is off.

Remove the power plug from
the compressor.

Connect the power plug to the
power outlet socket. (



P. 574)

708

7-2. Steps to take in an emergency

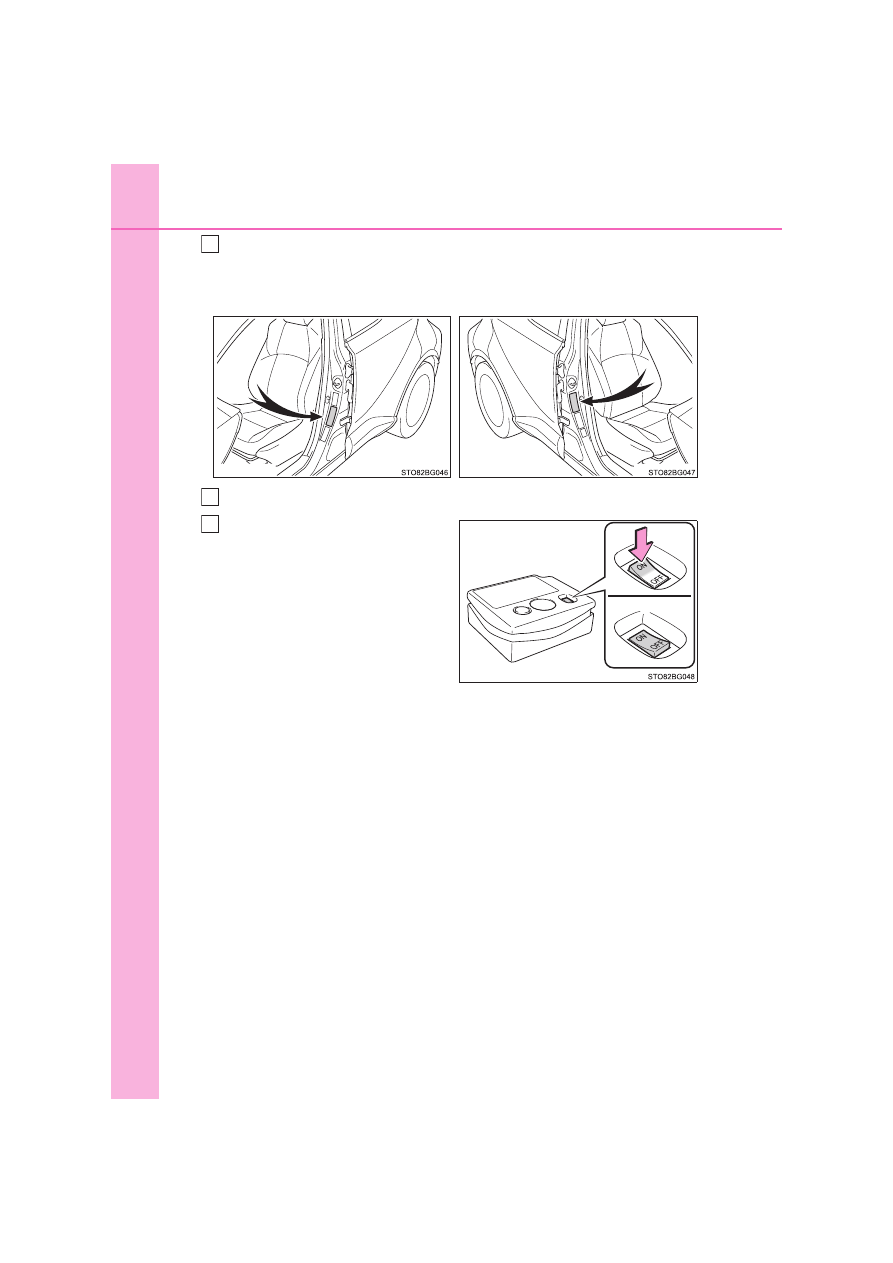

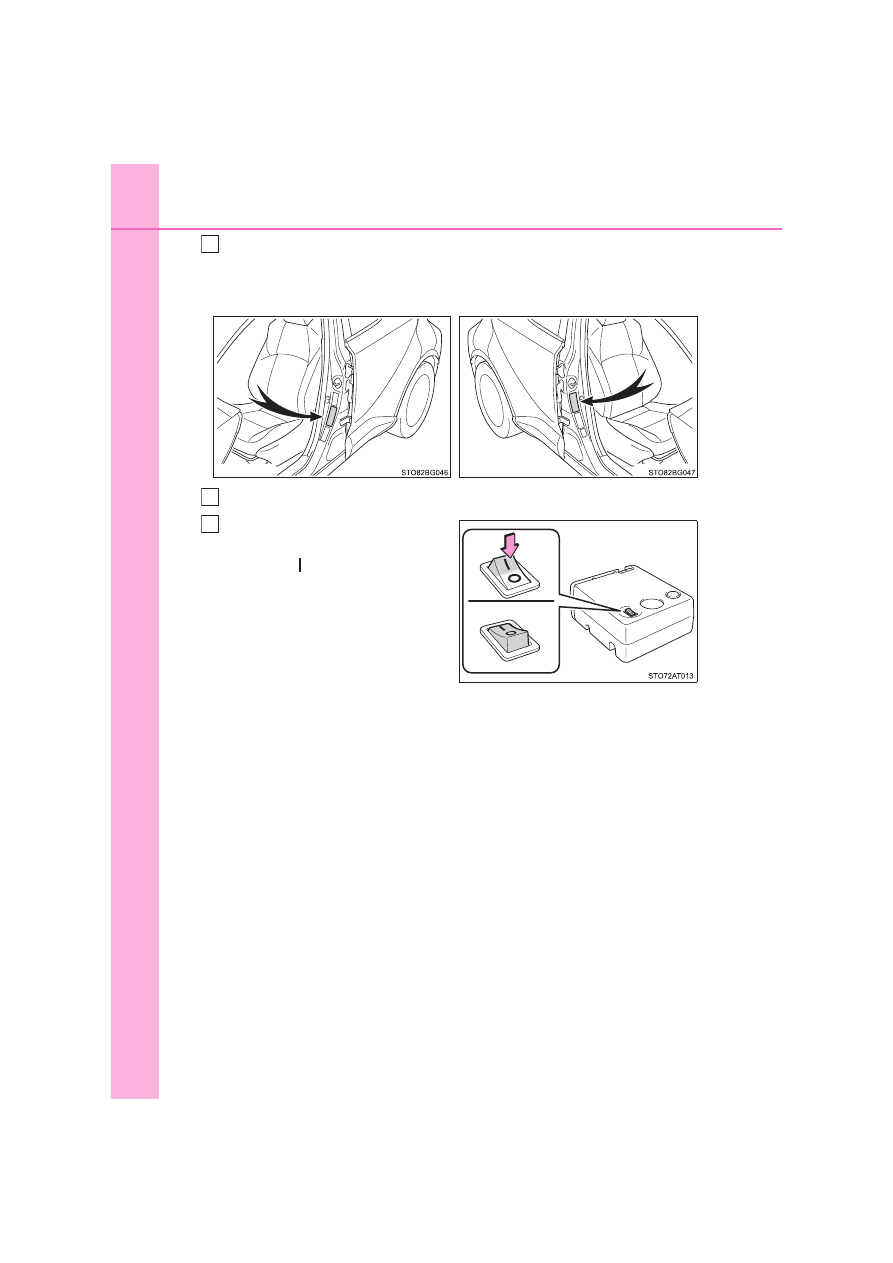

Check the specified tire inflation pressure.

Tire inflation pressure is specified on the label as shown. (



P. 774)

Start the hybrid system. (



P. 303)

To inject the sealant and inflate
the tire, turn the compressor
switch on.



Left-hand drive vehicles



Right-hand drive vehicles

13
14

709

7-2. Steps to take in an emergency

hen
trou

e ari

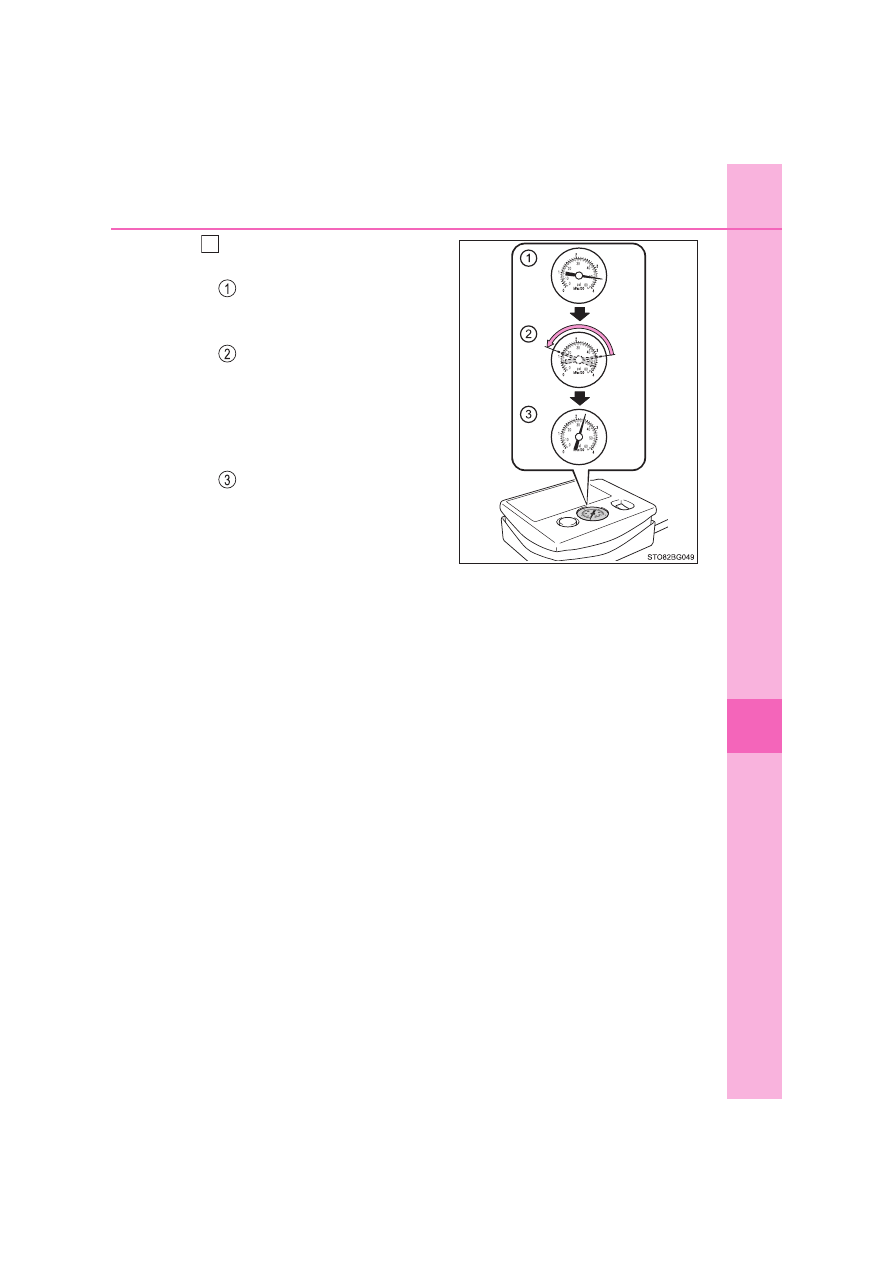

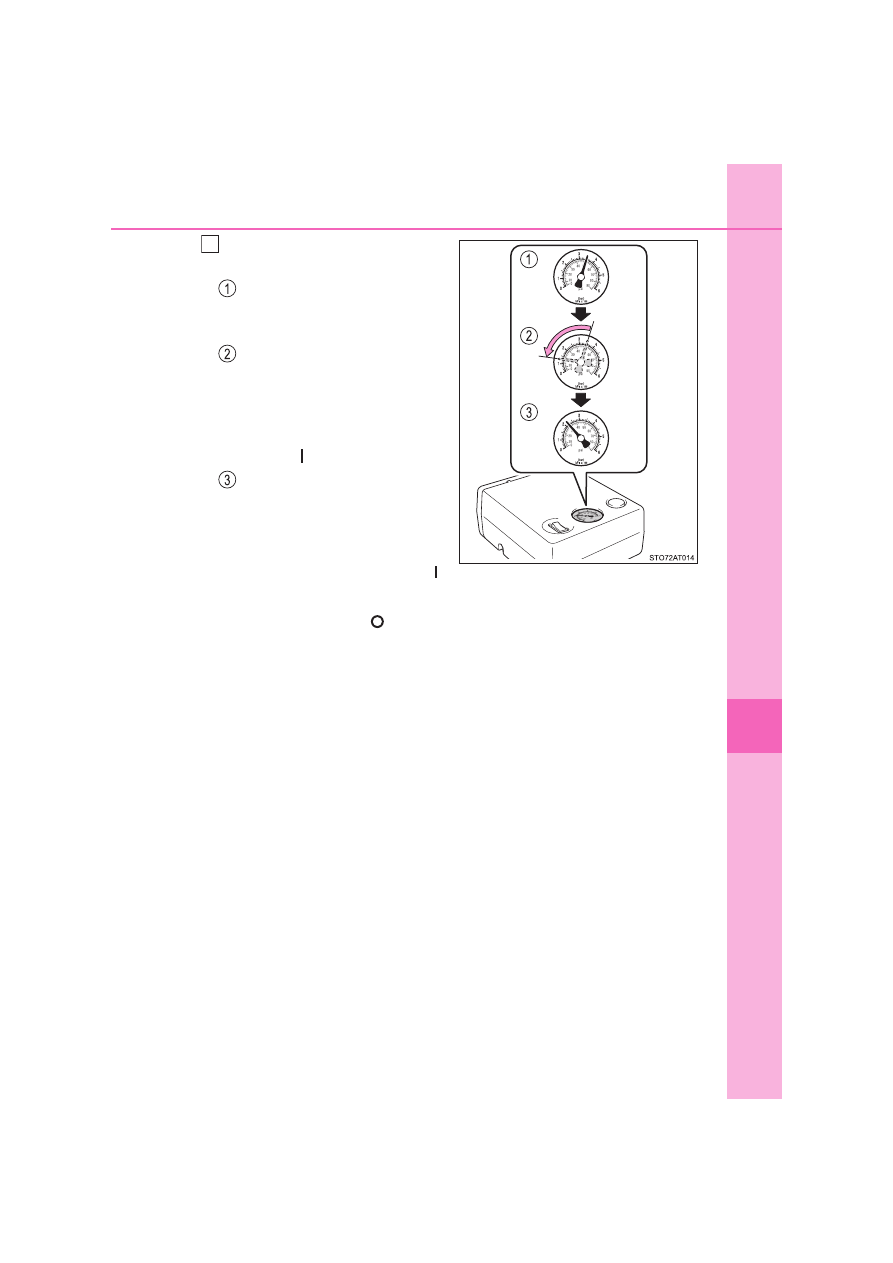

Inflate the tire until the specified
air pressure is reached.

The  sealant  will  be  injected
and  the  pressure  will  surge
and then gradually decrease.
The  air  pressure  gauge  will
display  the  actual  tire  infla-
tion pressure about 1 minute
(5  minutes  at  low  tempera-
ture)  after  the  switch  is
turned on.
Inflate the tire until the speci-
fied air pressure.

• If the tire inflation pressure is

still  lower  than  the  specified
point after inflation for 35 min-
utes  with  the  switch  on,  the
tire  is  too  damaged  to  be
repaired.  Turn  the  compres-
sor switch off and contact any
authorized  Toyota  retailer  or
Toyota authorized repairer, or
any reliable repairer.

• If the tire inflation pressure exceeds the specified air pressure, let out

some air to adjust the tire inflation pressure. (



P. 721, 774)

710

7-2. Steps to take in an emergency

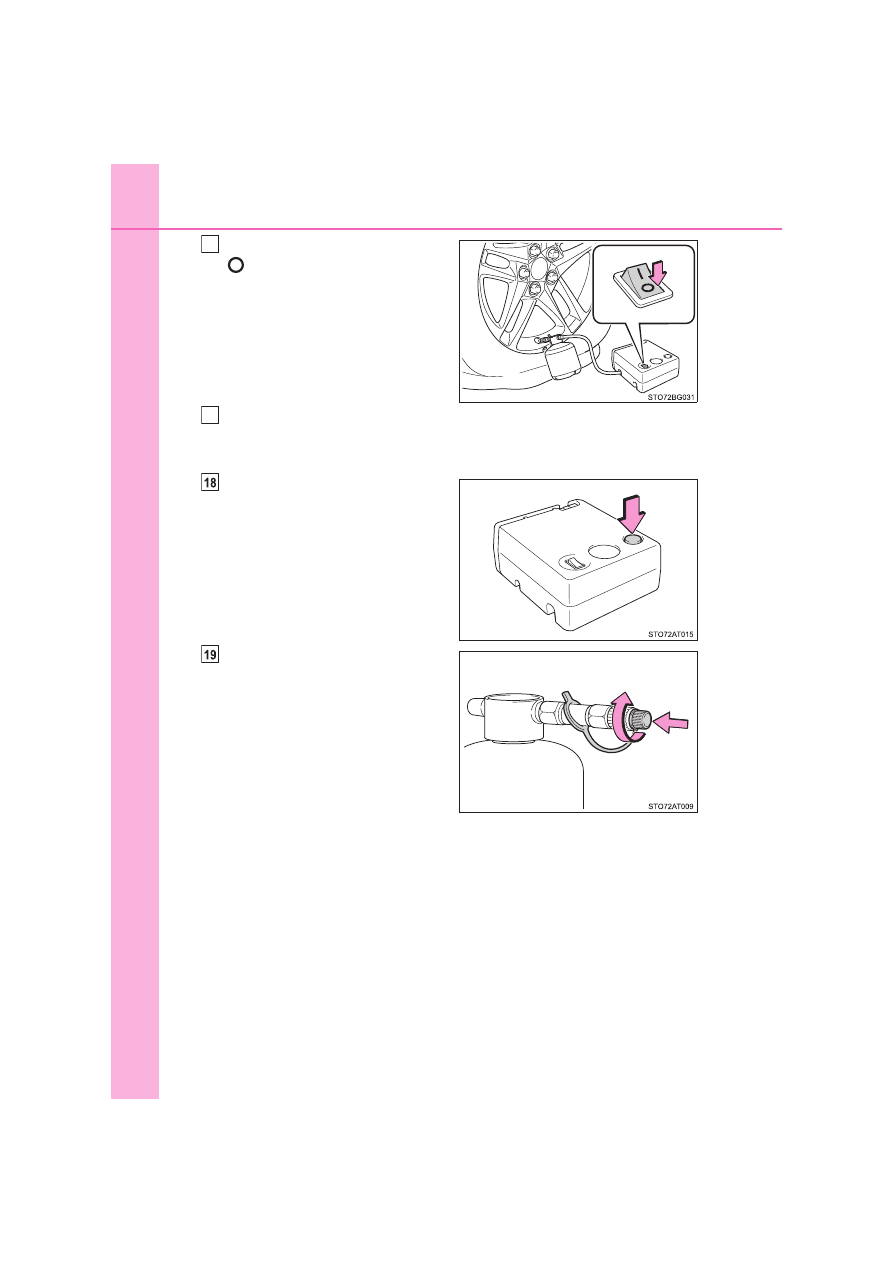

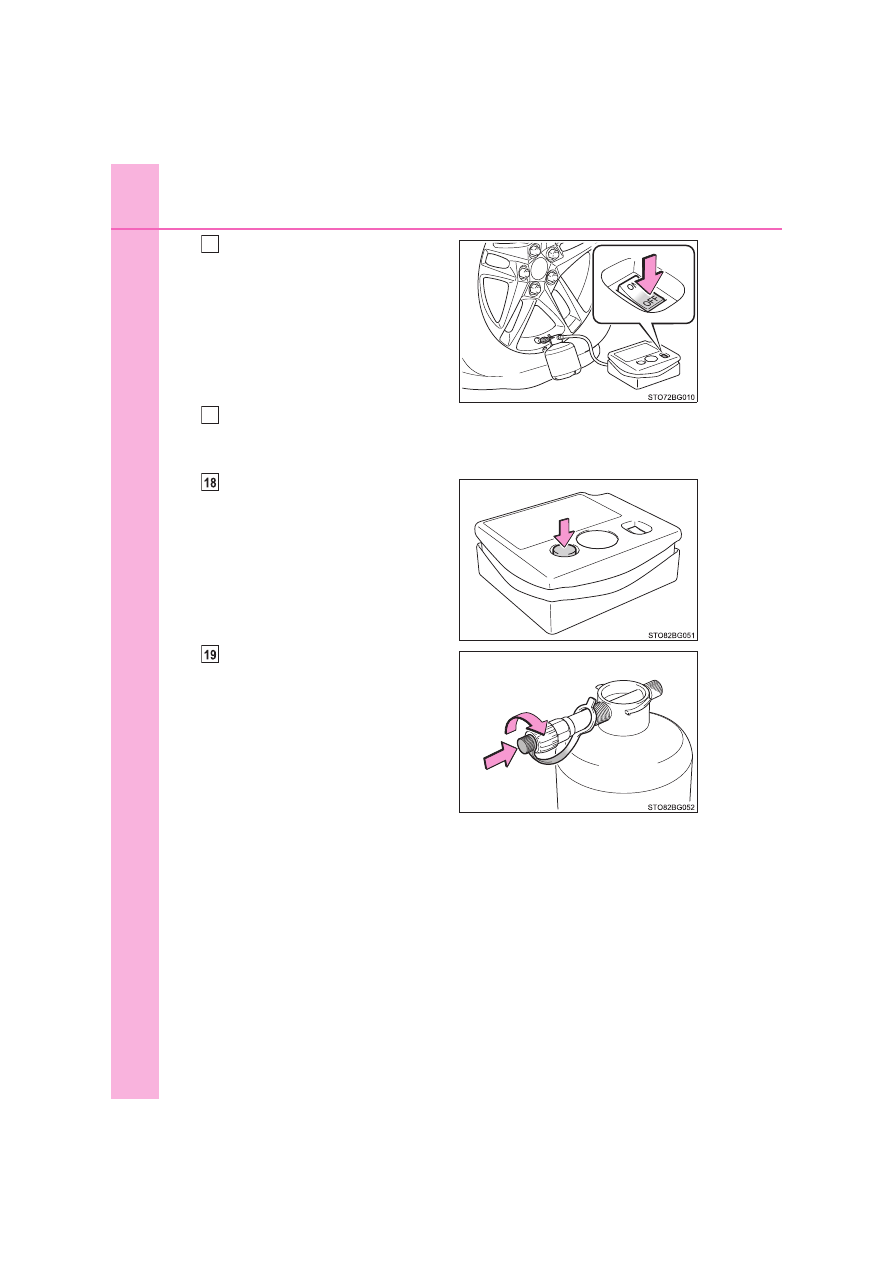

Turn the compressor off.

Pull out the power plug from the power outlet socket and then dis-
connect the nozzle from the valve on the tire.

Some sealant may leak when the hose is removed.

Press the button to release
pressure from the bottle.

Attach the cap to the nozzle.

711

7-2. Steps to take in an emergency

hen
trou

e ari

Install the valve cap onto the valve of the repaired tire.

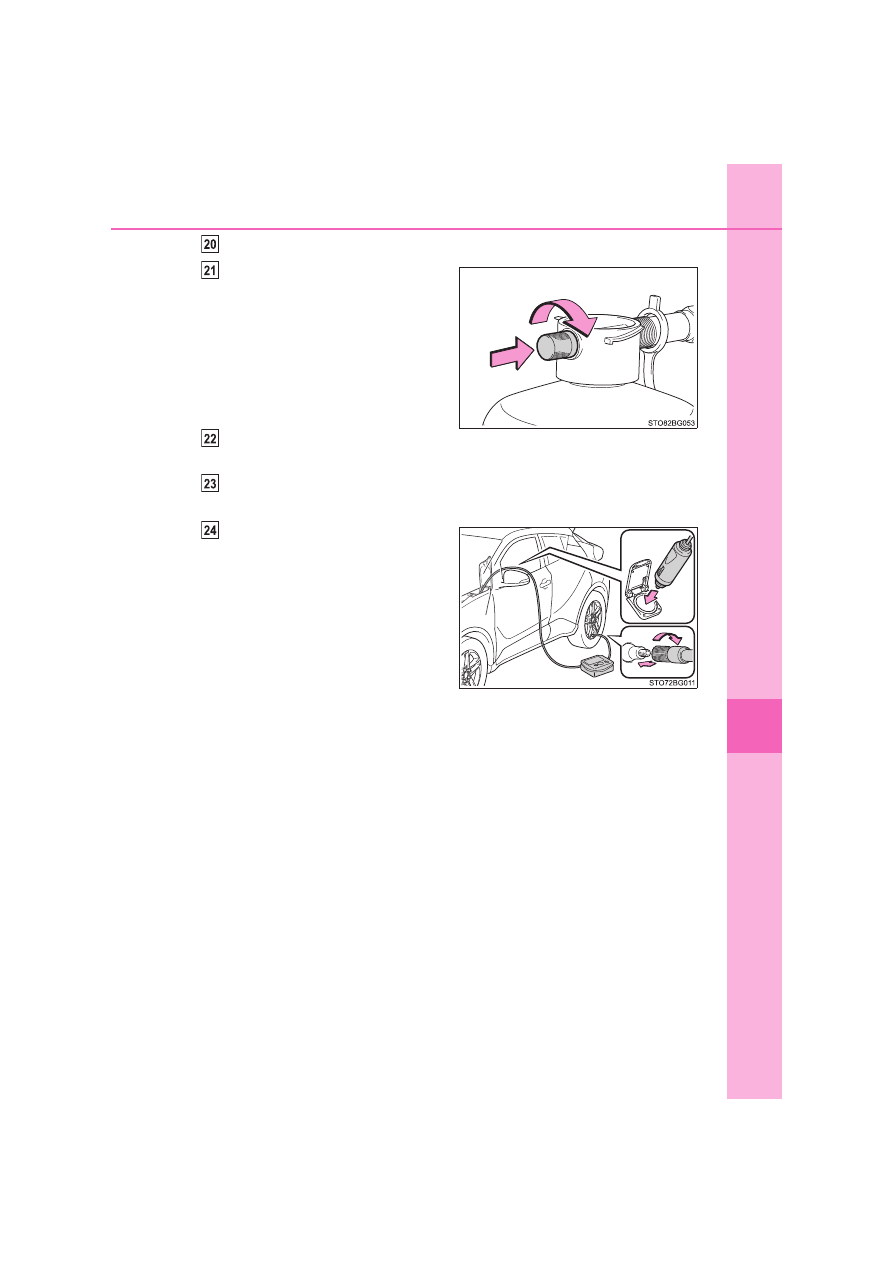

Disconnect the hose from the
bottle and attach the cap to the
bottle.

Place the bottle in the original bag
and zip it.

Temporarily store the bottle and compressor in the luggage com-
partment.
To spread the liquid sealant evenly within the tire, immediately drive
safely for about 5 km (3 miles) below 80 km/h (50 mph).

After  driving  for  about  5  km  (3
miles),  stop  your  vehicle  in  a
safe  place  on  a  hard,  flat  sur-
face and connect the compres-
sor.

712

7-2. Steps to take in an emergency

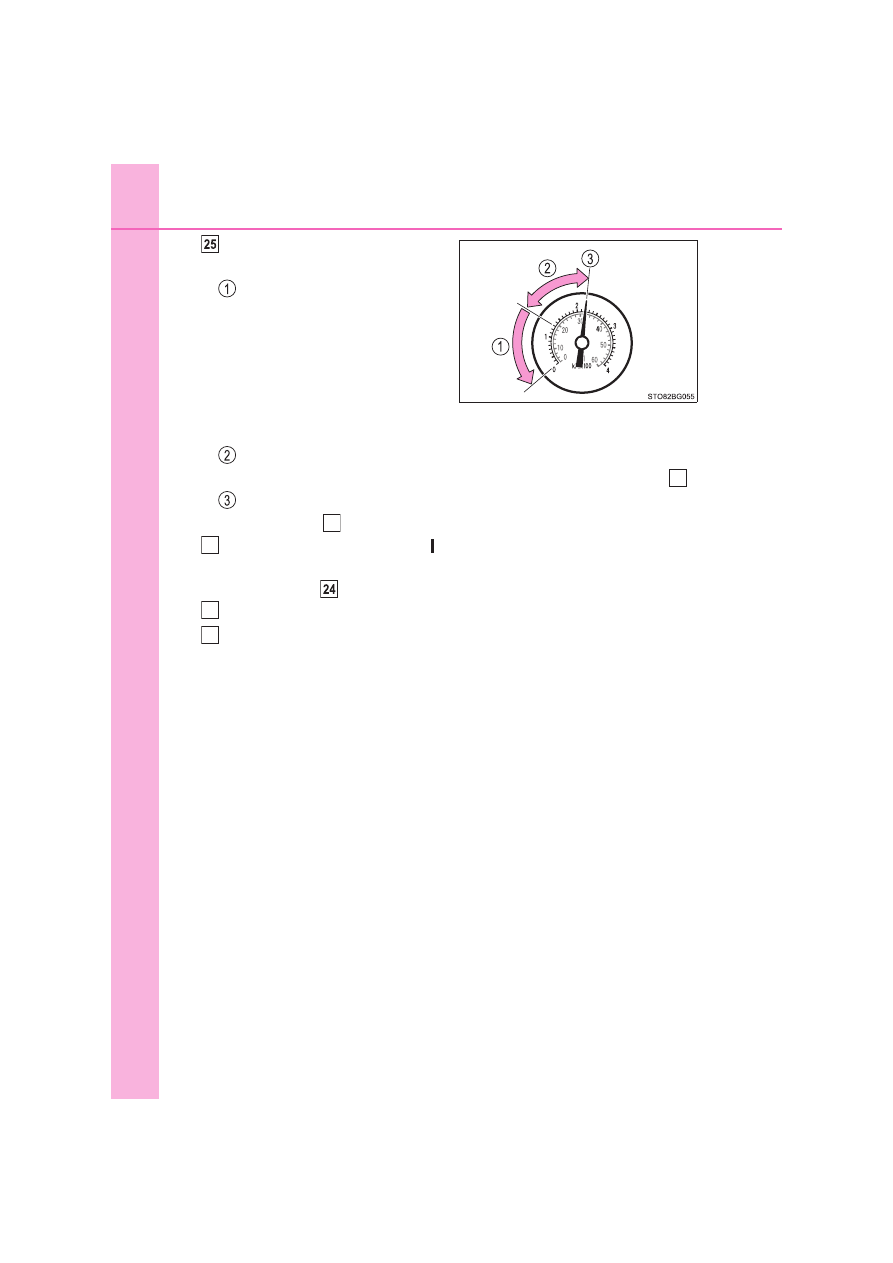

Check the tire inflation pres-
sure.

If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm

or bar, 19 psi): The puncture
cannot be repaired. Contact
any

authorized

Toyota

retailer or Toyota authorized
repairer, or any reliable
repairer.
If the tire inflation pressure is 130 kPa (1.3 kgf/cm

or bar, 19 psi)

or higher, but less than the specified air pressure: Proceed to

If the tire inflation pressure is the specified air pressure (



P. 774):

Proceed to

Turn the compressor switch

(on) to inflate the tire until the spec-

ified air pressure is reached. Drive for about 5 km (3 miles) and
then perform

Store the compressor in the luggage compartment.
Taking precautions to avoid sudden braking, sudden acceleration
and sharp turns, drive carefully at under 80 km/h (50 mph) to the
nearest authorized Toyota retailer or Toyota authorized repairer, or
any reliable repairer for tire repair or replacement.

27
28

713

7-2. Steps to take in an emergency

hen
trou

e ari



Type B

Take out the repair kit.

When taking out the bottle from the original bag, do not tear or discard the
bag.

Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.

Remove the valve cap from the
valve of the punctured tire.

Remove the cap from the noz-
zle.

714

7-2. Steps to take in an emergency

Connect the nozzle to the
valve.

Remove the cap from the bot-
tle.

Pull the hose out from the com-
pressor.

Connect the bottle to the com-
pressor.

Screw the end of the nozzle clock-
wise as far as possible.

715

7-2. Steps to take in an emergency

hen
trou

e ari

Make sure that the compressor
switch is

(off).

Remove the power plug from
the compressor.

Connect the power plug to the
power outlet socket. (



P. 574)

716

7-2. Steps to take in an emergency

Check the specified tire inflation pressure.

Tire inflation pressure is specified on the label as shown. (



P. 774)

Start the hybrid system. (



P. 303)

To inject the sealant and inflate
the tire, turn the compressor
switch is

(on).



Left-hand drive vehicles



Right-hand drive vehicles

13
14

717

7-2. Steps to take in an emergency

hen
trou

e ari

Inflate the tire until the specified
air pressure is reached.

(on).

Inflate the tire until the speci-
fied air pressure.

• If the tire inflation pressure is

still lower than the specified
point after inflation for 35 min-
utes with the switch is

(on)

, the tire is too damaged

to be repaired. Turn the com-
pressor switch is

(off)

and

contact

any

authorized

Toyota retailer or Toyota
authorized repairer, or any
reliable repairer.

• If the tire inflation pressure exceeds the specified air pressure, let out

some air to adjust the tire inflation pressure. (



P. 721, 774)

718

7-2. Steps to take in an emergency

Turn the compressor switch is

(off).

Pull out the power plug from the power outlet socket and then dis-
connect the nozzle from the valve on the tire.

Some sealant may leak when the hose is removed.

Press the button to release
pressure from the bottle.

Attach the cap to the nozzle.
