531

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

Exclusive jump starting terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Solid, stationary, unpainted metallic point away from the battery
and any moving parts as shown in the illustration

Start the engine of the sec-
ond vehicle. Increase the
engine speed slightly and
maintain at that level for
approximately 5 minutes to
recharge the 12-volt battery
of your vehicle.

Open and close any of the
doors of your vehicle with the
power switch OFF.

Maintain the engine speed of
the second vehicle and start
the hybrid system of your
vehicle by turning the power
switch to ON.

Once the vehicle’s hybrid
system has started, remove
the jumper cables in the
exact reverse order from
which they were connected.

When the engine cover

installing, reverse the step
removed.

Close the exclusive jump

starting terminal cover, and
reinstall the fuse box cover to
its original position.

Once the engine starts, have the
vehicle inspected at your Toyota
dealer as soon as possible.

■

Starting the hybrid system

when the battery is discharged

The hybrid system cannot be started

by push-starting.

■

To prevent 12-volt battery dis-

charge

●

Turn off the headlights and the

audio system while the hybrid sys-

tem is off.

●

Turn off any unnecessary electri-

cal components when the vehicle

is running at a low speed for an

extended period, such as in heavy

traffic.

■

When the 12-volt battery is

removed or discharged

●

Information stored in the ECU is

cleared. When the 12-volt battery

is depleted, have the vehicle

inspected at your Toyota dealer.

●

Some systems may require initial-

ization. (



P.571)

■

When removing the 12-volt bat-

tery terminals

When the 12-volt battery terminals

are removed, the information stored

in the ECU is cleared. Before

removing the 12-volt battery termi-

nals, contact your Toyota dealer.

■

Charging the 12-volt battery

The electricity stored in the 12-volt

battery will discharge gradually even

when the vehicle is not in use, due

to natural discharge and the drain-

ing effects of certain electrical appli-

ances. If the vehicle is left for a long

time, the 12-volt battery may dis-

charge, and the hybrid system may

be unable to start. (The 12-volt bat-

532

7-2. Steps to take in an emergency

tery recharges automatically while

the hybrid system is operating.)

■

When recharging or replacing

the 12-volt battery

●

In some cases, it may not be pos-

sible to unlock the doors using the

smart key system when the 12-

volt battery is discharged. Use the

wireless remote control or the

mechanical key to lock or unlock

the doors.

●

The hybrid system may not start

on the first attempt after reinstall-

ing the 12-volt battery. In that

case, start the hybrid system in

the same manner as when the

electronic key does not operate

properly (



P.528). This is not a

malfunction, as the hybrid system

will start normally on the second

attempt.

●

The power switch mode is memo-

rized by the vehicle. When the 12-

volt battery is reconnected, the

system will return to the mode it

was in before the 12-volt battery

was discharged. Before discon-

necting the 12-volt battery, turn

the power switch off.

If you are unsure what mode the

power switch was in before the

12-volt battery discharged, be

especially careful when recon-

necting the 12-volt battery.

●

Some systems may require initial-

ization. (



P.571)

■

When replacing the 12-volt bat-

tery

●

Use a 12-volt battery that con-

forms to European regulations.

●

Use a battery that the case size is

same as the previous one (LN2),

20 hours rate capacity (20HR) is

equivalent (55Ah) or greater, and

performance rating (CCA) is

equivalent (345A) or greater.

• If the sizes differ, the 12-volt bat-

tery cannot be properly secured.

• If the 20 hour rate capacity is low,

even if the time period where the

vehicle is not used is a short time,

the 12-volt battery may discharge

and hybrid system may not be

able to start.

●

Use a ventilation type calcium bat-

tery

●

Use a 12-volt battery with a han-

dle. If a 12-volt battery without a

handle is used, removal is more

difficult.

●

When removing the 12-volt bat-

tery:



P.463

●

After replacing, firmly attach the

following items to the exhaust hole

of the 12-volt battery.

• Use the exhaust hose that was

attached to the 12-volt battery

before replacing and confirm that

it is firmly connected to the hole

section of the vehicle.

• Use the exhaust hole plug

included with the 12-volt battery

replaced or the one installed on

the battery prior to the replaced.

(Depending on the 12-volt battery

to be replace, the exhaust hole

may be plugged.)

For details, consult your Toyota
dealer.

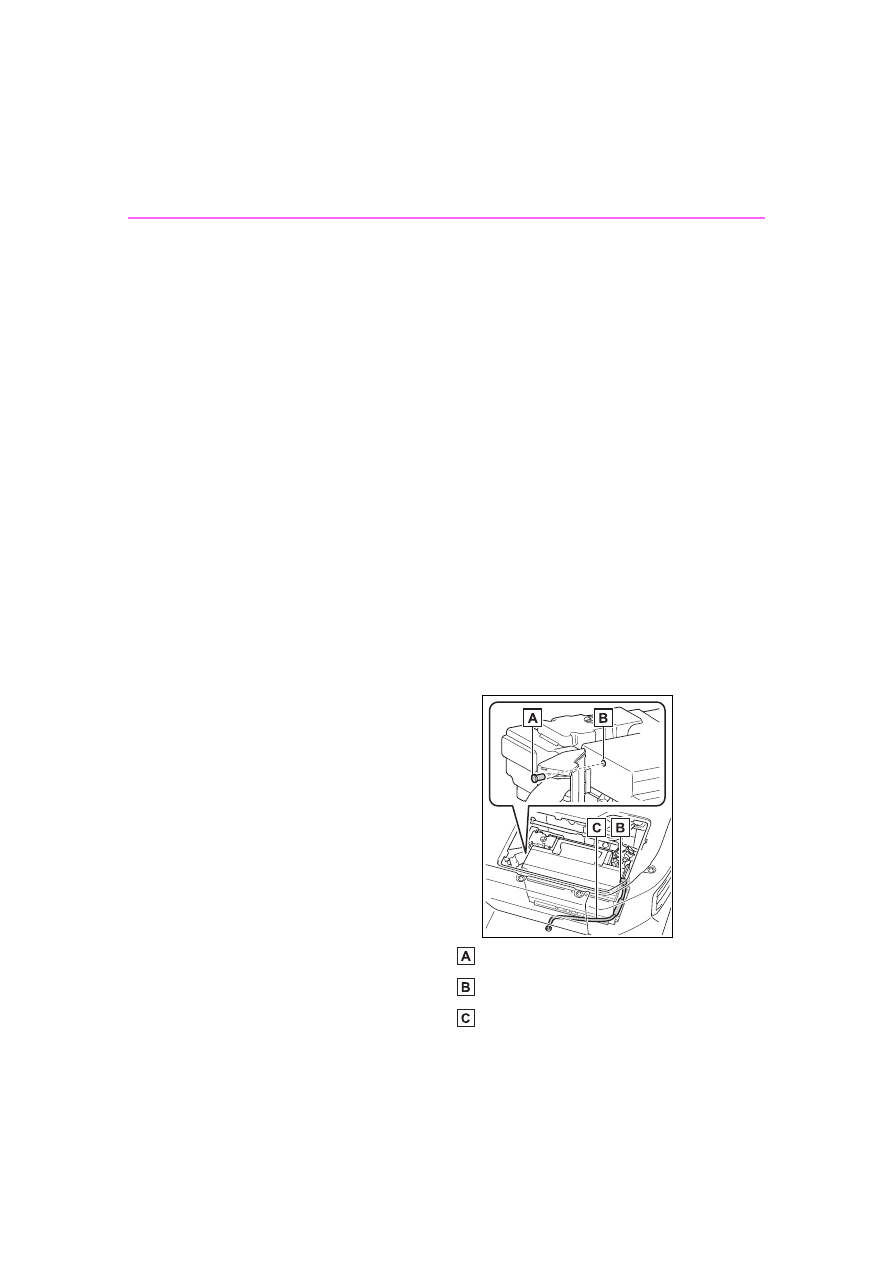

Exhaust hole cap

Exhaust hole

Exhaust hose

533

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

WARNING

■

When removing the 12-volt

battery terminals

Always remove the negative (-)

terminal first. If the positive (+) ter-

minal contacts any metal in the

surrounding area when the posi-

tive (+) terminal is removed, a

spark may occur, leading to a fire

in addition to electrical shocks

and death or serious injury.

■

Avoiding 12-volt battery fires

or explosions

Observe the following precautions

to prevent accidentally igniting the

flammable gas that may be emit-

ted from the 12-volt battery:

●

Make sure each jumper cable is

connected to the correct termi-

nal and that it is not unintention-

ally in contact with any other

than the intended terminal.

●

Do not allow the other end of

the jumper cable connected to

the “+” terminal to come into

contact with any other parts or

metal surfaces in the area, such

as brackets or unpainted metal.

●

Do not allow the + and - clamps

of the jumper cables to come

into contact with each other.

●

Do not smoke, use matches,

cigarette lighters or allow open

flame near the 12-volt battery.

■

12-volt battery precautions

The 12-volt battery contains poi-

sonous and corrosive acidic elec-

trolyte, while related parts contain

lead and lead compounds.

Observe the following precautions

when handling the 12-volt battery:

●

When working with the 12-volt

battery, always wear safety

glasses and take care not to

allow any 12-volt battery fluids

(acid) to come into contact with

skin, clothing or the vehicle

body.

●

Do not lean over the 12-volt bat-

tery.

●

In the event that 12-volt battery

fluid comes into contact with the

skin or eyes, immediately wash

the affected area with water and

seek medical attention. Place a

wet sponge or cloth over the

affected area until medical

attention can be received.

●

Always wash your hands after

handling the 12-volt battery sup-

port, terminals, and other bat-

tery-related parts.

●

Do not allow children near the

12-volt battery.

■

After recharging the 12-volt

battery

Have the 12-volt battery

inspected at your Toyota dealer

as soon as possible. If the 12-volt

battery is deteriorating, continued

use may cause the 12-volt battery

to emit a malodorous gas, which

may be detrimental to the health

of passengers.

■

When replacing the 12-volt

battery

●

For information regarding 12-

volt battery replacement, con-

tact your Toyota dealer.

534

7-2. Steps to take in an emergency

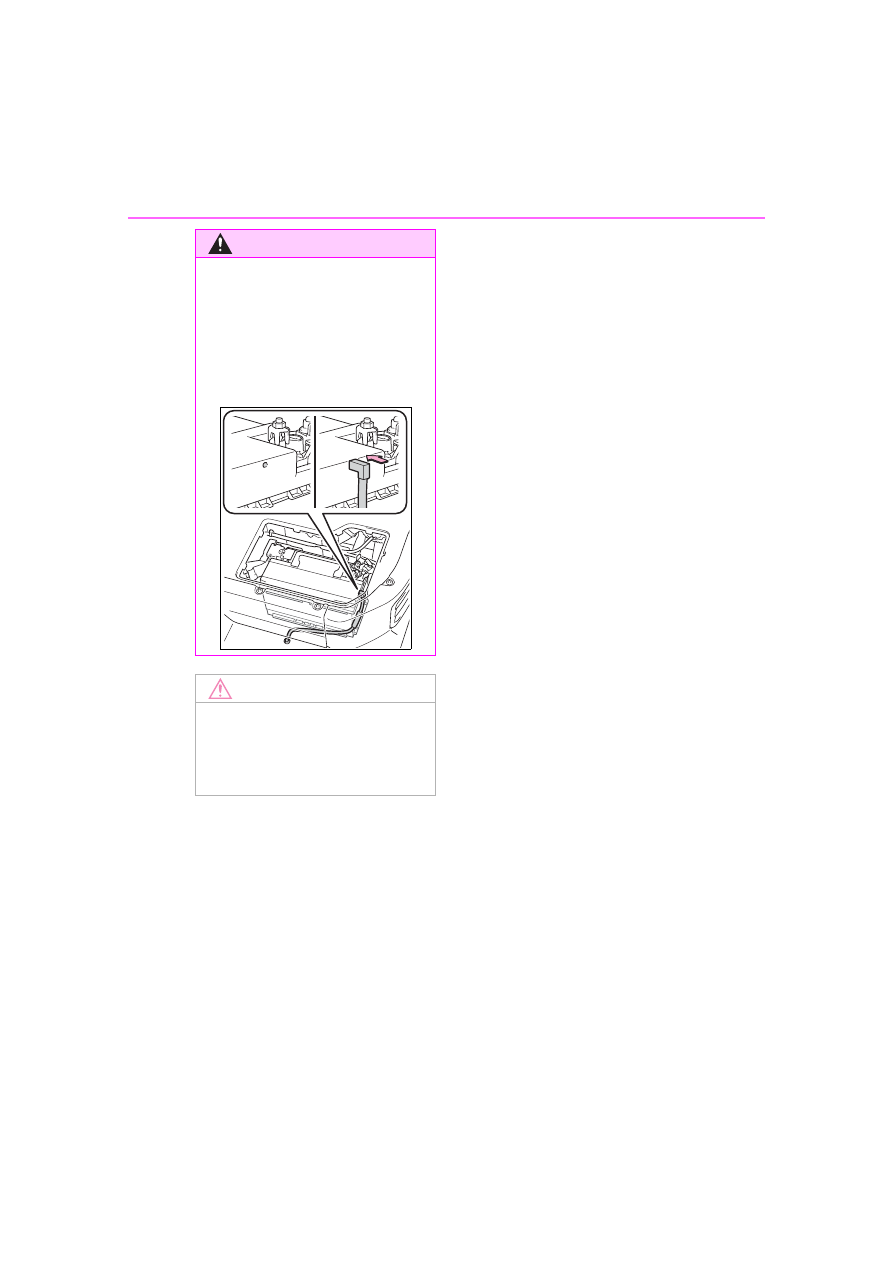

WARNING

●

After replacing, securely attach

the exhaust hose and exhaust

hole plug to the exhaust hole of

the replaced 12-volt battery. If

not properly installed, gases

(hydrogen) may leak into the

vehicle interior, and there is the

possible danger of the gas ignit-

ing and exploding.

NOTICE

■

When handling jumper cables

When connecting the jumper

cables, ensure that they do not

become entangled in the cooling

fan.

535

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

■

If the engine coolant tem-
perature gauge enters the
red zone or “Engine Cool-
ant Temp High Stop in a
Safe Place See Owner’s
Manual” is shown on the
multi-information display

Stop the vehicle in a safe
place and turn off the air con-
ditioning system, and then
stop the hybrid system.

If you see steam:
Carefully lift the hood after
the steam subsides.
If you do not see steam:
Carefully lift the hood.

After the hybrid system has
cooled down sufficiently,
inspect the hoses, engine
radiator core (radiator) and
intercooler radiator core
(radiator) for any leaks.

If a large amount of coolant leaks,

immediately contact your Toyota

dealer.

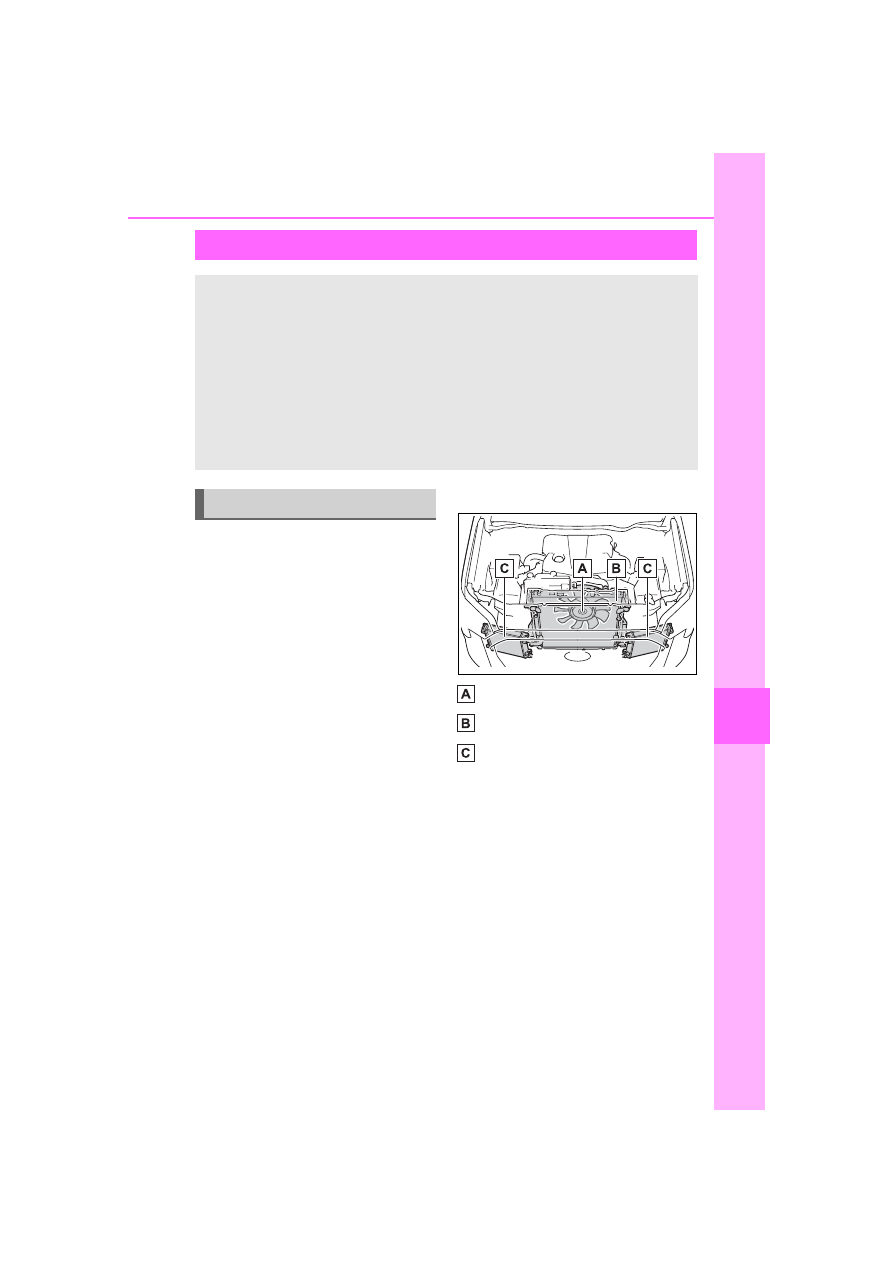

Cooling fan

Radiator

Intercooler radiators

The coolant level is satisfac-
tory if it is between the “F” or
“FULL” and “L” or “LOW”
lines on the reservoir.

If your vehicle overheats

The following may indicate that your vehicle is overheating.



The needle of the engine coolant temperature gauge (



P.91)

enters the red zone or a loss of engine (hybrid system) power is
experienced. (For example, the vehicle speed does not
increase.)



“Engine Coolant Temp High Stop in a Safe Place See Owner’s
Manual” is shown on the multi-information display.



Steam comes out from under the hood.

Correction procedures

536

7-2. Steps to take in an emergency



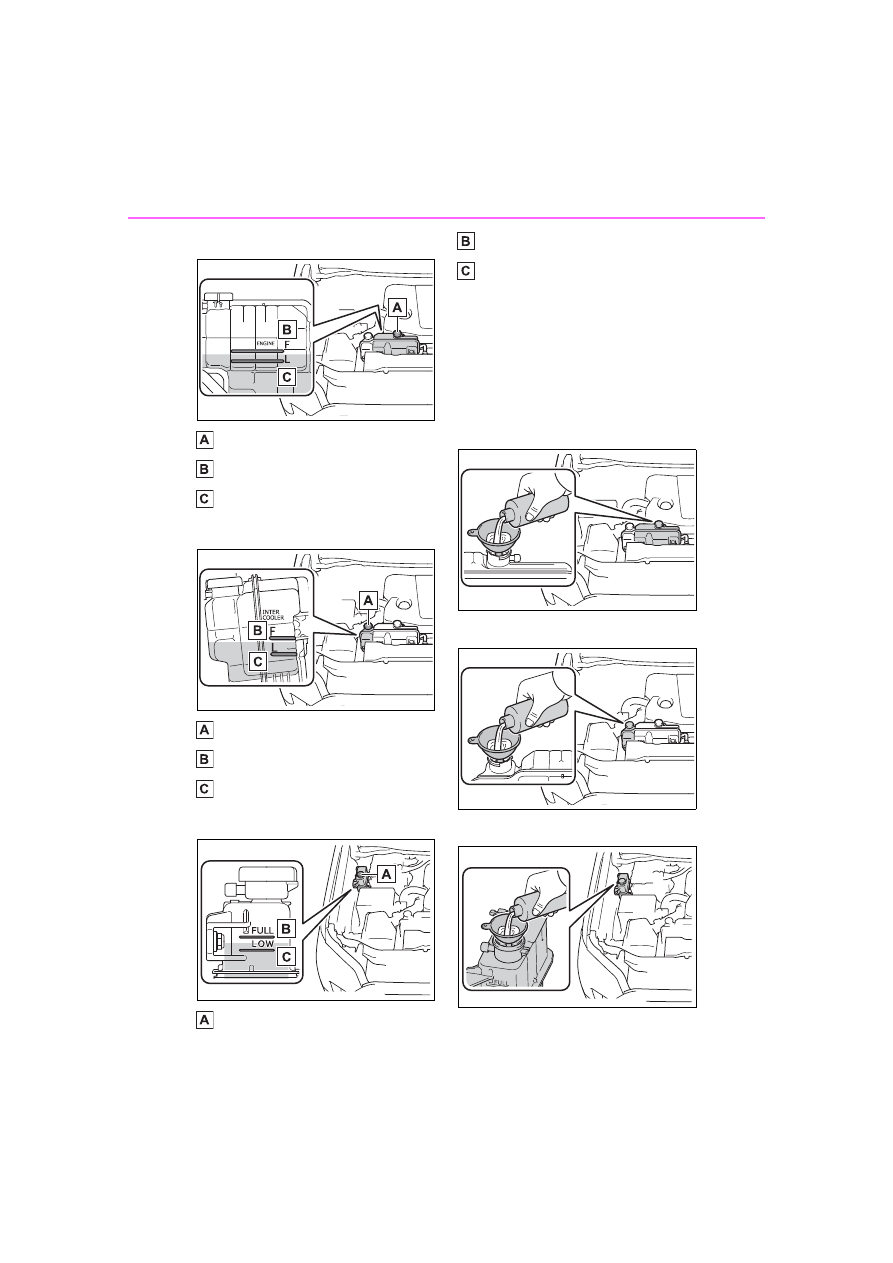

Engine

Reservoir

“F” line

“L” line



Intercooler

Reservoir

“F” line

“L” line



Power control unit

Reservoir

“FULL” line

“LOW” line

Add coolant if necessary.

Water can be used in an emer-

gency if coolant is unavailable.
If water was added in an emer-

gency, have the vehicle inspected

at your Toyota dealer as soon as

possible.



Engine



Intercooler



Power control unit

537

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

Start the hybrid system to
check that the radiator cool-
ing fan operates and to check
for coolant leaks from the
radiator or hoses.

If the fan is not operating:
Stop the hybrid system
immediately and contact your
Toyota dealer.
If the fan is operating:
Have the vehicle inspected at
the nearest Toyota dealer.

Check if “Engine Coolant
Temp High Stop in a Safe
Place See Owner’s Manual”
is shown on the multi-infor-
mation display.

If the message does not disappear:

Stop the hybrid system and contact

your Toyota dealer.
If the message is not displayed:

Have the vehicle inspected at the

nearest Toyota dealer.

WARNING

■

When inspecting under the

hood of your vehicle

Observe the following precau-

tions.

Failure to do so may result in seri-

ous injury such as burns.

●

If steam is seen coming from

under the hood, do not open the

hood until the steam has sub-

sided. The engine compart-

ment may be very hot.

●

After the hybrid system has

been turned off, check that the

“READY” indicator is off. When

the hybrid system is operating,

the gasoline engine may auto-

matically start, or the cooling fan

may suddenly operate even if

the gasoline engine stops. Do

not touch or approach rotating

parts such as the fan, which

may lead to fingers or clothing

(especially a tie, a scarf or a

muffler) getting caught, resulting

in serious injury.

●

Do not loosen the coolant reser-

voir caps, while the hybrid sys-

tem and radiator are hot.

High temperature steam or

coolant could spray out.

NOTICE

■

When adding coolant

Add coolant slowly after the

hybrid system has cooled down

sufficiently. Adding cool coolant to

a hot hybrid system too quickly

can cause damage to the hybrid

system.

■

To prevent damage to the

cooling system

Observe the following precau-

tions:

●

Avoid contaminating the coolant

with foreign matter (such as

sand or dust, etc.,).

●

Do not use any coolant additive.

538

7-2. Steps to take in an emergency

Stop the hybrid system. Set
the parking brake and shift
the shift lever to P.

Remove the mud, snow or
sand from around the rear
wheels.

Place wood, stones or some
other material under the rear
wheels to help provide trac-
tion.

Restart the hybrid system.

Shift the shift lever to D or R
and release the parking
brake. Then, while exercising
caution, depress the acceler-
ator pedal.

■

When it is difficult to free the

vehicle

Try the followings.

●

Turn off the TRAC

(



P.375)

●

Using the rear differential lock

(



P.364)

●

Switching the front-wheel drive
control switch

(



P.361)

●

Using Crawl Control

(



P.365)

●

Using Multi-terrain Select

(



P.369)

: If equipped

If the vehicle becomes

stuck

Carry out the following pro-
cedures if the tires spin or
the vehicle becomes stuck
in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a

stuck vehicle

If you choose to push the vehicle

back and forth to free it, make

sure the surrounding area is clear

to avoid striking other vehicles,

objects or people. The vehicle

may also lunge forward or lunge

back suddenly as it becomes free.

Use extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift

lever with the accelerator pedal

depressed.

This may lead to unexpected

rapid acceleration of the vehicle

that may cause an accident

resulting in death or serious injury.

NOTICE

■

To avoid damaging the trans-

mission and other compo-

nents

●

Avoid spinning the rear wheels

and depressing the accelerator

pedal more than necessary.

●

If the vehicle remains stuck

even after these procedures are

performed, the vehicle may

require towing to be freed.

539

Vehicle

specifications

Vehicle specifications

8-1. Specifications

Maintenance data (fuel, oil

level, etc.)..................

540

Fuel information ..........

549

Tire information ...........

551

8-2. Customization

Customizable features

561

8-3. Initialization

Items to initialize .........

571

540

8-1. Specifications

8-1.Specifications

:Unladen vehicles

:Short Bed type

:Standard Bed type

:265/70R18 tires

:265/60R20 tires

:285/65R18 tires

:265/50R22 tires

Maintenance data (fuel, oil level, etc.)

Dimensions and weight

Overall length

233.6 in. (5932 mm)

245.6 in. (6237 mm)

Overall width

80.0 in. (2031 mm)

Overall height

2WD

76.7 in. (1949 mm)

*2, 4

76.8 in. (1952 mm)

*2, 5

76.9 in. (1953 mm)

*3, 4

77.0 in. (1955 mm)

*3, 5

4WD

77.3 in. (1964 mm)

*2, 7

77.4 in. (1966 mm)

*2, 4

77.5 in. (1968 mm)

*2, 5

77.5 in. (1968 mm)

*3, 4

77.6 in. (1969 mm)

*3, 5

77.8 in. (1975 mm)

*2, 6

Wheelbase

145.7 in. (3700 mm)

157.7 in. (4005 mm)

Front tread

2WD

68.4 in. (1737 mm)

4WD

68.1 in. (1729 mm)

*4, 5, 7

68.5 in. (1739 mm)

Rear tread

68.4 in. (1737 mm)

541

8-1. Specifications

Vehicle

specifications

: The model code is indicated on the Certification Label. (



P.541)

■

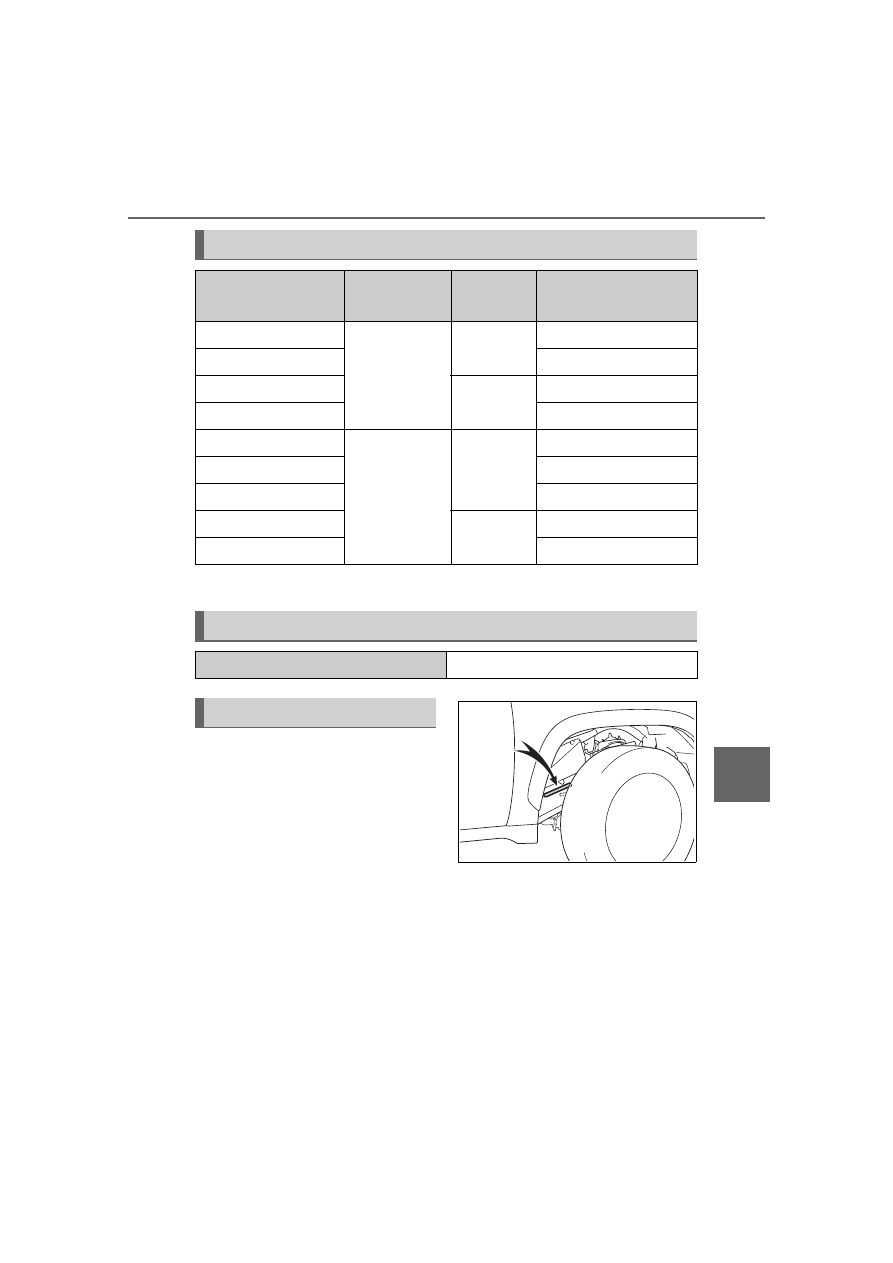

Vehicle identification num-
ber

The vehicle identification num-
ber (VIN) is the legal identifier
for your vehicle. This is the pri-
mary identification number for
your Toyota. It is used in regis-
tering the ownership of your
vehicle.
This number is stamped on the
front right frame.

This number is also on the top
left of the instrument panel.

Vehicle capacity weight

Model code

Driving system

Bed type

Vehicle capacity weight

(Occupants + luggage)

VXKH70L-PSVLZA

2WD

Short

1390 lb. (630 kg)

VXKH70L-PSVZZA

1370 lb. (620 kg)

VXKH71L-PRVLZA

Standard

1415 lb. (640 kg)

VXKH71L-PRVZZA

1390 lb. (630 kg)

VXKH75L-PSVLZA

4WD

Short

1355 lb. (615 kg)

VXKH75L-PSVUZA

1330 lb. (605 kg)

VXKH75L-PSVZZA

1305 lb. (590 kg)

VXKH76L-PRVLZA

Standard

1405 lb. (635 kg)

VXKH76L-PRVZZA

1340 lb. (610 kg)

Seating capacity

Seating capacity

5 (Front 2, Rear 3)

Vehicle identification

542

8-1. Specifications

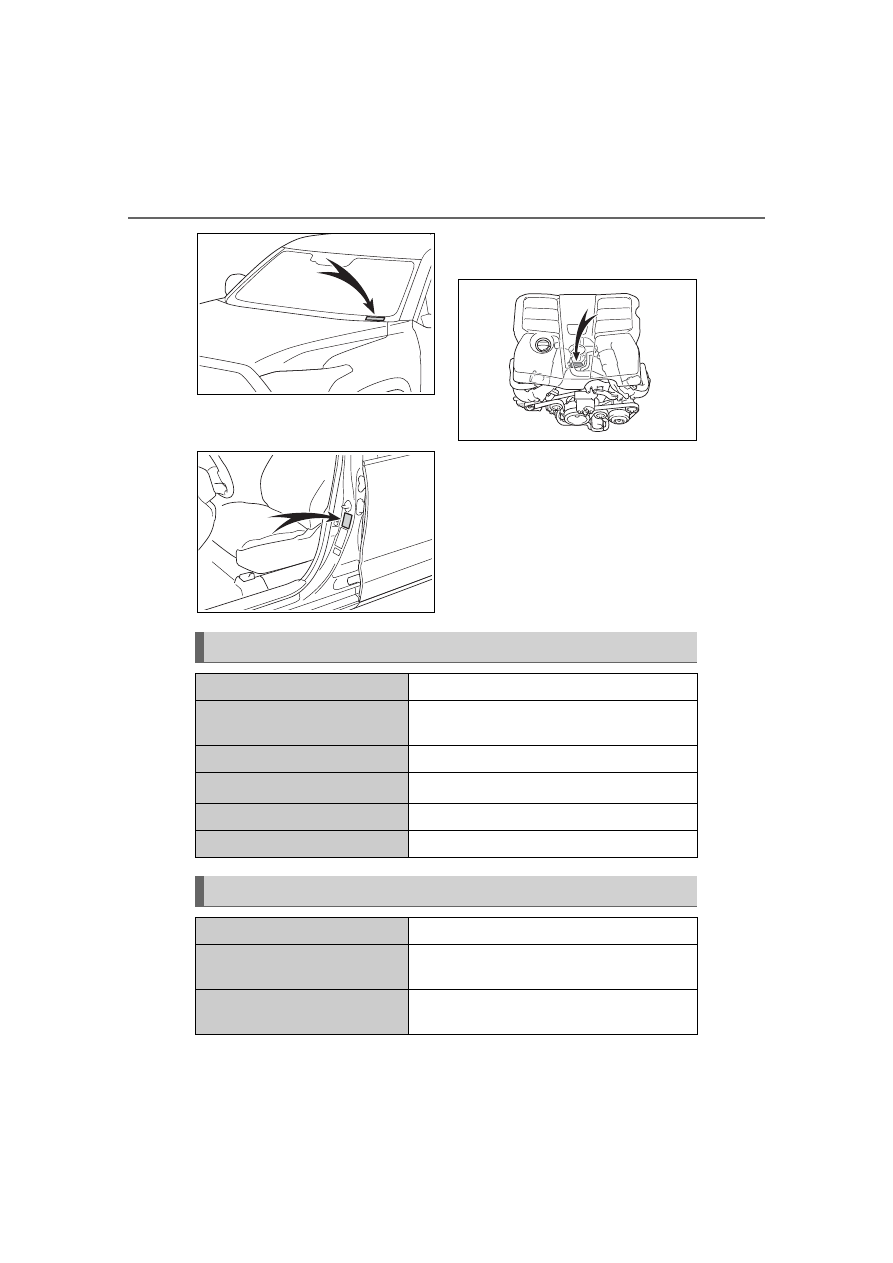

This number is also stamped
under the right-hand front seat.

This number is also on the Certi-
fication Label.

Engine

Model

V35A-FTS

Type

6-cylinder V type, 4-cycle, gasoline (with
turbocharger)

Bore and stroke

3.37



3.94 in. (85.5



100.0 mm)

Displacement

210.2 cu.in. (3445 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Research Octane Number

87 (Research Octane Number 91) or
higher

Fuel tank capacity
(Reference)

32.2 gal. (122.0 L, 26.8 Imp.gal.)

543

8-1. Specifications

Vehicle

specifications

■

Oil capacity (Drain and refill
[Reference

])

: The engine oil capacity is a refer-

ence quantity to be used when
changing the engine oil. Warm up
and turn off the engine, wait more
than 8 minutes, and check the oil
level on the dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is
used in your Toyota vehicle. Use
Toyota approved “Toyota Genu-
ine Motor Oil” or equivalent to
satisfy the following grade and
viscosity.
Oil grade:

ILSAC GF-6A multigrade engine
oil
Recommended viscosity: SAE
0W-20

Outside temperature

SAE 0W-20 is the best choice
for good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

Electric motor (traction motor)

Type

Permanent magnet synchronous motor

Maximum output

36 kW

Maximum torque

184 ft·lbf (250 N·m, 25.5 kgf·m)

Hybrid battery (traction battery)

Type

Nickel-Metal hydride battery

Voltage

7.2 V/module

Capacity

6.5 Ah

Quantity

40 modules

Nominal voltage

288 V

Lubrication system

With filter

7.7 qt. (7.3 L, 6.4 Imp.
qt.)

Without
filter

7.4 qt. (7.0 L, 6.2 Imp.
qt.)

544

8-1. Specifications

Oil viscosity (0W-20 is explained
here as an example):
• The 0W in 0W-20 indicates

the characteristic of the oil
which allows cold startability.
Oils with a lower value before
the W allow for easier starting
of the engine in cold weather.

• The 20 in 0W-20 indicates the

viscosity characteristic of the
oil when the oil is at high tem-
perature.

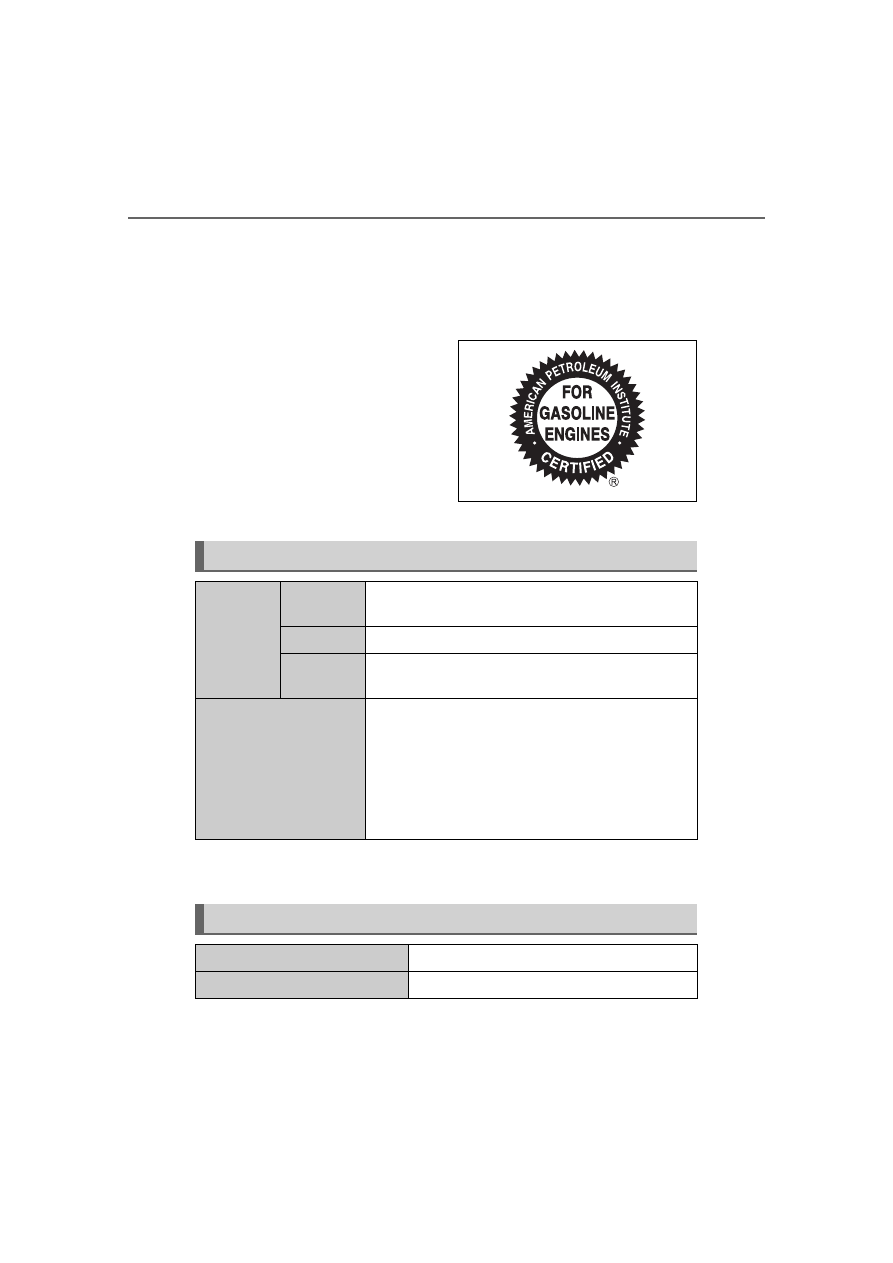

How to read oil container label:
The International Lubricant

Specification Advisory Commit-
tee (ILSAC) Certification Mark is
added to some oil containers to
help you select the oil you
should use.

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Cooling system

Capacity

Gasoline
engine

13.1 qt. (12.4 L, 10.9 Imp.qt.)

Intercooler 4.6 qt. (4.4 L, 3.9 Imp.qt.)

Power con-
trol unit

2.2 qt. (2.1 L, 1.8 Imp.qt.)

Coolant type

Use either of the following:



“Toyota Super Long Life Coolant”



Similar high-quality ethylene glycol-based non-
silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid tech-
nology

Do not use plain water alone.

Ignition system (spark plug)

Make

DENSO EC22HPR-D7

Gap

0.027 in. (0.7 mm)

545

8-1. Specifications

Vehicle

specifications

: The fluid capacity is a reference quantity.

If replacement is necessary, contact your Toyota dealer.

Your Toyota vehicle is filled with “Toyota Genuine ATF WS” at the
factory.
Use Toyota approved “Toyota Genuine ATF WS” or an equivalent of
matching quality to satisfy the above specification. Please contact
your Toyota dealer for further details.

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

Open voltage at 68°F (20°C):

12.0 V or higher
(Turn the power switch off and turn on the
high beam headlights for 30 seconds.)

Charging rates

5 A max.

Automatic transmission

Fluid capacity

12.4 qt. (11.7 L, 10.3 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using transmission fluid other than the above type may cause abnormal

noise or vibration, or damage the transmission of your vehicle.

Transfer (4WD models)

Oil capacity

2.17 qt. (2.05 L, 1.80 Imp.qt.)

Oil type and viscosity

Toyota Genuine ATF WS

546

8-1. Specifications

Your Toyota vehicle is filled with “Toyota Genuine Differential Gear
Oil” at the factory.
Use Toyota approved “Toyota Genuine Differential Gear Oil” or an
equivalent oil of matching quality to satisfy the above specification.
Please contact your Toyota dealer for further details.

:Minimum pedal clearance when depressed with a force of 110 lbf (490 N,

50 kgf) while the hybrid system is running.

:Make sure to confirm that the brake warning light (yellow) does not illumi-

nate. (If the brake warning light illuminates, refer to P.501.)

Differential

Oil capacity

Front (4WD
models)

1.4 qt. (1.29 L, 1.1 Imp.qt.)

Rear



Without rear differential lock system
6.0 qt. (5.73 L, 5.0 Imp.qt.)



With rear differential lock system
5.8 qt. (5.51 L, 4.8 Imp.qt.)

Oil type and viscosity

Toyota Genuine Differential Gear Oil LT
75W-85 GL-5 or equivalent

Brakes

Pedal clearance

3.6 in. (90.8 mm) Min.

Pedal free play

0.04



0.24 in. (1



6 mm)

Brake pad wear limit

0.04 in. (1 mm)

Parking brake indicator

When pulling the parking brake switch for
1 to 2 seconds: comes on
When pushing the parking brake switch for
1 to 2 seconds: turns off

Fluid type



FMVSS No.116 DOT 3 or SAE J1703



FMVSS No.116 DOT 4 or SAE J1704

Steering

Free play

Less than 1.2 in. (30 mm)

Content .. 31 32 33 34 ..
