515

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 a

rises

Stop the vehicle in a safe
place on a hard, flat surface.

Set the parking brake.

Shift the shift lever to P.

Stop the hybrid system.

Turn on the emergency flash-
ers. (

P.494)

Spare tire

Jack and tools

Jack

Tool bag

Wheel lock key (if equipped)

If you have a flat tire

Your vehicle is equipped
with a spare tire. The flat tire
can be replaced with the
spare tire.

For details about tires: P.466

WARNING

If you have a flat tire

Do not continue driving with a flat

tire.

Driving even a short distance with

a flat tire can damage the tire and

the wheel beyond repair, which

could result in an accident.

Before repairing the tire

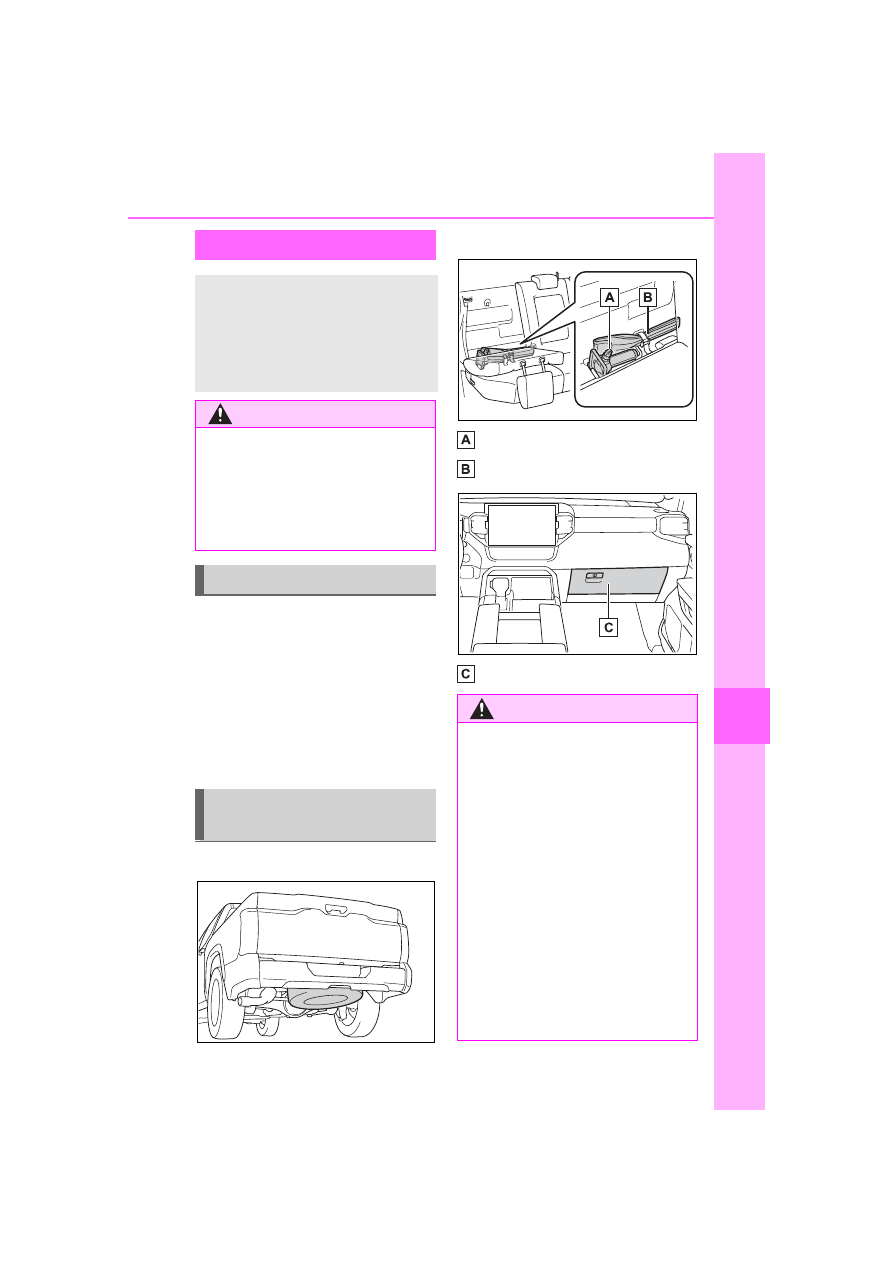

Location of the spare tire,
jack and tools

WARNING

Using the tire jack

Observe the following precau-

tions.
Improper use of the tire jack may

cause the vehicle to suddenly fall

off the jack, leading to death or

serious injury.

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

Only use the tire jack that

comes with this vehicle for

replacing a flat tire.

Do not use it on other vehicles,

and do not use other tire jacks

for replacing tires on this vehi-

cle.

516

7-2. Steps to take in an emergency

When replacing tires on a vehi-
cle with wheel lock nuts, use the
following procedures to remove
and install the wheel lock nuts.
The wheel lock key is stored in
the glove box. Always return the
wheel lock key to its original
position after use, so that it does

not get lost. (

P.515)

Removal

For ease of removal, the wheel
lock nut should always be the
first one loosened.

1

Place the wheel lock key on
top of the wheel lock nut,
turning until the wheel lock
key and wheel lock nut pat-
terns engage.

2

Place the wheel nut wrench
on the wheel lock key, and
while applying pressure on
the wheel lock key, loosen
the wheel lock nut.

Installation

For ease of installation, the
wheel lock nut should always be
the last one tightened.

1

By hand, install a wheel lock
nut on each wheel.

2

Place the wheel lock key on
top of the wheel lock nut,
turning until the wheel lock
key and wheel lock nut pat-
terns engage.

3

Place the wheel nut wrench
on the wheel lock key, and
while applying pressure on
the wheel lock key, tighten
the wheel lock nut to the rec-
ommended torque.

WARNING

Put the jack properly in its jack

point.

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

Do not start the hybrid system

or drive the vehicle while the

vehicle is supported by the jack.

Do not raise the vehicle while

someone is inside.

When raising the vehicle, do not

put an object on or under the

jack.

Do not raise the vehicle to a

height greater than that required

to replace the tire.

Use a jack stand if it is neces-

sary to get under the vehicle.

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

Using the jack handle

Insert the square head securely

until you hear a click to prevent

the extension parts from coming

apart unexpectedly.

Wheel lock nut (if
equipped)

517

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 a

rises

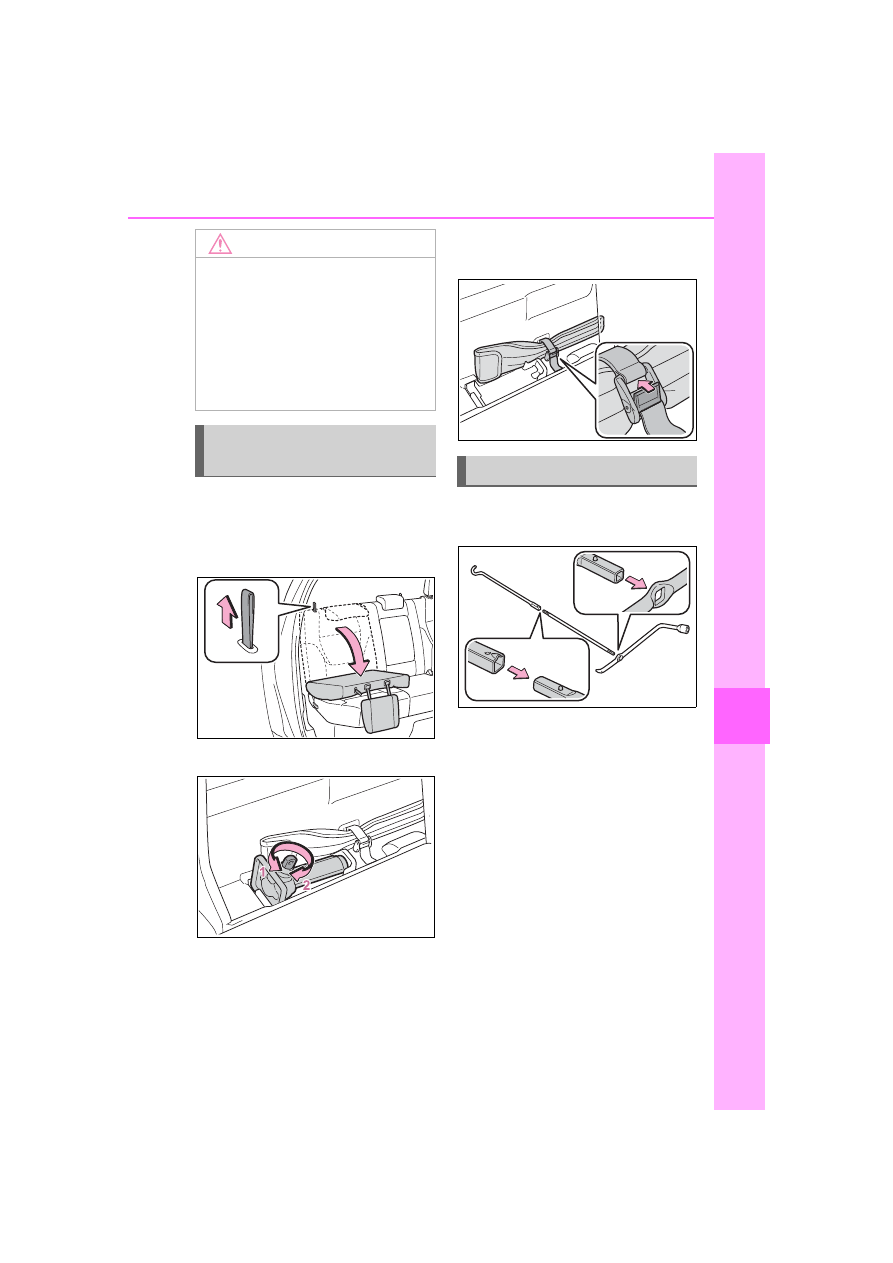

1

Fold the head restraint
(

P.141), and then pull the

strap and then fold down the
seatback.

2

Loosen and remove the jack.

1

Loosen

2

Tighten

After using the jack, install the jack
in the exact reverse order from
which they were removed.

3

Unhook the tightening strap
and take out the tool bag.

1

Assemble the jack handle
extension as shown.

2

Insert the end of the jack
handle extension into the

NOTICE

When using a wheel lock key

(if equipped)

Do not use an impact wrench.

Using an impact wrench may

cause permanent damage to

wheel lock nut and wheel lock

key. If in doubt about wheel lock

application, contact your Toyota

dealer.

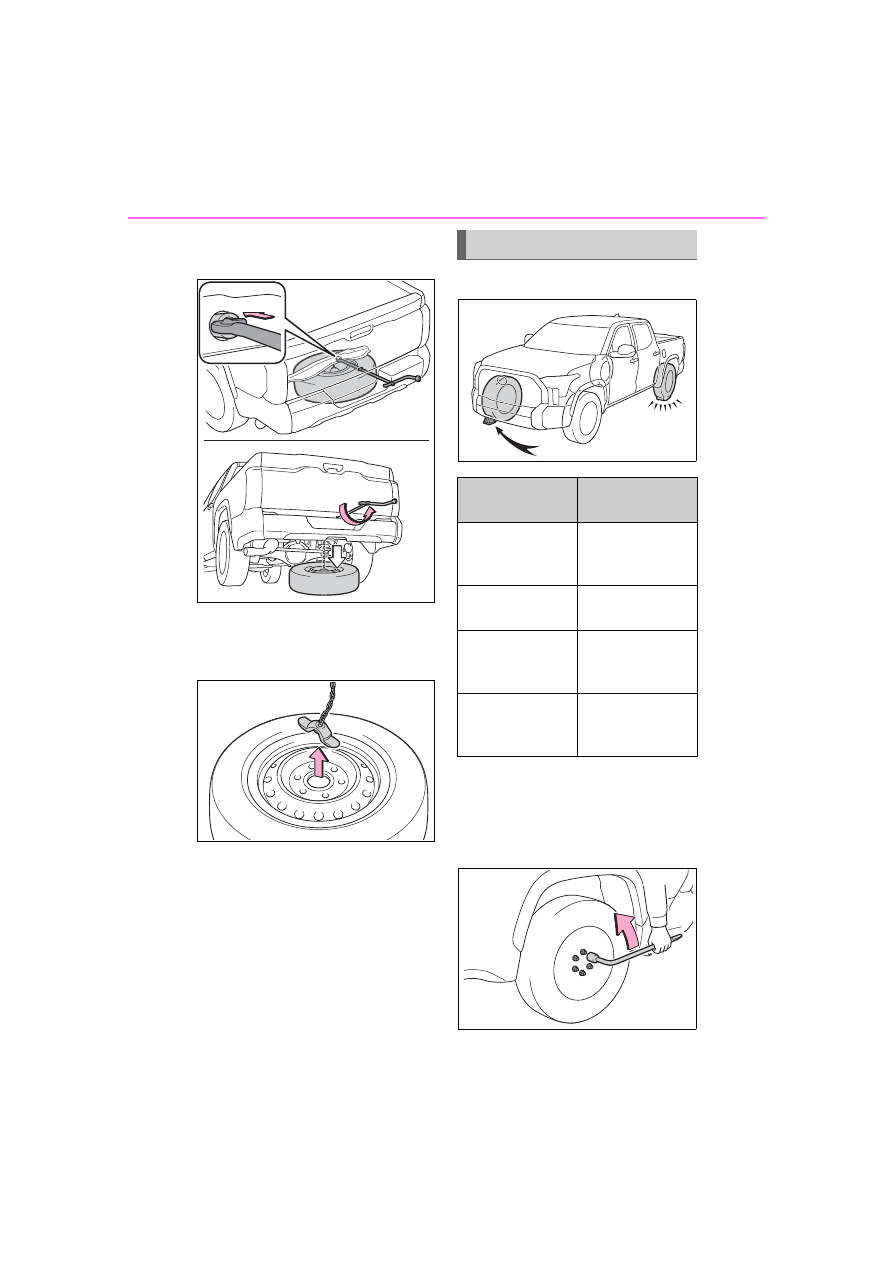

Taking out the jack and
tool bag

Taking out the spare tire

518

7-2. Steps to take in an emergency

lowering screw and turn it
counterclockwise.

3

After the tire is lowered com-
pletely to the ground, remove
the holding bracket.

1

Chock the tires.

2

Slightly loosen the wheel
nuts (one turn).

Vehicles with wheel locks: Use the

wheel lock key to loosen the wheel

lock.

Replacing a flat tire

Tire

Wheel chock

positions

Front left-hand
side

Behind the rear
right-hand side
tire

Front right-hand
side

Behind the rear
left-hand side tire

Rear left-hand
side

In front of the
front right-hand
side tire

Rear right-hand
side

In front of the
front left-hand
side tire

519

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 a

rises

3

Assemble the jack handle
extension as shown.

4

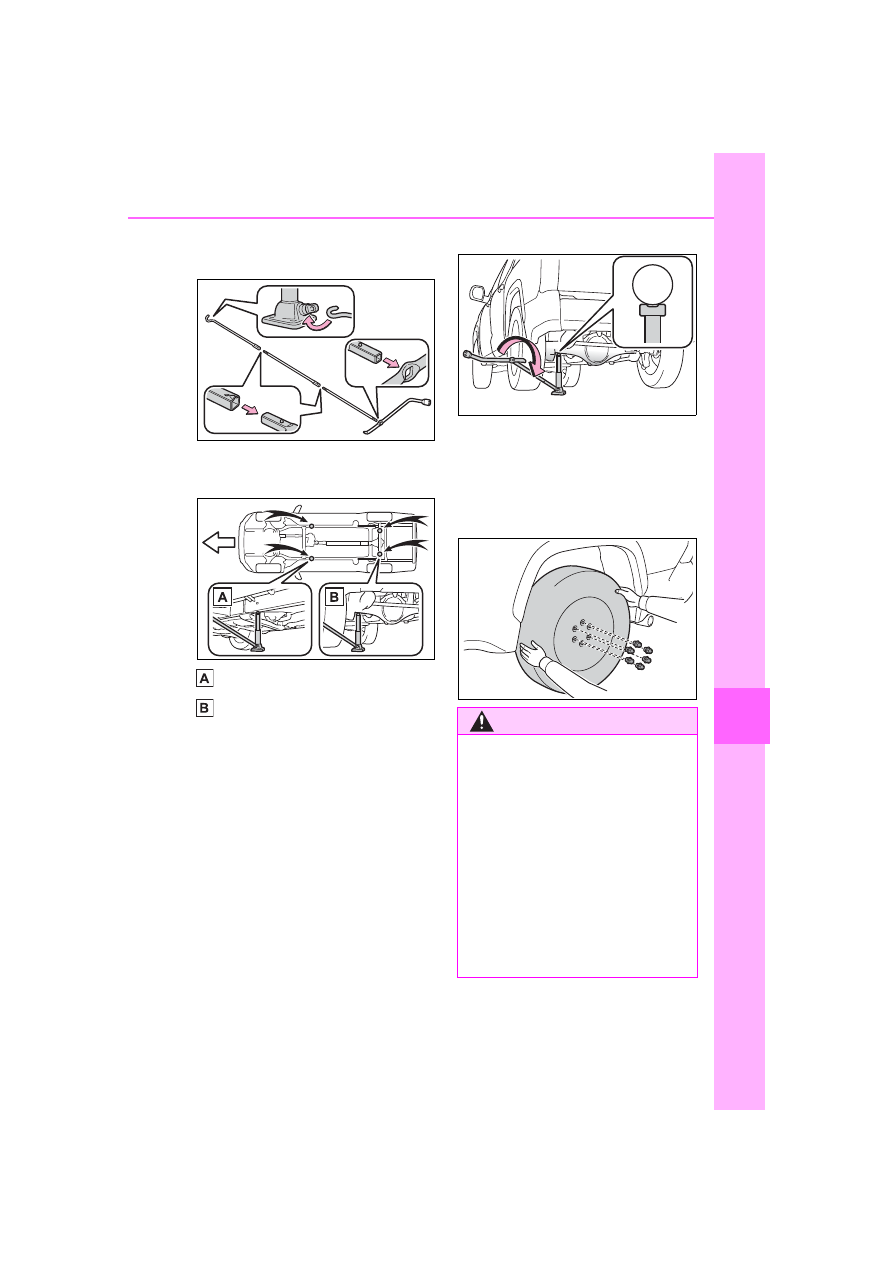

Position the jack at the cor-
rect jack point as shown.

Front

Rear

Make sure the jack is positioned on

a level and solid place.

5

Raise the vehicle until the tire
is slightly raised off the
ground.

When positioning the jack under

the rear axle housing, make sure

the groove on the top of the jack fits

with the rear axle housing.

6

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

WARNING

Replacing a flat tire

Observe the following precau-

tions.

Failure to do so may result in seri-

ous injury:

• Lower the spare tire completely

to the ground before removing it

from under the vehicle.

• Do not try to remove the wheel

ornament by hand. Take due

care in handling the ornament to

avoid unexpected personal

injury.

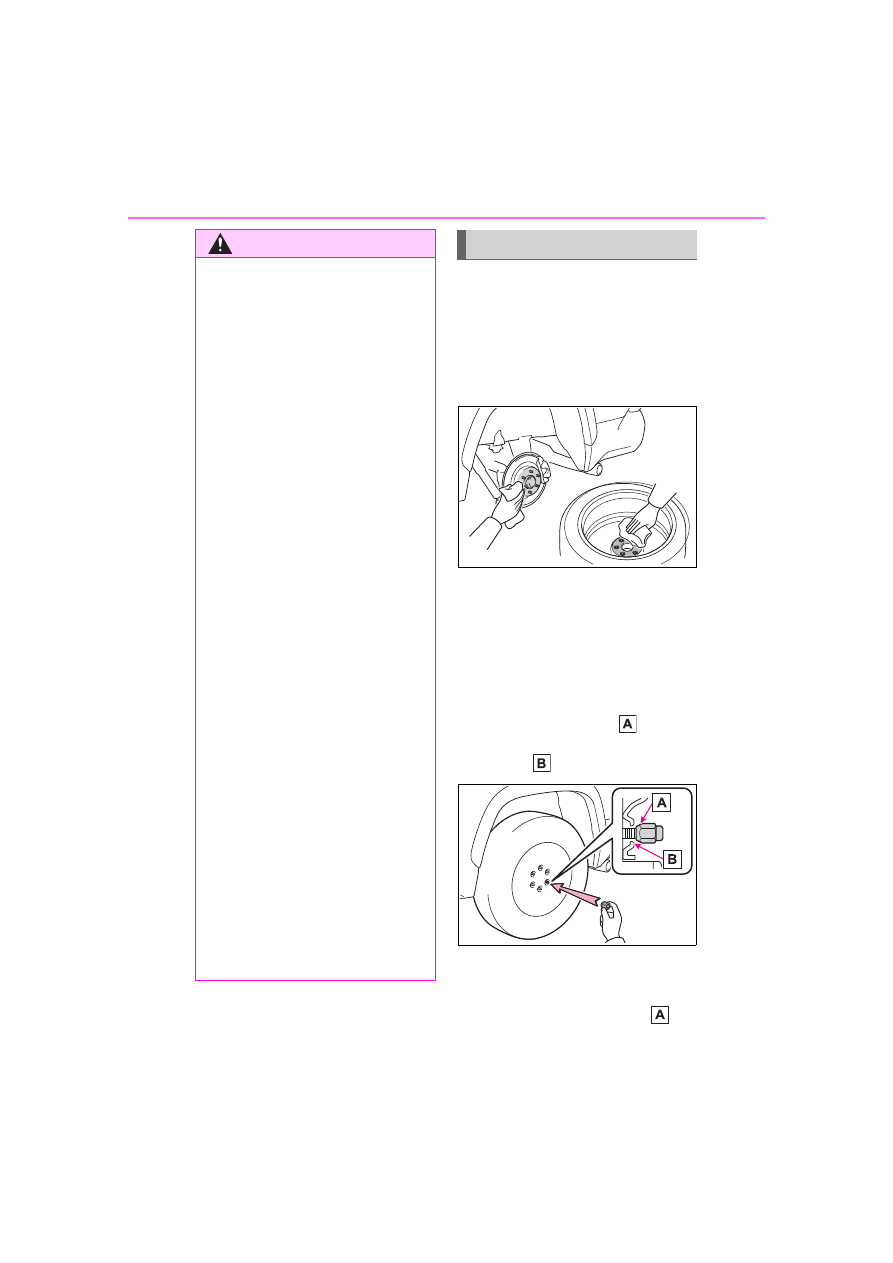

520

7-2. Steps to take in an emergency

1

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

2

Install the spare tire and
loosely tighten each wheel
nut by hand by approximately
the same amount.

When replacing a steel wheel with
a steel wheel (including a compact
spare tire), tighten the wheel nuts
until the tapered portion

 comes

into loose contact with the disc
wheel seat

.

When replacing an aluminum wheel
with a steel wheel (including a com-
pact spare tire), tighten the wheel
nuts until the tapered portion



comes into loose contact with the

WARNING

• Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven.

After the vehicle has been driven

the disc wheels and the area

around the brakes will be

extremely hot. Touching these

areas with hands, feet or other

body parts while changing a tire,

etc., may result in burns.

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Have the wheel nuts tightened

with a torque wrench as soon as

possible after changing wheels.

Steel wheel: 154 ft•lbf (209 N•m,

21.3 kgf•m)

Aluminum wheel: 97 ft•lbf (131

N•m, 13.4 kgf•m)

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• Retighten the wheel nuts within

100 miles (160 km) of driving.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• Do not attach a heavily dam-

aged wheel ornament, as it may

fly off the wheel while the vehi-

cle is moving.

• When installing the wheel nuts,

be sure to install them with the

tapered ends facing inward.

Installing the spare tire

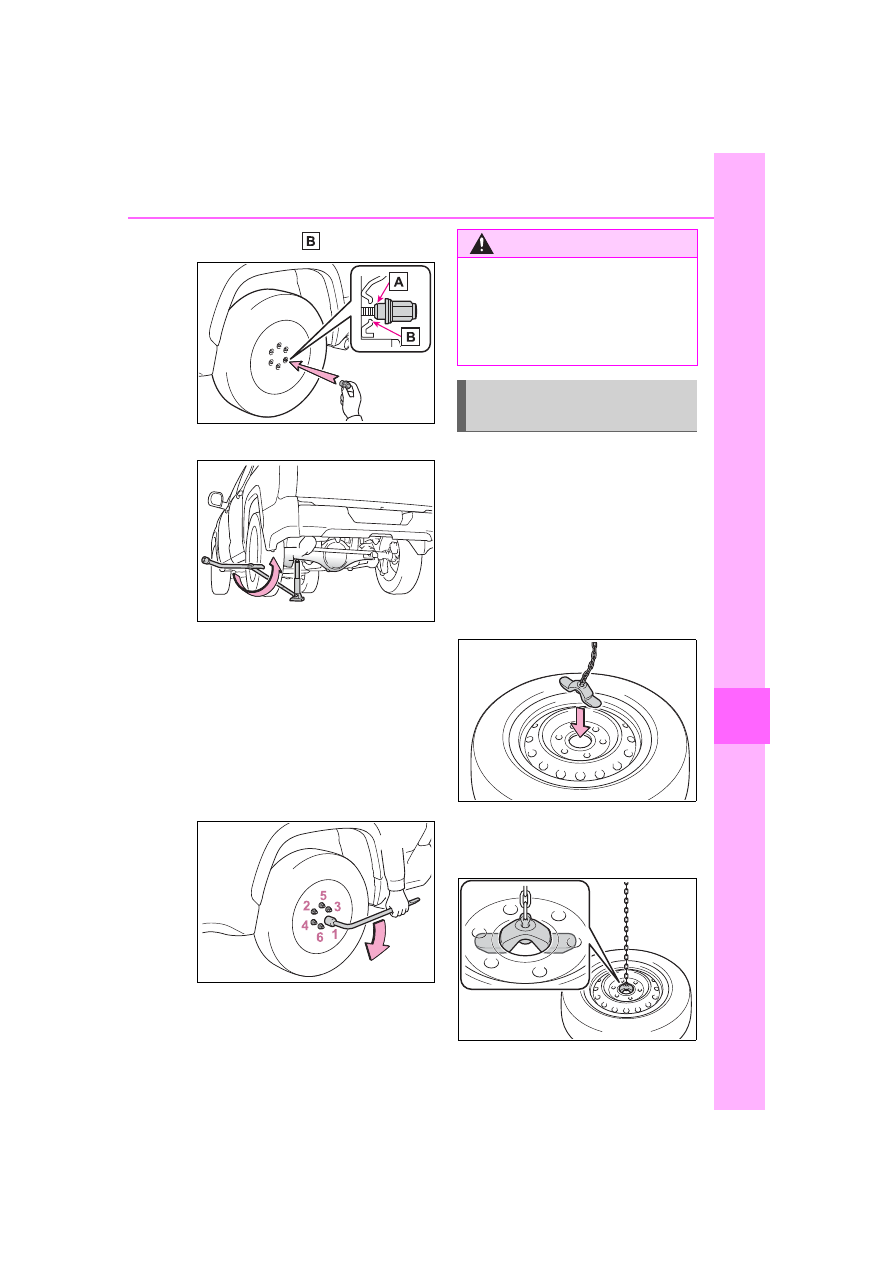

521

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 a

rises

disc wheel seat

.

3

Lower the vehicle.

4

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.

Vehicles with wheel locks:

Tighten the wheel lock using the

wheel lock key after tightening the

other wheel nuts.
Tightening torque:

154 ft•lbf (209 N•m, 21.3 kgf•m)

1

Remove the center wheel
ornament by pushing from
the reverse side.

2

Lay down the tire with the
valve stem facing up and
install the holding bracket.
Turn the jack handle exten-
sion clockwise to take up
slack in the chain.

3

Check to ensure the holding
bracket is centered in the
wheel hub.

WARNING

Stowing the flat tire

Failure to follow steps listed under

stowing the tire may result in

damage to the spare tire carrier

and loss of the tire, which could

result in serious injury or death.

Stowing the flat tire, jack
and all tools

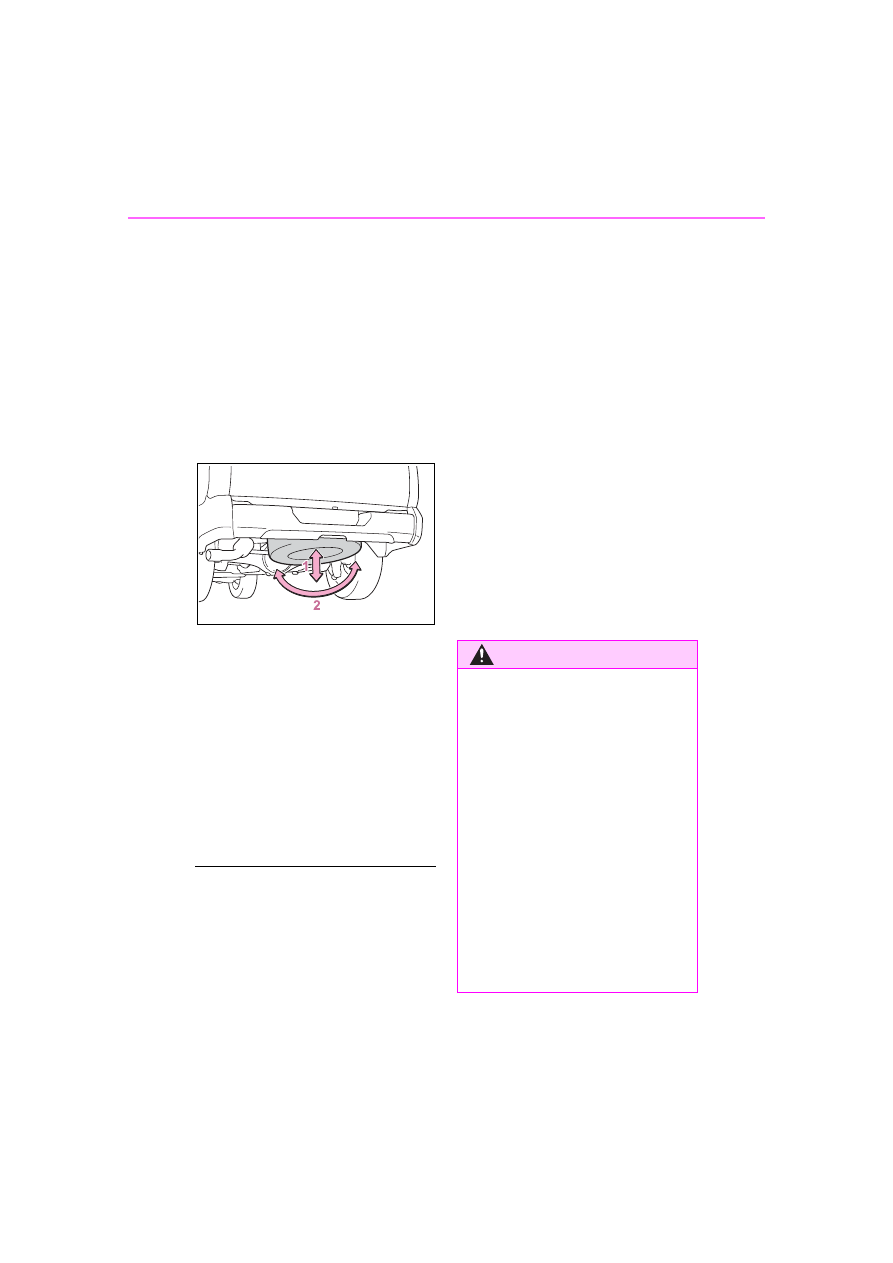

522

7-2. Steps to take in an emergency

4

While raising, secure the tire,
taking care that the tire goes
straight up without catching
on any surrounding part, to
prevent it from flying forward
during a collision or sudden
braking.

Tightening torque:

34.7 ft•lbf (46.6 N•m, 4.8 kgf•m)

5

Confirm it is not loose after
tightening:

1

Push and pull the tire

2

Try rotating

Visually check to ensure tire is not
hung on surrounding parts.
If looseness or misassembly exists,
repeat step

2

 and step

4

.

6

Repeat step

5

, any time the

tire is lowered or disturbed.

7

Stow the tools and jack
securely.

The temporary spare tire

The temporary spare tire is identi-

fied by the “TEMPORARY USE

ONLY” marking on the disc wheel

and/or tire sidewall.

Use the temporary spare tire tem-

porarily, and only in an emer-

gency.

Make sure to check the tire infla-

tion pressure of the temporary

spare tire. (

P.547)

When using the temporary

spare tire

As the temporary spare tire is not

equipped with the tire pressure

warning valve and transmitter, low

inflation pressure of the spare tire

will not be indicated by the tire pres-

sure warning system. Also, if you

replace the temporary spare tire

after the tire pressure warning light

comes on, the light remains on.

If you have a flat rear tire on a

road covered with snow or ice

Install the temporary spare tire on

one of the front wheels of the vehi-

cle. Perform the following steps and

fit tire chains to the rear tires:

1

Replace a front tire with the tem-

porary spare tire.

2

Replace the flat rear tire with the

tire removed from the front of the

vehicle.

3

Fit tire chains to the rear tires.

WARNING

When using the temporary

spare tire

Remember that the temporary

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your tempo-

rary spare tire on another vehi-

cle.

Do not use more than one tem-

porary spare tires simultane-

ously.

Replace the temporary spare

tire with a standard tire as soon

as possible.

Avoid sudden acceleration,

abrupt steering, sudden brak-

ing and shifting operations that

cause sudden engine braking.

523

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 a

rises

WARNING

When the spare tire is

attached

The vehicle speed may not be

correctly detected, and the follow-

ing systems may not operate cor-

rectly:

• ABS & Brake assist

• VSC

• TRAC

• AUTO LSD (if equipped)

• PCS (Pre-Collision System)

• Automatic High Beam (if

equipped)

• LTA (Lane Tracing Assist)

• Dynamic radar cruise control

with full-speed range

• EPS

• Trailer Sway Control

• Tire pressure warning system

• BSM (Blind Spot Monitor)

• Panoramic view monitor (if

equipped)

• Multi-terrain Monitor (if

equipped)

• Toyota parking assist monitor (if

equipped)

• Intuitive parking assist

• PKSB (Parking Support Brake)

• Navigation system (if equipped)

Also, not only can the following

system not be utilized fully, but it

may even negatively affect the

drive-train components:
• 4WD system (if equipped)

Speed limit when using the

temporary spare tire

Do not drive at speeds in excess

of 50 mph (80 km/h) when a tem-

porary spare tire is installed on

the vehicle.
The temporary spare tire is not

designed for driving at high

speeds. Failure to observe this

precaution may lead to an acci-

dent causing death or serious

injury.

NOTICE

Do not drive the vehicle with

a flat tire

Do not continue driving with a flat

tire.

Driving even a short distance with

a flat tire can damage the tire and

the wheel beyond repair.

Driving with tire chains and

the temporary spare tire

Do not fit tire chains to the tempo-

rary spare tire.

Tire chains may damage the vehi-

cle body and adversely affect driv-

ing performance.

When stowing the flat tire

Ensure that there is no object

caught between the tire and the

vehicle underbody.

When replacing the tires

When removing or fitting the

wheels, tires or the tire pressure

warning valve and transmitter,

contact your Toyota dealer as the

tire pressure warning valve and

transmitter may be damaged if not

handled correctly.

524

7-2. Steps to take in an emergency

One of the following may be the
cause of the problem:

The electronic key may not be
functioning properly.
(

P.527)

There may not be sufficient
fuel in the vehicle’s tank.
Refuel the vehicle.

There may be a malfunction
in the immobilizer system.
(

P.81)

The hybrid system may be
malfunctioning due to an elec-
trical problem such as elec-
tronic key battery depletion or
a blown fuse. However,
depending on the type of mal-
function, an interim measure
is available to start the hybrid
system. (

P.525)

The temperature of the hybrid
battery (traction battery) may
be extremely low (below

NOTICE

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer or other qualified service

shop as soon as possible. Make

sure to replace the tire pressure

warning valve and transmitter

when replacing the tire. (

P.470)

If the hybrid system

will not start

Reasons for the hybrid sys-
tem not starting vary
depending on the situation.
Check the following and
perform the appropriate
procedure:

The hybrid system will not
start even though the cor-
rect starting procedure is
being followed. (

P.195)

525

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 a

rises

approximately -31°F [-35°C]).
(

P.195)

One of the following may be the
cause of the problem:

The 12-volt battery may be
discharged. (

P.529)

The 12-volt battery terminal
connections may be loose or
corroded. (

P.463)

One of the following may be the
cause of the problem:

The 12-volt battery may be
discharged. (

P.529)

One or both of the 12-volt bat-
tery terminals may be discon-
nected. (

P.463)

Contact your Toyota dealer if the
problem cannot be repaired, or if
repair procedures are unknown.

When the hybrid system does
not start, the following steps can
be used as an interim measure
to start the hybrid system if the
power switch is functioning nor-

mally.
Do not use this starting proce-
dure except in case of emer-
gency.

1

Pull the parking brake switch
to check that the parking
brake is set. (

P.205)

Parking brake indicator will come

on.

2

Shift the shift lever to P.

3

Turn the power switch to
ACC.

4

Press and hold the power
switch for about 15 seconds
while depressing the brake
pedal firmly.

Even if the hybrid system can be
started using the above steps, the
system may be malfunctioning.
Have the vehicle inspected by your
Toyota dealer.

The interior lights and
headlights are dim, or the
horn does not sound or
sounds at a low volume.

The interior lights and
headlights do not turn on,
or the horn does not
sound.

Emergency start function

526

7-2. Steps to take in an emergency

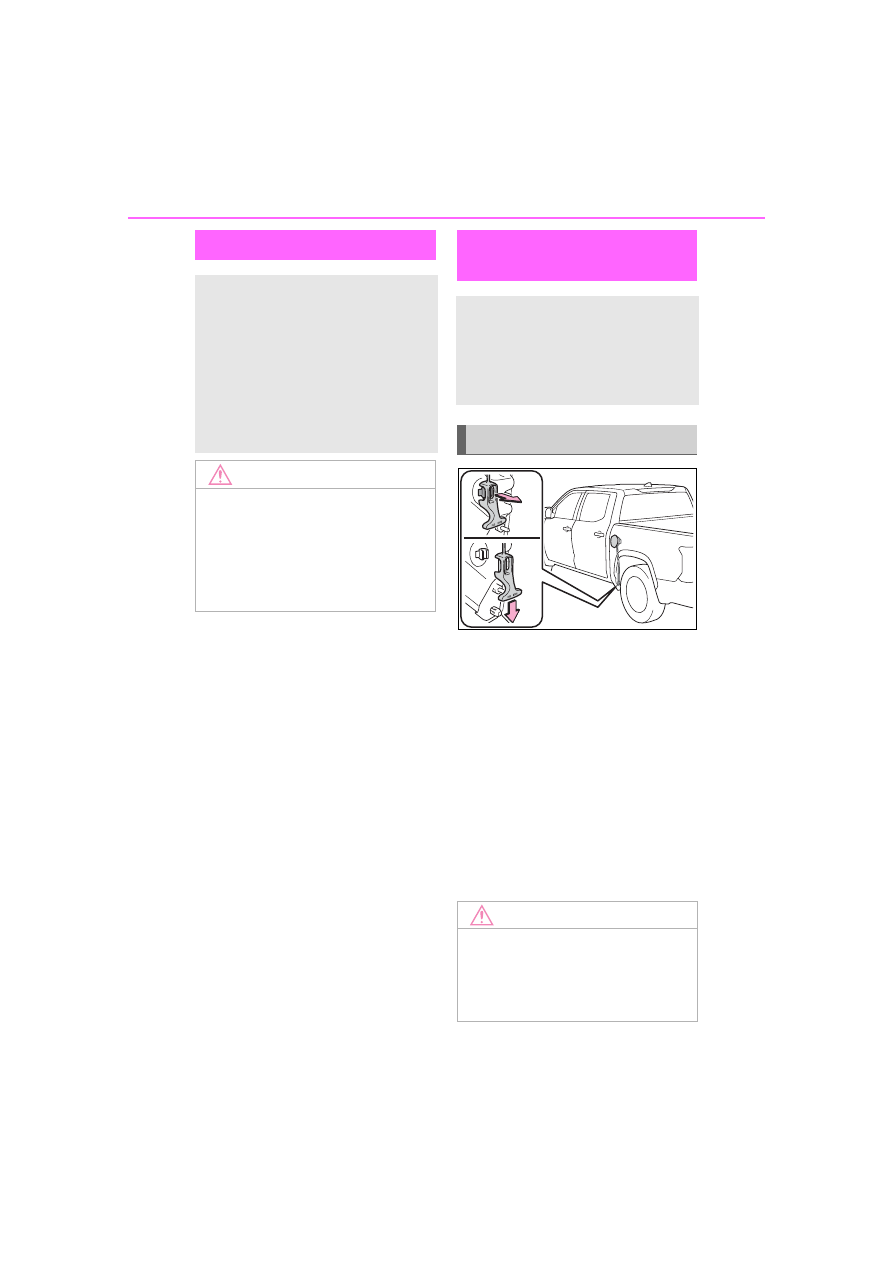

The emergency release lever is
located inside of the rear fender
liner.

1

Pull the lever forward and
remove from the clip.

2

Pull the lever down to unlock
the fuel door, and it will be
ready to be opened as usual.

After refueling, perform the pro-
cedure in reverse to return the
fuel filler door to its original posi-
tion.

If you lose your keys

New genuine keys can be
made by your Toyota dealer
using other key and the key
number stamped on your
key number plate.

Keep the plate in a safe
place such as your wallet,
not in the vehicle.

NOTICE

When an electronic key is lost

If the electronic key remains lost,

the risk of vehicle theft increases

significantly. Visit your Toyota

dealer immediately with all

remaining electronic keys that

were provided with your vehicle.

If the fuel door cannot

be opened

If the fuel door opener
switch cannot be operated,
the following procedure can
be used to open the fuel
door.

Opening the fuel door

NOTICE

When opening the fuel filler

door manually

Do not open the fuel filler door

manually except in an emer-

gency. Fuel may overflow.

527

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 a

rises

When the electronic key does

not work properly

Make sure that the smart key sys-

tem has not been deactivated in

the customization setting. If it is

off, turn the function on.

(Customizable features:

P.561)

Check if battery-saving mode is

set. If it is set, cancel the function.

(

P.129)

Use the mechanical key
(

P.112) in order to perform the

NOTICE

Using the lever to open the fuel

filler door may not allow for an

adequate reduction in fuel tank

pressure before refueling. To

prevent fuel from spilling out,

turn the cap slowly when remov-

ing it.

During refueling, fuel may spill

out from the filler opening due to

air being discharged from inside

the fuel tank. Therefore, fill the

fuel tank carefully and slowly.

If the electronic key

does not operate prop-

erly

If communication between
the electronic key and vehi-
cle is interrupted (

P.130)

or the electronic key cannot
be used because the battery
is depleted, the smart key
system and wireless remote
control cannot be used. In
such cases, the doors can
be opened and the hybrid
system can be started by
following the procedure
below.

NOTICE

In case of a smart key system

malfunction or other key-

related problems

Take your vehicle with all the elec-

tronic keys provided with your

vehicle to your Toyota dealer.

Locking and unlocking
the doors

528

7-2. Steps to take in an emergency

following operations:

1

Locks all the doors

2

Unlocks all the doors

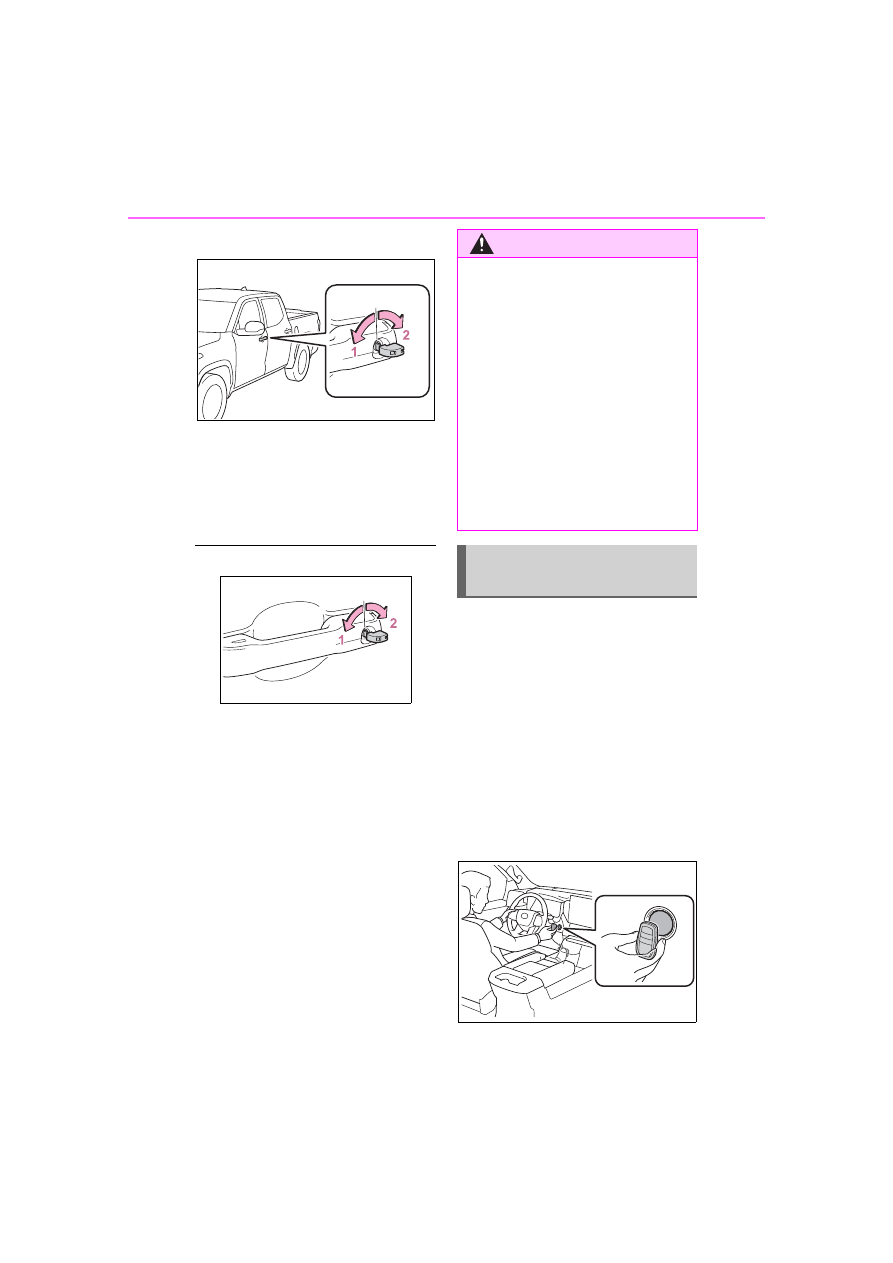

Turning the key unlocks the driver’s
door. Turning the key again unlocks
the other doors.

Key linked functions

1

Closes the windows and the pan-
oramic moon roof

*

. (turn and

hold)

2

Opens the windows and the pan-
oramic moon roof

*

. (turn and

hold)

These settings must be customized

at your Toyota dealer.

*

: If equipped

1

Ensure that the shift lever is
in P and depress the brake
pedal.

2

Touch the Toyota emblem
side of the electronic key to
the power switch.

When the electronic key is

detected, a buzzer sounds and the

power switch will turn to ON.
When the smart key system is

deactivated in customization set-

ting, the power switch will turn to

ACC.

WARNING

When using the mechanical

key and operating the power

windows and the panoramic

moon roof (if equipped)

Operate the power window or the

panoramic moon roof after check-

ing to make sure that there is no

possibility of any passenger hav-

ing any of their body parts caught

in the window or the panoramic

moon roof.

Also, do not allow children to

operate the mechanical key. It is

possible for children and other

passengers to get caught in the

power window or the panoramic

moon roof.

Starting the hybrid sys-
tem

529

7-2. Steps to take in an emergency

7

Whe

n tr

ouble

 a

rises

3

Firmly depress the brake
pedal and check that

 is

shown on the multi-informa-
tion display.

4

Press the power switch
shortly and firmly.

In the event that the hybrid sys-
tem still cannot be started, con-
tact your Toyota dealer.

Stopping the hybrid system

Shift the shift lever to P, set the park-

ing brake, shift the shift lever to P

and press the power switch as you

normally do when stopping the

hybrid system.

Electronic key battery

As the above procedure is a tempo-

rary measure, it is recommended

that the electronic key battery be

replaced immediately when the bat-

tery is depleted. (

P.484)

Alarm

Using the mechanical key to lock

the doors will not set the alarm sys-

tem. If a door is unlocked using the

mechanical key when the alarm sys-

tem is set, the alarm may be trig-

gered. (

P.82)

Changing power switch modes

Release the brake pedal and press

the power switch in step

3

 above.

The hybrid system does not start

and modes will be changed each

time the switch is pressed. (

P.198)

If you have a set of jumper (or
booster) cables and a second
vehicle with a 12-volt battery,
you can jump start your vehicle
by following the steps below.

1

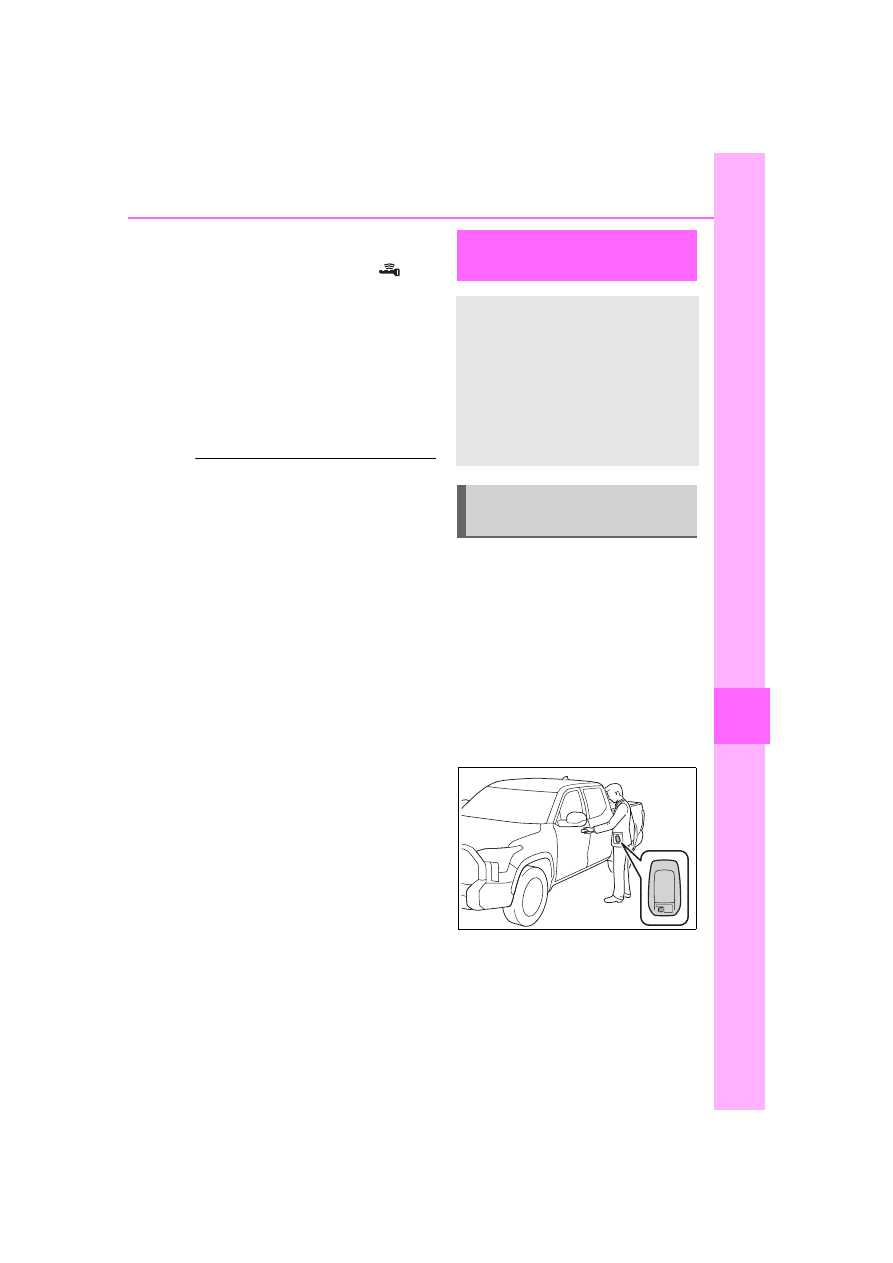

Confirm that the electronic
key is being carried.

When connecting the jumper (or

booster) cables, depending on the

situation, the alarm may activate

and doors locked. (

P.83)

2

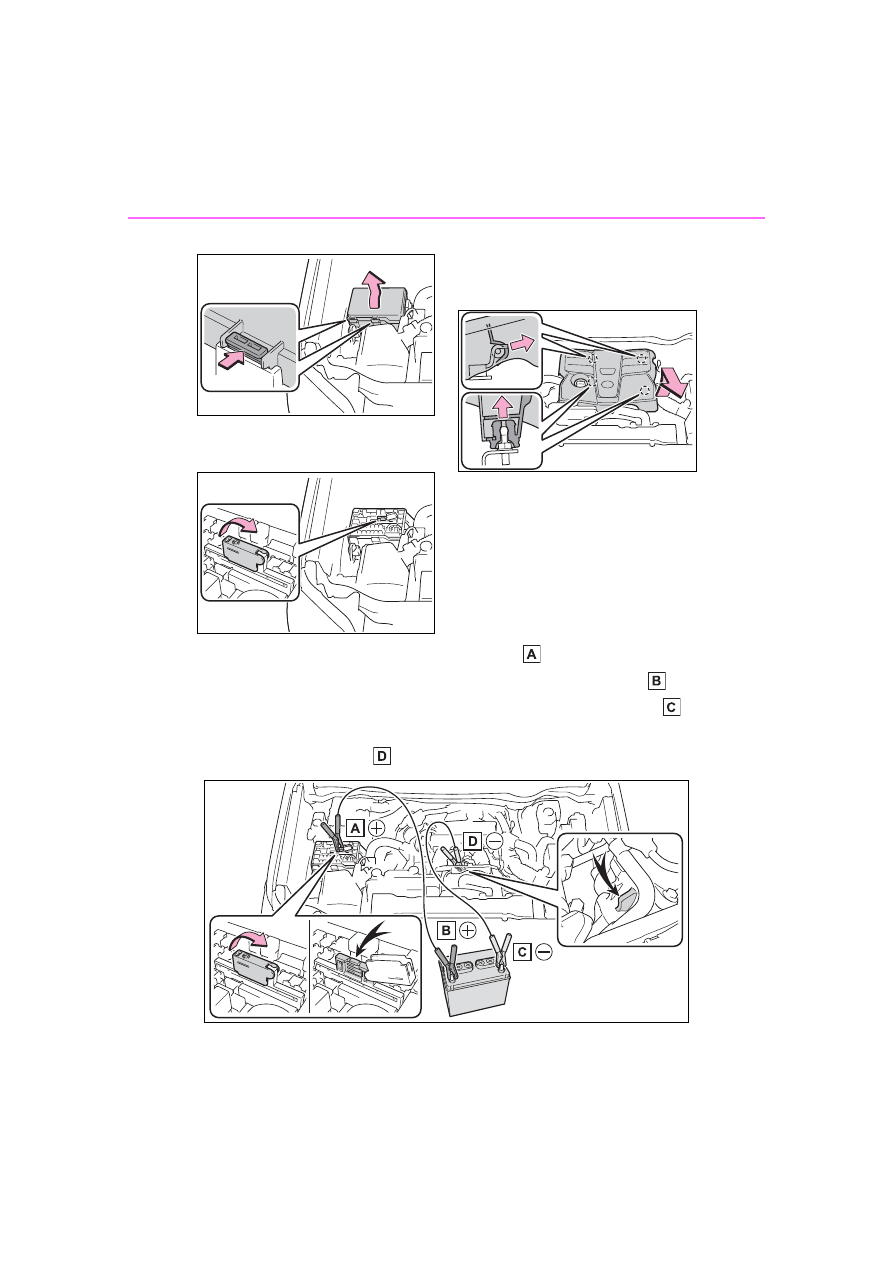

Open the hood (

P.456) and

fuse box cover.

Push claw to completely release

If the vehicle 12-volt

battery is discharged

The following procedures
may be used to start the
hybrid system if the vehi-
cle’s 12-volt battery is dis-
charged.
You can also call your Toy-
ota dealer or a qualified
repair shop.

Restarting the hybrid sys-
tem

530

7-2. Steps to take in an emergency

the lock, and them lift up the cover.

3

Open the exclusive jump
starting terminal cover.

4

Remove the engine cover.

Lift the edge of the cover to disen-

gage the fixed pins, and then pull

the cover towards you to remove it.

5

Connect a positive jumper cable clamp to   on your vehicle and
connect the clamp on the other end of the positive cable to   on
the second vehicle. Then, connect a negative cable clamp to
on the second vehicle and connect the clamp at the other end of
the negative cable to  .















Content      ..     30      31      32      33     ..
