5-1. Using the air conditioning system and defogger

outside rear view mirrors.
Press the rear window and out-
side rear view mirror defoggers
switch.

The defoggers will automatically
turn off after 15 minutes.
When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.

■

When the outside temperature

exceeds 75°F (24°C) and the air

conditioning system is on

●

In order to reduce the air condi-

tioning power consumption, the air

conditioning system may switch to

recirculated air mode automati-

cally.

This may also reduce fuel con-

sumption.

●

Recirculated air mode is selected

as a default mode when the power

switch is turned to ON.

It is possible to switch to outside air

mode at any time by pressing the

outside air mode switch.

■

Fogging up of the windows

●

The windows will easily fog up

when the humidity in the vehicle is

high. Turning the cooling and

dehumidification function on will

dehumidify the air from the outlets

and defog the windshield effec-

tively.

●

If you turn the cooling and dehu-

midification function off, the win-

dows may fog up more easily.

●

The windows may fog up if the

recirculated air mode is used.

■

When driving on dusty roads

Close all windows. If dust thrown up

by the vehicle is still drawn into the

vehicle after closing the windows, it

is recommended that the air intake

mode be set to outside air mode and

the fan speed to any setting except

off.

■

Outside/recirculated air mode

●

Setting to the recirculated air

mode temporarily is recom-

mended in preventing dirty air

from entering the vehicle interior

and helping to cool the vehicle

when the outside air temperature

is high.

●

Outside/recirculated air mode may

automatically switch depending on

the temperature setting or the

inside temperature.

■

When the outside temperature

falls to nearly 32°F (0°C)

The dehumidification function may

not operate even when “A/C” switch

is pressed.

■

Ventilation and air conditioning

odors

●

To let fresh air in, set the air condi-

tioning system to the outside air

mode.

●

During use, various odors from

inside and outside the vehicle may

enter into and accumulate in the

air conditioning system. This may

then cause odor to be emitted

from the vents.

●

In order to suppress odors that

occur when the air conditioning

system starts, the air flow mode

may change to blow air to the feet

or air may stop blowing for a short

period of time immediately after

the air conditioning system is

started in automatic mode.

●

When parking, the system auto-

matically switches to outside air

mode to encourage better air cir-

culation throughout the vehicle,

helping to reduce odors that occur

when starting the vehicle.

■

Air conditioning filter



P.479

403

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

■

Air conditioning system refrig-

erant

●

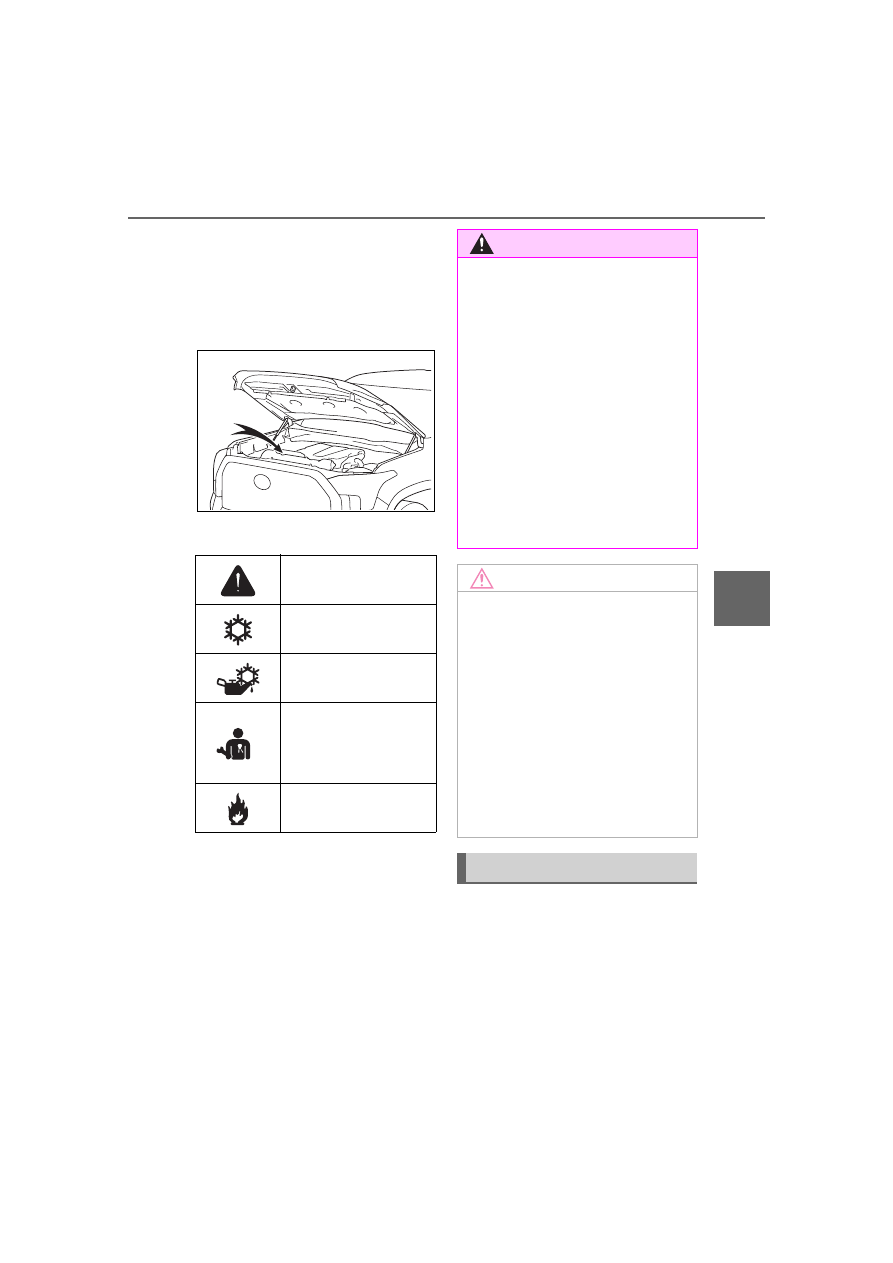

A label regarding the refrigerant of

the air conditioning system is

attached to the hood at the loca-

tion shown in the following illustra-

tion.

●

The meaning of each symbol on

the label are as follows:

■

Customization

Some functions can be customized.

(Customizable features:



P.569)

1

Operate the “AUTO” toggle.

2

Adjust the temperature set-
ting.

3

To stop the operation, press
the “OFF” switch.

If the fan speed setting or air

Caution

Air conditioning sys-
tem

Air conditioning sys-
tem lubricant type

Requires registered
technician to service
air conditioning sys-
tem

Flammable refrigerant

WARNING

■

To prevent the windshield

from fogging up

Do not use the windshield defog-

ger switch during cool air opera-

tion in extremely humid weather.

The difference between the tem-

perature of the outside air and

that of the windshield can cause

the outer surface of the wind-

shield to fog up, blocking your

vision.

■

When the outside rear view

mirror defoggers are operat-

ing

Do not touch the rear view mirror

surfaces when the outside rear

view mirror defoggers are on.

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the air conditioning

system on longer than necessary

when the hybrid system is off.

■

When repairing/replacing

parts of the air conditioning

system

Have repair/replacement per-

formed by your Toyota dealer.

When a part of the air conditioning

system, such as the evaporator, is

to be replaced, it must be

replaced with a new one.

Using automatic mode

404

5-1. Using the air conditioning system and defogger

flow modes are operated, the
automatic mode indicator goes
off. However, automatic mode
for functions other than that
operated is maintained.

■

Using automatic mode

Fan speed is adjusted automati-

cally according to the temperature

setting and the ambient conditions.
Therefore, the fan may stop for a

while until warm or cool air is ready

to flow immediately after the auto-

matic mode switch is pressed.

This function automatically con-
trols the air conditioning airflow
so that priority is given to the
front seats. Unnecessary air
conditioning is suppressed, con-
tributing to increased fuel effi-
ciency.
Front seat concentrated airflow
mode operates in the following
situations.



No passengers are detected
in the rear seats



The windshield defogger is
not operating

While operating,

 illuminates.

■

Manually turning front seat
concentrated airflow mode
on/off

In front seat concentrated air-
flow mode, directing airflow to
the front seats only and to all

seats can be switched via switch
operation. When the mode has
been switched manually, auto-
matic airflow control stops oper-
ating.

Press

 on the air conditioning

operation panel and switch the
airflow.



Indicator illuminated: Airflow
to the front seats only



Indicator off: Airflow to the all
seats

■

Operation of automatic airflow

control

●

In order to maintain a comfortable

interior, airflow may be directed to

seats without passengers immedi-

ately after the hybrid system is

started and at other times depend-

ing on the outside temperature.

●

After the hybrid system is started,

if passengers move around inside

or enter/exit the vehicle, the sys-

tem cannot accurately detect the

presence of passengers and auto-

matic airflow control will not oper-

ate.

■

Operation of manual airflow

control

Even if the function is manually

switched to directing airflow to only

the front seats, when a rear seat is

occupied, it may automatically direct

airflow to all seats.

■

To return to automatic airflow

control

1

With the indicator off, turn the

power switch off.

2

After 60 minutes or more elapse,

turn the power switch to ON.

Front seat concentrated
airflow mode (S-FLOW)

405

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

To turn on the “SYNC” mode,
operate the “SYNC” toggle
upwards or downwards.

The driver’s side temperature con-
trol toggle can be used to adjust the
temperature for the driver’s and
front passenger’s side. To enter
individual mode, operate the front
passenger’s side temperature con-
trol toggle or press the “SYNC” tog-
gle again.
When the “SYNC” mode is on, the
“SYNC” indicator is illuminate.

This feature is used to prevent
ice from building up on the wind-
shield and wiper blades.
Press the rear window and out-
side rear view mirror defoggers
switch.

The windshield wiper de-icer will
automatically turn off after 15 min-
utes.
Turning the rear window and out-
side rear view mirror defoggers on
will turn the windshield wiper de-
icer on.
When the rear window and outside
rear view mirror defoggers switch is
on, the indicator illuminates on the
rear window and outside rear view
mirror defoggers switch.

■

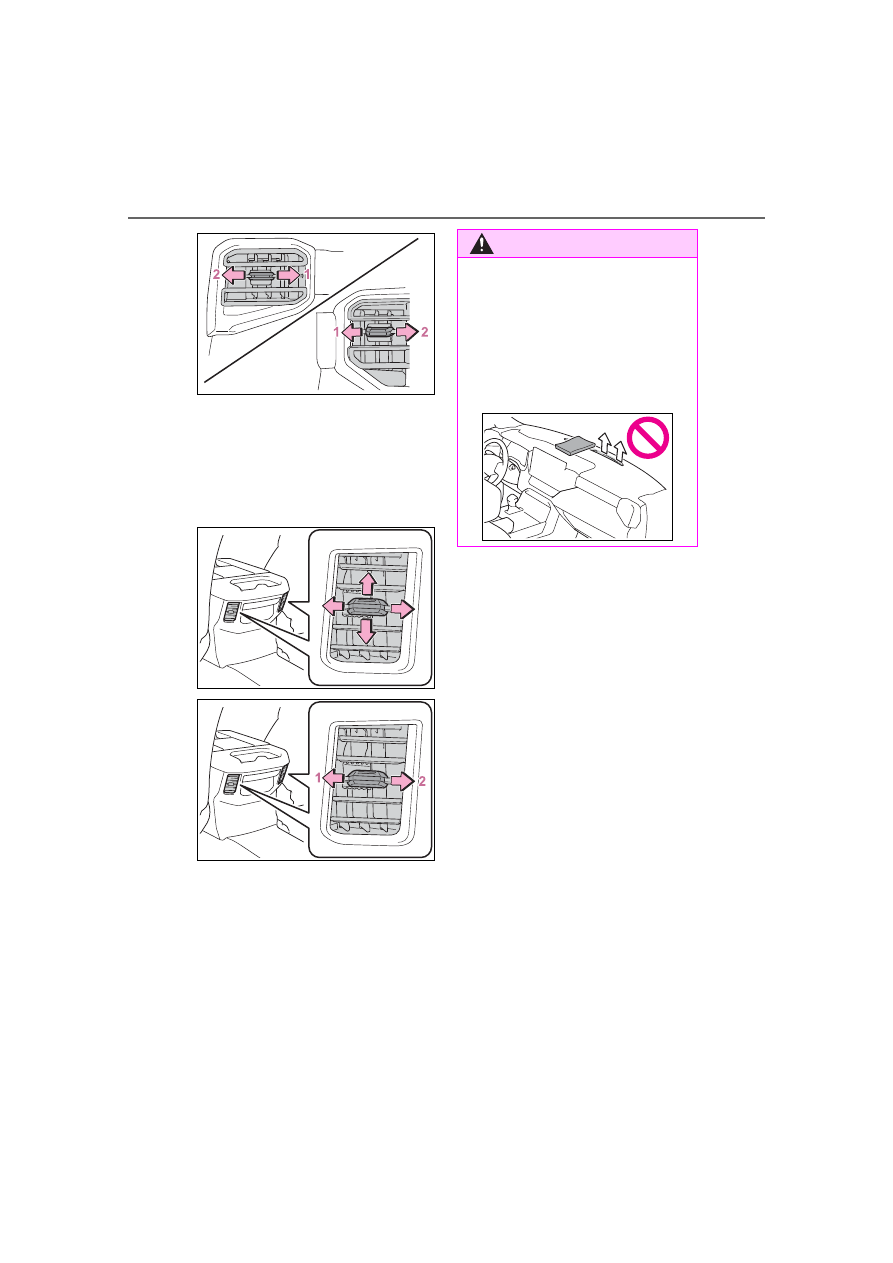

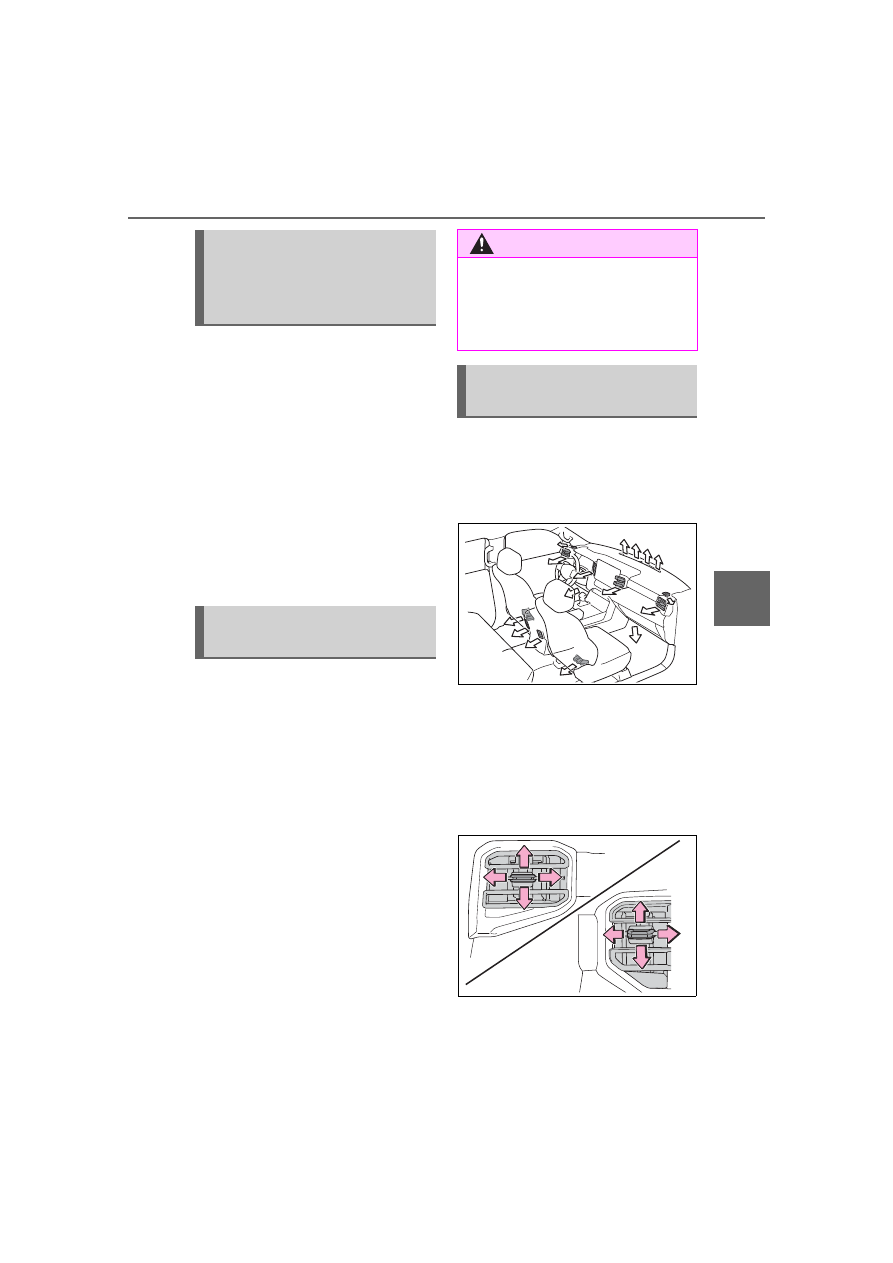

Location of air outlets

The air outlets and air volume
change according to the
selected air flow mode.

■

Adjusting the air flow direc-
tion and opening/closing
the air outlets



Front

Direct air flow to the left or right,
up or down

Adjusting the temperature
for driver and front pas-
senger seats simultane-
ously (“SYNC” mode)

Windshield wiper de-icer
(if equipped)

WARNING

■

To prevent burns

Do not touch the glass at lower

part of the windshield or to the

side of the front pillars when the

windshield wiper deicer is on.

Air outlet layout and oper-
ations

406

5-1. Using the air conditioning system and defogger

1

Open the vent

2

Close the vent



Rear

Direct air flow to the left or right,
up or down

1

Open the vent

2

Close the vent

WARNING

■

To not interrupt the wind-

shield defogger from operat-

ing

Do not place anything on the

instrument panel which may cover

the air outlets. Otherwise, air flow

may be obstructed, preventing the

windshield defoggers from defog-

ging.

407

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

*

: If equipped

■

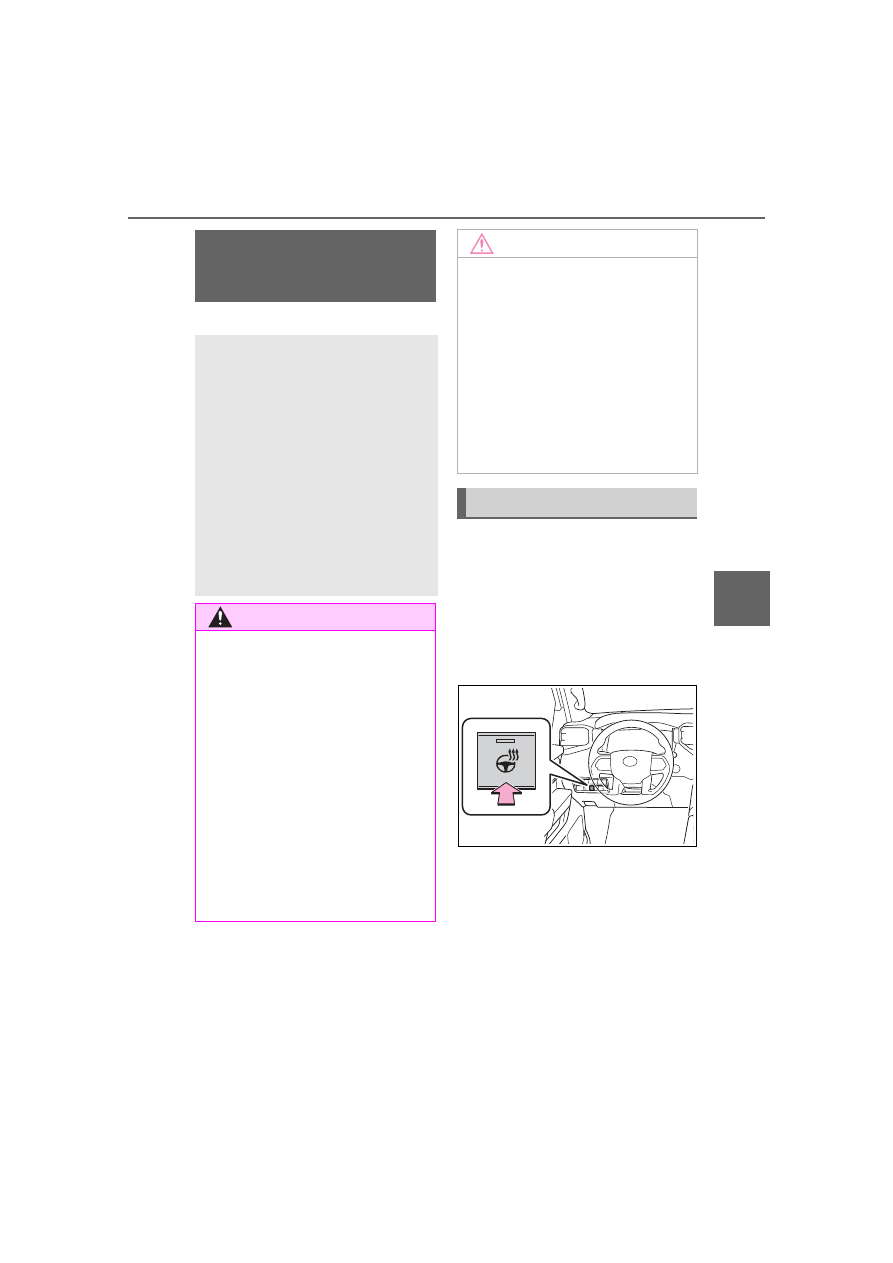

Heated steering wheel (if
equipped)

Turns heated steering wheel
on/off When the heated steering
wheel is on, the indicator illumi-
nates on the heated steering
wheel switch.

Heated steering

wheel

*

/seat heat-

ers

*

/seat ventilators

*



Heated steering wheel

Warms up the grip of the
steering wheel



Front seat heaters/Rear
seat heaters

Warm up the seat upholstery



Front seat ventilators/Rear
seat ventilators

Maintain good ventilation by
pulling air through the seat
upholstery

WARNING

■

To prevent minor burn inju-

ries

Care should be taken if anyone in

the following categories comes in

contact with the steering wheel or

seats when the heater is on:

●

Babies, small children, the

elderly, the sick and the physi-

cally challenged

●

Persons with sensitive skin

●

Persons who are fatigued

●

Persons who have taken alco-

hol or drugs that induce sleep

(sleeping drugs, cold remedies,

etc.)

NOTICE

■

To prevent damage to the

seat heaters and seat ventila-

tors

Do not put heavy objects that

have an uneven surface on the

seat and do not stick sharp

objects (needles, nails, etc.) into

the seat.

■

To prevent 12-volt battery dis-

charge

Do not use the functions when the

hybrid system is off.

Operating instructions

408

5-1. Using the air conditioning system and defogger

■

Front seat heaters/seat ven-
tilators

Adjust the front seat heater
temperature level

Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)





Off
The level indicator (red) light up
during operation.

Adjust the front seat ventila-
tor fan speed level

Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)





Off
The level indicator (blue) light up
during operation.

■

Rear seat heaters/seat ven-
tilators (if equipped)

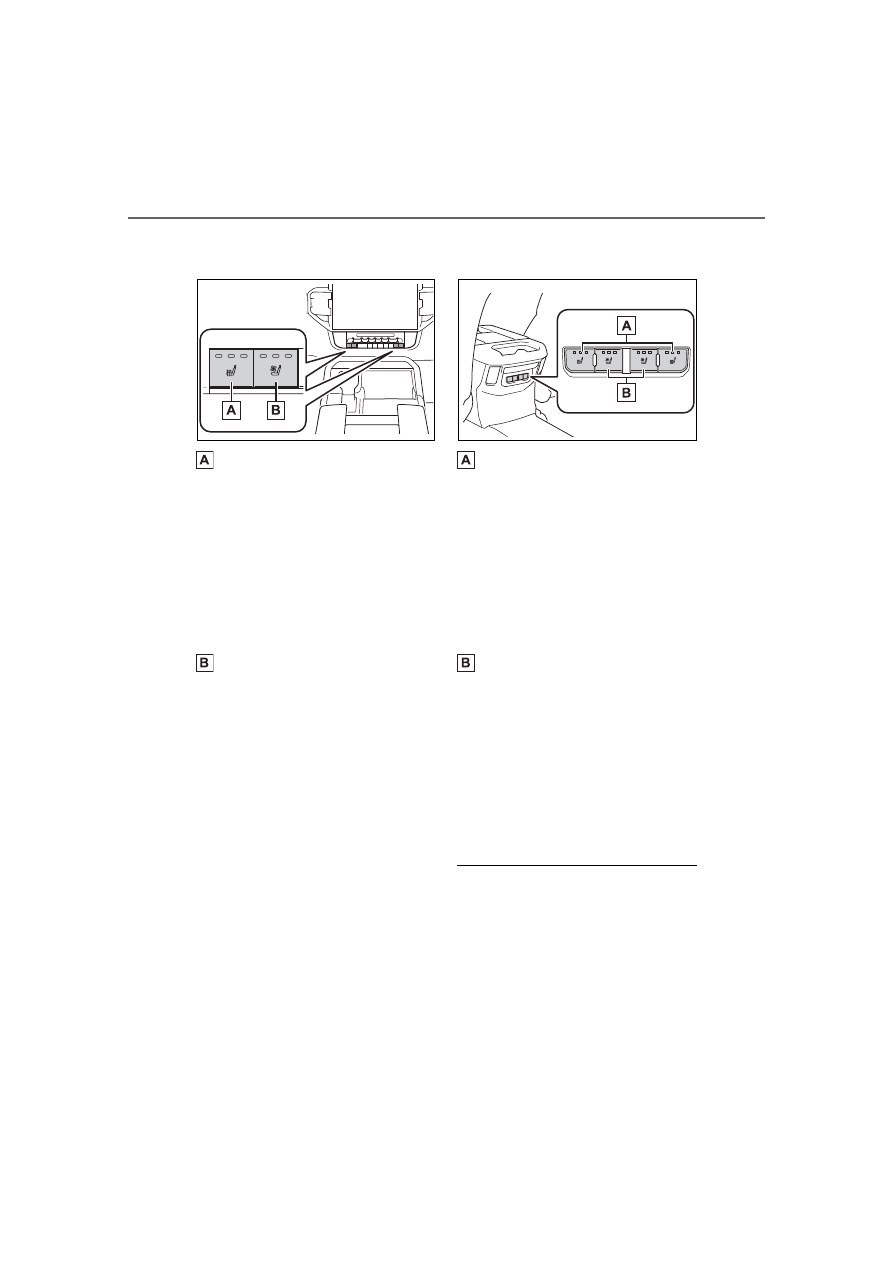

Adjust the rear seat heater
temperature level

Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)





Off
The level indicator (red) light up
during operation.

Adjust the rear seat ventilator
fan speed level

Each time the switch is pressed,
the operation condition changes as
follows.
Hi (3 segments lit)



 Mid (2 seg-

ments lit)



 Lo (1 segment lit)





Off
The level indicator (blue) light up
during operation.

■

The heated steering wheel, seat

heaters and seat ventilators can

be used when

The power switch is in ON.

409

5-1. Using the air conditioning system and defogger

5

Interior

 featur

es

WARNING

■

To prevent overheating and

minor burn injuries

Observe the following precautions

when using the seat heaters.

●

Do not cover the seat with a

blanket or cushion when using

the seat heater.

●

Do not use seat heater more

than necessary.

410

5-2. Using the interior lights

5-2.Using the interior lights

Personal/interior lights (



P.411)

Door courtesy lights

Ambient lights (if equipped) (



P.411)

Shift lever light (if equipped)

Power switch light

Glove box light

Footwell lights (if equipped)

Front tray light

Console box light (if equipped)

Cargo lamp (



P.411)

Bed lamp (if equipped) (



P.411)

Trailer hitch light (



P.386, 411)

Interior lights list

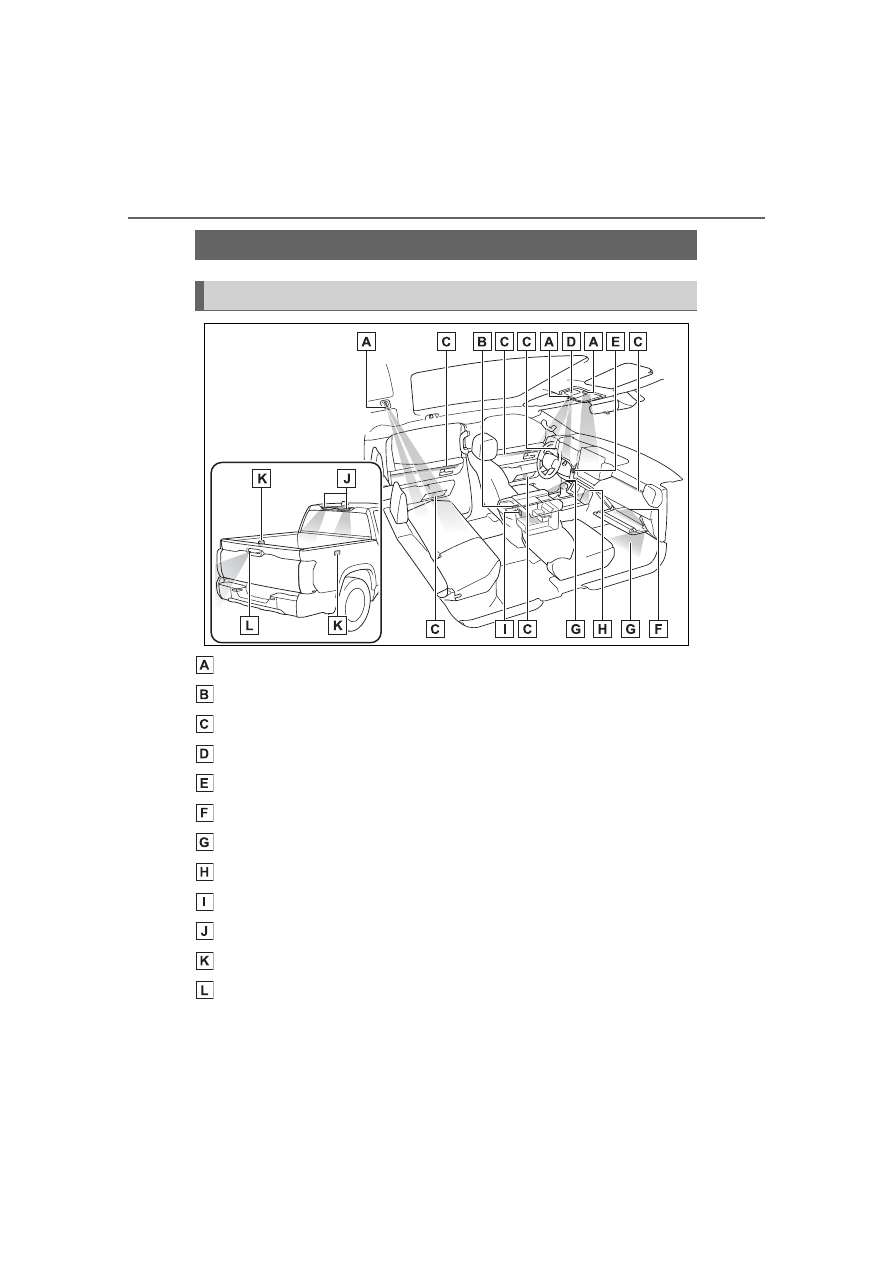

Location of the interior lights

411

5-2. Using the interior lights

5

Interior

 featur

es

“OFF”

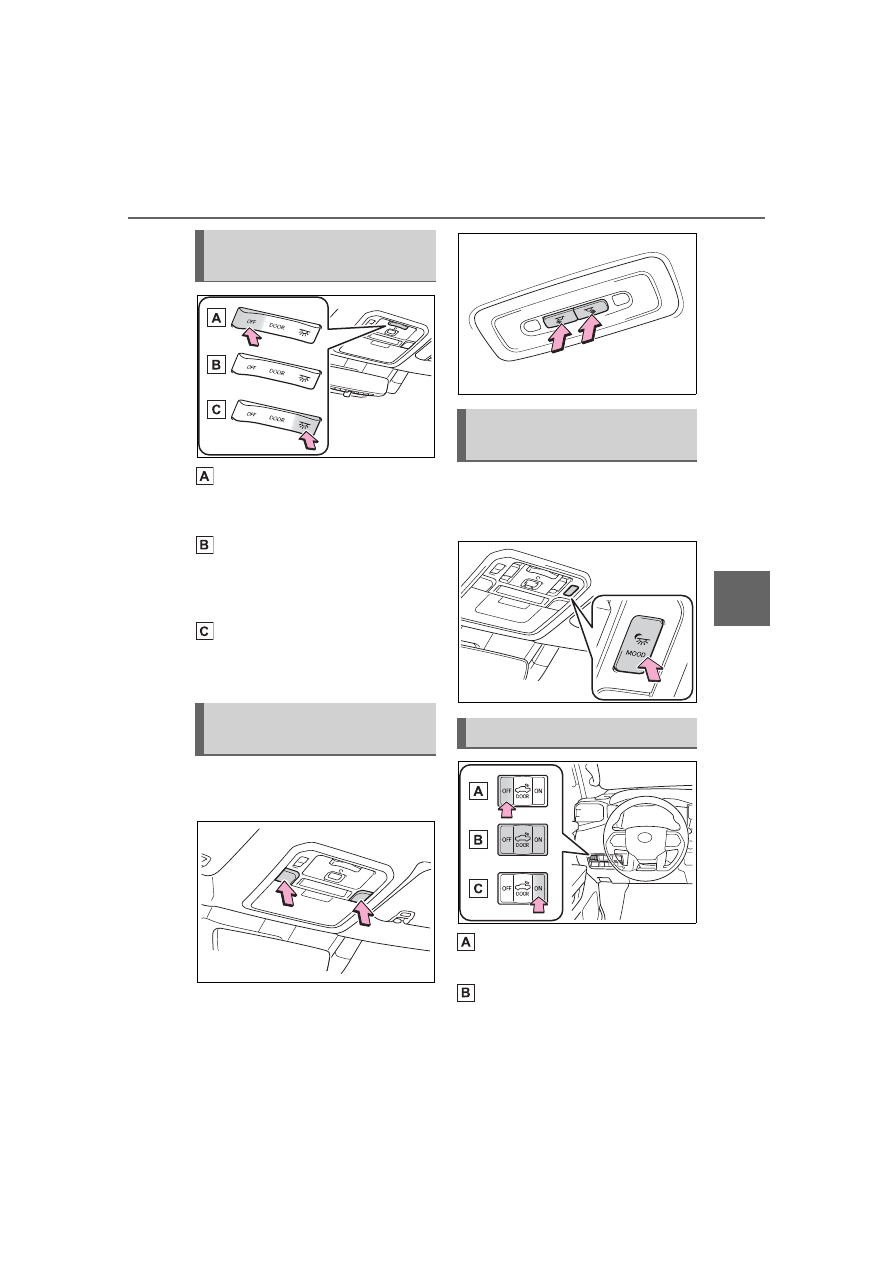

The personal/interior lights can be
individually turned on or off.

“DOOR”

The personal/interior lights come
on when a door is opened. They
turn off when the doors are closed.

“ON”

The personal/interior lights cannot
be individually turned off.



Front

Turns the lights on/off



Rear

Turns the lights on/off

Each time the “MOOD” switch is
pressed, the brightness level
changes.

“OFF”

Turns the lights off

“DOOR”

The cargo lamp and bed lamp turns
on/off when the door or tailgate is

Personal/interior lights
main switch

Operating the per-
sonal/interior lights

Ambient lights (if
equipped)

Cargo lamp main switch

412

5-2. Using the interior lights

opened or closed while the shift
lever is in P, D or R.
The trailer hitch light turns on when
the door or tailgate is opened or
closed while the shift lever is in P or
R. trailer hitch light will turn off
when shift lever in D.

“ON”

The cargo lamp, bed lamp, trailer
hitch light turns on while the shift
lever is in P or R. Only cargo lamp
and bed lamp turns on while shift
lever is in D.

■

Illuminated entry system

The lights automatically turn on/off

according to the power switch

mode, the presence of the elec-

tronic key, whether the doors are

locked/unlocked, and whether the

doors are open/closed.

■

To prevent the 12-volt battery

from being discharged

If the following lights remain on

when the door is not fully closed and

the main switch is in the “DOOR”

position, the lights will go off auto-

matically after 20 minutes:

●

Personal/interior lights

●

Cargo lamp

●

Bed lamp

●

Trailer hitch light

■

The personal/interior lights may

turn on automatically when

If any of the SRS airbags deploy

(inflate) or in the event of a strong

rear impact, the personal/interior

lights will turn on automatically.
The personal/interior lights will turn

off automatically after approximately

20minutes.
The personal/interior lights can be

turned off manually. However, in

order to help prevent further colli-

sions, it is recommended that they

be left on until safety can be

ensured.
(The personal/interior lights may not

turn on automatically depending on

the force of the impact and condi-

tions of the collision.)

■

Customization

Some functions can be customized.

(



P.561)

NOTICE

■

To prevent 12-volt battery dis-

charge

Do not leave the lights on longer

than necessary when the hybrid

system is off.

■

Removing light lenses

Never remove the lens for the

personal/interior lights. Otherwise,

the lights will be damaged. If a

lens needs to be removed, con-

tact your Toyota dealer.

413

5-3. Using the storage features

5

Interior

 featur

es

5-3.Using the storage features

Auxiliary boxes

Glove box

Cup holders

Console box

Bottle holders

Pull up the lever to open.

List of storage features

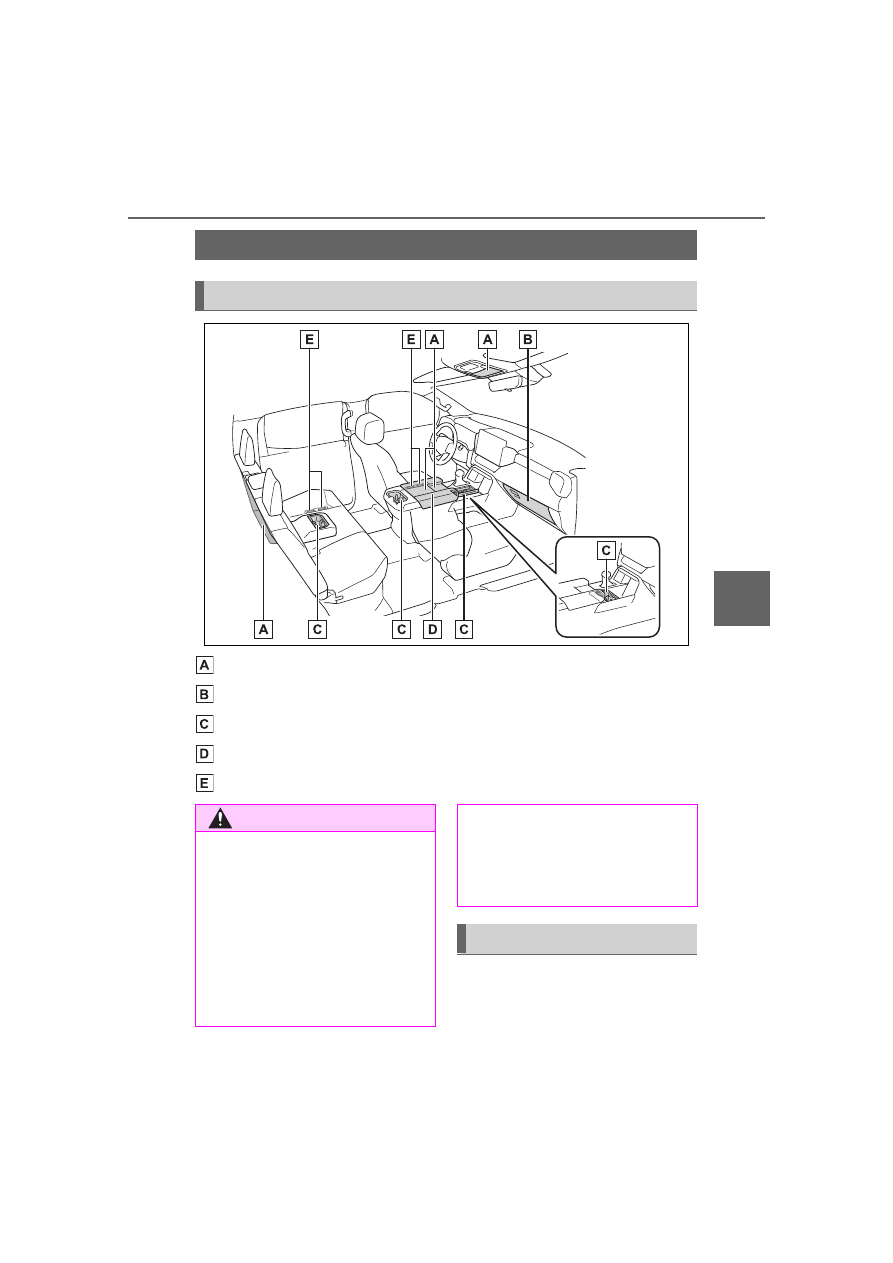

Location of the storage features

WARNING

■

Items that should not be left

in the storage spaces

Do not leave glasses, lighters or

spray cans in the storage spaces,

as this may cause the following

when cabin temperature becomes

high:

●

Glasses may be deformed by

heat or cracked if they come

into contact with other stored

items.

●

Lighters or spray cans may

explode. If they come into con-

tact with other stored items, the

lighter may catch fire or the

spray can may release gas,

causing a fire hazard.

Glove box

414

5-3. Using the storage features

1

Unlock with the mechanical
key

2

Lock with the mechanical key

■

Tray within glove box

The tray can be removed by lifting

the tray and then sliding it out.

1

Lift the tray to disengage clip

2

Slide to remove tab from hole



Front (Type A)



Front (Type B)

Press in and release the button.



Rear (Type A)



Rear (Type B)

Pull the armrest down for use.

WARNING

■

Caution while driving

Keep the glove box closed. In the

event of sudden braking or sud-

den swerving, an accident may

occur due to an occupant being

struck by the open glove box or

the items stored inside.

Cup holders

415

5-3. Using the storage features

5

Interior

 featur

es



Front



Rear (if equipped)

■

Bottle holders

●

When storing a bottle, close the

cap.

●

The bottle may not be stored

depending on its size or shape.

Press either button to open the
console box.

WARNING

■

Items unsuitable for the cup

holder

Do not place anything other than

cups or beverage cans in the cup

holders.

Inappropriate items must not be

stored in the cup holders even if

the lid is closed.

Other items may be thrown out of

the holders in the event of an

accident or sudden braking and

cause injury. If possible, cover hot

drinks to prevent burns.

■

When not in use

Keep the cup holders closed.

Injuries may result in the event of

an accident or sudden braking.

Bottle holders

WARNING

■

Items unsuitable for the bottle

holders

Do not place anything other than

a bottle in the bottle holders.

Other items may be thrown out of

the holders in the event of an

accident or sudden braking and

cause injury.

NOTICE

■

Items that should not be

stowed in the bottle holders

Put the cap on before stowing a

bottle. Do not place open bottles

in the bottle holders, or glasses

and paper cups containing liquid.

The contents may spill and

glasses may break.

Console box

416

5-3. Using the storage features

■

Console box

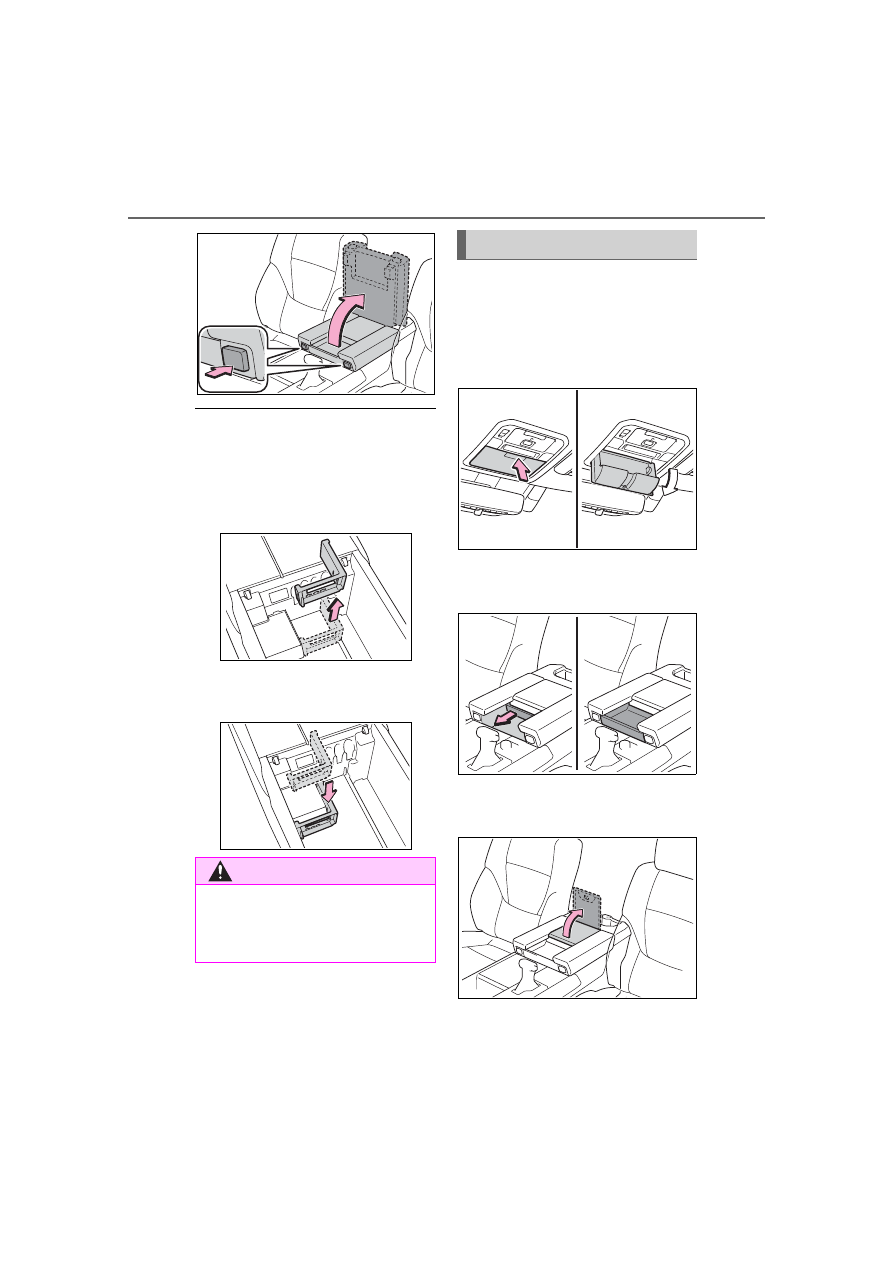

When the auxiliary box is slid, the

console box can be accessed.

■

Console box partition

The partition of the console box can

be removed.

The removed partition can be

stowed in the position as shown in

the illustration.



Type A

Push in and release the auxiliary
box.

This box is useful for temporarily
storing the small items.



Type B

Pull the auxiliary box out.



Type C (if equipped)

Pull the lid to open.

WARNING

■

Caution while driving

Keep the console box closed.

Injuries may result in the event of

an accident or sudden braking.

Auxiliary boxes

417

5-3. Using the storage features

5

Interior

 featur

es



Type D (if equipped)

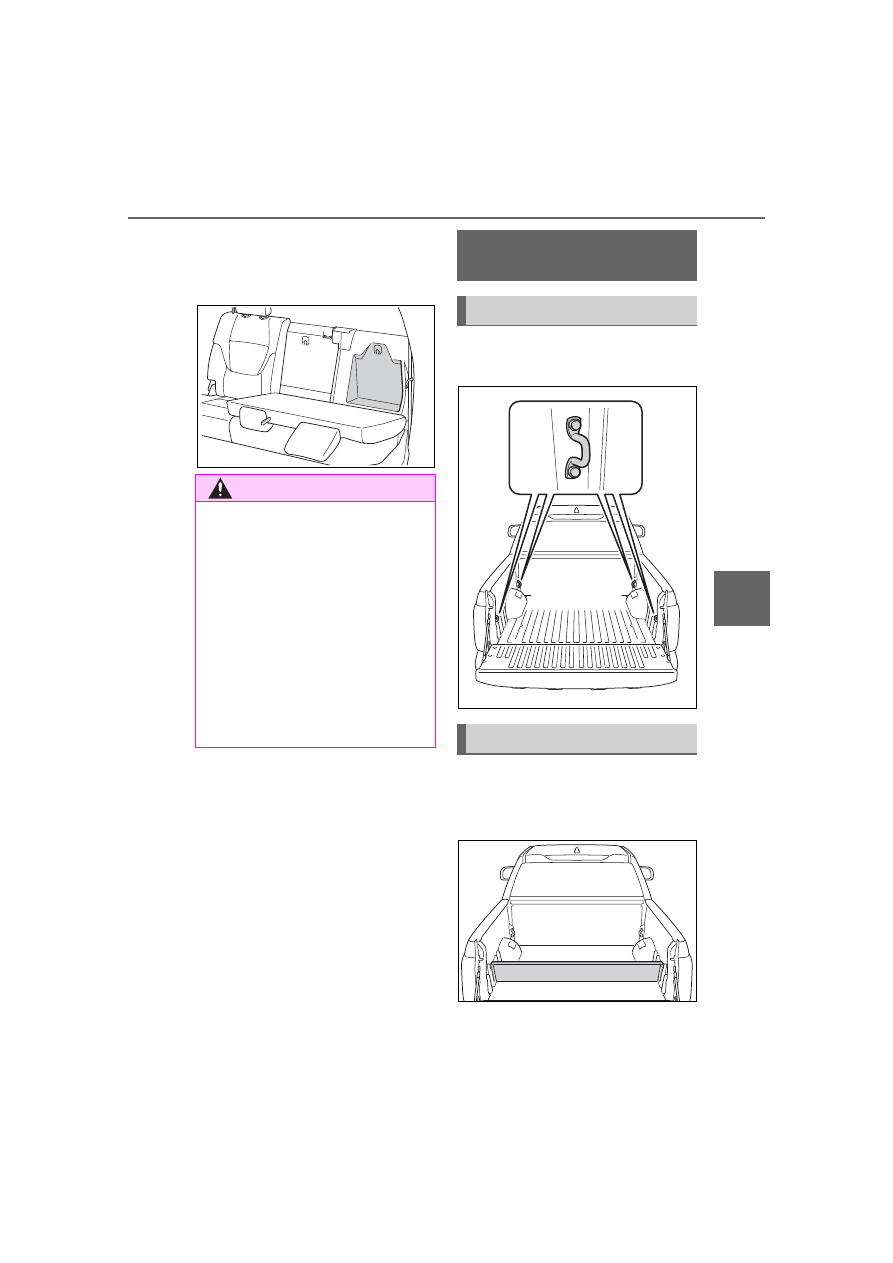

Folding down the rear seat-
backs. (



P.134)

Bed hooks are provided for
securing loose items.

■

Vertical position

The plank can be inserted in the
deck side groove.

Insertion position:

WARNING

■

Caution while driving

Do not leave the auxiliary box

open while driving.

Items may fall out and cause

death or serious injury in case of

an accident or sudden stop.

■

Items unsuitable for storing

(type A)

Do not store items heavier than

0.4 lb. (0.2 kg).

Doing so may cause the auxiliary

box to open and the items inside

may fall out, resulting in an acci-

dent.

Luggage compart-

ment features

Bed hooks

Deck divider
