4-5. Using the driving support systems

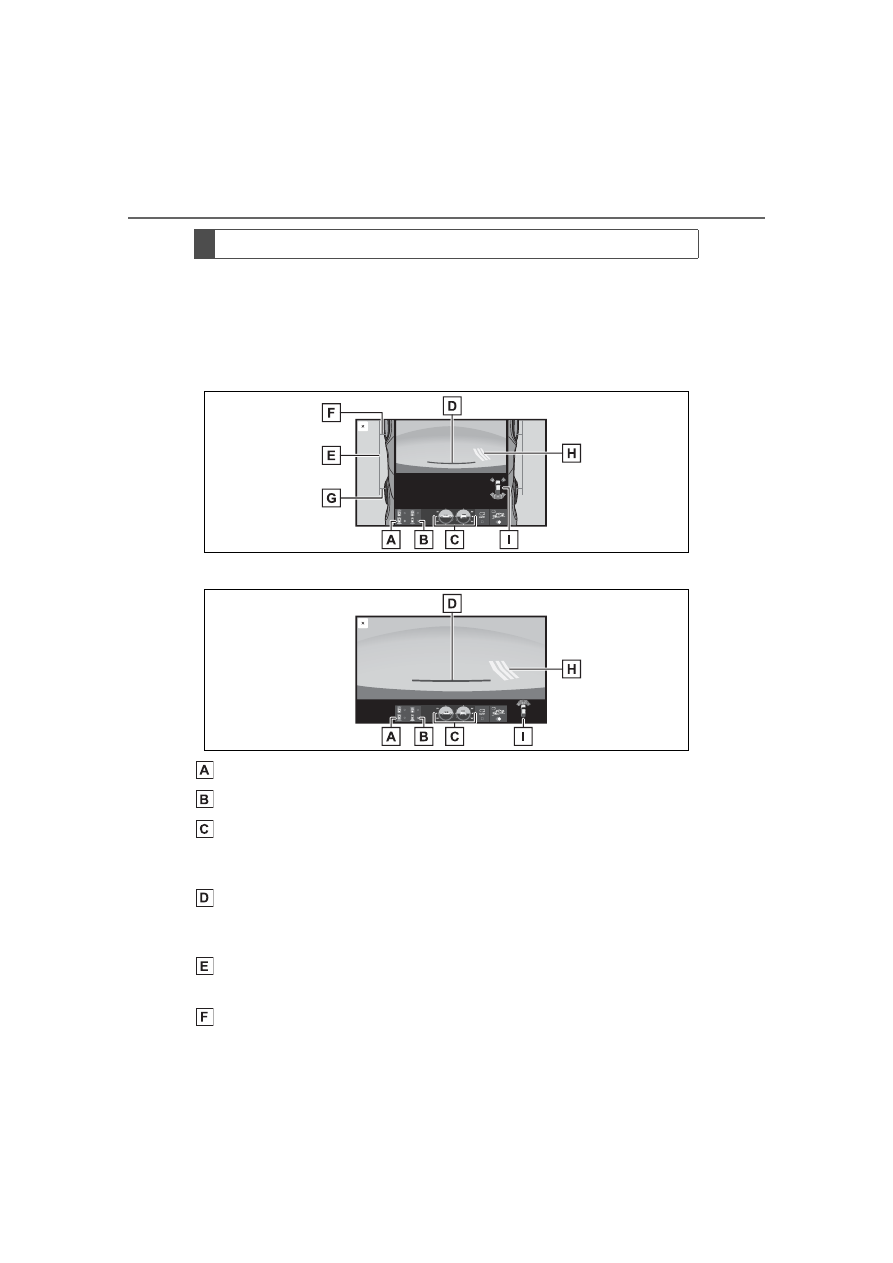

The rear view & dual side view/wide rear view screen provide sup-
port when checking the areas of behind the vehicle and around the
vehicle while backing up, for example while parking.
The screens will be displayed when the shift lever is in R.



Rear view & dual side view



Wide rear view

Rear view & dual side view

Wide rear view button

Clinometer/slip display

Displays the vehicle’s estimated degree of incline or indicates a tire slip-
page. (



P.349, 350)

1.5 ft. (0.5 m) distance guide line (red)

Show distance in rear of the vehicle.
• Display points approximately 1.5 ft. (0.5 m) from the edge of the bumper.

Vehicle width guide lines (blue)

Displays a guide path when the vehicle is being backed straight up.

Front tire contact line (blue)

Rear view & dual side view/wide rear view

353

4-5. Using the driving support systems

ing

Shows guide lines of where the front tire touches the ground.

Rear tire contact line (blue)

Shows guide lines of where the rear tire touches the ground.

Rear Cross Traffic Alert

When a sensor detects a vehicle approaching from the rear, the direction of
the vehicle approaching from the rear is displayed and the buzzer sounds.

Intuitive parking assist

When a sensor detects an obstacle, the direction of and the approximate
distance to the obstacle are displayed and the buzzer sounds.

●

The screen can be displayed when the shift lever is in R.

●

For details about the Rear Cross Traffic Alert function. (



P.281)

●

If the tailgate is not closed, guide lines will not be displayed. If the guide

lines do not display even when the tailgate is closed, have the vehicle

inspected at your Toyota dealer.



P.330



P.341

WARNING

●

The tire position indicator lines and vehicle position indicator lines may

differ from actual vehicle positions depending on the number of passen-

gers, cargo weight, road grade, road surface conditions, brightness of

the surrounding environment, etc. Always drive the vehicle while con-

firming the safety of your surroundings.

Multi-terrain Monitor pre-
cautions

Things you should know

354

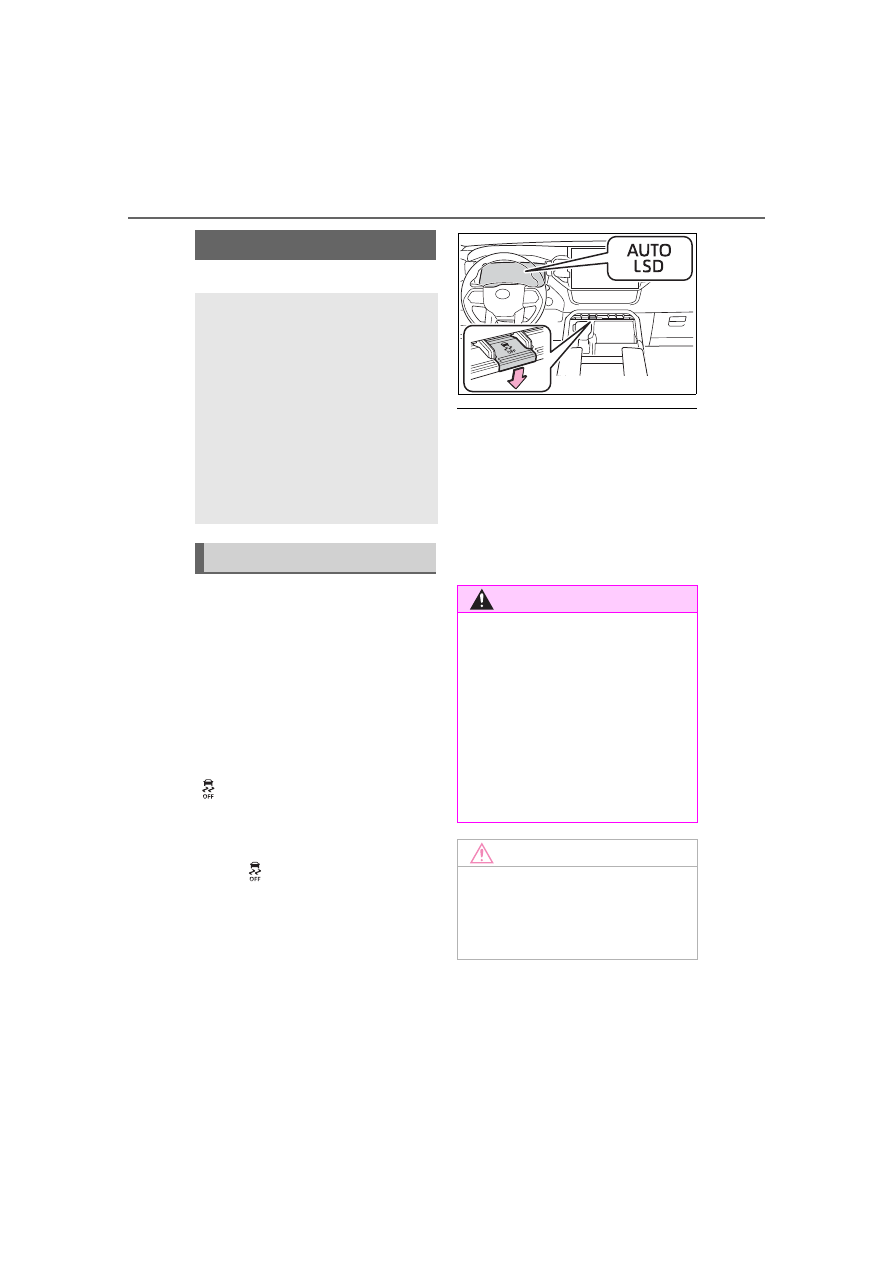

4-5. Using the driving support systems

: If equipped

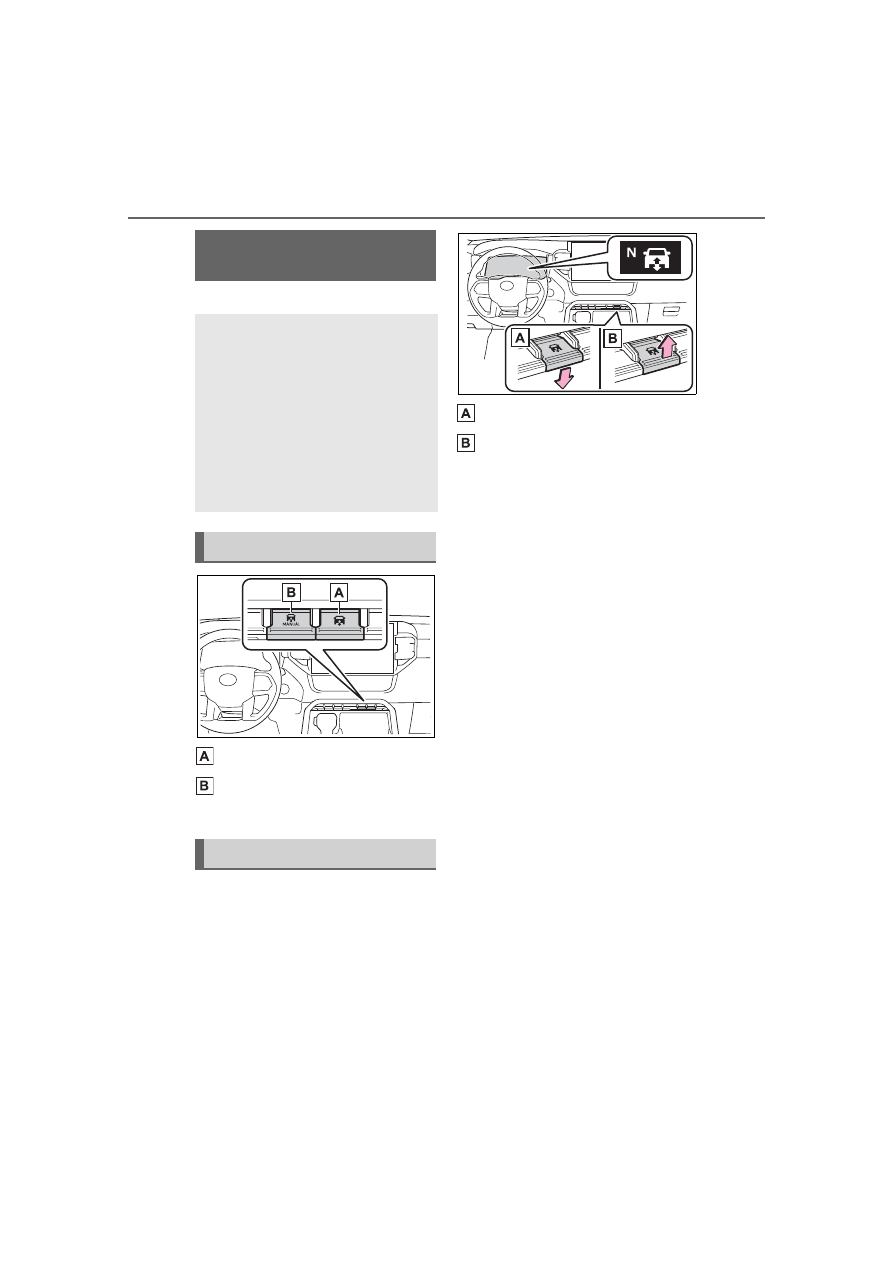

Height control switch

Height control mode select
switch

Operating the switch change
vehicle rear height as follows:

Lower

Higher

Vehicle height can be adjusted
only when the hybrid system is
operating.
The selected height mode will
be shown on the electronically
modulated air suspension dis-
play.
The selected mode will flash
while the height mode is being
changed.

■

Height modes



“N” mode (normal mode): For
ordinary driving

Normal height



“HI” mode (high mode): For
driving on bumpy roads 1.6 in.
(40 mm) higher than the nor-
mal height

The “HI” mode is unavailable when
the vehicle’s speed exceeds 18
mph (30 km/h).
When the vehicle’s speed exceeds
18 mph (30 km/h), the height will be
adjusted to the normal height auto-
matically.



“LO” mode (low mode): For
the ease of egress/ingress

Electronically modu-

lated air suspension

The electronically modu-
lated air suspension allows
the driver to control the
vehicle’s height in order to
adjust for driving condi-
tions.

Select the desired height
with the height control
switch.

Height control switch

Selecting vehicle height

355

4-5. Using the driving support systems

ing

and loading luggage

1.2 in. (30 mm) lower than the nor-
mal height
The “LO” mode is unavailable when
the vehicle’s speed exceeds 8 mph
(12 km/h).
When the vehicles speed exceeds
8 mph (12 km/h), the height will be
adjusted to the normal height auto-
matically.

When the height control mode
select switch is pressed, the
vehicle height is fixed at the cur-
rent height.

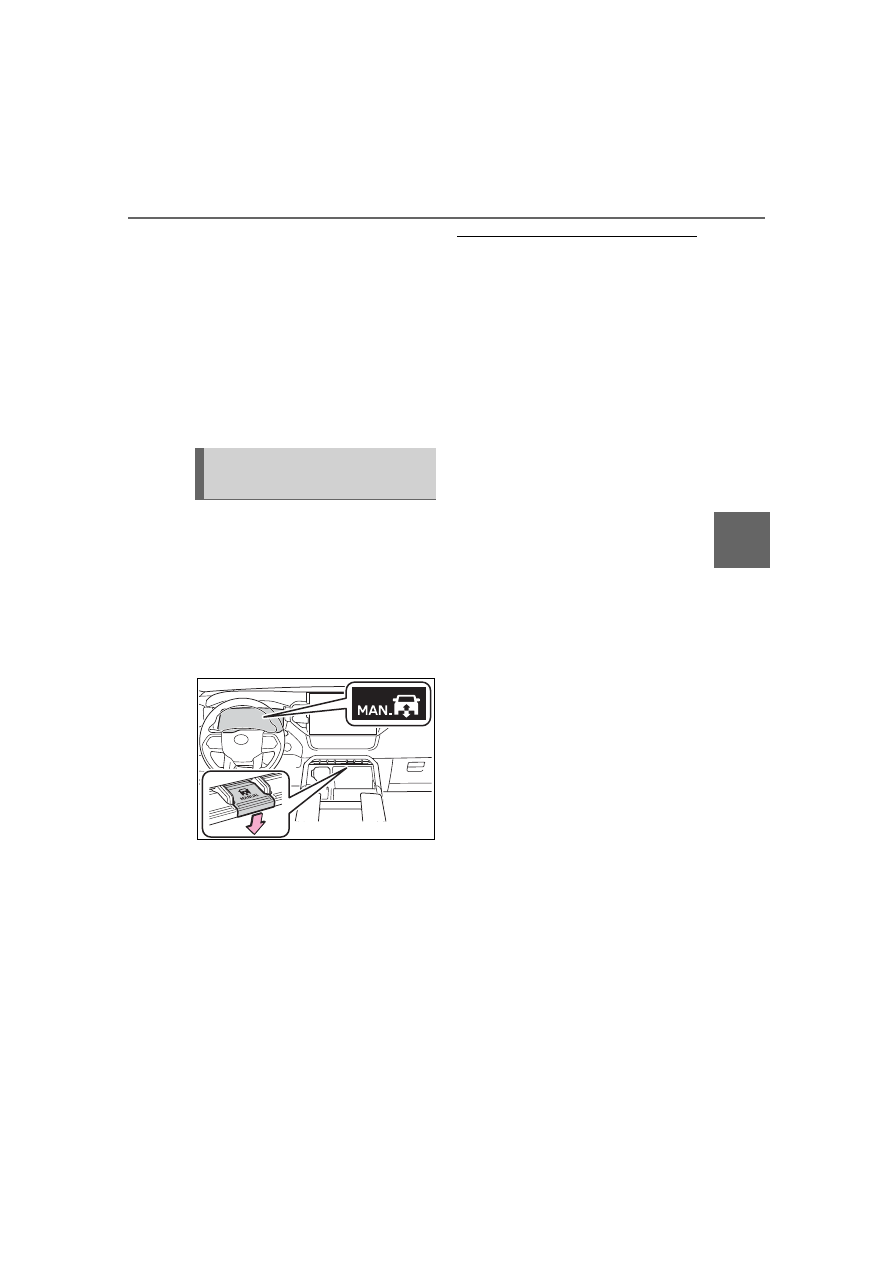

The “MAN.” indicator is displayed
on the multi-information display and
the automatic leveling function
turned off.

The height can be adjusted by
pressing the height control
switch.

Press the switch again or when the
vehicle’s speed exceeds 18 mph
(30 km/h), the height will be
adjusted to the normal height auto-
matically.

■

Automatic leveling function

Regardless of the number of occu-

pants or the luggage load, vehicle

height in any mode is always

adjusted to a fixed height by the

automatic leveling function.

■

When “HI” mode is selected

The vehicle height will change to “N”

mode when driving at the speeds of

18 mph (30 km/h).

■

When “LO” mode is selected

●

The vehicle height will change to

“N” mode when vehicle speed

exceeds 8 mph (12 km/h).

●

This mode allows for easy access

to the vehicle (getting in and out)

and easy loading and unloading.

■

The electronically modulated

air suspension will not operate

in the following cases:

●

The underbody of the vehicle is

touching the surface of the road.

●

The area around the suspension

is covered with ice.

The height control indicators will

blink, turn off and then turn on con-

tinuously to indicate that the elec-

tronically modulated air suspension

is not operational.

To re-enable operation, turn off the

hybrid system and then restart it.

■

Even if you hear an operating

noise

This does not indicate a problem in

the electronically modulated air sus-

pension.

■

The electronically modulated

air suspension failure warning

The warning message is displayed

on the multi-information display, and

the electronically modulated air sus-

pension cannot be activated until

the malfunction is corrected.

Stop the hybrid system and start

again. If the warning message turns

off, the system operating correctly. If

the warning message continues to

Disabling the height con-
trol

356

4-5. Using the driving support systems

be displayed, have your vehicle

inspected by your Toyota dealer as

soon as possible.

■

When the

indicator turns on

Indicates a malfunction in the air

suspension system.

Have the vehicle inspected by your

Toyota dealer immediately. (



P.87,

508)

WARNING

■

The electronically modulated

air suspension must be

turned off in the following cir-

cumstances:

Otherwise, the automatic leveling

function may cause the vehicle’s

height to change, and you may

catch part of your body in the

vehicle, resulting in an unex-

pected accident or injury:

●

When driving through water

such as shallow streams (Put

the vehicle height in “HI” mode

and turn off the electronically

modulated air suspension. Drive

at 18 mph [30 km/h] or slower.)

●

When jacking up the vehicle,

installing tire chains or tying the

vehicle with chains/wires for

transportation via flat bed truck

(Turn the system to the manual

mode and stop the hybrid sys-

tem.)

●

When the vehicle must be

towed (Put the vehicle height in

“N” mode and turn the system to

the manual mode.)

●

When the vehicle gets stuck

(Turn the system to the manual

mode.)

●

When disconnecting a trailer

(Put the vehicle height in “N”

mode and turn the system to the

manual mode.)

■

Selecting the correct height

mode

Observe the following precautions

to prevent accidents or injury.

Failure to do so may cause dam-

age to parts of the vehicle, as well

as dangerous handling character-

istics, which may lead to fatal or

injury accidents.

●

Before you lower the vehicle’s

height, check under the vehicle

to make sure that no one is

there.

●

“HI” mode should only be used

when driving on rough roads, for

example when driving off-road.

Because the vehicle’s center of

gravity will become higher when

in the mode, the vehicle may

become unstable when turning

abruptly, resulting in an acci-

dent.

●

Do not select “HI” mode when

you load cargo on the roof lug-

gage carrier.

Because the vehicle’s center of

gravity will become higher when

in the mode, the vehicle may

become unstable when turning

abruptly, resulting in an acci-

dent.

NOTICE

■

Be careful in any place where

overhead space is limited.

When changing to a higher mode

or after unloading, the vehicle

height will rise. This may cause

damage to the vehicle.

■

Do not select “LO” mode

when driving on bumpy

roads.

If the underbody of the vehicle

touches a rugged road surface,

the vehicle may be damaged.

357

4-5. Using the driving support systems

ing

: If equipped

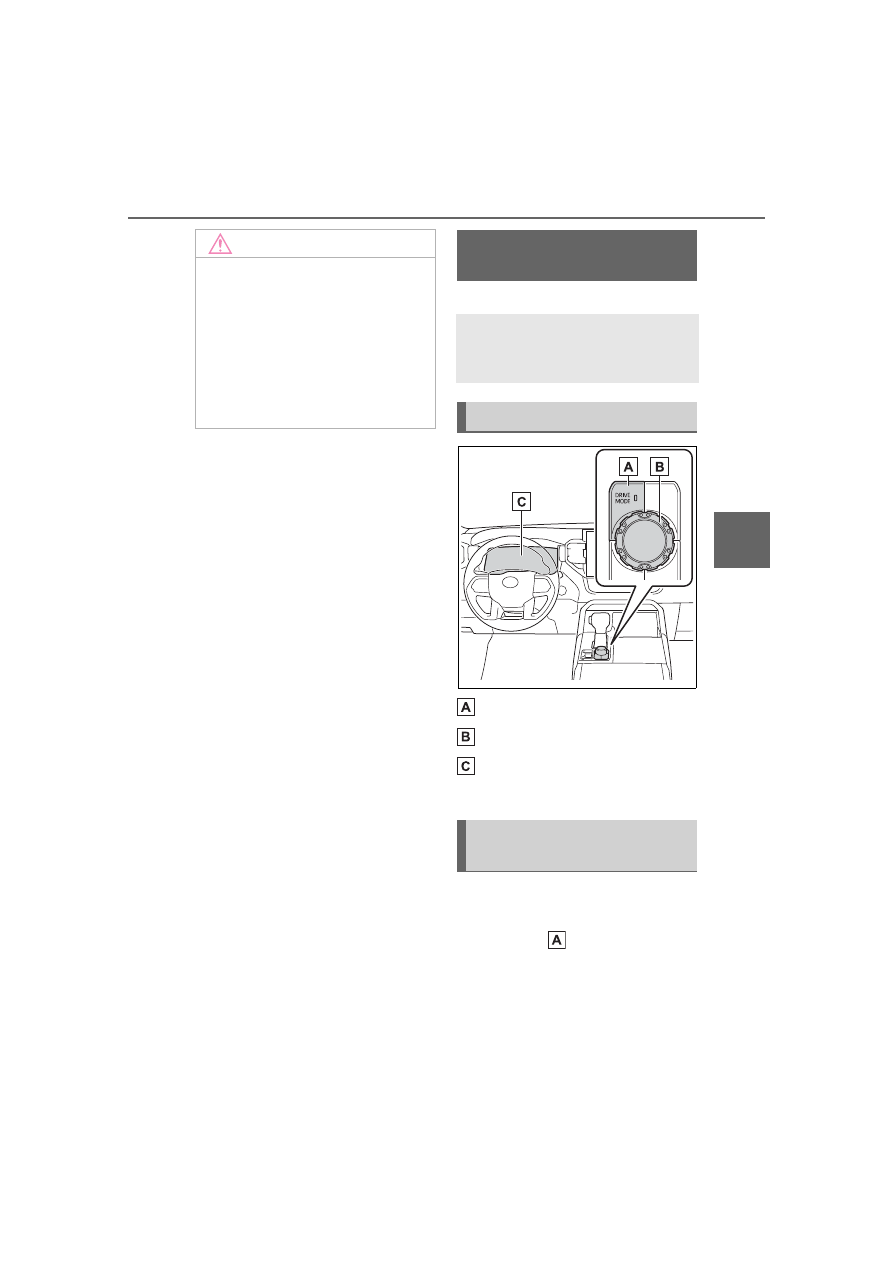

“DRIVE MODE” switch

Mode select switch

Multi-information display
(



P.95)

Press the “DRIVE MODE”
switch.

The indicator

on the switch will

NOTICE

■

Do not change the vehicle

height frequently.

The compressor might overheat

and cause the operation to stop.

■

When on the extremely

uneven roads with rocks

Sometimes the vehicle height is

not adjusted because it is judged

as uneven road driving.

Driving mode select

switch

The driving modes can be
selected to suit driving con-
dition.

System components

Selecting the driving
mode

358

4-5. Using the driving support systems

turn on.

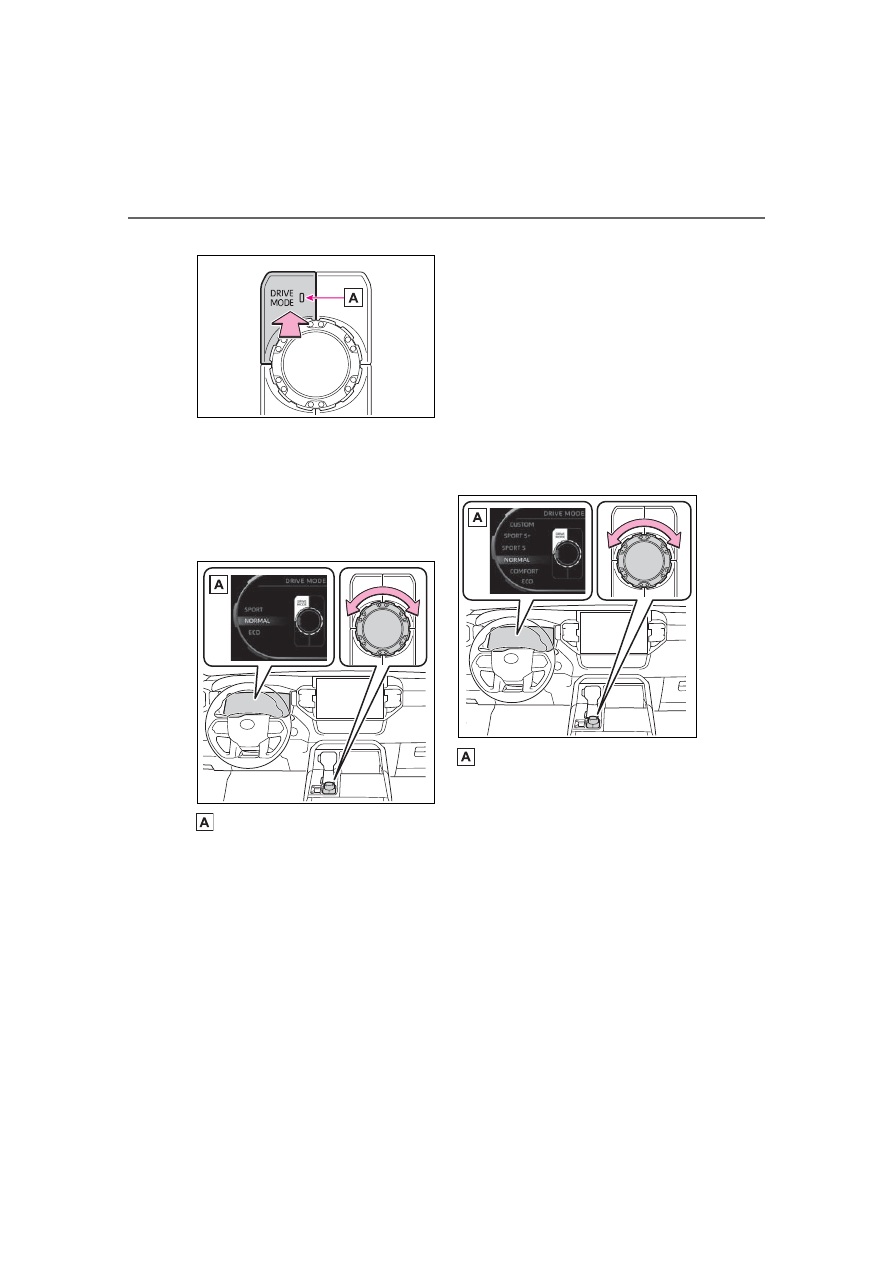

Select the driving modes on
the multi-information display
while turning the mode select
switch left and right.



Vehicles without Adaptive
Variable Suspension system

Multi-information display

• “NORMAL” mode
Provides an optimal balance of fuel
economy, quietness, and dynamic
performance. Suitable for city driv-
ing.
• “ECO” mode
Helps the driver accelerate in an
eco-friendly manner and improve
fuel economy through moderate
throttle characteristics and by con-

trolling the operation of the air con-
ditioning system (heating/cooling).
The “ECO” indicator comes on.
• “SPORT” mode
Assists acceleration response by
controlling the transmission, engine
and steering. Suitable for when pre-
cise handling is desirable, for
example when driving on mountain
roads. The “SPORT” indicator
comes on.



Vehicles with Adaptive Vari-
able Suspension system

Multi-information display

• “NORMAL” mode
Provides an optimal balance of fuel
economy, quietness, and dynamic
performance. Suitable for city driv-
ing.
• “COMFORT” mode
By controlling the suspension, rid-
ing comfort is further enhanced.
Suitable for city driving. The “COM-
FORT” indicator comes on.
• “ECO” mode
Helps the driver accelerate in an
eco-friendly manner and improve

359

4-5. Using the driving support systems

ing

fuel economy through moderate
throttle characteristics and by con-
trolling the operation of the air con-
ditioning system (heating/cooling).
The “ECO” indicator comes on.
• “SPORT S” mode
Assists acceleration response by
controlling the transmission, engine
and steering. Suitable for when pre-
cise handling is desirable, for
example when driving on mountain
roads. The “SPORT S” indicator
comes on.
• “SPORT S+” mode
Helps to ensure the controllability
and stability of the vehicle by inte-
grally controlling the steering wheel
and suspensions as well as the
transmission and engine, making it
suitable for sporty driving. The
“SPORT S+” indicator comes on.
• “CUSTOM” mode
Allows you to drive with the power
train, chassis and air conditioning
system functions set to your pre-
ferred settings. Custom mode set-
tings can only be changed on the
drive mode customization display of
multimedia system. The “CUSTOM”
indicator comes on.

■

The driving mode select switch

can be operated when

The front-wheel drive control switch

is in “2H” and “4H”.

■

Operation of the air condition-

ing system in Eco mode

Eco mode controls the heating/cool-

ing operations and fan speed of the

air conditioning system to enhance

fuel efficiency. To improve air condi-

tioning performance, perform the

following operations:

●

Adjust the fan speed (



P.400)

●

Turn off Eco drive mode (



P.358)

■

Automatic deactivation of driv-

ing modes:

Driving mode is deactivated or the

driving mode will be changed to nor-

mal mode in the following condi-

tions:

●

After turning the power switch off

and then turning it to on

●

When the front-wheel drive control

switch is in “4L” (4WD models

only)

●

When the Multi-terrain Select is

turned on (if equipped)

●

When the Downhill assist control

system is turned on (if equipped)

●

When the “TOW HAUL” mode or

“TOW+” mode is turned on (if

equipped)

■

Customization

The Custom mode can be changed.

(Customizable features:



P.570)

360

4-5. Using the driving support systems

: If equipped

“2H” (high speed position,
two-wheel drive)

Use this for normal driving on dry
hard-surfaced roads. This position
gives greater economy, quietest
ride and least wear.

“4H” (high speed position,
four-wheel drive)

Use this for driving only on tracks
that permit the tires slide, like off-
road, icy or snow-covered roads.
This position provides greater trac-
tion than two-wheel drive.
The “4H” indicator will come on.

“4L” (low speed position,

four-wheel drive)

Use this for maximum power and
traction. Use “4L” for climbing or
descending steep hills, off-road
driving, and hard pulling in sand,
mud or deep snow.
The “4L” indicator will come on.

■

Shifting from “2H” to “4H”

Reduce vehicle speed to less
than 62 mph (100 km/h).

Push and shift the front-
wheel drive control switch to
“4H”.

The “4H” indicator will come on.

■

Shifting from “4H” to “2H”

Reduce vehicle speed to less
than 62 mph (100 km/h).

Push and shift the front-
wheel drive control switch to
“2H”.

The “4H” indicator will go off.

■

Shifting from “4H” to “4L”

Stop the vehicle completely
and continue to depress the
brake pedal.

Shift the shift lever to N.

Push and shift the front-
wheel drive control switch to
“4L”.

The “4L” indicator will come on.

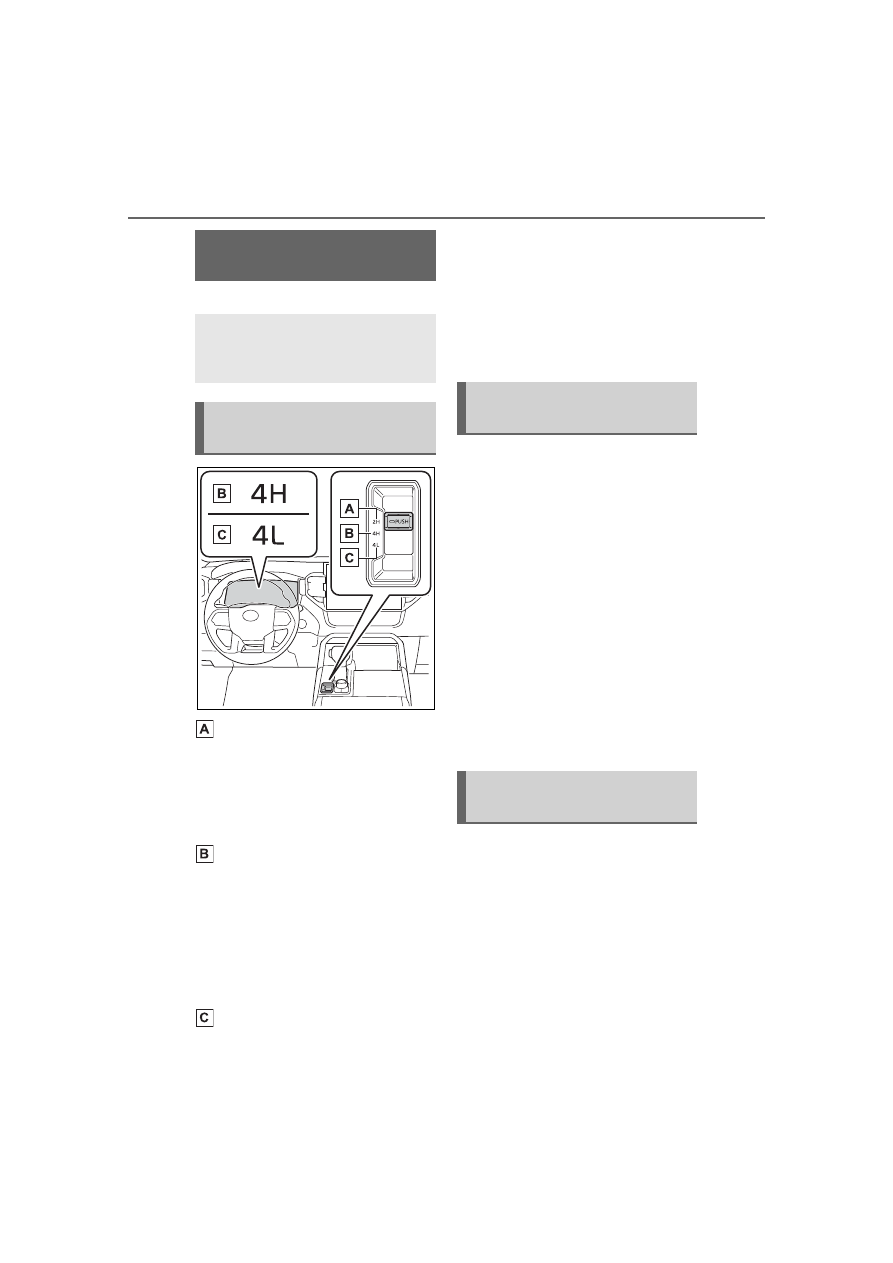

Four-wheel drive sys-

tem

Use the front-wheel drive
control switch to select the
following transfer modes:

Front-wheel drive control
switch

Shifting between “2H”
and “4H”

Shifting between “4H”
and “4L”

361

4-5. Using the driving support systems

ing

■

Shifting from “4L” to “4H”

Stop the vehicle completely
and continue to depress the
brake pedal.

Shift the shift lever to N.

Push and shift the front-
wheel drive control switch to
“4H”.

The “4L” indicator will go off.

■

When the front-wheel drive con-

trol switch is shifted to “4L”

VSC is automatically turned off.

■

If the “4H” indicator flashes

The transfer mode may not suc-

cessfully change. Drive straight

ahead while accelerating or deceler-

ating, or drive in reverse.

■

If the “4H” indicator is ON and

the “4L” indicator continues to

flash

A message will be displayed in the

multi-information display. Follow a

message, shift the shift lever to D or

R and drive the vehicle slowly, then

stop.

■

If the “4H” indicator continues

to flash and the “4L” indicator

is ON

A message will be displayed in the

multi-information display. Follow a

message, shift the shift lever to D or

R and drive the vehicle slowly, then

stop.

■

If the “4H” indicator is ON and

the “4L” indicator continues to

flash and a buzzer sounds

The shift lever is not in N and/or the

vehicle is moving. Stop the vehicle

completely, shift the shift lever to N

and make sure that the indicator

stops flashing.

■

If the “4H” indicator continues

to flash and the “4L” indicator

is ON and a buzzer sounds

The shift lever is not in N and/or the

vehicle is moving. Stop the vehicle

completely, shift the shift lever to N

and make sure that the indicator

stops flashing

■

If the “4H” and “4L” indicator

flashes rapidly

There may be a malfunction in the

four-wheel drive system. Have the

vehicle inspected by your Toyota

dealer immediately.

■

Four-wheel drive usage fre-

quency

You should drive in four-wheel drive

for at least 10 miles (16 km) each

month. This will assure that the front

drive components are lubricated.

WARNING

■

Shifting the front-wheel drive

control switch from “2H” to

“4H” while driving

Never operate the front-wheel

drive control switch if the wheels

are slipping. Stop the slipping or

spinning before shifting.

■

When the vehicle is parked

If the shift lever is moved before

the “4L” indicator turns on/off, the

transfer mode may not be shifted

completely. The transfer mode

disengages both the front and

rear driveshafts from the power-

train and allows the vehicle to

move regardless of the shift posi-

tion. (At this time, the indicator

blinks and the buzzer sounds.)

Therefore, the vehicle is free to

roll even if the automatic trans-

mission is in P. You or someone

else could be seriously injured.

You must complete the shifting of

the transfer mode before placing

transmission in P.

362

4-5. Using the driving support systems

: If equipped

The system can be used only on
2WD models. The system is
activated when driving at a
speed under 62 mph (100
km/h). The AUTO LSD system
will be activated with the follow-
ing two procedures.

To turn the AUTO LSD system
on, quickly press and release

The “AUTO LSD” indicator light
will come on.

Press

again to turn the sys-

tem off.

■

If the brake system overheats

The system will cease operation

and a buzzer will alert the driver. At

this time, the “Traction Control

Turned OFF” displayed in the multi-

information display. Stop the vehicle

in a safe place. (There is no prob-

lem with continuing normal driving.)

The system will be automatically

restored after a short time.

AUTO LSD system

The AUTO LSD system aids
traction by using the trac-
tion control system to con-
trol hybrid system
performance and braking
when one of the drive
wheels begins to spin. The
system should be used only
when one of the drive
wheels spinning occurs in a
ditch or rough surface.

System operation

WARNING

■

To avoid an accident

●

Do not use the AUTO LSD sys-

tem in conditions other than

when one of the drive wheels

spinning occurs in a ditch or

rough surface.

●

Do not drive with the AUTO

LSD system continuously

turned on.

Failure to do so, a much greater

steering effort and more careful

cornering control will be required.

NOTICE

■

Activating while driving

Do not activate the AUTO LSD

system if the wheel is slipping.

Stop the slipping or spinning

before activating.

363

4-5. Using the driving support systems

ing

: If equipped

Press the switch to turn the sys-
tem on/off.

At this time, the rear differential lock
indicator and indicator in the differ-
ential lock/unlock display will blink.
Wait a few seconds for the system
to complete operation. After the
rear differential is locked, the indi-
cators will stop blinking and remain
on.
To unlock the rear differential, push
the switch again.

■

Operating tips

●

Be sure to stop the wheels before

locking the differential.

●

Unlock the differential as soon as

the vehicle moves out.

■

Unlocking the rear differential

If the rear differential lock indicator

still flashes even after unlocking the

rear differential, check the safety of

the surrounding area and slightly

turn the steering wheel in either

direction while the vehicle is in

motion.

■

Automatic unlocking feature

The rear differential lock is also

unlocked in any of the following situ-

ations:

●

When the front-wheel drive control

switch is turned to “2H” or “4H”

●

When the power switch is turned

off

■

After unlocking the rear differ-

ential

Check that the indicators go off.

■

The rear differential lock indica-

tor and indicator in the differen-

tial lock/unlock display

●

The indicators blink while lock-

ing/unlocking the rear differential.

●

If the indicators continue to blink

when you operate the rear differ-

ential lock switch, stop the vehicle

completely and operate the switch

again.

If the indicators continue to blink

even if doing so, have the vehicle

inspected by your Toyota dealer as

soon as possible. There may be a

trouble in the four-wheel drive sys-

tem.

■

Locking the rear differential

The following systems do not oper-

ate when the rear differential is

locked.
• ABS
• Brake assist system
• VSC
• Downhill assist control system (if

equipped)

• TRAC

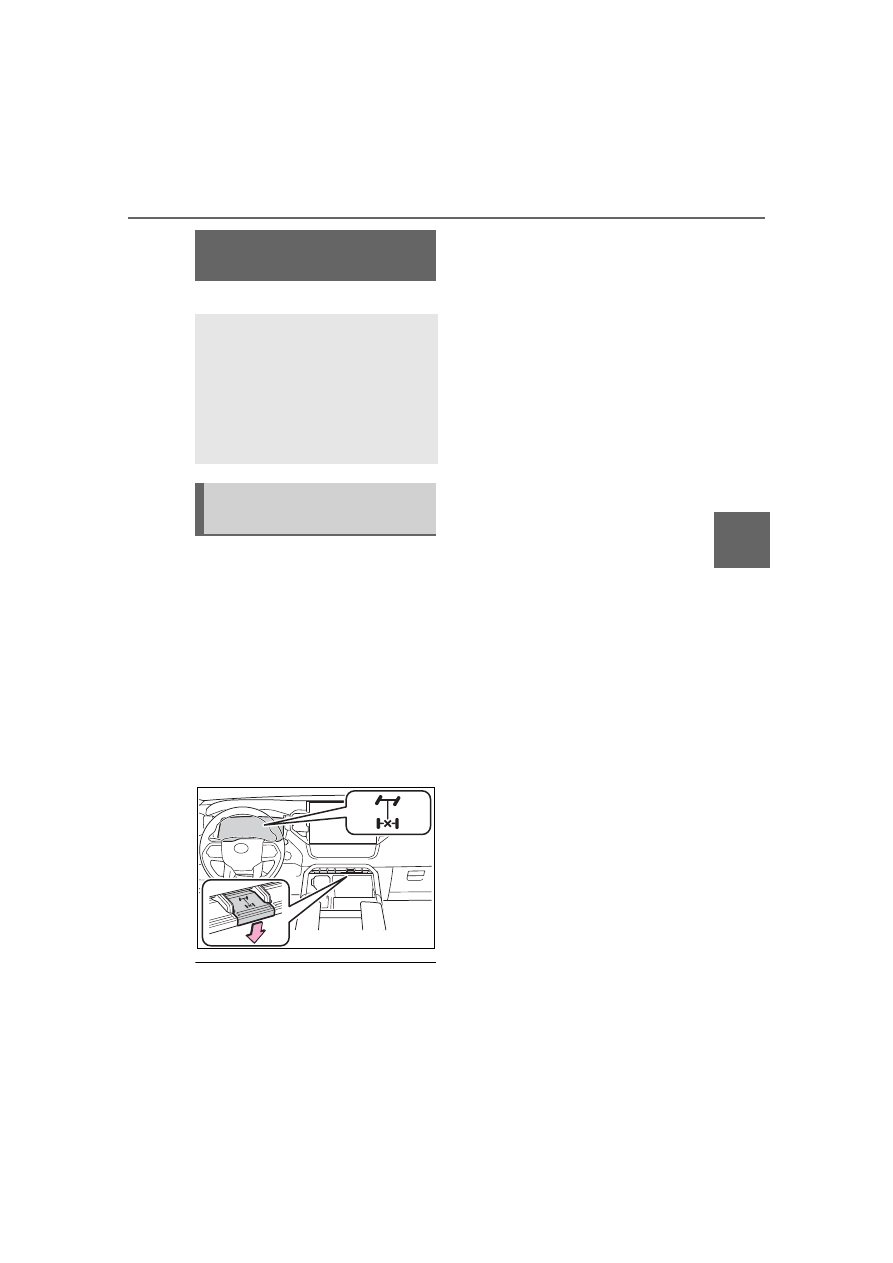

Rear differential lock

system

Use the rear differential lock
system only when wheel
spinning occurs in a ditch
or on a slippery or ragged
surface. This system is
effective in case one of the
rear wheels is spinning.

Rear differential lock
switch

364

4-5. Using the driving support systems

: If equipped

WARNING

■

When using the rear differen-

tial lock system

Failure to observe the following

precautions may result in an acci-

dent.

●

Do not lock the rear differential

in the conditions other than

above.

●

Do not lock the rear differential

until the wheels have stopped

spinning.

●

Do not drive over 5 mph (8

km/h) when the differential is

locked.

●

Do not keep driving with the

rear differential lock state

Crawl Control

Allows travel on extremely
rough off-road surfaces at a
fixed low speed without
pressing the accelerator or
brake pedal. Minimizes loss
of traction or vehicle slip
when driving on slippery
road surfaces, allowing for
stable driving.

WARNING

■

When using Crawl Control

function

Do not rely solely on the Crawl

Control function. This function

does not extend the vehicle’s per-

formance limitations. Always thor-

oughly check the road conditions,

and drive safely.

■

These conditions may cause

the system not to operate

properly

When driving on the following sur-

faces, the system may not be able

to maintain a fixed low speed,

which may result in an accident:

●

Extremely steep inclines.

●

Extremely uneven surfaces.

●

Snow-covered roads, or other

slippery surfaces.

365

4-5. Using the driving support systems

ing

“DAC/CRAWL” switch

Mode select switch

Indicators (



P.89)

Press the “DAC/CRAWL”
switch.

The indicator light

and the Crawl

Control indicator on the multi-infor-
mation display will come on, and
the slip indicator will flash.

Turn the mode select switch
left or right to select a mode
on the multi-information dis-
play.

Multi-information display

A mode which matches the road
conditions can be selected from
among the following 5 modes.

Multi-information display

“LOW 2”

Suitable for driving on rocky roads
or decline

“LOW 1”

Suitable for driving on rocky roads,
decline or bumpy incline

System components

Turning Crawl Control on

Selectable modes

366

4-5. Using the driving support systems

“MID”

Suitable for driving on bumpy
inclines

“HIGH 1”

Suitable for driving on bumpy
inclines, debris roads, snow-cov-
ered roads, muddy roads, gravel
roads and grass roads

“HIGH 2”

Suitable for driving on bumpy
inclines, debris roads, snow-cov-
ered roads, muddy roads, gravel
roads and grass roads



When the “DAC/CRAWL”
switch indicator illuminates

Press the “DAC/CRAWL” switch
again.



When the “DAC/CRAWL”
switch indicator does not illu-
minate

Press the “DAC/CRAWL” switch
to turn the indicator on. Press
the “DAC/CRAWL” switch again
with the indicator turned on.
If Crawl Control is turned off, the
Crawl Control indicator and the
slip indicator will go off and a
message, stating that Crawl
Control has been turned off will
be displayed on the multi-infor-
mation display for several sec-
onds.
When turning off Crawl Control
while driving, drive extremely
carefully.

■

Operating tips

Crawl Control can be used with

Multi-terrain Select (if equipped) ON

or OFF. (



P.369)

■

Operation conditions of the

Crawl Control

●

The hybrid system is operating.

●

The shift lever is in any gear other

than P or N.

●

The front-wheel drive control

switch is in “4L”.

●

The driver’s door is closed.

■

Automatic system cancelation

of Crawl Control

In the following situations, the

buzzer will sound intermittently and

the Crawl Control will be canceled

automatically. In this event, the

Crawl Control indicator will flash and

then go off, and a message stating

that Crawl Control has been turned

off will be displayed on the multi-

information display for several sec-

onds.

●

When the shift lever is moved to P

or N.

●

When the front-wheel drive control

switch is in “4H”.

●

When the driver’s door is opened.

■

Function limitations of Crawl

Control

●

On vehicles with rear differential

lock system, in the following situa-

tions, brake control can be used to

drive downhill at a constant

speed. However, hybrid system

control is not available when driv-

ing uphill at a constant speed.

• When the vehicle speed exceeds

approximately 6 mph (10 km/h).

●

In the following situation, hybrid

system control and brake control

will stop temporarily. In this event,

the Crawl Control indicator will

flash.

• With the rear differential is locked:

when the vehicle speed exceeds

Turning Crawl Control off

367

4-5. Using the driving support systems

ing

approximately 6 mph (10 km/h).

• With the rear differential is

unlocked: when the vehicle speed

exceeds approximately 15 mph

(25 km/h).

■

When the Crawl Control sys-

tem is operated continuously

●

If Crawl Control is used continu-

ously for a long time, the brake

system overheats. In this case, a

buzzer will sound, a message

stating a malfunction will be dis-

played on the multi-information

display, and the Crawl Control

indicator will flash and then go off.

In this event, as Crawl Control will

be temporarily inoperable, stop

the vehicle immediately in a safe

place, and allow the brake system

to cool down sufficiently until the

message goes off. (In the mean-

time, normal driving is possible.)

●

If Crawl Control is used continu-

ously for a long time, the auto-

matic transmission overheats. In

this case, a buzzer will sound, the

system will be temporarily can-

celed, and a message stating a

malfunction may be displayed on

the multi-information display. In

this event, stop the vehicle in a

safe place until the message goes

off.

■

Sounds and vibrations caused

by the Crawl Control system

●

A sound may be heard from the

hybrid system compartment when

the hybrid system is started or just

after the vehicle begins to move.

This sound does not indicate that

a malfunction has occurred in

Crawl Control system.

●

Either of the following conditions

may occur when the Crawl Control

system is operating. None of

these are indicators that a mal-

function has occurred.

• Vibrations may be felt through the

vehicle body and steering.

• A motor sound may be heard after

the vehicle comes to a stop.

■

When there is a malfunction in

the system

Warning lights and/or warning mes-

sages will turn on. (



P.501, 511)

Content .. 20 21 22 23 ..
