7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

opening and prevent emer-
gency repair with the repair
kit.

• To avoid sealant leakage,

move the vehicle until the
area of the puncture, if
known, is positioned at the
top of the tire.

■

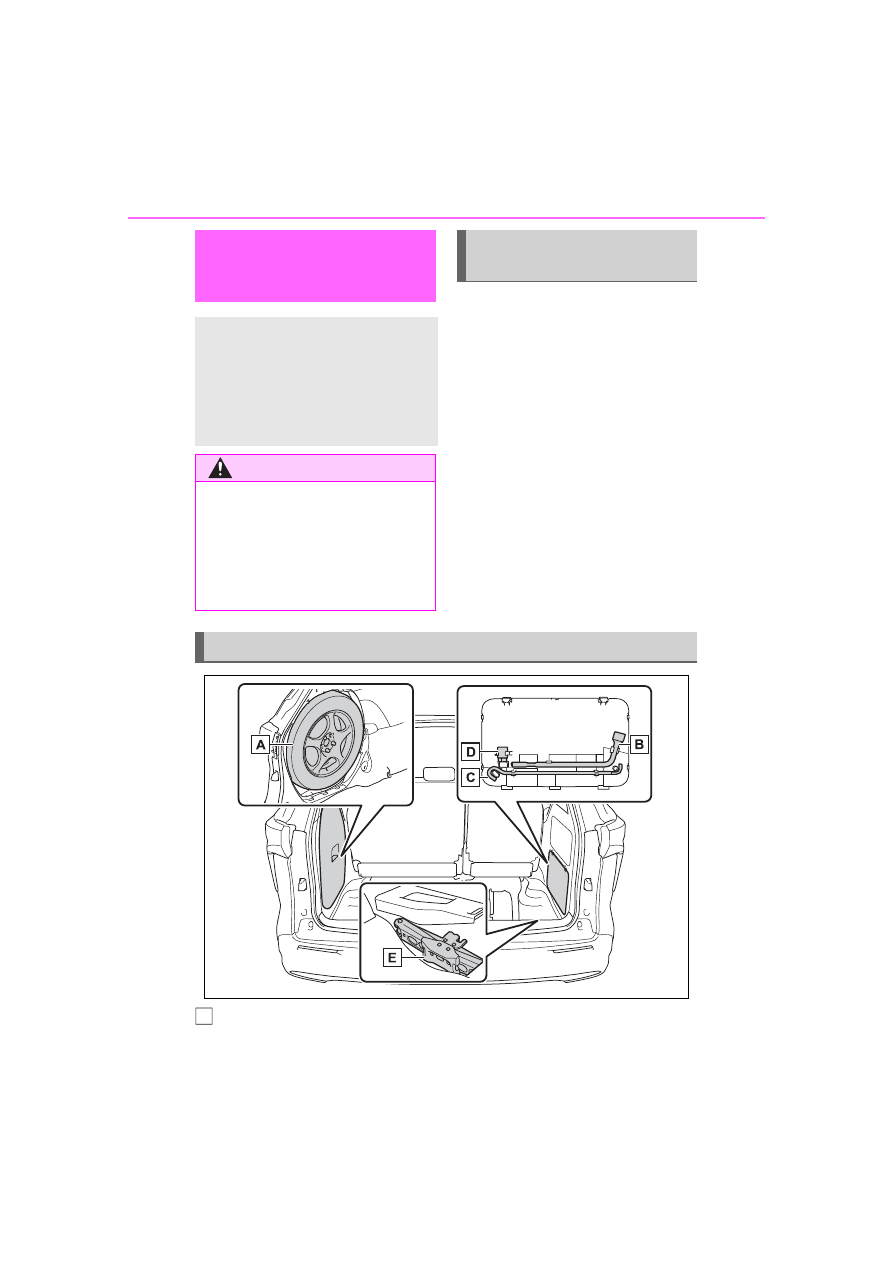

Jack and tools

As your vehicle is equipped with the

emergency tire puncture repair kit,

the following tools for replacing a

tire are not included with your vehi-

cle. They can be purchased at your

Toyota dealer.

●

Wheel nut wrench

●

Jack

●

Jack handle

■

A flat tire that cannot be

repaired with the emergency

tire puncture repair kit

In the following cases, the tire can-

not be repaired with the emergency

tire puncture repair kit. Contact your

Toyota dealer.

●

When the tire is damaged due to

driving without sufficient air pres-

sure

●

When the tire lost air pressure due

to a crack or damage in the tire

sidewall

●

When the tire is visibly separated

from the wheel

●

When the cut or damage to the

tread is 0.16 in. (4 mm) long or

●

When the wheel is damaged

●

When two or more tires have been

punctured

●

When there is more than one hole

or cut in the damaged tire

●

When the sealant has expired

Emergency tire puncture
repair kit (compressor)

Emergency tire puncture
repair kit (bottle)

WARNING

■

Using the tire jack



P.491

Location of the emer-
gency tire puncture repair
kit

482

7-2. Steps to take in an emergency

■

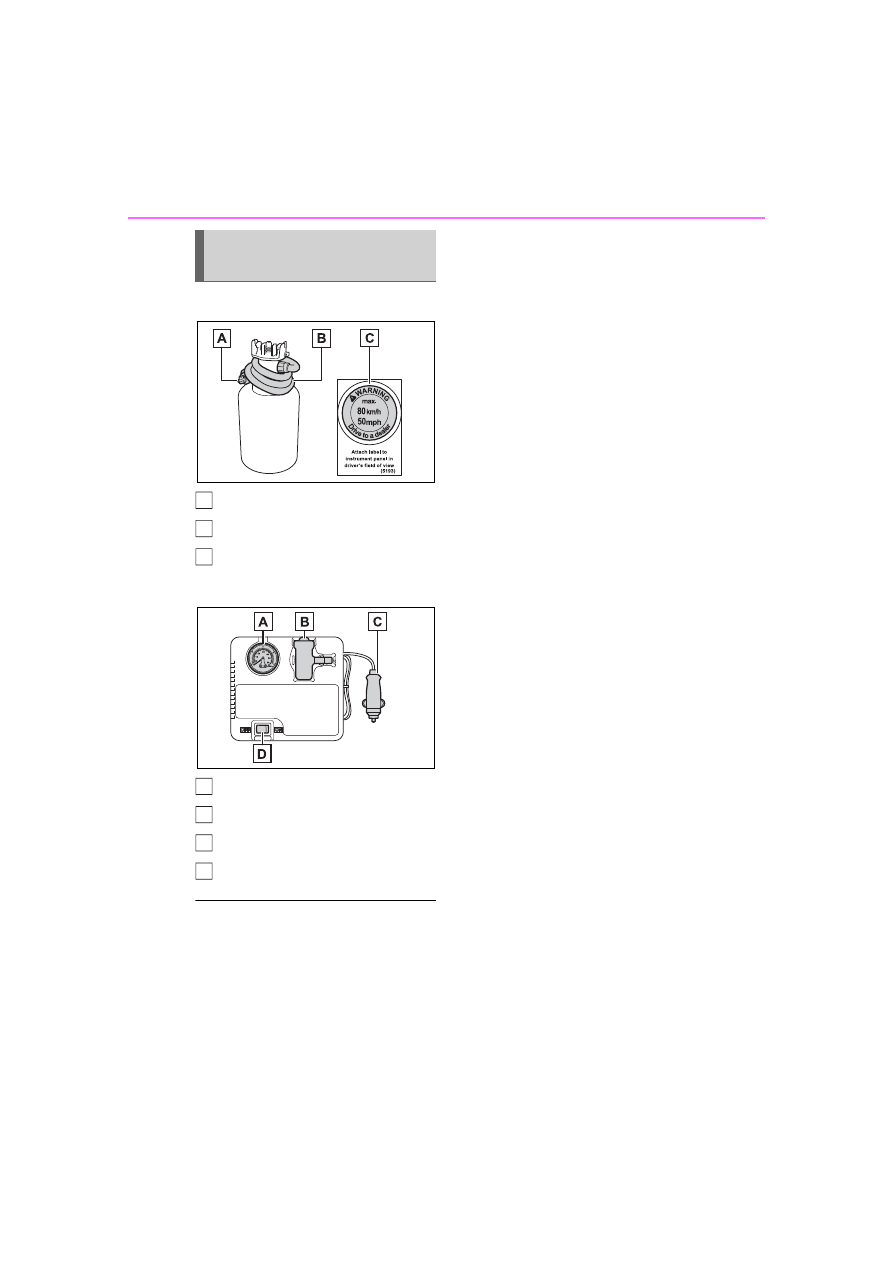

Bottle

Air release cap

Hose

Speed limit stickers

■

Compressor

Air pressure gauge

Rubber stopper

Power plug

Compressor switch

■

Note for checking the emer-

gency tire puncture repair kit

Check the sealant expiry date occa-

sionally. The expiry date is shown

on the bottle. Do not use sealant

whose expiry date has already

passed. Otherwise, repairs con-

ducted using the emergency tire

puncture repair kit may not be per-

formed properly.

■

Emergency tire puncture repair

kit

●

The emergency tire puncture

repair kit is for filling the car tire

with air.

●

The sealant has a limited life

span. The expiry date is marked

on the bottle. The sealant should

be replaced before the expiry

date. Contact your Toyota dealer

for replacement.

●

The sealant stored in the emer-

gency tire puncture repair kit can

be used only once to temporarily

repair a single tire. If the sealant in

the bottle and other parts of the kit

have been used and need to be

replaced, contact your Toyota

dealer.

●

The compressor can be used

repeatedly.

●

The sealant can be used when the

outside temperature is from -40°F

(-40°C) to 140°F (60°C).

●

The kit is exclusively designed for

size and type of tires originally

installed on your vehicle. Do not

use it for tires that different size

than the original ones, or for any

other purposes.

●

If the sealant gets on your clothes,

it may stain.

●

If the sealant adheres to a wheel

or the surface of the vehicle body,

the stain may not be removable if

it is not cleaned at once. Immedi-

ately wipe away the sealant with a

wet cloth.

●

During operation of the repair kit,

a loud operation noise is pro-

duced. This does not indicate a

malfunction.

●

Do not use to check or to adjust

the tire pressure.

Emergency tire puncture
repair kit components

483

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

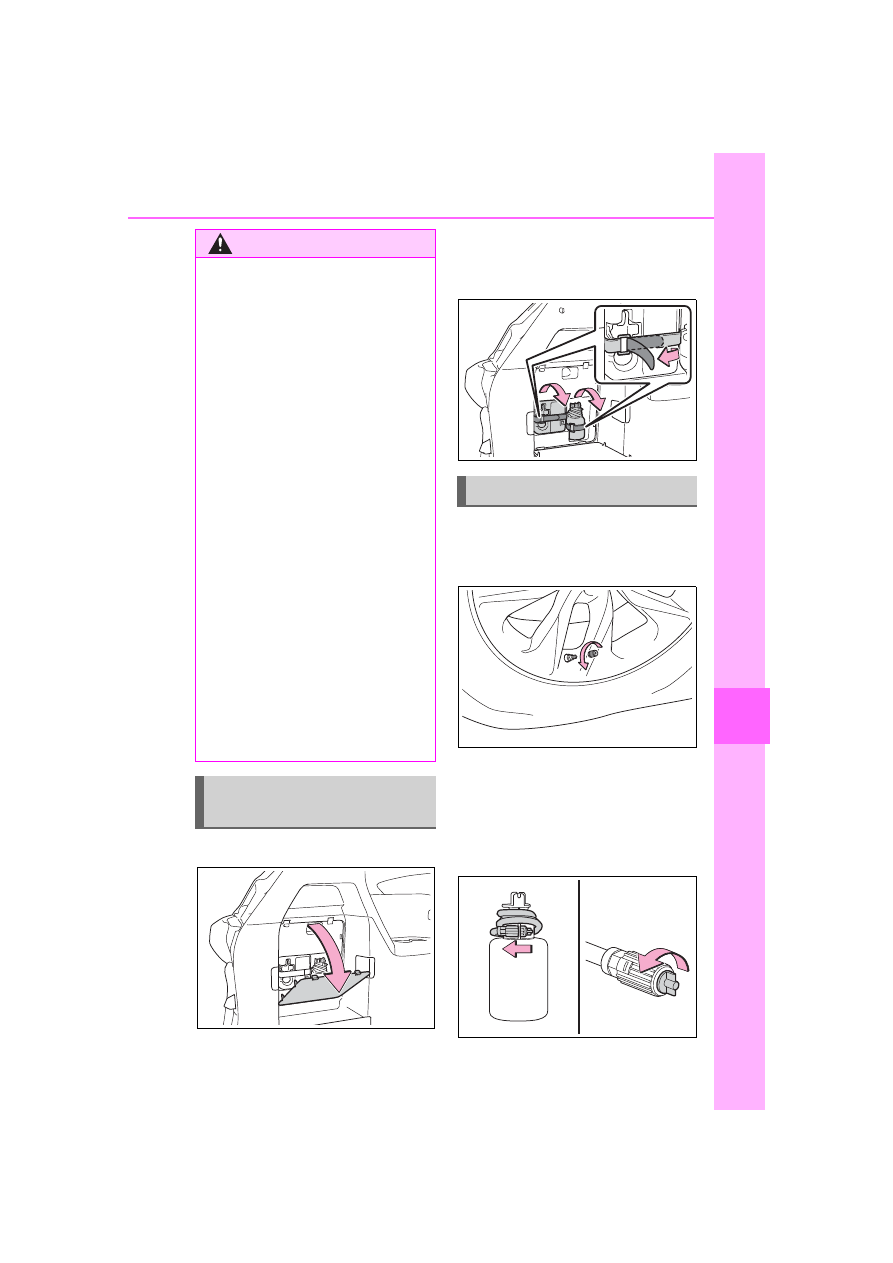

Remove the cover.

Detach the bands and take
out the emergency tire punc-
ture repair kit.

Remove the valve cap from
the valve of the punctured
tire.

Extend the hose. Remove
the air release cap from the
hose.

You will use the air release cap

again. Therefore keep it in a safe

place.

WARNING

■

Caution while driving

Observe the following precau-

tions.
Failure to do so may cause an

accident.

●

Store the repair kit in the lug-

gage compartment.

●

The emergency tire puncture

repair kit is made exclusively for

your vehicle.

Do not use it on other vehicles.

●

Do not use emergency tire

puncture repair kit for tires that

are different size than the origi-

nal ones or for any other pur-

pose. Doing so may cause the

tires to not be repaired properly.

■

Precautions for use of the

sealant

●

Ingesting the sealant is hazard-

ous to your health. If you ingest

sealant, consume as much

water as possible, and then

immediately consult a doctor.

●

If sealant gets in eyes or

adheres to skin, immediately

wash it off with water. If discom-

fort persists, consult a doctor.

Taking out the emergency
tire puncture repair kit

Emergency repair method

484

7-2. Steps to take in an emergency

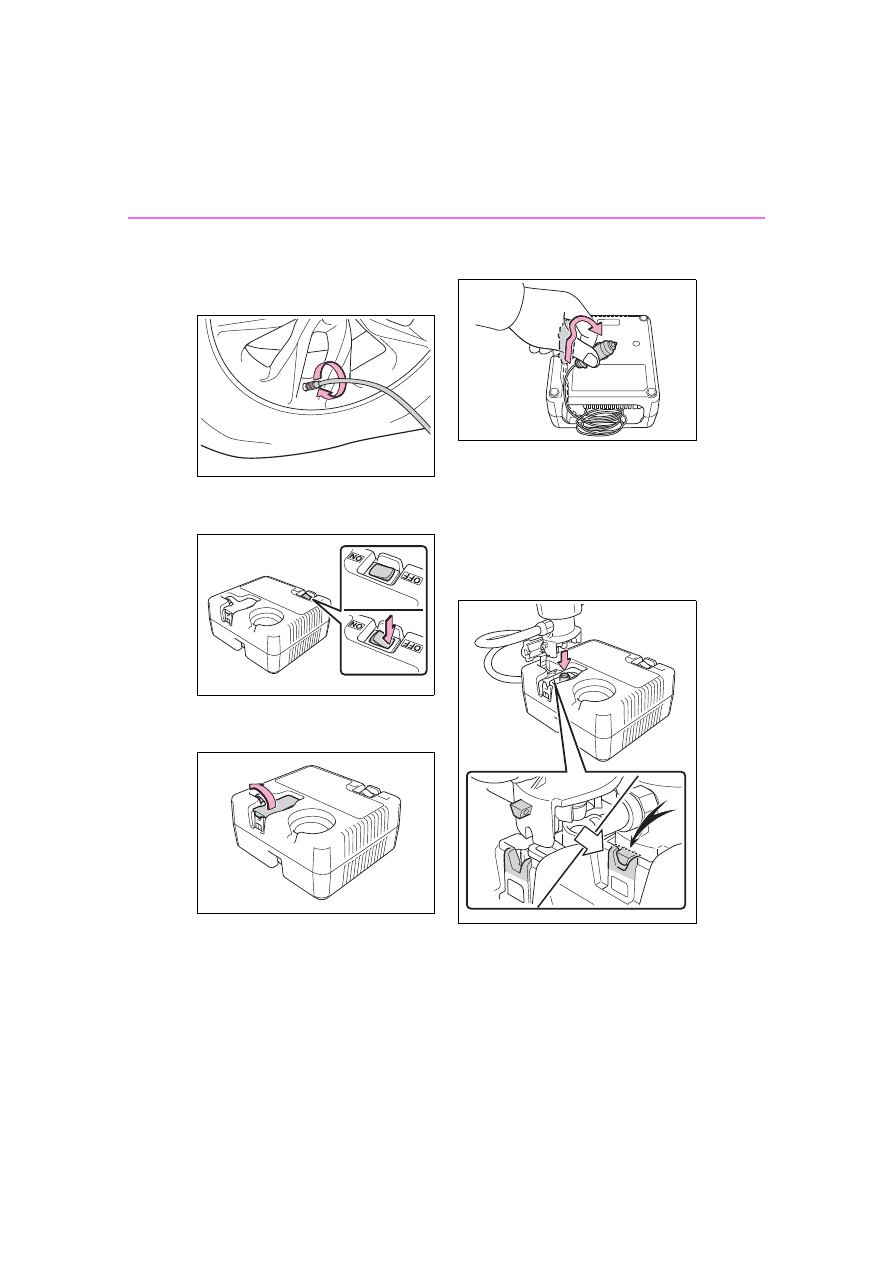

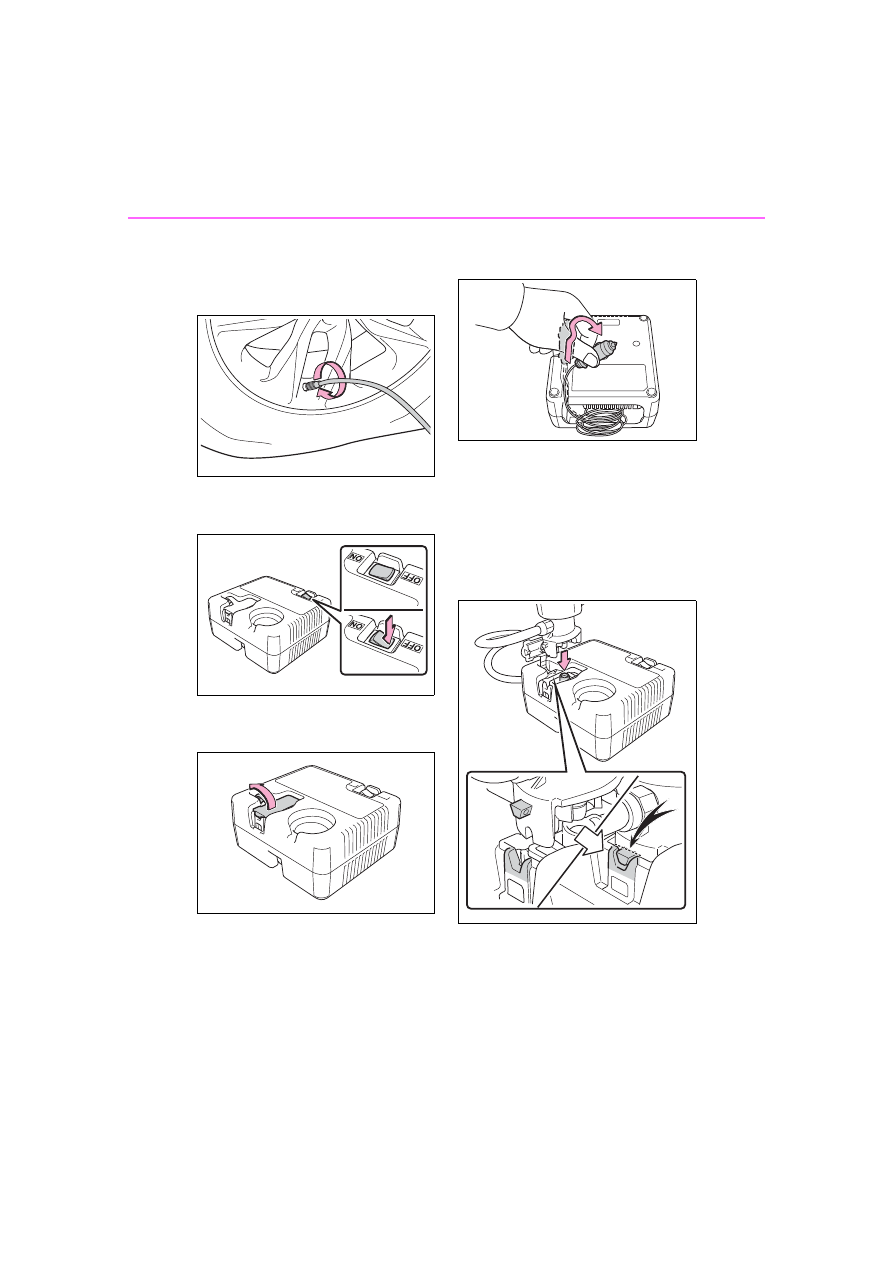

Connect the hose to the
valve.

Screw the end of the hose clock-

wise as far as possible.

Make sure that the compres-
sor switch is off.

Lift the rubber stopper on the
compressor.

Remove the power plug from
the compressor.

Connect the power plug to
the power outlet socket.
(



P.374)

Connect the bottle to the
compressor.

Make sure that the bottle is

securely connected.

485

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

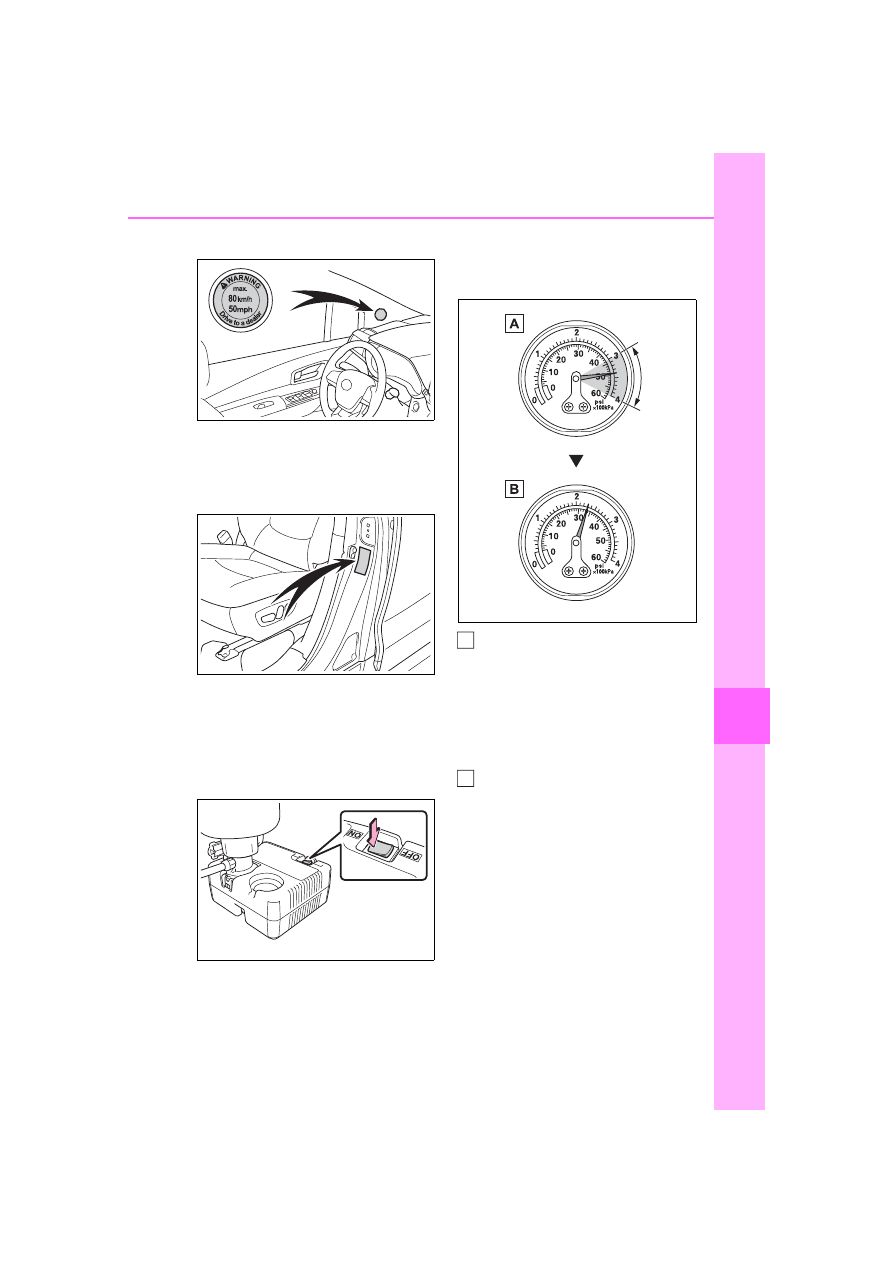

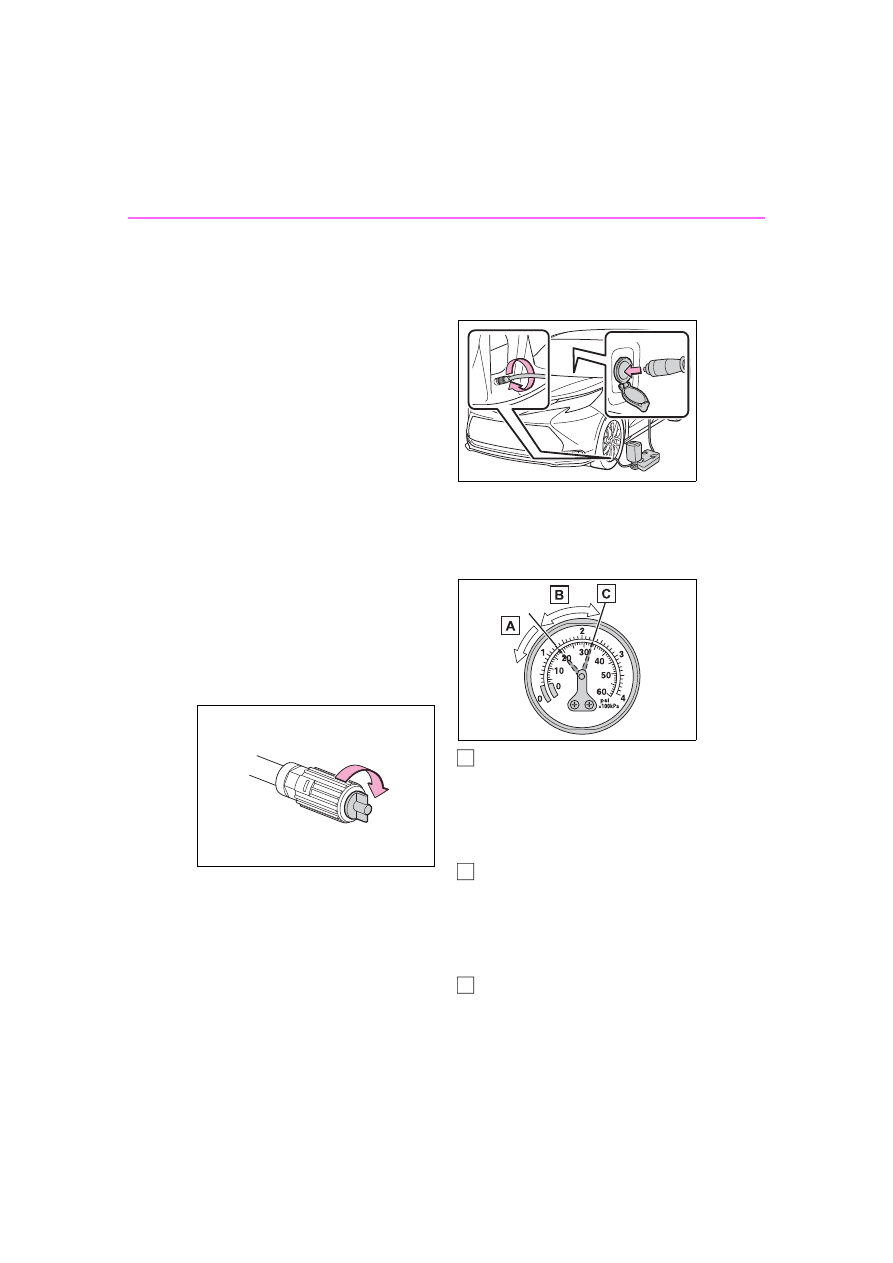

Attach the sticker as shown.

Check the specified tire infla-

tion pressure.

Tire inflation pressure is specified

on the label as shown. (



P.523)

Start the hybrid system.

(



P.234)

To inject the sealant and

inflate the tire, turn the com-
pressor switch on.

Inflate the tire until the rec-

ommended pressure is
reached.

The sealant will be injected
and the pressure will spike to
between 44 psi (300 kPa, 3.0
kgf/cm

or bar) and 58 psi

(400 kPa, 4.0 kgf/cm

or bar),

then gradually decrease.

The air pressure gauge will
display the actual tire inflation
pressure about 1 to 5 min-
utes after the switch is turned
on.

• Turn the compressor switch off

and then check the tire inflation
pressure. Being careful not to
over inflate, check and repeat the
inflation procedure until the rec-
ommended tire inflation pressure
is reached.

• If the tire inflation pressure is still

lower than the recommended

486

7-2. Steps to take in an emergency

level after inflation for 25 minutes
with the switch on, the tire is too
damaged to be repaired. Turn the
compressor switch off and con-
tact your Toyota dealer.

• If the tire inflation pressure

exceeds the recommended level,
let out some air to adjust the tire
inflation pressure. (



P.487, 523)

With the compressor switch

off, disconnect the hose from
the valve on the tire and then
pull out the power plug from
the power outlet socket.

Some sealant may leak when the

hose is removed.

Install the valve cap onto the

valve of the emergency
repaired tire.

Attach the air release cap to

the end of the hose.

If the air release cap is not

attached, the sealant may leak and

the vehicle may get dirty.

Temporarily store the bottle

in the trunk while it is con-
nected to the compressor.

To spread the liquid sealant

evenly within the tire, imme-
diately drive safely for about
3 miles (5 km) below 50 mph
(80 km/h).

After driving, stop your vehi-

cle in a safe place on a hard,
flat surface and reconnect
the compressor.

Turn the compressor switch

on and wait for several sec-
onds, then turn it off. Check
the tire inflation pressure.

If the tire inflation pressure is
below 19 psi (130 kPa, 1.3
kgf/cm

or bar): The puncture

cannot be repaired. Contact
your Toyota dealer.

If the tire inflation pressure is
between 19 psi (130 kPa, 1.3
kgf/cm

or bar) and a point

below the recommended
level: Proceed to step

If the tire inflation pressure is
at the recommended level:
Proceed to step

487

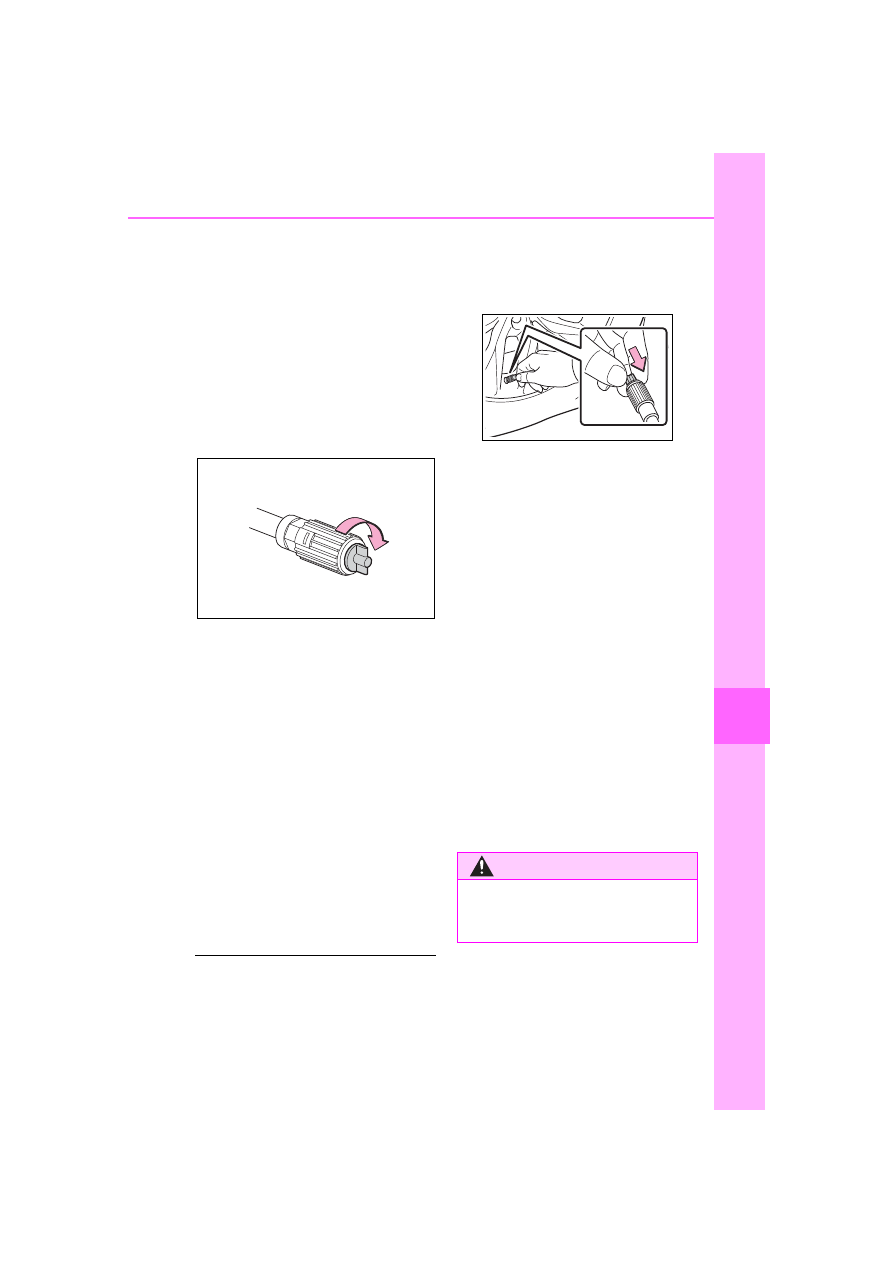

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

Turn the compressor switch

on to inflate the tire until the
recommended tire inflation
pressure is reached. Drive for
about 3 miles (5 km) and
then perform step

Attach the air release cap to

the end of the hose.

If the air release cap is not

attached, the sealant may leak and

the vehicle may get dirty.

Store the bottle in the lug-

gage compartment while it is
connected to the compres-
sor.

Taking precautions to avoid

sudden braking, sudden
acceleration and sharp turns,
drive carefully at under 50
mph (80 km/h) to your Toyota
dealer that is less than 62
miles (100 km) away for tire
repair or replacement.

Make sure to tell your Toyota

dealer when you have them repair

or replace the tire that sealant is

injected.

■

If the tire is inflated to more

than the specified air pressure

Disconnect the hose from the

valve.

Install the air release cap to the

end of the hose and push the

protrusion on the air release cap

into the tire valve to let some air

out.

Disconnect the hose from the

valve, remove the air release cap

from the hose and then recon-

nect the hose.

Turn the compressor switch on

and wait for several seconds,

and then turn it off. Check that

the air pressure indicator shows

the specified air pressure.

If the air pressure is lower than the

designated pressure, turn the com-

pressor switch on again and repeat

the inflation procedure until the

specified air pressure is reached.

■

After a tire is repaired with the

emergency tire puncture repair

kit

●

The tire pressure warning valve

and transmitter should be

replaced.

●

Even if the tire inflation pressure is

at the recommended level, the tire

pressure warning light may come

on/flash.

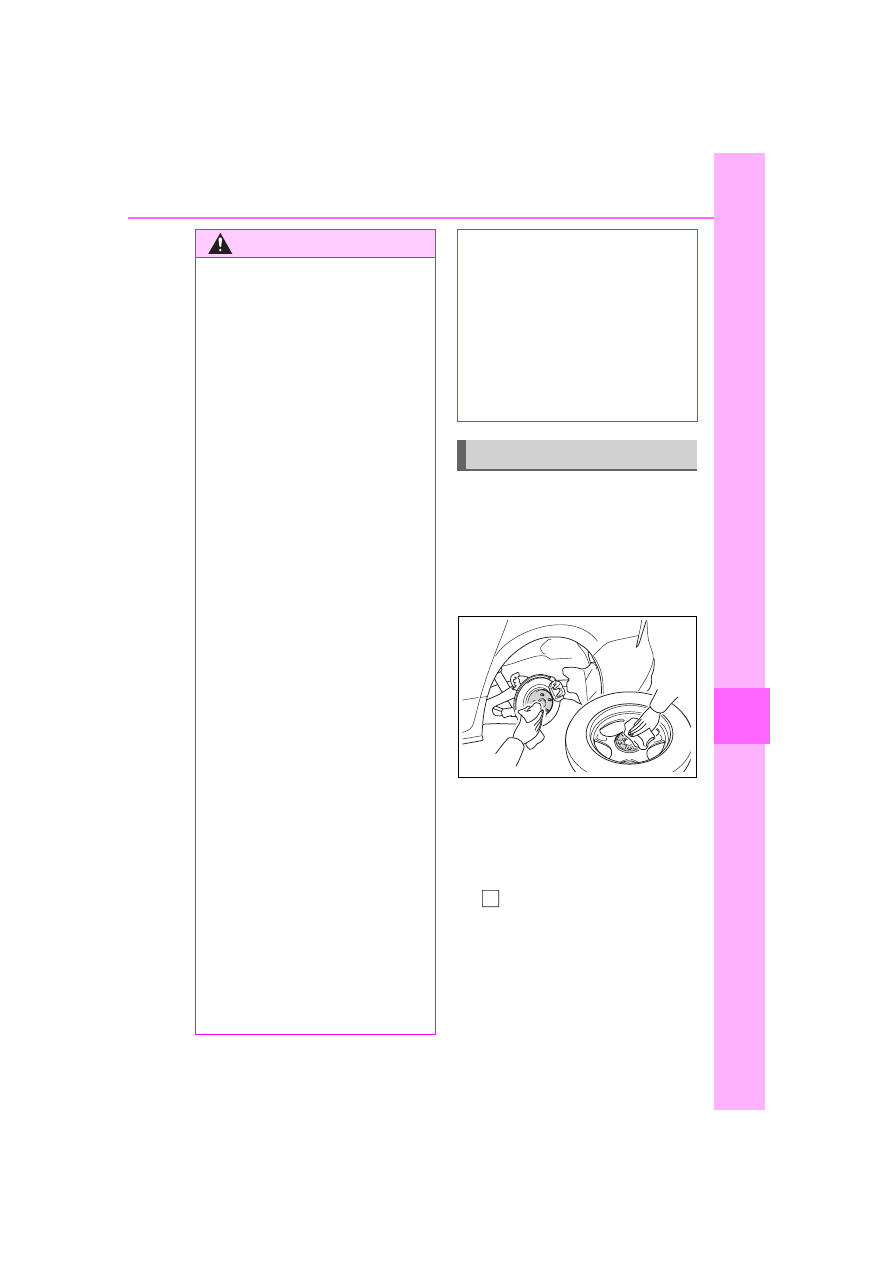

WARNING

■

When fixing the flat tire

●

Stop your vehicle in a safe and

flat area.

488

7-2. Steps to take in an emergency

WARNING

●

Do not touch the wheels or the

area around the brakes immedi-

ately after the vehicle has been

driven.

After the vehicle has been

driven, the wheels and the area

around the brakes may be

extremely hot. Touching these

areas with hands, feet or other

body parts may result in burns.

●

Connect the valve and hose

securely with the tire installed

on the vehicle. If the hose is not

properly connected to the valve,

air leakage may occur as seal-

ant may be sprayed out.

●

If the hose comes off the valve

while inflating the tire, there is a

risk that the hose will move

abruptly due to air pressure.

●

After inflation of the tire has

completed, the sealant may

splatter when the hose is dis-

connected or some air is let out

of the tire.

●

Follow the operation procedure

to repair the tire. If the proce-

dures not followed, the sealant

may spray out.

●

Keep back from the tire while it

is being repaired, as there is a

chance of it bursting while the

repair operation is being per-

formed. If you notice any cracks

or deformation of the tire, turn

off the compressor switch and

stop the repair operation imme-

diately.

●

The repair kit may overheat if

operated for a long period of

time. Do not operate the repair

kit continuously for more than

40 minutes.

●

Parts of the repair kit become

hot during operation. Be careful

handling the repair kit during

and after operation. Do not

touch the metal part around the

connecting area between the

bottle and the compressor. It will

be extremely hot.

●

Do not attach the vehicle speed

warning sticker to an area other

than the one indicated. If the

sticker is attached to an area

where an SRS airbag is located,

such as the pad of the steering

wheel, it may prevent the SRS

airbag from operating properly.

■

Driving to spread the liquid

sealant evenly

●

Drive the vehicle carefully at a

low speed. Be especially careful

when turning and cornering.

●

If the vehicle does not drive

straight or you feel a pull

through the steering wheel, stop

the vehicle and check the fol-

lowing.

• Tire condition. The tire may

have separated from the wheel.

• Tire inflation pressure. If the tire

inflation pressure is 19 psi (130
kPa, 1.3 kgf/cm

or bar) or less,

the tire may be severely dam-

aged.

489

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

NOTICE

■

When performing an emer-

gency repair

●

A tire should only be repaired

with the emergency tire punc-

ture repair kit if the damage is

caused by a sharp object such

as nail or screw passing through

the tire tread.

Do not remove the sharp object

from the tire. Removing the

object may widen the opening

and disenable emergency repair

with the repair kit.

●

The repair kit is not waterproof.

Make sure that the repair kit is

not exposed to water, such as

when it is being used in the rain.

●

Do not put the repair kit directly

onto dusty ground such as sand

at the side of the road. If the

repair kit vacuums up dust etc.,

a malfunction may occur.

●

Make sure to stand the kit with

the bottle vertical. The kit can-

not work properly if it is laid on

its side.

■

Precautions for the emer-

gency tire puncture repair kit

●

The repair kit power source

should be 12 V DC suitable for

vehicle use. Do not connect the

repair kit to any other source.

●

If fuel splatters on the repair kit,

the repair kit may deteriorate.

Take care not to allow fuel to

contact it.

●

Place the repair kit in a storage

to prevent it from being exposed

to dirt or water.

●

Store the repair kit in the lug-

gage compartment out of reach

of children.

●

Do not disassemble or modify

the repair kit. Do not subject

parts such as the air pressure

indicator to impacts. This may

cause a malfunction.

■

To avoid damage to the tire

pressure warning valves and

transmitters

When a tire is repaired with liquid

sealants, the tire pressure warn-

ing valve and transmitter may not

operate properly. If a liquid seal-

ant is used, contact your Toyota

dealer as soon as possible. After

use of liquid sealant, make sure to

replace the tire pressure warning

valve and transmitter when repair-

ing or replacing the tire. (



P.426)

490

7-2. Steps to take in an emergency



Stop the vehicle in a safe
place on a hard, flat surface.



Set the parking brake.



Shift the shift lever to P.



Stop the hybrid system.



Turn on the emergency flash-
ers. (



P.456)



Disable the power sliding door
system. (



P.148)



For vehicles with power back
door: Disable the power back
door system. (



P.163)

Spare tire

If you have a flat tire

(vehicles with spare

tire)

Your vehicle is equipped
with a spare tire. The flat tire
can be replaced with the
spare tire.
For details about tires:



P.421

WARNING

■

If you have a flat tire

Do not continue driving with a flat

tire.
Driving even a short distance with

a flat tire can damage the tire and

the wheel beyond repair, which

could result in an accident.

Before jacking up the
vehicle

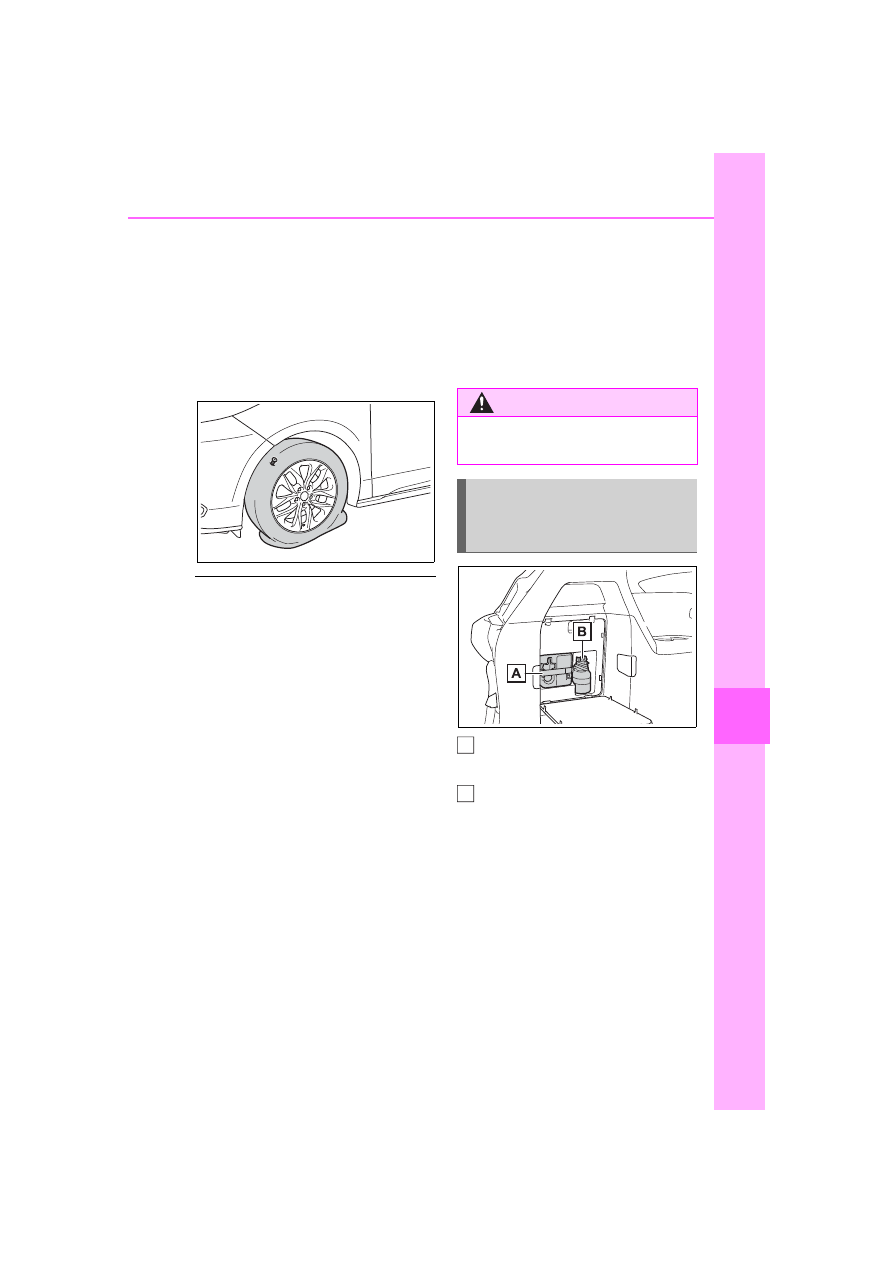

Location of the spare tire, jack and tools

491

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

Wheel nut wrench

Jack handle

Wheel lock key

(if equipped)

Jack

: Documentation relating to the wheel lock key, such as the registration

and I.D. card, is inside the glove box.

When replacing tires on a vehi-
cle with wheel lock nuts, use the
following procedures to remove
and install the wheel lock nuts.
The wheel lock key is stored
together with the tools on the
right-hand side of the luggage
compartment. Always return the
wheel lock key to its original
position after use, so that it does
not get lost.

■

Removal

For ease of removal, the wheel
lock nut should always be the

WARNING

■

Using the tire jack

Observe the following precau-

tions.
Improper use of the tire jack may

cause the vehicle to suddenly fall

off the jack, leading to death or

serious injury.

●

Do not use the tire jack for any

purpose other than replacing

tires or installing and removing

tire chains.

●

Only use the tire jack that

comes with this vehicle for

replacing a flat tire.

Do not use it on other vehicles,

and do not use other tire jacks

for replacing tires on this vehi-

cle.

●

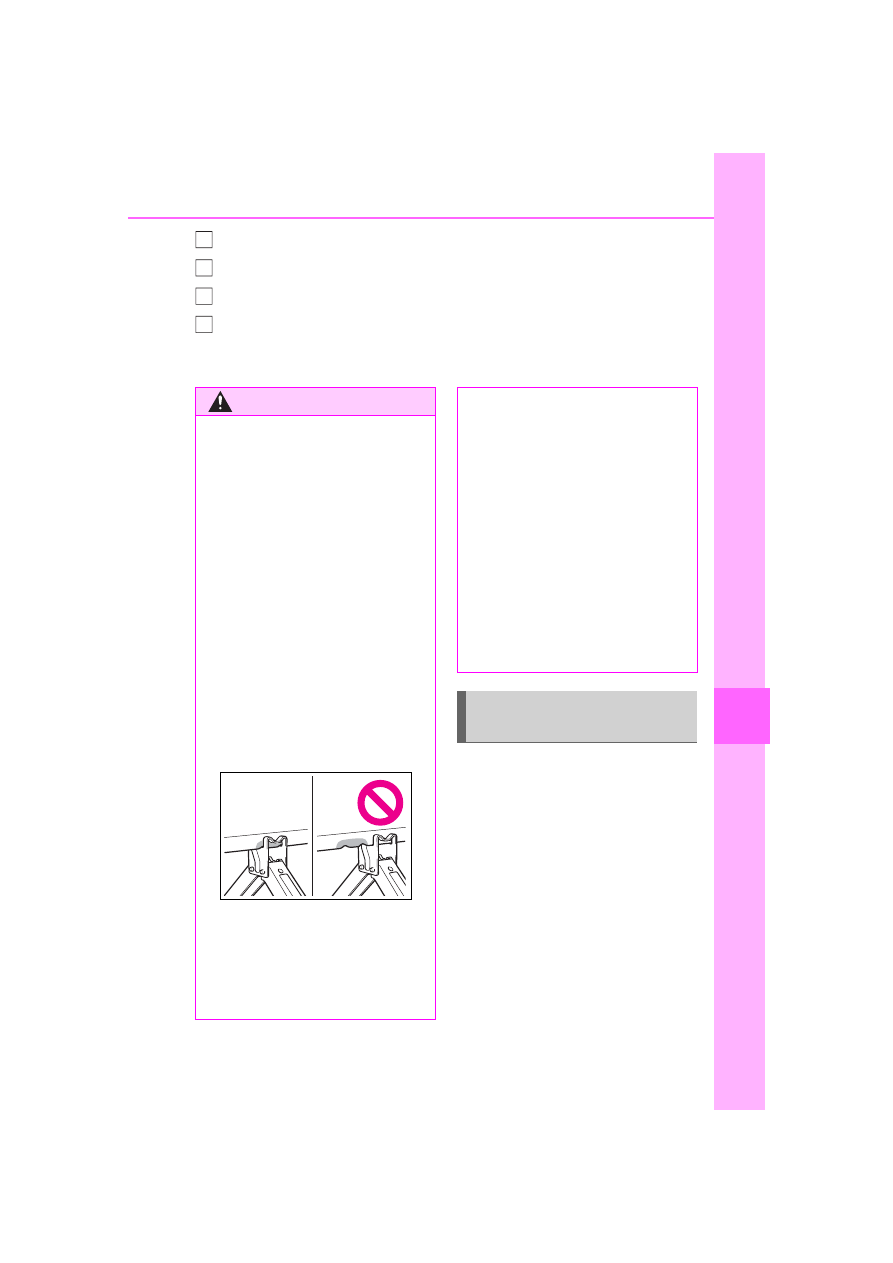

Put the jack properly in its jack

point.

●

Do not put any part of your body

under the vehicle while it is sup-

ported by the jack.

●

Do not start the hybrid system

or drive the vehicle while the

vehicle is supported by the jack.

●

Do not raise the vehicle while

someone is inside.

●

When raising the vehicle, do not

put an object on or under the

jack.

●

Do not raise the vehicle to a

height greater than that required

to replace the tire.

●

Use a jack stand if it is neces-

sary to get under the vehicle.

●

When lowering the vehicle,

make sure that there is no-one

near the vehicle. If there are

people nearby, warn them

vocally before lowering.

Wheel lock nut (if
equipped)

492

7-2. Steps to take in an emergency

first one loosened.

Place the wheel lock key on
top of the wheel lock nut,
turning until the wheel lock
key and wheel lock nut pat-
terns engage.

Place the wheel nut wrench
on the wheel lock key, and
while applying pressure on
the wheel lock key, loosen
the wheel lock nut.

■

Installation

For ease of installation, the
wheel lock nut should always be
the last one tightened.

By hand, install a wheel lock
nut on each wheel.

Place the wheel lock key on
top of the wheel lock nut,
turning until the wheel lock
key and wheel lock nut pat-
terns engage.

Place the wheel nut wrench
on the wheel lock key, and
while applying pressure on
the wheel lock key, tighten
the wheel lock nut to the rec-
ommended torque.

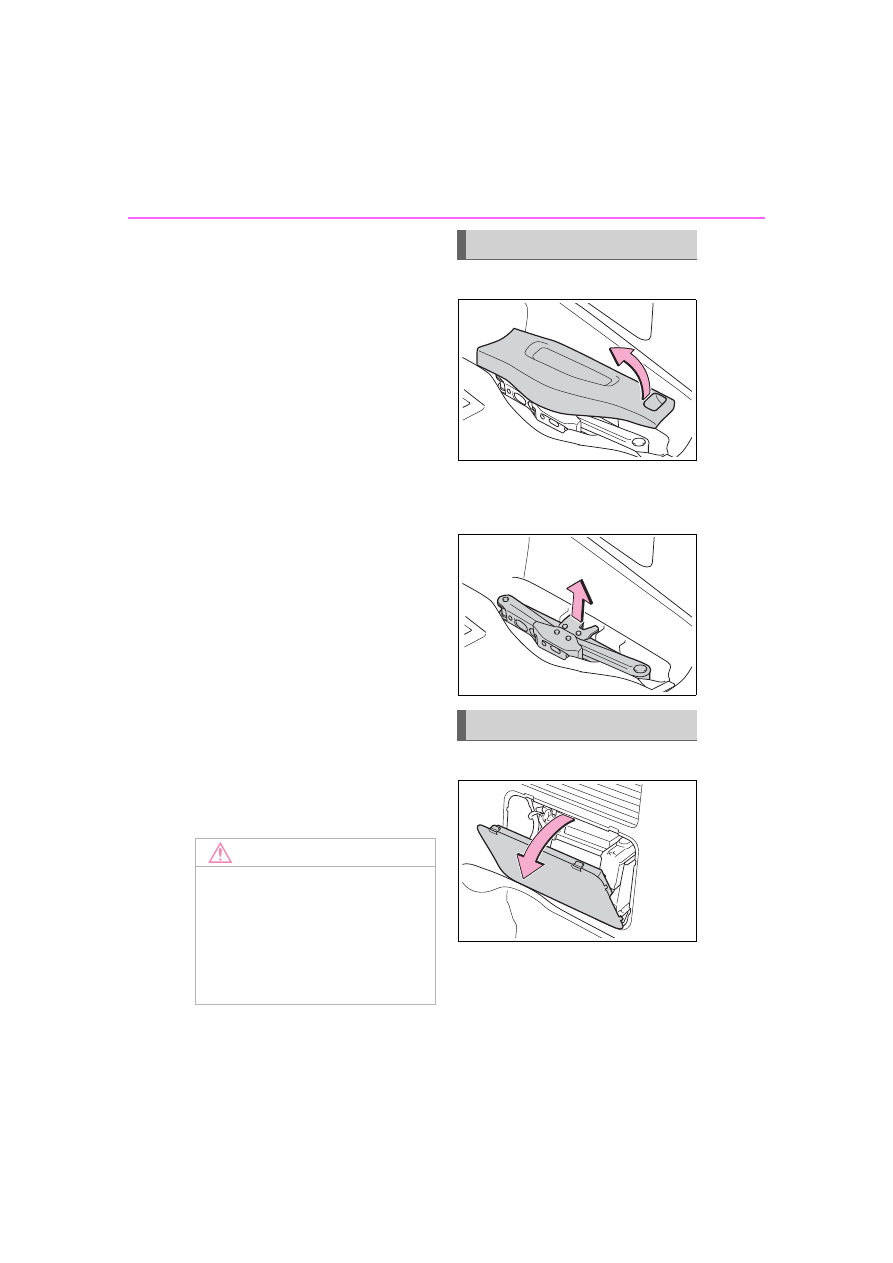

Pull the handle upward.

Take out the jack.

Do not touch the threaded portion

of the jack as it is greased.

Remove the cover.

NOTICE

■

Wheel lock nut

Do not use an impact wrench.

Using an impact wrench may

cause permanent damage to

wheel lock nut and wheel lock

key. If in doubt about wheel lock

application, contact your Toyota

dealer.

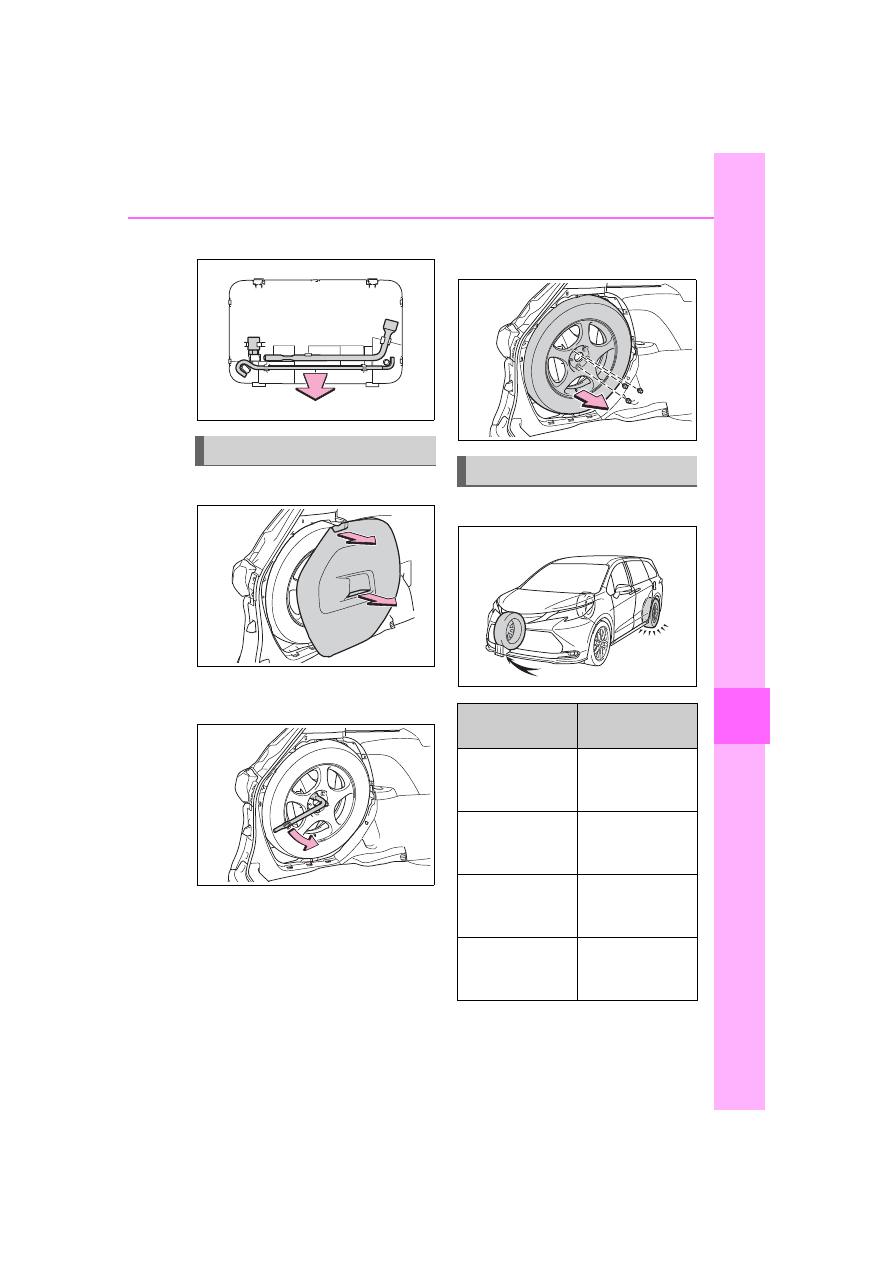

Taking out the jack

Taking out the tools

493

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

Take out the tools

Remove the cover.

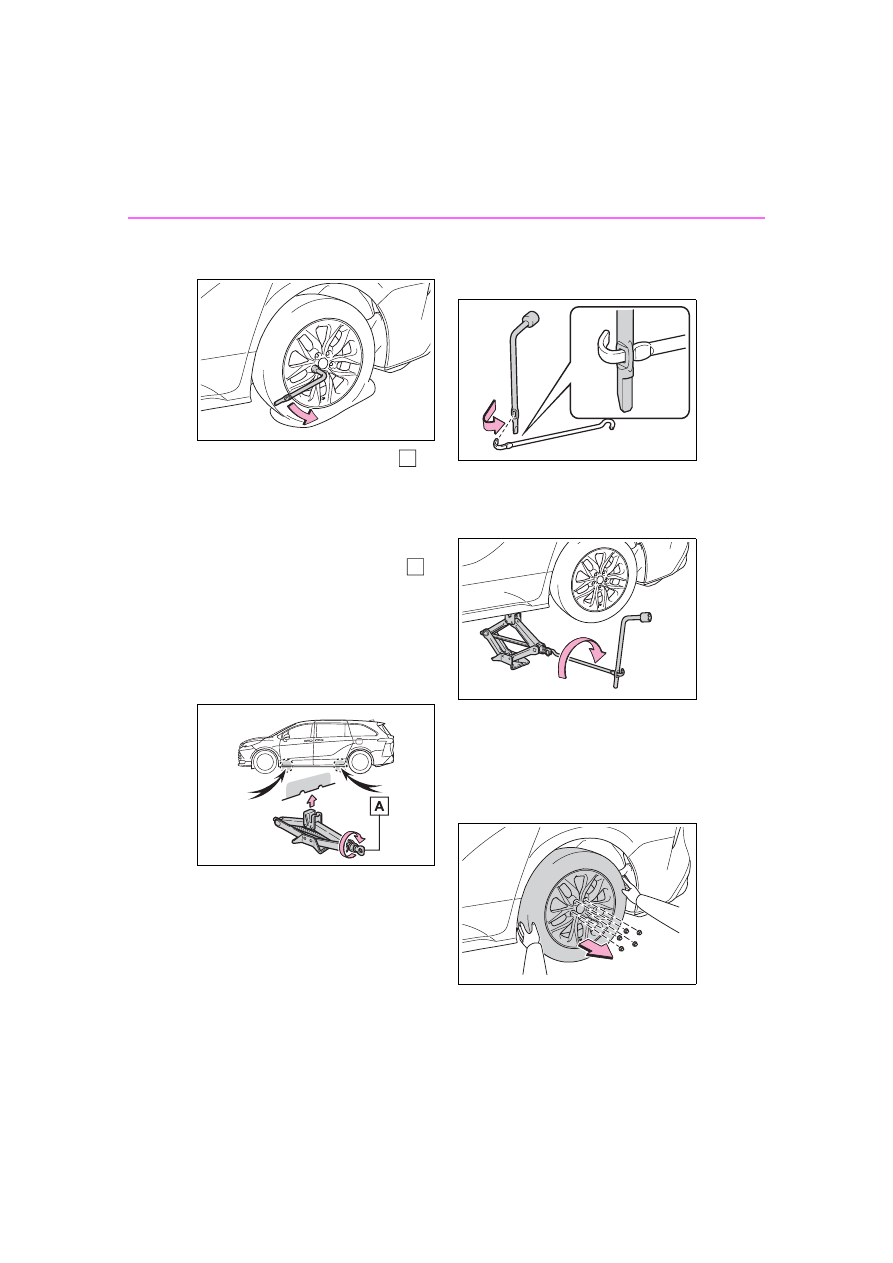

Slightly loosen the wheel
nuts (one turn).

Remove all the wheel nuts
and take out the spare tire.

Chock the tires.

Taking out the spare tire

Replacing a flat tire

Flat tire

Wheel chock

positions

Front left-hand
side

Behind the rear
right-hand side
tire

Front right-hand
side

Behind the rear
left-hand side
tire

Rear left-hand
side

In front of the
front right-hand
side tire

Rear right-hand
side

In front of the
front left-hand
side tire

494

7-2. Steps to take in an emergency

Slightly loosen the wheel
nuts (one turn).

Turn the tire jack portion

by hand until the notch of the
jack is in contact with the jack
point.

After removing the jack from the
jack holder, turn the jack portion

in the opposite direction to lower

the jack, and then adjust the jack

set position.
The jack point guides are located

on the side of rocker moulding.

They indicate the jack point posi-

tions.

Assemble the jack handle
and the wheel nut wrench as
shown in the illustration.

Raise the vehicle until the tire
is slightly raised off the
ground.

Remove all the wheel nuts
and the tire.

When resting the tire on the

ground, place the tire so that the

wheel design faces up to avoid

scratching the wheel surface.

495

7-2. Steps to take in an emergency

Whe

n tr

ouble

rises

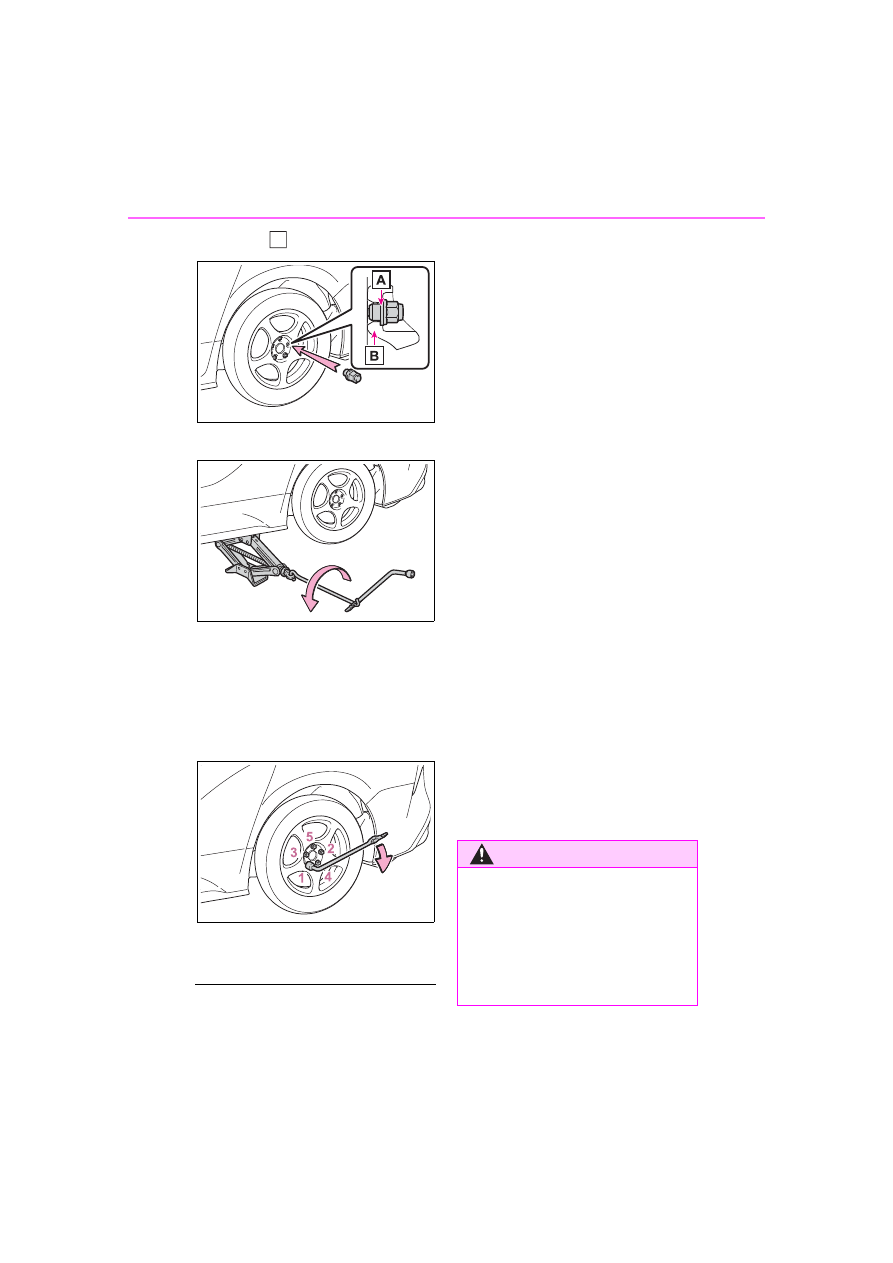

Remove any dirt or foreign
matter from the wheel con-
tact surface.

If foreign matter is on the wheel

contact surface, the wheel nuts

may loosen while the vehicle is in

motion, causing the tire to come off.

Install the tire and loosely
tighten each wheel nut by
hand by approximately the
same amount.

Turn the wheel nuts until the wash-
ers

come into contact with the

WARNING

■

Replacing a flat tire

●

Observe the following precau-

tions. Failure to do so may

result in serious injury.

• Do not touch the disc wheels or

the area around the brakes

immediately after the vehicle

has been driven. After the vehi-

cle has been driven the disc

wheels and the area around the

brakes will be extremely hot.

Touching these areas with

hands, feet or other body parts

while changing a tire, etc. may

result in burns.

• Remove the spare tire before

jacking up the vehicle. If the

spare tire is removed after jack-

ing up the vehicle, the tire car-

rier and the spare tire may

interfere with the jack and cause

a serious accident.

●

Failure to follow these precau-

tions could cause the wheel

nuts to loosen and the tire to fall

off, resulting in death or serious

injury.

• Have the wheel nuts tightened

with a torque wrench to 76 ft•lbf

(103 N•m, 10.5 kgf•m) as soon

as possible after changing

wheels.

• When installing a tire, only use

wheel nuts that have been spe-

cifically designed for that wheel.

• If there are any cracks or defor-

mations in the bolt screws, nut

threads or bolt holes of the

wheel, have the vehicle

inspected by your Toyota

dealer.

• When installing the wheel nuts,

be sure to install them with the

tapered end facing inward.

(



P.437)

●

For vehicles with power sliding

door and/or power back door: In

cases such as when replacing

tires, make sure to disable the

power sliding door system

(



P.148) and/or the power

back door system (



P.163).

Failure to do so may cause the

sliding door and/or the back

door to operate unintentionally,

resulting in hands and fingers

being caught and injured.

Installing the spare tire

496

7-2. Steps to take in an emergency

disc wheel

Lower the vehicle.

Firmly tighten each wheel nut
two or three times in the
order shown in the illustra-
tion.

Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)

Stow the flat tire, tire jack and
all tools.

■

The compact spare tire

●

The compact spare tire is identi-

fied by the label “TEMPORARY

USE ONLY” on the tire sidewall.

Use the compact spare tire tem-

porarily, and only in an emer-

gency.

●

Make sure to check the tire infla-

tion pressure of the compact

spare tire. (



P.523)

■

When using the compact spare

tire

As the compact spare tire is not

equipped with a tire pressure warn-

ing valve and transmitter, low infla-

tion pressure of the spare tire will

not be indicated by the tire pressure

warning system. Also, if you replace

the compact spare tire after the tire

pressure warning light comes on,

the light remains on.

■

When the compact spare tire is

attached

The vehicle height may become

lower when driving with the compact

spare tire compared to when driving

with standard tires.

■

If you have a flat front tire on a

road covered with snow or ice

Install the compact spare tire on one

of the rear wheels of the vehicle.

Perform the following steps and fit

tire chains to the front tires:

Replace a rear tire with the com-

pact spare tire.

Replace the flat front tire with the

tire removed from the rear of the

vehicle.

Fit tire chains to the front tires.

WARNING

■

When using the compact

spare tire

●

Remember that the compact

spare tire provided is specifi-

cally designed for use with your

vehicle. Do not use your com-

pact spare tire on another vehi-

cle.

Content .. 28 29 30 31 ..
